About this product manual

- 17 -
Thank you for purchasing the Fisheye FIX AQUAVOLT3500.
To ensure proper use please read and understand this Manual fully, and keep in convenient place for future
reference.
Improper use of this product may cause un-repairable damage or water leakage.
Use this product in accordance with this Manual, and always perform indicated pre-dive checks,
inspections and maintenance.
Fisheye and its agents are not responsible for any damages, including personal, physical or material, caused
by improper use, not in accordance with this user manual, or when product is repaired, modified or
disassembled by any unauthorized person or facility.
To prevent electric shock, fire and explosion absolutely do not disassemble or modify this
product.
To prevent electric shock, fire and explosion absolutely do not disassemble or modify this
product.
For night, cave or any other low light diving environments, always carry a backup light, to help
prevent panic or trouble in the event a battery becomes exhausted, a lamp burns out, or the
primary light stops operating etc.
When the following marks are shown it means there could be serious consequence. Very important
information regarding safety is noted, which must be fully understood before using this product.
Ignoring this mark and misusing product can likely lead to death or severe injury.
Ignoring this mark and misusing product may possibly lead to death or severe injury.
Ignoring this mark and misusing product may lead to injury and property damage.
DANGER
DANGER
Do not store or leave this product in the presence of infants, children or others unable to
understand potential dangers of using this product. Store out of reach of children.
Do not store this product with battery installed. Gas or liquids may be released, causing safety
hazards.
Do not shine the light into your own or any other person's eyes. Vision loss or damage may
occur.
Only use the lithium ion batteries specified for this product. Use of other batteries may damage
light or cause emission of gas, leading to dangerous condition.
Do not touch or handle battery, battery charger or AC adapter with wet or moist hands, to
avoid electric shock. Always thoroughly dry hands first.
Do not eat provided O-ring or O-ring grease.
This product is for underwater use only. Do not turn on the light in air. Heat build-up may cause
injury. Rapid thermal change may cause glass lens and parts to break, injury may result.
WARNING
WARNING
CAUTION
For Safety
INTRODUCTION
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*

- 18 -
CAUTION
This product is designed to withstand depths of 100 meters (330 feet). Using this product at
greater depths, or even shallower depths, strong impact shock combined with depth pressure
may cause water leakage. Use caution to monitor depth and protect product from shock.
To prevent water leakage and damage, first read and understand this Manual thoroughly,
inspect product before and after use and perform necessary maintenance at appropriate
intervals.
This product is for underwater use only. Do not turn on the light in air. Heat build-up may
cause glass lens and parts to break, or light body to deform.
This product can be used above water, in air. However, extended use in air will cause front
body to become very hot, so use caution when handling.
Do not place or store the light in areas of extremely high or low temperatures, or areas where
there is extreme temperature fluctuation. Doing so may cause components to degrade,
causing possibility of water leakage and damage.
Absolutely do not open rear body or front body in areas with much sand, mud, lint, dust or
other contaminants. Opening is such areas may cause such contaminants to stick to
waterproofing parts, damaging watertight integrity, leading to water leakage.
When traveling by aircraft, remove main O-ring so rear cap does not become difficult to
remove due to air pressure change. Not doing so may lead to damage when rear body must be
forcibly removed.
If this product emits unusual noise or smell, or smoke, or appears to have burnt or melted,
immediately remove batteries and contact your supplier for advice and service.
Do not expose this product to alcohol, benzene, thinner or any other organic solvents, to
prevent deformation of plastic.
In the event flooding occurs or is suspected, immediately turn power OFF, stop using and
remove battery. When opening rear cap, water and air pressure may cause the rear cap to fly
off with high force, so use caution when opening.
*
*
*
*
*
*
*
*
*
*

- 19 -
With 24 high intensity white LEDs emitting 3500 lumens. From center to edge, uniform
wide beam without waves or hotspots. Excellent for digital camera, video and general
diving applications.
Subtle lighting with light intensity dial which can be adjusted by 2% increments available.
Various information displayed on back light installed LCD panel, makes visual confirmation
easy.
Overpressure relief valve equipped.
With lithium ion batteries, discharging or refreshing not necessary. Batteries are
removable so quickly changing to a second set of batteries allows second dive while first
battery set recharges.
The battery is removable so it is available to take on a plane.
When the battery charge becomes low, it automatically switches the light to low power
mode to save enough light source for divers to rise to the surface safely.
In hot temperatures, it automatically switches the light to low power mode to prevent
heat generation.
Remote controller ready (Option).
Lamp Type
Color Temperature
Light Output
Battery Type
Charge Time
Continuous Burn Times
Usability in Air
Beam Angle
Depth Rating
Lamp Life
Materials
Dimensions
Weight
Included Items
1.2W high intensity white LED diodes x 24
6,500K～7,000K
3,500 lumen maximum
Li-Ion
180 min. maximum
60 min. (max. output) + 20 min. (20% low output)
Not useable
Approx. 115 degrees
100 meters (300 feet)
Approx. 35,000 hours
Corrosion resistant aluminum alloy
Diameter 65.5 mm x 152.6 mm
498 grams (In air with battery)
295 grams (Underwater with battery)
Rechargable Li-Ion Battery
Multi-volt AC Cable
Charging Cradle
YS Adapter
Hand Grip
Battery Protect Cover x2
O-ring removal tool
Spare O-ring set
O-ring Grease
User Manual / Warranty Card (printed on back page)
PRODUCT CHARACTERISTICS / SPECIFICATIONS
*
*
*
*
*
*
*
*
*

- 20 -

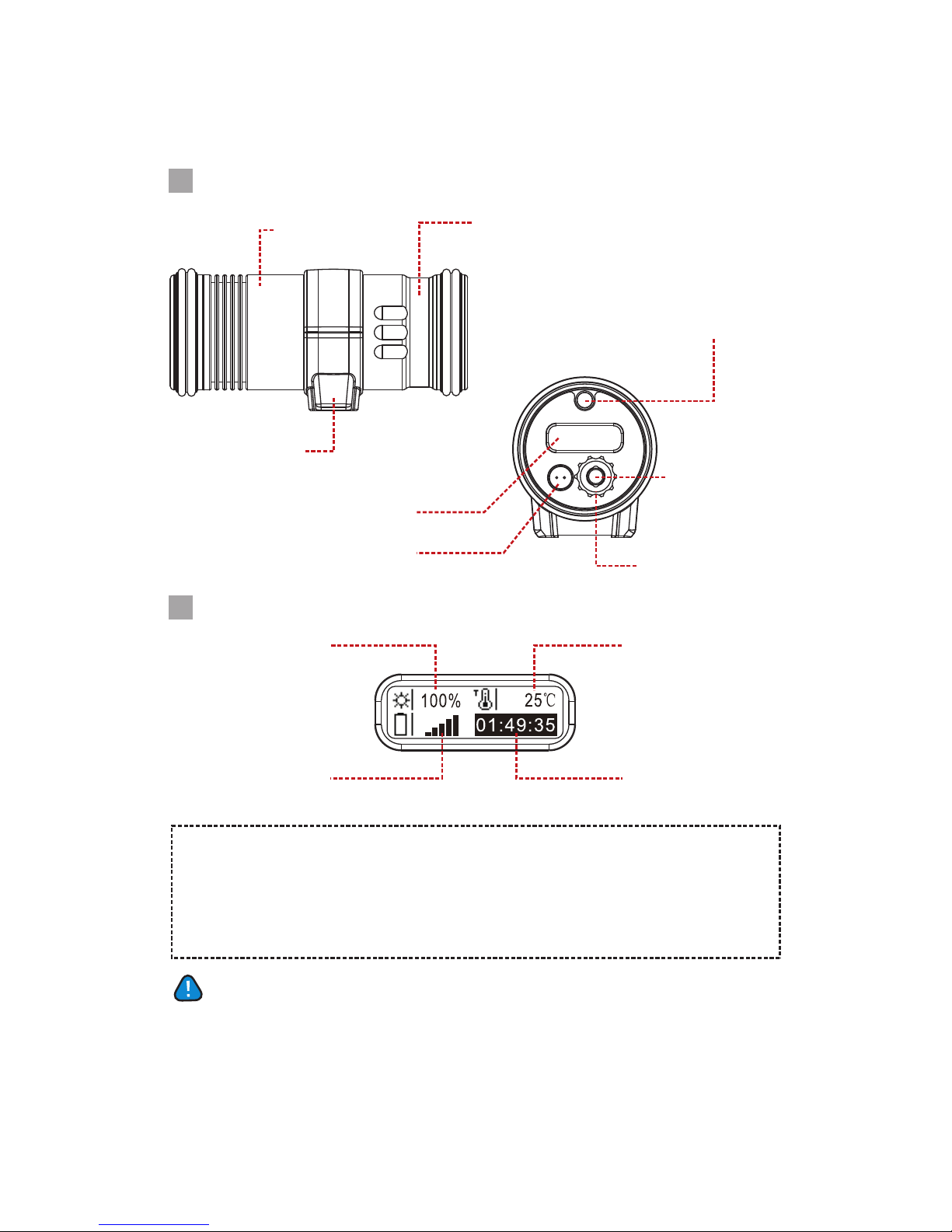

Front Body
Overpressure relief valve
Adapter Holder
Optical Fiber Connector
(for optional Remote Controller)
Rear Body
Light Output Adjustment Dial
Power / Light Output
Adjustment Button
LCD Panel
Display on the LCD Panel
Lighting display
Remaining battery
charge display
Inside temperature display
Remaining lighting time display
Lighting display
Inside temperature display
Remaining battery charge display
Remaining lighting time display
■
■
■
■
Remaining lighting time display on the LCD panel
Remaining lighting time displayed on the LCD panel is the theoretical value calculated by remaining
battery charge and irradiation lighting. Please note that there may be a difference between this value
and the actual lighting time depending on the battery condition or usage environments such as
surrounding water temperature.
Safety mode (refer to page 6) automatically engages when the battery voltage becomes lower than a
certain level irrespective of the LCD panel display.
Name of Parts
Current irradiation lighting is displayed in 2% increments.
Current inside temperature is displayed in 1℃ increments.
Current remaining battery charge is displayed in 5 level
bars.
Current remaining lighting time is displayed in 1-second
increments.

- 21 -
This product is designed on the assumption of underwater usage. Please be
aware that the light–emitting part gets hot and may become a cause of burns if it
is left on for a long time on land.
Please be aware that the light–emitting part gets hot and the glass may break or
the body case may become distorted and lead to leakage if it is left on for a long
time on land.
・
・

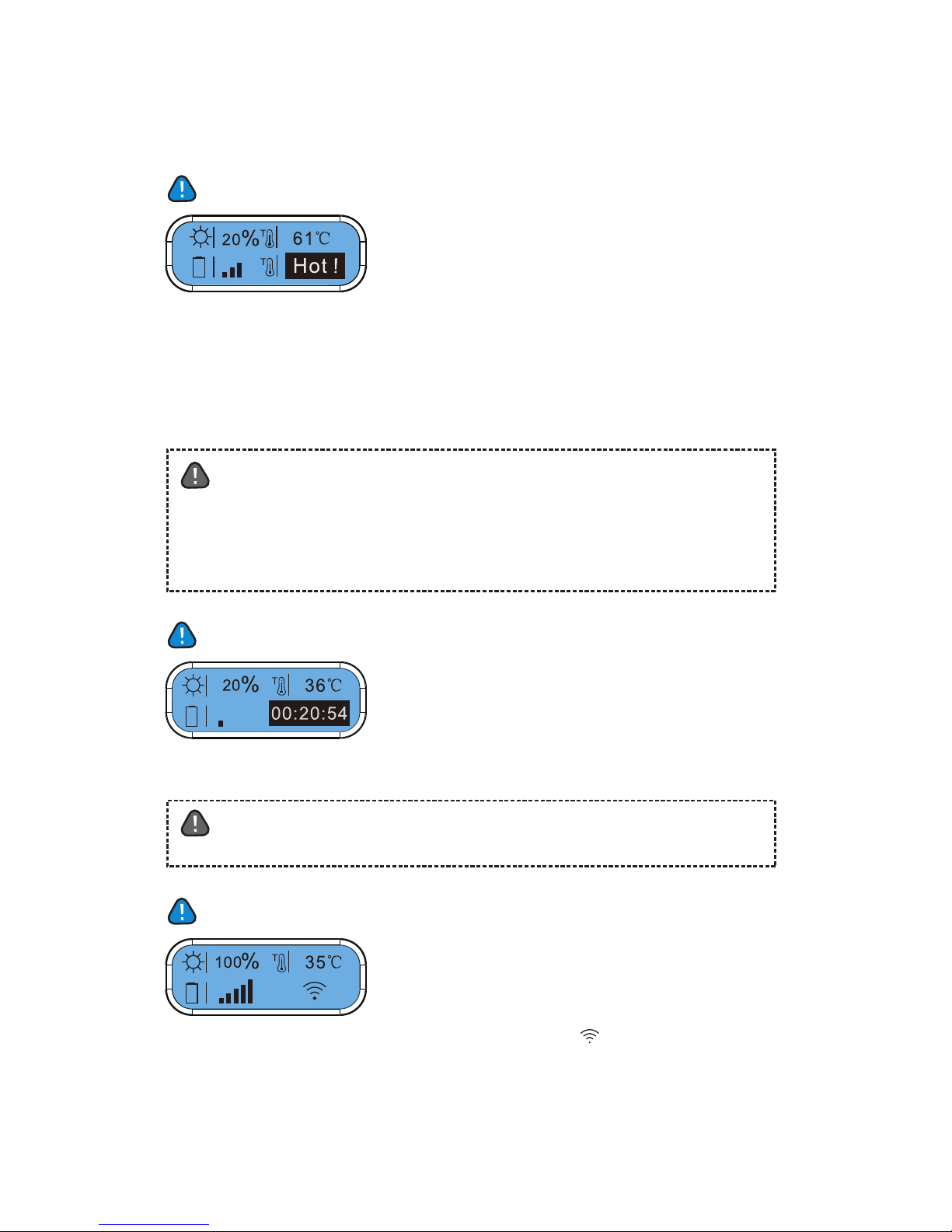

Protection mode at high temperature
When the light head goes over 60℃ during use, the protection mode engages and reduces
the lighting to 20% maximum. High temperature mark [Hot!] will be displayed on the LCD
panel. If the protection mode at high temperature engages, turn off the power switch and
cool down the light head.
Also be aware of handling the light head with bare hands as the temperature is high.
Normal mode is reset when the temperature goes under 55℃.
Please surface immediately after it switches to automatic lighting reduction mode
for your safety.
・
Safety mode (Automatic lighting reduction function)
Remote control (optional)
When the remaining battery charge bar reaches one, the lighting is reduced to 20% maximum. It will
remain lit on this condition for 20 minutes and then turn off automatically.
When the optional remote control is connected, remote control mark [ ] will be displayed on the LCD
panel. Please refer to the remote control manual for details.
CAUTION
CAUTION

- 22 -
1. Attach the YS adapter to the adapter holder.
2. Tighten up the screw to fix.
When the [Light Intensity Dial] is rotated about 180 degrees clockwise, the
lighting status becomes 0%. (The power does not turn off.)
USE METHOD
How to operate
Installation of YS Adapter
Turning on the light
Light intensity with Power/Light Intensity Button
Turning off the light
Light intensity with Light Intensity Dial
The screw hole
which fixes YS Adapter
YS adapter fixed screw
insertion direction
HINT
Direct Base from Ultralight Control Systems (optional) can also be
attached.
HINT
Fisheye logo will be displayed on the LCD panel for about
2 seconds after it is turned on.
HINT
Light Output Adjustment Dial
Power / Light Output
Adjustment Button
When the [Power/Light Intensity Button] is pressed and held for about 2 seconds, it
flashes 3 times and the light turns off.
When the Light Intensity Dial is rotated clockwise, the lighting increases by 2% increments.
When the Light Intensity Dial is rotated anti-clockwise, the lighting decreases by 2%
increments.
Every time the Power/Light Intensity Button is pressed, the lighting intensity changes in
the order of [80%]⇒[50%]⇒[30%]⇒[100%].
The light turns on 100% when [Power/Light Intensity Button] is pressed once when it is
fully recharged.

- 23 -
12
Do not work with wet hands or under wet circumstances as it may result in electric
shock or damage.
Perform O-ring check for O-ring, O-ring groove and O-ring contact surface for
contaminants like dust, sand etc and grease O-ring before assembling the rear cap.
Be careful not to drop the battery. It may result in not only damaging the battery but
also personal injury etc.
Battery can be loaded from either side.
Please put the battery protection cap to prevent any
short-circuit while keeping the battery autside.
1. Hold the front body firmly and rotate the rear body anticlockwise with the other hand
to remove.
2. Tilt the front body and take out the battery.
Disconnecting Battery
Follow the opposite procedure when installing the battery.
HINT
HINT
CAUTION
CAUTION

- 24 -
Take the battery out of the light.
Connect the AC adapter to the recharging cradle and
insert the plug into a power outlet. The indicator lamp on
the right side will become red.

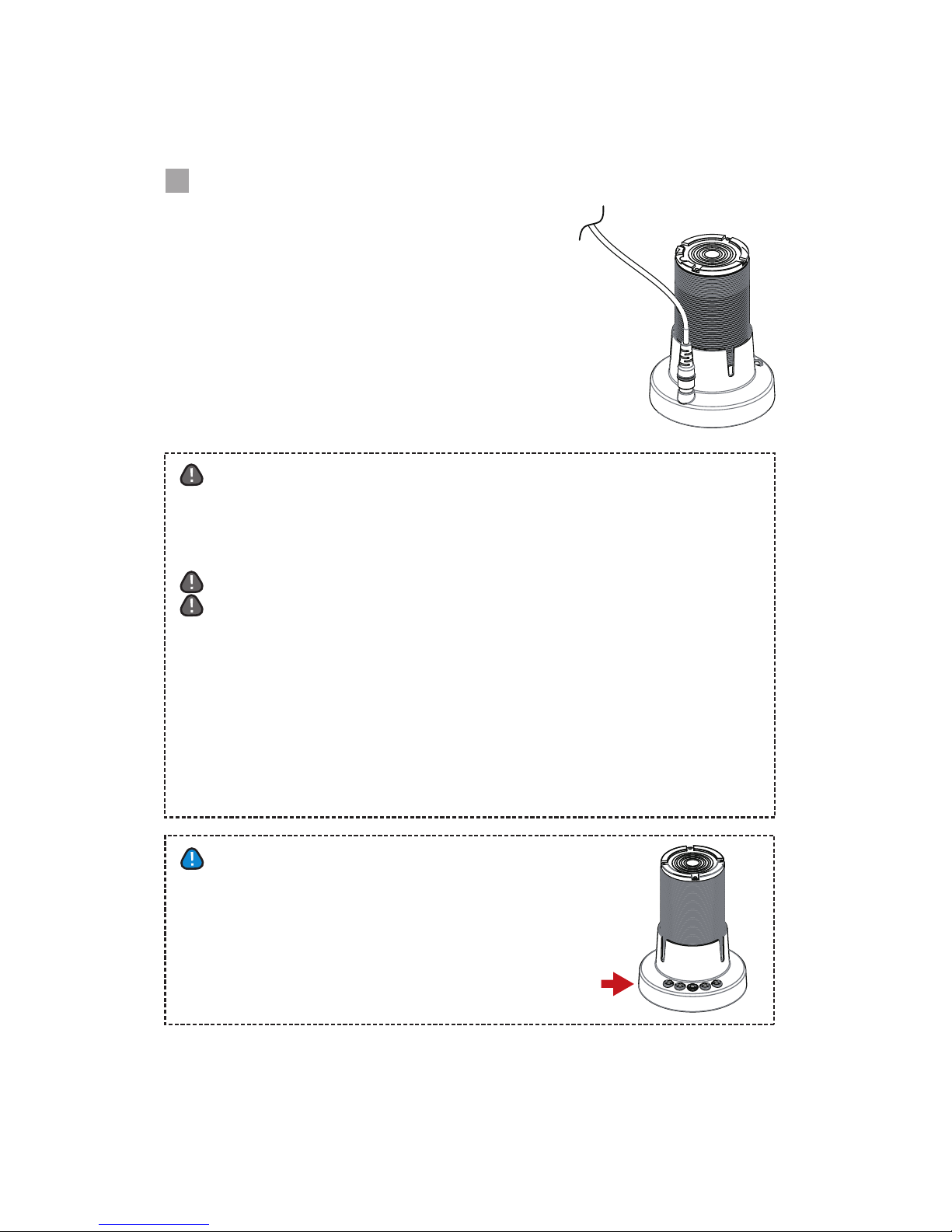

Set the battery in the cradle. The ind icator lamp will
become green. (The lamp on the right side will flash
depending on the recharge level.)
When recharging is complete, all the indicator lamps will
be green.(Recharging time: about 3 hours maximum)
Remove the battery from the cradle.
Do not charge on paper, carpet or anything potentially flammable as battery and charger may
become hot during use.
Do not charge with coiled cables as heat build-up may result in fire.
Do not handle charging work with wet hands or charge under wet circumstances to avoid electric
shock.
Do not charge batteries that have been flooded, or are suspected of having water intrusion.
Charger is multi-volt compatible (100-240V), but using on a resort or a cruise ship with in-house
power generation may cause highly unstable voltage output and result in damage to the charger. It is
recommended to use a converter with a built-in safety circuit.
Do not charge in temperatures above 30 degrees C (86F) or in direct sunlight.
Charge in a stable position to avoid the plug being disconnected from vibration, impact shock or
dropping. In case of the plug being disconnected during charge, do not charge again while the battery
is hot. Cool it to room temperature before recharging, as the temperature sensor may not allow it to
take a full charge.
Do not unplug the AC adapter from the plug socket while the charging plug is still inserted. Doing so
may cause over discharge and may not allow the battery to take a subsequent charge.
When the battery is set in the recharging cradle without
connecting the AC adapter, an estimate of the remaining
charge can be gauged by the indicator displayed.
Charging Battery
1.
2.
3.
4.
5.
HINT
Displayed in 5 levels by indicator lamp
However, do not leave it as it is for a long time. The battery
may overdischarge and lead to deterioration.
DANGER
WARNING
CAUTION

- 25 -
Regarding O-ring care & maintenance, pay attention to the following points to ensure
the O-ring's waterproof integrity and prevent water leakage.
1. Using the included O-ring removal tool, remove the light body rear O-ring that the
rear body fits over. Never use metal or sharp objects to remove the O-ring, such
as scissors, needles, box cutter blades etc.
2. As you remove each O-ring, place on a clean surface in the order removed.
3. To prevent wear and damage to the O-ring, lightly coat it with a thin film of the
included O-ring grease. Be careful that no hair, lint, dust, sand etc. adheres to
the greased O-ring, or water will leak. If there are any such contaminants on the
O-ring, wash off first and then grease-up. Also, don't put too much grease on
the O-ring or it will attract more contaminants, possibly causing water leakage.
Just a thin film spread with your fingertips is fine.
4. Check the O-ring surface for cracks or cuts and always replace with a new O-ring
if you see any such damage.
5. Check the groove where the O-ring seats, and the water-sealing O-ring contact
surface, for sand, hair, dirt etc. and wipe clean as necessary, using a cotton
tipped swab for example. Also, when inspecting the O-ring groove and contact
surface, carefully check for scratches or cracks, which will cause water leakage.
Do not use product if you find such damage.
6. Once you have checked above points, install the correct lightly greased O-ring
onto the Battery Box Lid groove, making sure it is uniform with no twists or
bulges.
7. Always perform this O-ring, O-ring contact groove & contact surface inspection
and O-ring grease-up every time you open the light.
The FIX AQUAVOLT 3500 is waterproof due to an O-ring seal.
There is one user serviceable O-ring.
Regular overhaul is recommended once every 1-2 years, regardless of the frequency of
use of the product.
Waterproof O-rings that cannot be exchanged by customers are used inside of the
product. Please ask our customer service for overhaul after a certain period of time to
exchange and maintain these to prevent accidents and extend the life of the product.
MAINTENANCE
O-ring Check
Recommendation for Overhaul
CAUTION

- 26 -
Using salt damage inhibitor SALT-AWAY included in FIX maintenance kit, sold
separately, is even more effective.
HINT
Leakage check is recommended before using the product.
Submerge the product by horizontally lowering in a tub or bowl filled with water.
Take out of the water at 3 second, 30 second and 3 minute intervals, open the rear case and
make sure that there is no sign of leakage inside the body.
1. After use in salt water, before opening rear cap, loosen arm fixing screw and soak in fresh
water for 10-20 minutes. While in the water, manipulate and rotate the Power / Light
Output Adjustment Dial and arm fixing screw to work out salt deposits.
2. After removing from rinse tank, rinse with slow flowing running water. Do not use high
pressure water, which will compromise O-ring seal and cause water leakage.
3. After rinsing, wipe off remaining water with a soft dry cloth. Do not dry in direct sunlight
and do not dry in a dryer or oven, or parts may deform or be damaged.
4. Then lightly grease-up and install O-rings and store light. Install a new O-ring once per
year, even if the current O-ring shows no signs of wear or damage.
5. For long term storage, avoid areas of extreme high temperature and humidity, extreme
cold environments and direct sunlight.
6. Do not store in areas having chemical fumes, organic solvents or strong cleaning agents,
which can cause deformation and other damage.
Pre-diving Check
After use and storage
When soaking in water absolutely do not rotate or loosen the rear body or front
body.
* After use in salt water, if salt deposits are allowed to remain and dry in small
gaps, salt crystals will form which will not subsequently dissolve. These salt
crystals will wear, crack and damage rubber O-rings, or compromise O-ring seal,
causing water leakage. Always rinse thoroughly with fresh water.
CAUTION

- 27 -

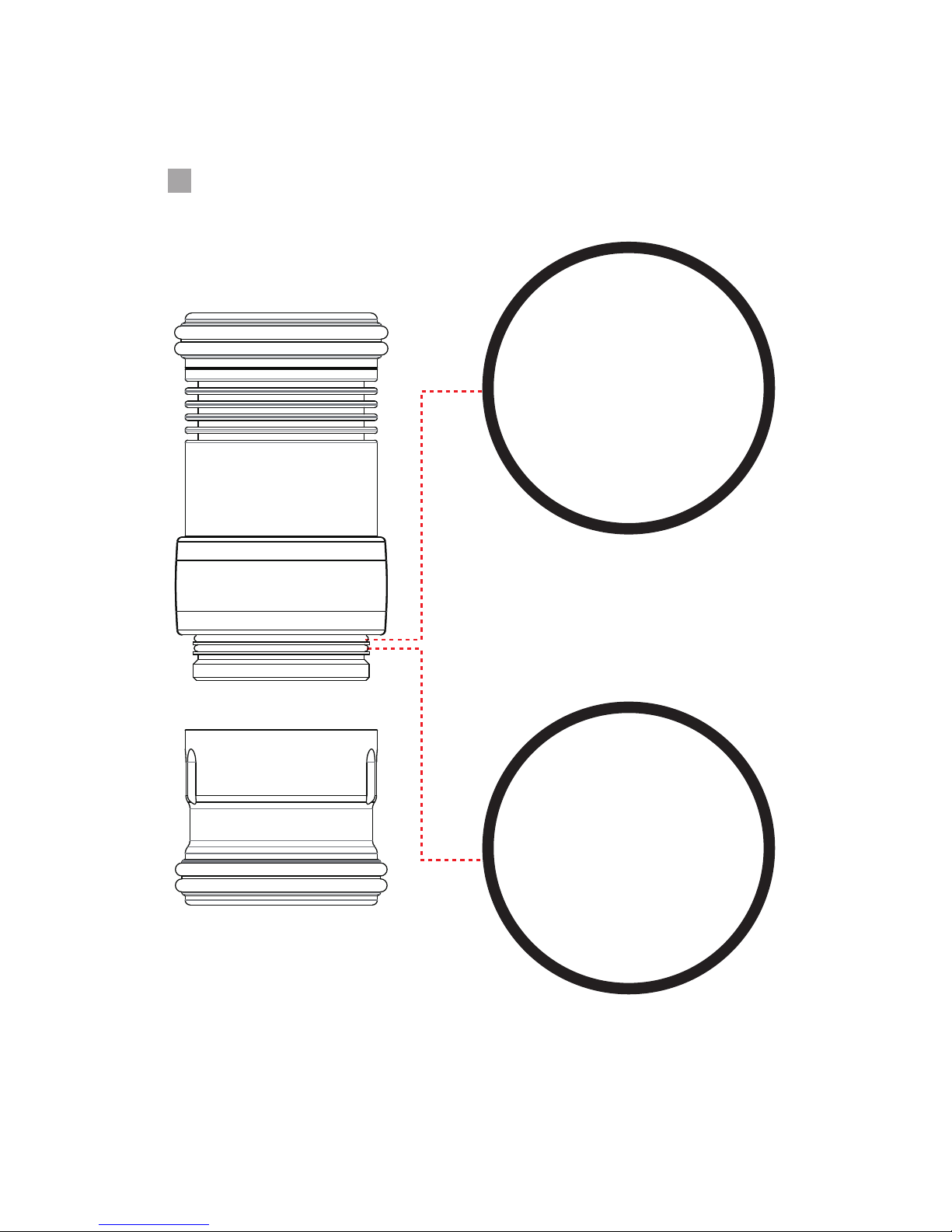

Spare O-ring Diagram
Light Body (Front)
Inner diameter 49.5mm
Light Body (Rear)
Inner diameter 49.5mm

- 28 -
OPTIONS
●FIX AQUAVOLT3500 Li-Ion Battery
●FIX AQUAVOLT3500 Battery Protection Cap
●FIX AQUAVOLT3500 Remote Controller
●FIX AQUAVOLT3500 Cradle
●FIX AQUAVOLT3500 AC Adapter
●FIX AQUAVOLT3500 Spare O-ring set
●Ultralight Control Systems Direct Base
●FIX Maintenance Kit
●FIX Maintenance Kit Light

- 29 -
WARRANTY CONDITIONS
Fisheye Co., Ltd. warrants and will repair or replace the product free of charge for one
year from purchase, when used in accordance with this User Manual. However, this
Warranty does not cover any losses, damage or water intrusion to any other equipment for
any reason. Please obtain insurance for all your equipment. Also, this Warranty does not
cover any losses resulting from use of product, or malfunction of this product, including
but not limited to travel expenses or unattained profits from inability to use product. User
shall bear shipping expense to Fisheye's designated repair facility both during and after
warranty period.
During warranty period the following cases are not free of charge. Any authorized repairs
will be charged at normal rates.
1. Damage caused by improper use, not in accordance with User Manual.
2. When repaired, modified or disassembled by an unauthorized person or facility.
3. After purchase, if damaged during transport, if dropped, or if subject to strong impact
shock.
4. If damaged in fire or natural disaster such as earthquake, flood, lightning etc.
5. If stored in area of high temperature or humidity fluctuation, or in area with fumes,
organic solvents or other chemicals.
6. When damaged due to operation when covered with sand, mud etc.
7. When returned for warranty service not accompanied with Warranty Card, or if Warranty
Card is altered.
8. When User Registration Card is not returned within 14 days of purchase.
Fisheye Co., Ltd. reserves the right to modify product, change specifications, change
design, alter price etc. without prior notification.

- 30 -
MEMO

- 31 -
MEMO

保証書
＊必ず販売店名印を押して下さい。
「販売店名印」「購入日」の記入をご確認ください。
記入無き場合は無効となりますので、直ちにお買い上げ店までお申し出ください。
本書は再発行致しませんので、紛失しないよう大切に保存してください。
株式会社フィッシュアイ
〒171-0052 東京都豊島区南長崎5-29-7 TEL:[phone] FAX:[phone]
www.fisheye-jp.com
E-mail:[email protected]
03-5988-0191 [email protected]
フィッシュアイカスタマーサービス
ご購入後のメンテナンス・修理等は株式会社フィッシュアイにて承ります
5-29-7 Minami Nagasaki Toshima-ku, Tokyo 171-0052 JAPAN
TEL [phone] FAX [phone]
www.fisheye-jp.com
E-mail:[email protected]
Fisheye Co., Ltd.
International Distribution & Service
Warranty Information
お名前
ご住所
電話番号
Customer Name
Address
Tel / Email
保証期間
購入日
品名
品番
製造番号
販売店名
Warranty Period
Purchase Date
Product Name
Model Name
Serial Number
Dealer Name
ご購入日より一年間
One year from purchase date
Dealer: Fill your company name & contact information, purchase date, model name and serial number.
Customer: Copy and Send the above information when returning the housing for services.
Not valid unless all information provided above. Contact your dealer immediately if any information is missing.
FIX LIGHT
FIX AQUAVOLT3500
