FISIOTECH BOBATH SERIES User manual

Rev.05 09/2020
USE AND MAINTENANCE MANUAL
ADE.2 COUCH BOBATH SERIES
ADE.2 COUCH MODELS
Description
Code
ADE.2
116040

2 of 11
Table of contents
INTRODUCTION p. 3
SAFETY –WARNINGS –WARRANTY p. 4
PACKAGING –UNPACKING p. 5
PRODUCT LABEL AND SYMBOLS p. 6
TECHNICAL SPECIFICATIONS p. 7
WARNINGS –MAINTENANCE p. 8
CLEANING p. 9
SPARE PARTS p. 10
INSPECTION RECORD SHEET p. 11

3 of 11
The purpose of this manual is to provide users and operators with the necessary information to use
the couch properly, autonomously, and safely.
This manual contains information on the technical features, operation, maintenance, spare parts
and security of the couch.
This manual must always be carried with the equipment and stored with care so that the readability
is not compromised.
In case of transfer of use to a third party, this manual must be transferred as well, along with the
other documents, as provided by Council Directive 93/42/EEC.
Intended use
The ADE.2 couch is a large professional couch to be used for the Bobath (Reflex Inhibiting
Postures) method.
Manufacturer’s details
FISIOTECH SRL
Operating headquarters: Via Toniolo, 44/E-F
31028 VAZZOLA (TV) - Italy
Tel. [phone]
Fax [phone]
[e-mail]
Area of use
The medical devices described in this manual comply with the Directive 93/42/EEC as modified by
Annex VII to Directive 2007/47/EC. Area of use: outpatient care carried out under medical
supervision in hospital or in another medical centre where the medical electrical equipment are
used for the treatment, diagnosis and monitoring of sick patients, people who have sustained
injuries and people with disabilities.
Storing
In case of storing, the following environmental conditions must be ensured: relative humidity 10% ÷
90 % - temperature -10°C ÷ +50°C –Clean place.
WARNING! Thoroughly read the manual before use.
FISIOTECH SRL refuses any responsibility and is not liable in case any
damage to people and/or goods caused by the improper use of the
couch, by negligent or not-qualified staff or by non compliance with
these instructions occurs.

4 of 11
WARNING! Do not use the couch:
Beyond its declared maximum safe working load.
On unstable floors or near inclined floors, steps, etc.
If it has been tampered with or modified.
In a potentially explosive atmosphere where a fire hazard or corrosion may occur, or
exposed to the weather.
With an inappropriate configuration or if you suspect it may harm the patient.
WARNING!
Do not touch the moving areas of components and/or controls, which are specifically
labelled.
Special attention or the use of safety devices (e.g. cot sides) is advised when the couch is
used by the elderly or by those with reduced balance.
Expanded rubber and plastic components of the device may catch fire if exposed to open
flames.
Therapy lamps may damage the upholstery.
Corrosive and/or abrasive cleaning agents may damage the upholstery.
We recommend using a couch paper sheet between the patient and the antibacterial and
fungicide leatherette and to replace it at the end of the treatment/examination.
The ADE.2 couch warranty covers only the manufacturing defects for 24 months starting from the
date of delivery. The warranty does not cover: consumables and items of normal wear –such as
upholstery –, breakdowns caused by any impact and/or fall, wrong or improper use, use by non
qualified personnel. The warranty is void if the device has been tempered with. Warranty repairs
are carried out at our operational headquarters and prior authorization. The products to be repaired
under warranty must be shipped to the manufacturer freight prepaid and with the original
packaging. A copy of the invoice and of the transport document has to be sent along with a written
request in order for the products to be repaired.

5 of 11
The packaging consists of a cardboard box, with a lid and a bottom. The box is closed with iron
staples and placed on a pallet especially designed for this kind of box. The box is secured to the
pallet with plastic straps.
WARNING! The couch is heavy (about 90 kg) and, above all, bulky.
Dimensions of the packaging: length 205 cm –width 125 cm –height 70 cm. The couch has
to be handled extremely carefully. The unloading must be carried out with the appropriate
equipment (e.g. forklift) or by at least 3/4 people.
This symbol on a product means that it should not
be thrown with regular waste, but disposed of
following the laws on recycling/disposal in force in
your country/region.
After placing the pallet containing the couch on a suitable surface cut the plastic straps securing
the pallet to the couch and closing the box.
WARNING! Be careful not to cut your hands while handling cutters, scissors or
other cutting items. The use of rounded edge scissors is advised to avoid harming your
hands and the upholstery of the couch. Save packaging for a possible return to the
manufacturer. Dispose of plastic straps, cardboard, and bubble wrap as recycling material.

6 of 11
Manufacturer
Product Code
Serial Number
Date of manufacture
Max working load
Warning
Temperature limit
Humidity limitation
Keep away from sunlight and heat sources
Keep away from rain
Read the instructions
This symbol on a product means that it should not
be thrown with regular waste, but disposed of
following the laws on recycling/disposal in force in
your country/region.

7 of 11

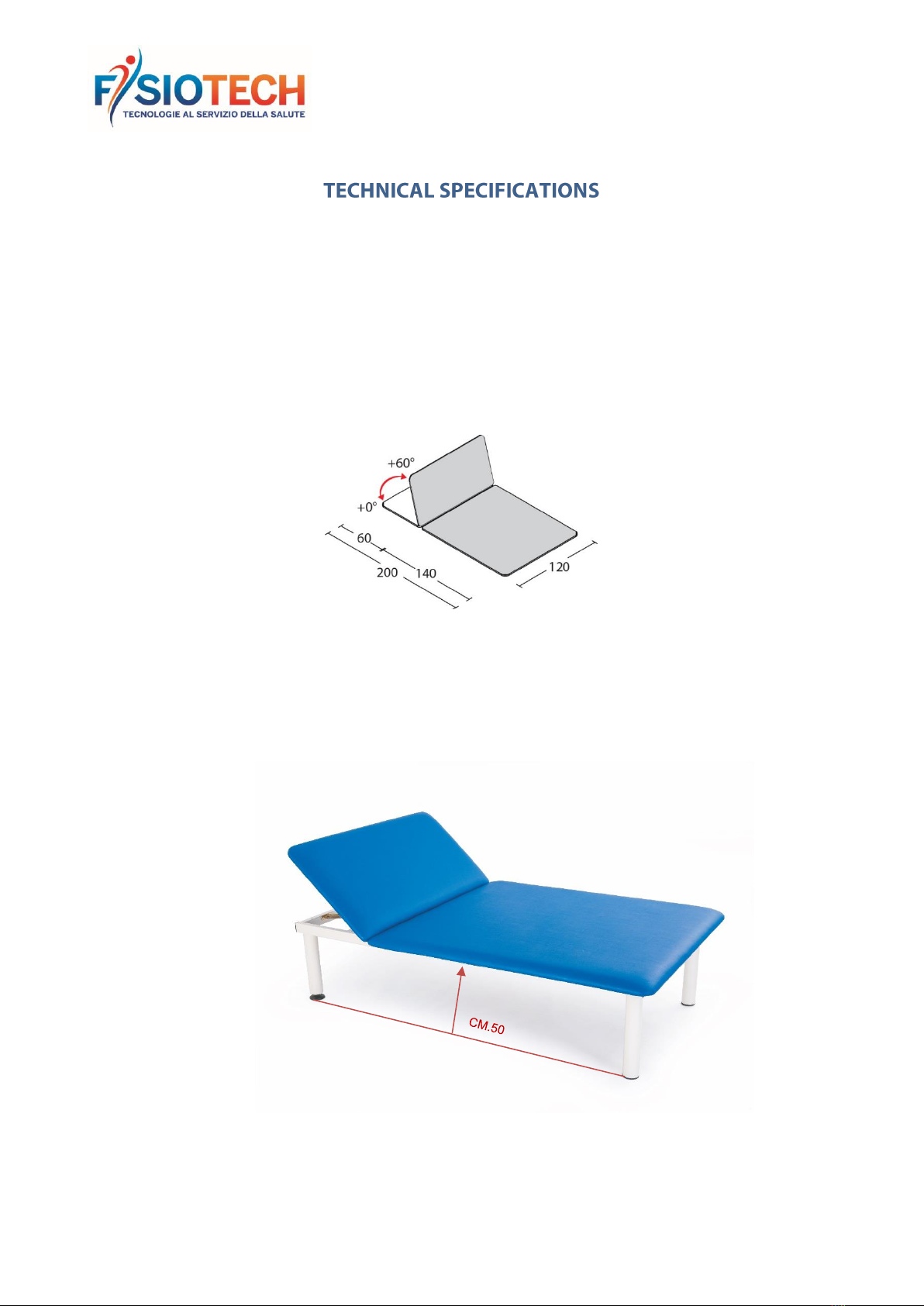

Fixed height: 50 cm.
Dimensions 200 X 120 X 50 cm.
Headrest angle +60° adjustable with “rastofix”.
Maximum static working load 200 kg, evenly distributed.
Powder-coated steel frame.
4 cm-thick polyurethane foam fireproof padding. Density: 30 kg/m³.
Fireproof leatherette upholstery.
THE PATIENT HOIST CAN BE PLACED UNDER THE COUCH.

8 of 11
WARNING
The professional should never leave the patient unattended to
prevent falls. The manufacturer is not liable for any damage to people
and/or goods caused by negligent and/or not-qualified personnel.
Maintenance must be carried out by a specialist, an electrician or someone who is familiar with the
content of this manual.
Check the safety conditions of the device after any incident such as falls, violent impacts, spilling of
liquids, etc. and any time you deem it necessary.
WARNING!
- In case of safety hazard, the device must be unplugged and is not to be used until safety is
restored.
MAINTENANCE
WHAT TO DO
Mechanical parts
Check the tightening of screws and bolts, the play of
bearing and pins, the absence of structural damages and
warpage every 3 months or after heavy usage.
Check the control cables, gas springs and sheats.

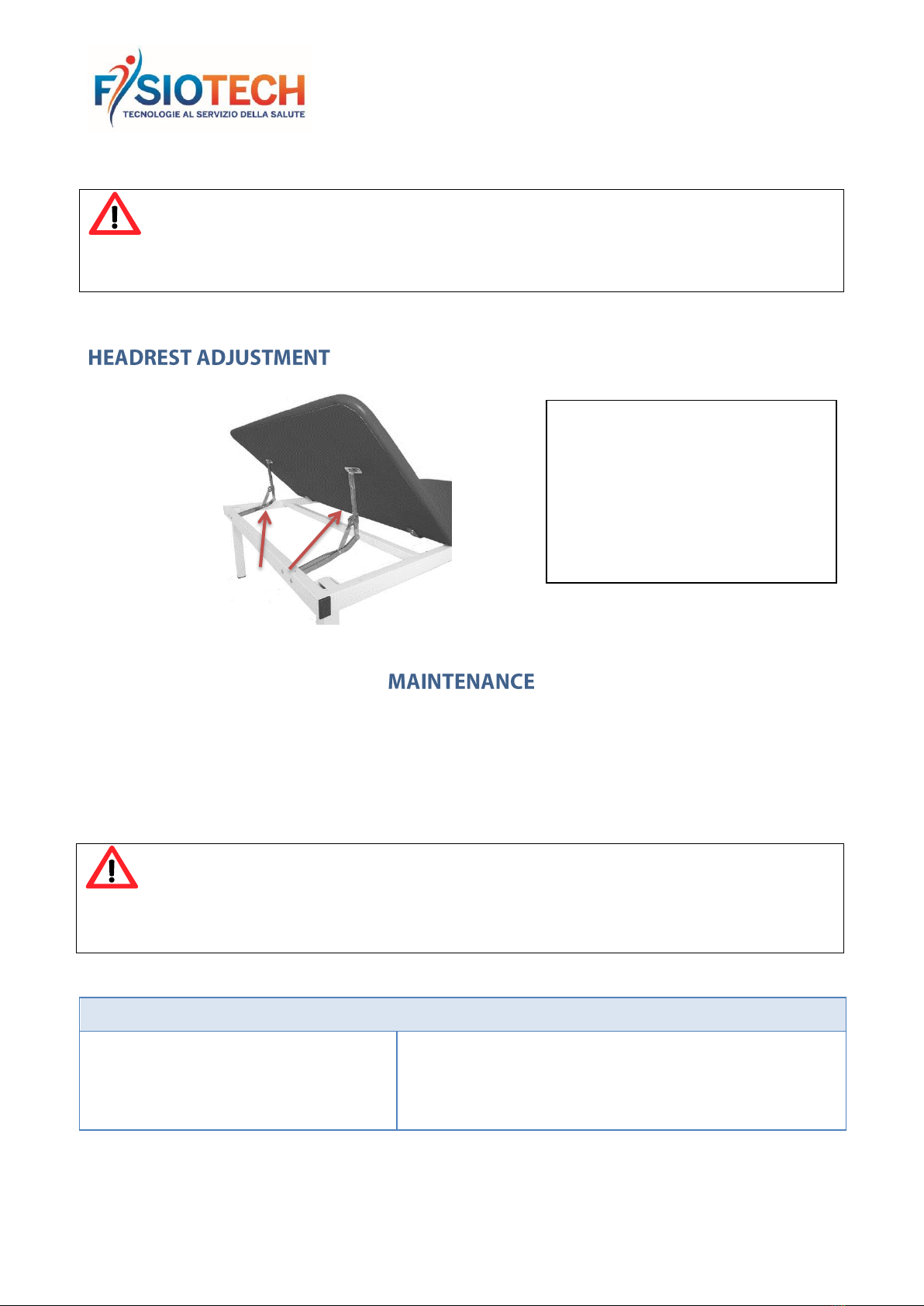

The headrest can be adjusted with
a “rastofix” rack. Raise the
headrest until you reach the
desired inclination. To lower the
headrest, lift the headrest until you
reach the max inclination, then
lower it.
“RASTOFIX”

9 of 11
The use of disinfectants is advised in order to disinfect hands and other parts of the body that
came into contact with the patient or other surfaces.
Cleaning the upholstery:
Clean with a damp soft cloth with a neutral detergent solution, rinse with clean water.
WARNING!
Do not use solvents, bleaches, synthetic detergents or polishing sprays.
Avoid direct sunlight on the upholstery in order to avoid early ageing.
Excessive rubbing may cause the early ageing of the device. Thoroughly verify that this
operation is carried out correctly.
Light colours should not come into contact with fabrics and clothes which have been treated
with unbound dye or not properly dyed in order to avoid colour spots and stains which may
not be removed.
Sanitation
Spray the surface with a 0.5% peroxide-based solution and rinse thoroughly. FREQUENCY: Daily
up to 6/8 per day
WARNING! Using detergents with additives and/or alcohol tends to increase the wear and
tear process and the ageing of the surface.
Cleaning the powder coated steel:
Gently dust with a dry or at most a lightly damp non-abrasive cloth.
WARNING!
1. Aggressive products may damage the frame and the upholstery.
2. Check whether all the components are completely dry before using the device after
cleaning.

10 of 11
CODE
DESCRIPTION
MIM1130301
Complete padding for ADE.2 couch
OUR COLOURS
Metal frame
Textured RAL 9001 cream
Upholstery
Beige, yellow, orange, burgundy, green, blue, grey, and black

11 of 11
INSPECTION RECORD SHEET
DEVICE MODEL / CODE:
………………………………………
INSTALLATION DATE
………………………
SERIAL No.
…………………….
Inspection
Date
Maintenance
Name of the inspector
Signature
