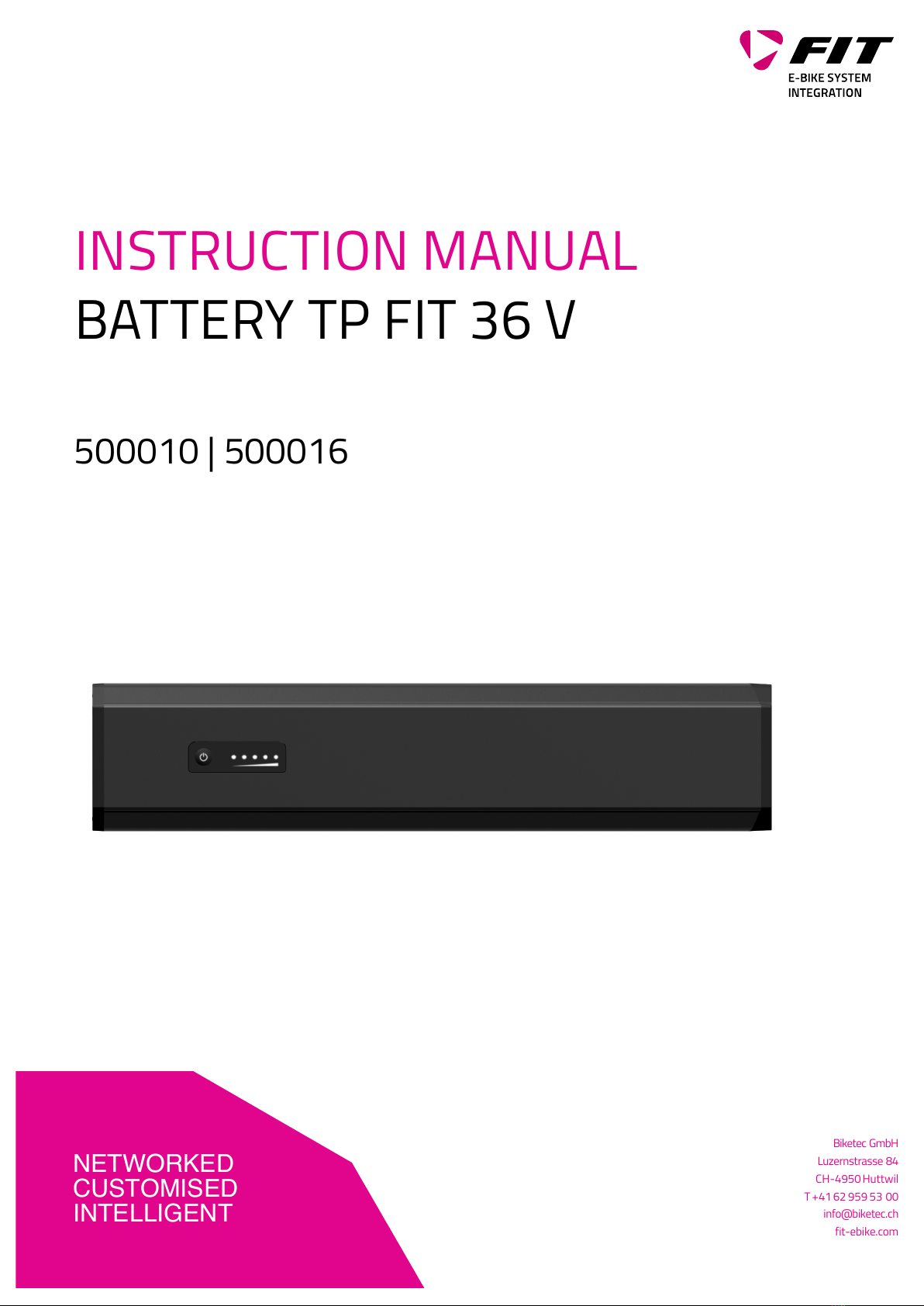

INSTRUCTION MANUAL
Biketec GmbH
Luzernstrasse 84
CH-4950Huttwil
T [phone]
[e-mail]
fit-ebike.com
BATTERY TP FIT 36 V
NETWORKED
CUSTOMISED
INTELLIGENT
500010 | 500016

INSTRUCTION MANUAL TP FIT 36 V
TABLE OF CONTENTS
1 PREFACE 3
2 ABOUT THESE OPERATING INSTRUCTIONS 4
2.1 MANUFACTURER................................................. 4
2.2 LANGUAGE..................................................... 4
2.3 DECLARATIONOFCONFORMITY ........................................ 4
2.4 ONINFORMATION ................................................ 4
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 SAFETY INSTRUCTIONS 5
3.1 GENERALINFORMATION............................................. 5
3.2 RECHARGEABLEBATTERY............................................ 5
4 PRODUCT AND TECHNICAL SPECIFICATIONS 6
4.1 TP36VFIT..................................................... 6
4.2 PROPERUSE ................................................... 6
4.3 IMPROPERUSE.................................................. 6
4.4 TECHNICALDATA................................................. 7
4.4.1 TPFIT36V ................................................ 7
5 TRANSPORTATION AND STORAGE 8
5.1 TRANSPORTATION ................................................ 8
5.1.1 TRANSPORTINGE-BIKES........................................ 8
5.1.2 TRANSPORTINGTHEBATTERY..................................... 8
5.1.3 SHIPPINGTHEBATTERY ........................................ 8
5.2 STORAGE...................................................... 8
5.2.1 STORAGEMODE............................................. 8
5.3 BREAKINOPERATION .............................................. 9
5.3.1 PREPARING FOR A BREAK IN OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3.2 CARRYING OUT A BREAK IN OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 FITTING 10
6.1 FITTINGTHEBATTERY.............................................. 10
6.1.1 INSERTINGTHEBATTERY........................................ 10
6.1.2 REMOVINGTHEBATTERY........................................ 10
7 OPERATION 10
7.1 CHARGINGTHEBATTERY ............................................ 10
7.1.1 CHARGINGOPTIONS........................................... 10
7.2 DISPLAYANDSETTINGS............................................. 11
7.2.1 CHARGE LEVEL CHECK ON BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 ERROR MESSAGES 12
8.1 BATTERYERRORCODES............................................. 12
9 CLEANING AND SERVICING 13
9.1 BASICCLEANING ................................................. 13
9.1.1 CLEANINGTHEBATTERY ........................................ 13
10 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 14
10.1 TROUBLESHOOTING AND FAULT CLEARANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10.1.2 ERRORS IN THE ASSISTANCE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10.2REPAIR....................................................... 15
10.2.1ORIGINALPART ............................................. 15
10.2.2REPLACINGTHELIGHTS ........................................ 15
10.2.3ADJUSTINGTHEHEADLIGHT...................................... 15
FIT_Manual_Battery_TP_36V_V1_en | Version 01 | 04.04.2022 2

INSTRUCTION MANUAL TP FIT 36 V
11 RECYCLING AND DISPOSAL 16
11.1DISPOSAL ..................................................... 16
FIT_Manual_Battery_TP_36V_V1_en | Version 01 | 04.04.2022 3

INSTRUCTION MANUAL TP FIT 36 V
1 PREFACE
Dear FIT customer,
The FIT system offers many useful functions and options and we are pleased that you have decided to choose our
system.
Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick
start.
We hope you enjoy discovering the FIT’s functions and have a fun ride every time you use it.
Thank you for placing your trust in FIT.
Your FIT Team
FIT_Manual_Battery_TP_36V_V1_en | Version 01 | 04.04.2022 4

INSTRUCTION MANUAL TP FIT 36 V
2 ABOUT THESE OPERATING INSTRUCTIONS
2.1 MANUFACTURER
Biketec GmbH
Luzernstrasse 84
CH-4950 Huttwil
fit-ebike.com/en-en/
2.2 LANGUAGE
The original operating instructions are written in German. A translation is invalid without the original operating in-
structions.
2.3 DECLARATION OF CONFORMITY
Biketec GmbH hereby declares that the products described in these operating instructions comply with EU directives.
The complete EU Declaration of Conformity is available online at: fit-ebike.com/en-en/service/declaration/
2.4 ON INFORMATION
Different markings are used in the operating instructions to make them easier to read.
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS
Warnings indicate hazardous situations and actions. You will find the following warnings in the operating instructions:
DANGER
May lead to serious or even fatal injuries if ignored. Medium-risk hazard.
CAUTION
May lead to minor or moderate injuries if ignored. Low-risk hazard.
NOTICE
May lead to material damage if ignored.
FIT_Manual_Battery_TP_36V_V1_en | Version 01 | 04.04.2022 5
