User Manual
innofresh
563GSMQS Refrigerator
FreshLock
Technology

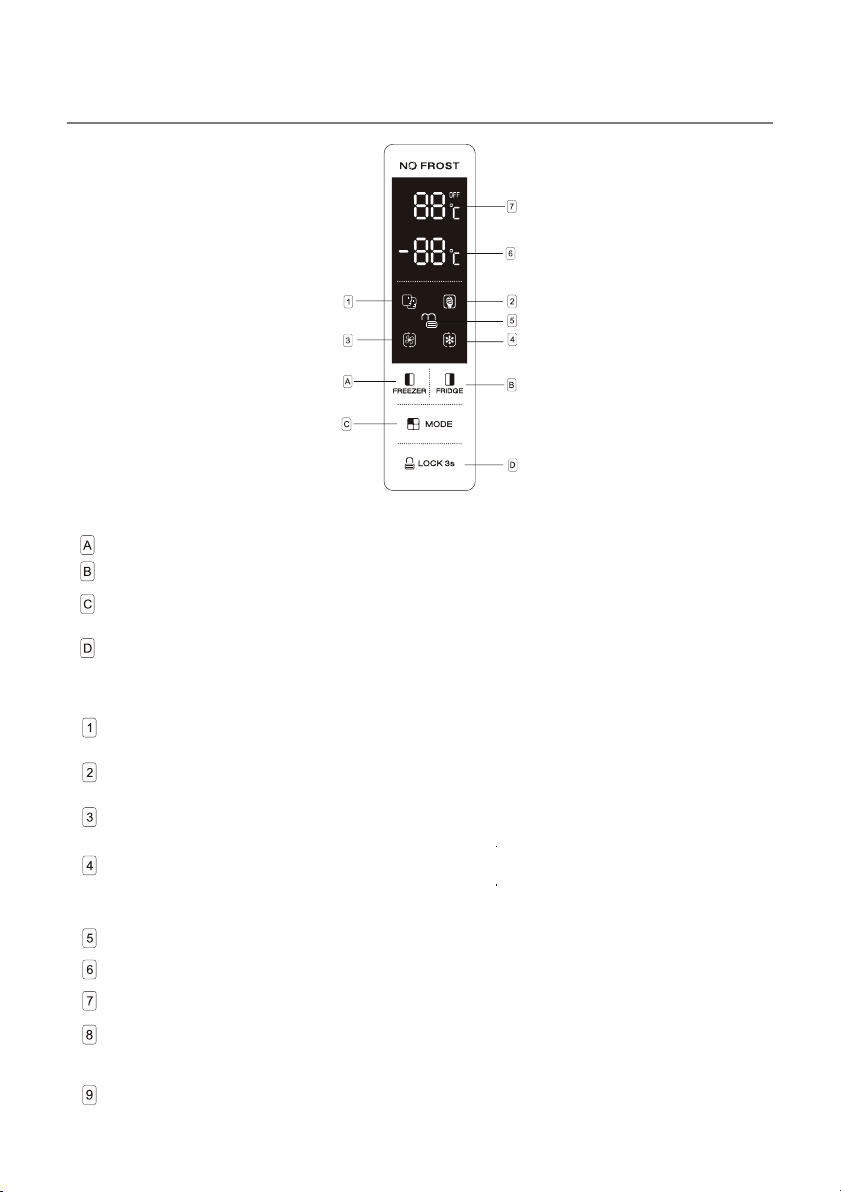

Intelligent LED touch
Control Pannel
Energy Efficient
Digital Inverter Technology
Eco
Mode
In the Door
Water Dispenser
Multi Air Flow
Technology

Overview
Safety information
Title
1
6
Installation 7
Daily use
Troubleshooting
11
17
20Warranty Terms & Conditions
Page No.
Index

Safety information
Children and vulnerable people safety
General safety
WARNING! Keep ventilation openings clear of obstruction in the
appliance enclosure or in the built-in structure.
WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
In the interest of your safety and to ensure the correct use, before
Installing and first using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary mistakes and
Accidents, it is important to ensure that all people using the appliance are
thoroughly familiar with its operation and safety features. Save
These instructions and make sure that they remain with the appliance if it
is moved or sold, so that everyone using it through its life will be
Properly informed on appliance use and safety.
For the safety of your life and property keep, all precautions as stated in
the user instructions as the manufacturer is not responsible for damages
caused by omission.
• This appliance can be used by children aged 8 years and above.
Persons with reduced physical, sensory or mental capabilities or with
lack of experience and knowledge needed to be given supervision or
instruction concerning usage of the appliance and should understand
the hazards involved.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance shall not be done by children unless
they are aged 8 years and above and are supervised.
• Keep all packaging away from children. There is risk of
suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut
the connection cable (as close to the appliance as you can) and
remove the door to prevent children from suffering electric shock or to
close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to
make that spring lock is made unusable before you discard the old
appliance. This will prevent the appliance from becoming a death
trap for a child.
1

WARNING! Do not use other electrical appliances (such as ice cream
makers) inside the refrigerating appliance, unless they are approved
for this purpose by the manufacturer.
ELECTRICAL SAFETY WARNING! Any electrical components
(plug, power cord, compressor and etc.) must be replaced by a certified
service agent or qualified service personnel.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• The refrigerant isobutane R600a, a natural gas has high
environmental compatibility but is highly flammable and is
contained within the refrigerant circuit of the appliance.
• During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become
damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in
any way. Any damage to the cord may cause a short circuit, fire
and/or electric shock.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Safety information
• Power cord must not be lengthened/Stretched.
• Make sure that the power plug is not squashed or damaged by the
back of the appliance. A squashed or damaged power plug may
overheat and cause a fire.
• Make sure that the mains plug of the appliance is accessible.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug.
There is a risk of electric shock or fire.
• You must not operate the appliance if the lamp is not working.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove or touch items from the freezer compartment if your
hands are damp/wet, as this can cause skin abrasions or frost/freezer
burns.
• Avoid exposure of the appliance to direct sunlight.
2

Daily use
1) If there is a freezer compartment.
2) If there is a fresh-food storage compartment.
Care and cleaning
Installation
IMPORTANT! For electrical connection carefully follow the instructions
given in below paragraphs.
Safety information
• Do not place hot vesels on the plastic parts in the appliance.
• Do not place food products directly against the rear wall of the
refrigerator.
• Frozen food must not be re-frozen once it has been thawed out.1)
• Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.1 )
• Appliance,s manufactures storage recommendations should be strictly
adhered to. Refer to the relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment
as it creates pressure on the container, which may cause it to
explode,resulting in damage to the appliance.1)
• Ice lollies can cause frost burns if consumed straight from the
appliance.1)
• Before maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
• Do not clean the appliance with metal or sharp objects.
• Do not use sharp objects to remove frost from the appliance.1)
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect in
the bottom of the appliance.2)
• Unpack the appliance and check if there are any damages on it. Do
not connect the appliance if it is damaged. Report possible damages
immediately to the customer care. In that case retain packing.
• It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation follow the
instructions relevant to installation.
• Wherever possible, the spacers of the product should be against a
wall. The appliance needs to follow spacing norms mentioned on page
8 to avoid touching or catching warm parts (compressor, condenser)
to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the
appliance.
3

Service
Energy saving
Environment Protection/ Disposal of the Appliance
Safety information
• Any electrical work required to do the servicing of the appliance
should be carried out by the brand helpdesk engineers.
• This product must be serviced by the brand helpdesk, and only
genuine spare parts must be used.
• Don’t put hot food in the appliance;
• Don't pack food too close with each other as this prevents air
circulating;
• Make sure food does not touch the back of the compartment(s) ;
• If electricity goes off, don’t open the door(s);
• Don’t open the door(s) frequently;
• Don’t keep the door(s) open for too long time;
• Don’t set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger
storage volume and lower energy consumption if needed.
4
This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance
shall be disposed according to the appliance regulations. Avoid
damaging the cooling unit, especially the heat exchanger. The materials
used in this appliance marked by the symbol are recyclable.
Disposal & RoHS Declaration
This product is ROHS compliant
This marking indicates that this product should not be disposed
with other household wastes throughout India. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.

Packaging materials
Disposal of the appliance
1.Disconnect the mains plug from the mains socket.
2.Cut off the mains cable and discard it.
The materials with the symbol are recyclable. Dispose the packaging
in a suitable collection container to recycle it.
5
Safety information

Overview
Note: Above picture is for reference only. Real appliance may be different
Freezer shelves
Freezer door
shelves
Freezer drawer
covers
Freezer
drawers
Adjustable
Levelling feet
Fridge door
shelves
Water Tank
Fridge vegetable
containers
Covers for fridge
vegetable
containers
Fridge shelves Air vents
6

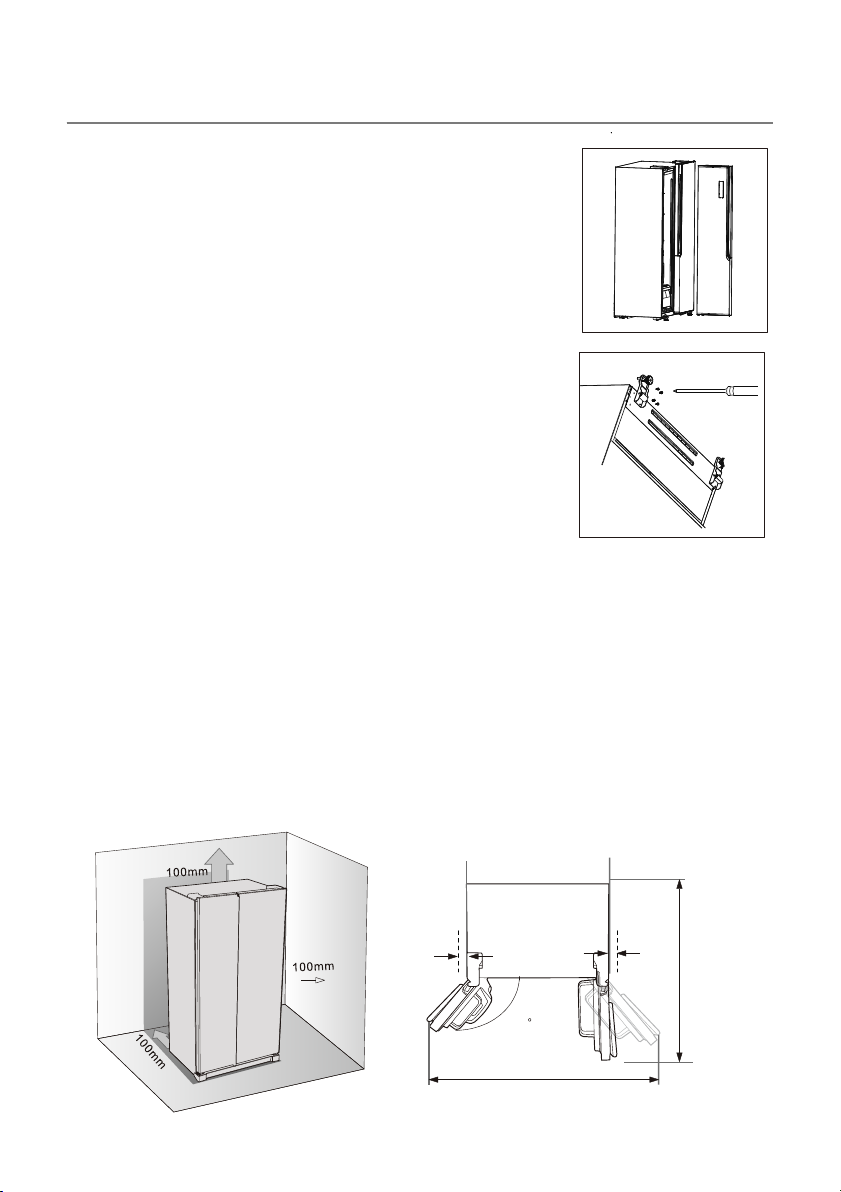

Remove the doors
Tool required: Philips screwdriver. Flat bladed screwdriver.
Ensure the unit is unplugged and empty.
To take the door off! It is necessary to tilt the unit backwards. You should
rest the unit on something solid so that it will not slip during the door
removing process.
All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit flat as this may damage the coolant system.
It’s better that 2 people handle the unit during assembly.
•
•
•
•
•
1. Unscrew hinge cover by
Philips screwdriver.
2. Disconnect the harness.
3. Unscrew top hinge.
Installation
7

Space Requirement
• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open
easily;
• Select a location with levelled or nearly levelled flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This
will help reduce power consumption and keep your energy bills lower.
100m
At least 50mm At least 50mm
130
1400mm
1200mm
5. Unscrew bottom hinges.
6. After the appliance is positioned! Install the doors as
reversed process.
4. Lift the door and place it on a soft pad.
Then remove another door with the same process.
Installation
8

To allow the door to self-close, tilt back the top backwards for 8-10mm or
0.5oby turning the adjustable feet.
- Clockwise rotate the feet to heighten them by hand.
- Anticlockwise rotate the feet to lower them by hand.
Doors
Levelling the refrigerator
Installation
9

Installation
Positioning
Location
Install this appliance at a location where the ambient temperature
corresponds to the climate class indicated as below:
Climate class
SN
N
ST
T
Ambient temperature
+10oC to :+32oC
+16oC to:+32oC
+16oC to:+36oC
+16oC to :+43oC
The appliance should be installed well away from sources of heat such as
radiators, boilers, direct sunlight etc. Ensure that air can circulate freely
around the back of the cabinet. To ensure best performance, if the
appliance is positioned below an overhanging wall unit, the minimum
distance between the top of the cabinet and the wall unit must be at least
100 mm ideally. However, the appliance should not be positioned below
overhanging wall units. Accurate leveling is ensured by one or more
adjustable feet at the base of the cabinet.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the
rating plate correspond to your domestic power supply. The appliance
must be earthed. The power supply cable plug is provided with a contact
for this purpose.
WARNING! It should be possible to disconnect the appliance from the
mains power supply; the plug must therefore be easily accessible after
installation.
10

11
Using the
Control panel
Buttons
Display
Press to adjust temperature of freezer compartment(left side)from-14oC to-22oC
Press to select running mode from SMART,ECO,SUPER COOLING,SUPER FREEZING and USER'S
SETTING(no symbol in display).
Press to adjust temperature of fridge compartment(right side)from 2oC to 8oC and off cooling.
Press 3 SEC.button and hold for 3 seconds to lock the other three buttons A,B,C.
Press it and hold for 1 second to unlock the other three buttons.
Tip: it's better to switch on SUPER FREEZING mode 24 hours ahead before large amount of food is placed
in freezer compartment.
SMART mode,the refrigerator sets the temperature of two compartments automatically
according to internal temperature and ambient temperature.
SUPER COOLING cools the fridge compartment to the lowest temperature as designed. After
approx. 2.5 hours,the temperature setting would be restored to the previous user setting mode.
ECO mode,the refrigerator runs in lowest energy consumption setting. Do not overload the
refrigerator when using this.
Child lock would be failed since power failure.Child lock would be valid automatically after 25
seconds since last operation.Display panel would get turned off automatically after 2 minutes
since last operation.
LOCK,the symbol will light on if buttons are locked.
Displays the set temperature of freezer compartment.
Displays the set temperature of the fridge compartment.
Some features may not be applicable with this model.
SUPER FREEZING cools the fridge compartment to the lowest temperature as designed.After
approx. 50 hours,the temperature setting would be restored to the previous user setting mode.
Daily use

12

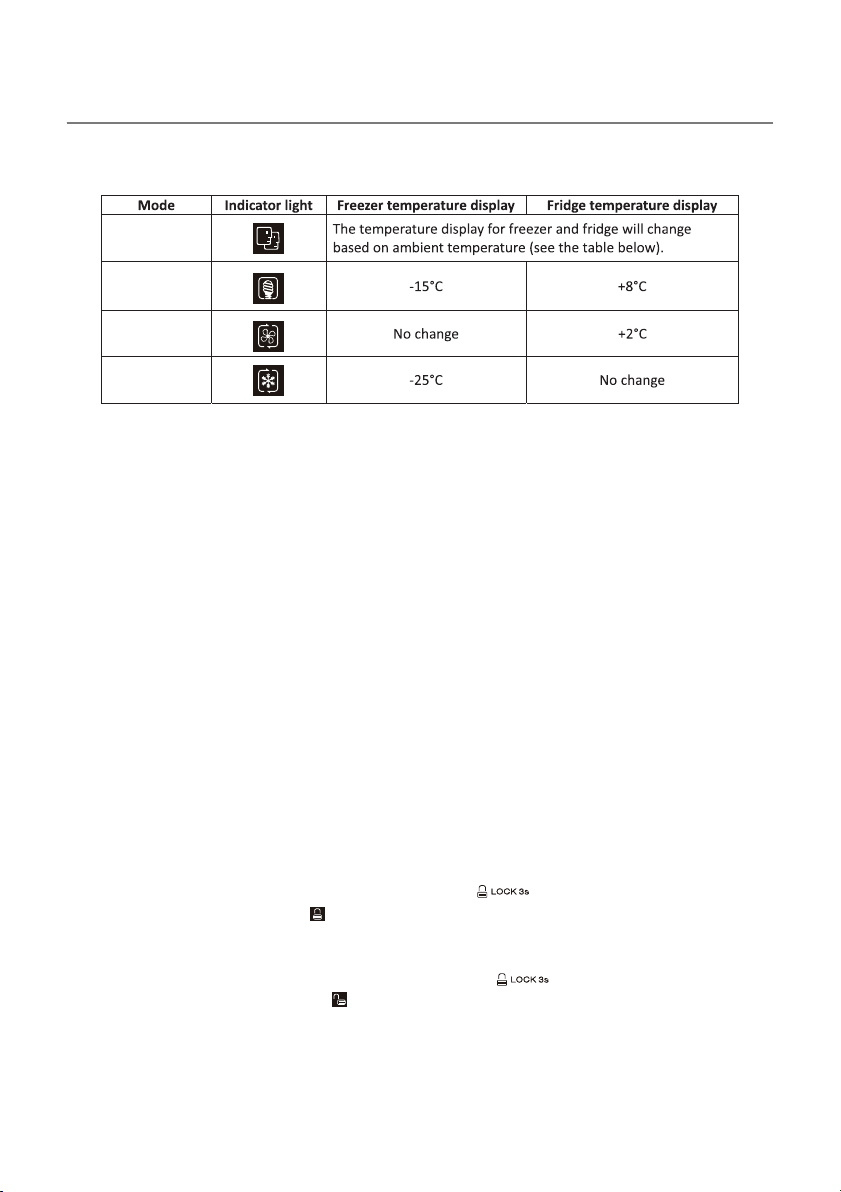

Using the Control panel
ECO Mode: Select this mode when you want to save power.
Super cooling mode: This mode allows you to cool foods quickly and
will be automatically deactivated after 2.5 hours of operation.
Super freezing mode: This mode allows you to freeze foods quickly
and will be automatically deactivated after 50 hours of operation.
Door open alarm
When any door is left open or not closed completely for about 90
seconds, the appliance will sound an alarm. Close the fridge door to
stop the alarm. If the door is not closed well, then the alarm will sound
every 35 seconds until' the doors are closed well. If doors are kept open
for 10 continuous minutes without closing, the internal LED light would
be turned off automatically.
Child safety lock
This function is designed to prevent children from operating the appli-
ance.
• To activate the function, press and hold for about 3 seconds.
The lock indicator light will illuminate indicating the safety lock
function is activated.
• To deactivate the function, press and hold for about 1 second.
The unlock indicator light will illuminate indicating the safety lock
function is deactivated.
ECO Mode
Smart
Super Cooling
Super Freezing
Notes:
Daily use

Before using the water dispenser for the first time, remove and clean the
water tank located inside the fridge compartment.
To dispense water, push the dispenser pad gently, using a glass or container.
To stop the flow of water, pull your glass away from the dispenser pad.
Close the small lid on the cover
3.
After cleaning, reposition water tank, cover and tank balcony as below process.
2.
Dispensing
Lift and take off tank balcony first, then take off water tank with cover. Detach the cover to wash
and clean the tank and cover.
1.
Filing the water tank with water
Clean the dispenser pad outside the fridge door.
3.
Open the small lid
1. Fill the water tank with drinkable water up to 3 L line.
2.
Daily use
13

14
Daily use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with
lukewarm water and some neutral soap so as to remove the typical l smell l of a brand new product,
then dry thoroughly.
Important ! Do not use detergents or abrasive powders, as these wi ll damage the finish.
Storing frozen food
After starting the appliance after a long, keep the appliance running at least 2 hours on the higher
settings before putting the food inside.
Important ! In the event of accidental defrosting, for example the power has been off for longer
time, the defrosted food must be consumed quickly or cooked immediately.
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at
room temperature, depending on the time available for this operation. Small pieces may be
cooked even if frozen. In this case, cooking will take longer time.
Ice-cube
This appliance may be equipped with one or more ice-cube trays or a movable ice box to
produce ice.
Movable shelves
The walls of the refrigerator are equipped with a series of runners/grooves
so that the shelves can be positioned as desired .
First use
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen
food for a longer time.
Place the fresh food to be frozen in the bottom compartment.
The freezing process lasts 24 hours: It is advisable to not add other food during this time.



Positioning the door balconies
To permit storage of food packages of various sizes , the door balconies
can be placed at different heights. To make these adjustments proceed
as follows: gradually pull the balcony in the direction of the arrows until
it comes free, then reposition as required.
Accessories
Daily use

15
Daily use
Hints for freezing
To help you make the most of the freezing process, here are some important
hints:
• The freezing process takes 24 hours. Suggest not to add any food to be frozen
during this period;
• Only freeze fresh and thoroughly cleaned, foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen
and for you to subsequently to thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the
packages are airtight;
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• Lean foods store better and longer than fatty ones; salt reduces the storage life
of food;
• Water ices, if consumed immediately after removal from the freezer
compartment, can possibly cause the skin to be freeze burnt;
•It is advisable to show the freezing in date on each individual pack for enabling
you to remove food from the freezer compartment;
• It is advisable to show the freezing in date on each individual pack for
enabling you to keep tab of the storage time.
Hints for storage of frozen food
Make sure that the commercially frozen foodstuffs were adequately stored by
the retailer;
Be sure that frozen foodstuffs are transferred from the food store to the
freezer in the shortest possible time;
Do not open the door frequently or leave it open for long time than absolutely
necessary;
Once defrosted, food deteriorates rapidly and cannot be refrozen ;
Do not exceed the storage period indicated by the manufacturer of the food
packet.
•
•
•
•
•
To obtain the best performance from this appliance, you should:
Hints for fresh food refrigeration
Do not store warm food or evaporating liquids in the refrigerator.
Do cover or wrap the food, particularly if it has a strong flavour.
•
•
To obtain the best performance:
Helpful hints and tips

16
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in polythene bags and place on the glass shelves above
the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or
wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the pockets of the
door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the
fridge.
Cleaning
For hygienie reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off and
remove the plug from the mains , or switch off or turn out the circuit breaker
or fuse. Never clean the appliance with a steam cleaner. Moisture can
accumulate in electrical components and for danger of electrical shock' Hot
vapors can lead to the damage of plastic parts. The appliance must be dry
before it is placed back into usage.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon
juice or the juice form orange peel, butyric acid , cleanser that contain acetic
acid.
• Do not allow such substances to come into contact the appliance parts. Do not
use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains , or switch off or
turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm
water. After cleaning wipe with fresh water and rub dry.
• After everything is dry, place appliance back into usage .
Daily use

17
Solution
Troubleshooting
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks before
calling for service, please see below.
Warning! Do not try to repair the appliance yourself. If the problem persists after
you have made the checks mentioned below, contact a qualified electrician,
authorized service engineer.
The temperature is too low
1.1 The temperature inside the
freezer is too low, with the
fresh food temperatures fine.
The temperature inside
the freezer section is set
too low.
Set the temperature in the freezer slightly
higher then wait 24 hours for new balance to be
achieved.
1.2 The temperature inside the
fresh food compartment is too
cold, while the freezer sections
are fine.
The temperature inside
the fresh food area is set
too low.
Set the temperature inside the fresh food
section slightly warmer. The temperatures will
reach new balance within 24 hours.
1.3 The foods stored in the full
width pantry are frozen.
The control setting in the
fresh food area is set too
cold.
Set the fresh food control setting slightly higher.
The new set point temperature will reach a
balance within 24 hours.
1.4 The foods stored in the crisper
are frozen.
The settings for the fresh
food compartment are
too cold.
Raising the fresh food control settings to a
slightly higher temperature and/or lowering the
humidity control setting will prevent frost or ice
forming.
The temperature is too high
The doors are opened
frequently or for too long
each time.
Try to reduce the frequency of opening doors.
2.1 The freezer drawer sections
or fresh food compartment
temperatures are too high.
The doors are left open.
Take extra care to keep gaskets sealing well
around the perimeter of the doors. Keep gaskets
clean and dirt free.
2.2 The temperature is too warm
in the freezer but okay in the
fresh food section.
The temperature setting
in the freezer is set too
warm.
Set the temperature colder for the freezer
section. Then allow it to balance within 24 hours
at new colder temperature.
2.3 The temperature is too warm
in the fresh food section but
okay in the freezer.
The temperature setting
in the fresh food section
is set too warm.
Set the food temperature control slightly colder.
The new colder temperature can be achieved
within 24 hours.
2.4 The temperature inside the
crisper is too warm.
The fresh food set
temperature is too warm.
Set the fresh food temperature colder and the
balance to colder temperature will be achieved
within 24 hours
Water, humidity or frost/ice in the fridge
3.1 Moisture formation on the
inside of the fridge.
It is in a hot or humid
environment.
The door is left open.
The door or drawer is
opened too frequently or
for too long each time.
Food containers or
liquids are left open.
Fresh food compartment
temperature too low
Try raising the temperature slightly in the
affected compartment.
Check to make sure the door gaskets are clean
and sealing well against the metal cabinet
frame.
Reduce the frequency of door openings.
Let hot foods cool to room temperature and
cover foods and liquids.
It is normal for some wet air to collect inside the
enclosed crisper. to reduce the accumulation of
moisture, raise the fresh food compartment
temperature.
3.2 Water droplets collect in the
lower crisper drawer areas.
Problem Cause Solution
