Flipkart MarQ Innofresh 472GFDMQS User manual

User Manual
innofresh
472GFDMQS Refrigerator
FreshLock
Technology
Intelligent LED touch
Control Pannel
Italian Four Door Design
With Bottom Freezer
Energy Efficient
Digital Inverter Technology
Multi Air Flow
Technology
Holiday
Function

Overview
Safety information
Title
1
6
Installation 7
Daily use
Troubleshooting
11
17
20Warranty Terms & Conditions
Page No.
Index

Safety information
Children and vulnerable people safety
General safety
WARNING! Keep ventilation openings clear of obstruction in the
appliance enclosure or in the built-in structure.
WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
In the interest of your safety and to ensure the correct use, before
Installing and first using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary mistakes and
Accidents, it is important to ensure that all people using the appliance are
thoroughly familiar with its operation and safety features. Save
These instructions and make sure that they remain with the appliance if it
is moved or sold, so that everyone using it through its life will be
Properly informed on appliance use and safety.
For the safety of your life and property keep, all precautions as stated in
the user instructions as the manufacturer is not responsible for damages
caused by omission.
• This appliance can be used by children aged 8 years and above.
Persons with reduced physical, sensory or mental capabilities or with
lack of experience and knowledge needed to be given supervision or
instruction concerning usage of the appliance and should understand
the hazards involved.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance shall not be done by children unless
they are aged 8 years and above and are supervised.
• Keep all packaging well away from children. There is risk of
suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut
the connection cable (as close to the appliance as you can) and
remove the door to prevent children from suffering electric shock or to
close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to
make that spring lock is made unusable before you discard the old
appliance. This will prevent the appliance from becoming a death
trap for a child.
1

WARNING! Do not use other electrical appliances (such as ice cream
makers) inside the refrigerating appliances, unless they are approved
for this purpose by the manufacturer.
ELECTRICAL SAFETY WARNING! Any electrical components
(plug, power cord, compressor and etc.) must be replaced by a certified
service agent or qualified service personnel.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• The refrigerant isobutane R600a, a natural gas has high
environmental compatibility but is highly flammable and is
contained within the refrigerant circuit of the appliance.
• During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become
damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in
any way. Any damage to the cord may cause a short circuit, fire
and/or electric shock.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Safety information
• Power cord must not be lengthened/stretched.
• Make sure that the power plug is not squashed or damaged by the
back of the appliance. A squashed or damaged power plug may
overheat and cause a fire.
• Make sure that the mains plug of the appliance is accessible.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug.
There is a risk of electric shock or fire.
• You must not operate the appliance if the lamp is not working.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove or touch items from the freezer compartment if your
hands are damp/wet, as this can cause skin abrasions or frost/freezer
burns.
• Avoid exposure of the appliance to direct sunlight.
2

Daily use
Care and cleaning
Installation
IMPORTANT! For electrical connection carefully follow the instructions
given in below paragraphs.
Safety information
• Do not put hot items on the plastic parts in the appliance.
• Do not place food products directly against the rear wall of the
refrigerator.
• Frozen food must not be re-frozen once it has been thawed out.1)
• Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.1 )
• Appliance,s manufactures storage recommendations should be strictly
adhered to. Refer to the relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment
as it creates pressure on the container, which may cause it to
explode,resulting in damage to the appliance.1)
• Ice lollies can cause frost burns if consumed straight from the
appliance.1)
• Before maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
• Do not clean the appliance with metal or sharp objects.
• Do not use sharp objects to remove frost from the appliance.1)
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect in
the bottom of the appliance.2)
• Unpack the appliance and check if there are any damages on it. Do
not connect the appliance if it is damaged. Report possible damages
immediately to the customer care. In that case retain packing.
• It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation follow the
instructions relevant to installation.
The fridge is only applied with power supply of single phase alternating current
of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety sake, be sure to apply
A.C.Automatic voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one with other electric
appliances. Its plug must match the socket with ground wire.
3
•

1) If there is a freezer compartment.
2) If there is a fresh-food storage compartment.
Service
Energy saving
• Any electrical work required to do the servicing of the appliance
should be carried out by the brand helpdesk engineers.
• This product must be serviced by the brand helpdesk, and only
genuine spare parts must be used.
• Don’t put hot food in the appliance;
• Don't pack food too close with each other as this prevents air
circulating;
• Make sure food does not touch the back of the compartment(s) ;
• If electricity goes off, don’t open the door(s);
• Don’t open the door(s) frequently;
• Don’t keep the door(s) open for too long time;
• Don’t set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger
storage volume and lower energy consumption if needed.
Environment Protection/ Disposal of the Appliance
This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance
shall be disposed according to the appliance regulations. Avoid
damaging the cooling unit, especially the heat exchanger. The materials
used in this appliance marked by the symbol are recyclable.
Safety information
• Wherever possible, the spacers of the product should be against a
wall. The appliance needs to follow spacing norms mentioned on page
7 to avoid touching or catching warm parts (compressor, condenser)
to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the
appliance.
4

Packaging materials
Disposal of the appliance
1.Disconnect the mains plug from the mains socket.
2.Cut off the mains cable and discard it.
The materials with the symbol are recyclable. Dispose the packaging
in a suitable collection container to recycle it.
Safety information
Disposal & RoHS Declaration
This product is ROHS compliant
This marking indicates that this product should not be disposed
with other household wastes throughout India. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.
5

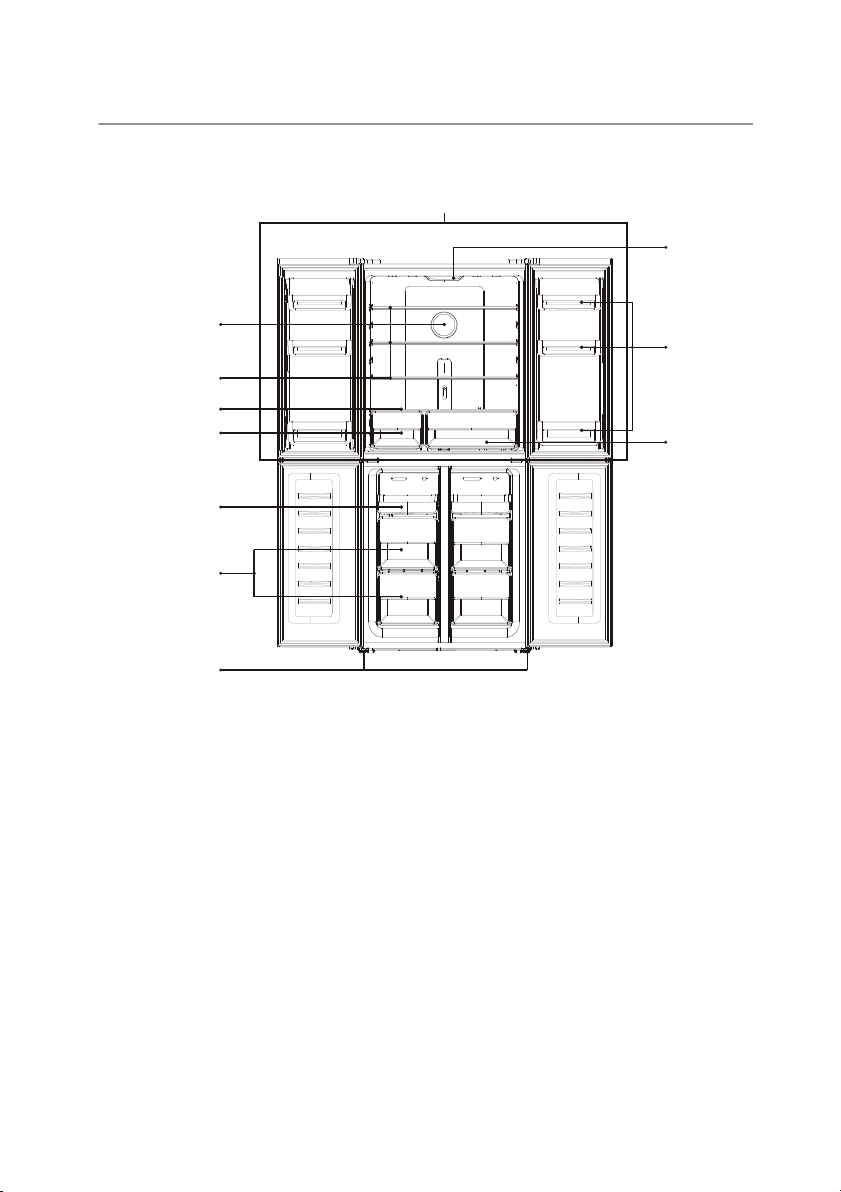

Overview
Note: Above picture is forreference only. Real appliance may vary.
LED Light
Door Balcony/
Pockets
Crisper Zone
Anti-Bacteria and
Deodorizaton Module
Refrigerator Glass
Shelves
Crisper Cover
Chiller Zone
Sliding Trays
Freezer Drawers
Leveling Feet
Fresh Zone
6

- Leveling and anchor the refrigerator by adjusting the feet.
- Clockwise rotate the feet to heighten them by hand.
- Anticlockwise rotate the feet to lower them by hand.
Installation
At least 100mm
Doors
At least 100mm
130
1380mm
1380mm
Space Requirement
• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open
easily;
• Select a location with levelled or nearly levelled flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. & his
will help reduce power consumption and keep your energy bills low.
Levelling and anchoring the refrigerator
100m
7

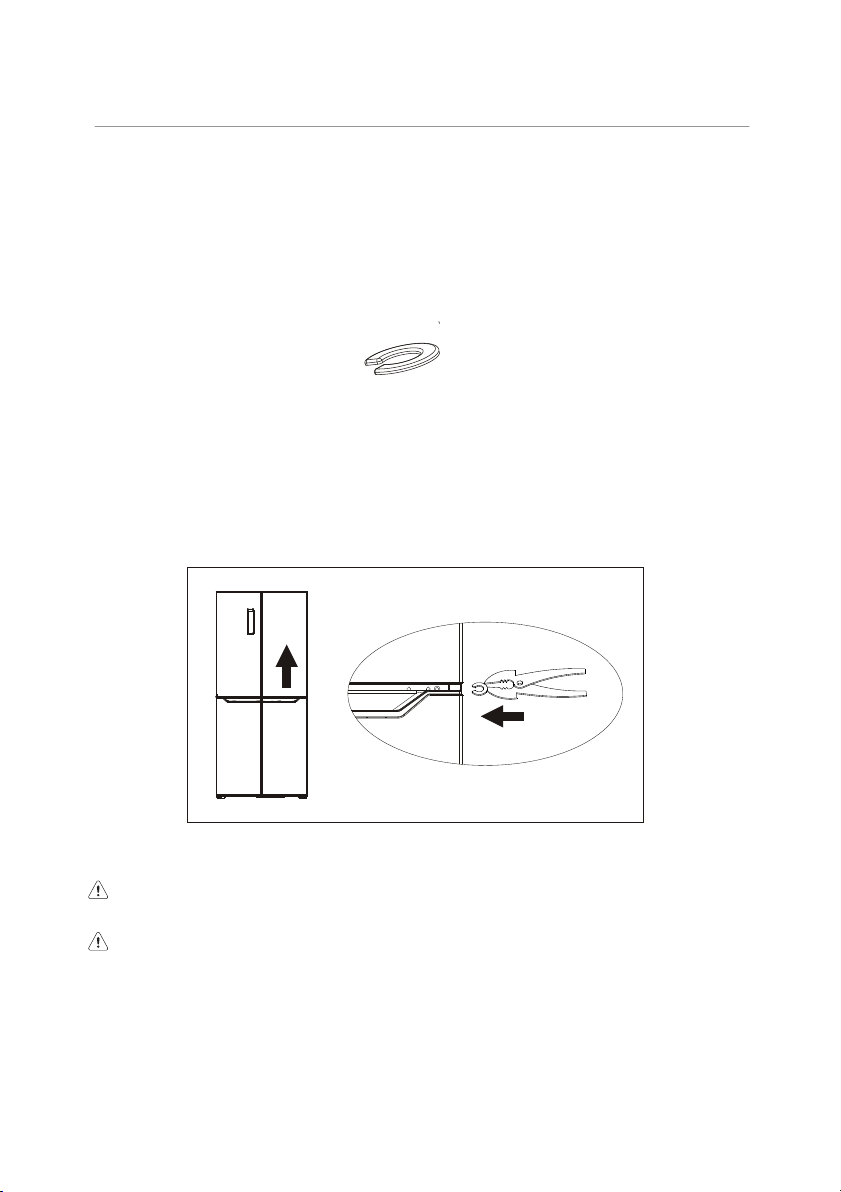

After transportation or after the door balconies are loaded with food or
beveage, upper two doors may not be aligned. There are three C type
washers which can be used to adjust doors. Please follow below process
to level the doors.
It is advisable to get the installation done by a brand trained engineer
only.
1. Before check alignment of the doors, please make sure that the
appliance is levelled.
2. If top edge of upper two doors looks not in a line, please slightly lift
the lower door and insert a piece of C type washer by a clip between the
bottom of the door and the middle hinge.
Level doors
WARNING! Please be careful to avoid fingers being clipped by door.
Please use a tool.
WARNING! Please keep C type washers far away from children to
avoid them from being swallowed by children. These are small parts.
Installation
8

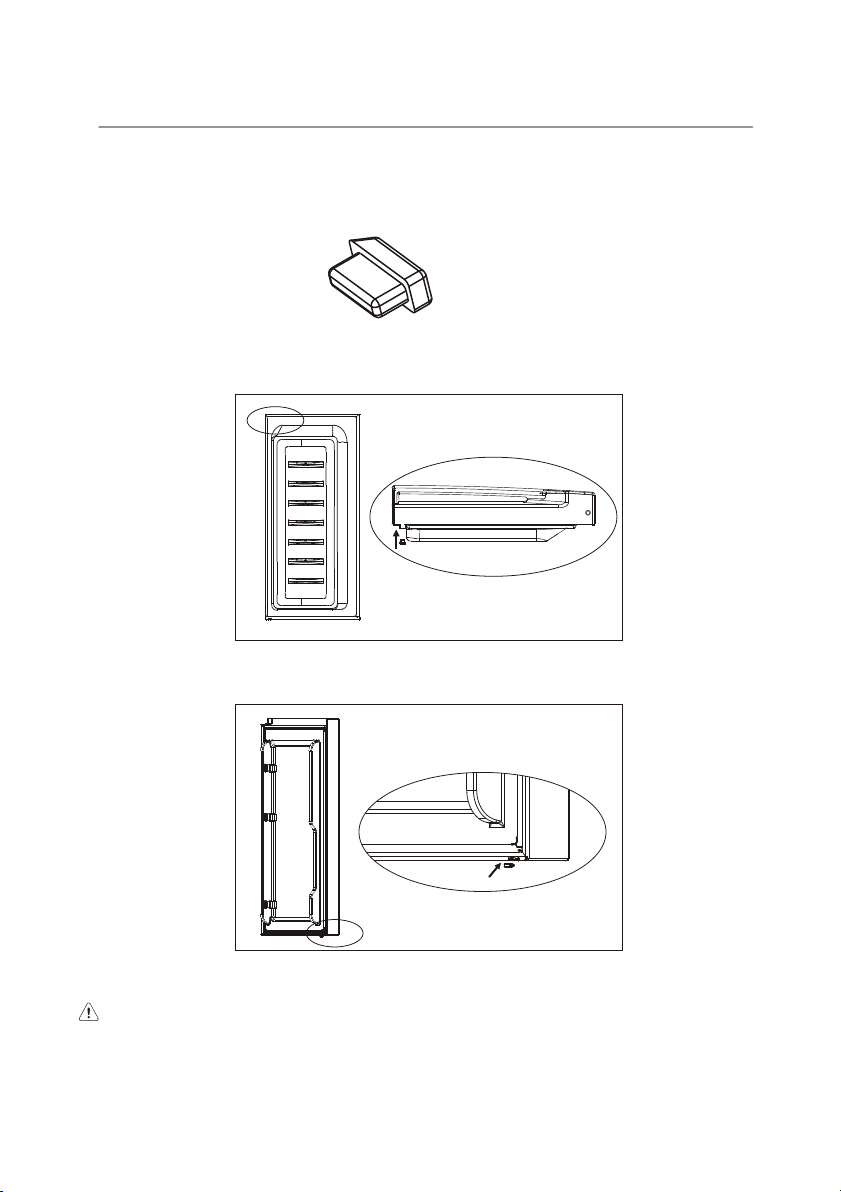

Rubber blocks
WARNING! Please keep rubber blocks far away from children to
avoid them from being swallowed by children. These are small parts.
Installation
There is one rubber block on each door. They function as a spring to relieve impact when
door is closed.
Please do not pull the rubber blocks out. If they absent from the doors, please take one
from accessory bag and insert in to the hole of the door.
9

Installation
Positioning
Location
Install this appliance at a location where the ambient temperature
corresponds to the climate class indicated as below:
Climate class
SN
N
ST
T
Ambient temperature
+10oC to :+32oC
+16oC to:+32oC
+16oC to:+36oC
+16oC to :+43oC
The appliance should be installed well away from sources of heat such as
radiators, boilers, direct sunlight etc. Ensure that air can circulate freely
around the back of the cabinet. To ensure best performance, if the
appliance is positioned below an overhanging wall unit, the minimum
distance between the top of the cabinet and the wall unit must be at least
100 mm ideally. However, the appliance should not be positioned below
overhanging wall units. Accurate leveling is ensured by one or more
adjustable feet at the base of the cabinet.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the
rating plate correspond to your domestic power supply. The appliance
must be earthed. The power supply cable plug is provided with a contact
for this purpose.
WARNING! It should be possible to disconnect the appliance from the
mains power supply; the plug must therefore be easily accessible after
installation.
10

Using the Control Panel
A. Referred as "Temperature Control of Fridge Compartment": Press this key to control
Temperature of FRIDGE Compartment( also called Ref compartment)
B. Referred as "Temperature Control of Freezer Compartment" : Press this key to control
Temperature of Freezer Compartment
C. Press this key to Select different Modes available It can also be used for Locking
and Unlocking the control panel.
1.1 KEY OPERATION (refer A,B,C marked in above fig)
1. Displays the set temperature of the fridge compartment.
2. Displays the set temperature of freezer compartment.
3. ECO mode,the refrigerator runs in lowest energy consumption setting. Do not overload
the refrigerator when using this.
4. Holiday mode,the refrigerator runs in lowest energy consumption setting. Do not overload
the refrigerator when using this. This is the best setting for when your going on a holiday
5. SUPER FREEZING cools the fridge compartment to the lowest temperature as designed.
After approx. 50 hours,the temperature setting would be restored to the previous user
setting mode.
Tip: it's better to switch on SUPER FREEZING mode 24 hours ahead before large amount of food is placed
in freezer compartment.
6. LOCK,the symbol will light on if buttons are locked.
1.2 LED DISPLAY
1
2
3
4
5
6
A
B
C
Daily Use
2.0 OPERATING CONDITION
a. All the display elements of the display will lit up based on Mode and
Temperature setting. The Control panel will be automatically locked within
25 seconds after the last key operation. After locking, the lights of the
display panel would be off within 120 seconds after the last key operation.
b. Both present temperatures of fridge compartment and freezer compartment
would be shown on the display.
11

2.1 DISPLAY
2.1.1 The display panel will be lit up for 2 minutes once the door of fridge
compartment or freezer compartment is opened.
3.1 Temperature Control of the Fridge Compartment
3.2 Temperature Control of the Freezer Compartment
3.3 Mode/ Locking / Unlocking
3.0 ILLUSTRATION OF THE KEY
Daily Use
2.1.2 The display of the control panel can be lit up by any key operation. The
display light will be off after 2 minutes of the inactivity on the display.
2.1.3 Control Panel Display during normal operation:
Temperature Display of the Fridge Compartment: Indicates the current
temperature of the fridge
Temperature Display of the Freezer Compartment: Indicates the current
temperature in the freezer.
a. When this key is pressed once, the Fridge Temperature display blinks. The
temperature would changed by further pressing the key consecutively. The
temperature selection is in cyclic form starting with “2oC,3oC, 4oC, 5oC,
6oC, 7oC, 8oC, OFF”. Once the desired selection is made and pressing is
stopped, the display will blink for 5-second . This confirm the selection.
b. Shutoff of the Fridge Compartment:
Press the key of “Temperature Control of Fridge Compartment”, choose
“OFF”, a 5-second flashing means the selection of temperature is made.
Temperature Control of the Freezer Compartment: This key works in
normal customer selection as well as in Holiday Mode. After entering
the temperature control of the freezer compartment, the key flashes.
By touching the key consecutively, the temperature would change
-14oC to -22oC, after which a 5-second flashing confirms the selection
of the set temperature.
a. Mode Selection: By touching this key consecutively, the operation mode of
the refrigerator will change as “ECO Mode-Holiday Mode-Super
Mode-User Defined Mode" A 5-second flashing confirms the set
temperature.
b. Lock Selection: Long Press to Enter / Exit Locking Mode
- Unlocking: Press for 3 seconds in the mode of locking, all the keys
would be unlocked after the beep.
- Locking: Press for 3 seconds in the mode of unlocking, all the keys
would be locked after the a beep.
12

Daily Use
4.1 Holiday Mode
4.2 Super Freezing mode
4.0 ECO mode
Press this mode to select ECO mode.
ECO icon brightens up after flashing for 5 sec.
In ECO Mode, the fridge compartment is set at 5°C and freezer compartment
is set at -18°C.
“Freezer “&”Fridge “button will not work in ECO mode. In case These buttons
are pressed when ECO Mode is on, The ECO Icon will flash three times. This is
an alarm that Freezer. Fridge button will not work.
To exit ECO mode,
Press ECO mode button again to exit eco mode. After 5 sec, the fridge will
enter into the selected Mode.
Press this mode to select Holiday mode.
Holiday icon brightens up after flashing for 5 sec.
In Holiday Mode, the fridge compartment is set at 17°C.
“Freezer “&”Fridge “button will not work in Holiday mode. In case These buttons
are pressed when Holiday Mode is on, The Holiday Icon will flash three times.
This is an alarm that Freezer. Fridge button will not work.
To exit Holiday mode,
Press Holiday mode button again to exit Holiday mode . After 5 sec, the fridge
will enter into the selected Mode.
Press this mode to select Super Freezing mode.
Super Freezing icon brightens up after flashing for 5 sec.
In Super Freezing Mode, the fridge compartment is set at 17°C.
“Freezer “button cannot be adjusted in Super Freezing mode. In case this button
is pressed when Super Freezing Mode is on, the Super Freezing Icon will flash
three times. This is an alarm that Freezer button cannot be adjusted.
To exit Super Freezing mode,
Either you can manually exit this mode, or if this mode is running for more than
50 hrs, the appliance will exit from this mode and return to previous set mode.
3.4 Press Button
3.5 Lock Function
No operation in 25 sec will lock the display automatically.
Short beep confirms the pressed button activity
All buttons will only function under unlock mode.
13

Daily use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with
lukewarm water and some neutral soap so as to remove the typical l smell l of a brand new
product, then dry thoroughly.
Important ! Do not use detergents or abrasive powders, as these wi ll damage the finish.
Freezing fresh food
First use
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen
food for a longer time.
Place the fresh food to be frozen in the bottom compartment.
The freezing process lasts 24 hours: It is advisable to not add other food during this time.
•
•
•
Storing frozen food
After starting the appliance after a long, keep the appliance running for at least 2 hours on the
higher settings before putting the food inside.
Important ! In the event of accidental defrosting, for example the power has been off for longer
time, the defrosted food must be consumed quickly or cooked immediately.
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at
room temperature, depending on the time available for this operation. Small pieces may be
cooked even if frozen. In this case, cooking will take longer time.
Ice-cube
This appliance may be equipped with one or more ice-cube trays or movable ice boxes to
produce ice.

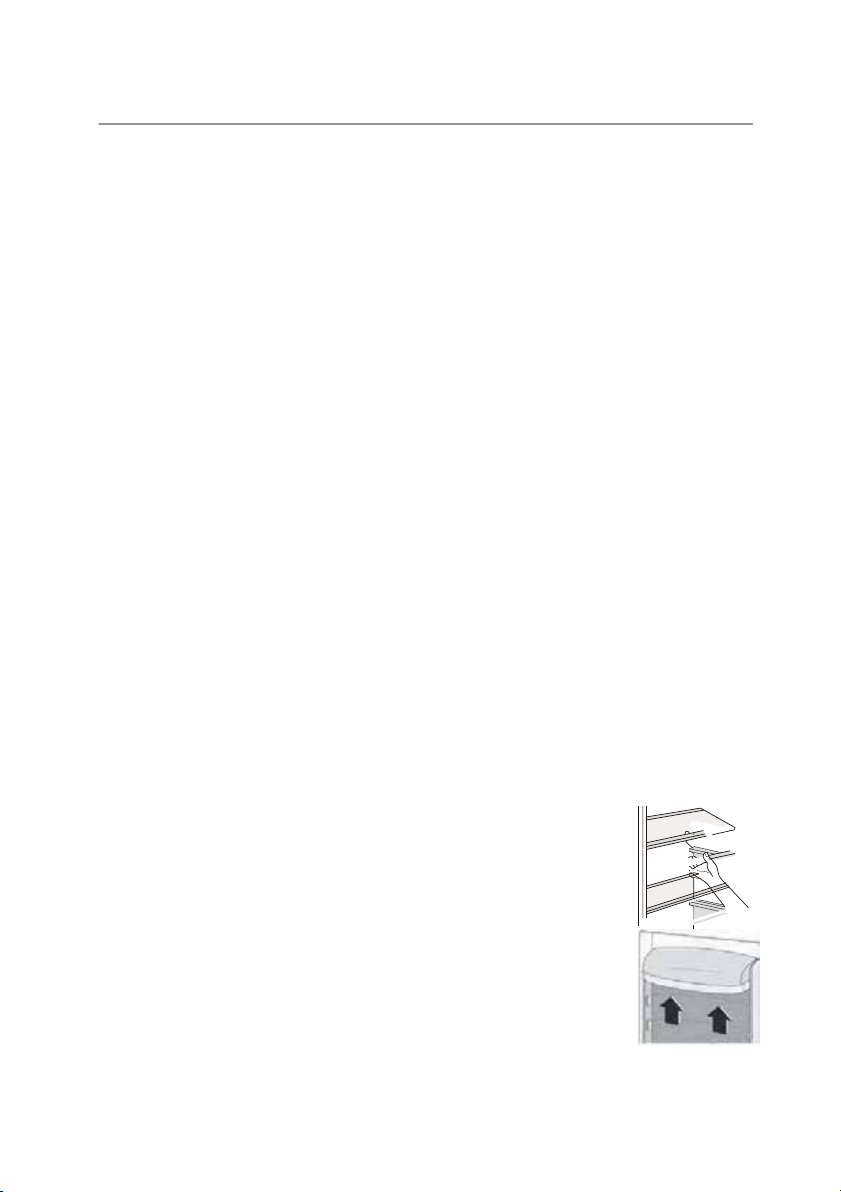

Movable shelves
The walls of the refrigerator are equipped with a series of runners/grooves
so that the shelves can be positioned as desired .
Positioning the door balconies
To permit storage of food packages of various sizes , the door balconies
can be placed at different heights. To make these adjustments proceed
as follows: gradually pull the balcony in the direction of the arrows until
it comes free, then reposition as required.
Accessories
14
Daily Use

Daily Use
Hints for freezing
To help you make the most of the freezing process, here are some important
hints:
• The freezing process takes 24 hours. Suggest not to add any food to be frozen
during this period;
• Only freeze fresh and thoroughly cleaned, foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen
and for you to subsequently to thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the
packages are airtight;
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• Lean foods store better and longer than fatty ones; salt reduces the storage life
of food;
• Water ices, if consumed immediately after removal from the freezer
compartment, can possibly cause the skin to be freeze burnt;
•It is advisable to show the freezing in date on each individual pack for enabling
you to remove food from the freezer compartment;
• It is advisable to show the freezing in date on each individual pack for
enabling you to keep tab of the storage time.
Helpful hints and tips
Hints for storage of frozen food
Make sure that the commercially frozen foodstuffs were adequately stored by
the retailer;
Be sure that frozen foodstuffs are transferred from the food store to the
freezer in the shortest possible time;
Do not open the door frequently or leave it open for long time than absolutely
necessary;
Once defrosted, food deteriorates rapidly and cannot be refrozen ;
Do not exceed the storage period indicated by the manufacturer of the food
packet.
•
•
•
•
•
To obtain the best performance from this appliance, you should:
Hints for fresh food refrigeration
Do not store warm food or evaporating liquids in the refrigerator.
Do cover or wrap the food, particularly if it has a strong flavour.
•
•
To obtain the best performance:

Daily Use

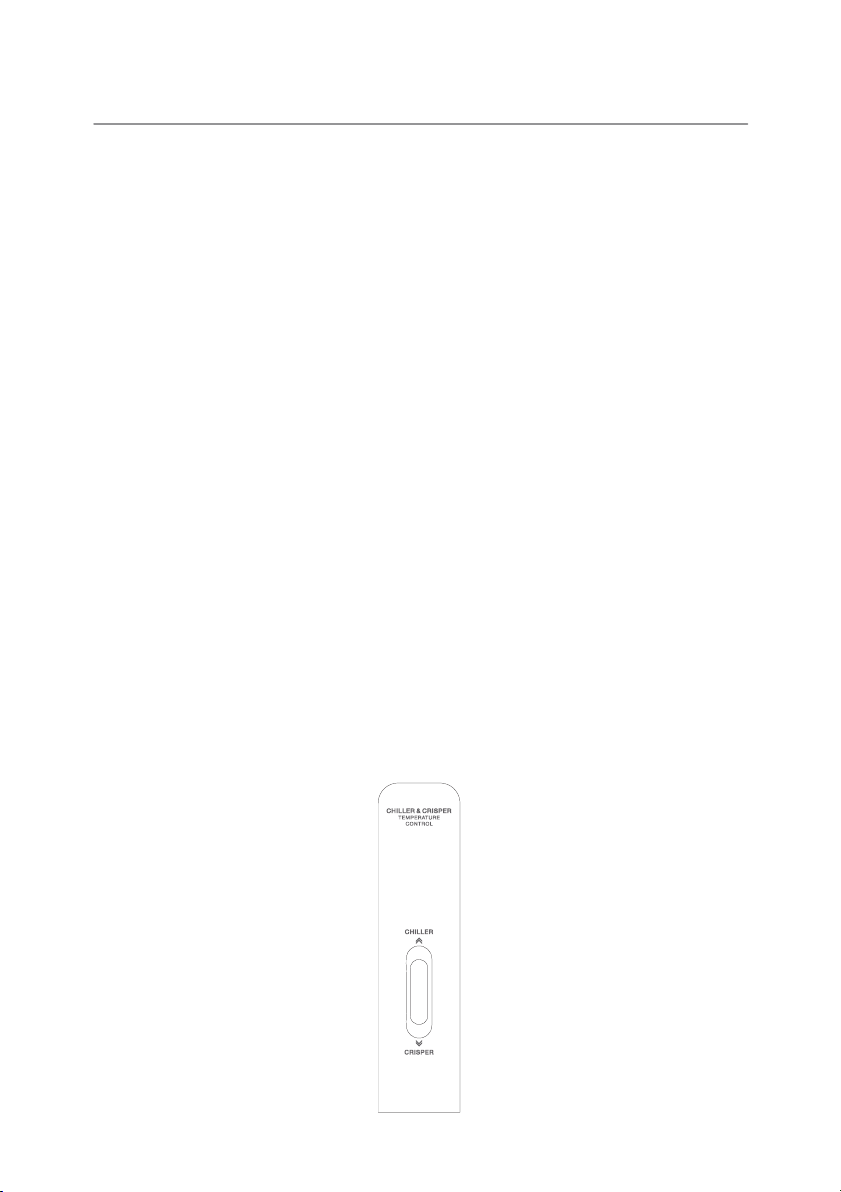

Fresh Zone Temperature Control
• Temperature of the fresh zone can be adjusted according to the
type of storage food.
• Push the knob upward from the bottom, temperature in the fresh
zone will be gradually decreased.
• When the knob is placed at the "CRISPER" position, the fresh zone
can be functioned as a crisper zone and maintain the appropriate
temperature and humidity for fruits and vegetable.
• When the knob is placed at the “CHILLER" position, it is suitable for
short-term storage of fish or other fresh food. The food will keep
fresh but not frozen which makes it the best choice for storing fresh
food.
• Tips: When you choose “CHILLER" function, it is recommended to
set the refrigerator temperature below 4°C. The food storage should
not be more than 3 days, in order to keep the best freshness.
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in polythene bags and place on the glass shelves above
the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or
wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the pockets of the
door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the
fridge.
15

Daily Use

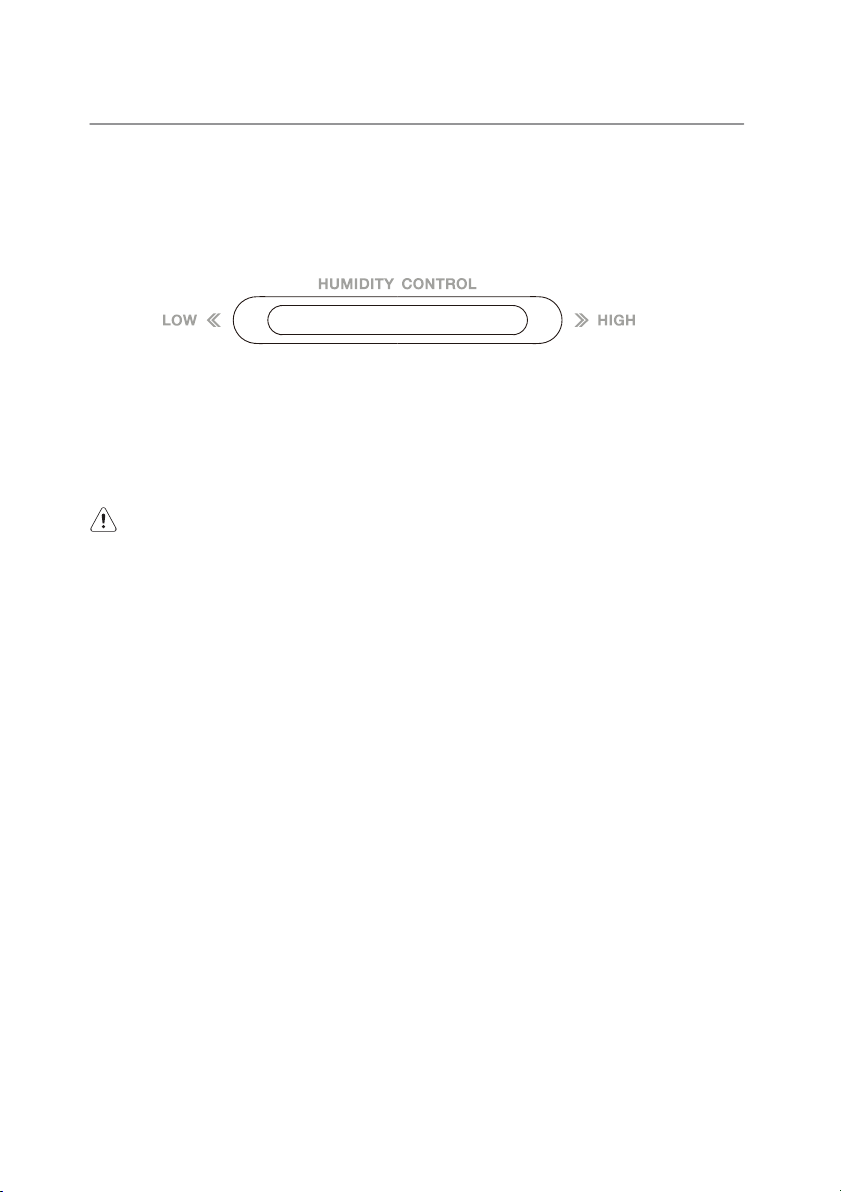

Humidity Adjustment for Crisper Zone
• When the knob is placed at the "HIGH" position, the crisper humidity is high,
which is suitable for vegetable.
• When the key is placed at the "LOW" position, humidity in the crisper is low
with is suitable for fruits.
Cleaning
For hygienie reasons, the appliance interior, including interior accessories,
should be cleaned regularly.
Caution! The appliance should not be connected to the mains during
cleaning. Danger of electric shock! Before cleaning switch off the appliance
off and remove the plug from the mains , or switch off or remove the circuit
breaker or fuse. Never clean the appliance with a steam cleaner. Moisture
can accumulate in electrical components and can be a cause of electric
shock. Hot vapors can damage plastic parts. Make sure the inside and
outside of the appliance is completely dry, before putting it to use.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon
juice or the juice form orange peel, butyric acid , cleanser that contain acetic
acid.
• Do not allow such substances to come in contact with the appliance parts. Do not
use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, and cover them.
• Clean the appliance and the interior accessories with a cloth and lukewarm
water. After cleaning wipe with fresh water and rub dry.
• Make sure the inside and outside of the appliance is completely dry, before
putting it to use
16

Troubleshooting
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks before
calling for service, please see below.
Warning! Do not try to repair the appliance yourself. If the problem persists after
you have made the checks mentioned below, contact a qualified electrician,
authorized service engineer.
The temperature is too low
1.1 The temperature inside the
freezer is too low, with the
fresh food temperatures fine.
The temperature inside
the freezer section is set
too low.
Set the temperature in the freezer slightly
higher then wait 24 hours for new balance to be
achieved.
1.2 The temperature inside the
fresh food compartment is too
cold, while the freezer sections
are fine.
The temperature inside
the fresh food area is set
too low.
Set the temperature inside the fresh food
section slightly warmer. The temperatures will
reach new balance within 24 hours.
1.3 The foods stored in the full
width pantry are frozen.
The control setting in the
fresh food area is set too
cold.
Set the fresh food control setting slightly higher.
The new set point temperature will reach a
balance within 24 hours.
1.4 The foods stored in the crisper
are frozen.
The settings for the fresh
food compartment are
too cold.
Raising the fresh food control settings to a
slightly higher temperature and/or lowering the
humidity control setting will prevent frost or ice
forming.
The temperature is too high
The doors are opened
frequently or for too long
each time.
Try to reduce the frequency of opening doors.
2.1 The freezer drawer sections
or fresh food compartment
temperatures are too high.
The doors are left open.
Take extra care to keep gaskets sealing well
around the perimeter of the doors. Keep gaskets
clean and dirt free.
2.2 The temperature is too warm
in the freezer but okay in the
fresh food section.
The temperature setting
in the freezer is set too
warm.
Set the temperature colder for the freezer
section. Then allow it to balance within 24 hours
at new colder temperature.
2.3 The temperature is too warm
in the fresh food section but
okay in the freezer.
The temperature setting
in the fresh food section
is set too warm.
Set the food temperature control slightly colder.
The new colder temperature can be achieved
within 24 hours.
2.4 The temperature inside the
crisper is too warm.
The fresh food set
temperature is too warm.
Set the fresh food temperature colder and the
balance to colder temperature will be achieved
within 24 hours
Water, humidity or frost/ice in the fridge
3.1 Moisture formation on the
inside of the fridge.
It is in a hot or humid
environment.
The door is left open.
The door or drawer is
opened too frequently or
for too long each time.
Food containers or
liquids are left open.
Fresh food compartment
temperature too low
Try raising the temperature slightly in the
affected compartment.
Check to make sure the door gaskets are clean
and sealing well against the metal cabinet
frame.
Reduce the frequency of door openings.
Let hot foods cool to room temperature and
cover foods and liquids.
It is normal for some wet air to collect inside the
enclosed crisper. to reduce the accumulation of
moisture, raise the fresh food compartment
temperature.
3.2 Water droplets collect in the
lower crisper drawer areas.
Problem Cause Solution
17
