Fluid FLDC2801 User manual

28" LED Combo
Television/DVD Player
FLDC2801
Instruction Manual
Read all of the instructions before using this TV and keep the
manual in a safe place for future reference.
8009640C

2
Important Safety Instructions
• Read these instructions – All the safety and operating instructions should be read before this product is
operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart or rack is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as
vases, shall not be placed on apparatus.
• WARNING: The wall socket plug is used as disconnect device, the disconnect device shall remain readily
operable.
• WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
• To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts
inside. Refer servicing to qualified personnel.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the appliance.
• This equipment is a Class II or double insulated electrical appliance. It does not require a grounded
connection.

3
Contents
Important Safety Instructions ............................................. 2
Safety Information ......................................................4
What’s Included ........................................................ 5
Getting Started ....................................................... 6-7
Front/Side View .................................................... 6
Rear View ......................................................... 7
Wall Mounting ...................................................... 7
Connecting to External Devices ........................................... 8
Remote Control Button Functions .......................................9-11
Operating Your Television .............................................12-18
Select Your Onscreen Language Preference ............................12
Navigating the Onscreen Display ......................................13
Choosing a TV Channel ..............................................13
Selecting Input Source ..............................................14
Picture Menu Options ...............................................14
Picture Mode .......................................................14
Audio Menu Options ................................................15
Time Menu Options .................................................15
Setup Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Lock Menu Options .................................................17
Channel Menu Options ...............................................18
Show/Hide .........................................................18
Parental Menu Options ..................................................19
DVD Operation .....................................................20-22
DVD Functions ..................................................... 23-32
Supported DVD Format .......................................... 23-24
MP3/JPEG Playback ................................................25
Using the Built-in DVD Player ........................................26
Compatible disc types ..............................................26
Basic DVD Playback Functions .................................... 27-28
Playing Multimedia Discs ............................................29
Using the DVD Language Setup Page .................................30
Using the DVD Screen Setup Page ...................................30
Using the DVD Audio Setup Page .....................................31
Using the DVD Custom Setup Page ................................... 32
Troubleshooting ................................................ 33-35
Specifications .........................................................36
Warranty .............................................................36

4
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the instructions
in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a main power supply with voltage that matches the
label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other
electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on them, which may damage the leads.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm or when not using the television for long periods, turn off the power
switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist
areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is
damaged, liquid has spilt onto the set, if accidentally exposed to water or moisture, if
anything accidentally penetrates the ventilation slots or if the set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside.
Trying to service the unit yourself is dangerous and may invalidate the product’s warranty.
Only qualified personnel should service this apparatus.
• To avoid battery leakage, remove exhausted batteries from the remote control, or when not
using for a long period.
• Do not break open or throw exhausted batteries in a fire.
Physical safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but
ensure at least 5 cm (2”) clearance all around.
• Do not tap or shake the TV screen, this may damage the internal circuits. Take good care of
the remote control.
• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based fluids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong, the wide blade, or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Refer all servicing to a qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• Please always connect your television to a power outlet with protective ground connection.

5

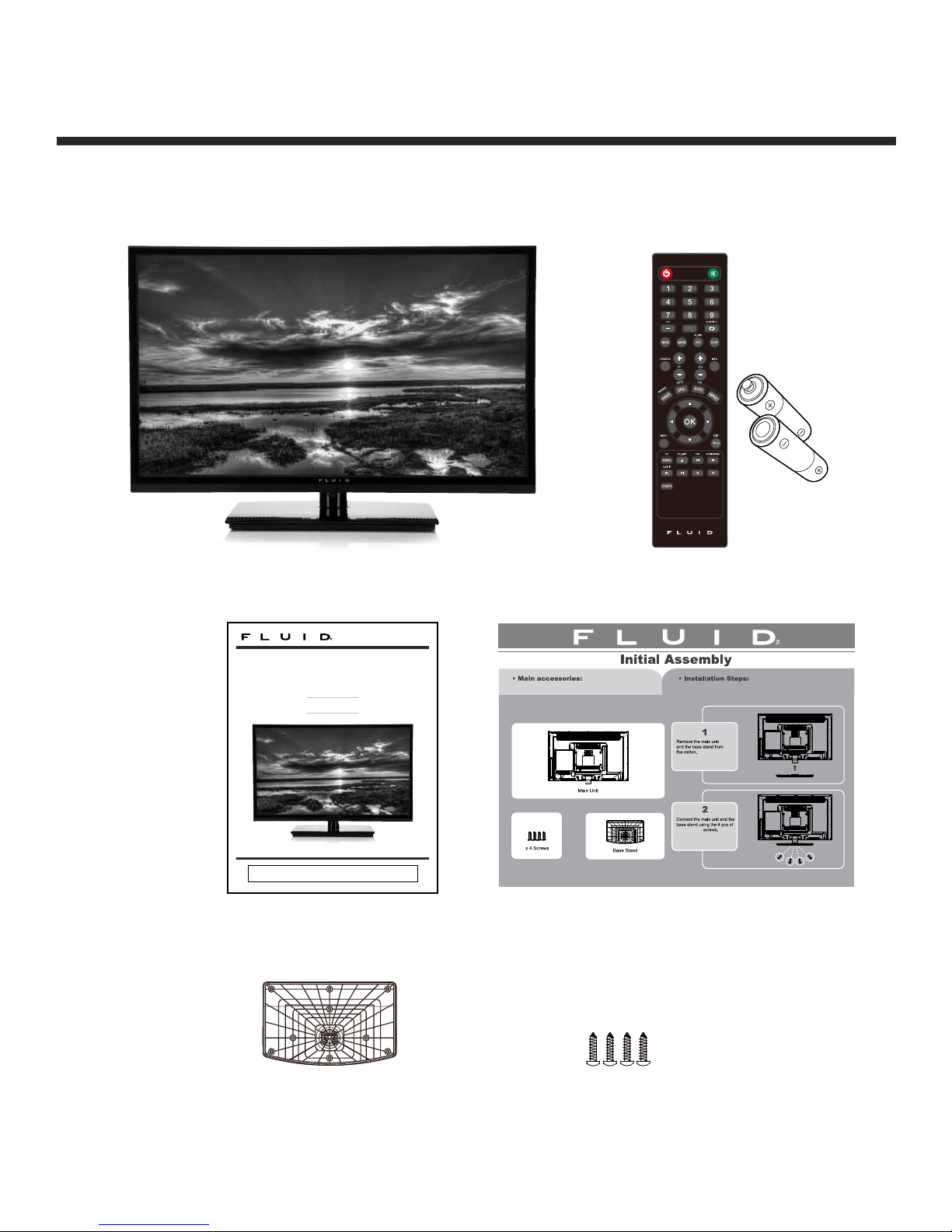

What’s Included
Unit and Accessories
TV Set
User's Manual Initial Assembly
Base Stand 4 Screws
(TPW4x12A-HO)
Remote Control with Batteries
28"LED Combo
Television/DVD Player
FLDC2801
Instruction Manual
Read all of the instructions before using this TV and keep the
manual in a safe place for future reference.
8009640C
8009640C
TP4X12A-HO

6
Getting Started
Front/Side View
Button Functions
1. POWER : Turns on/standby the TV set
2. SOURCE : Displays the input source menu
3. MENU : Displays the OSD menu. Press again to exit the menu
4. CH +/- : Scans through channels
5. VOL +/- : Adjusts the volume
: Play/Pause button for DVD
: Open/Close button for DVD
IR: Infrared Receiver
LED: The LED light indicates when the TV is activated

7
Getting Started

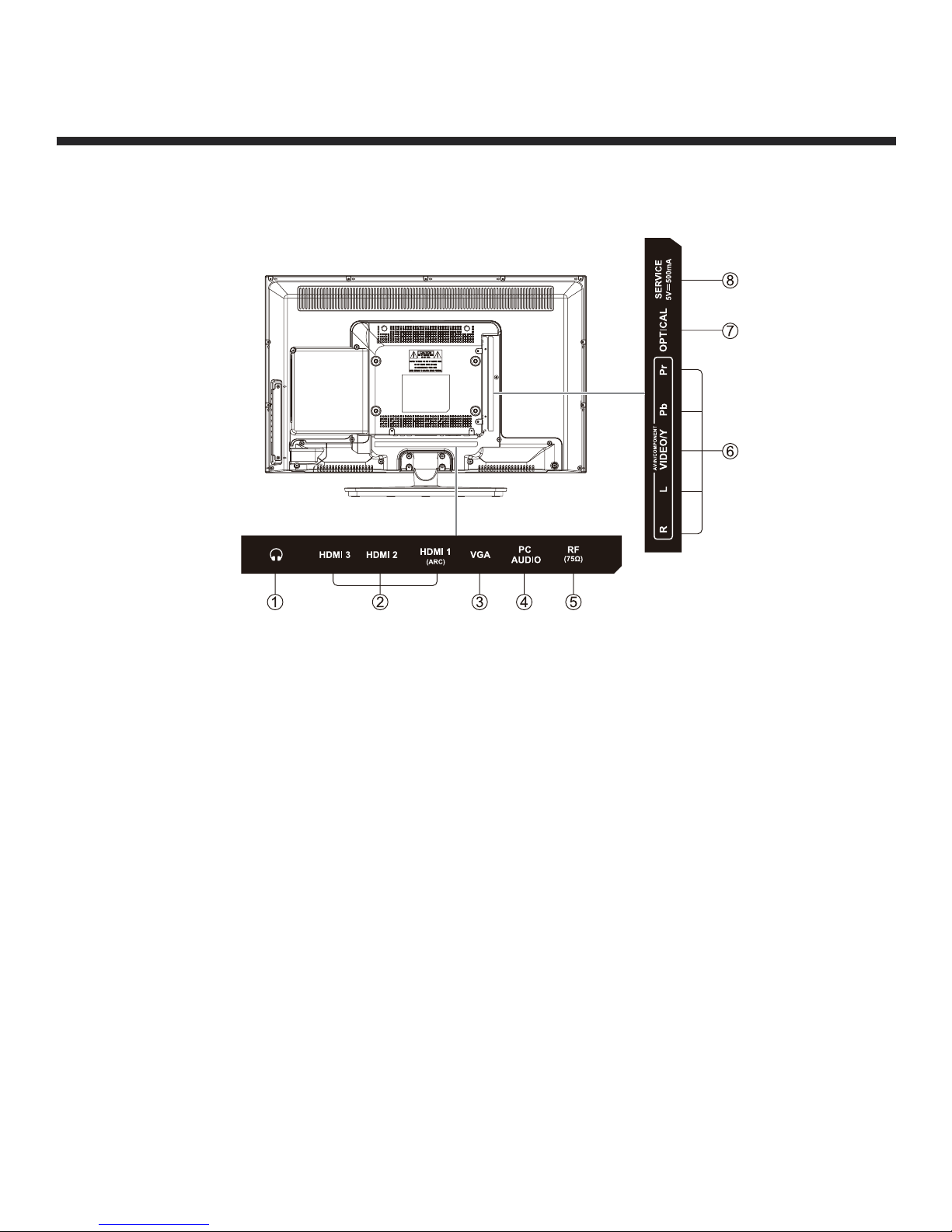

Rear View
1. Headphone output
2. HDMI inputs
3. VGA input
4. PC audio input
5. Antenna input (75 Ohm VHF/UHF)
6. Component and audio input terminal
7. Optical output
8. Service Port
Wall Mounting
The TV is provided with mounting holes for a VESA approved wall mounting bracket (NOT
SUPPLIED). The VESA mounting pattern is 200 x 100. Remove the screws holding the base to
the base bracket and lift the base away (do not remove the base mounting brackets). Mount the
VESA bracket using 4 x M5 isometric threaded screws (not supplied).
Caution: Your new TV is heavy; please consult with a professional wall mount installer to perform
this installation.

8
Connecting to External Devices

9
Remote Control Button Functions
Power button
Numeric buttons
Channel setup/DVD 10+ button
Sound mode button
Picture mode button
Signal SOURCE selection button
Channel selection buttons
EPG/GOTO button
FREEZE/REPEAT button
UP button
LEFT button
TV setup MENU button
OPEN/CLOSE/CH.LIST button
CC/DVD MENU button
NEXT button
PREV/V-CHIP button
DVD.SETUP button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Mute button
Return channel/DVD SUBTITLE
MTS/AUDIO button
SLEEP button
Information button
Volume adjust buttons
AUTO/A-B button
ASPECT button
ENTER button
RIGHT button
DOWN button
TITLE/EXIT OSD menu button
FAV/Play/Pause button
ADD/ERASE/STOP button
REWIND button
FORWARD button
If there is light around the TV, the remote control may fail or work abnormally.
If not using the remote for a long period of time, please remove the batteries.

10
Remote Control Button Functions
TV Functions
POWER: Power on/off button, press once to turn
TV on and press again to turn TV off.
0, 1-9: TV channel selection button.
— : Press this button to enter a program
number for multiple program channels
such as 2-1, etc.
S.MODE: Sets the sound mode.
P.MODE: Sets the picture mode.
SOURCE: Signal source selection button (TV/AV/
Component/DVD/HDMI/VGA).
CH +/- : Channel selection button, to increase or
decrease the channel.
EPG: Electronic Program Guide Function.
FREEZE: Freeze picture for TV.
e / d : (Up/Down) Up and Down button of OSD
menu. To change the OSD menu items.
f / g : (Left/Right) Left and right button of
the OSD menu. To select the OSD menu
items.
MENU: OSD menu button, to enter the TV set up
menu.
CH.LIST: Display program list.
CC/DVD MENU: Closed Caption select button OFF,
ON or CC ON Mute.
NEXT
V-CHIP: Parental control set-up.
MUTE: Mute button, press once to disable the
audio and press again to enable the
audio.
Button
Position
1
2
3
4
5
6
7
8
9
10/28
11/27
12
13
14
15
16
17
18
DVD Functions
GOTO: Press GOTO button and then or to
choose Title, Chapter or Time, then press OK
button to enter the selected play mode.
REPEAT: Press REPEAT button to repeat a title,
chapter, track, chapter repeat or whole
disc. When playing DVD disc, press REPEAT
button continually, the TV screen shows
chapter repeat, title repeat, all repeat,
repeat cancel. When playing VCD, CD disc,
the options are track repeat, all repeat,
repeat cancel. When playing MP3 disc, the
options are single repeat, track repeat, file
repeat, all repeat, repeat cancel.
: Press OPEN/CLOSE with the power on. The
disc label should be facing towards the back.
Press OPEN/CLOSE again to close.
I : When playing a DVD disc, press NEXT to
go to the next chapter. When playing SVCD,
VCD disc, press NEXT to go to the next
track.
I : When playing a DVD disc, press PREV to
go to the previous chapter. When playing
SVCD, VCD, CD disc, press PREV to go to
the previous track.
DVD.SETUP : Press SETUP button to open DVD
setting menu.

11
TV Functions
: Previous channel button, return to the
previous channel watched.
MTS: Press to select the audio channel.
• Make sure the TV has searched the
channels and that there is an Analog
Stereo/Dual Sound Signal shown on the
program.
• Press the MTS (Multichannel Television
Sound) button to select STEREO and
MONO.
SLEEP: Sleep button, sets TV power off time.
INFO: Press the info button to view the current
channel. Press again to exit channel
information.
VOL +/-: Volume adjusting button, to increase and
decrease the volume.
AUTO: Auto adjust (only for use with VGA
source).
ASPECT: Select display mode: Wide/Zoom/
Cinema/Normal/Full 100% (only
available under HDMI inputs).
OK: Confirms the selection of the highlighted
menu item.
Right button.
Left button.
EXIT: To exit operation.
FAV: Display favourite of program list.
ADD/ERASE: Add or delete favourite channel.
Button
Position
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
DVD Functions
SUBTITLE: (for DVD and Super VCD discs)
-Press the SUBTITLE button once to
display the current subtitle.
-Press again to toggle between different
subtitle modes in sequence.
Note: For Multi-language or subtitle DVD
and Super VCD discs, press SUBTITLE
button to select your desired subtitle
language.
AUDIO: Press AUDIO button to choose a different
audio channel.
INFO: Press INFO button for DVD information.
A-B: When playing DVD, VCD, CD, MP3 disc,
press A-B button to repeat certain
contents. Pres A-B key at the start point
(A) and again at the end point (B) to select
the repeated section. Press A-B a third
time to cancel the A-B repeat and return to
normal play.
TITLE: When playing DVD, press TITLE to return
to the main title page.
II : When playing the disc, press PLAY/PAUSE
once to pause, press PLAY/PAUSE again
to return to normal play.
: When playing DVD, SVCD, VCD, CD, press
STOP once, the unit will retain in memory
the stop point. Press PLAY/PAUSE button
to continue play. Press STOP a second time
to stop the play and end the memory.
: Press for a quick rewind search
: Press button for quick forward search.

12
Operating Your Television
Basic Operations
Turning Your TV On and Off
TURN ON TV
1. Connect to power with the main power cable. The TV will enter STANDBY mode and the
LED indicator light will be red.
2. From the STANDBY mode, use the POWER button either on the main unit or on the
remote, to turn the television on.
TURN OFF TV
From ON mode, use the POWER button either on the main unit or on the remote control to
turn the television to STANDBY mode.
Select Your Onscreen Language Preference
Note: If using your TV for the first time, select the onscreen language which will be used to
display menus and information boxes.
• Press the / button to select Menu Language.
• Press the / button to select the desired language.
• When satisfied with the selection, press EXIT to exit.
Volume Adjustment
1. Press VOL +/- to adjust the volume
2. To turn the sound off, press MUTE . Press again to resume sound.

13
Operating Your Television
Navigating the Onscreen Display
• Press the MENU button to display the main menu.
• Use the / buttons to navigate and select the available menus.
Choosing a TV Channel
1. Use the CH+/CH- buttons on the side panel or CH+/CH- on the remote control.
• Press CH+ to increase the channel.
• Press CH- to decrease the channel.
2. Using 0-9 remote keys
Enter the channel number with the 0-9 remote keys, then press “OK” to select the channel.
For example:
1. Press 4, then press “OK” to select channel 4.
2. Press 4, press 5, then press “OK” to select channel 45.
3. Press 1, then 2, press 1, and then press “OK” to select channel 121.

14
Operating Your Television
Selecting Input Source
Display the input screen menu by pressing SOURCE on the remote control
or SOURCE on the side of the TV. Press the / button to select your choice,
then press “OK” to enter using the remote, or press VOL+ directly on
the side of the TV.
Picture Menu Options
Press MENU on the side panel or MENU on the remote control, then use / to move within the Picture
menu. Press to enter (see picture).
Picture Mode
Select the type of picture which best corresponds to your viewing preference by selecting Picture Mode
in the PICTURE menu, or enter the picture mode directly by pressing the P.MODE button on the remote
control.
Contrast
Press / then use / to adjust the contrast of the picture.
Brightness
Press / then use / to adjust the brightness of the picture.
Colour
Press / then use / to adjust the colour of the picture.
Tint
Press / then use / to adjust the tint of the picture.
Sharpness
Press / then use / to adjust the sharpness of the picture.
Colour Temperature
Press / to select mode: Cool, Warm, Normal.
Blue Screen
Press / then use / to select On or Off.

15
Operating Your Television
Audio Menu Options
Press MENU on the main unit or on the
remote control then use / to select the AUDIO
menu. Press to enter (see picture).
Sound Mode
Press / then use / to select User, Standard, Music, Movie
and Sports.
Bass
Press / then use / increase or decrease the level of the
lower-pitched sounds.
Treble
Press / then use / to increase or decrease the level of higher-pitched sounds.
Balance
Press / then use / to adjust the audio output between left and right speakers.
Surround
Press / to switch Surround On or Off.
AVC (Auto Volume Control)
Press / to switch auto volume control On or Off. This function allows volume to be controlled
automatically.
SPDIF Type
Press / to select between PCM or RAW.
Audio Language
Press / to select the audio language from: English, French and Spanish.
Time Menu Options
Press MENU on the side panel or on the remote control
then use / to select the TIME menu. Press to enter
(see picture).
Sleep Timer
Press / then use / to set the sleep timer from the following
selections:
Off, 5 min, 10 min, 15 min, 30 min, 60 min, 90 min, 120 min, 180 min or 240 min.
Time Zone
Press / then use / to set up the time zone:
Pacific, Alaska, Hawaii, Eastern, Samoa, Atlantic, Newfoundland, Central or Mountain.
Daylight Saving Time
Press / then use / to set up the daylight saving time On or Off.
Note: Can only be selected in TV mode.

16
Operating Your Television
Setup Menu Options
Press MENU on the side panel or MENU on the remote control, then use / to select the SETUP menu.
Press to enter (see picture).
Menu Language
Press / then use / to select menu language for either
English, Français or Español.
Transparency
Press / then use / to turn On or Off the transparency function.
Zoom Mode
Press / then use / to select the zoom to either Wide, Zoom,
FULL 100% (only available under HDMI inputs), Cinema or Normal.
Noise Reduction
Press / then use / to adjust the noise reduction mode to either
Medium, High, Auto, Off or Low.
Advanced
Press / then use / to select the advanced options between
H-POS, V-POS, Clock, Phase, Auto (only used in VGA source mode).
H-POS
Press / then use / to adjust the H-POS of the picture.
V-POS
Press / then use / to adjust the V-POS of the picture.
Clock
Press / then use / to adjust the Clock of the picture.
Phase
Press / then use / to adjust the Phase of the picture.
Auto
Press / then use to adjust the Auto of the picture.
Closed Caption
Press / to navigate and highlight the closed caption item, then press
the g button to enter into the following menu.
CC Mode
Select the CC mode options from: CC On, CC Off, or CC on Mute.
Basic Selection
Select the basic selection from: CC1, CC2 CC3, CC4, Text1 Text2,
Text3, Text4.
Advanced Selection
Press / then use / to select the advanced selection from:
Service1, Service2, Service3, Service4, Service5, or Service6.
Option
Press / then use to enter into the following menu.
Press / then / to select.
DLC
Press / then use / to turn dynamic luminance control On or Off.
Restore Default
Select “Restore Default”, press OK and it will display “Are you sure?”
Select “Yes” to select the factory default settings.
CEC (Consumer Electronics Control)
Press / then use to enter CEC submenu, press / to turn CEC control
On or Off. ARC function doesn't work when "CEC control" is turned Off.

17
Operating Your Television
Lock Menu Options
Press Menu on the side panel or MENU on the remote control, then use / to select the LOCK menu.
Press d button to enter.
Use the button to go to the “Enter Password” selection and use the numeric buttons to input a 4-digit
password. The screen will display the sub-menu. After setting, press the Menu button to exit.
NOTE: The factory password is 0000.
Change Password
Press the button to select the “Enter Old Password” selection and
input the 4-digit old password, then input the 4-digit new password.
To confirm, input the 4-digit password.
System Lock
Allows you to turn the system lock On or Off. If you turn off the system
lock, then the following options (US, Canada, RRT Setting and Reset
RRT) are unavailable for use.
US
Use the button to highlight the “US” selection, then press the button
to enter into the menu.
Canada
Use the button to highlight the “Canada” selection, then press the
button to enter into the following menu.
Canada English
Use / buttons to select among: E, C, C8+, G, PG, 14+ and 18+.
Canada French
Use / buttons to select among: E, G, 8ans+, 13ans+, 16ans+
et 18ans+.
RRT Setting
Rating Region Table setting. (Note: This option is valid in DTV).
Reset RRT
Allows you to reset the RRT setting.
4-digit password

18
Operating Your Television
Channel Menu Options
Press MENU on the side of the TV or remote control, then use / to select the CHANNEL menu.
Press to enter.
Air/Cable
Allows you to select the input signal between Air and Cable.
If you select “Air” as the input signal in the “Antenna” option
press the button to search the channels automatically.
The receiver channels will be stored automatically.
When searching channels, press MENU to stop.
If you select “Cable” as the input signal in the “Antenna” option, this
allows you to select the Cable System between: AUTO, STD, IRC and HRC.
Use the button to highlight “Start to Scan”, then press the button
to search the channels automatically. The receivable channels will be
stored automatically.
When searching channels, press MENU to stop.
Auto Scan
Use the button to highlight “Auto Scan”, then press the button to enter
into the menu.
Favourite
Allows you to add any channels that you flag to your favourite channel list.
Use the / button to highlight the “Favourite” channel, then press the
button to enter the menu.
Use the / button to highlight the desired channel, then press the OK
button to add or remove the highlighted channel as a favourite.
Show/Hide
Allows you to show or hide the channels.
Use the / button to highlight the “Show/Hide” item,
then press the button to enter the menu.
Use the / button to highlight the desired item, then
press the OK button to show or hide the highlighted channel.
Channel No.
Displays the number of the current channel.
Channel Label
Displays the label of the current channel.
DTV Signal
Displays the quality of the current DTV signal.

19
Parental Menu Options
Parental Control
Press Enter to enter the sub-menu and then use the 0-9 to enter the correct password: 0,0,0,0. If used, this option feature can
“block” undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings
that restrict or “block” the programming that can appear on the TV. Parental Control allows the user the capability of defining which
program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the
user who specifies the secret 4-number code, (password). The number of hours blocked are specified. General audiences and children
blocks should be both programmed into the TV’s memory. Viewer ratings are specified for both TV and the motion picture industry;
both rating systems should be used for complete coverage. The ratings are based on the ages of children.
Overview
To ensure complete coverage for all TV programs (movies and regular TV shows) choose a rating for MPAA from the selections below
as well as ratings from the TV Parental Guidelines Rating Systems below using the Age Block option for General Audiences and for
children. In addition to those, you may wish to add additional restrictions from the content block menu and submenus examples
below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, more restrictive ratings will be
automatically blocked; the viewer will not be able to see: TV-PG, TV-14, or TV-MA rated programming.) Do you want to block the
auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/Video input jacks)
Or leave unblocked, then choose allowable ratings. Block program “Content” based on individual parameters such as: Strong Dialog,
Bad Language, Sex Scenes, Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password in the Set
Password option using the numbers keys on the remote. Do not forget the password, it is the only way you can access the Parental
Control menu and change rating selections or turn Parental Control off. Do you want the Parental Control to be active at all times? If
not, you can turn it on or off with the Lock On/Off option.
• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.
• Even if you choose to leave the AUX inputs unblocked, the ratings you specify will automatically restrict the programming that appears from
the video sources.
• You can not disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time
setting specified if power is disconnected.
Information
Motion Picture Association of America (MPAA) Rating System
Grade Meaning
G General Audiences Content not offensive to most viewers
PG Parental Guidance Suggested Content is such that parents may not want their children to view the program
PG-13 Parental Guidance Cautioned Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG
rated program
R Restricted viewing Not for children under 17, Strong element of sex and/or violence
NC-17 No Children Under age 17 Not for children under 17 under any circumstances. Strong sexual content
X Hard Core Films Same as NC-17 rating
No Rating No Rating MPAA Not Rated
TV Parental Guideline Rating System
Grade Meaning
TV-Y Young Children Content not offensive to most viewers
TV-Y7 Children 7 and over Considered suitable for children over 7, may contain Fantasy Violence Scenes
TV-G Parental Audience Considered suitable for all audiences; children may watch unattended
TV-PG Parental Guidance Suggested Unsuitable for younger children, may contain; Suggestive Dialogue, Bad Language, Sex, and Violence Scenes
TV-14 Parents Strongly Cautioned Unsuitable for children under 14, may contain: Strong Dialogue, Bad Language, Sex, and Violence Scenes
TV-MA Mature Audience Only Adults only, may contain Strong Dialogue, Bad Language, Sex, and Violent Scenes
Canadian Rating: Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+).
Canadian French is used in Quebec (G, 8 ans+, 13 ans+, 16 ans+, 18 ans+)
Note: The V-Chip will automatically block certain categories that are “more restrictive”. If you block TV-Y
category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories
in the “young adult” will be blocked (TV-G, TV-PG, TV-14, and TV-MA).

20
DVD Operation
Preparation before playing disc
• The display language is set to English. Please refer to setup operation.
• Most functions are operated by the remote control or use the buttons on the front panel.
Preparation
• Turn the TV on and select DVD as the TV input.
• Turn on any related system power if the player has been connected to amplifier equipment, etc.
PLAY
1. Turn on the power, the display shows “LOADING”. (Note: the disc information appears after several
seconds if a disc has been inserted. Otherwise NO DISC appears.)
2. To insert a disc, place the disc with the printed label side facing the back, into the DVD slot. The disc
will automatically be loaded into the player.
3. To remove the disc, press the OPEN/CLOSE button and the disc will eject.
4. Press PLAY on playback disc. You may also start playback according to the MENU screen once the
MENU displays. Press ENTER button to start playback. Some discs may play automatically once loaded.
Disc Type Disc Size
(Diameter)
Recorded Time Recorded Content Remarks
DVD 12 cm Single side:
120 mins. Approx
Double side:
240 mins. Approx
DVD format:
Compressed digital
audio and video
Super VCD 12 cm 45 mins. Approx MPEG2
Compressed digital
audio and video
Includes SVCD
VCD 12 cm 74 mins.Approx MPEG1
Compressed digital
audio and video
Includes:
VCD2.0/VCD1.1
VCD1.0/DVCD
CD 12 cm 74 mins.Approx CD-DA: Digital audio
HD-CD 12 cm 75 mins.Approx HD-DA: Digital audio
MP3/JPEG 12 cm 600 mins.Approx Digital audio
NOTE: Also supports DVD-R, CD-R, CD-RW playback
WARNING! DO NOT INSERT OR PLAY 8 CM DISCS, THEY WILL GET STUCK!
Region Code 1
As it is usual for DVD movies to be released at different times in different regions of the
world, all players have region codes and discs that have an optional region code. If you load
a disc of a different region code into your player you will see the region code notice on the
screen. The disc will not playback and should be unloaded. The region code for this player
is 1 (refer to the symbols).
Class 1 Laser Product
This unit utilizes a laser. Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
