Flysight Speedy F180 User manual

Quick Start Guide
Speedy F180
Naze-6DOF

Flight Environment Requirements
Flight Safety Tips
Strongly recommend the user to enjoy the pleasure of flight in a safe and reasonable environment . The necessary
flight safety is very important to you, the people around you and the environment.
1. Fly in the open space: please stay away from buildings, trees, high pressure lines and other obstacles, and
keep away from the water, the crowd and the animals.
1. Do not fly in bad weather, such as strong winds (10 m / s), snow, rain, foggy weather, etc..
2. Please keep small accessories and electronic products in the place where children can not reach.
3. Please do not put any part of the model into the mouth, otherwise it will cause serious damage, and even death.
4. Do not touch the rotating parts.
5. Fly in the visual range: please keep the aircraft in sight, avoid flying to tall buildings and other objects that
might stop the line of sight.
6. Control flight height: in order to ensure the flight safety of aircraft and civil aviation, the aircraft's height control
in 120 meters. If you are in the area of a flight height limit of 120 meters or less, please follow the rules.
2. Do not fly in a high voltage line, communication base station, transmission tower or Wi-Fi hot spots, etc., in
order to make the remote control avoid interference.
3. Fly at an altitude of above 6000 meters, due to environmental factors leading to the decline in the performance
of the aircraft battery and power system, flight performance will be affected, please be cautious.
About Speedy F180
Speedy F250 with automatic return and protection function out of control, when Speedy F180 loses the signal, it
can start the protection function out of control and return automatically to takeoff point.

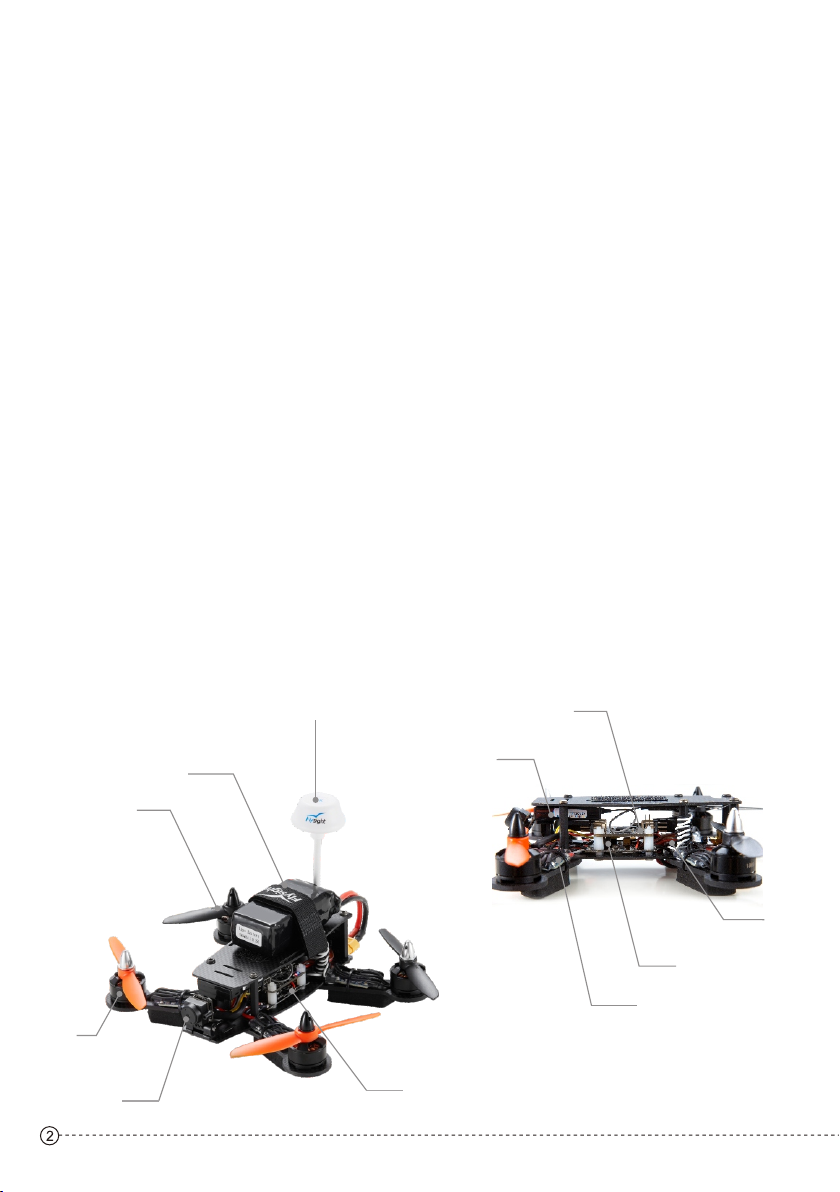

F180 Fuselage Structure：
Camera
RC Receiver
Flight Control
Propeller
Li-Po Battery
A/V transmitter antenna
Motor
Electronic Speed Regulator
A/V Transmitter
Power strip
Buzzer

3
F180 Technical Specification：
Takeoff Weight 375g
Max Lifting Speed 19 m/s
Max Landing Speed 16 m/s
Max Level Flight speed 105-115 KM/h
Max Flight Altitude 6000 m
Flight time 11-13mins
Working temperature 0℃-40℃
About the RC Transmitter
Flysight Speedy F250,its standard RC transmitter is WFLY-07 as below, its max distance is 1000m.
Remote control has four custom channels, users can install the channel function according to their own
habits and flight requirements.
WFT07 RC device Positive
(Left hand throttle) Antenna(rotatable)
RF light
K3 K4
Elevator trim
Aileron/elevator
stick
Power switch
Neckstrap attachment
Aileron trim
Left
Up
Right
Down
OK
LCD
Reduce
Add
Exit
Menu
Rudder trim
Rudder/
throttle stick
Throttle trim
K1 K2
Power light
V1
Buzzer
111mm
142 mm
181 mm
high: 46mm

4

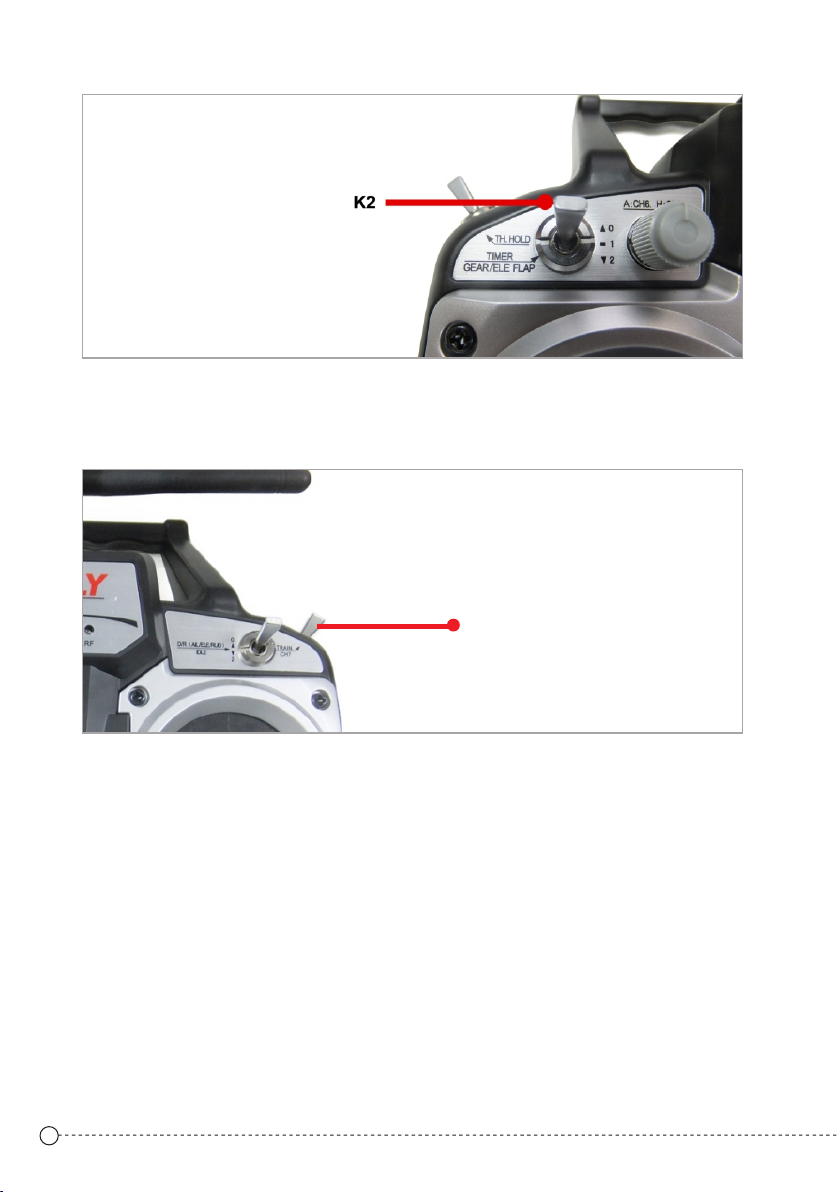

K4 is LED and speaker switch
K4
K2 is flight mode switch
LED on
LED off
LED flash and horn alarm
ANGLE
HEDAFREE
Manually
Note:
When the voltage is lower than the value of the alarm setting, LED flashing and horn automatic alarm,
then the K4 switch is useless.
Flight Preparation
1. Turn on the RC transmitter.
2. Connected the power of the aircraft, wait for self check(after self check completion, the indicated light of the
flight control flickers slowly), Do Not move the aircraft during this process.
3.Please make sure the normal connection between the RC transmitter and the aircraft (RC receive and RC
transmit connection fails, the "STATUS" red indicator light on the receiver is on; otherwise, it is off).
4. Unlock the aircraft, check the motor rotation direction.

5
Diagram 1 Diagram 2

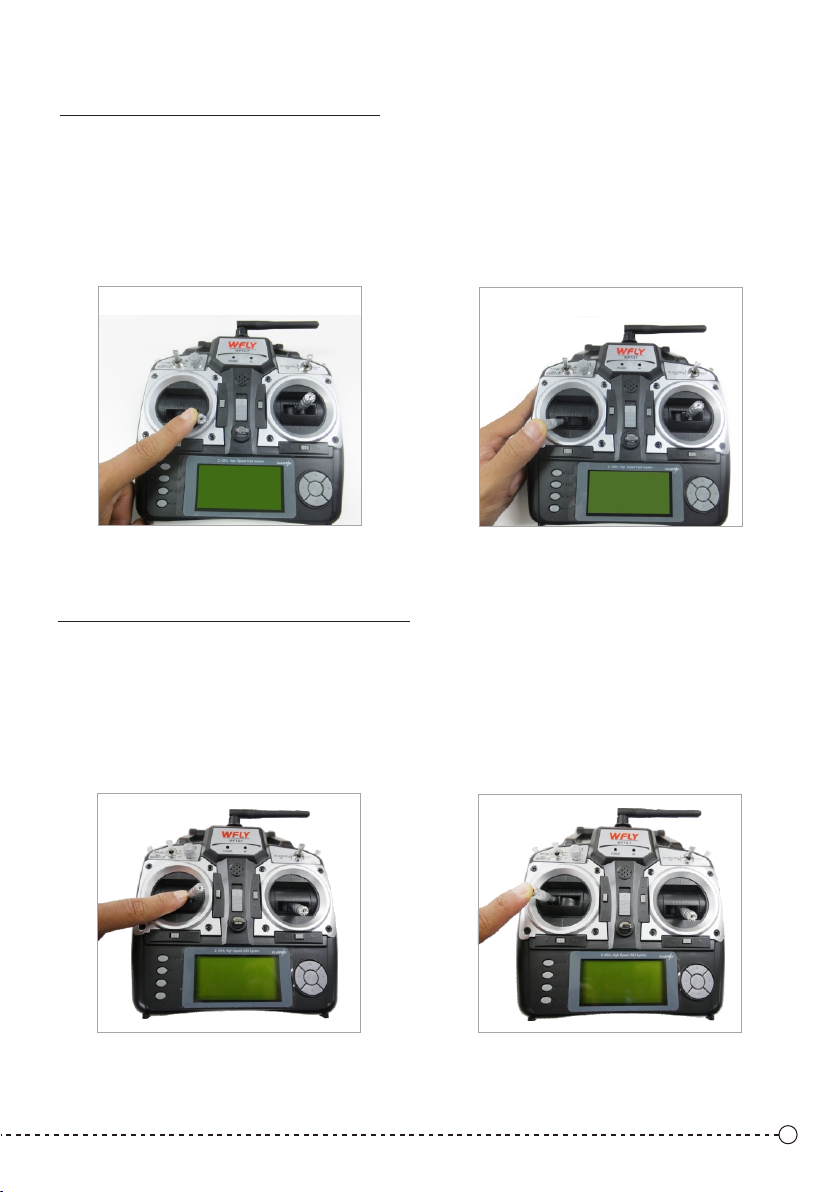

Aircraft unlock and lock
Mode 2--Unlock (Diagram1) and Lock (Diagram2)
1. Unlock: pull the left stick to the bottom on the right corner for 3 seconds, the red light of the flight control system
is on ,that means unlock successfully, the motor starts to rotate.(Diagram1)
2. Automatic lock: the aircraft has automatic lock function, keep the lowest throttle for 8 seconds, the aircraft will
automatically lock.
3. Manual locking: pull the left stick to the bottom on the left corner for 3 seconds, the red light of the flight control
system flicker slowly, that means lock successfully.(Diagram2)
1. Unlock: pull the right stick to the bottom, meanwhile pull the left stick to the bottom on the right corner for 3
seconds, the red light of the flight control system is on, that means unlock successfully, the motor starts to
rotate.(Diagram4)
Mode 1--Unlock（Diagram3) and Lock（Diagram4）
2. Automatic lock: the aircraft has automatic lock function, keep the lowest throttle for 8 seconds, the aircraft will
automatically lock.
3. Manual locking: pull the right stick to the bottom, meanwhile pull the left stick to the bottom on the left corner
for 3 seconds, the red light of the flight control system flicker slowly, that means lock successfully. (Diagram5)
Diagram 3 Diagram 4

6
Flight Operation Instruction
Note: Wrong installation of the propellers will lead to the flight crash.
Please confirm the correct motor rotation direction, then install the propellers properly on the aircraft; when
you install the propellers, please attention to the positive and negative direction of the propellers, one hand
hold the motor, and the other hand tighten the screw.
Be sure to tighten the screw manually to ensure that the propeller is installed correctly and properly.
Take off/ Land
Take off:
After the aircraft is unlocked successfully, the motor starts and release the rocker, slowly push the throttle
lever upward(default left sticker,Mode2), the aircraft takes off.
Install the propellers
Land:
Pull the throttle lever downward slowly, and the aircraft reduce the flight height until it lands on the ground.
Pull the throttle lever to the lowest position to stop the motor, and lock the aircraft manually or wait for it to
lock automatically .
During the flight, do not stop the motor, or the aircraft will crash. Unless special circumstances occur (such
as an aircraft may crash into the crowd), you need stop motor peremptorily to minimize the damage.
Please turn off the aircraft, and then the RC transmitter.
