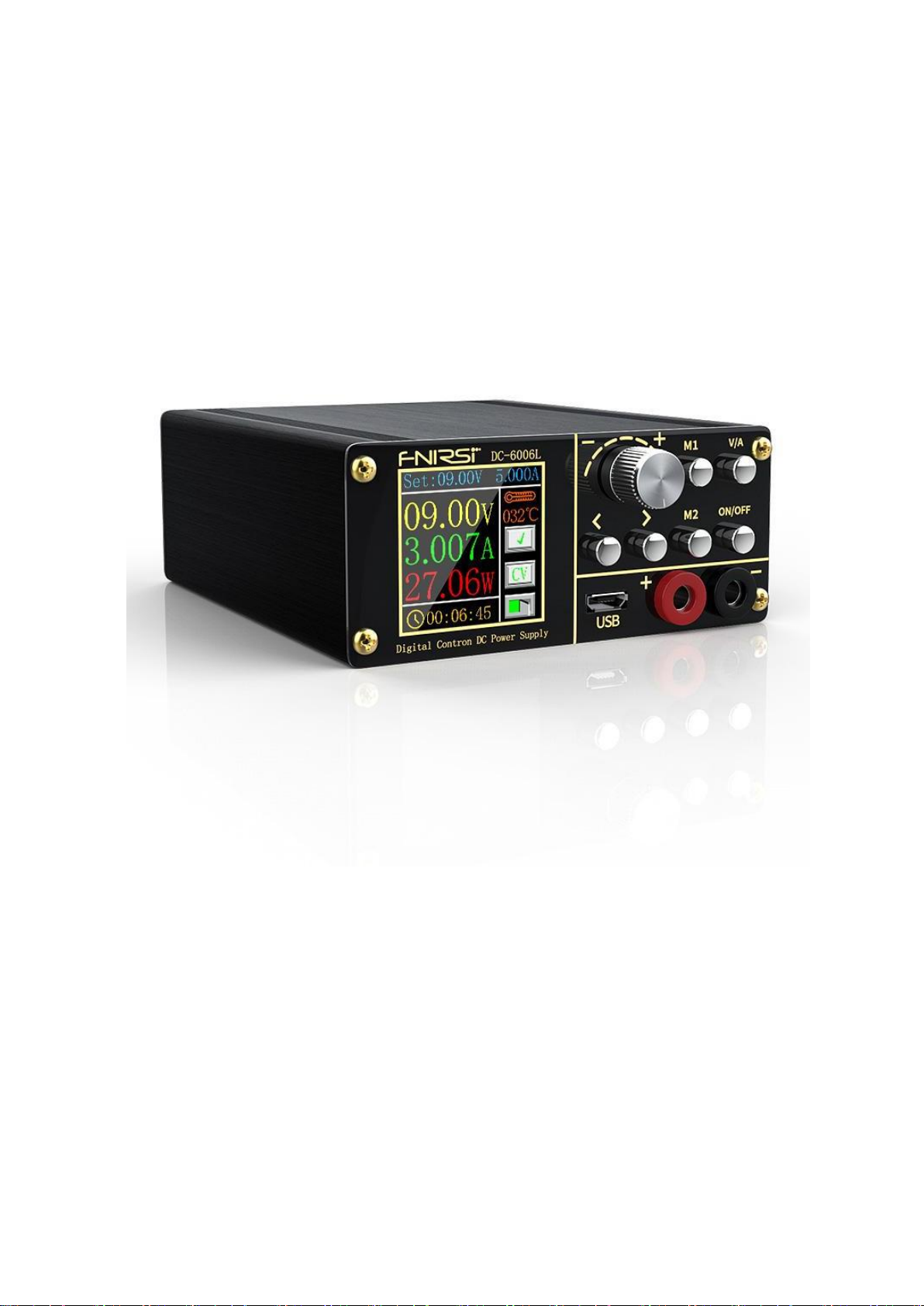

Fnirsi DC6006L User manual

DC6006L CNC DC adjustable power supply
Product Manual
July 25, 2020
Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
深圳市菲尼瑞斯科技有限公司

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
I
Table of Content
1 Product Description..................................................................................................... 1
2 Parameter Description.................................................................................................1
2.1 Basic Parameters...................................................................................................... 1
2.2 Protection mechanism parameters...................................................................... 1
3 Features..............................................................................................................................2
3.1 Interface diagram.....................................................................................................2
3.2 Parameter setting description...............................................................................3
3.2.1 System settings............................................................................................. 3
3.2.2 Software protection settings..................................................................... 3
3.3 Intelligent temperature control system.............................................................. 4
3.4 PD Interface Description........................................................................................ 4
3.5 Other Functions........................................................................................................5
4 Key Description....................................................................................................................5
5 P C s o f t w a r e i n t r o d u c t i o n ........................................................................................6
5.1 Firmware upgrade.................................................................................................... 7
5.2 Control operation.....................................................................................................7
6 Precautions...........................................................................................................................8

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
1
1 Product Description
DC6006L programmable digital controlled step-down DC adjustable
power supply is small in size, comprehensive in input interface, stable
in performance, high in precision and high in efficiency, and contains
a variety of humanized system settings. Adopting 1.44-inch LCD
high-definition display, one screen displays a variety of data, the page
is simple and rich.
2 Parameter Description
2.1 Basic Parameters
1. Input voltage: Banana head 6-70V input;DC 6-30V input;PD 80W input.
2. The Output voltage: 0-60V (note: ensure that the input voltage is
greater than 1.1 times the output voltage)
3. Output current: 0-6A;
4. Output power: 0-360W;
5. Voltage resolution: 0.01V, precision: ±0.3%+3;
6. Current resolution: 0.001A, precision: ±0.5%+5;
7. Output ripple: 100mV peak-to-peak value .
2.2 Protection mechanism parameters
1. T h e i n p u t p r e v e n t s r e v e r s e co n n e c t i o n , t he o u t p u t p r e v e n t s
s h o r t c o n n e c t i o n to p r e v e n t b a c k f l o w , an d c a n

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
2
charge the battery ( distinguish between positive
and negative)
2. Output overvoltage protection (OVP): 0V-61V custom adjustment,
default 61V;
3. Output overcurrent protection (OCP): 0-6.1A custom adjustment,
default 6.1A;
4. Output over power protection (OPP): 0-360W custom adjustment,
default 360W;
5. Output over temperature protection (OTP): 45-120 ℃ self-defined
adjustment, closed by default;
6. Output overtime protection (OHP): 0-100h custom adjustment, closed
by default;
7. Turn on default (ACQ): Off by default;
3 Features
3.1 Interface diagram

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
3
3.2 Parameter setting description
3.2.1 System settings
1. Default Switch： Set the power-on device to turn on or turn off the
output by default;
2. System language: switch between English and Chinese;
3. Timing screen off: set the screen to automatically turn off at a
specified time, the maximum support 100h;
4. D i s p l a y d i r e c t i o n : s e t t h e d i r e c t i o n o f 3 6 0 d e g r e e r o t a t i o n ;
5. Temperature unit: Set the temperature unit (℃ or ℉ ).
3.2.2 Software protection settings
During the operation of the equipment, once the software protection
mechanism is triggered, the output of the equipment is disconnected and the
buzzer will beep for a long time, and the corresponding mechanism code will be
alarmed. Press the switch key and the knob again to release the alarm and return

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
4
to the normal state.
1. Over Voltage ：Set the threshold voltage, and alarm OVP when the output
voltage exceeds the set voltage;
2. Over Current ：Set the threshold current, and alarm OCP when the output
current exceeds the set current;
3. Over Power：Set the threshold power, and alarm OPP when the output power
exceeds the set power;
4. Over Temp：Set the threshold temperature, and alarm OTP when the device
temperature exceeds the set temperature
5. Timeout：Set the threshold time, when the output time exceeds the set time,
it will alarm OHP;
3.3 Intelligent temperature control system
When the product temperature is greater than 40°C or the output current is
greater than 2A, the fan automatically starts, and the fan automatically shuts off
when the conditions are not met.
3.4 PD Interface Description
The PD interface compatibility of this device is not very comprehensive,It is not
guaranteed to be compatible with all PD chargers,Fix the PD gear of 20V voltage.
If the charger does not support the 20V gear,Will outputthe voltage of the first
gear,Maximum load is 80W (due to the influence of PD charger and CC line, it may
be lower than 80W,Most CC lines on the market support up to 3A,Need to support
the CC line of the Emarker chip to be larger than 3A)

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
5
3.5 Other Functions
Long press the switch button to realize one- key turn- off and one- key bright
screen operation,When the screen is off, the keys are locked to prevent accidental
touch;Supports quick recall of CNC setting parameters;Support PD charger and DC
DC power adapter for direct power supply;It also supports a series of functions
such as PC software upgrade and control.
4 Key Description
Knob operation is used to switch pages and adjust values. Other key
operations are as follows.
Knob
ON/OFF
V/A
＜
＞
Short press
Confirm
or clear
Switch
output
Cutover Set up
Voltage and
current
Previou
s page
Next
page
Long press
/
Screen
off/display
/
Switch
M1 data
Switch
M2 data

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
6

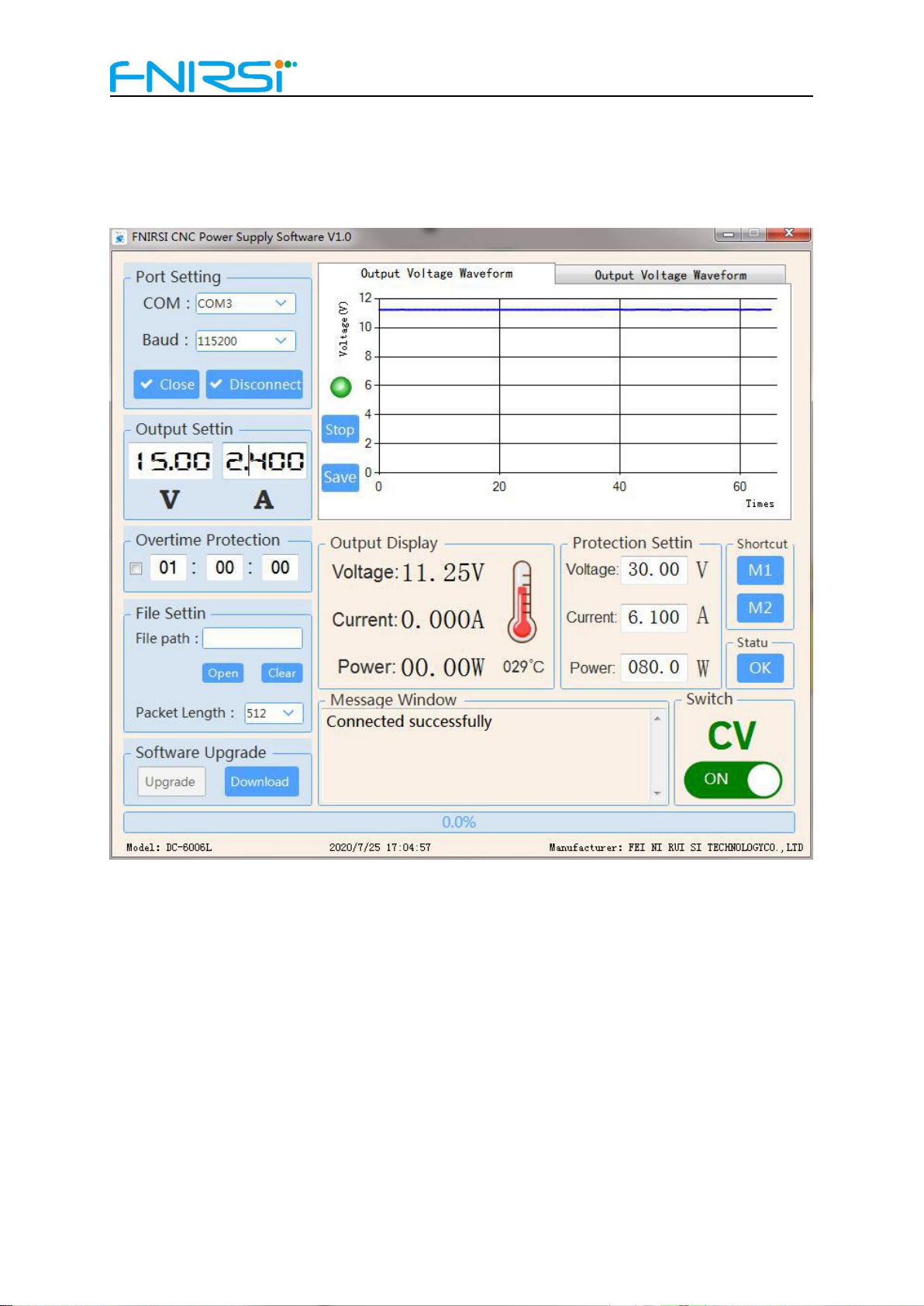

5PC software introduction
After the DC6006L is powered on, connect to the computer through the
MICRO USB interface, select the corresponding serial port number (if the serial
port number is not found, please check whether the computer is installed with
the CH340 driver), and then open the serial port, click to connect the device, the
message window will prompt whether the connection is successful, connect After
success, the corresponding product model will be updated in the lower left corner
of the page.

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
7
5.1 Firmware upgrade
Warning: Please disconnect any load when connecting to PC for software
upgrade!After opening the PC software to connect the device,After selecting the
correct latest device firmware file and data packet length ( Free Choice),Just
proceed with the firmware upgrade operation. Do not power off the device during
the upgrade process.It will cause the upgrade to fail and cause the device to
crash.
If the upgrade fails accidentally, please disconnect the power and press and hold
the ">" button to power on the device.
Try to re- enter the upgrade mode and turn on the upper computer again to
upgrade the firmware.After the firmware upgrade is successful, the device will
automatically run the latest firmware and the PC software will restart.
5.2 Control operation
First, you must open the correct serial port number before the connect device
button will take effect.When operating the host computer, all control input boxes
cannot be empty,And only numbers and decimal points can be entered ( the
decimal point can only be entered in a specific position to take effect,For example,
voltage 10 . 00 , current 3 . 000 , power 360 . 0 ),The setting will not take effect
until the cursor leaves the input box.
The waveform can be observed by the waveform status light,to determine
whether the waveform status is acquired in real time( Green represents acquiring
data waveform, red represents pause to acquire data waveform), The “ start/
pause” next to the waveform can control the waveform status light,The waveform
can also be zoomed in by selecting the designated area with the left mouse

Shen Zhen FEI NI RUI SI TECHNOLOGYCO.,LTD
8
button, You can watch the waveform more intuitively, If you want to analyze the
data for a period of time, click the save button next to the waveform, The DC-
Date. xlsx file will be automatically generated on the desktop
, just open the file for data analysis.
6Precautions
1. This product is a step- down digitally controlled adjustable power supply, and
the output power of the input DC source equipment must be higher than 1 . 1 times
the operating power of the load equipment;
2. Before charging the lithium battery with constant current, please check the
battery parameters, and after setting the voltage and current, distinguish the
positive and negative poles connected to the battery to start charging;
3. VIN- and OUT- are forbidden to be shorted or wrongly connected, otherwise
the CC mode will fail;
4. When using PC software to upgrade, please disconnect the load, and then
connect the PC software.
5. Multiple input interfaces cannot be connected at the same time, only one
input interface can be connected ;
6. Please read the product parameters carefully before using .
