foc.us Pro AV 1600 PCI User manual

Pro AV 1600 PCI
USER MANUAL
Rev. 1.0
FOCUS Enhancements, Inc.
1370 Dell Ave
Campbell, CA 95008
P: 408-866-8300
F: 408-866-4859
www.FOCUSinfo.com

Pro AV 1600 PCI User's Manual
2
1INTRODUCTION........................................................................................................................3
1.1 THE PRO AV 1600 FAMILY ....................................................................................................4
1.2 OPERATIONAL SPECIFICATIONS ...............................................................................................6
2INSTALLATION.........................................................................................................................8
2.1 PRO AV 1600 PCI VERSION INSTALLATION ..............................................................................9
3PRO AV 1600 CONTROLS AND ADJUSTMENTS.......................................................................12
3.1 PRO AV 1600 INTERFACE CONTROLLABLE FUNCTIONS..............................................................12
3.2 INTERNAL ADJUSTMENTS .....................................................................................................16
4HYPERFORMANCE UTILITY SOFTWARE..............................................................................18
4.1 HYPERFORMANCECOMPONENTS............................................................................................18
APPENDIX A - LIMITED WARRANTY.............................................................................................21
APPENDIX B - HYPERFORMANCE UTILITY SOFTWARE LICENSE..............................................22
APPENDIX C – GENLOCK..............................................................................................................23
APPENDIX D - COMPONENT OUTPUT...........................................................................................24

Pro AV 1600 User's Manual
3
1Introduction
The FOCUS Enhancements Pro AV 1600 product family is a series of products that produce standard, recordable NTSC
or PAL base band video from High-Resolution Computer Graphics devices. In addition to composite and S-video, the
Pro AV 1600 has Betacam-compatable or RGB component outputs.
The Pro AV 1600 automatically senses the input resolution and frequency of the incoming Computer Graphics signal
and transforms the resolution of input Computer Graphics to full screen, 24 bit color, NTSC or PAL Video. The Pro
AV 1600 performs this transformation without disturbing the input Computer Graphics signal in any way;
High-Resolution Computer Graphics appears on the system's computer monitor as if the Pro AV 1600 was not there.
The Pro AV 1600’s output is fully broadcast compatible, and it has the ability to genlock to a reference video or black
burst signal. With this feature, you can synchronize your computer to video inputs or systems. Your computer can then
be used as a graphics or presentation video source. Independent adjustments allow full control over H phase and
subcarrier phase.
_

Pro AV 1600 PCI User's Manual
4
1.1 The Pro AV 1600 Family
1.1.1 Board, Desktop or Rackmount
Our Pro AV 1600 family of products include internal units (PCI board) and external units. The internal units mount
inside the PC and receive their electrical power from the computer. The external units are either desktop, with a wall
mount transformer, or as an EIA 19 inch rack mount configuration. The Pro AV 1600 rack mount occupies a
standard rack height. All Pro AV 1600-R models are capable of accepting power in the range of 95 V - 250 V,
47Hz. to 63 Hz. Throughout this document, "ProAV 1600" will refer to general family features, while "ProAV
1600 PCI" is specific
1.1.2 Compatibility
The Pro AV 1600 is compatible with IBM PC computers, MAC computers and many popular workstations. The same
Desktop unit may be used with any personal computer or workstation, however the appropriate cable kits must be
ordered. The Pro AV 1600 is shipped with a PC cable and a Mac Adapter Kit. Any cable or cable kit may be ordered
separately. The Pro AV 1600 PCI is only compatible with IBM PC computers and its control panel runs on the
Windows platform.
On PC's, the Pro AV 1600 supports VGA and super VGA devices in all VGA standard modes (640 x 480, EGA, Text
and 320 x 200 modes, all 800 x 600 modes from 56 - 76 Hz Vertical Non-Interlaced, all 1024 x 768 modes from 60 -
76 Hz and all 1280 x 1024 modes from 60 - 76 Hz Vertical Non-Interlaced. The 1024 x 768 Non-Interlaced modes of
the XGA-2 are also supported.
On Macs, The Pro AV 1600 supports 640 x 480, 66.7 Vertical Non-Interlaced mode (Applecolor High-Resolution RGB
Monitor, often referred to as the 13" display) and the 1024 x 768, 66.7 Hz Vertical Non-Interlaced mode (AppleVideo
RGB Monitor, often referred to as the 21" display).
In addition to these video formats, the Pro AV 1600 also accepts computer video in popular workstation formats (up to
its 1024 x 768 limit). The Pro AV 1600 is capable of decoding a separate composite synchronization signal, as well as
a composite sync signal embedded in the green signal. The correct cable kit is required for successful use with a
workstation.

Pro AV 1600 User's Manual
5
Accessory Items
The following items may be ordered separately as accessories:
444-5906 HD15 Male – 5 BNC MaleCable (PC)
444-5907 HD15 Female – 5 BNC Male Cable (PC)
444-5908 DB-15 Male – 5 BNC Male Cable (Mac)
444-5909 DB-15 Female – 5 BNC Male Cable (Mac)
444-5910 13W3 Male – 5 BNC Male Cable(Sun)
444-5914 5 BNC-Male – 5 BNC Male Extender Cable
3201-901 RS-232 Control Cable
444-8200 Univiewer Cable

Pro AV 1600 PCI User's Manual
6
1.2 Operational Specifications
1.2.1 Input Resolutions
All original IBM VGA Modes
640 x 480 72 Hz. (S-VGA Vesa Spec. VS900101)
640 x 480 75 Hz. (S-VGA Vesa Spec. VGMT)
800 x 600 56 Hz. (S-VGA Vesa Spec. VG900601)
800 x 600 60 Hz. (S-VGA Vesa Spec. VG900602)
800 x 600 72 Hz. (S-VGA Vesa Spec. VS900603)
800 x 600 75 Hz. (S-VGA Vesa Spec. VGMT)
1024 x 768 60 Hz. (S-VGA Vesa Spec. VG901101)
1024 x 768 70 Hz. (S-VGA Vesa Spec. VS910801)
1024 x 768 75 Hz. (S-VGA Vesa Spec. VGMT)
1024 x 768 60-76 Hz. (IBM XGA-2 Non-Interlaced modes)
(requires 9515 or 9517 monitor)
1280 x 1024 60 Hz (SXGA Vesa Spec. VDMTREV)
1280 x 1024 75 Hz (SXGA Vesa Spec. VDMT75HZ)
1280 x 1024 85 Hz (SXGA Vesa Spec. VDMTPROP)
1600 x 1200 60-85Hz (UXGA Vesa Spec. VDMTREV)
640 x 480 66.7 Hz. (AppleColor High-Resolution 13" RGB Monitor)
1024 x 768 60 Hz. (AppleVideo 21" RGB Monitor)
Or any computer video resolution up to 1600x1200 at up to 120Hz.
All workstation modes in the range of 640 x 480 to 1600 x 1200
THE PRO AV 1600 DOES NOT SUPPORT INTERLACED INPUT.
1.2.2 Input Color Capability
All input formats are internally converted, and processed as 24 bit RGB signals. The Pro AV 1600 is therefore capable
of handling an input color space of up to 16.8 million colors.
1.2.3 Output Resolutions
NTSC
484 displayed lines vertically
Underscan/Overscan Switch selectable
PAL
576 displayed lines vertically
Underscan/Overscan Switch selectable
1.2.4 Digital Flicker Reduction Filter
A multistage Digital Flicker Reduction Filter is a standard feature of all models of the Pro AV 1600. The Flicker Filter
may be engaged at one of seven different levels or disengaged by any one of the control methods.

Pro AV 1600 User's Manual
7
1.2.5 Pro AV 1600 PCI Connectors
(with reference to Pro AV 1600)
Computer Video Input HD15 Male
Composite Video Output Female BNC
(Female RCA optionally available)
S-Video Mini-Din 4 position female
Genlock Female BNC (loop-through requires “T” connector)
Component Female BNC
1.2.6 Power Consumption
Within single slot specifications
1.2.7 Physical Size
6.785”x4.2” PCI card
1.2.8 Environmental
Temperature:
Operating: 0 – 40 degrees Celsius
Non-Operating: -40 to 70 degrees Celsius
Humidity:
Operating: 15% to 80% non-condensing
Non-Operating: 10% to 95% non-condensing
Altitude:
Operating: -500 to 15000 ft. ASL
Non-Operating: -1000 to 50000 ft. ASL
Electromagnetic:
Susceptibility: EN50082-1
Radiation: CISPR 22 (1993-12), FCC Class B

Pro AV 1600 PCI User's Manual
8
2Installation
Installation of all Pro AV 1600 PCI products is a simple and quick procedure.
Figure 1: Pro AV 1600 PCI Card Back Plate Diagrams

Pro AV 1600 User's Manual
9
2.1.0 Pro AV 1600 PCI Version
The Pro AV 1600 PCI is shipped with a Univiewer cable.
Follow these steps to install your Pro AV 1600 PCI. If you intend to use the Pro AV 1600 with Genlock or
component output please see Appendix C (Genlock operation) and Appendix D (Component output) for further
information on these features.
Hardware Installation
1. Turn the computer off.
2. Install the PCI card.
3. Disconnect the Computer Display from the Graphics Card on the Computer.
4. Connect the Univiewer module to the output of your computer graphics card. Connect the flying lead of the
Univiewer cable to the VGA input of the Pro AV PCI card..
5. Connect your Video Device to the Composite Video and/or S-Video output connector. (You may connect both
outputs simultaneously to the same or different Video Devices: Video is always available on both these outputs.)
6. Turn the computer on and run (or install) the Pro AV 1600 application software
7. From the application, set the Sync Selection to “IN= VGA SYNC”. (See section 3.1.19 for additional details on
Sync Selection.)
8. If everything is correctly installed, you will see your computer's normal power up sequence appearing on both the
Computer Display and the Video Device.
Software Installation
SYSTEM REQUIREMENTS:
Pentium-class system with an available 32-bit PCI slot.
Windows 98, ME, NT, or 2000
**********************************************************************
INSTALLATION PACKAGE:
ProAV.inf
ProAV.sys
ProAV.cpl
ReadMe.txt
Win98(Me) Destination directories:
ProAV.sys is copied to c:\windows\system32\drivers
ProAV.cpl is copied to c:\windows\system
Win2000 Destination directories:
ProAV.sys is copied to c:\winnt\system32\drivers
ProAV.cpl is copied to c:\winnt\system32
**********************************************************************

Pro AV 1600 PCI User's Manual
10
WINDOWS 98 DRIVER INSTALLATION:
1) With the power off, install the Pro AV 1600 PCI card into an
available PCI slot, then turn the power on.
2) When the Add New Hardware Wizard dialog pops up informing you
that is has found a PCI Network Controller, install the CDROM
with the Pro AV 1600 PCI driver software. Click on "Next".
3) Select the option "Search for the best driver for your device
(Recommended)", and click on "Next".
4) Specify a search location by checking the "CD-ROM drive" box
and uncheck all the others. Click on "Next".
5) Click on "Next" for location of driver.
6) If a File Not Found dialog opens up for the file ProAV.cpl,
click on Browse to find the correct path, then double click on
ProAV.cpl to close the Browser dialog. Click on "OK" to continue
Copying Files.
7) Click "Finish".
**********************************************************************
WINDOWS Me DRIVER INSTALLATION:
1) With the power off, install the Pro AV 1600 PCI card into an
available PCI slot, then turn the power on.
2) When the Add New Hardware Wizard dialog pops up informing you
that it has found a PCI Network Controller, install the CDROM
with the Pro AV 1600 PCI driver software.
3) Select the option "Automatic search for a better driver
(Recommended)", and click on "Next".
4) Click "Finish".
**********************************************************************
WINDOWS 2000 /NT DRIVER INSTALLATION:
1) With the power off, install the Pro AV 1600 PCI card into an
available PCI slot, then turn the power on.
2) The Found New Hardware dialog will identify a Network Controller.
Install the CDROM with the Pro AV 1600 PCI driver software.
3) The Found New Hardware Wizard dialog will open. Click "Next".
4) Select the option "Search for a suitable driver for your device
(recommended)", and click on "Next".
5) For the optional search locations, check the "CD-ROM drives" box.
Uncheck all the other boxes. Click on "Next".
6) To install the driver Windows found, click on "Next".
7) When prompted by the Digital Signature Not Found dialog as to
whether you want to continue the installation, click on "Yes".
8) Click on "Finish".
**********************************************************************
VERIFYING THE INSTALLATION:
1) Bring up the Control Panel (Start->Settings->Control Panel).
2) Confirm the driver is working properly as follows:
a) Double Click on the System icon.
b) Select the Device Manager tab.
c) Click on "Sound, video and game controllers."
d) Double Click the Pro AV 1600 PCI icon to open the

Pro AV 1600 User's Manual
11
Pro AV 1600 PCI Properties dialog.
e) Select the General tab. The Device status should
show "This device is working properly."
3) Run the ProAV control applet as follows:
a) Double click on the ProAV icon.
b) Try the controls.
**********************************************************************
SUPPORT
Technical Support United States 408-370-9963
(M-F, 8AM-12 Noon, 1PM-5PM, PST)
Customer Support United States 800-338-3348
Web Site
www.focusinfo.com

Pro AV 1600 PCI User's Manual
12
3Pro AV 1600 controls and adjustments
There are several parameters on the Pro AV 1600 that can be controlled through by the Pro AV 1600's control
interfaces.

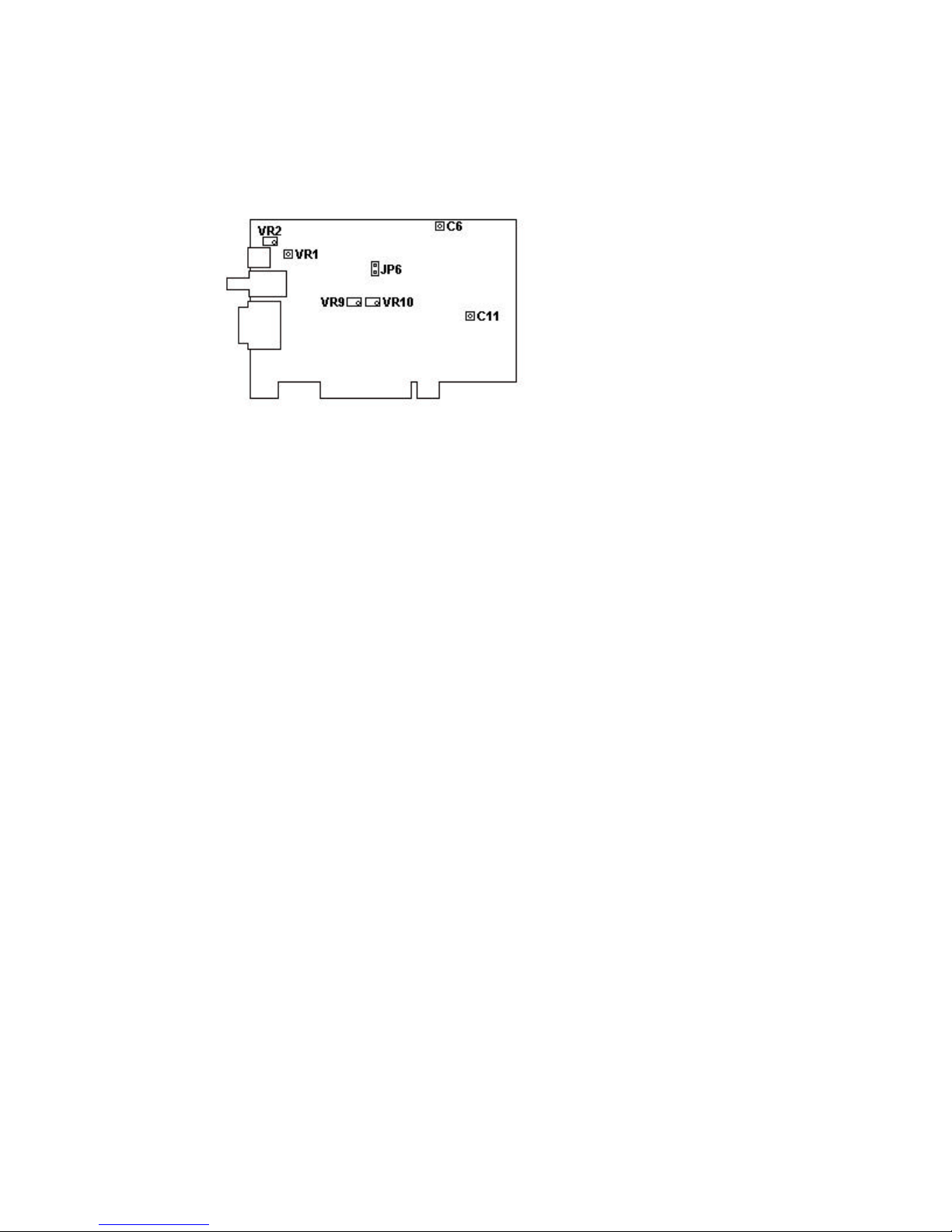

Additional adjustments to functions that are not likely to accessed frequently - or are intended to be adjusted by
service personnel only - are available in the form of potentiometers, variable capacitors and jumpers on the Pro AV
1600 board itself. Access to these internal adjustments requires internal access to the PC.
3.1.0 Pro AV 1600 Interface Controllable Functions
The following parameters are accessible using the Pro AV 1600's control interfaces. Each of the controls has one of
three possible types of parameters associated with it, Toggle (the function is either on or off), Multiple Choice (there are
several, mutually exclusive options) or Range (the parameter varies over a range of values for a particular function).
Section 4 details the use of each of the Control interfaces.
3.1.1 Horizontal/Vertical Position (Range)
This control enables the user to position the converted Computer Graphics with respect to the output television.
The actual functioning of this control is dependent on the state of the Zoom function. If Zoom is off, H/V
Position enables minor changes in position of the full screen image. If zoom is on, H/V position functions as a
pan and scroll control, positioning the input window for zooming.
3.1.2 Horizontal/Vertical Size (Range)
This control enables the user to size the converted Computer Graphics with respect to the output television. The
actual functioning of this control is dependent on the state of the Zoom function. If Zoom is off, H/V Size enables
minor changes in size of the full screen image. If Zoom is on, the H/V Size Control is inactive. To properly size
the PC output to the television screen, follow these steps:
1. Position the under-scanned image to the top, left corner of the television screen
2. Toggle the Pro AV control panel to H,V Sizing
3. Use the IR remote control pad or arrow keys to size the screen both horizontally and vertically
3.1.3 Zoom (Toggle)
This control applies a 2X Zoom to a portion of the input Computer Graphics. The position of the window is
determined by the H/V Position control.
3.1.4 UnderScan (Toggle)
This control selects whether Underscan is applied to the Television Output. An "UnderScanned" picture slightly
shrinks the whole display such that information in the corners is visible. Select “UNDERSCAN” when you have text
or detail oriented pictures that requires you to preserve fine detail in the corner regions of the display. An
"OverScanned" picture fills the entire area of the screen, which is the natural way of presenting material in television.
Select “OVERSCAN” to present photo-realistic and animation oriented material.
3.1.5 Terminate VGA (Toggle)
This control connects the Pro AV1600's 75 Ohm termination resistors onto the computer's RGB output lines. Select
“TERMINATED” unless you are using the Pro AV 1600 with a pass through monitor cable (such as a HyperCable-PC,
intended for use with the Pro AV CP product line).
3.1.6 Fine Genlock H Position (Range) (Not available from IR remote mouse)
This control adjusts the relative horizontal picture position of the Television Output with respect to a Reference
Television signal. This control is only operational when using the Genlock capability of the Pro AV 1600.

Pro AV 1600 User's Manual
13
3.1.7 Coarse Genlock H Position (Range) (Not available from IR remote mouse)
This control adjusts the relative horizontal picture position of the Television Output with respect to a Reference
Television signal. This control is only operational when using the Genlock capability of the Pro AV 1600.
3.1.8 Genlock Subcarrier Phase (Range) (Not available from IR remote mouse)
This control adjusts the relative Subcarrier Phase of the Television Output with respect to a Reference Television
signal. This control provides slightly more than 180 degrees of variable phase control and most be used in conjunction
with the Genlock Subcarrier Phase Reverse Control to establish 360 degrees of phase control. This control is only
operational when using the Genlock capability of the Pro AV 1600.
3.1.9 Genlock Subcarrier Phase Reverse (Toggle) (Not available from IR remote
mouse)
This control selects 180 degrees of Television Output Subcarrier Phase shift with respect to a Reference Television
signal. This control is only operational when using the Genlock capability of the Pro AV 1600.
3.1.10 Genlock Termination (Toggle) (Not available from IR remote mouse)
This control applies a 75 Ohm termination to the Genlock input. This control is always operational.
3.1.11 NTSC/PAL (Toggle) (Not available from IR remote mouse)
This control selects between PAL and NTSC operation. Set this control to PAL for European operation. Set this
control to NTSC for American operation.
3.1.12 Flicker Reduction Filter (Multiple)
This control operates the Flicker Reduction Filter. Flicker filter settings from 0 (Flicker Filter is Off) to 7 (Flicker
Filter is at a maximum) are available. The display will indicate “FLK FLT = #” where # is the current setting of the
Flicker Filter.
3.1.13 Brightness Boost (Toggle) (Not available from IR remote mouse)
This control applies a Brightness Boost to the Television Output. Set “BRIGHT MAX” to raise the brightness of the
Television Output. Set “BRIGHT NORM” to set the Television Output to regulation brightness level.
3.1.14 Freeze Frame (Toggle)
This control freezes the output video of the Pro AV 1600. Select “INPUT FROZEN” to freeze the picture. Select
“INPUT LIVE” to view live input.
3.1.15 IR Remote Disable (Toggle) (Not Available from IR remote mouse)
This control disables the operation of the IR remote mouse. Select “IR ON” to enable the operation of the remote
mouse. Select “IR OFF” to disable the operation of the IR Remote Mouse and prevent IR conflicts.
3.1.16 Colorbar Pattern Enable (Toggle) (Not available from the IR Remote Mouse)
This control enables the Colorbar pattern to be displayed at the television output. Use the Colorbar test pattern to
test for successful connection of the Pro AV 1600 to the television device; no input source is required. Select
“COLORBAR ON” to enable the color bar pattern to be displayed at the output. Select “COLORBAR OFF” for
normal operation.
3.1.17 YUV /RGB Selection mechanism (Toggle) (Not available from IR remote mouse)
This control selects the color space of the component output. Select “RGB OUTPUT” for RGB appearing on the
R-Y, Y and B-Y connectors respectively. Select “YUV OUTPUT” for BetaCam levels of R-Y, Y and B-Y
appearing on the R-Y, Y and B-Y connectors respectively.

Pro AV 1600 PCI User's Manual
14
3.1.18 Sync Selection (Multiple) (Not available from IR remote mouse)
This control determines how the Pro AV will interpret input synchronization signals from the Computer Graphics
device. Select “IN= VGA SYNC” for VGA input and other devices that provide 5 wire video signals (i. e. Red, Green,
Blue, and H and V sync). Select “IN= MAC SYNC” for Macintosh input and other devices that provide 4 wire video
signals (i. e. Red, Green, Blue, and a composite sync). Select “IN= GRN SYNC” for Workstation input and other
devices that provide 3 wire video signals (i. e. Red, Green, Blue, with composite sync on Green).
3.1.19 Contrast (Range) (Not available from IR remote mouse)
This control enables the user to control the contrast of the output video. The relative value of contrast is indicated on a
scale of 0 to 127. The default value is 62.
3.1.20 Brightness (Range) (Not available from IR remote mouse)
This control enables the user to control the brightness of the output video. The relative value of brightness is indicated
on a scale of 0 to 127. The default value is 60.
3.1.21 Saturation (Range) (Not available from IR remote mouse)
This control enables the user to control the saturation of the output video. The relative value of contrast is indicated on a
scale of 0 to 127. The default value is 127.
3.1.22 Save Configuration (Multiple) (Not available from IR remote mouse)
The Pro AV 1600 enables the storage of 15 user defined parameter sets of all of its control settings. (A 16th
Save/Recall parameter set is automatically saved and recalled on power-up.) To save the current setting select the
Save command with the + / - buttons. The next configuration to be saved will be indicated on the display. The act
of pressing any one of the arrow buttons will cause the current set of parameters to be saved as “Save Set #” (where
# is the # appearing on the display). The display will immediately increment to the next Save Set number. The
Save feature is not available from RS-232/422 Control.
3.1.23 Recall Configuration (Multiple) (Not available from IR remote mouse)
Using the Recall Configuration feature, the user can instantly recall any previously saved Save Set. The up or down
arrow keys select from previously configured Save Sets. Recall Configuration is not available from RS-232/422
Control.
3.1.24 Erase Configuration (Multiple) (Not available from IR remote mouse)
The Erase Configuration feature is the reverse of the Save Configuration. To erase the most recently saved
configuration enter the Erase command with the + / - buttons. The last configuration to be saved will be indicated
on the display. The act of pressing any one of the arrow buttons will cause the numbered set of parameters “Save
Set #” (where # is the # appearing on the display) to be erased. The display will immediately decrement to the next
Save Set number. The Erase feature is not available from RS-232/422 Control.

Pro AV 1600 User's Manual
15
3.1.25 Auto Reset
This control resets the Pro AV to its default settings. Default Settings are as follows:
Function Auto Reset Parameter Value
Horizontal/Vertical Position Best Factory Estimate
Horizontal/Vertical Size Best Factory Estimate
Zoom Off
UnderScan Overscanned
Terminate TERMINATED
Fine Genlock H Position Best Factory Estimate
Coarse Genlock H Position Best Factory Estimate
Genlock Subcarrier Phase Best Factory Estimate
Genlock Subcarrier Phase Reverse 0 degrees
Genlock Termination Genlock input Unterminated
NTSC/PAL as originally shipped
Sharpness FLICKER OFF
Brightness Boost Off
Freeze Frame INPUT LIVE
IR Remote Enabled
Colorbar Test Pattern Disabled
YUV/RGB Selection RGB OUTPUT
Sync Selection IN = VGA SYNC
Recall Configurations All are preserved

Pro AV 1600 PCI User's Manual
16
3.2 Internal Adjustments
The following adjustments are internal adjustments, done on the PCI card itself. These controls require the user to
access the Pro AV 1600 PCI card (on a PCI extender card, for example) and make the indicated adjustment with an
adjustment tool.
3.2.1 Color Burst Level VR1
This potentiometer adjusts the amplitude of the Color Burst.
3.2.2 Output NTSC Pedestal VR2
This potentiometer adjusts the level of the NTSC Pedestal.
3.2.3 RGB Output Level VR9
This potentiometer adjusts the RGB Output Level
3.2.4 FSC-403 Reference Voltage VR10
This potentiometer adjusts the Voltage Reference on the FSC-403 chip.
3.2.5 Sync on Y output Insertion JP6
This jumper determines whether composite sync is inserted on the Y output. Connect the 2 posts of this jumper
together to produce sync on the Y output. Sync is always available on the dedicated component sync output
connector. The factory default is Sync on Y selected (Jumper JP6 installed).
3.2.6 Pal GenLock Trim Cap C6
Adjusts PAL color frequency
3.2.7 NTSC Genlock Trim Cap C11
Adjusts NTSC color frequency

Pro AV 1600 User's Manual
17
Figure 2: Adjustments and Jumpers

Pro AV 1600 PCI User's Manual
18
4Hyperformance Utility Software
A DOS test program for IBM PCs, entitled Hyperformance, can be downloaded from the FOCUS Enhancements
web site. If you would like to obtain a copy of Hyperformance, please log onto www.focusinfo.com . The
Hyperperformance software is available at the downloads page which is in the Tech Support section of the website.
4.1.0 Hyperformance Components
Hyperformance Software consists of a DOS application program with some sample images.
The release contains the following files:
Hyperformance Test Software Disk
HYPER.EXE Hyperformance Test Software
PICTURE8.PCX A 256 color image
PICTURE4.PCX A 16 color image
4.1.1 Installing and Running Hyperformance Tests Software
To install the software, copy the contents of the Hyperformance PC Test Software diskette to your hard disk, as follows:
COPY A:*.* C: or B:*.* C:
This command should copy HYPER.EXE, PICTURE8.PCX, and PICTURE4.PCX to your hard disk.
To execute the program, type "HYPER".
4.1.2 The Main Menu
Upon execution, the utility software displays the following menu:
PRO AV UTILITY SOFTWARE
1 Text Mode 720 x 400 (Mode 3 hex)
2 16 color 640 x 350 (Mode 10 hex)
3 16 color 640 x 480 (Mode 12 hex)
4 256 color 320 x 200 (Mode 13 hex)
5 16 color VESA 800x600 (Mode 102h)
6 256 color VESA 800x600 (Mode 103h)
7 16 color VESA 1024x768 (Mode 104h)
8 256 color VESA 1280 x 1024 (Mode 107H)
I Images
C Change Menu Color
S Clear Screen
M Display Menu
Q Quit
Commands 1-8 set the Video Mode. The current video mode is always displayed at the bottom of the screen. The
default video mode is Mode 12 Hex: 16 Color, 640 columns by 480 rows.
I clears the screen and displays the Image Menu (see below).

Pro AV 1600 User's Manual
19
C clears the screen and displays a menu which allows you to select a
different color for the menus (press ESC to leave this menu
without changing the menu color).
S clears the VGA screen of image and text.
M redisplays the menu.
Q leaves the utility software and returns to DOS.
4.1.3 The Image Menu
PRO AV TEST IMAGES
T Page of Text
C Color Bars
H Chirp
P Pattern
I Picture
A Ramp
K Chroma Key Chart
M Menu
S Clear Screen
R Return
T Displays a Page of Text.
C Displays eight vertical color bars.
H Displays a Chirp Pattern.
P Displays a Complex Black and White
Pattern.
I Displays a 16 or 256 color picture
(the full picture is seen only in the
1024 x 768 mode; smaller resolutions
display the upper left hand corner of
the picture).
A Displays a 16 or 256 grey shades ramp.
K Displays a 16 or 256 color grid.
M Redisplays the Image Menu.
S Clears the screen.
R Returns to the Main Menu.
4.1.4 Hyperformance Utility Software Error Messages
4.1.4.1 Not a Legal Command in TEXT MODE
The Page of Text is the only Image that can be displayed in Text mode. This error message will be displayed if you try
to display any of the other Images in Text mode.
4.1.4.2 Picture8.PCX Not Found!
Picture8.PCX contains the Picture displayed in the 256 color modes. If this error message occurs, make sure the file
PICTURE8.PCX is present in the current directory.
4.1.4.3 Picture4.PCX Not Found !
Picture4.PCX contains the Picture displayed in the 16 color modes. If this error message occurs, make sure the file
PICTURE4.PCX is present in the current directory.

Pro AV 1600 PCI User's Manual
20
4.1.4.4 VESA Version n.n VESA CALL FAILED
This error occurs when the VESA driver with the indicated version number has been installed, but a call to the VESA
software returns an error code. It indicates an incompatibility between the VESA driver and the VGA card.
4.1.4.5 VESA Driver Not Installed
The utility software uses the VESA TSR in the 1024x768 and 800x600 modes. If your attempt to use these modes
results in this error message, make sure you have installed the VESA TSR (see above).
