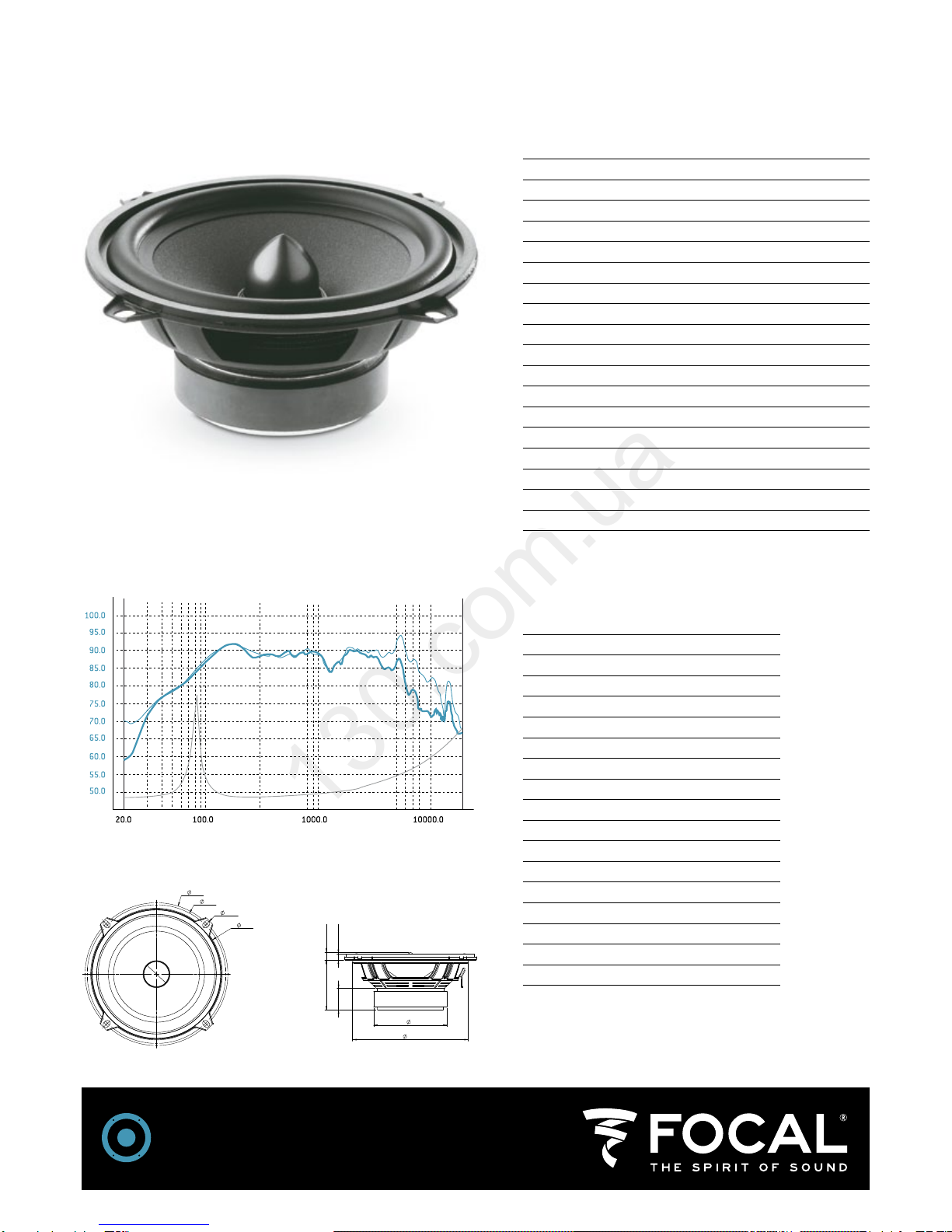

FREQUENCY RESPONSE/IMPEDANCE
MEChANICAl DRAwINg
UNIVERSAL
ISS 130
• Polyglass cone
• Reduced height
woofer Nominal power 60W
Maximum power 120W
Sensitivity 91.9dB
Cone Polyglass
Surround Butyl
Nom. impedance 4 Ohms
DC resistance 2.8 Ohms
VC diameter 25.5mm 1"
VC height 8.4mm 01/3"
Former Kapton
Layers 2
Wire Copper
Inductance 0.10mH
Xmax 2.5mm 01/8"
Magnet d x h 72 x 15mm 213/16 x09/16"
Magnet weight 160g 0.35Ib
Flux density -
Gap height 3mm 01/8"
Net weight 500g 1.1lb
PARAMETERS
Fs 87.54Hz
Vas 4.39 I
Qts 0.81
Qes 0.88
Qms 10.2
Re 2.8 Ohms
Sd 84.95cm2
Cas 3.13 E-8m5/N
Mas 105.73 kg/m4
Ras 5701.61 Ohms.ac
Cms 433µm/N
Mms 7.63g
Rms 0.411kg/s
Ces 571.40mF
Les 5.78mH
Res 32.45 Ohms
BI 3.65N/A
SPL 87.09dB (Re)
SPECIFICATIONS
Focal® is a trademark of Focal-JMlab®-Tel. [phone] - www.focal.com - Images may not conform exactly to specific product. Photos L’Atelier Sylvain Madelon - SCEB-121203/1
Integration
INSTANT GRATIFICATION
OhmdB SPL
140
136
129
5,50
113.7
6.30
48.90
72
21
7.60
130.com.ua
Autogood products «130»

INTEGRATION
UNIVERSAL ISS
User manual / Manuel d’utilisation
English page 2
Français page 8
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual
Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest
technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling,
and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully
all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered
by the guarantee.
Warning
Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can
damage your hearing permanently.
Important recommendations
Before attempting any installation work, it is very important to check how much space is available to fit the speakers
into the vehicle.
Key points:
• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.
The Focal guarantee only applies if the enclosed guarantee card
is returned to us within 10 days of purchase.
English version
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual 3

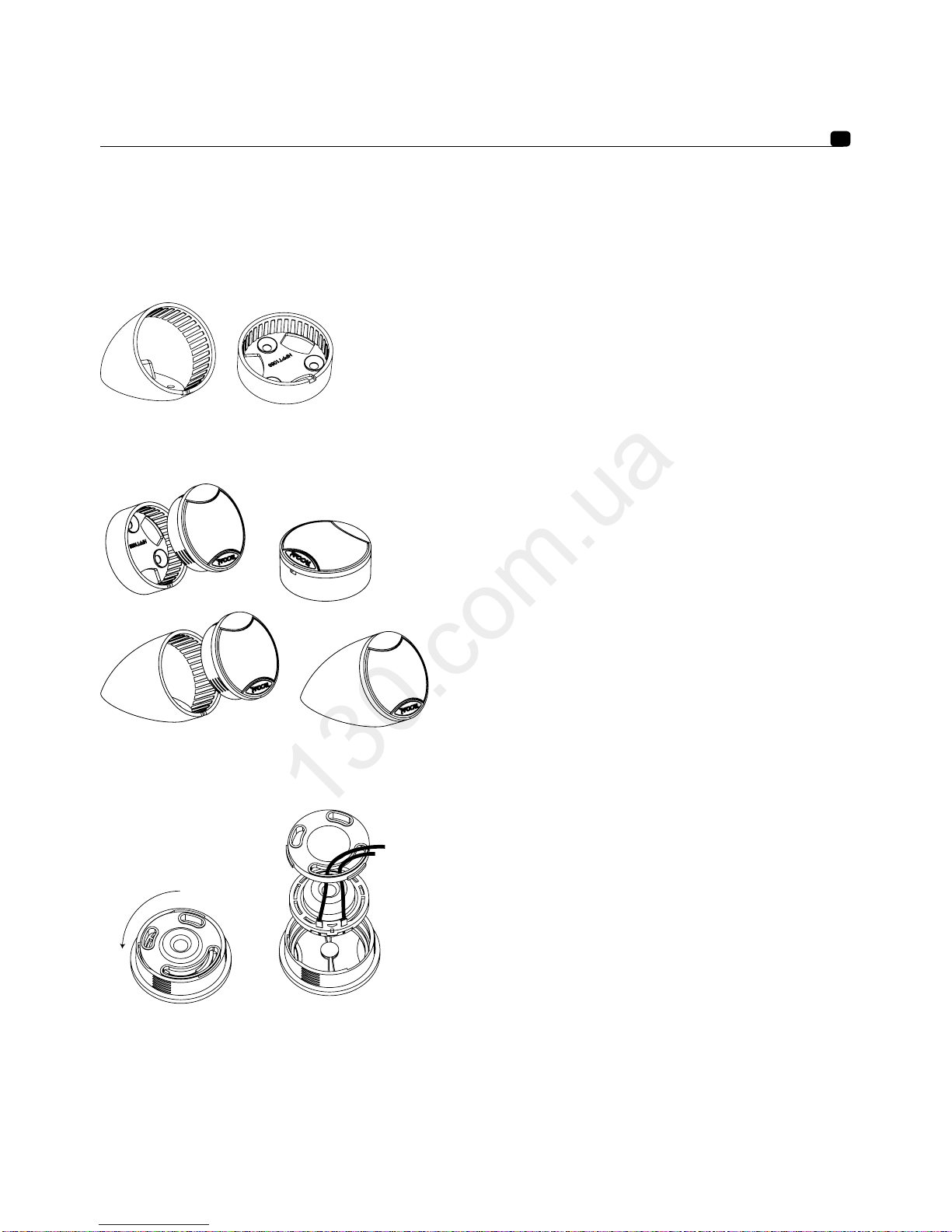

Tweeter
1/ Tweeter accessories.
2/ Assembling the tweeters to the mounts.
3/ Tweeter assembly in original space.
Remove the tweeter to adapt it to the original space.
Handle with care: do not touch the aluminum dome and not to let it come into contact with the rear of the car’s
original grill.
unlocked
NB: "+" is the wire with red line
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual 4

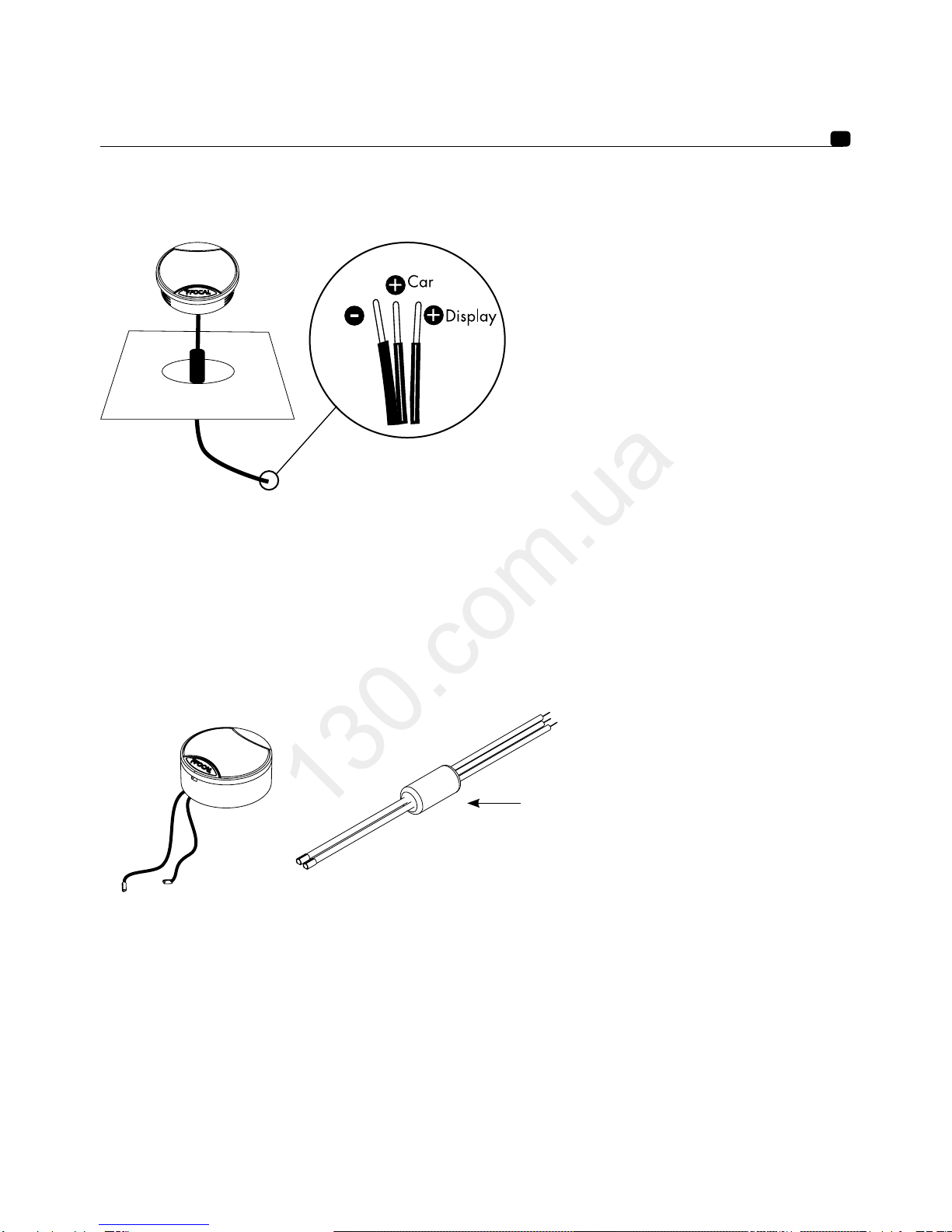

4/ Connecting the tweeters.
5/ Connecting the tweeters with crossover connector.
When installing on a demonstration display, connect the “display” wire.
When installing in a vehicle: connect the "car"wire.
The unmarked wire is "-" wire with both connection options.
Warning: the tweeter crossover is integrated into the connector. Ensure correct wiring thanks to the cable plugs
(tweeter/crossover connector) in order to ensure optimal performance of this Integration kit.
+
integrated crossover
NB: "+" is the wire with red line
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual 5
1/ Mounting the ISS 130 / 165 / 170 / 200 woofer in original space.
2/ Mounting the ISS 570 / 690 woofer in original space.
Woofer ISS
These separate 2-way “elliptic” kits can be fitted into the following car models Toyota®, Jeep®, Dodge®, Ford®.
Warning: in some of cases, you will need to use dedicated spacers to the vehicule.
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual 6
4/ View of the full installation in the vehicle.
3/ Rear view of the terminal block (marked “+” and “-”).
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
User manual 7

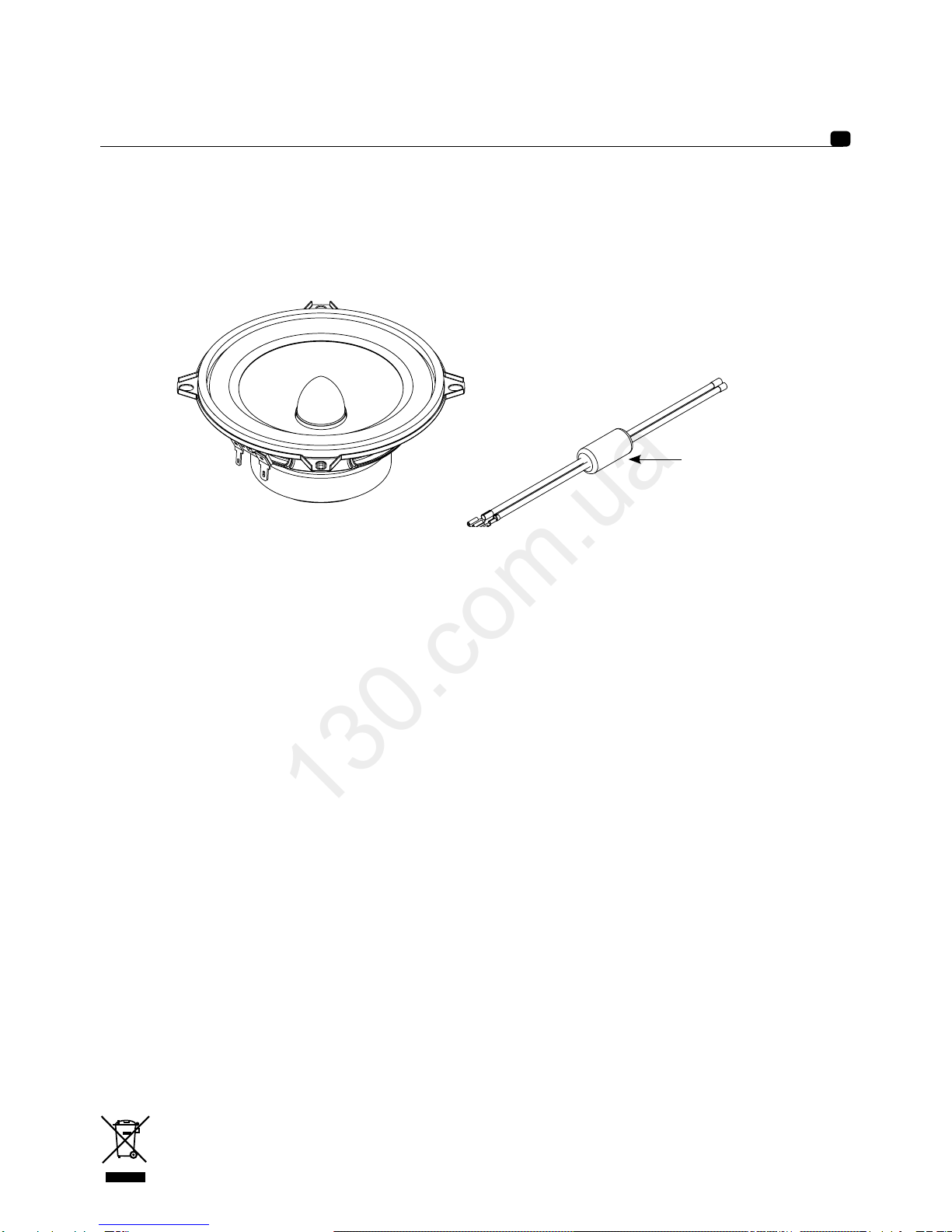

ISS 165 / 200 / 570 / 690 installation
Mounting the woofer + connector (supplied with the kit)
+
integrated crossover
The woofers in the ISS 165, ISS 200, ISS 570 and ISS 690 kits are equipped with a crossover integrated into the
connector (for a more compact basket and one which is easy to install in original locations).
Make sure ONLY these connectors (supplied with the kit) are used.
Conditions de garantie
All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.
Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to
that granted by the legal guarantee in force in the country where the original purchase invoice was issued.
Your Focal-JMlab product was developed and manufactured with high-quality materials and components
which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment
must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose
of this product by bringing it to your local collection point or recycling centre for such equipment. This will
help to protect the environment in which we all live.
NB: "+" is the wire with red line
130.com.ua
Autogood products «130»

INTEGRATION UNIVERSAL ISS
Manuel d'installation
Nous vous remercions d’avoir choisi les kits Intégration Séparés et de partager avec nous notre philosophie "the
Spirit of Sound". Ces haut-parleurs de haute technicité intègrent les ultimes perfectionnements Focal en matière
de conception de haut-parleurs pour l’obtention d’un son puissant et de très haute qualité. Afin d’exploiter toutes
leurs performances, nous vous conseillons de lire ce livret, puis de le conserver avec précaution pour pouvoir vous
y référer ultérieurement. Tout problème dû au non-respect des règles d’utilisation peut entraîner l’invalidation
de la garantie.
Avertissement
L’écoute prolongée à fort niveau au-delà de 110 dB peut détériorer durablement l’audition. Des écoutes même
brèves à plus de 130 dB peuvent provoquer des lésions auditives irrémédiables.
Pour validation de la garantie Focal,
merci de nous retourner la garantie jointe dans les 10 jours.
Recommandations importantes
Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter aux plans sur l’emballage)
puis procédez aux découpes. Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace
suffisant entre le haut-parleur et la grille de protection.
• Tenir les haut-parleurs à l’écart des copeaux métalliques et des poussières.
• Procédez à un nettoyage soigneux avant de monter les haut-parleurs.
Version française
