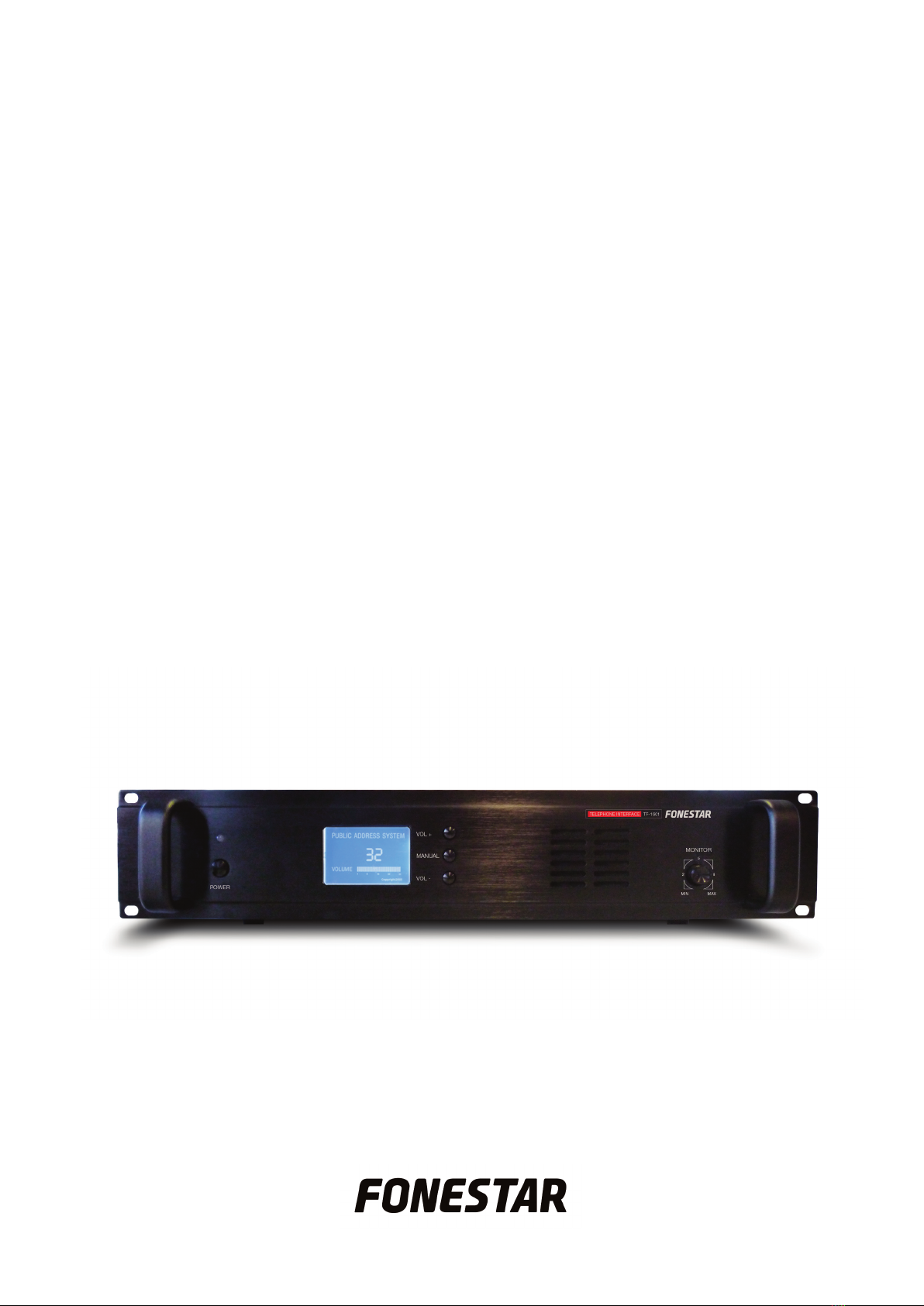

FONESTAR TF-1601 User manual

TF-1601
TELEPHONE SWITCHBOARD ADAPTER
FOR PA SYSTEM
INSTRUCTION MANUAL
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. eep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
eep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
EN
- 2-
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 2

- 3-
EN

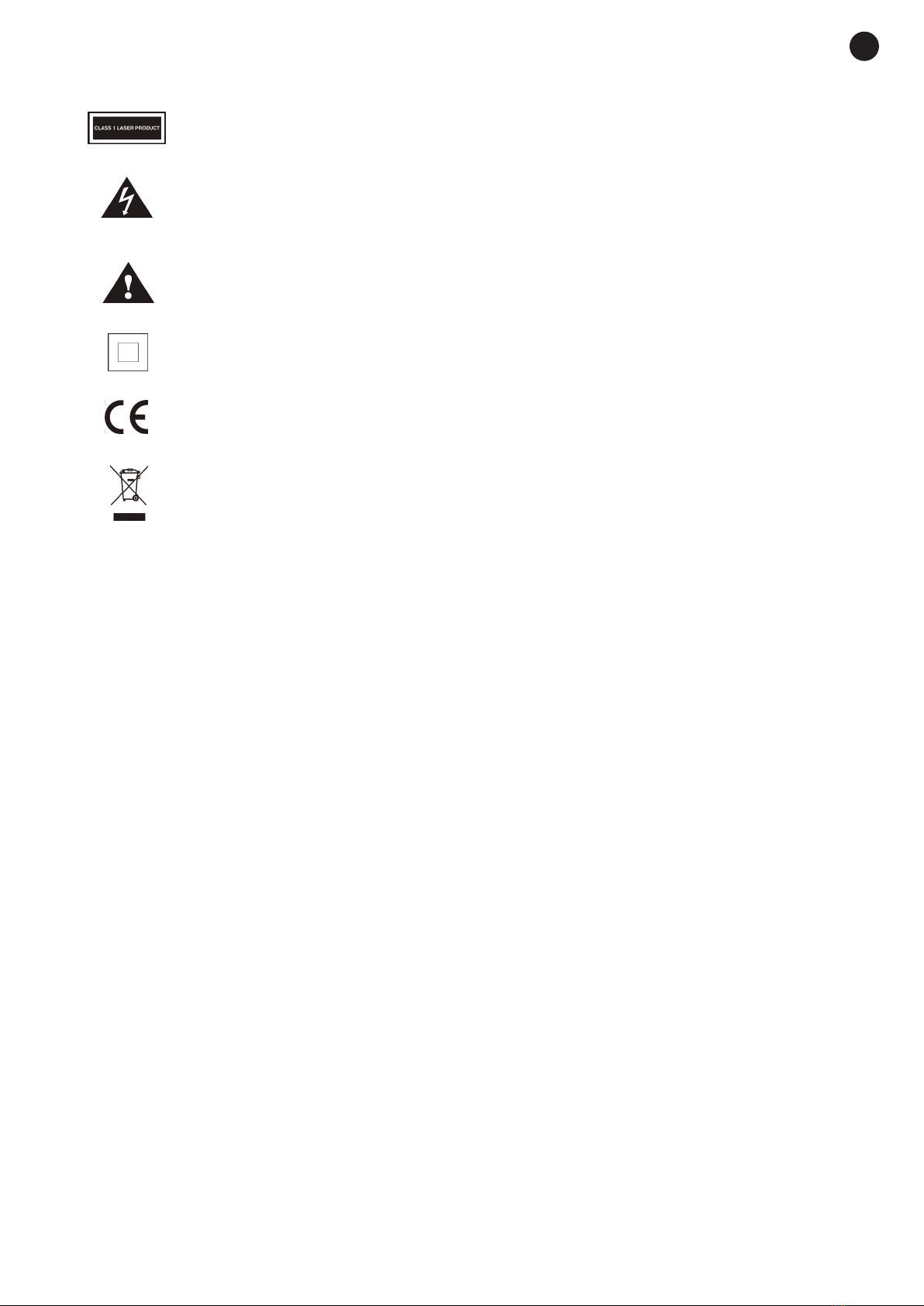

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 3

- 4-
DESCRIPTION
-Telephone switchboard adapter for PA systems.
- Automatic or manual pick up and line closure.
- Contact closure output during call.
-Loudspeaker monitor incorporated.
-Contact closure switch on.

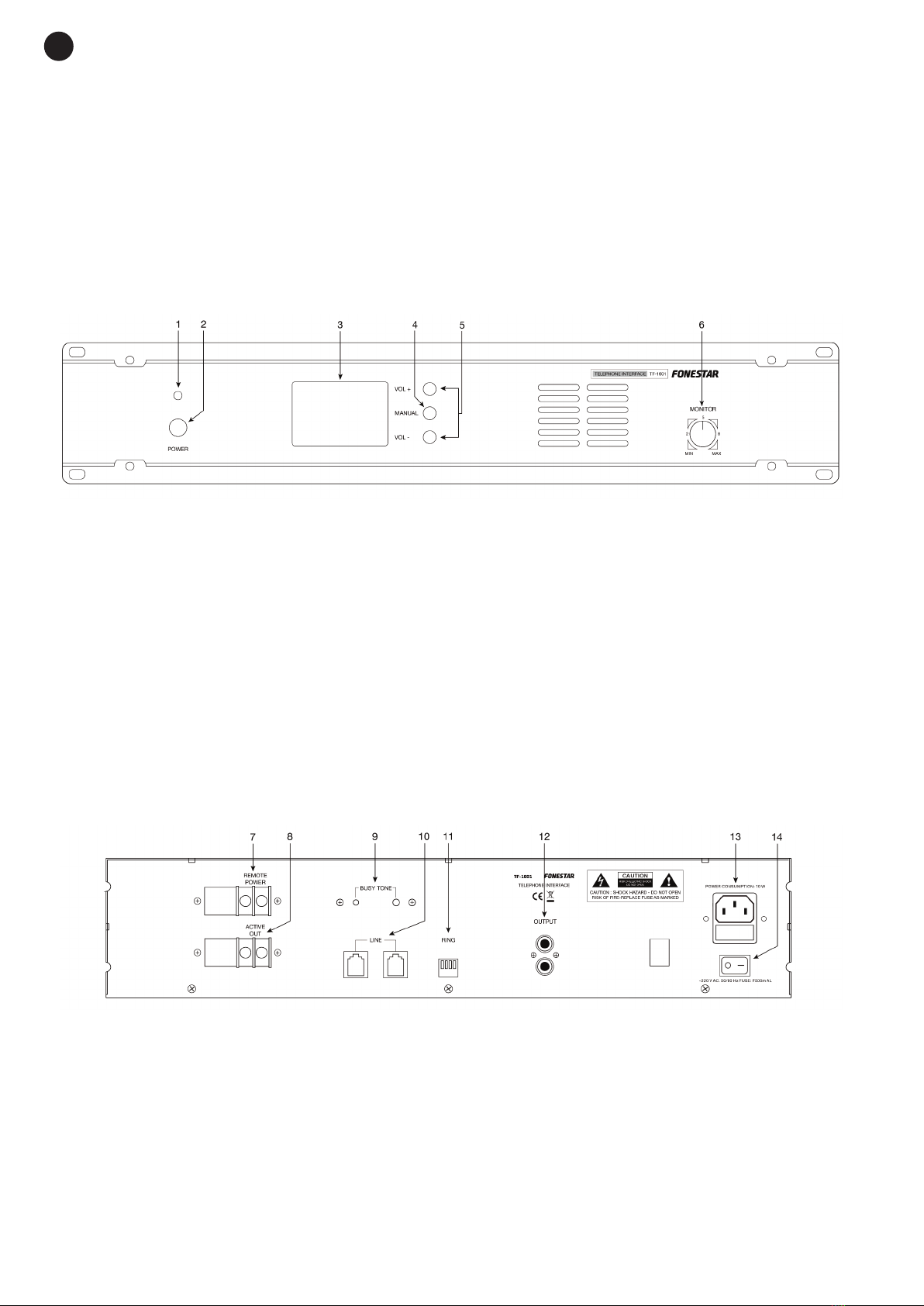

CONTROLS AND FUNCTIONS
FRONT PANEL
1.- LED device power indicator.
2.- POWER: device on/off switch.
3.- Information display. Only allows device volume to be seen.
4.- The telephone switchboard adapter operates automatically or manually with this button. Pick up
automatically in the selected ringtone with the RING microswitches located in the rear panel of the
device and hang up if the other interlocutor ends the call. It is recommended to use a telephone
connected in parallel with a T adapter to hear the incoming call. In this case, the telephone can be
picked up with the telephone and with the button and hung up manually with this button.
5.- VOL: device general volume controls.
6.- MONITOR: internal loudspeaker volume control.
REAR PANEL
7.- REMOTE POWER: by shortcircuiting these terminals, the device will switch on whenever the general
switch in the rear panel is switched on.
8.- ACTIVE OUT: screw terminals that are in open circuit while there is no incoming call and they are
shortcircuited when the incoming call is picked up.
9.- BUSY TONE: allows adjustment of the device so that it correctly detects the call hang up tone.
10.- LINE: inputs to connect the telephone line, RJ-11 connectors.
EN
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 4

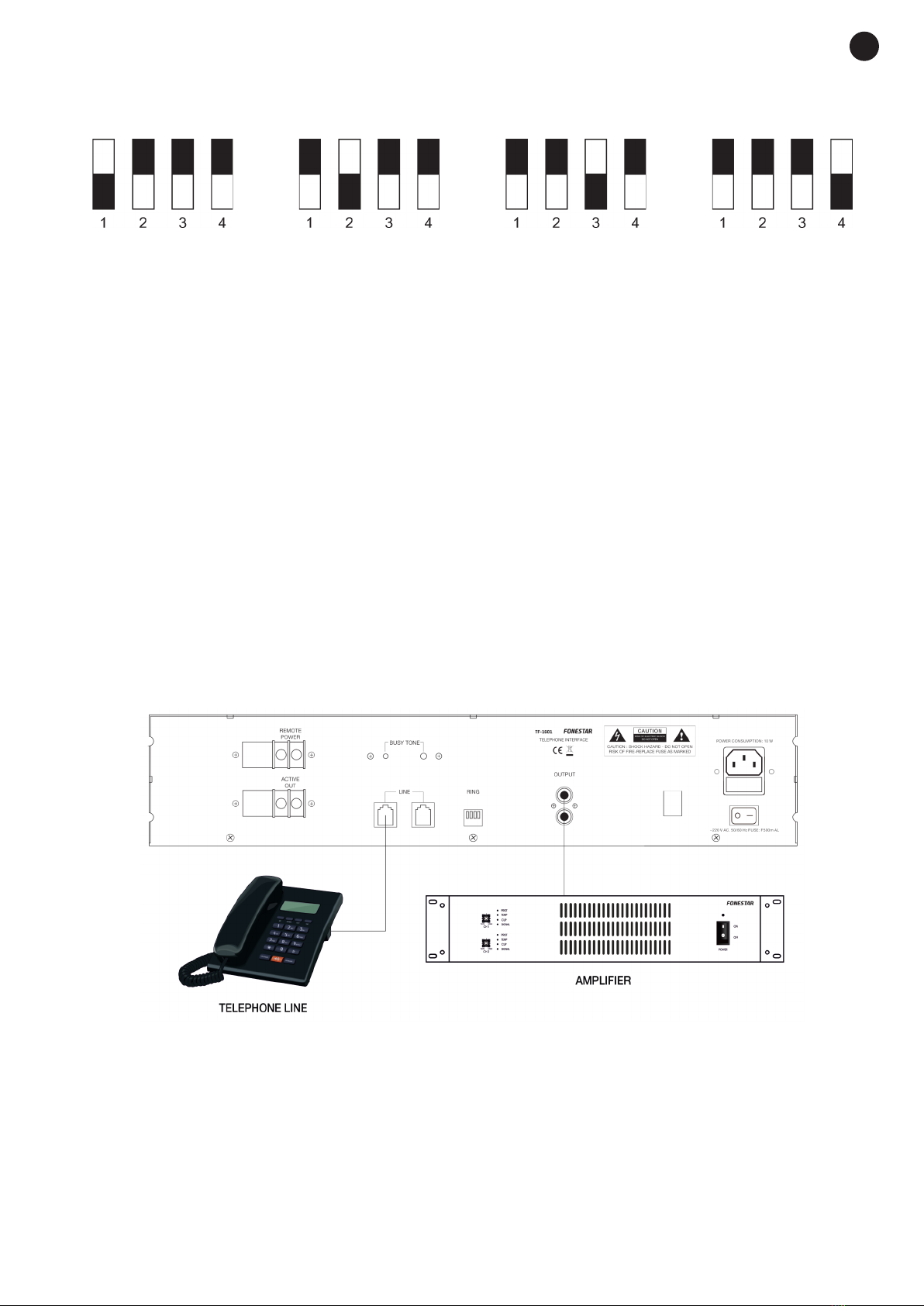

11.- RING: microswitches which allow the number of call tones to be selected before the device is picked
up automatically
Pick up Pick up Pick up Pick up
automatically automatically automatically automatically
after first tone after second tone after third tone after fourth tone
Note: if the microswitches are in any other position than these four, the device will not allow manual or
automatic pick up
12.- OUTPUT: aux line output, to connect an amplifier or mixer, 2 x RCA connectors.
13.- AC socket. For AC power supply cable connection.
14.- General on/off switch.
CONNECTION
- Make the connections with the device and all the components of the audio system switched off and
disconnected from the power supply.
- Connect the telephone line in the LINE input.
- Connect the output OUTPUT to the amplifieror mixer that you wish to use.
- Adjust the number of ringtones before the device picks up automatically using the microswitches RING
located on the rear panel of the device.
- Once the connections have been made according to your needs, connect the devices to the power supply
and switch them on. After use, do not forget to switch off and disconnect the device from the power
supply.
- 5-
EN
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 5

- 6-
TECHNICAL SPECIFICATIONS
TF-1601
CHARACTERISTICS Telephone switchboard adapter for PA systems.
Automatic or manual pick up and hang up.
Contact closure output during call.
Monitor loudspeaker incorporated.
Contact closure switch on.
INPUTS 1 telephone extension, RJ-11
OUTPUTS 1 aux, 2 x RCA
1 contact closure, screw terminals
1 telephone extension, RJ-11
CONTROLS General volume
Monitor loudspeaker
Adjustment of number of ringtones
POWER SUPPLY 230 V AC, 15 W
DIMENSIONS 484 x 88 x 350 mm depth. 2 U 19" rack
ACCESSORIES 2 x RCA cable
EN
160309_TF-1601_MANUAL_(EN)_Maqu tación 1 9/3/16 15:23 Página 6

DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A.
Polígono de Trascueto s/n
39600 Revilla de Camargo, Cantabria (Spain)
Declares, under its responsibility, that the following equipment:
Des ription: Telephone switchboard adapter for PA system
Brand: FONESTAR
model: TF-1601
complies with the Eurpopean Community directives 2004/108/EC on Electromagnetic Compatibility,
2006/95/EC on Low Voltage and 2011/65/EU on the restriction on the use of certain dangerous
substances in electrical and electronic appliances (RoHS).
Santander, 12th February 2015
Juan Vallejo
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date
and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more
than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being
sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it..
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections
or crossing out
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
