FONROCHE LEKLA User manual

TWIN LED SOLAR STREET LIGHT
INSTALLATION MANUAL

Page 2of 16
How does it work ?
The battery gets loaded during daytime with the electricity produced
by the
solar panel (PV).
Nighttime is detected by measuring the voltage of the solar panel :
- daytime
 PV voltage > 30V
- nighttime
 PV voltage = 0V
Avoid any shadow on the solar panel
(trees, houses, traffic signs…). Shadows will
considerably impact electricity production of the panel and hence reduce
battery charging.
Avoid artificial light
on the solar panel during nighttime. This could hinder correct
detection of dusk by the panel and
can, worst case, completely disable light to
switch on.

Page 3of 16
Transport
Do not depalletise the solar panels before arriving at the
construction site. FONROCHE guarantee is voided if the modules are
handled before.
All mechanical parts are collected together on a separate pallet. Do
not disassemble the packages before arriving at construction site.
Reception
The delivery must be checked for completeness and possible transit
damage immediately at receipt:
-Control if the parts have not been harmed during transport,
otherwise please claim damage to the shipper within 48h after
receipt (and inform FONROCHE Lighting).
-Likewise, control the right fit bracket/pole, if any operating
problem is found, claim damage to FONROCHE Lighting.
Long-term storage
Power365 system:
Batteries must be stored within their original packing in a dry location.
The installation of batteries should happen
before the date indicated on the packing.
Contact FONROCHE Lighting in case you need to
store them longer.
Mechanical parts:
Mechanical parts must not be stored directly on the ground or near a storage
place of powdery products. The storage area should be sufficiently ventilated
to avoid any deterioration.
Poles strapping should be removed for storage periods longer than 3 weeks.
Maintenance - swap
The client is responsible for returning any defective part to FONROCHE
Lighting for expertise. After receipt of the defective parts, FONROCHE Lighting
will determine the guarantee validity. Depending on the result of the
expertise, the defective spare part may be charged to the client if the
guarantee period has expired or if the default is the result of an event out of
FONROCHE Lighting responsibility (bumps, falls, unadapted handling…).
Installation must comply with the installation manual ;
all items provided must be installed otherwise the
guarantee is voided.

Page 4of 16
Setscrews M10 16
N° screw
Thread
type
Tightening
torque (Nm)
11
M6
> 10
10
M8
> 24
3, 8,
setscrews
M10 > 47,7
Part list
N° Reference Designation Quantity
11100001 Univ ersal t ool disconnect MC4 1
21108025 Washer M08 Inox A2-70-M 8
31108044 Screw TBHC M10x70 Inox A2 - 70 2
41108046 Washer M10 - M - Inox A2 - 70 20
51108047 Grower washer M10 - Inox A2 - 70 10
61108048 Nut M10 Inox A2 - 70 10
71108058 Grower washer M08 - Inox A2-70 4
81108063 Screw TBHC M10 x25 Inox A2 - 70 8
91108066 Nut M08 - Inox A2-70 4
10 1108068 Screw TBHC M08 x 80 - Inox A2-70 4
11 1108070
Black Screw Hexa Head notched base HM06 x
20 - DIN 6921 - Inox A2-70
4
12 1109071
*UH\ nut M 06 - DIN 6923 -Inox A2-70
4
13 1999008 PV module - 60 cells - 38 mm - 3,2 mm - Black 1
14 2301201-2301202 Plate width=4 - battery support 1
15 2301203 - 2301204 Binding - Module 60 cel 2
16 2301207- 2301209 Orient at ion flask Left 1
17 2301208 - 2301210 Orientat ion flask Right 1
18 2301211- 2301212 High t ube 1
19 2301289 Double bracket D60 - POWER 365 1
20 -Pole wit h M10 screws 1
21 2309120 Box energy - Power 365 1
22 2309234 Led lantern - 1 x M16B 2
1108384

Page 5of 16
Assemble the lanterns on the bracket
Set the luminaries
Use an electrician needle (fish-tape) to draw the
connector cables of the 2 lanterns through the bracket to
the top.
For all the assembly, every screw/nut system must be
tightened to the torque recommended by FONROCHE
Lighting*
1
2
9
10
19
9
7
2
10
21

Page 6of 16
Insert the cable into the tube.
Assemble the bracket on the
pole and adjust it
Orient the lanterns, fasten slightly each pressure
screw, and then tighten them all.
Insert the tube into the bracket
*See table on page 4
X 8
4
3
18
Make sure to put the
nuts on the top of the
lantern

Page 7of 16
Assemble the base of the mounting kit
Set to ° tilt (unless otherwise stated).
5
3
4
16
17
18
4
5
6

Page 8of 16
Assemble the support for PV module
6
Be careful to fit the screws n°8
in the same way as
shown on
the schematic
to avoid any
problem when installing the
battery.
8
4
14
4
6
5

Page 9of 16
Install the first PV mounting,
on the ground
Erect the streetlight
15
6
4
8
4 & 5
7
Install only one PV mounting angle n°19 before
erecting the pole.
Once the streetlight erected, go to step 9.
8

Page 10 of 16
11
12
Do not leave the cables hanging
under the support.
13
Install the second PV mounting,
the battery and connect the lantern
Same pieces as step 7
Pass the cable under the battery.
15
Assemble the PV
10
9

Page 11 of 16
Orient the PV towards the equator

Orient the PV towards the equator,
Tighten the 8 pressure screws,
Position the lanterns straight in order to optimize the
lighting

X 8
15
11

Page 12 of 16

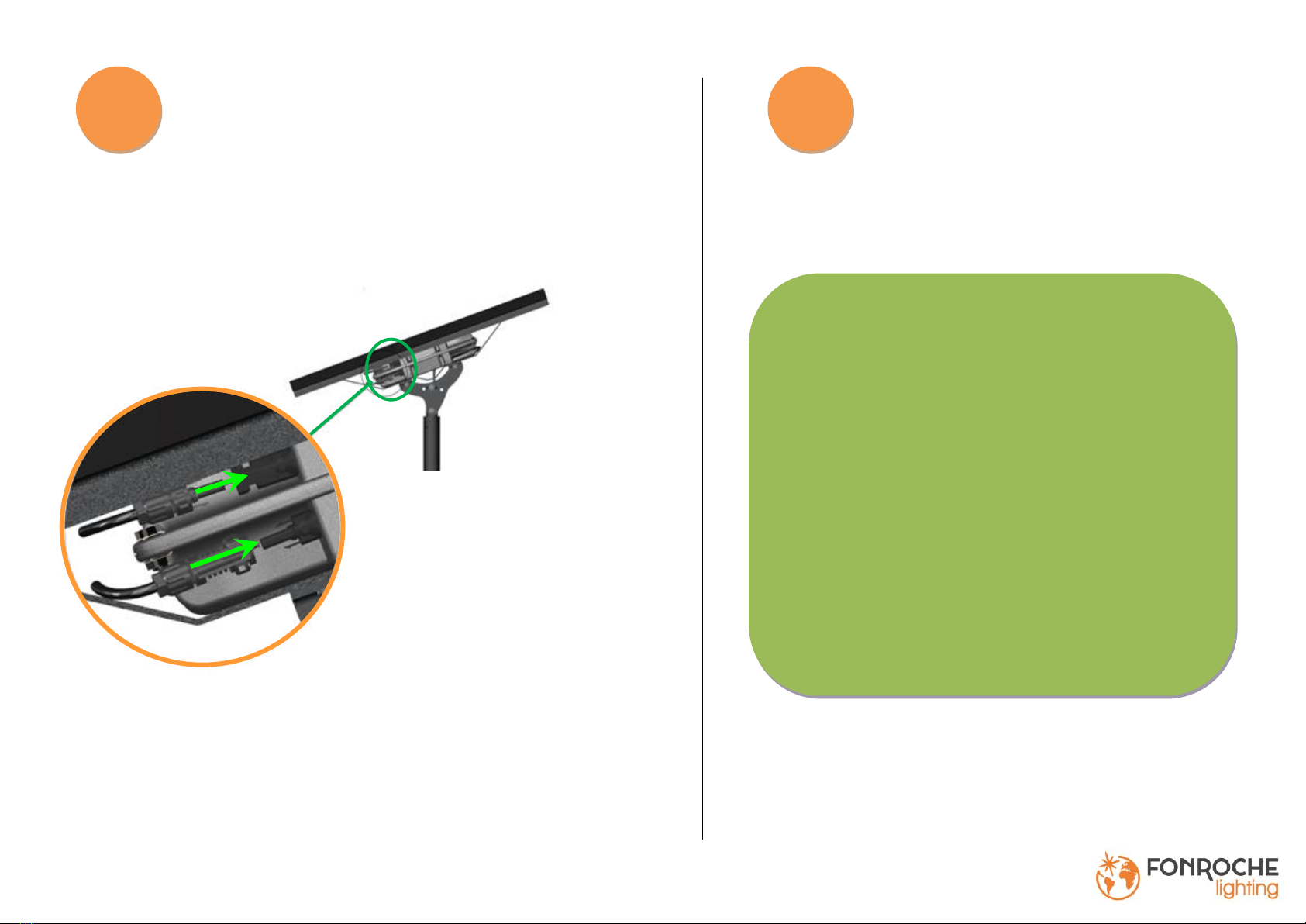

Connect the PV to the battery
Initialize the battery

Please wait
30 seconds
after plugging for system
activation
12
13

Page 13 of 16
1
Validate your installation
Disconnect only one connector of the PV with the
“Universal tool disconnect” n°1.
1
2
14

Page 14 of 16
Light
ON
Then you can reconnect the PV

Wait 1 min max, light must switch ON

Wait another min max, light
must switch OFF
If light switches OFF, installation is OK.
You can then bind all the cables with cable ties.

Page 15 of 16
Check points
Installer
check
(write OK or
no)
Are lanterns straight positioned to optimize the lighting ?
Are the 16 pressure screws installed and correctly tightened ?
Is the PV oriented towards the equator ?
If several solar street lights are installed, are the PVs oriented towards the same direction ?
Is the PV set to 20° tilt (unless otherwise stated) ?
Are all the cable ties installed (so that the cables will not hang anywhere) ?
Are all the parts installed on the solar streetlight ?
If parts remain, please check on this manual to find out what has been forgotten and please be careful to
install everything.
Have the nut-screws systems been correctly tightened according to the tightening torques recommended
at page 4 ?
Problems
Causes
Solutions
Trouble shooting
Last step of installation –Check-list

Page 16 of 16
The light remains switched
on during the day
Wrong connection of the PV
Check that the solar module is correctly connected
to the Power 365 battery system unit.
Defect of the solar module
Verify open circuit voltage on the cable towards the
module. You should measure a voltage between 30
and 40 V. If not, the module is damaged.
The light doesn’t work
Open circuit voltage during the
night is higher than detection
threshold for day/night
detection
Check that the solar module doesn’t catch stray
light from the surrounding.
The light doesn’t work
during installation test
Bad cables connection
Check that all connectors are connected and
correctly locked onto the Power 365 battery system
unit.
If the installation happens too
late in the evening, the system
unit doesn’t detect the solar
module and the system stays in
low-power transport mode.
Wait until next day so that the output voltage of the
solar module is high enough.
The light doesn’t work after
it has been working for
several days
Batteries are discharged
Check the connections of the solar module.
Check that there is no shadow on the solar module.
Check tilt angle and orientation of the solar module.
Wait some days if it is winter, if not call FONROCHE
Lighting for further actions.
For any other problem, please contact FONROCHE Lighting
