Forecast Consoles GC1-A User manual

1 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1.iam
forecast-consoles
GC1-A CONSOLE
PART LIST AND
ASSEMBLY GUIDE

2 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.iam
forecast-consoles
PARTS LIST NOTESPART NUMBERQTY
ITEM
GC1-A RIGHT LEG
11
GC1-A LEFT LEGr
12
GC1-A MAIN MODESTY PANELl
13
GC1-A UPPER MODESTY PANEL
14
GC1 CABLE COVER
15
GC1 CABLE COVER_MIR
16
GC1 MAIN C-TOP
17
GC1 BRIDGE
18
CAM-LOCK 1-375139
CAM-LOCK PIN1310 1/4 x1 SPRING PIN1611 PLUG CAP1312 GC1-A CABLE CHASE213 GC1-A STIFFENER214 6 mm HEX L-KEY115
9
11
12
10
6
513
4
7
1
2
8
3
14
15
x1 x2
x1
x1
x1 x2
x1
x1
x1
x13
x13 x16
x13
x1
x1
ALL PARTS SHOWN ARE UNDER SIDE UP OR BACK SIDE
UP POSITIONS
BEFORE ASSEMBLY, PLEASE INSURE THAT ALL PARTS IN
SHIPMENT ARE PRESENT. IF PARTS ARE MISSNG OR DAMAGED,
CONTACT FORECAST CONSOLES AT [phone].
THE GC1-A CONSOLE IS EASILY ASSEMBLED USING A SYSTEM CONSISTING OF MOUNTING
PINS AND TWIST-LOCK. MAKE SURE THAT THE ARROW ON THE TWIST-LOCK IS POINTING
TOWARDS THE HOLE INTO WHICH THE MOUNTING PIN WILL BE INSERTED.
ADDITIONAL TOOLS NEEDED - PHILIPS SCREWDRIVER AND
MALLET HAMMERS
TWO PERSON ASSEMBLY RECOMENDED

3 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A ASSEMBLY STEP1.iam
forecast-consoles
1
3
4
1
3
4

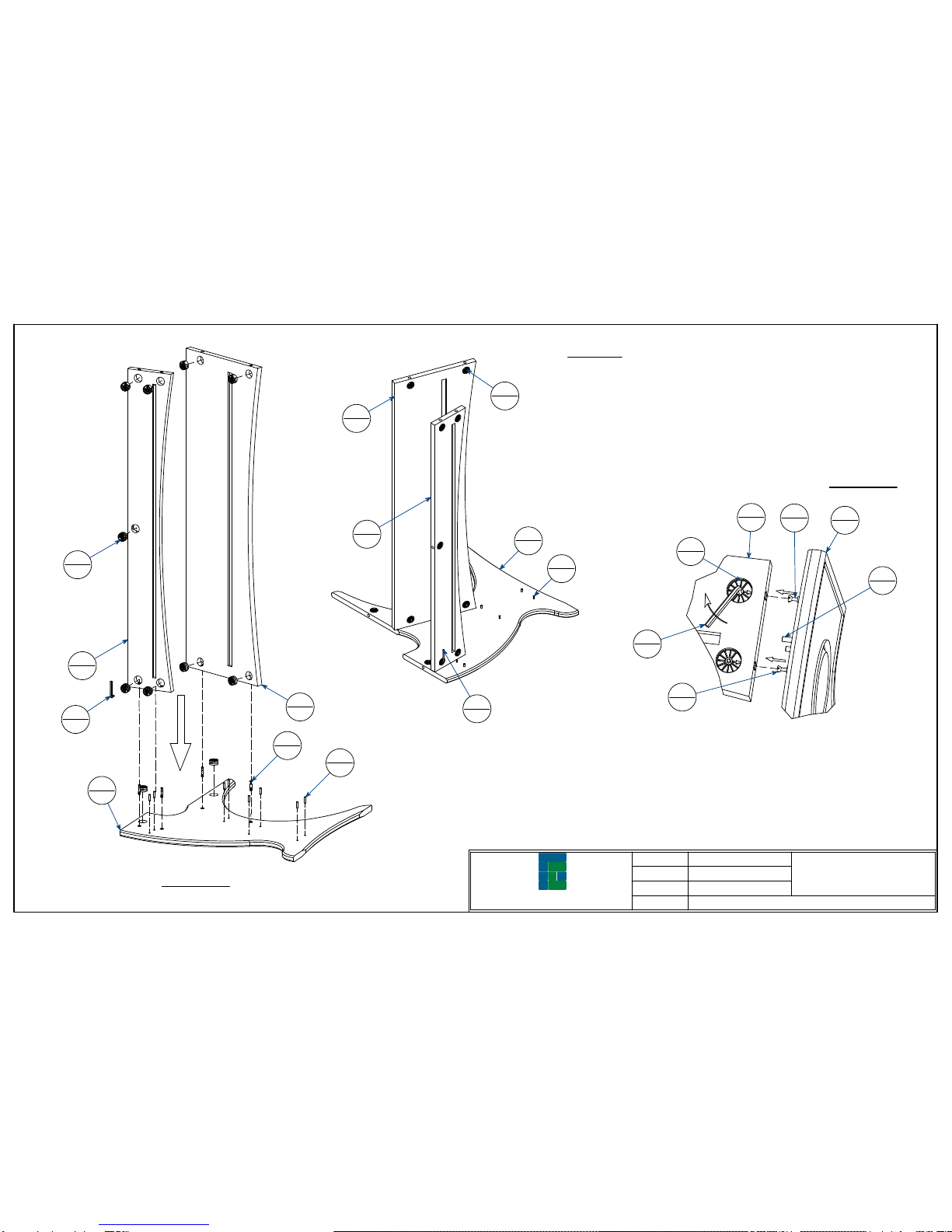

STEP 1
LOCATE LARGE AND SMALL HOLES ON PARTS 1, 3, 4 AND INSERT
TWIST-LOCKS, LOCK PINS AND SUPPORTING PINS AS SHOWN IN FIG.1
LAY SIDE PANEL "1" ON FLOOR FACING UP. ALIGN AND ASSEMBLE
MODESTY PANELS "3" AND "4" OVER CORESPONDING INSTALLED
MOUNTING PINS ON SIDE PANEL AS SHOWN IN FIG.1
SECURE TWIST LOCKS ON MODESTY PANELS. (SEE FIG.2)
11
9
10
FIGURE 1
FIGURE 2
x8
x1
x4
x1
x11
x1
11
9
15
15
x1 MOUNTING PINS SHOULD BE SCREWED IN BY HAND INTO EXISTING
THREADED INSERTS (USE PHILIPS SCREWDRIVER)
THE ARROW ON THE FACE OF EACH TWIST-LOCK SHOULD FACE
TOWARDS THE HOLE FOR THE MOUNTING PIN
USE SUPPLIED HEX L-KEY WRENCH TO TURN TWIST-LOCKS
CLOCKWISE UNTIL TIGHT.
41
15
10
9
10
11

4 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A ASSEMBLY STEP1.iam
forecast-consoles
STEP 2
LOCATE LARGE AND SMALL HOLES ON PART 2 AND INSERT
TWIST-LOCKS, LOCK PINS AND SUPPORTING PINS AS SHOWN IN FIG.3
STAND UNIT ON ITS BASE ASSEMBLED IN PREVIOUS STEP AND
ASSEMBLE OPPOSITE SIDE AS SHOWN IN FIG. 3
SEE FIG.2 FOR TWIST-LOCK AND PINS INSERTING AND LOCK.
2
3
4
1
24
11
9
11
10
9
FIGURE 3
1
3
15
x2
x4
x1
x8

5 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A ASSEMBLY STEP3.iam
forecast-consoles
LOCATE 2 HOLES ON PART 7 AND INSERT LOCK PINS.MOUNTING PINS SHOULD BE
SCREWED IN BY HAND INTO EXISTING THREADED INSERTS. (USE PHILIPS SCREWDRIVER)
SEE FIG. 4
ALIGN MOUNTING PINS ON BOTTOM MONOTOR BRIDGE WITH CORRESPONDING HOLES IN
LEGS THEN PLACE IT IN. USING SUPPLIED HEX L-KEY WRENCH TURN CLOCKWISE
TWIST-LOCK TO FIX BRIDGE INTO PLACE. SEE FIG. 5
TWO PERSON ASSEMBLY RECOMENDED.
2
5
7
2
10
9
STEP 3
FIGURE 5
FIGURE 4
1
x1 x2

6 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A ASSEMBLY STEP3.iam
forecast-consoles
8
10
x1
x3
FIGURE 6
FIGURE 7

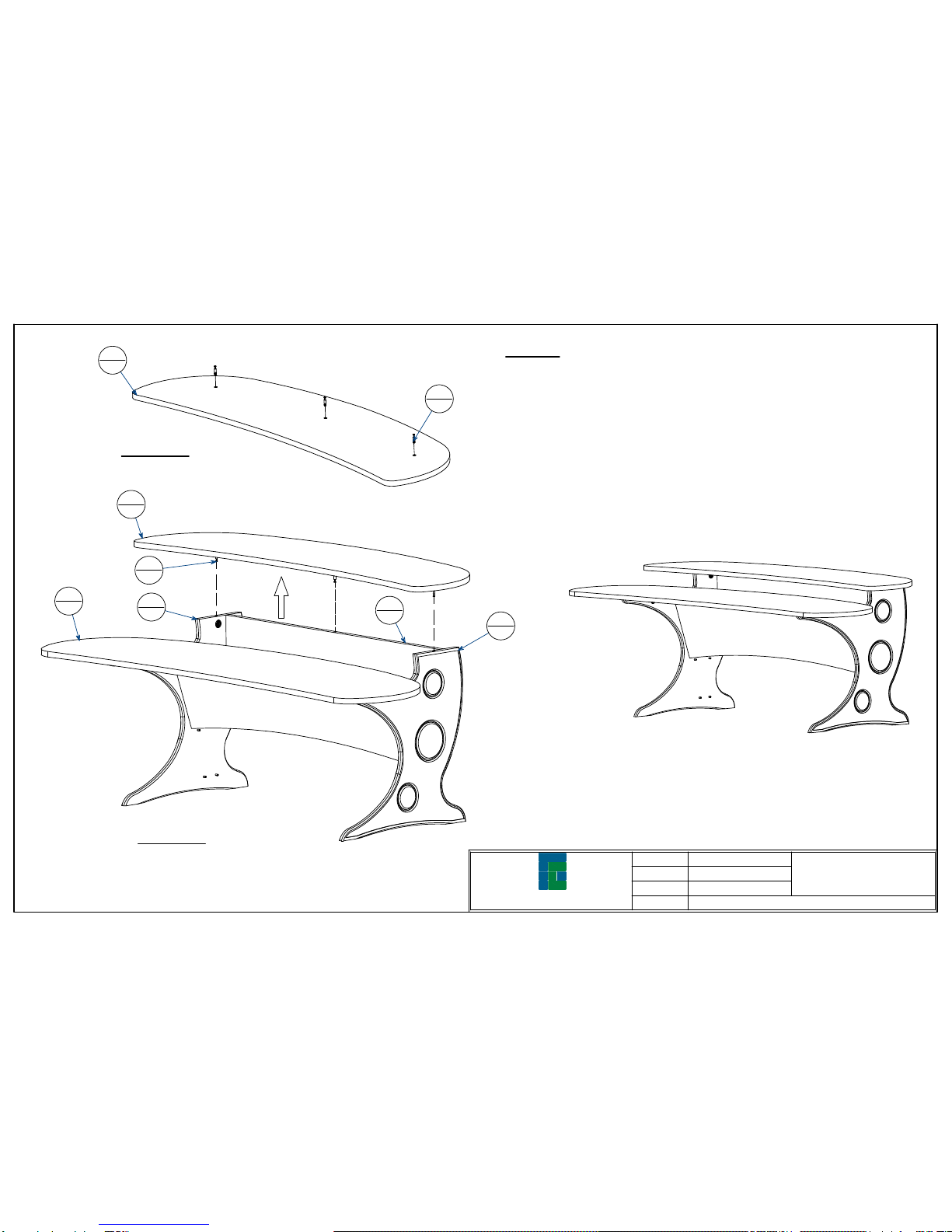

STEP 4
LOCATE 3 HOLES ON PART 8 AND INSERT LOCK PINS.MOUNTING PINS SHOULD BE
SCREWED IN BY HAND INTO EXISTING THREADED INSERTS. (USE PHILIPS SCREWDRIVER)
SEE FIG. 6
ALIGN MOUNTING PINS ON BOTTOM MONOTOR BRIDGE WITH CORRESPONDING HOLES IN
LEGS AND UPPER MODESTY PANEL THEN PLACE IT IN. USING SUPPLIED HEX L-KEY
WRENCH TURN CLOCKWISE TWIST-LOCK TO FIX BRIDGE INTO PLACE. SEE FIG. 7
TWO PERSON ASSEMBLY RECOMENDED.
8
10
2
1
4
7

7 OF 7
MarianR
7/20/2012
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A PARTS USED IN ASSEMBLY.idw
ASSEMBLY GUIDE FOR ALL
CLIENTS
ImageMaster ASSEMBLY INSTRUCTIONS
PART LIST AND ASSEMBLY GUIDE
GC1-A
CONSOLE:
681 OLD WILLETS RD., HAPPAUGE N.Y. 11788 [phone] FAX: [phone]
ROOM:
ALL DESIGNS, PLANS, IDEAS & SPECIFICATIONS IN THIS DRAWING REMAIN THE ENTIRE PROPERTY OF FORECAST INC. AND MAY NOT BE REPRODUCED OR USED IN ANY MANNER WITHOUT WRITTEN CONSENT.
CLIENT NAME:
DATE:
PROJECT:
DESIGNED BY:
SHEET NO.
JOB NUMBER:
Q U A L I T Y T E C H N I C A L F U R N I T U R E
F:\UPDATED IMAGEMASTER (7-01-09)\GC1-A 2-10-09 (SC)\Customized IV\GC1-A ASSEMBLY STEP5.iam
forecast-consoles

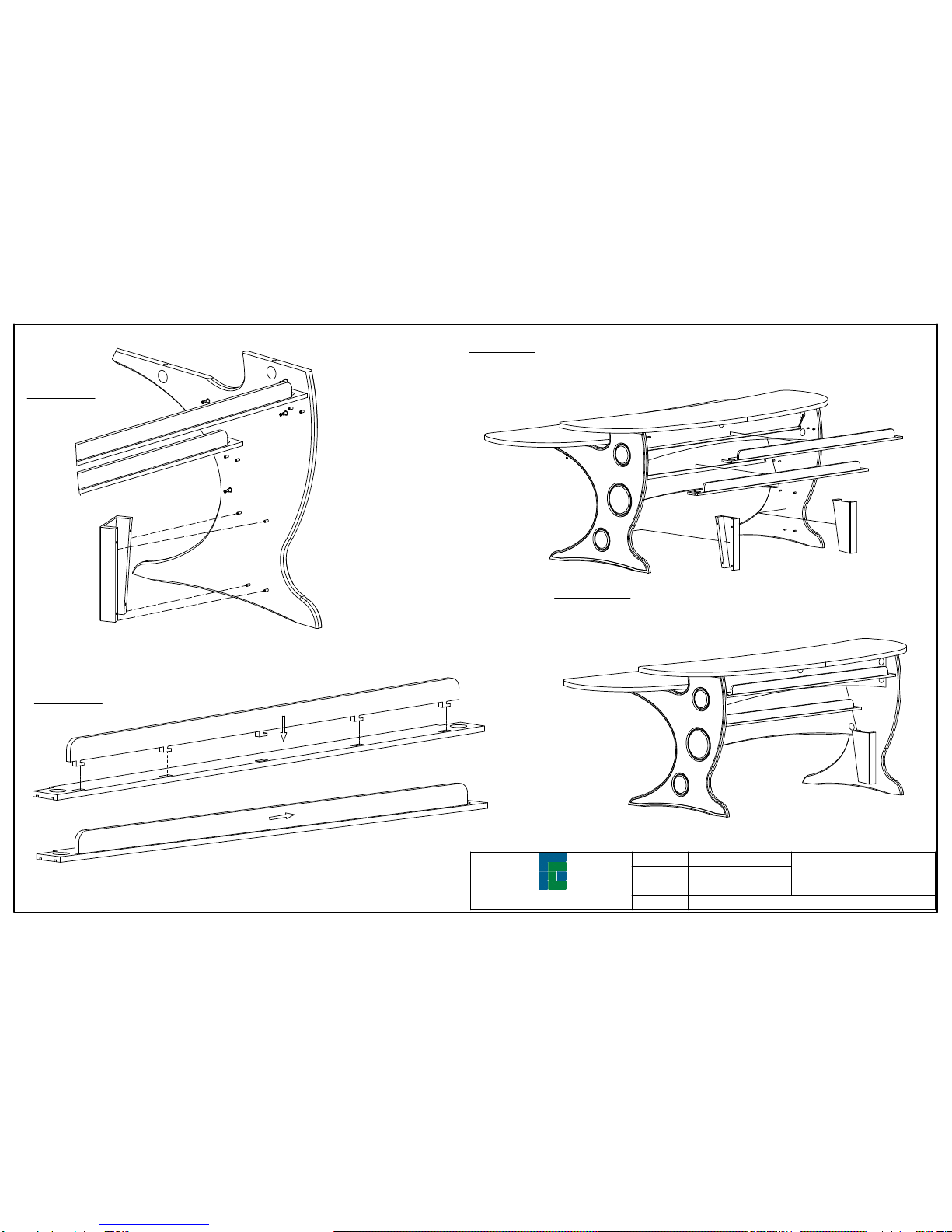

STEP 5
FIGURE 8
FIGURE 9
FIGURE 10
