FORS GVI6157 User manual

GVI6157
User Manual
Dishwasher
Benutzerin‐
formation
Geschirrspü‐
ler

CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Control panel 6
Programmes 6
Settings 8
Options 12
Before first use 13
Daily use 14
Hints and tips 16
Care and cleaning 17
Troubleshooting 19
Technical information 23
Guarantee Conditions 23
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door when
it is open.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
2

–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (MPa)
•Obey the maximum number of 15 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery basket
with the points down or in a horizontal position.
•Do not keep the appliance door open without supervision to
prevent to fall on it.
•Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to
clean the appliance.
•The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
3

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Without electrical power, the water
protection system is not active. In this
case there is a risk of flooding.
• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING! Dangerous
voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water inlet
hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Internal light
WARNING! Risk of injury.
• This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
• The lamp in this appliance is not suitable
for household room illumination.
• To replace the lamp, contact the
Service.
Service
• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised
Service Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
4

PRODUCT DESCRIPTION
54
10 9 67
11
12
23 1
8
1Top spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Lower basket
11 Upper basket
12 Cutlery drawer
TimeBeam
The TimeBeam is a display that is shown on
the floor below the appliance door.
• When the programme starts, the
programme duration comes on.
• When the programme is completed,
0:00 and CLEAN come on.
• When the delay start starts, the
countdown duration and DELAY come
on.
• When the appliance has a malfunction,
an alarm code appears.
5

When AirDry is activated during
the drying phase, the projection
on the floor may not be
completely visible. To check the
remaining time of the running
programme, look at the control
panel display.
CONTROL PANEL
123456789
1On/off button
2Display
3Delay button
4Program button
5MyFavourite button
6TimeManager button
7XtraDry button
8Hygiene button
9Indicators
Indicators
Indicator Description
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
ECO 1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• Hygiene
• TimeManager
• XtraDry
6

Programme Degree of soil
Type of load
Programme phases Options
P2
AUTO 2)
• All
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash from 45 °C to 70
°C
• Rinses
• Dry
• Hygiene
• XtraDry
P3
70° Pro
• Heavy soil
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeManager
• XtraDry
P5
45° Gläser
• Normal or light
soil
• Delicate crock-
ery and glass-
ware
• Wash 45 °C
• Rinses
• Dry
• XtraDry
P4
30 Minuten 3)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C or 65 °C
• Rinses
• Hygiene
• XtraDry
P7
Vorspülen 4)
• All • Prewash
P6
Extra SILENT 5)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• XtraDry
1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery
with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the tem-
perature and the quantity of water, the energy consumption and the programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to
form in the appliance. Do not use detergent with this programme.
5) This is the most silent programme. The pump works at a very low speed to decrease the level of noise. Because
of the low speed, the programme duration is long.
Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1
ECO
11 0.857 225
P2
AUTO
7 - 14 0.6 - 1.6 40 - 170
7

Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P3
70° Pro
12.5-14.5 1.4-1.7 170-190
P5
45° Gläser
12 - 14 0.7 - 0.9 82-92
P4
30 Minuten
10 0.9 30
P7
Vorspülen
4 0.1 14
P6
Extra SILENT
9 - 10 1.1 - 1.3 230 - 250
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
Information for test institutes
For all the necessary information for test
performance, send an email to:
[email protected]
Write down the product number (PNC) that
is on the rating plate.
SETTINGS
Programme selection mode and
user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener according
to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
• The selection of the colour for
TimeBeam.
• The activation or deactivation of the rinse
aid empty notification.
• The level of rinse aid according to the
required dosage.
• The activation or the deactivation of
AirDry.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:
Press and hold simultaneously and
until the appliance is in programme
selection mode.
The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
8

The higher the content of these minerals,
the harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German de-
grees (°dH)
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are not
effective enough to soften hard
water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , , and
go off.
• The indicator continues to flash.
• The display shows the current
setting: e.g. = level 5.
3. Press again and again to change the
setting.
4. Press the on/off button to confirm the
setting.
The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
You can set the released quantity of rinse
aid between level 1 (minimum quantity) and
level 6 (maximum quantity). Level 0 will
9

deactivate the rinse aid dispenser and no
rinse aid will be released.
Factory setting: level 4.
How to set the rinse aid level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , , and
go off.
•The indicator continues to flash.
• The display shows the current
setting: e.g. = level 4.
– The levels of rinse aid are from
0A to 6A.
– Level 0 = no rinse aid is
released.
3. Press again and again to change the
setting.
4. Press the on/off button to confirm the
setting.
The rinse aid empty notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the rinse
aid indicator is turned on notifying to refill
rinse aid. If you are using multi-tabs
containing rinse aid and you are satisfied
with the drying result, you can deactivate
the notification for refilling rinse aid.
However, we recommend that you always
use rinse aid for best drying performance.
If you use standard detergent or multi-
tablets without rinse aid, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
empty notification
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , , and
go off.
• The indicator continues to flash.
• The display shows the current
setting: = the rinse aid empty
notification is activated (factory
setting).
3. Press to change the setting.
= the rinse aid empty notification is
deactivated.
4. Press the on/off button to confirm the
setting.
Acoustic signals
Acoustic signals sound when a malfunction
of the appliance occurs. It is not possible to
deactivate these acoustic signals.
There is also an acoustic signal that sounds
when the programme is completed. By
default this acoustic signal is deactivated
but it is possible to activate it.
How to activate the acoustic
signal for the end of programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press
• The indicators , , , and
go off.
10

• The indicator continues to flash.
• The display shows the current
setting: = Acoustic signal off.
3. Press to change the setting.
= Acoustic signal on.
4. Press the on/off button to confirm the
setting.
How to set the colour of the
TimeBeam
It is possible to change the colour of the
TimeBeam to match the colour of the
kitchen floor. There are several colours
available. The TimeBeam can also be
deactivated.
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , , and
go off.
• The indicator continues to flash.
• The display shows a number and the
letter C. Each number refers to a
different colour.
– = TimeBeam deactivated.
3. Press again and again to change the
colour.
• You can see the different colours on
the kitchen floor.
4. Press the on/off button to confirm the
setting.
AirDry
AirDry improves the drying results with less
energy consumption.
While the drying phase
operates, a device opens the
appliance door. The door is then
kept ajar.
CAUTION! Do not try to close
the appliance door within 2
minutes after automatic open.
This can cause damage to the
appliance.
CAUTION! In case of presence
of children, the AirDry system
can be deactivated if you want
to keep the door closed in the
end of the cycle.
AirDry is automatically activated with all
programmes excluding Vorspülen
To improve the drying performance refer to
the XtraDry option or activate AirDry.
How to deactivate AirDry
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
simultaneously and until the
indicators , , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , , and
go off.
• The indicator continues to flash.
• The display shows the current
setting: = AirDry activated.
11

3. Press to change the setting: =
AirDry deactivated.
4. Press the on/off button to confirm the
setting.
MyFavourite
With this option you can set and save the
programme that you use more frequently.
You can only save 1 programme. A new
setting cancels the previous one.
How to save the MyFavourite
programme
1. Set the programme that you want to
save
You can also set applicable options
together with the programme.
2. Press and hold until the related
indicator comes on with fixed light.
How to set the MyFavourite
programme
Press .
• The MyFavourite indicator comes on.
• The display shows the number and
the duration of the programme.
• If options have been saved together
with the programme, the indicators
related to the options come on.
OPTIONS
Desired options must be
activated every time before you
start a programme.
It is not possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you have
selected non compatible
options, the appliance will
automatically deactivate one or
more of them. Only the
indicators of the options still
active will stay on.
XtraDry
Activate this option when you want to boost
the drying performance. With use of this
option, the duration of some programmes,
water consumption and the last rinse
temperature can be affected.
The XtraDry option is a permanent option
for all programmes other than ECO and
need not to be selected at every cycle.
Every time ECO is activated, XtraDry option
is off and needs to be chosen manually. In
other programmes, the setting of XtraDry is
permanent and it is automatically used in
next cycles. This configuration can be
changed at any time.
Activating XtraDry option deactivates
TimeManager.
How to activate XtraDry
Press . The related indicator comes on.
If the option is not applicable to the
programme, the related indicator does not
appear or it flashes quickly for a few
seconds and then goes off.
The display shows the updated programme
duration.
TimeManager
The TimeManager allows to reduce the time
of the selected programme.
The total programme duration decreases by
approximately 50%.
The washing results are the same as with
the normal programme duration. The drying
results can decrease.
This option increases the pressure and the
temperature of the water. The washing and
the drying phases are shorter.
By default, TimeManager is off, but it is
possible to activate it manually. This option
12

cannot be combined with XtraDry at the
same time.
How to activate TimeManager
Press , the related indicator comes on.
If the option is not applicable to the
programme, the related indicator does not
come on or it flashes quickly for a few
seconds and then goes off.
The display shows the updated programme
duration.
Hygiene
This option provides better hygiene results
by keeping the temperature at 70 °C for at
least 10 minutes during the last rinsing
phase.
How to activate Hygiene
Press , the related indicator comes on
If the option is not applicable to the
programme, the related indicator does not
come on or it flashes quickly for a few
seconds and then goes off.
The display shows the updated programme
duration.
BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener. It
seems that the appliance is not working.
The washing phase starts only after this
procedure is completed. The procedure will
be repeated periodically.
The salt container
CAUTION! Only use salt
specifically designed for
dishwashers.
The salt is used to recharge the resin in the
water softener and to assure good washing
results in the daily use.
How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt container
(Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
13

CAUTION! Water and salt can
come out of the salt container
when you fill it. After you fill the
salt container, immediately start
a programme to prevent
corrosion.
How to fill the rinse aid
dispenser
AB
C
CAUTION! Only use rinse aid
specifically designed for
dishwashers.
1. Open the lid (C).
2. Fill the dispenser (B) until the rinse aid
reaches the marking ''MAX''.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the lid
locks into position.
Fill the rinse aid dispenser when
the indicator (A) becomes clear.
If you use multi-tablets and the
drying performance is
satisfactory, the rinse aid refill
indication can be disabled.
We recommend to always use
rinse aid for better drying
performance, also in
combination with multi-tablets
containing rinsing agent.
DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for
the type of load and the degree of soil.
Using the detergent
AB
C
CAUTION! Only use detergent
specifically designed for
dishwashers.
1. Press the release button (A) to open the
lid (C).
14

2. Put the detergent, in powder or tablets,
in the compartment (B).
3. If the programme has a prewash phase,
put a small quantity of detergent on the
inner part of the appliance door.
4. Close the lid. Make sure that the lid
locks into position.
Setting and starting a
programme
The Auto Off function
This function decreases energy
consumption by deactivating automatically
the appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the appliance
is in programme selection mode.
3. Press repeatedly until the display
shows the number of the programme
you want to start. The display will show
the programme number for
approximately 3 seconds and then
show the programme duration.
• If you want to select the MyFavourite
programme, press .
• The indicators of the options related
to the MyFavourite programme
come on.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with
delay start
1. Set a programme.
2. Press again and again until the
display shows the delay time you want
to set (from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is possible
to increase the delay time but not to
change the selection of the programme and
options.
When the countdown is completed, the
programme starts.
Opening the door while the
appliance operates
If you open the door while a programme is
running, the appliance stops. It may affect
the energy consumption and the
programme duration. When you close the
door, the appliance continues from the
point of interruption.
If the door is opened for more
than 30 seconds during the
drying phase, the running
programme will end. This will
not happen if the door is
opened by AirDry.
CAUTION! Do not try to close
the appliance door within 2
minutes after AirDry
automatically opens it, as this
may cause damage to the
appliance. If, afterwards, the
door is closed for another 3
minutes, the running
programme ends.
Cancelling the delay start while
the countdown operates
When you cancel the delay start you have
to set the programme and options again.
Press and hold simultaneously and
until the appliance is in programme
selection mode.
15

Cancelling the programme
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a new
programme.
End of programme
When the programme is completed and
you open the door, the appliance is
automatically deactivated.
Close the water tap.
HINTS AND TIPS
General
The following hints will ensure optimal
cleaning and drying results in daily use and
also help to protect the environment.
• Remove larger residues of food from the
dishes into the waste bin.
• Do not pre-rinse dishes by hand. When
needed, use the prewash programme (if
available) or select a programme with a
prewash phase.
• Always use the whole space of the
baskets.
• When loading the appliance, make sure
that the dishes can be completely
reached and washed by the water
released from the spray arm nozzles.
Make sure that items do not touch or
cover each other.
• You can use dishwasher detergent, rinse
aid and salt separately or you can use
the multi-tablets (e.g. ''3in1'', ''4in1'',
''All in 1''). Follow the instructions written
on the packaging.
• Select the programme according to the
type of load and degree of soil. With the
ECO programme you have the most
efficient use of water and energy
consumption for crockery and cutlery
with normal soil.
Using salt, rinse aid and
detergent
• Only use salt, rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.
• In areas with hard and very hard water
we recommend to use plain dishwasher
detergent (powder, gel, tablets
containing no additional agents), rinse
aid and salt separately for optimal
cleaning and drying results.
• At least once a month run the appliance
with the use of appliance cleaner which
is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware, we
recommend that you use the tablets with
long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent packaging.
What to do if you want to stop
using multi-tablets
Before you start to use separately
detergent, salt and rinse aid do the
following procedure.
1. Set the highest level of the water
softener.
2. Make sure that the salt and rinse aid
containers are full.
3. Start the shortest programme with a
rinsing phase. Do not add detergent
and do not load the baskets.
4. When the programme is completed,
adjust the water softener according to
the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.
Loading the baskets
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.
16

• Do not put in the appliance items that
can absorb water (sponges, household
cloths).
• Remove larger residues of food from the
dishes into the waste bin.
• Make soft the remaining burned food on
the items.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that glasses do not touch
other glasses.
• Put cutlery and small items in the cutlery
drawer.
• Put light items in the upper basket.
Make sure that the items do not move.
• Make sure that the spray arms can
move freely before you start a
programme.
Before starting a programme
Make sure that:
• The filters are clean and correctly
installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid
(unless you use multi- tablets).
• The position of the items in the baskets
is correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
Unloading the baskets
1. Let the tableware cool down before you
remove it from the appliance. Hot items
can be easily damaged.
2. First remove items from the lower
basket, then from the upper basket.
At the end of the program water
can still remain on the sides and
on the door of the appliance.
CARE AND CLEANING
WARNING! Before
maintenance, deactivate the
appliance and disconnect the
mains plug from the main
socket.
Dirty filters and clogged spray
arms decrease the washing
results. Make a check regularly
and, if necessary, clean them.
Cleaning the filters
The filter system is made of 3 parts.
C
B
A

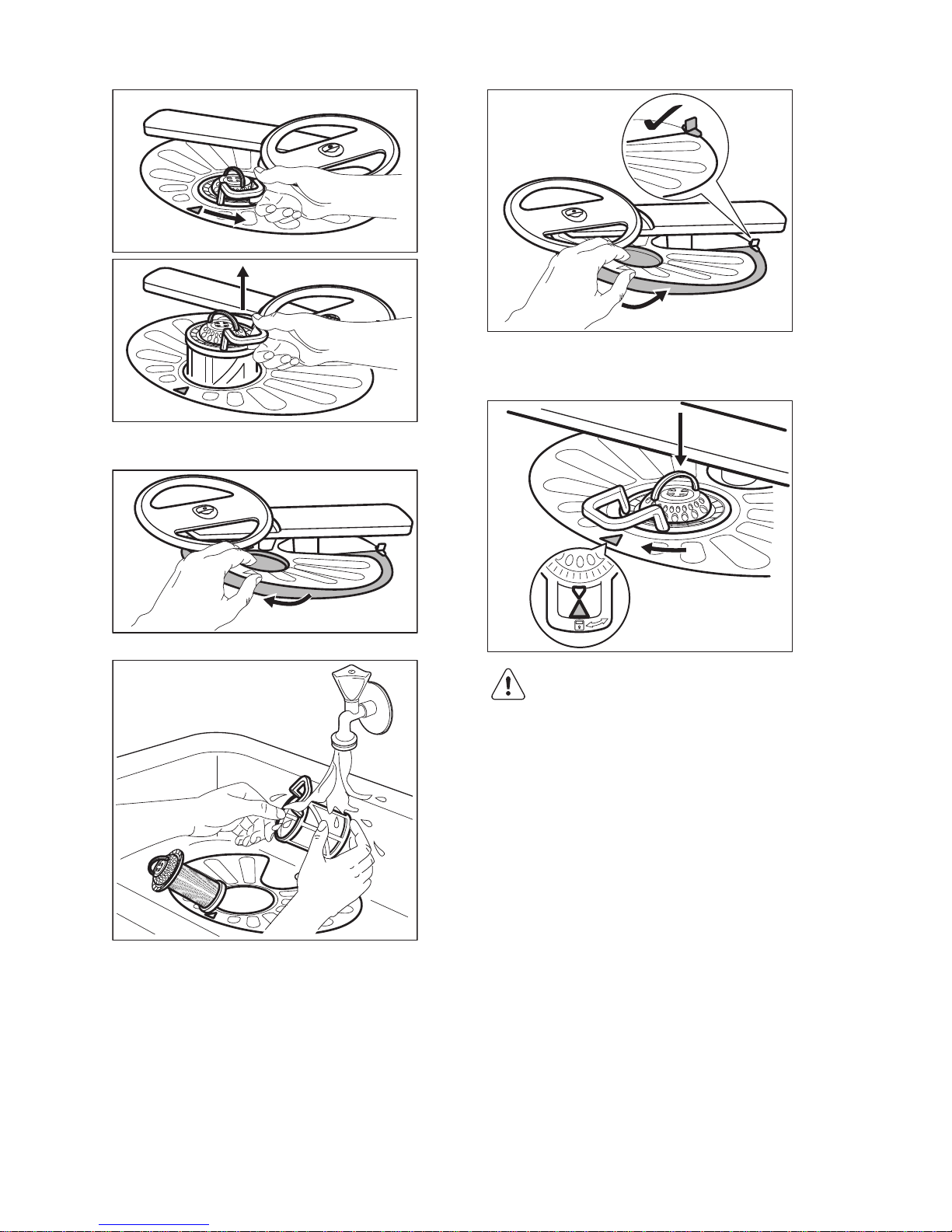

1. Turn the filter (B) counterclockwise and
remove it.
17

2. Remove the filter (C) out of filter (B).
3. Remove the flat filter (A).
4. Wash the filters.
5. Make sure that there are no residues of
food or soil in or around the edge of the
sump.
6. Put back in place the flat filter (A). Make
sure that it is correctly positioned under
the 2 guides.
7. Reassemble the filters (B) and (C).
8. Put back the filter (B) in the flat filter (A).
Turn it clockwise until it locks.
CAUTION! An incorrect position
of the filters can cause bad
washing results and damage to
the appliance.
Cleaning the upper spray arm
We recommend to clean regularly the upper
spray arm to avoid soil to clog the holes.
Clogged holes can cause unsatisfactory
washing results.
1. Pull out the upper basket.
2. To disengage the spray arm from the
basket, press the spray arm upwards in
the direction indicated by the lower
arrow and simultaneously turn it
clockwise.
18

3. Wash the spray arm under running
water. Use a thin pointed tool, e.g.
toothpick, to remove particles of soil
from the holes.
4. To engage again the spray arm to the
basket, press the spray arm upwards in
the direction indicated by the lower
arrow and simultaneously turn it
counterclockwise until it locks into
place.
External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive
cleaning pads or solvents.
Internal cleaning
• Carefully clean the appliance, including
the rubber gasket of the door, with a soft
damp cloth.
• If you use short duration programmes
regularly, these can leave deposits of
grease and limescale inside the
appliance. To prevent this, we
recommend running long duration
programmes at least twice a month.
• To maintain the performance of your
appliance at its best, we recommend
using a specific cleaning product for
dishwashers (at least once a month).
Follow carefully the instructions on the
packaging of the product.
TROUBLESHOOTING
If the appliance does not start or it stops
during operation. Before you contact an
Authorised Service Centre, check if you can
solve the problem by yourself with the help
of the information in the table.
19

WARNING! Repairs not
properly done may result in
serious risk to the safety of the
user. Any repairs must be
performed by qualified
personnel.
With some problems, the display
shows an alarm code.
The majority of problems that can
occur can be solved without the need
to contact an Authorised Service
Centre.
Problem and alarm code Possible cause and solution
You cannot activate the ap-
pliance.
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that there is no damaged fuse in the fuse box.
The program does not start. • Make sure that the appliance door is closed.
• If the delay start is set, cancel the setting or wait for the end
of the countdown.
• The appliance has started the procedure to recharge the
resin inside the water softener. The duration of the proce-
dure is approximately 5 minutes.
The appliance does not fill
with water.
The display shows .
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too
low. For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clogged.
• Make sure that the inlet hose has no kinks or bends.
The appliance does not drain
the water.
The display shows .
• Make sure that the sink spigot is not clogged.
• Make sure that the filter in the outlet hose is not clogged.
• Make sure that the interior filter system is not clogged.
• Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.
The display shows .
• Close the water tap and contact an Authorised Service Cen-
tre.
The appliance stops and
starts more times during op-
eration.
• It is normal. It provides optimal cleaning results and energy
savings.
The program lasts too long. • Select the TimeManager option to shorten the program
time.
• If the delayed start option is set, cancel the delay setting or
wait for the end of the countdown.
The remaining time in the dis-
play increases and skips
nearly to the end of program
time.
• This is not a defect. The appliance is working correctly.
The options of the program
have to be set again every
time.
• To save your favourite configuration use option MyFavourite.
20
