FORZA BOLT
OUTBOARD MOTOR
OWNER’S MANUAL

Table Of Contents
1. Introduction………………………………………………………....1
2. Safety Information………………………………………………….1
3.Refuelling Information…………………………………………......1
4.Safety Matters………………………………………………………2
.Preparation………………………………………………………….3
6.Operation…………………………………………………………….3
7.Maintenance………………………………………………………...4
8.Storage ……………………..……………………………………….
9.Common Faults and Troubleshooting Method………...………...
10.Outboard Motor Dimension and Weight………………………...6
11.Operating Instructions...........................................……………...7
12.Model Specifications……........…………………………………..13

1. Introduction
Thank for Choosing our products.
This Owner’s manual contains information needed for proper operation, maintenance
and care.
If you have any questions about the operation or maintenance of outboard motor, please
contact Forza Power Equipment or your nearest Forza Authorized Dealer.
Please read and understand Owners Manual completely before you using it.
2. Safety Information
1. Before installing and operating the outboard motor, please read the manual carefully to fully
understand proper operation of the outboard motor.
2. Make sure the rated power of the outboard motor does not exceed the boat's maximum
power rating. Exceeding the boat's maximum power rating may cause sudden loss of control.
If you don’t know the maximum power capacity of your boat, please consult the boat
manufacturer or nearest dealer.
3. Do not modify the outboard motor, or you may damage the engine or make it unsafe.
4. Do not consume alcohol or drugs before or while operating the engine or boat. Around 0%
of boating accidents are related to alcohol consumption.
. Make sure everyone on the boat has a life vest. Children and others who cannot swim
should always wear life vest. All occupants should wear a life vest when in inclement weather
or other dangerous situations.
6. Gasoline burn easily. The vapor is easy to ignite and explode. Be careful when opening or
refilling the fuel tank.
7. Check there are no gasoline leaks or vapor before starting engine.
8. The exhaust gas from the engine contains carbon monoxide, which is colorless and
odorless. It can cause brain damage and even death after inhaling carbon monoxide.
Symptoms include nausea, dizziness and disorientation. Keep the boat ventilated and keep
the exhaust from being blocked.
9. Check on the throttle and the propeller before starting the engine. 9.Comply with all local
laws and regulations when operating the outboard motor.
10. Pay close attention to the weather. Check the weather forecast before boating. Avoid
boating under harsh weather conditions.
11. Tell someone where you plan to go or offer your sailing plan to the harbormaster, and
check in when you return safely.
12. Practice safe boating. Keep sailing with a safe speed, avoid obstacles or barriers and
watch for traffic.
13. Watch out for swimmers nearby when starting or operating engine.
14. Keep far away from swimming areas. Turn off the engine when a swimmer is in nearby
water.
3. Refueling Information
The gasoline and vapor is easy to ignite, burn or explode!
1.Do not refuel while smoking and keep away from the any source of fire or spark
2.Turn off the engine when refueling.

4. Safety Matters
1. DO NOT use the outboard motor in enclosed spaces.
2. Keep the hands and feet away from any moving or rotating parts.
3. DO NOT use in the vicinity of an open flame, any source of ignition or other fuel storage
tanks.
4. DO NOT refuel indoors or in any confined spaces.
. DO NOT open the fuel tank and/or refuel when outboard motor running or while at a high
temperature. (Outboard motor should be cooled for 2 mins before refueling)
6. DO NOT allow fuel to overflow and check for leakage before starting outboard motor.
(Repair fuel leak before using the outboard motor).
7. DO NOT use the stop choke method to stop the engine.
8. DO NOT hit the flywheel with a hammer or a hard object to avoid fragmentation in the
rotation.
9. DO NOT operate the outboard motor at high speed in the case of light loading of the
vessel.
10. DO NOT run engine without muffler installed. Regularly inspect the muffler to ensure
it is operating properly. If not, replace the muffler.
11.DO NOT rapidly accelerate or make a high speed emergency stop. Non-factory
personnel should not adjust the carburetor.
12. DO NOT operate the outboard motor if the muffler has piled up debris or other
flammable materials near exhaust.
13. DO NOT touch the muffler and cylinder cooling fins to avoid burns when working.
14. DO NOT OPERATE without air filter cover or an air filter.
1 . Check that the vessel engine capacity matches the outboard motor.
16. In order to prevent accidents when repairing the outboard motor, please remove the
spark plug and ground wire.
17. Please use clean gasoline to prevent carburetor blockage or hard starting.
18. Please check the oil pipe for damage and leaks and replace, if needed.
19. Please use only FORZA spare parts, or else the outboard motor may get damaged.

5. Preparation
1. Lubrication Information
Use high quality clean lubricants, we do not recommended any special additive
lubricants. Please Add 320ml of oil for new machines, then check the oil level gauge
scale to ensure the correct amount of oil.
Figure (1)
2. Fuel Information
Only use clean, unleaded gasoline. (87 Octane or above). Gasoline should be used within
30 days of purchase. DO NOT use gasoline containing more than 10% Ethanol.
NOTICE: Turn off the outboard motor and let the engine cool at least 2 mins before
refueling.
6. Operation
1.Preparation before starting
1.1 Push the priming bulb on carburetor until fuel flows through the return fuel line.
1.2 Move choke lever to the closed position(Figure 4-direction of the arrow reversed in
the end). Once the engine warms up, move the choke lever to the fully open position.
2.Starting
2.1 Recoil start
Pull the starter grip lightly until resistance is felt,then pull briskly starting the engine.
D ifficulty in starting may occur due to too much fuel, remove the spark plug. Fully open
choke lever and pull recoil starter -6 times, then reinstall the spark plug, and restart
using the method above.

2.2 After starting the outboard motor, adjust idle speed after warming up motor
for 3 to mins.
3.Stop machine
Adjust the engine idle speed and let run another 30 seconds before
stopping. Do not close choke lever to stop engine or it may cause
engine damage.
.Maintenance
1.Machine Maintenance
The following date and time intervals, regardless of the order.
1.1 Replace engine oil once every 10 hours.
1.2 Routinely inspect: screws, bolts and nuts are tight, check for oil leaks or air leakage.
1.3 Every 8 hours, clean dust from all machine surfaces,and use gasoline to clean air filter.
1.4 Every 0 hours, clean fuel tank, filter and carburetor.
1. Every working 100 hours, clean muffler; take off the fan,remove the oil on the
fan;Checking high-tension cable connections;Take off cylinder,remove the combustion
clamber and piston crown fouling;cleaning inside the crankcase.
2. Accessories Maintenance
2.1 Clean and/or replace any damaged or contaminated foam air flter.
2.1.1 Loosen air filter cover fastening screws, remove the air filter assembly from the base.
2.1.2 Remove the air filter cover and take off the foam filter.
2.1.3 Use detergent and clean water to wash the foam filter and squeeze clean, removing
excess oil.
2.2 Spark plug
Every 0 hours clean spark plug to prevent fouling; Every 100 hours replace the spark
plug. The spark plug gap is 0.6-0.8mm.
2.3 Magneto
Magneto gap should be in 0.4~0.6mm.
2.4 Keeping engine clean
2.4.1 Regularly clean any dirt, DO NOT use pressure washer, only use brush or high
pressure air to clean.
2.4.2 Before starting, remove any combustible materials near muffler around to avoid fire.
2.4.3 Clean debris to prevent blockage of the cooling system ducts,Regular cleaning
the cooling fan to avoid too heat and machinery damage.

8. Storage and Transportation
1. Empty gasoline to avoid fuel line and carburetor blockage if motor will not be used for a
period exceeding 30 days or for seasonal storage.
2. If putting in long-term storage, please empty gasoline from fuel tank, then run the machine,
until the engine stopped due to lack of gasoline. Remove the spark plug, inject engine oil into
combustion chamber, pull starter handle several times so that the piston does not sieze.
3. Clean the cylinder, cylinder head cooling fins and the areas around the muffler.
4. Storage on a clean and dry place, keep it away from the stove and the other heater
appliance.
9. Common Faults and Troubleshooting Method
The Common
Failures Possible Causes Solutions
The choke valve
position is not
correct
1.Move the choke valve handle to the opening position when
engine warms.
2.Move the choke valve handle to the closing position when
starting a cold engine.
The engine
can not start.
No fuel or f u e l
line is obstructed.
1.If you do not press the carburetor primer bulb, please
push 3-4 times.
2.If the fuel runs out, refill the fuel tank
3.If there is foreign matter in the tank or fuel line, please clean
foreign matter before adding the new fuel.
Spark plug or the
magneto.
1. Replace the spark plug if broken.
2. Spark plug fouled. Inspect spark plug gap and clean off any
carbon deposits.
3.If the spark plug electrode gap is submerged by oil, remove the
spark plug and dry before installation.
4. High-voltage wires broken or loose, please replace or
tighten.
. If the stator is loose, adjust the gap and tighten.
6. If the high pressure cap and spark plug is bad, you should
tighten or replace the spark plug cap.
Lack of
engine
power.
Air filter
obstructed
Check the filter parts are not blocked by dirt. C lean or replace
the filter as needed.
Fuel line
obstructed
If there is foreign matter or impurities in the tank or fuel line,
please keep the oil drain and remove the foreign matter before
adding the oil.
The choke valve
position is not correct
It should be placed in full open position when running.
The muffler is
obstructed.
The muffler is obstructed by carbon deposit, it should be
clean routinely.
If the above methods for troubleshooting are unsuccessful or an uncommon fault occurs, please ask
our authorized dealer or service providers promptly, or send the engine to the dealer for repair or
maintenance.

10.Outboard motor Dimension and Weight
Figure 2
Outboard motor Gross weight:12kgs

11. Structural Characteristics and Working Principle
Figure 3
1. Fuel tank
2. Oil level gauge
3. Throttle grip,Steering handle
4. Tilted support positioning pin
. Clamp screw
6. Clamp bracket
7. Starter
8. Muffler cover
9. Handle
10. Tilt lever
11. Anti Cavitation plate
12. Propeller

Figure 4
1.Choke valve switch 2.Air filter 3. Starter handle
Figure 5
Outboard motor includes a handle, so you can safely and conveniently pick up
and carry the motor.

Figure 6 Figure 7
1.Sto Button 2.Throttle Cable Assy. 3.Anode 4. Pro eller Locating Pin
Figure 8 Figure 9
The Trim angle of the outboard motor helps determine the position of the bow of the boat
in the water. Correct trim angle will help improve performance and fuel economy while
reducing strain on the engine. Correct trim angle depends upon the combination of boat,
engine and propeller. Correct trim is also affected by variables such as the load in the
boat, sea conditions and running speed.
There are 4 or holes provided in the clamp bracket to adjust the outboard motor trim
angle.
This is generally when the keel line of the boat is up about 3 to degrees.

Figure 10
Cruising in Shallow water
1. When boat cruising in shallow water, you must operate outboard motor in low speed, it
may be necessary for you to adjust or lift the motor. When the water is shallow, you may
have to turn off the engine or lift and pass, or you may damage the outboard motor.
2. When the boat returns to deep water, the outboard motor must be returned to normal
position.

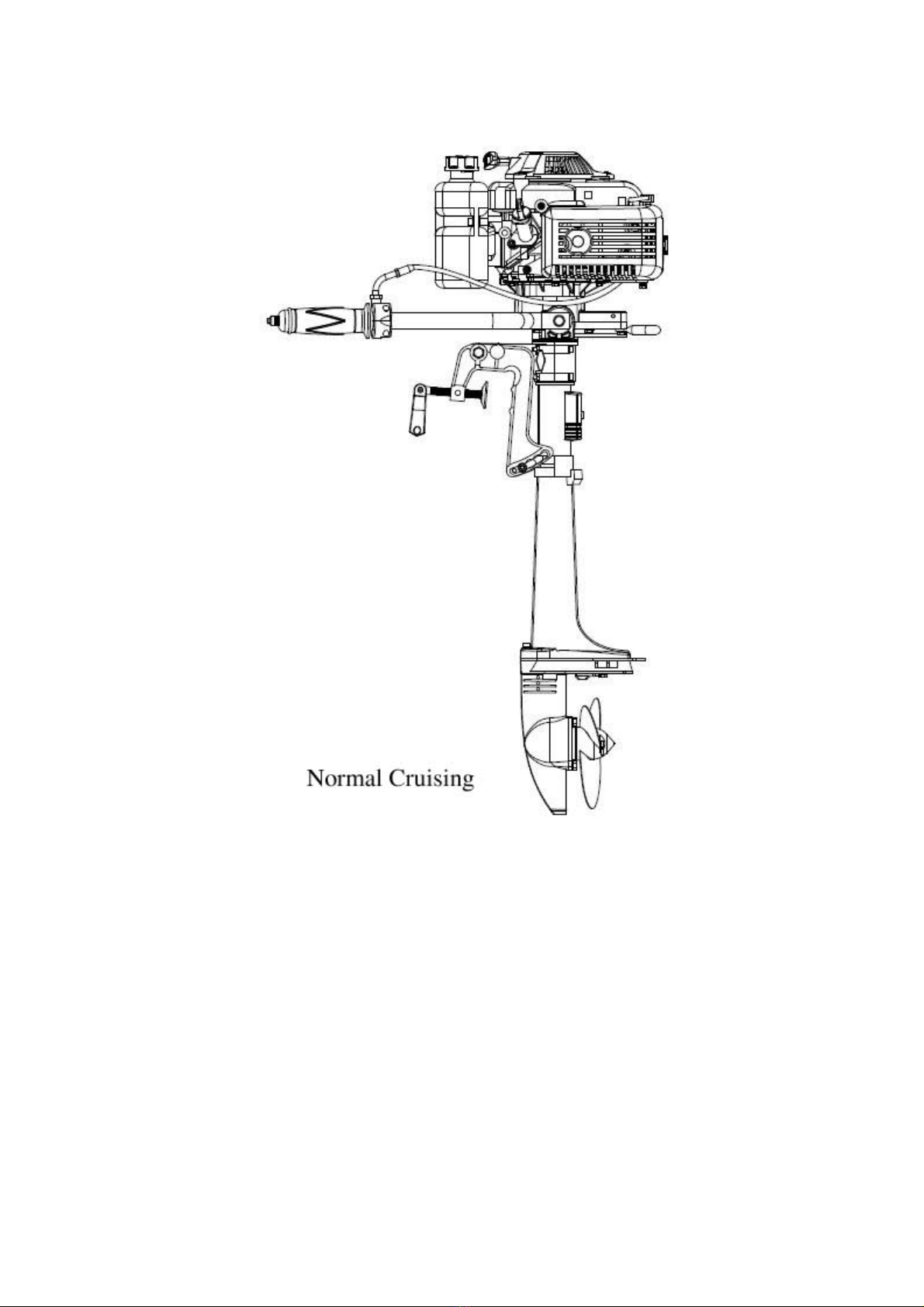

Figure 11

Figure 12

When cruising normally, outboard motor should be same as figure 11
When operating in Reverse boat, Outboard motor status same as figure 12
When operating in reverse, use a slow speed, otherwise the boat will be unstable.
Outboard motor bracket can rotate 360 °.Simply rotate 180 °, move steering handle
toward the rear, and the boat can go backwards.
Notice:
1. After cruising the sea or turbid water, please wash the outboard motor body using
fresh water. Do not spray water into the air intake.
2. Store the outboard motor in a dry, well ventilated place,not in direct sunlight.
3. For long-term storage, the fuel tank should be emptied
4. Do not paint the anode block, otherwise it will cause anode block failure. Regularly
check the anode block and remove any dirt.
12.Model S ecifications
Model: XW4A-4 Type1
Cylinder, Air-Cooling, 4 stroke,OHV
Bore*stroke(mm): 70*4
Displacement(cm³): 3.2
Max output (kw/r/min): 2.2/ 000
Full throttle operating range: 3800- 200RPM
Fuel consumption: 480g/kw.h
Fuel: 87+ Octane Unleaded gasoline
Fuel tank capacity:1.2L
Engine oil capacity: 0.32L
Gear oil Capacity: 43ML
Gear Ratio: 27:13
Lubricating system: Splash lubrication
Cooling method: Forced cooling
Ignition system: TCIStart system
Recoil start: Start with strong way Choke valve
Propeller options: 3x7 1/4"x "
Transom height: 417mm(16.4 in)
Gross weight: 12KG
Size(mm): 9 *41*27. cm
