Fowit SP50 User manual

SELF-PROPELLED
STOCK PICKER
FOWIT INC
11331 183rd Street #1081, Cerritos city, CA 90703
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Operator Manual

Page 1
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance

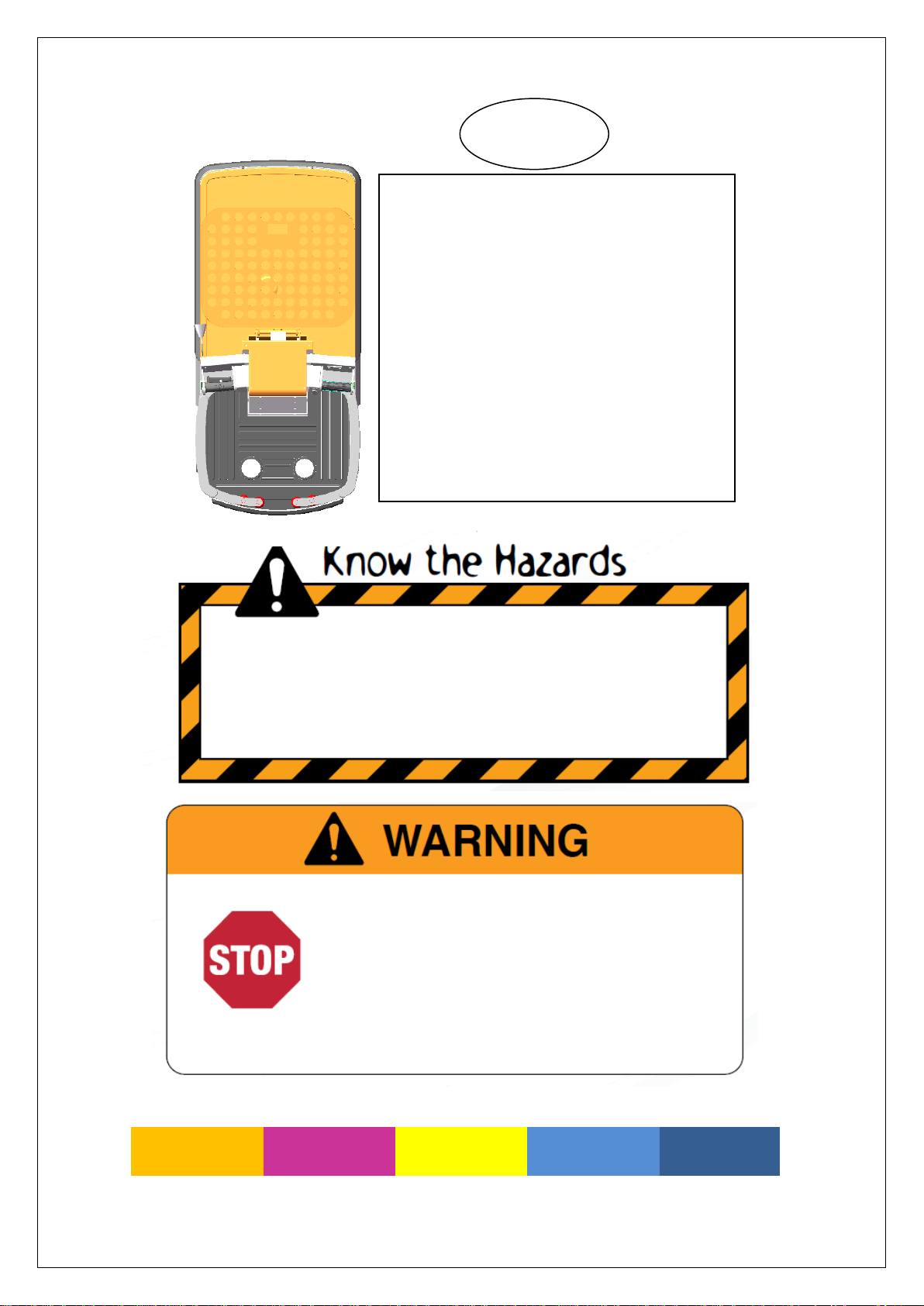

EACH WARNING LABEL ON YOUR
STOCK PICKER IS IMPORTANT
Read and obey all of them to protect
yourself and others.
Do not operate this stock picker unless you
are trained and authorized.
You or people around you could be
seriously injured or even killed if you don’t
used this vehicle correctly.
Read the Manuals.
“Hello”
Welcome to your FOWIT® Operator Manual. This
manual has been designed to provide you with
specific information regarding the safe operation of
the Self-propelled stock picker. As you will see in this
manual, we’ve made it easy to use and understand,
as well as informative. Be aware though that only
trained and authorized operators are permitted to
use stock picker. This manual is only one part of a
complete operator training program that includes
live presentations, hands-on training, and practice
on stock picker; all of which must be provided by an
authorized trainer before you are permitted to
operate any stock picker.

Page 2
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
page3 What's In It For You
Table Of Contents
Page5 You Must Be Trained
Page6 Be A Safe Operator
Page11 Platform Safety
Page13 Your Self-propelled Stock Picker
Page14 Stock Picker Parts
Page15 Display And Switch Panel
Page18 Power On And Off
Page21 Braking
Page22 Travel
Page24 Turning
Page27 Raising And Lowering
Page29 Stock Picker Capacity
Page30 Load Deck
Page31 Load Tray
Page33 Daily Safety Check
Page34 Service Panel
Page36 Manual Lowering Valve
Page37 Battery Maintenance
Page39Push/Drive Switch
Page13 You & Your Stock Picker
page4 Protect Yourself
Page18 Stock Picker Operation
Page33 Stock Picker Maintenance
Page29 Load Handling

Page 3
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
WHAT’S IN IT FOR YOU?
The better you understand your Stock Picker and how to use it, the
better and safer operator you can be. Here are some guides to using this
SECTION TAB
Along with the table of contents, you can use the colored tabs
to quickly find the major sections.
PAGE TOPIC
You will find the topic of each page
here. Some topics require more than
one page.
PAGE SUBTOPIC
You will find the subtopics here.
INSTRUCTIONS
On many pages the various topics are
numbered to help guide you through
the page.
NOTES
Extra information on topics will be
placed in ”note” blocks.
“KNOW THE HAZARDS”
Watch for and read these special blocks.
You will find information about possible
safety hazards and how to avoid them.
“HOW-TO” DRAWINGS
On many pages you will find pictures as well as text to help you
understand how to use your Stock Picker safely and productively.
1
2
3
4
5
6
7
What’s In It For You

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 4
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect Yourself
and others
Page 5 You Must Be Trained
Page 5 A Moving Stock Picker
Page 5 You Must be Trained
Page 5 FOWIT Manual Of Responsibility
Page 6 Make Sure You Are Ready To Drive
Page 6 Make Sure Your Stock Picker Is Ready
Page 7 Drive Cautiously, Be Alert
Page 8 Watch Out For Other People
Page 8 Avoid Falls and Tipovers
Page 8 When Leaving Your Stock Picker
Page 9 Know The Hazards
Page 10 Know The Hazards
Page 6 Be A Safe Operator
Page 5 CROWN MANUAL OF RESPONSIBILITY
Page 11 Keep Your Feet On The Platform
Page 11 Use The Gates
Page 11 Stay Close To Your Work
Page 11 Platform Safety
Section Contents

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
You Must Be Trained
A MOVING STOCK PICKER CAN BE DANGEROUS
You or others around you can be seriously injured
or even killed if you are not careful or don’t know
how to use this Stock Picker correctly.
YOU MUST BE TRAINED
Only trained and authorized operators are permitted to
use this stock picker.
This manual is one part of a complete training program.
The program also includes watching the Training Video,
reviewing the FOWIT Operator Manual of Responsibility, along
with hands-on training and practice on the stock picker.
You must successfully demonstrate understanding of the
material presented and be able to safely operate the stock
picker before your training is completed.
MANUAL OF RESPONSIBILITY
The User shall ensure that the stock picker is operated and
maintained according to the Operator Manual of Responsibility.
A copy of the Manual of Responsibility, along with the Service
Manual, is stored in a tube under the platform.
Return the manuals to the tube after use.
1
3
2
Page 5

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Be A Safe Operator
THE MOST IMPORTANT PART OF THE STOCK PICKER IS YOU.
MAKE SURE YOU ARE READY TO DRIVE
• Don't use this stock picker unless you are trained and
authorized.
• Know how your stock picker works, and the hazards that go
with it. Don't drive the stock picker if you have any doubts.
• Find the Data Label on the mast. Make certain you
understand all the information on it. Such as: capacities,
total weight of stock picker, stock picker type and serial
number.
This stock picker may not be permitted in areas where
there
are fire hazards. Check with your supervisor.
• Make sure your hands and shoes are clean and dry. Also
make sure that your clothing is proper for the job.
MAKE SURE YOUR STOCK PICKER IS READY
• Inspect your stock picker before using it. If it’s not
working right, or something is broken, report the
problem to your supervisor. Don’t use the stock picker.
• In an open area, check all stock picker operations. Make
certain everything is working right, especially before
operating around other people.
Page 6
stop

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance

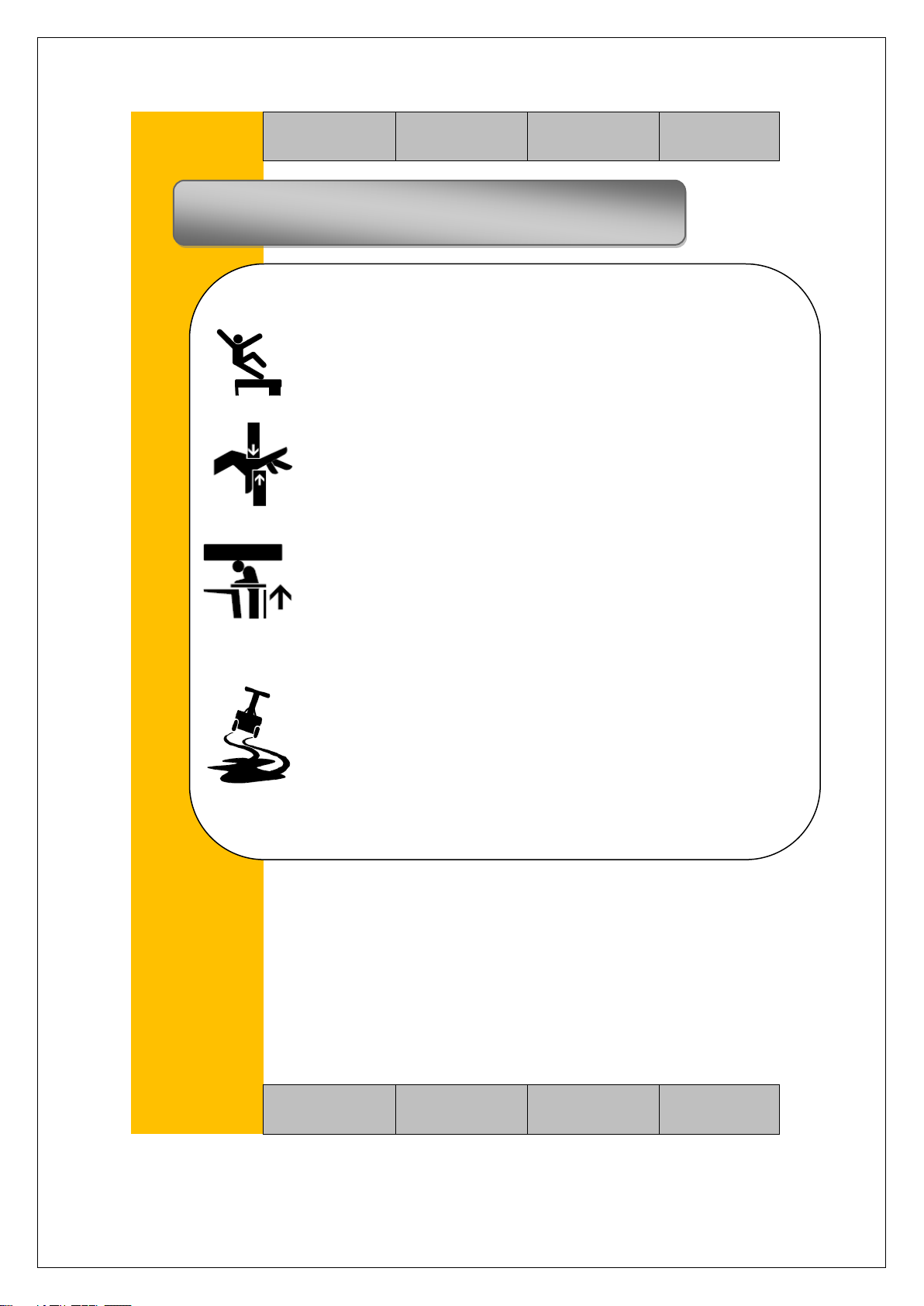

DRIVE CAUTIOUSLY, BE ALERT
• Keep the gates closed when you are elevated.
• Drive with the gates open when the platform is lowered.
You may need to get off the stock picker quickly to avoid injury.
• Don’t climb on the rails or any other part of the stock picker.
• Keep your entire body inside the operator area, no matter
how slow the stock picker is moving. A hand or foot caught
between the stock picker and a solid object will be crushed
or even cut off.
• Avoid sudden movement of controls. Learn to use them
smoothly at a moderate, even rate. Sudden control changes
can cause loads to shift or fall. Make sure loads are secure.
• Always be alert to the area around you and watch where you are
driving. You could be pinned or crushed by
objects intruding or poking into the operator area.
• Always check that you can clear overhead objects.
• Check clearances before raising or lowering.
• Be extra careful if you must use your stock picker in an area
where there is a risk of falling objects.
• Make sure you have a clear view in the direction you’re
traveling. Look where you’re going and slow down in
congested areas.
• Slow down and be extra careful on wet or slippery floors.
• Look where you are going before you change direction of travel.
See that you have room to drive and turn.
Be A Safe Operator
Page 7

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
DEVELOP SAFE WORK
HABITS.WORK SAFELY AND
LOOK OUT FOR PEOPLE
AROUND YOU
WATCH OUT FOR OTHER PEOPLE
• Slow down. Yield or stop for pedestrians. Alert others when
you approach them. Watch out for other stock pickers in the
area. Sound the horn when you come to a crosswalk or
intersection.
• Be careful you don't pin or crush someone. For example:
Never drive your stock picker toward anyone standing in front
of a fixed object.
• Never allow passengers anywhere on your stock picker.
• Make certain the area around and under you is clear of
people before lowering or traveling.
• Keep others away from your stock picker while you're
working. Don't ever allow anyone under the load or platform.
• Watch out for front end swing while turning.
• Don't let anyone drive your stock picker unless they are
trained and authorized.
AVOID FALLS AND TIPOVERS
• Stay away from the edge of docks and drop-offs.
• Watch where you're going. Always check that your
path is clear of debris, overhead obstructions or holes
in the floor that could cause your stock picker to tip over.
• Don't overload your stock picker or handle unstable loads.
Make sure the load weight is evenly distributed.
• Some floors and elevators have weight limits. Make
certain your stock picker, including operator and load, isn't
too heavy for where you're driving.
• Don't drive onto an elevator unless it is authorized.
Check the capacity or load limit, and make sure there
are no people present. Keep stock picker gates open.
Enter load first.
WHEN LEAVING YOUR STOCK PICKER
• Stop the stock picker and lower the platform completely
before getting off.
• Turn the stock picker off. Remove the key, if necessary, to
prevent unauthorized use.
Be A Safe Operator
Page 8

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance

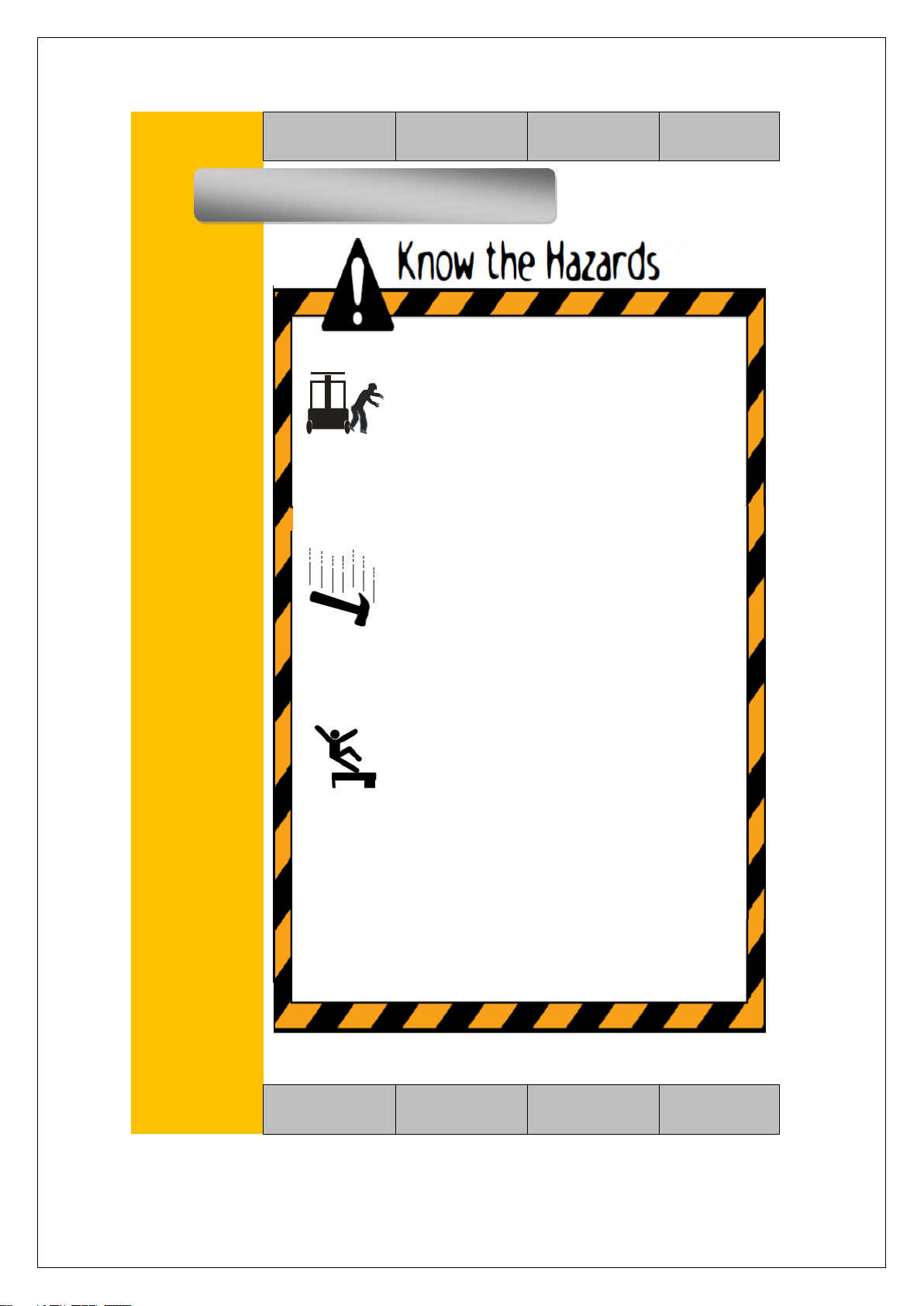

Be A Safe Operator
WATCH OUT FOR PEOPLE AROUND YOU
Pedestrians always have the right-of-way.
They can't control your stock picker. Start out
slowly and don't drive too close to them. Be
careful at intersections. Check around the
stock picker and under the platform before
lowering or driving.
THERE IS NO SAFE PLACE FOR PASSENGERS
Never allow anyone to stand or ride anywhere
on your stock picker.
FALLING OBJECTS CAN INJURE PEOPLE
BELOW YOU
Be careful when handling tools or
merchandise. Work close to racks or shelves
when transferring loads. Make sure loads are
stable.
FALLS ARE VERY SERIOUS ACCIDENTS
Keep the gates closed when you are elevated.
Don't climb on any part of the platform. Never
add anything to the platform to stand or climb
on. Don't climb down from an elevated
platform. Have someone lower the platform
using the override controls on the service
panel, or the manual lowering valve under the
load deck.
Page 9

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Be A Safe Operator
HANDS AND FEET CAN BE PINNED OR
CRUSHED
Come to a complete stop before leaving
your stock picker. While the stock picker
is moving, keep your hands on the
controls and your heels on the pedals.
Any part of your body caught between
the stock picker and a solid object
will be crushed or even cut off. If you
must use a hand to stabilize a load, make
certain you will not be pinned or crushed.
AVOID TIPOVERS
Never overload your stock picker.
Distribute loads evenly. Watch out for
overhead obstructions like pipes or
electrical conduits. Stay away from the
edge of docks or drop-offs. Be sure your
path is clear of debris, holes
or anything that could cause a tipover.
KEEP YOUR STOCK PICKER UNDER
CONTROL
Don't drive on ramps or grades. You could
lose steering control. Be extra careful
and drive slowly over spills or wet floors.
Don't drive over things in your path.

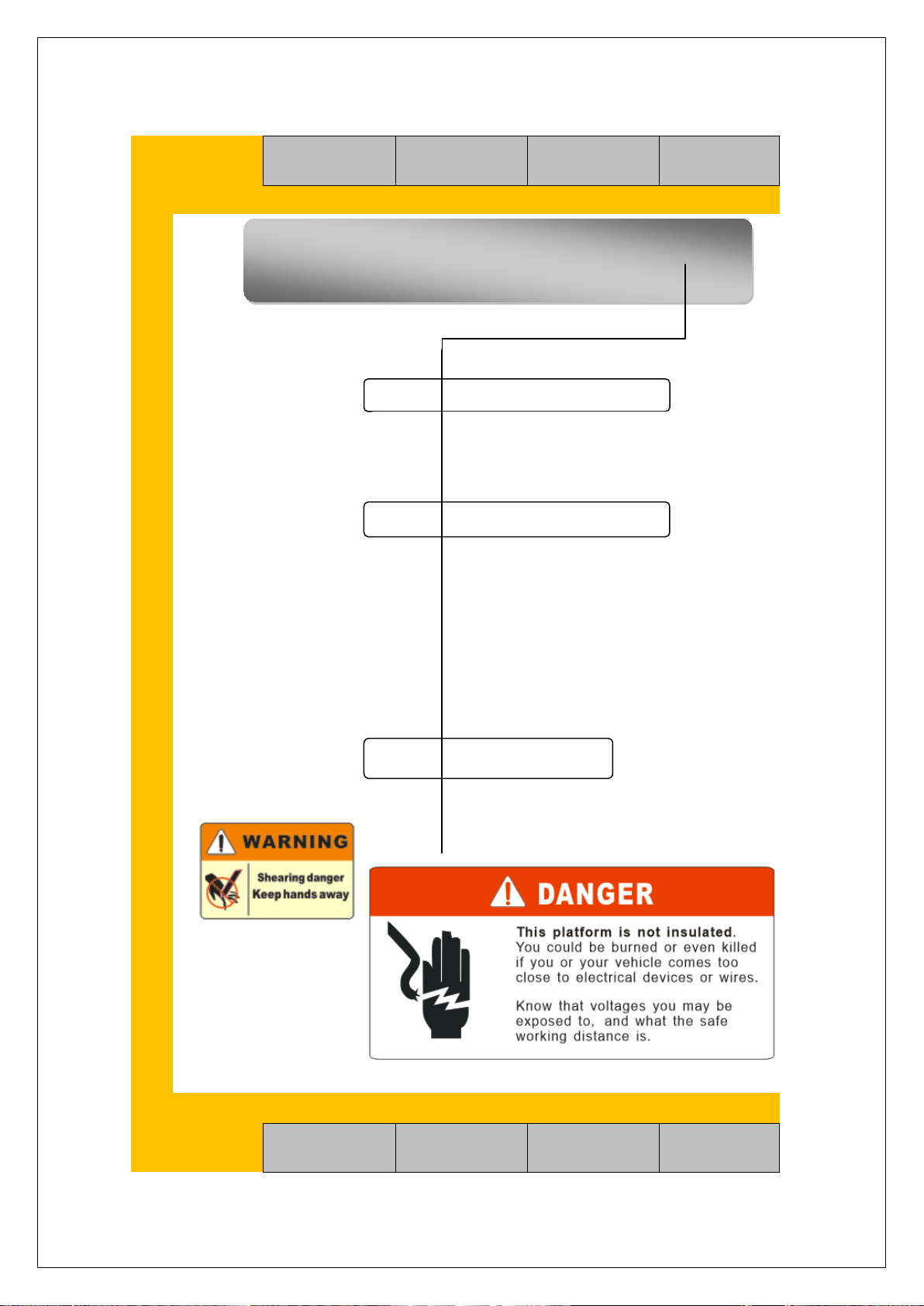

THIS PLATFORM IS NOT INSULATED
You could be burned or even killed if you
or your stock picker comes too close to
electrical devices or wires. Know what
voltages you may be exposed to, and what
the safe working distance is.
Page 10

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Platform Safety
KEEP YOUR FEET ON
THE PLATFORM
Don't climb on any part of the
stock picker or use any other
item to stand on.
USE THE GATES
Close the gates behind you
when you are elevated.
Protect yourself from falls.
STAY CLOSE TO YOUR WORK
Avoid long reaches. Be careful with tools
or when transferring merchandise. Watch
out for people below, and in the next aisle.
FALLS ARE VERY SERIOUS ACCIDENTS
Keep your feet on the platform floor. Don't climb on any
part of the stock picker, or use anything else to stand
on. Keep gates closed when elevated.
FALLING OBJECTS CAN INJURE OTHERS
Keep your stock picker close to your work. Make sure
loads are stable. Watch out for people below you.
Page 11
1
2
3

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 12
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
You & Your Stock Picker
Section Contents
Page 13 Your Self-propelled Stock Picker
Page 13 This Is Your Stock Picker
Page 13 It’s Not Like An Automobile
Page 13 How To Drive Your Stock Picker
Page 13 Give Your Body A Break
Page 14 Stock Picker Parts
Page 15 Battery Status
Page 15 Drive Switch
Page 15 Lift Switch
Page 15 Travel Speed Witch
Page 16 Display And Switch Panel
Page 15 Display And Switch Panel

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 13
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
THIS IS YOUR STOCK PICKER
Use your Stock Picker for moving and
stocking materials, or working at low
heights Use on dry, level floors
in temperatures above freezing.
IT’S NOT LIKE AN AUTOMOBILE
• You don't steer the same.
• You don't brake the same.
• You don't accelerate the same.
HOW TO DRIVE YOUR STOCK PICKER
• Face the front, or load end of the
Stock Picker.
• Keep your heels on the pedals and
hands on the controls.
• Travel with gates open when
lowered. Close the gates
behind you when elevated.
• Keep your entire body within the
operator area.
• Stop your vehicle and lower
completely before getting off.
GIVE YOUR BODY A BREAK
Take advantage of stop time by
flexing your arms and legs. Staying
alert will help you be a better and
safer driver.
1
1
note
note
Your Stock Picker
Hands on
Controls
Heel on
Pedals

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 14
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Stock Picker Parts
Steering
Control
Display
• Raise Button
• Lower Button
• Horn Button
Emergency
Disconnect
Button
Foot Pedals
Platform
Key Switch
(Power On &Off)
Travel Twist
Grip
Cargo Tray
Located
under Load
Deck:
• Manual
Lowering
Valve
• Batteries
Gates
Motor Cover
(Located Under
Platform)
Located Behind Pull-Down Cover:
• Emergency Disconnect Button
• Raise/Lower Switch• Platform/Base Switch
• Battery Charging Socket

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 15
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Display and Switch Panel
BATTERY STATUS
When you see the yellow light are black, it's time to
have the batteries charged. The display screen shows
how much charge is left.
LIFT MODE
Only when You push down the switch, can
You raise or lower
TRAVEL SPEED SELECT MODE
When working in an open area, with few people
around, you have the option of selecting faster travel
speeds by pushing the switch up towards the
"rabbit" symbol. Push the switch down towards the
"turtle", to select slower travel speeds.
DRIVE MODE
Only when You push down the switch,
you can go forward or backward

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 16
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Display and Switch Panel
These screens are shown when
there is a problem, such as :
L-HAND is not hold, foot
misplaced, load deck isn't fixed
IF You don't follow the instruction when these screens
are shown, the stock picker won't drive

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 17
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Stock Picker Operation
Page 21 Hand Brake
Page 21 Foot Brake
Page 21 Parking Brake
Stock Picker Operation
Section Contents
Page 18 Power On And Off
Page 18 Key On And Off
Page 19 Emergency Disconnect
Page 19 Hand Sensors
Page 20 Foot Sensors
Page 21 Braking
Page 22 Direction And Speed
Page 23 Horn
Page 22 Travel
Page 24 When Not Traveling
Page 25 Forward Traveling
Page 26 Reverse Traveling
Page 24 Turning
Page 27 Motor Cover Interlock
Page 27 Raising And Lowering

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 18
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance

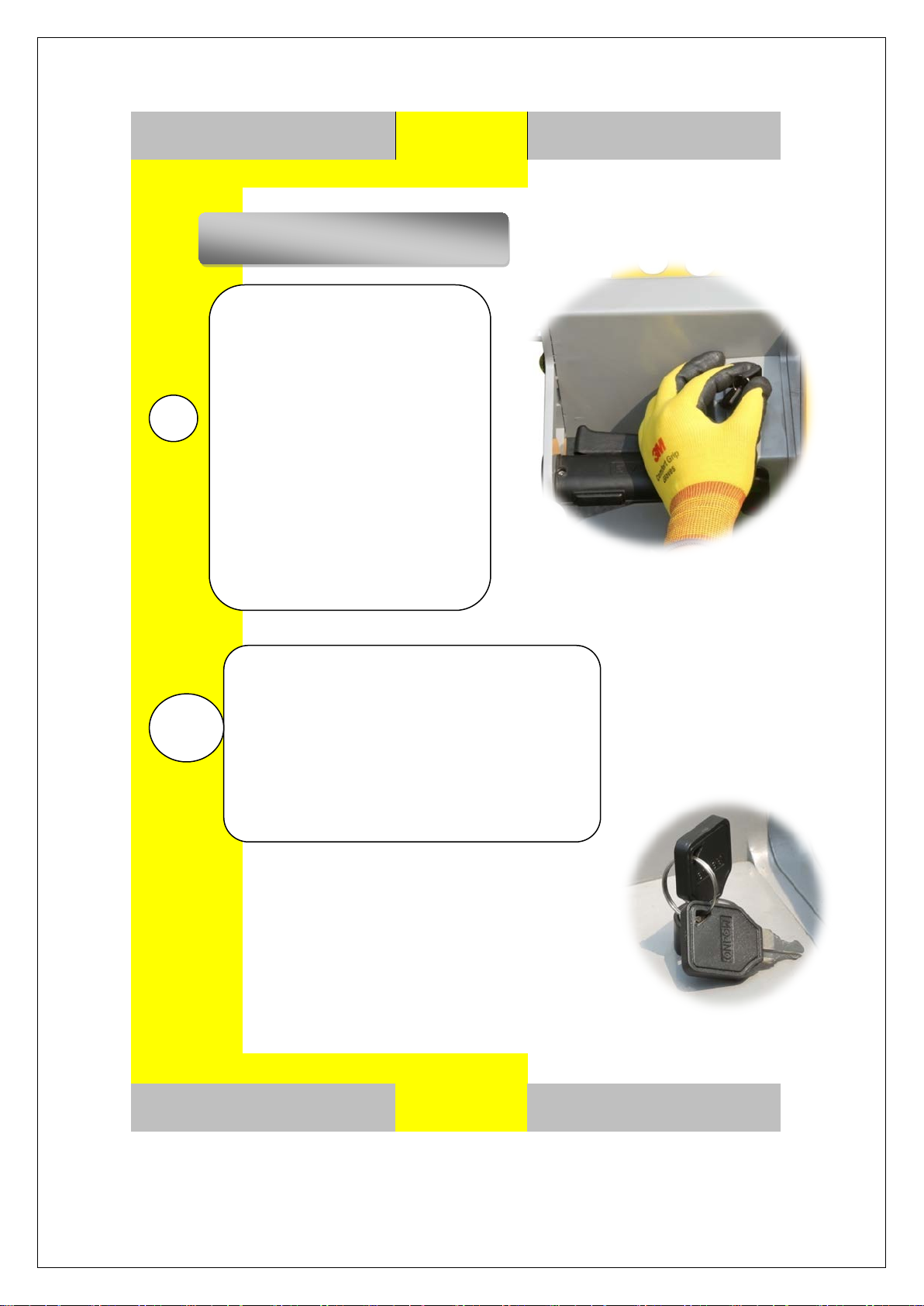

Stock Picker Operation
KEY ON
Turn the key stock picker to the
green dot. Check that beeper and
all display lights are working. Don't
put your hands on the controls until
beeping stops.
KEY OFF
Turn the key horizontal to the red
dot. Always turn the key off when
leaving your stock picker. Remove
the key if necessary to prevent
unauthorized use.
Power On & Off
SOME THINGS THAT WILL PREVENT “KEY ON”
•Hands placed on controls too quickly.
•The Emergency Disconnect button on either the
platform or the service panel (see page 34) is in the
"power off" position.
•stock picker may have options added to prevent
unauthorized use.
1
Note

Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance
Page 19
Protect
Yourself
You & Your
Stock Picker
Stock Picker
Operation
Load
Handling
Stock Picker
Maintenance

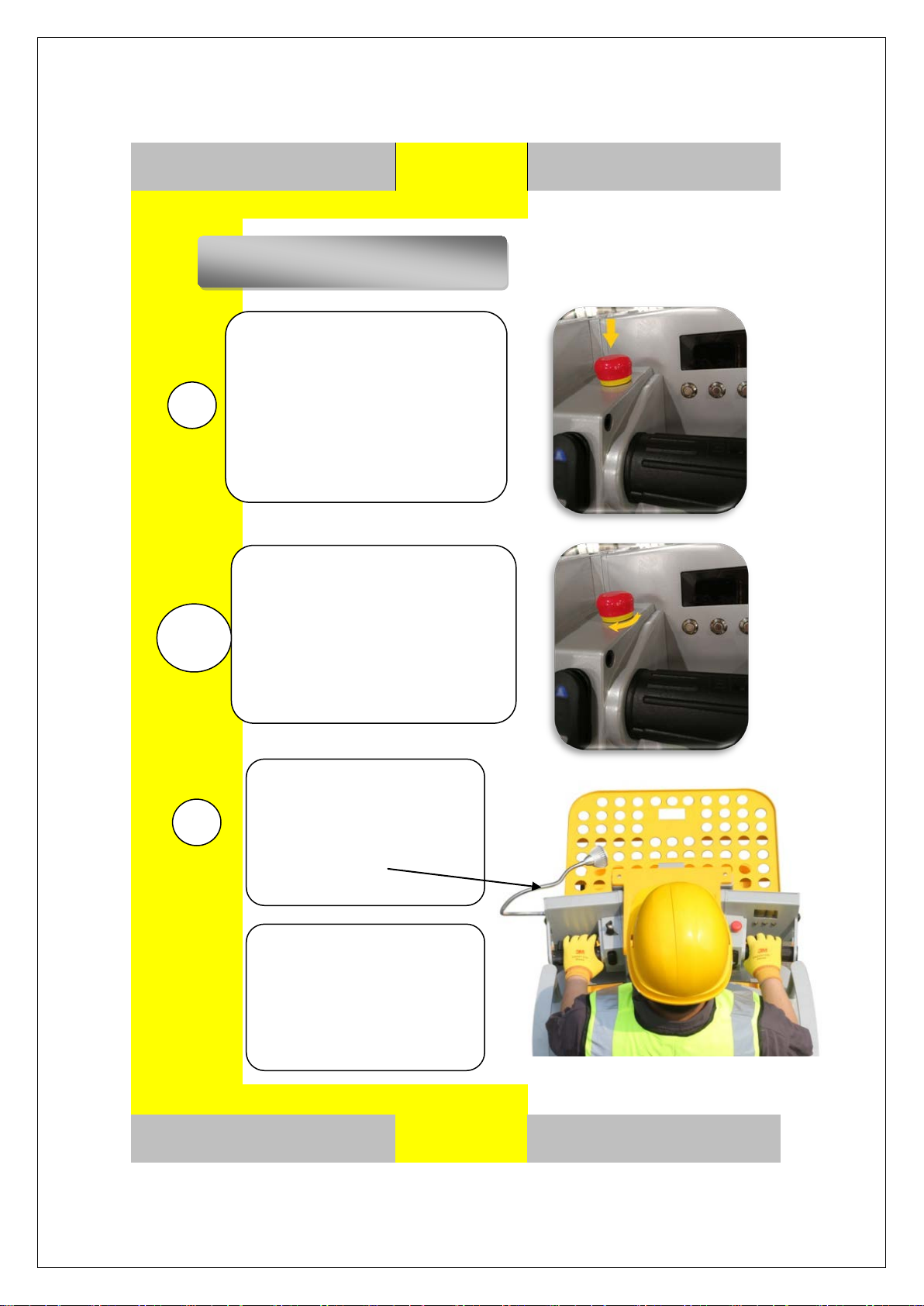

EMERGENCY DISCONNECT
Push down the red Emergency
Disconnect button anytime your
stock picker isn't working right. Don't
use your stock picker. Report the
problem to your supervisor.
Power On & Off
POWER ON OR OFF
•When the red Emergency
Disconnect button is down, power is
off.
•Twist the button clockwise to turn
power on.
WORKING LIGHT
You can open the light when it
is dark in the working site or
you cannot see clearly when
working.
2
Note
3
HAND SENSORS
You must be in the travel
position, with a hand on each
of the controls.
