Product Introduction
Installation Instructions
Supply ............................................................................................
BIOS Description
StandardCMOSFeatures .......................................................................... 22
BIOSFeatures ...........................................................................................
Advanced BIOS Features ..........................................................................
Advanced Chipset Features ......................................................................
IntegratedPeripherals ................................................................................
PowerManagementSetup .........................................................................
PnP/PCIConfigurations...............................................................................
PCHealthStatus ........................................................................................
Frequency/Voltage Control.........................................................................
Load Fail-Safe Defaults .............................................................................
LoadOptimizedDefaults ............................................................................
Set Supervisor/User Password ................................................................. 37
Save & Exit Setup ......................................................................................
ExitWithoutSaving ....................................................................................
Table of Contents
Chapter
Chapter
Chapter
Driver CD Introduction
UtilityCDcontent........................................................................................ 40
Start to install drivers ................................................................................. 41
Chapter
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５5

1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due high temperatures.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or
removing expansion cards or other peripherals, especially when
you insert or remove a memory module. Failure to switch off the DC
power supply may result in serious damage to your system or
memory module.
Warning:
We cannot guarantee that your system will operate normally while
over-clocked. Normal operation depends on the over-clock capacity
of your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS
description in this manual is just for reference. We do not guarantee
that the content of this manual will remain consistent with the actual
BIOS version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
８４８Ｐ７ＭＢ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５6

Chapter
Thank you for buying FOXCONN 848P7MB series motherboard.
This series of motherboard is one of our new products, and
offers superior performance, reliability and quality, at a reason-
able price. This motherboard adopts the advanced Intel® 848P+
ICH5 chipset, providing users a computer platform with a high
integration-compatibility-performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1

Chapter 1 Product Introduction
2848P7MB Series User Manual
Main Features
Size
ATX form factor of 9.6 inch x 8.0 inch
Microprocessor
Supports Intel® Prescott-T processor in an LGA 775 package
Supports FSB at 533MHz/800MHz
Supports Hyper-Threading technology
Chipset
Intel®848P (North Bridge) + ICH5 (South Bridge)
System Memory
Two 184-pin DIMM slots
Supports 266MHz/333MHz/400MHz Single-Channel DDR DRAM interface
Supports 128-Mb, 256-Mb and 512-Mb DRAM densities
Supports up to 2 GB of DDR memory
Registered DIMMs not supported
Supports non-ECC DIMMs
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB headers
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 Protocol up to 480 Mbps transmission rate
Onboard Serial ATA
150MBps transfer rate
Supports two S-ATA devices
Onboard LAN (optional)
Supports 10/100 Mbit/sec Ethernet
LAN interface built-in on board

3
848P7MB Series User Manual
Chapter 1 Product Introduction
Onboard Audio
AC’97 2.3 Specification Compliant
Supports SPDIF output
Onboard Line-in jack, Microphone-in jack, Line-out jack
Supports 5.1 channels audio (setting via software)
AGP 8X support
AGP 8X (AGP 3.0) is the VGA interface specification that enabled enhanced
graphics performance with high bandwidth speeds up to 2.12 GB/s.
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off).
Expansion Slots
Three PCI slots
One AGP slot
Advanced Features
PCI 2.3 specification compliant
Supports Windows 2000/XP soft-off
Supports PC Health function (capable of monitoring system voltage, CPU,
system temperature, and fan speed)

Chapter 1 Product Introduction
4848P7MB Series User Manual

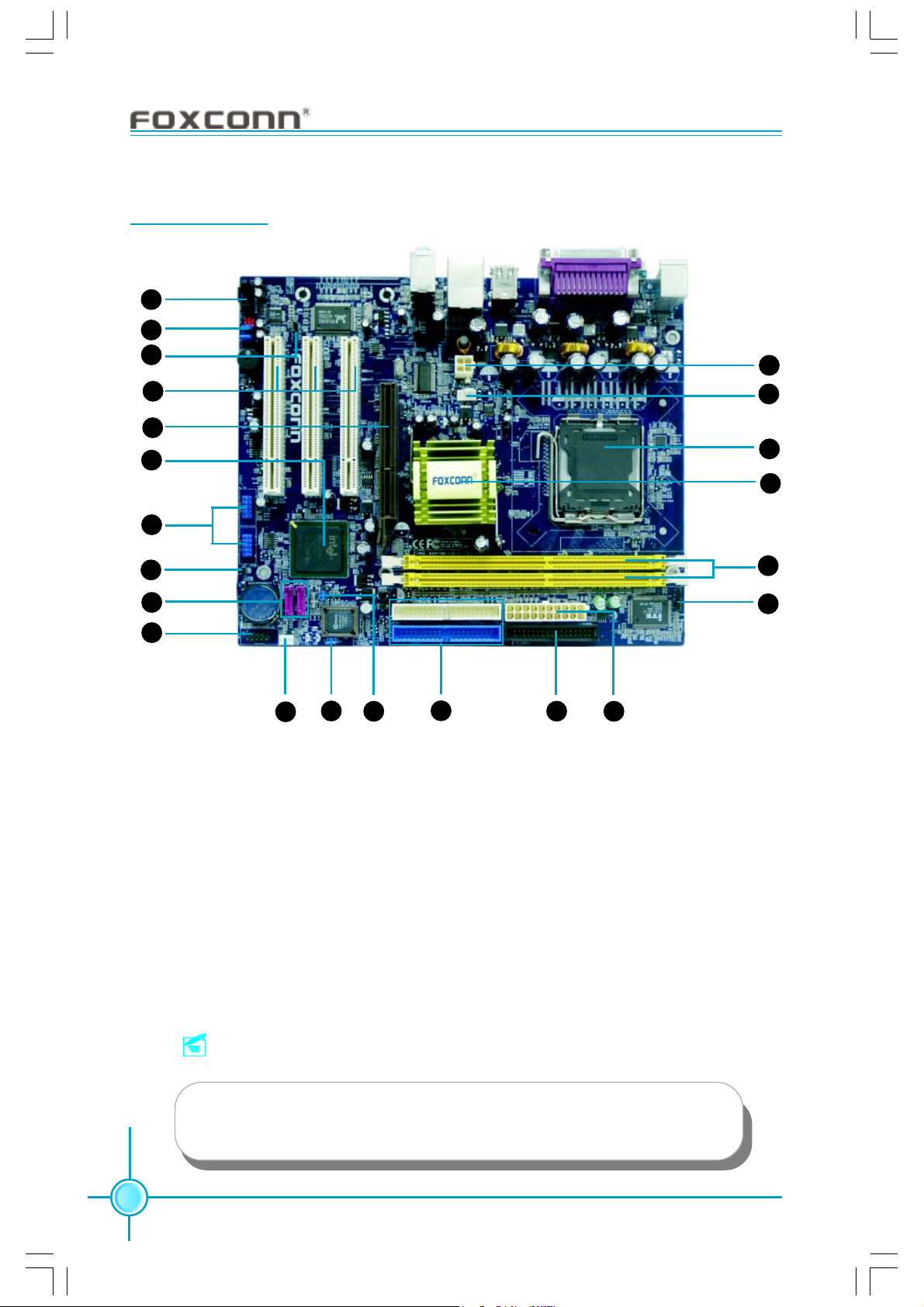

848P7MB Layout
2
5
6
16
22
3
15
9
12 8
17
1
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
18
19
4
7
11 10
13
14
21
20
1.ATX 12 V Connector
2. CPU Fan Connector
3. CPU Socket
4. North Bridge:Intel®848P
5. DDR DIMM Slots
6. IrDA Header
7. ATX Power Connector
8. Floppy Disk Connector
9. IDE Connectors
10. Clear CMOS Jumper
11. BIOS_WP Jumper
12. System Fan Connector
13. Front Panel Connector
14. SATAConnector
15. Chassis Intruder
Connector
16. Front USB Headers
17. South Bridge: Intel®ICH5
18.AGP Slot
19. PCI Slots
20. SPDIF Connector
21. F_Audio Connector
22. CD_IN Connector

5
848P7MB Series User Manual
Chapter 1 Product Introduction
This chapter introduces the hardware installation process, in-
cluding the installation of the CPU, memory, power supply,
slots, rear panel and pin headers, and the mounting of
jumpers. Caution should be exercised during the installation of
these modules. Please refer to the motherboard layout prior
to any installation and read the contents in this chapter carefully.
This chapter includes the following information:
CPU
Memory
Power supply
Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter2
2

Chapter 2 Installation Instructions
6848P7MB Series User Manual
CPU
This motherboard supports single Pentium®4 Processor including Prescott-T
processor in an LGA775 package. It also supports Hyper-Threading Technology.
Installation of CPU
Load lever
gLoaLoad stiffener
Load plate
Load cap
Lifted tab

Chapter 2 Installation Instructions
7
848P7MB Series User Manual
Correct Wrong

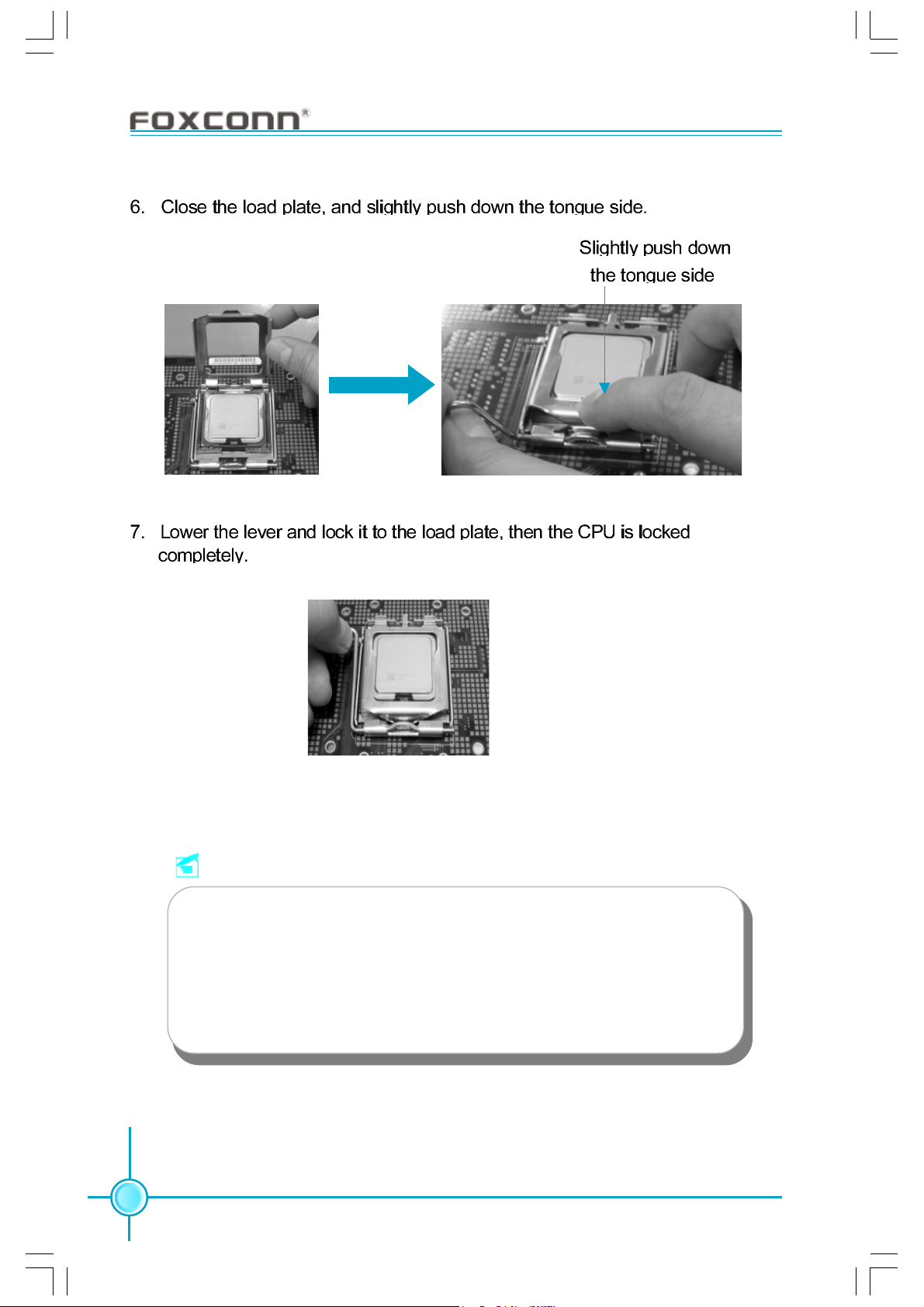

Chapter 2 Installation Instructions
8848P7MB Series User Manual
Note :
Excessive temperatures will severely damage the CPU and
system. Therefore, you should install CPU cooling fan and make
sure that the cooling fan works normally at all times in order to
prevent overheating and damaging to the CPU. Please refer to your
CPU fan user guide to install it properly.

Chapter 2 Installation Instructions
9
848P7MB Series User Manual

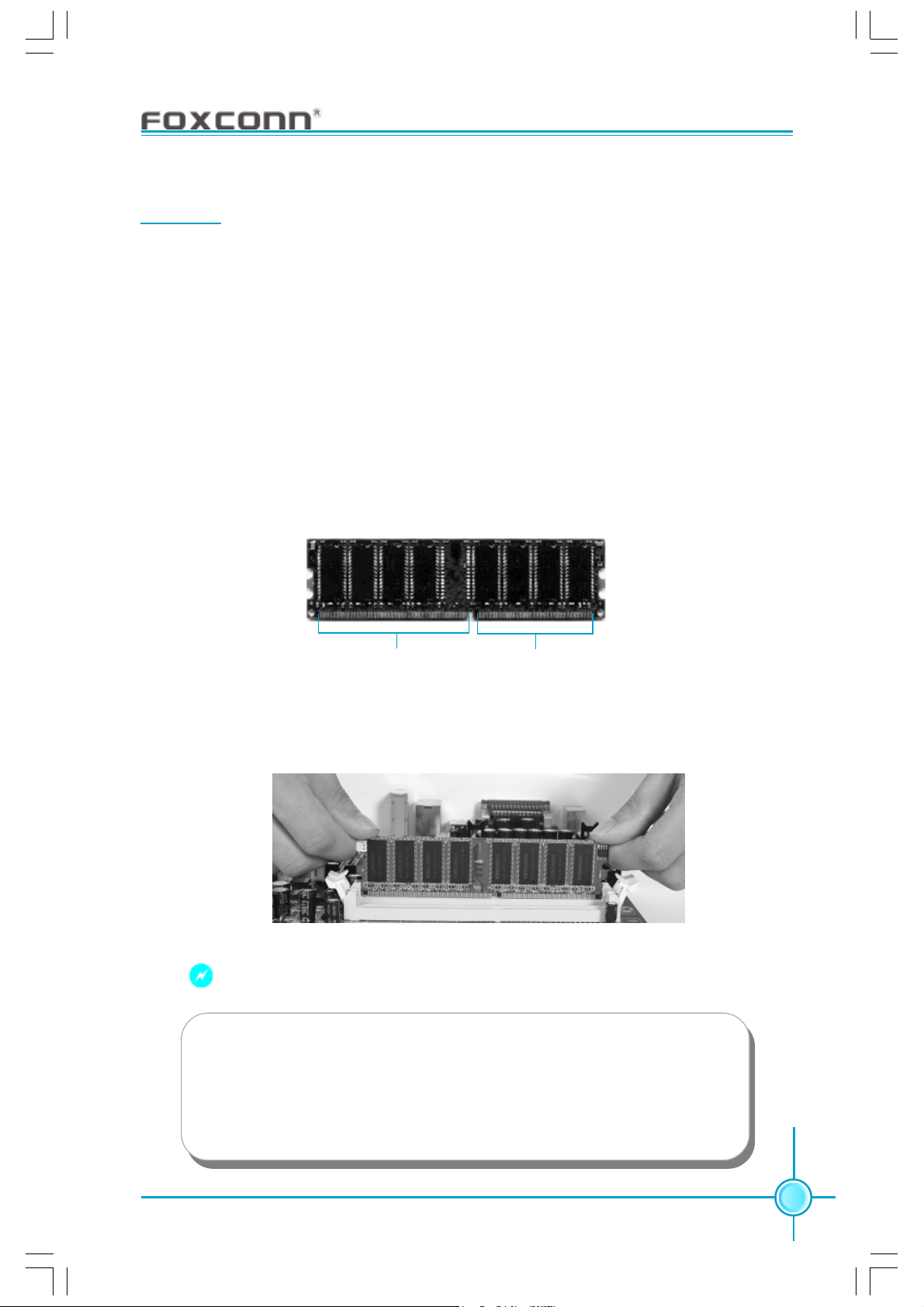

Memory
This motherboard includes two 184-pin slots with 2.5 V for DDR DIMM. so you
can install DDR 266/333/400 memory. You must install at least one memory
bank to ensure normal operation.
Installation of DDR Memory
1. There is only one gap in the center of the DIMM slot, and the memory module
can be fixed in one direction only. Unlock a DIMM slot by pressing the module
clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically
into the DIMM slot.
104 Pins 80 Pins
3. The plastic clips at both sides of the DIMM slot will lock automatically.
Warning :
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, especially the
memory devices, otherwise your motherboard or the system
memory might be seriously damaged.

Chapter 2 Installation Instructions
10 848P7MB Series User Manual
Power Supply
This motherboard uses an ATX power supply. In order to avoid damaging any
devices, make sure that they have been installed properly prior to connecting
the power supply.
4-pin ATX_12V power connector
12V
GND 12V
3
1
4
2
GND
20-pin ATX power connector: PWR1
PWR1 is the ATX power supply connector.
Make sure that the power supply cable
and pins are properly aligned with the
connector on the motherboard. Firmly
plug the power supply cable into the con-
nector and make sure it is secure.
4-pin ATX_12V Power Connector: PWR2
The ATX power supply connects to PWR2
and provides power to the CPU.
20-pin ATX power connector
1
11
12V
5VSB 5V GND 3.3V
GND
5V
GND
Pw-OK 3.3V
10
20
5V GND 3.3V
GND
GND
5V NC GND PS-ON -12V
Rear Panel Connectors
This motherboard provides the ports as below:
USB 2.0 Ports
PS/2Mouse
Connector
Parallel Port
(Printer Port) LAN Port
1
2
4
36
7
PS/2 Keyboard
Connector
Serial Port
(COM1) S/PDIF
CoaxialOut
Port
35
Line-in
Line-out
Microphone
8

Chapter 2 Installation Instructions
11
848P7MB Series User Manual
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
S/PDIF Coaxial Out Port
This port connects to external audio output devices with coaxial cable connectors.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB
2.0/1.1 devices.
LAN Port (optional)
This port allows connection to a Local Area Network (LAN) through a network hub.
Line-in jack, Line-out jack, Microphone jack
When using a two-channel sound source, the Line-out jack is used to connect
to speaker or headphone; the Line-in port connects to an external CD player,
tape player or other audio device. The Microphone jack is used to connect to the
microphone.
1
2
3
5
4
6
7
8

Chapter 2 Installation Instructions
12 848P7MB Series User Manual
Other Connectors
This motherboard includes connectors for FDD, IDE HDD, Serial ATA, USB,
IR module, and others.
FDDconnector:FLOPPY
This motherboard includes a standard FDD connector, supporting 360 K, 720
K, 1.2 M, 1.44 M, and 2.88 M FDDs.
HDD connector: IDE
These connectors support the provided Ultra DMA 100/66 IDE hard disk rib-
bon cable. Connect the cable’s blue connector to the IDE connector, then con-
nect the gray connector to the Ultra DMA 100/66 slave device (hard disk drive)
and the black connector to the Ultra DMA 100/66 master device.
Attention:
Ribbon cables are directional, therefore, make sure to always con-
nect with the cable on the same side as pin 1 of the IDE or FDD
connector on the motherboard.

Chapter 2 Installation Instructions
13
848P7MB Series User Manual
Front Panel Connector: FP1
This motherboard includes one connector
for connecting the front panel switch and
LED indicators.
IDE LED Connector (HD-LED)
The connector connects to the case’s IDE indicator LED indicating the activity
status of hard disks.
Reset Switch (RESET)
Attach the connector to the Reset switch on the front panel of the case; the
system will restart when the switch is pressed.
Power LED Connector (PWRLED)
Attach the connector to the power LED on the front panel of the case. The Power
LED indicates the system’s status. When the system is in S0 status, the LED is
on. When the system is in S1 status, the LED is blink; When the system is in S3,
S4, S5 status, the LED is off.
Power Swith Connector (PWRSW)
Attach the connector to the power button of the case. Pushing this switch allows
the system to be turned on and off rather than using the power supply button.
FP1
NC
HD-LED RESET
PWRLED PWRSW
+ -
+ -
1
IrDA Header: IR
This connector supports wireless transmit-
ting and receiving device. Before using this
function, configure the settings of IR Mode
from the “Integrated Peripherals” section of
the CMOS Setup. IR
+5V
GND
RX
TX
Empty
1
2

Chapter 2 Installation Instructions
14 848P7MB Series User Manual
FanConnectors:CPU_FAN,FAN1
The fan speed of CPU_FAN and FAN1 can
be detected and viewed in “PC Health Sta-
tus” section of the CMOS Setup. These fans
will be automatically turned off after the sys-
tem enters S3, S4 and S5 mode. CPU_FAN
FAN1
GND SENSE
PWR
1
GND
1
CONTROL
SENSE
12V

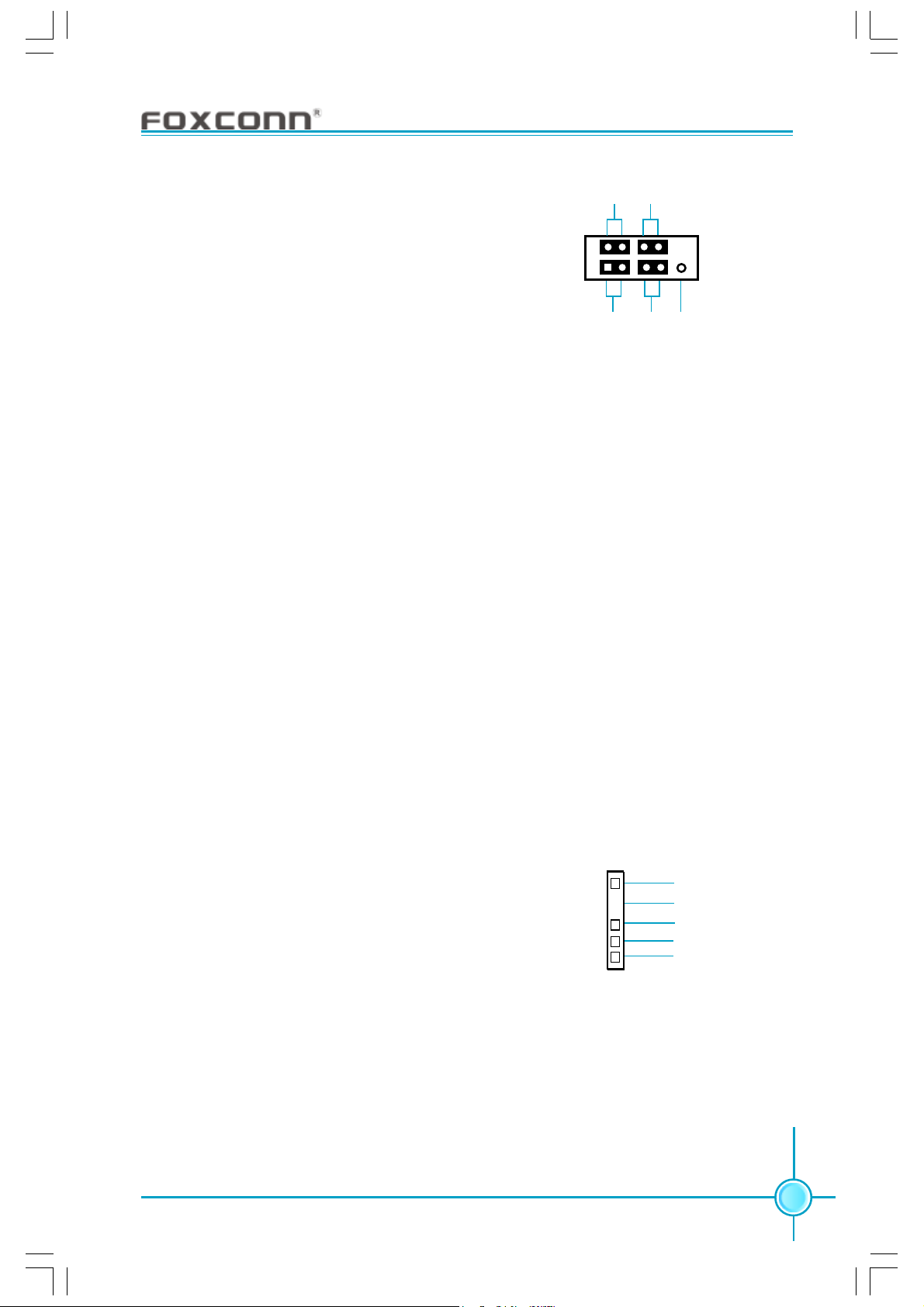

USB Headers: F_USB1, F_USB2
Besides four USB ports on the rear panel,
the series of motherboards also have two
10-pin headers on board which may connect
to front panel USB cable(optional) to provide
additional four USB ports.
F_USB 2
F_USB 1
GND
D5-
D5+
EMPTY
D4+
GND
VCC
D4-
VCC
NC
1
GND
D7-
D7+
EMPTY
D6+
GND
VCC
D6-
VCC
NC
1
Audio Connectors: CD_IN
CD_IN is Sony standard CD audio
connectors, they can be connected to a CD-
ROM drive through a CD audio cable.
CD_IN
CD_R
GND
CD_L
S-ATAConnectors: SATA_1, SATA_2
The S-ATA header is used to connect the S-
ATA device to the motherboard. These con-
nectors support the thin Serial ATA cables for
primary internal storage devices. The current
SerialATAinterface allows up to 150MB/s data
transfer rate.
GND
GND
GND
TX+TX-
RX+RX-
SATA _1/SATA_2
2
2

Chapter 2 Installation Instructions
15
848P7MB Series User Manual
Audio Interface: F_AUDIO
The audio interface provides two kinds of
audio output choices: the Front Audio, the
Rear Audio. Their priority is sequenced from
high to low (Front Audio to Rear Audio). If
headphones are plugged into the front panel
of the chassis (using the Front Audio), then
the Line-out (Rear Audio) on the rear panel
will not work. If you do not want to use the
Front Audio, pin 5 and 6, pin9 and 10 must
be short, and then the signal will be sent to
the rear audio port.
AUD_OUT-L
NA
MIC_IN
MIC_PWR
F_AUDIO
MIC_GND
+5VA
AUD_OUT-R AUD_RET-R
Empty
AUD_RET-L
1
SP
The out connector is capable of pro-
viding digital audio to external speakers or
compressed AC3 data to an external Dolby
digital decoder.

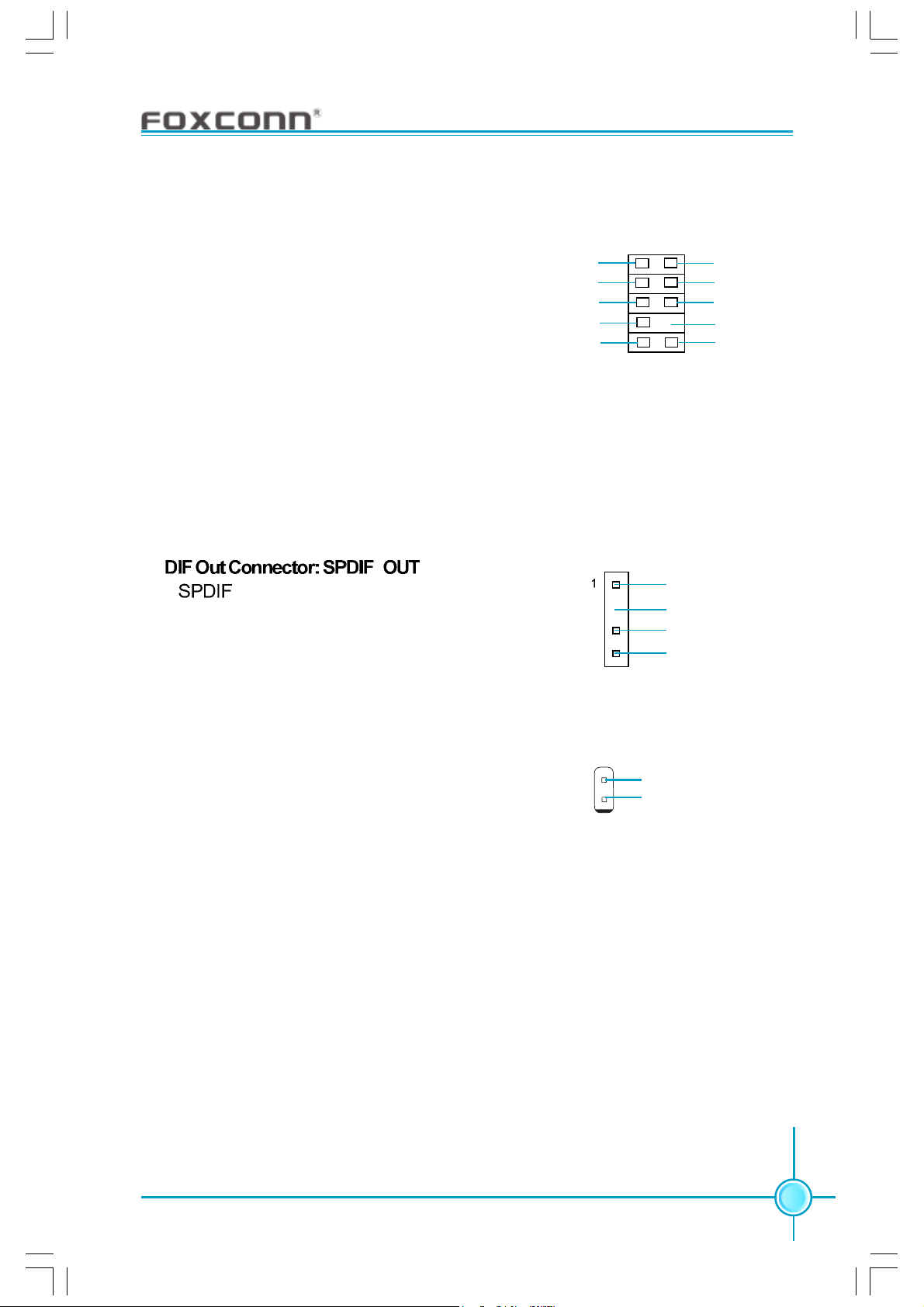

SPDIF_OUT
SPDIF_OUT
+5V
GND
Empty
Chassis Intruder Connector: INTR
The connector connects to the chassis se-
curity switch on the case. The system can
detect the chassis intrusion through the sta-
tus of this connector. If the connector has
been closed once, the system will send a
message. To utilize this function, set “Case
Open Warning” to “Enabled” in the “PC
Health Status” section of the CMOS Setup.
Save and exit, then boot the operating sys-
tem once to make sure this function takes
effect.
INTR
1INTRUDERJ
GND
2
