Foxfury Lighting Solutions TACSWAN EXOLANDER 700-XDS-M3 User manual

EXOLANDER©SYSTEMS FOR DJI
MAVIC 3
700-XDS-M3 | 700-XLS-M3
PRODUCT MANUAL

2
TABLE OF CONTENTS
EXOLANDER©Systems
3
EXOLANDER©Landing System
Reference Guide
Physical Characteristics
Installation
4
5
6-8
D3060 Drone Spotlight
Reference Guide
Physical Characteristics
Battery
Operational Modes
Installation
9
10
11
11-12
13
CARE/CLEANING
14
WARNINGS/WARRANTY 14-15
CONTACT FOXFURY 15

3
EXOLANDER©SYSTEMS
Saddle
Mount©
EXOLANDER©
Landing
Skids
D3060
Drone
Spotlight
EXOLANDER©
Landing System
for DJI Mavic 3
P/N 700-XLS-M3
- - -
ITEMS INCLUDED
(additional to those listed above)
USB-C 12” cable, P/N 51-144 (NOT included with P/N 700-XLS-M3)
EXOLANDER©
D3060-TC Light
System for DJI
Mavic 3
P/N 700-XDS-M3

4
EXOLANDER©LANDING SYSTEM
REFERENCE GUIDE
Locking Knob &
Screw (2 ea)
External Accessory
Snap Lock Mount
(4 ea)
EXOLANDER©
Mount Connector to
Saddle Mount©(4 ea)
EXOLANDER©Landing
Foot with Slot (4 ea)
LANDING SKIDS*
Tab (4 ea)
per Skid
EXOLANDER©HALF
MAVIC SADDLE MOUNT©
Snap Lock (5 ea)
Front Tab (2 ea)
Alignment Pin
(2 ea)
Alignment
Slot
Threaded
Locking
Nut Insert
Locking Knob
& Screw
EXOLANDER©ASSEMBLED
Rear Tab (2 ea)

5
PHYSICAL CHARACTERISTICS
DIMENSIONS WEIGHT
DJI Mavic 3 Saddle
Mount
3.77 x 3.19 x 3.08 in
(95.8 x 81 x 78.3 mm) 1.29 oz (36.5 g)
EXOLANDER©,
assembled
6.8 x 6.5 x 4.8 in
(173.2 x 163.8 x 123 mm) 4.05 oz (114.7 g)
Landing Skid, each 8.67 x 0.97 x 0.6 in
(220 x 24.7 x 15.2 mm)
0.45 oz (12.8 g)
per skid
D3060 Light,
each
1.3 x 2.3 x 0.9 in
(33 x 58 x 23 mm)
1.1 oz (31.2 g)
per light
TOTAL WEIGHT OF SYSTEMS
SYSTEM WEIGHT
P/N 700-XDS-M3
P/N 700-XLS-M3
6.24 oz (176.8 g)
8.44 oz (239.2 g)
WARNING
It is the responsibility of drone/UAV users to follow the FAA and global laws and
regulations
and/or the laws and regulations applicable to the flight location.

6
EXOLANDER©LANDING SYSTEM
INSTALLATION
❶ Install Saddle Mount©on the DJI.
1. Slide the Saddle Mount©on the DJI and make sure that the two
front tabs fit behind the front arms of the DJI and press down.
❷Install EXOLANDER©on Saddle Mount©.
1. Place the drone and Saddle Mount upside down on a flat surface.©
2. Align the EXOLANDER©Half with Snap Lock locations on Saddle
Mount©and slide in the EXOLANDER©Half at an angle as shown
below. Make sure the foot is facing away from the center of the
drone. Tilt the EXOLANDER©Half as shown.
Insure that the front and rear tabs of the Saddle Mount© conform
securely to the body of the DJI.
Do not pull/spread the saddle excessively during installtion. The
Saddle Mount©is intended to be pushed into place.

7
3. Install the other EXOLANDER©Half in the open Saddle Snap Lock
locations. Bring the units together and align the Pin into the Hole on
each side.
4. Align Locking Knob & Screw and Thread Locking Nut Insert on each
side.
5. Tighten each screw until the units are mated.

8

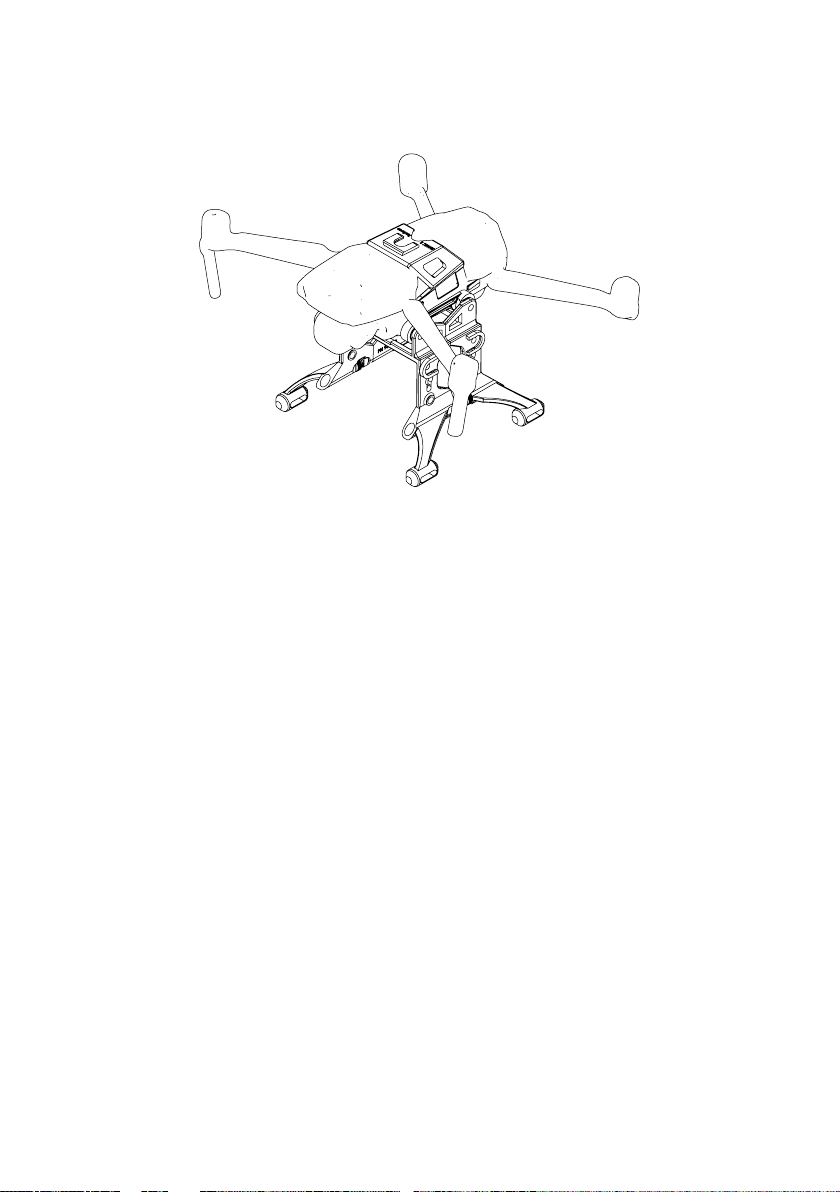

6. The EXOLANDER©installation is now complete.
7. To install the Landing Skid, align each Tab on Landing Skid with each
Slot on the EXOLANDER©Landing Foot. Press and snap Landing Skid
on.
WARNING:
Manually test the EXOLANDER©Landing System by wiggling it and making
sure nothing is loose. Note that a slight amount of movement between the
structure and the UAV may be present. This eliminates adding unnecessary
forces to the vehicle’s structure.
NOTE: Before our accessories are made available, they are tested internally
and verified externally by a minimum of 2 professional users. We have
experienced multiple cases of UAS (drone) mechanical modifications from
manufacturers within the same P/N and revision, and without providing
warnings or product updates. If there is a fit problem, please contact our
customer service department at https://www.foxfury.com/contact/

9
D3060 DRONE SPOTLIGHT©
REFERENCE GUIDE
D3060
FRONT LIGHT
DORSAL LIGHT
POWER/MODE SWITCH
FOR FRONT LIGHT
CHARGING PORT
POWER/MODESWITCH
FOR DORSAL LIGHT
CHARGING PORT360° SWIVEL

10
OVERVIEW
WARNINGS
Please fully charge the D3060 before using it for the first time.
Do not stare into the LEDs for long periods of time or from a close range (less than
2 ft/0.6 m).
While using any FoxFury product, please operate at safe speeds.
Be sure to rinse the D3060 with fresh water immediately after use in the ocean or
a pool.
It is the responsibility of drone/UAV users to follow FAA and global laws and
regulations and/or the laws and regulations applicable to the flight location.
The D3060 is a multi-function utility light. It is able to mount to most drones by
FoxFury saddle mounts. Its 30° and 60° dual LEDs can operate with a high,
low, or strobe mode to provide omni-directional lighting. This rechargeable and
waterproof light is durable and compact for a variety of uses where light is
needed in a tight space and where weight is a concern.
IMPORTANT!
Please fully charge the D3060 before using it for the first time. Please read
this manual before using your D3060 as it relays beneficial operating and
safety Information.
PHYSICAL CHARACTERISTICS
DIMENSIONS 1.3 x 2.3 x 0.9 in (33 x 58 x 23 mm)
WEIGHT 1.1 oz (31.2 g)

11
BATTERY
WARNINGS:
Unplug the light once charged to avoid impacting battery life.
If battery is fully discharged because the unit may have not been in use for
many months, please charge fully.
CHARGING THE BATTERY
Connect the USB C Cable to the Charging Port and to a USB port.
While charging, a red light will be on. Once charged, it will turn to green.
Charge time should be approximately 1.5 hours.
WHITE LIGHT MODE LUMENS BATTERY LIFE
FRONT LIGHT ONLY
HIGH 200 1.5 hours
LOW 60 2.5 hours
STROBE 200 2 hours
DORSAL LIGHT ONLY
HIGH 160 1.7 hours
LOW 50 3 hours
STROBE 160 2 hours
BOTH FRONT AND
DORSAL LIGHTS
HIGH N/A* N/A*
LOW 60 FRONT
50 DORSAL 2 hours
STROBE 200 FRONT
160 DORSAL 1.5 hours
*Thermal protection circuit will automatically reduce the Dorsal Light to low mode when the Front Light is
on high mode. The battery life for this setup is 1 hour.
OPERATIONAL MODES

12
OPERATIONAL MODES
OPERATIONAL MODES (CONT’D)
Press the Dorsal Light Power/Mode Switch once to turn the Dorsal Light
on to HIGH.
Press the Dorsal Light Power/Mode Switch again to turn the Dorsal Light
to LOW.
Press the Dorsal Light Power/Mode Switch again to turn the Dorsal Light
to STROBE.
Press the Dorsal Light Power/Mode Switch again to turn the Dorsal Light
OFF.
Do the same with the Front Light Power/Mode Switch to control the Front
Light.

13
INSTALLATION
MOUNTING D3060 TO SADDLE
Align the 360°swivel with snap lock location on the desired mount location of
the saddle, and snap D3060 light in place. Spin the light and tug to make sure
it is properly atatched. (Images below show D3060 attachment and then
assembled to drone at various attachment locations of the saddle - top and
side).

14
WARRANTY AND OTHER
INFORMATION
PRODUCT DURABILITY
CARE/CLEANING
Your FoxFury product is a professional
tool. Regular maintenance and care of
your light will maximize performance for
you. As needed, clean your FoxFury
product using a soft washcloth. Do not
immerse.
WARNINGS
FoxFury, LLC is not responsible for the
incorrect use of any FoxFury Lighting
product.
When used for extended periods
of time the D3060© will become
HOT to the touch. Please use care
when operating.
Lights are strong enough to cause
damage to the human eye.
Do not stare into LEDs for long
periods of time or from a close
range (less than 2 ft / 0.6 m).
FoxFury, LLC is not responsible
for any injury or damage caused
during the use of this product.
Usage of this product must be
supervised by an adult when it is
being used by a minor.
Any FoxFury product should be
operated at speeds safe enough
to maneuver around surrounding
obstacles.
Do not use under the influence of
drugs or alcohol.
ONE YEAR WARRANTY
FoxFury, LLC (“FoxFury”) warrants
this product to be free from defects
in material for one year after
purchase. LiPO batteries have a one
year pro-rated or 300 re-charge cycle
pro-rated warranty, whichever the
user reaches first.
This warranty is given only to the
original end user of the accompanying
product. If you purchased a product
from someone other than an
authorized FoxFury reseller/distributor
or if the product was used, (including
but not limited to demo models, show
models or refurbished product by
someone other than FoxFury) prior to
your purchase, you are not the
Original Purchaser and the product
that you purchased is not covered by
this warranty. This warranty is VOID
if this Product has been altered or
modified in any way (including but not
limited to attempted warranty repair
without authorization from FoxFury
and/or alteration/removal of the serial
number). To expedite warranty
concerns, we encourage the end user
to register their FoxFury Product at
www.foxfury.com/pages/warrantyreg
istration.
3M
IPX6
ACCESSORY
ExoDock Station, P/N 93-110

15
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARE
EXPRESSLY DISCLAIMED
EXCEPT WHERE SUCH
LIMITATION IS PROHIBITED BY
LAW.
You may have other specific legal
rights which vary by jurisdiction. Go
to www.foxfury.com/pages/warranty
for a complete copy of the warranty.
Retain your receipt for proof of
purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Tel: [phone]
Email: [e-mail]
Web: FoxFury.com
All FoxFury products are designed in
Oceanside, CA. All FoxFury
products are manufactured with the
highest quality USA and foreign
parts. Products are assembled in
either FoxFury’s controlled plant in
Asia or the USA, under strict quality
control.
CALIFORNIA
PROPOSITION 65
This product can expose you to
chemicals including Lead and DEHP,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.

FOXFURY.COM 09/2022
