Franklin Chef FBC36OD User manual

Outdoor Beverage Cooler
Glaci_re a boissons d'ext_rieur
Enfriador de bebidas de uso exterior
Use and Care Guide (pages 1 - 11)
Mode d'emploi (les pages 12 - 23)
Manual del usuario (las pdginas 24 -35)
Be sure unit is standing upright
24 hours prior to plug-in.
Soyez sQrs que le rafraichisseur _boissons se tient debout
24 heures avant que I'unit_ se branche.
Este seguro que el enfriador de bebidas este parado
en posici6n vertical 24 horas antes que sea conectado.
Franklin Industries, L.L.C.
4100 First Avenue
Brooklyn, NY 11232-3321
Tel.: [phone]
Website: www.franklinchef.com
Model/Mod_le/Modelo
FBC360D

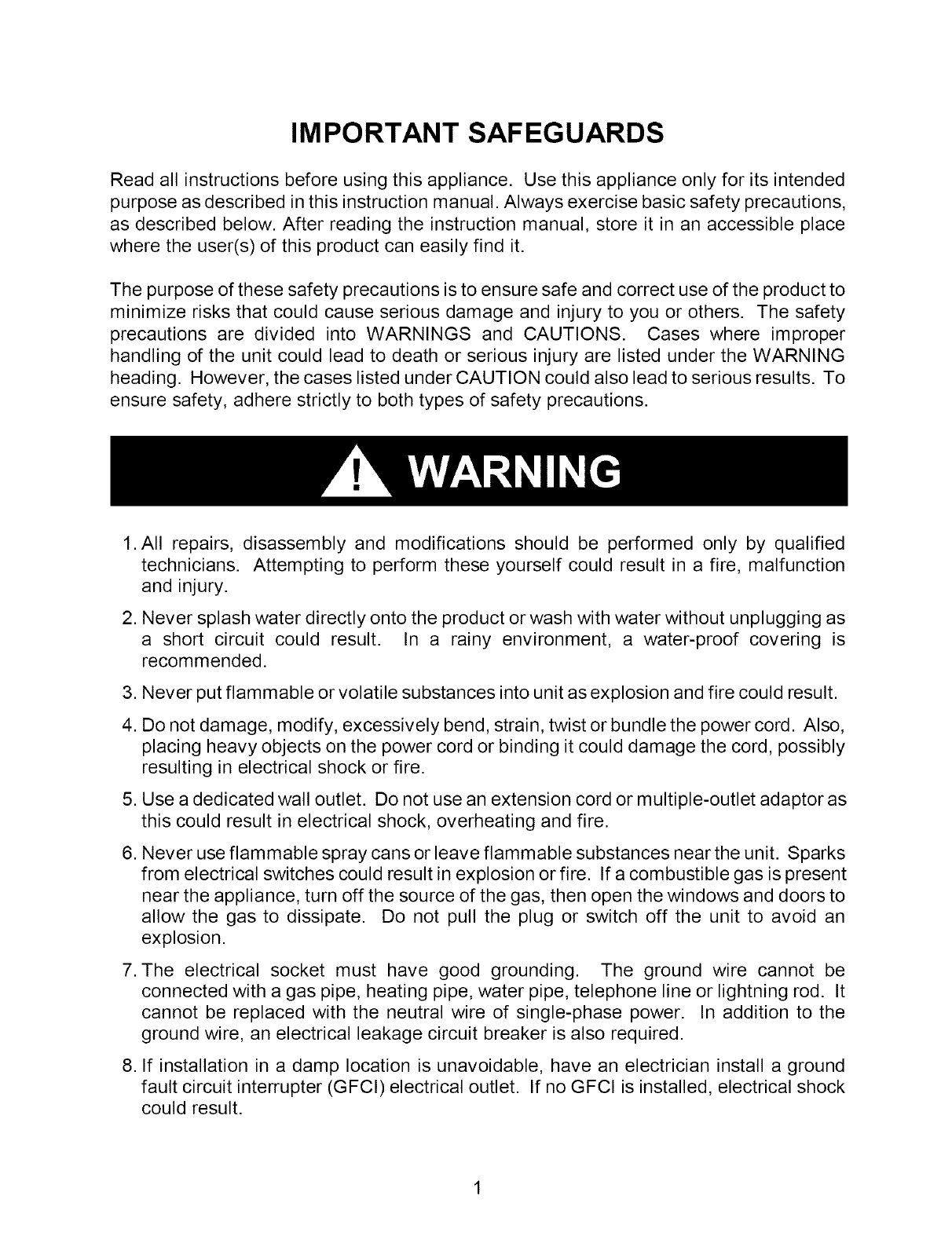

IM PORTANT SAFEGUARDS
Read all instructions before using this appliance. Use this appliance only for its intended
purpose as described in this instruction manual. Always exercise basic safety precautions,
as described below. After reading the instruction manual, store it in an accessible place
where the user(s) of this product can easily find it.
The purpose of these safety precautions is to ensure safe and correct use of the product to
minimize risks that could cause serious damage and injury to you or others. The safety
precautions are divided into WARNINGS and CAUTIONS. Cases where improper
handling of the unit could lead to death or serious injury are listed under the WARNING
heading. However, the cases listed under CAUTION could also lead to serious results. To
ensure safety, adhere strictly to both types of safety precautions.
1. All repairs, disassembly and modifications should be performed only by qualified
technicians. Attempting to perform these yourself could result in a fire, malfunction
and injury.
2. Never splash water directly onto the product or wash with water without unplugging as
a short circuit could result. In a rainy environment, a water-proof covering is
recommended.
3. Never put flammable or volatile substances into unit as explosion and fire could result.
4. Do not damage, modify, excessively bend, strain, twist or bundle the power cord. Also,
placing heavy objects on the power cord or binding it could damage the cord, possibly
resulting in electrical shock or fire.
5. Use a dedicated wall outlet. Do not use an extension cord or multiple-outlet adaptor as
this could result in electrical shock, overheating and fire.
6. Never use flammable spray cans or leave flammable substances near the unit. Sparks
from electrical switches could result in explosion or fire. If a combustible gas is present
near the appliance, turn off the source of the gas, then open the windows and doors to
allow the gas to dissipate. Do not pull the plug or switch off the unit to avoid an
explosion.
7. The electrical socket must have good grounding. The ground wire cannot be
connected with a gas pipe, heating pipe, water pipe, telephone line or lightning rod. It
cannot be replaced with the neutral wire of single-phase power. In addition to the
ground wire, an electrical leakage circuit breaker is also required.
8. If installation in a damp location is unavoidable, have an electrician install a ground
fault circuit interrupter (GFCl) electrical outlet. If no GFCl is installed, electrical shock
could result.

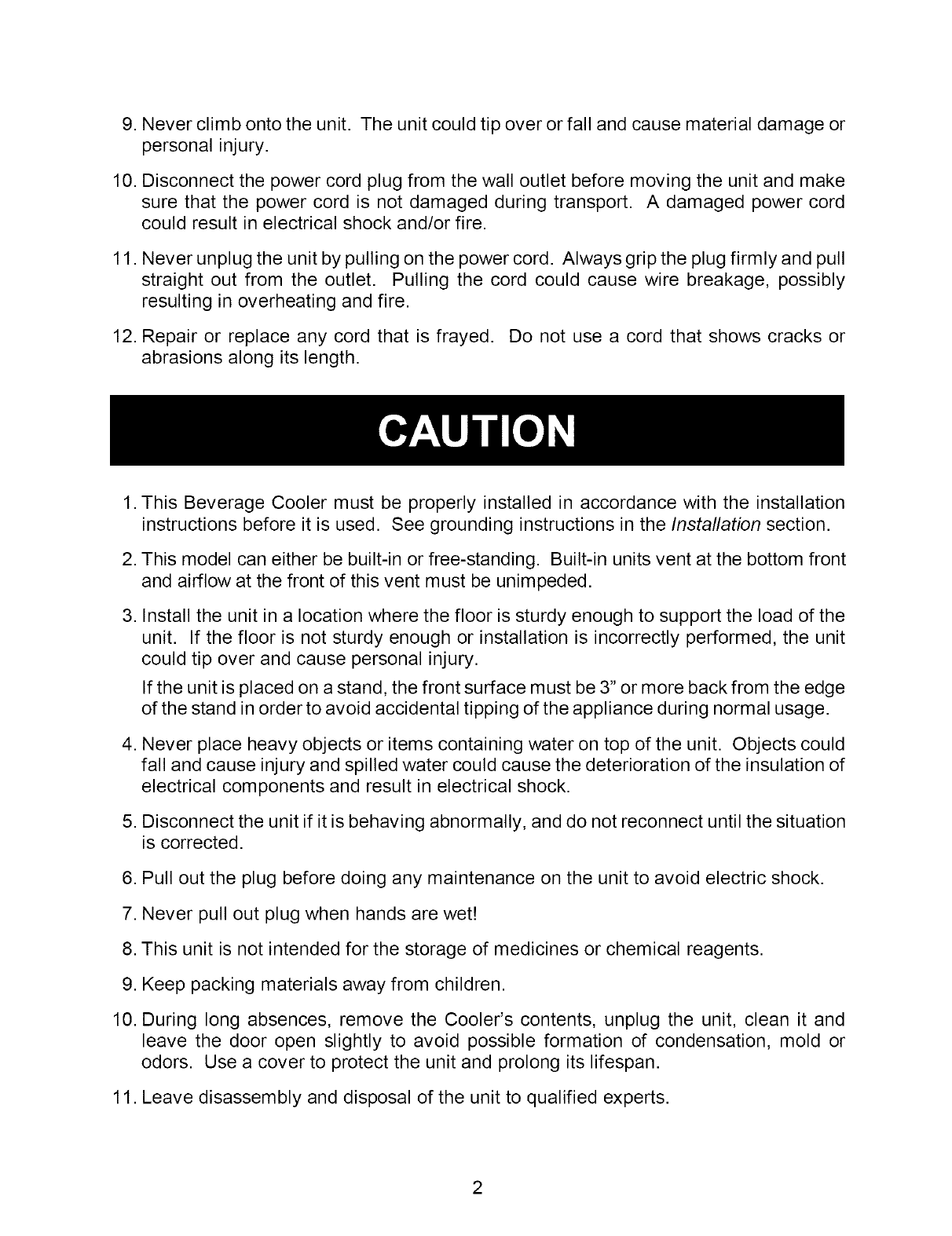

9.Never climb onto the unit. The unit couldtip over or fall and causematerialdamage or
personal injury.
10.Disconnectthe powercord plug from thewall outlet before moving the unit and make
sure that the power cord is not damaged during transport. A damaged power cord
could result in electrical shock and/or fire.
11.Never unplugtheunit bypullingon the powercord. Always gripthe plugfirmly andpull
straight out from the outlet. Pulling the cord could cause wire breakage, possibly
resulting in overheating and fire.
12.Repair or replace any cord that is frayed. Do not use a cord that shows cracks or
abrasions along its length.
1.This Beverage Cooler must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the Installation section.
2. This model can either be built-in or free-standing. Built-in units vent at the bottom front
and airflow at the front of this vent must be unimpeded.
3. Install the unit in a location where the floor is sturdy enough to support the load of the
unit. If the floor is not sturdy enough or installation is incorrectly performed, the unit
could tip over and cause personal injury.
If the unit is placed on a stand, the front surface must be 3" or more back from the edge
of the stand in order to avoid accidental tipping of the appliance during normal usage.
4. Never place heavy objects or items containing water on top of the unit. Objects could
fall and cause injury and spilled water could cause the deterioration of the insulation of
electrical components and result in electrical shock.
5. Disconnect the unit if it is behaving abnormally, and do not reconnect until the situation
is corrected.
6. Pull out the plug before doing any maintenance on the unit to avoid electric shock.
7. Never pull out plug when hands are wet!
8. This unit is not intended for the storage of medicines or chemical reagents.
9. Keep packing materials away from children.
10. During long absences, remove the Cooler's contents, unplug the unit, clean it and
leave the door open slightly to avoid possible formation of condensation, mold or
odors. Use a cover to protect the unit and prolong its lifespan.
11. Leave disassembly and disposal of the unit to qualified experts.

SAVE THESE INS TRUCTIONS!
DANGER!
Risk of child entrapment! Before discarding your old refrigerator:
• take off the doors
• leave the shelves in place so that children may not easily climb inside.
Table of Contents
IMPORTANT SAFEGUARDS ..................... 1-3
Technical Specifications .......................... 3
Location of Parts ............................. 4
Installation ............................... 5-6
Operating Your Beverage Cooler ................... 6-8

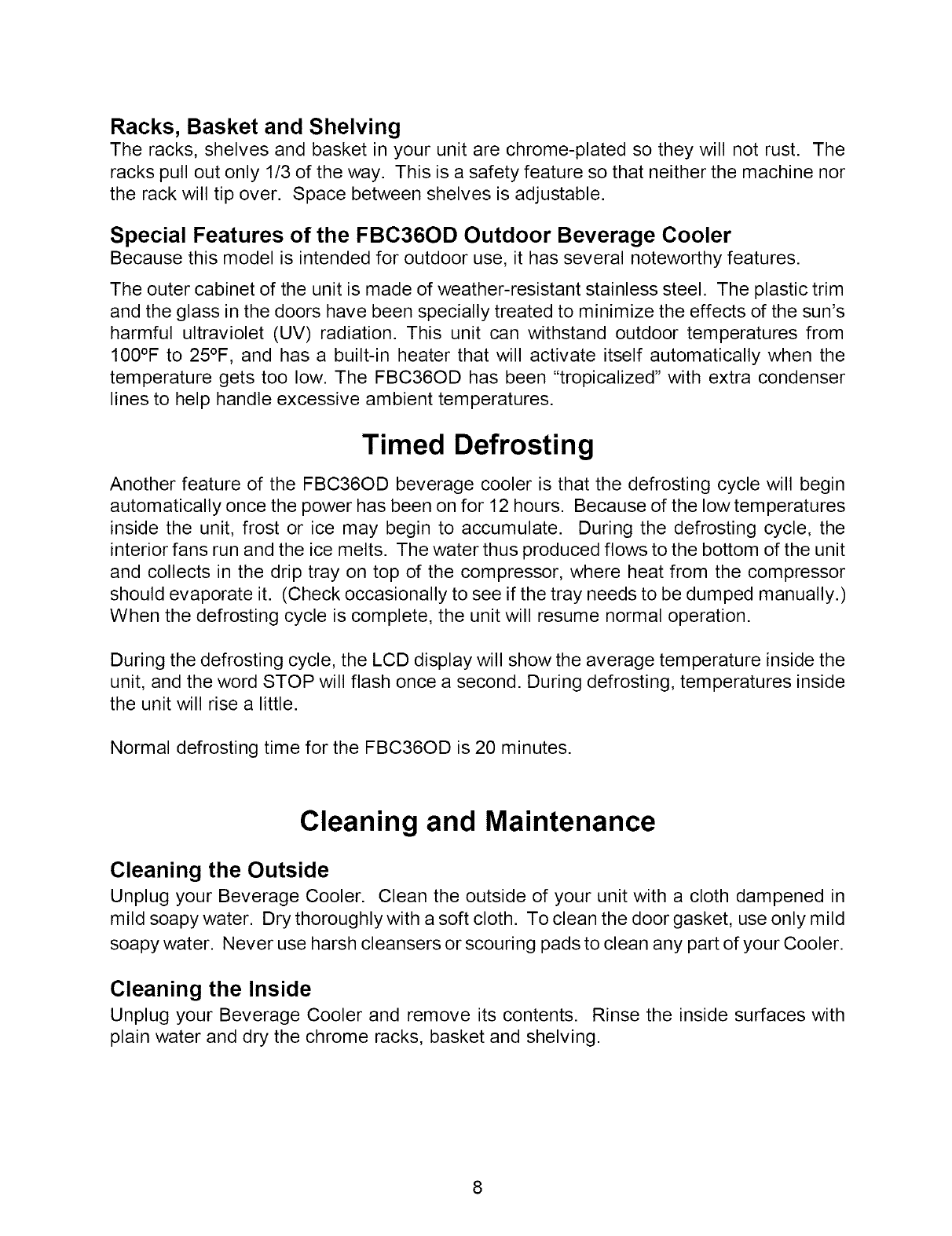

Timed Defrosting ............................. 8
Cleaning and Maintenance ...................... 8-9

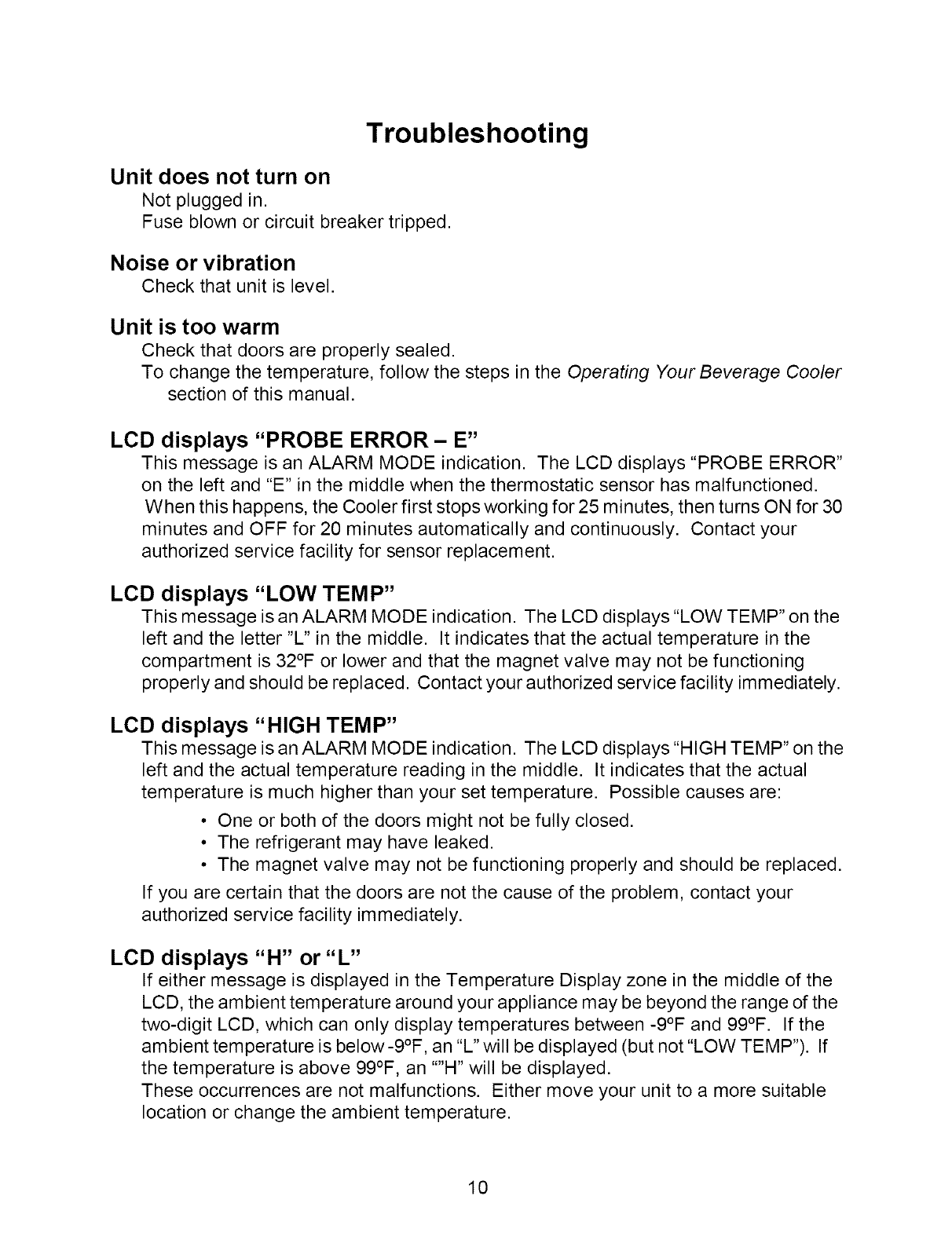

Troubleshooting ............................. 10
Limited Warranty ............................. 11
Technical Specifications
Model Number FBC360D
Description 2-door outdoor beverage cooler
Electrical Input 115VAC ~ 60Hz
Current Rating 1.8A
Unit Dimensions 23.6" W x 23.5"D x 33.5"H
Unit Weight 126.5 Ibs
Ambient Temperature Range 25°F - 100°F
Compartment Temperature
Range 36°F - 64°F (both zones)

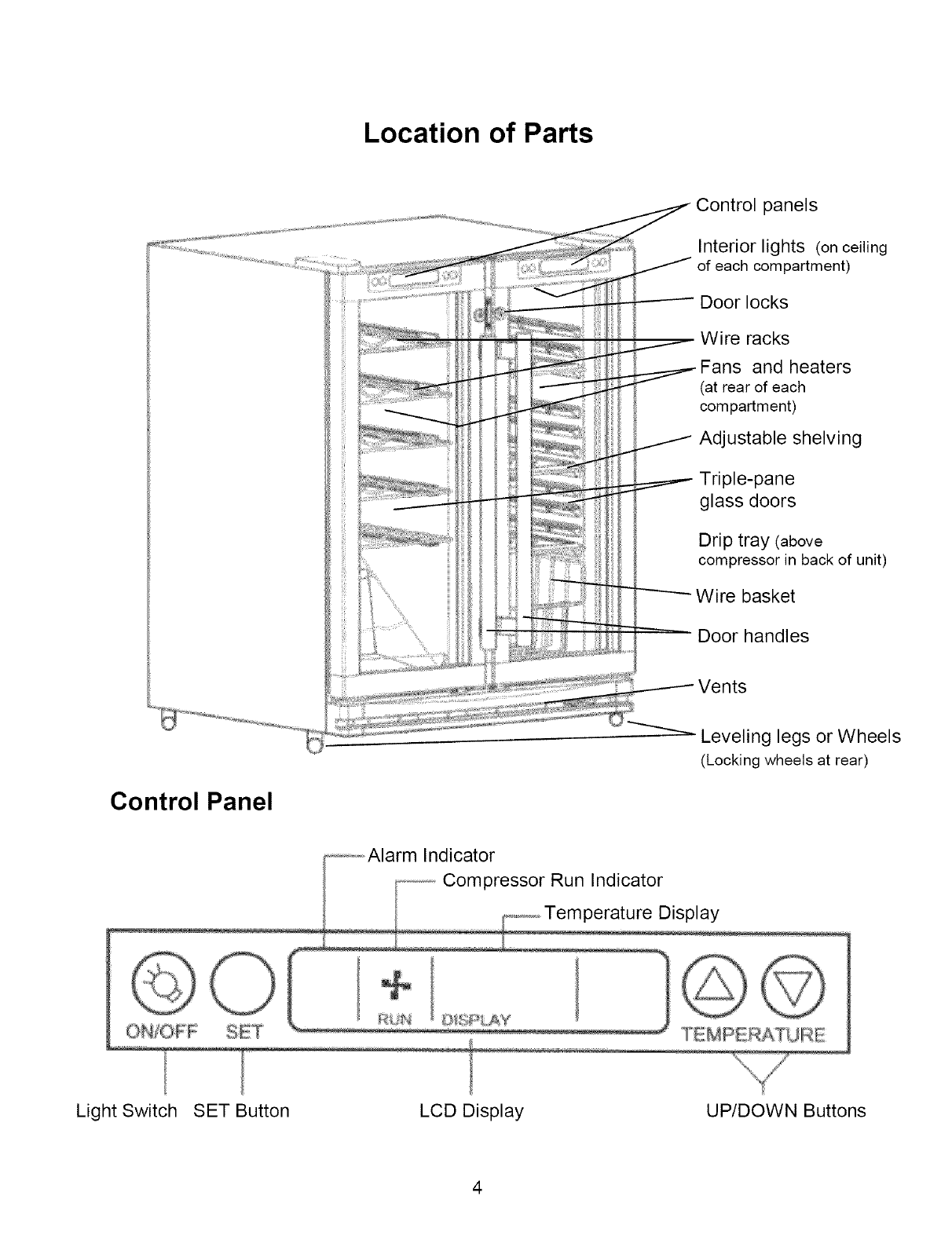

Location of Parts
Control panels
Interior lights (on ceiling
of each compartment)
Door locks
Wire racks
and heaters
(at rear of each
compartment)
Adjustable shelving
Triple-pane
glass doors
Drip tray (above
compressor in back of unit)
Wire basket
Door handles
Jents
Control Panel
Leveling legs or Wheels
(Locking wheels at rear)
Light Switch SET Button LCD Display UP/DOWN Buttons

Installation
Remove the exterior and interior packaging. Use a soft dry cloth to wipe down the outside
of the Beverage Cooler thoroughly. Use a clean cloth dampened with lukewarm water to
wipe down the inside of the Cooler.
Air must circulate freely in front of the Beverage Cooler. Avoid placing the Cooler near any
source of heat or moisture, or in direct sunlight. Direct sunlight may affect the finish, and
nearby heat sources will cause higher electrical consumption. This model, FBC36OD, is
supplied with a plastic cover that should be placed over the unit when the Cooler is not in
use.
The FBC36OD Outdoor Beverage Cooler is designed to be either free-standing or built-in.
It has motorized fans at the back of the unit that direct compressor-generated heat away
from the compressor and through the front of the unit. Other than keeping the front vents
unobstructed, there are no clearance requirements for this unit.
The FBC36OD Beverage Cooler is supplied with two sets of feet.
a) For normal outdoor use, there are 4 rolling casters, 2 with locking mechanisms that
should be installed at the back, and 2 without locks for the front. The casters allow
the unit to be wheeled into place; the rear wheels should be locked once the unit is
in position.
b) For indoor use, there are 4 leveling legs that should be installed and then turned to
level the unit. This reduces vibrations.
Electrical Connection
Important! For your personal safety, this appliance must be properly grounded. In
the event of an electrical short circuit, grounding reduces the risk of shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be inserted into an outlet that is
properly grounded and installed. The ground wire cannot be connected to a gas pipe,
heating pipe, water pipe, telephone line or lightning rod. It cannot be replaced with the
neutral wire of single-phase power. In addition to the ground wire, an electrical leakage
circuit breaker is also required. Consult a qualified electrician if you do not completely
understand these grounding instructions.
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER CORD.
If installation in a damp location is unavoidable, have an electrician install a ground fault
circuit interrupter (GFCl) electrical outlet. If no GFCl is installed, electrical shock could
result.
5

Do Not Use an Extension Cord
Avoid the use of an extension cord because of potential safety hazards under certain
conditions.
Operating Your Beverage Cooler
IMPORTANT: Do not plug in the Beverage Cooler for 24 hours after unit is set in place.
Failure to do so may result in the unit working improperly.
Two-Compartment Design
The FBC36OD Beverage Cooler has two separate compartments. Each compartment
has its own door and separate control panel. The right-hand compartment has 3
adjustable chrome-plated flat wire shelves and a wire basket to hold cans and bottles of
beverages such as beer, water and soft drinks. The lefthand compartment of the
FBC36OD comes equipped with 5 horizontal wire racks and an inclined rack that can hold
a total of 18 standard wine bottles. This design enables you to operate one or both
compartments and also allows you to set a different temperature for each compartment.
Each control panel displays the current temperature inside that compartment and allows
you to turn the interior lights on and off independently of each other. The operating
instructions below apply to both compartments and must be implemented separately.
OPERATING INSTRUCTIONS
Turning On the Unit
The Beverage Cooler turns on automatically when it is plugged in.
If you want to use the Automatic Temperature (default) setting, do nothing further. The
FBC36OD will automatically set the temperature in the wine compartment at 55°F (13°C)
and in the beverage compartment at 41°F (5°C). If you want to set other temperatures, see
below.
Temperature Settings
While wines store best at temperatures around 56-58°F, the FBC360D outdoor unit also
allows you to store wine at drinking temperatures. Generally, RED WINE should be kept at
60-61°t= and WHITE WINE, which is usually served chilled, is best kept at 54-55°t=. For
beer and soft drinks, choose the temperature setting that is most agreeable to you and
your guests.

To adjust the temperature, press the SET button, then use the UP/DOWN keys to navigate
to the preferred temperature. For example, if you are storing red wine, you may want to set
a temperature of 61 degrees Fahrenheit.
When the correct temperature appears in the DISPLAY window of the control panel, press
SET to confirm. Remember that each compartment has separate controls so you will need
to set the temperature in each compartment separately.
PLEASE NOTE: Cold air falls and warmer air rises, and there will be a small temperature
variation from the bottom to the top of the unit. The temperature sensor is located in the
middle of each compartment and records the temperature at that point. The temperature at
the bottom of the unit will always be slightly colder.
Drip Tray
At the rear of the unit, near the bottom, you can see a plastic tray positioned above the
compressor. This tray catches water that condenses inside the appliance. Heat from the
normal operation of the compressor should evaporate the water that collects in the tray.
Interior Lights
Each compartment has an interior light that can be turned on or off by pressing the
ON/OFF button located on the left side of each control panel. It is not a good idea to leave
these lights on for too long. They can raise the internal temperature of the compartments.
For instructions on replacement of bulbs, see page 9.
Compressor Run Indicator
When your unit's compressor is running, either one or both control panels will display
moving icons representing a running fan. If the compressor stops running, the icons will
stop running as well.
Memorizing Temperature Settings
Your unit has been designed to "remember" the last run mode to which it was set. If you
suffer a power outage or any other power cutoff, the unit will automatically return to the
previous temperature settings after power is returned.
About the Liquid Crystal Display (LCD)
When you press any key, a blue backlight will appear in the Display Panel. If no other key
is pressed, the backlight will automatically go out after 2 minutes.
In the event that there is a fault in the unit, an ALARM indication will appear on the screen.
ALARM Mode
In ALARM mode, the unit will make a beeping sound and display an alarm message. If the
LCD on the control panel displays any of the following messages: PROBE ERROR, LOW
TEMP or HIGH TEMP, consult the Troubleshooting section of this manual.
7

Racks, Basket and Shelving
The racks, shelves and basket in your unit are chrome-plated so they will not rust. The
racks pull out only 1/3 of the way. This is a safety feature so that neither the machine nor
the rack will tip over. Space between shelves is adjustable.
Special Features of the FBC36OD Outdoor Beverage Cooler
Because this model is intended for outdoor use, it has several noteworthy features.
The outer cabinet of the unit is made of weather-resistant stainless steel. The plastic trim
and the glass in the doors have been specially treated to minimize the effects of the sun's
harmful ultraviolet (UV) radiation. This unit can withstand outdoor temperatures from
100°F to 25°F, and has a built-in heater that will activate itself automatically when the
temperature gets too low. The FBC36OD has been "tropicalized" with extra condenser
lines to help handle excessive ambient temperatures.
Timed Defrosting
Another feature of the FBC36OD beverage cooler is that the defrosting cycle will begin
automatically once the power has been on for 12 hours. Because of the low temperatures
inside the unit, frost or ice may begin to accumulate. During the defrosting cycle, the
interior fans run and the ice melts. The water thus produced flows to the bottom of the unit
and collects in the drip tray on top of the compressor, where heat from the compressor
should evaporate it. (Check occasionally to see if the tray needs to be dumped manually.)
When the defrosting cycle is complete, the unit will resume normal operation.
During the defrosting cycle, the LCD display will show the average temperature inside the
unit, and the word STOP will flash once a second. During defrosting, temperatures inside
the unit will rise a little.
Normal defrosting time for the FBC36OD is 20 minutes.
Cleaning and Maintenance
Cleaning the Outside
Unplug your Beverage Cooler. Clean the outside of your unit with a cloth dampened in
mild soapy water. Dry thoroughly with a soft cloth. To clean the door gasket, use only mild
soapy water. Never use harsh cleansers or scouring pads to clean any part of your Cooler.
Cleaning the Inside
Unplug your Beverage Cooler and remove its contents. Rinse the inside surfaces with
plain water and dry the chrome racks, basket and shelving.

Replacement of the interior lights
Warning: To avoid an electric shock, unplug the unit when replacing the lamp bulb.
/ ,_ ,_ Bulb
Lamp socket ................._ Lamp cover
Screw-----_
The lamp base is E26; the rated power of the bulb is 15W. Use a bulb of the same rating
when replacing. When replacing a light bulb, remove the screw at the back of the lamp,
then, to release the cover, push it firmly backward and then carefully pull down. Replace
bulb with the same size and type of bulb and fix the cover back into place.
Protecting waterproof seals
WARNING! Do not open the electrical control box on the upper rear panel of this
appliance since this will break the waterproof seal around the control box. When this box
is serviced by a professional, a waterproof sealant must be applied to the box after
maintenance.
Similarly, do not attempt to open the digital control panels on the doors of the unit. This will
damage the waterproof seal around the panels.
9

Troubleshooting
Unit does not turn on
Not plugged in.
Fuse blown or circuit breaker tripped.
Noise or vibration
Check that unit is level.
Unit is too warm
Check that doors are properly sealed.
To change the temperature, follow the steps in the Operating Your Beverage Cooler
section of this manual.
LCD displays "PROBE ERROR- E"
This message is an ALARM MODE indication. The LCD displays "PROBE ERROR"
on the left and "E" in the middle when the thermostatic sensor has malfunctioned.
When this happens, the Cooler first stops working for 25 minutes, then turns ON for 30
minutes and OFF for 20 minutes automatically and continuously. Contact your
authorized service facility for sensor replacement.
LCD displays "LOW TEMP"
This message is an ALARM MODE indication. The LCD displays "LOW TEMP" on the
left and the letter "L" in the middle. It indicates that the actual temperature in the
compartment is 32°F or lower and that the magnet valve may not be functioning
properly and should be replaced. Contact your authorized service facility immediately.
LCD displays "HIGH TEMP"
This message is an ALARM MODE indication. The LCD displays "HIGH TEMP" on the
left and the actual temperature reading in the middle. It indicates that the actual
temperature is much higher than your set temperature. Possible causes are:
• One or both of the doors might not be fully closed.
• The refrigerant may have leaked.
• The magnet valve may not be functioning properly and should be replaced.
If you are certain that the doors are not the cause of the problem, contact your
authorized service facility immediately.
LCD displays "H" or "L"
If either message is displayed in the Temperature Display zone in the middle of the
LCD, the ambient temperature around your appliance may be beyond the range of the
two-digit LCD, which can only display temperatures between -9°F and 99°F. If the
ambient temperature is below-9°F, an "L" will be displayed (but not "LOW TEMP"). If
the temperature is above 99°F, an ""H" will be displayed.
These occurrences are not malfunctions. Either move your unit to a more suitable
location or change the ambient temperature.
10

Limited Warranty
Franklin Industries, L.L.C., warrants this product to be free from defects in materials and
workmanship for a period of one year from the date of original purchase or delivery. Any parts that
are determined to be defective will be replaced or repaired by Franklin at no charge as long as the
unit was operated in accordance with the instructions furnished with the product. If the unit proves
to be defective, your first course of action should be to follow the retailer's return policy.
This warranty covers units only in the continental United States and does not cover the following:
• Damage from improper voltage or installation
• Damage in shipping
• Defects other than manufacturing defects
• Glass, trim or light bulbs
• Any damage or loss to cooler contents as the result of failure of the unit to
perform as expected
• Labor or repairs after the first 12 months
• Damage from abuse, misuse, accident, alteration or lack of proper care or routine
maintenance.
• Improper or incorrectly performed maintenance or repairs
• Damage due to acts of God
Commercial warranty is limited to 90 days parts and labor.
This limited warranty is given in lieu of all other warranties expressed or implied. This warranty
does not cover incidental or consequential damages. Some States do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
This warranty provides you with specific legal rights and you may have other rights that vary from
State to State. Consult the written materials accompanying your product for safe and proper
operation.
This warranty may not be assigned.
For warranty service, contact:
Franklin Industries, L.L.C.
4100 First Avenue
Brooklyn, NY 11232-3321
Tel.: [phone]
Website: www.franklinchef.com
When service is required, have on hand the Model and Serial numbers found on the rating label on
the back of the unit, as welt as proof of purchase such as a sales or gift receipt.
11

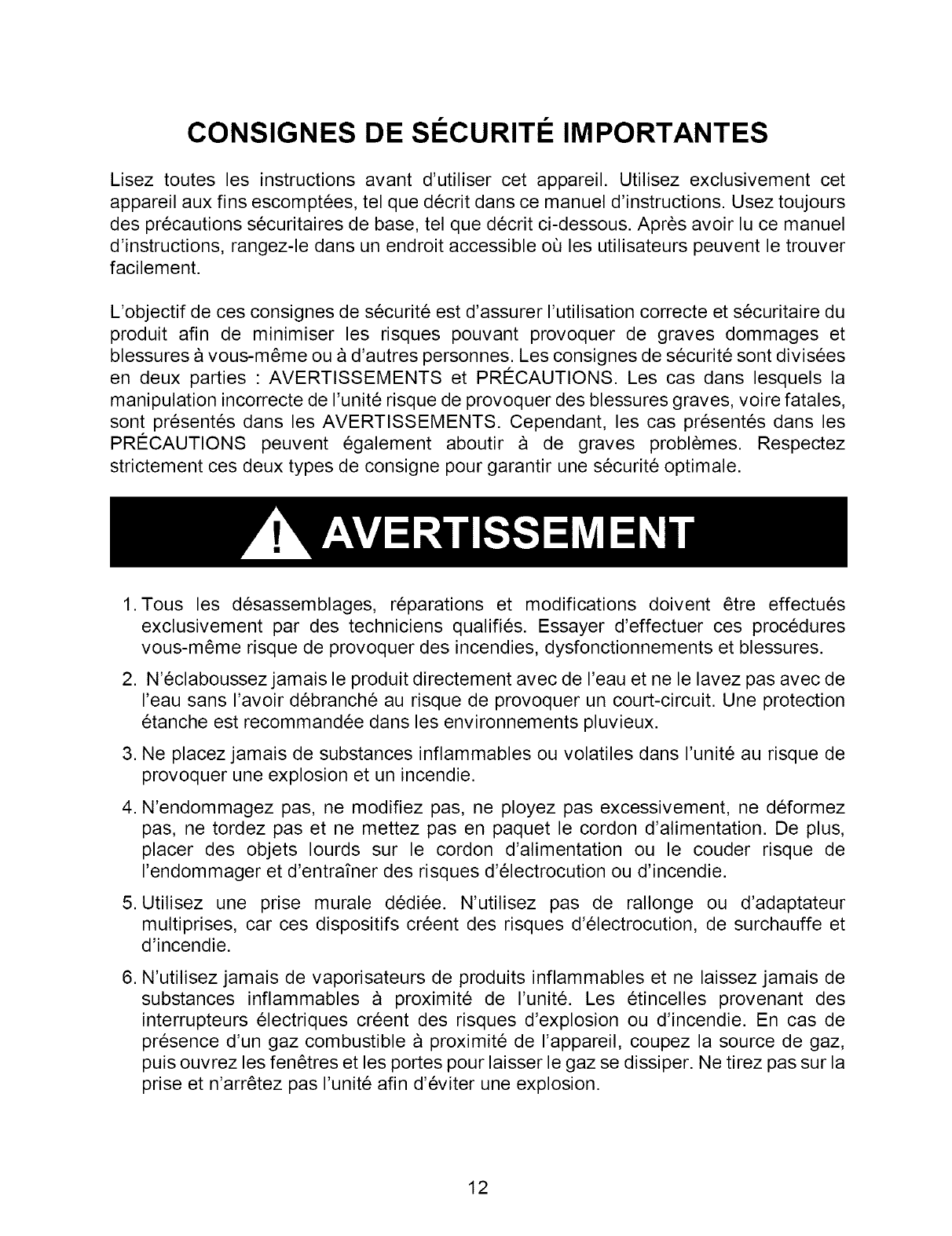

CONSIGNES DE SI=CURITI= IMPORTANTES
Lisez toutes les instructions avant d'utiliser cet appareil. Utilisez exclusivement cet
appareil aux fins escompt6es, tel que d6crit dans ce manuel d'instructions. Usez toujours
des pr6cautions s6curitaires de base, tel que d6crit ci-dessous. Apres avoir lu ce manuel
d'instructions, rangez-le dans un endroit accessible oQ les utilisateurs peuvent le trouver
facilement.
L'objectif de ces consignes de securite est d'assurer I'utilisation correcte et securitaire du
produit afin de minimiser les risques pouvant provoquer de graves dommages et
blessures a vous-m6me ou a d'autres personnes. Les consignes de securite sont divisees
en deux parties • AVERTISSEMENTS et PR#CAUTIONS. Les cas dans lesquels la
manipulation incorrecte de I'unite risque de provoquer des blessures graves, voire fatales,
sont presentes dans les AVERTISSEMENTS. Cependant, les cas presentes dans les
PR#CAUTIONS peuvent egalement aboutir a de graves problemes. Respectez
strictement ces deux types de consigne pour garantir une securite optimale.
1.Tous les desassemblages, reparations et modifications doivent 6tre effectues
exclusivement par des techniciens qualifies. Essayer d'effectuer ces procedures
vous-meme risque de provoquer des incendies, dysfonctionnements et blessures.
2. N'eclaboussez jamais le produit directement avec de I'eau et ne le lavez pas avec de
I'eau sans I'avoir debranche au risque de provoquer un court-circuit. Une protection
etanche est recommandee dans les environnements pluvieux.
3. Ne placez jamais de substances inflammables ou volatiles dans I'unite au risque de
provoquer une explosion et un incendie.
4. N'endommagez pas, ne modifiez pas, ne ployez pas excessivement, ne deformez
pas, ne tordez pas et ne mettez pas en paquet le cordon d'alimentation. De plus,
placer des objets Iourds sur le cordon d'alimentation ou le couder risque de
I'endommager et d'entrafner des risques d'electrocution ou d'incendie.
5. Utilisez une prise murale dediee. N'utilisez pas de rallonge ou d'adaptateur
multiprises, car ces dispositifs creent des risques d'electrocution, de surchauffe et
d'incendie.
6. N'utilisez jamais de vaporisateurs de produits inflammables et ne laissez jamais de
substances inflammables a proximite de I'unite. Les etincelles provenant des
interrupteurs electriques creent des risques d'explosion ou d'incendie. En cas de
presence d'un gaz combustible a proximite de I'appareil, coupez la source de gaz,
puis ouvrez les fen6tres et les portes pour laisser le gaz se dissiper. Ne tirez pas sur la
prise et n'arr6tez pas I'unite afin d'eviter une explosion.
12

7.Laprise 61ectriquedoit 6tremise alaterre correctement.Lefil deterre nepeut pasetre
relie a un tuyau de gaz, une conduite de chauffage, uneconduite d'eau, une ligne de
telephone ou un paratonnerre. II ne peut pas etre remplace par le fil neutre
d'alimentation monophasee.Outre le fil de mise a la terre, un disjoncteur de fuite est
egalement requis.

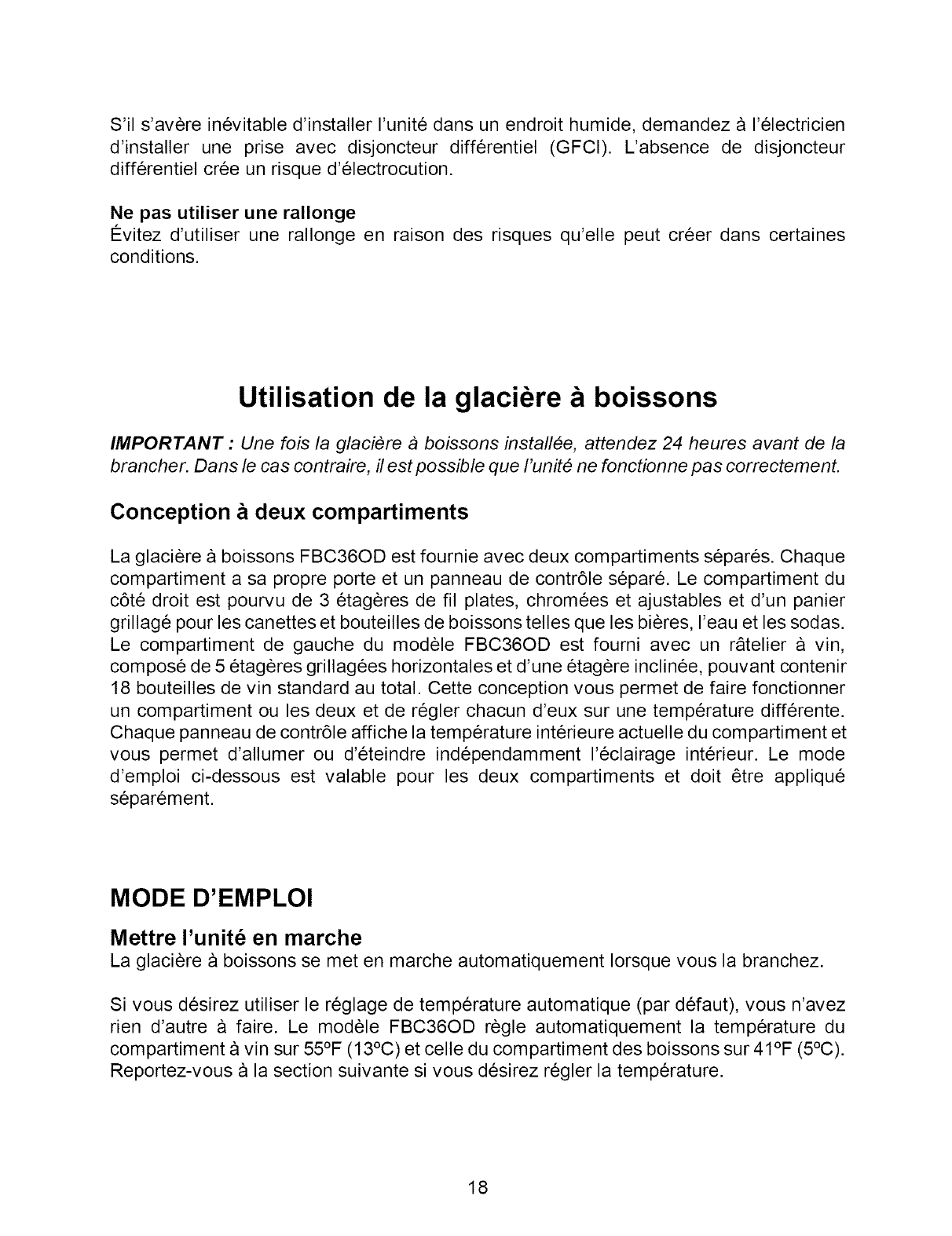

8.S'il s'avere inevitable d'installer I'unite dans un endroit humide, demandez
I'electricien d'installer une prise avec disjoncteur differentiel (GFCl). L'absence de
disjoncteur differentiel cree un risque d'electrocution.
9.Ne grimpez jamais sur I'unite. Celle-ci risquerait de basculer ou de tomber et de
provoquer des dommages ou des blessures graves.
10.Debranchez le cordon d'alimentation de la prise murale avant de deplacer I'unite et
verifiez qu'il n'a pas ete endommage pendant le transport. Un cordon d'alimentation
endommage cree des risquesd'explosion ou d'incendie.
11.Nedebranchezjamais I'unite en tirant sur le cordon d'alimentation. Saisisseztoujours
fermement la fiche et tirez-la perpendiculairement par rapport a la prise. Tirer sur le
cordond'alimentation cree des risquesderupture, et doncdesurchauffe etd'incendie.
12. Reparez ou remplacez tout cordon d'alimentation effiloche. N'utilisez pas le cordon
d'alimentation s'il presente desfissures ou des abrasions sur sa Iongueur.
1.Cette glaciere a boissons doit etre installee correctement et conformement aux
instructionsd'installation avant d'etre utilisee. Reportez-vousaux instructionsde mise
la terre de la section Installation.
2. Ce mod¢le peut etre encastre ou se tenir seul. Les unites encastrees sont ventilees
par I'avant (en bas). N'obstruez pas la circulation d'air de cet event.
3. Installez I'unit¢ dans un endroit oQ le sol est suffisamment solide pour supporter sa
charge. Si le sol n'est pas suffisamment solide ou si I'installation n'est pas effectuee
correctement, I'unit¢ risque de basculer et de provoquer des blessures.
Si I'unit¢ est placee sur un support, sa surface avant doit etre decalee d'au moins
3 pouces (7,62 cm) du bord du support afin d'eviter qu'elle bascule pendant son
utilisation normale.
4. Ne placez jamais d'objets ou d'elements Iourds contenant de I'eau au-dessus de
I'unite. Ces objets risqueraient de tomber et de blesser, et I'eau repandue risquerait de
deteriorer I'isolation des composants electriques et de creer un risque d'electrocution.
5. Debranchez I'unite si elle commence a se comporter de maniere anormale, et ne la
rebranchez pas avant que la situation n'ait ete corrigee.
6. Debranchez la fiche de I'unite avant d'effectuer quelque procedure de maintenance
que ce soit afin d'eviter les risques d'electrocution.
13

7. Ne tirezjamais sur la fiche avec des mains mouill6es !
8.Cette unit6 n'est pas destin6e a conserver des m6dicaments ou des r6actifs
chimiques.
9. Maintenez les mat6riaux d'emballage a 1'6cartdes enfants.
10.Pendant les absences prolong6es, videz la glaciCre, debranchez-la, nettoyez-la et
laissez sa porte 16g¢rementouverte afin d'6viter toute formation 6ventuelle de
condensation, de moisissure ou d'odeur. Recouvrez I'unit6 pour la prot6ger et
prolonger sa dur6e d'utilisation.
11.Confiez a des experts qualifi6s la t_che de d6sassembler et dejeter I'unit6.
CONSERVEZ CES INSTRUCTIONS
DANGER !
Evitez le risque qu'un enfant reste coinc6! Avant de se d6barrasser de votre vieux
r6frig6rateur:
• Retirer les portes
• Laisser les 6tagCres a sa place pour que les enfants ne puissent pas monter
facilement a I'int6rieur.
Table des mati res
Consignes de S6curit6 Importantes ................. 12- 14
Sp6cifications techniques ......................... 15
Emplacement des pieces ........................ 16
Installation ............................. 17- 18
Utilisation de la glaciere a boissons ................. 18- 20
D6givrage chronom6tr6 ....................... 20 -21
Nettoyage et entretien .......................... 21
D6pannage ............................... 22
Garantie limit6e ............................. 23
14

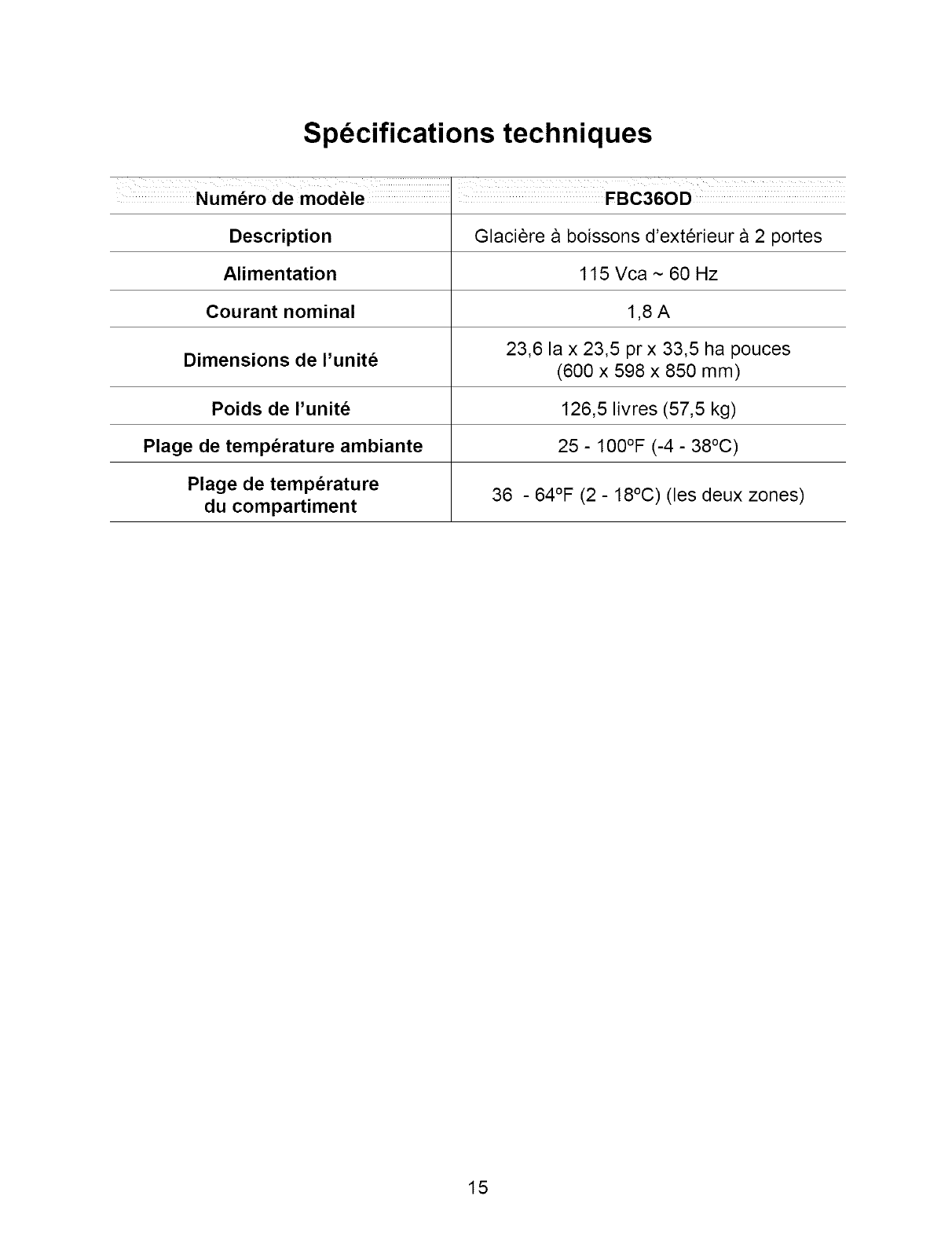

Specifications techniques
Num_ro de module FBC360D
Description Glaciere & boissons d'ext6rieur a 2 portes
Alimentation 115 Vca ~ 60 Hz
Courant nominal 1,8 A
Dimensions de I'unite 23,6 la x 23,5 pr x 33,5 ha pouces
(600 x 598 x 850 mm)
Poids de I'unite 126,5 livres (57,5 kg)
Plage de temperature ambiante 25 - 100°F (-4 - 38°C)
Plage de temperature 36 - 64°F (2 - 18°C) (les deux zones)
du compartiment
15

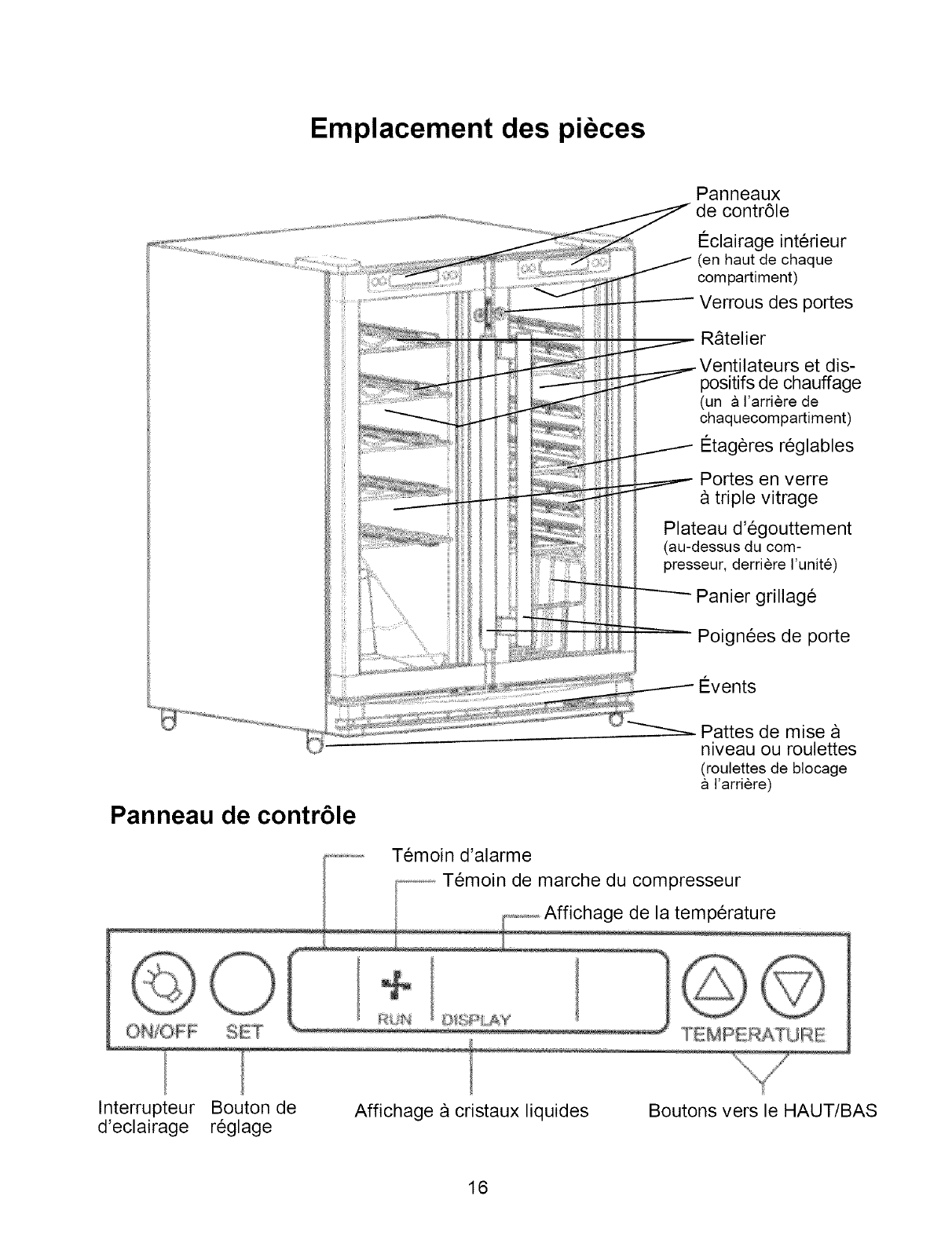

Emplacement des pi_ces
Panneaux
de contr61e
#clairage int6rieur
(en haut de chaque
compartiment)
Verrous des portes
R_telier
et dis-
positifs de chauffage
(un a I'arriere de
chaquecompartiment)
#tagCres r6glables
Portes en verre
triple vitrage
Plateau d'6gouttement
(au-dessus du com-
presseur, derriere I'unite)
Panier grillag6
Poignees de porte
I_vents
Panneau de contr61e
Pattes de mise
niveau ou roulettes
(roulettes de blocage
I'arriere)
Interrupteur Bouton de
d'eclairage r6glage Affichage a cristaux liquides Boutons vers le HAUT/BAS
16

Installation
Retirez I'emballage ext6rieur et int6rieur. Essuyez bien I'ext6rieur de la glaciere
boissons a I'aide d'un chiffon doux sec. Essuyez I'interieur de la glaciere a I'aide d'un
chiffon propre humidifie avec de I'eau tiede.
L'air doit circuler librement a I'avant de la glaciere a boissons. #vitez de placer la glaciere &
proximite de toute source de chaleur ou d'humidite ou encore sous la lumiere directe du
soleil. La lumiere directe du soleil risque d'endommager la finition et les sources de
chaleur placees a proximite risquent d'augmenter la consommation electrique. Ce
modele, FBC36OD, est fourni avec une protection en plastique qui doit 6tre placee sur la
glaciere Iorsqu'elle n'est pas utilisee.
Le glaciere & boissons FBC36OD est congue etre ou autonome ou encastre. II a des
ventilateurs motorises de I'arriere qui eloignent la chaleur (generee par le compresseur)
du compresseur en la faisant passer par I'avant de I'unite. Outre la necessite de bien
degager les events de I'avant, cette unite ne fait I'objet d'aucune autre exigence en
matiere de degagement.
Le glaciere a boissons d'exterieur FBC36OD est fourni avec deux ensembles de pattes:
a) Les quatre roulettes fournies sont destinees aux utilisations normales a I'exterieur :
2 pourvues d'un mecanisme de blocage a installer a I'arriere et 2 sans blocage pour
I'avant,. Les roulettes permettent de faire rouler I'unite pour la deplacer ; les
roulettes de I'arriere doivent etre bloquees des que celle-ci est en place.
b) Les quatre pattes de mises a niveau, qui doivent etre installees et tournees jusqu'a
ce que I'unite soit a niveau, sont destinees aux utilisations a I'interieur. Ceci reduit
les vibrations.
Branchement _lectrique
Important !Pour votre securite personnelle, cet appareil doit _tre mis correctement
la terre. En cas de court-circuit, la mise a la terre reduit le risque d'electrocution en
fournissant au courant electrique un fil de fuite. Cet appareil est equipe d'un cordon pourvu
d'un fil de terre et d'une fiche avec mise a la terre. La fiche doit 6tre inseree dans une prise
installee et mise a la terre correctement. Le fil de terre ne peut pas etre relic a un tuyau de
gaz, une conduite de chauffage, une conduite d'eau, une ligne de telephone ou un
paratonnerre. II ne peut pas etre remplace par le fil neutre d'alimentation monophasee.
Outre le fil de mise a la terre, un disjoncteur de fuite est egalement requis. Consultez un
electricien qualifie si vous ne comprenez pas bien toutes ces instructions de mise a la
terre.
NE COUPEZ PAS ET NE RETIREZ EN AUCUN CAS LA TROISI#ME BROCHE (MISE ,g,
LA TERRE) DE LA FICHE DU CORDON D'ALIMENTATION.
17

S'il s'avere inevitable d'installer I'unit6 dans un endroit humide, demandez a 1'61ectricien
d'installer une prise avec disjoncteur diff6rentiel (GFCl). L'absence de disjoncteur
diff6rentiel cr6e un risque d'61ectrocution.
Ne pas utiliser une rallonge
I_vitez d'utiliser une rallonge en raison des risques qu'elle peut cr6er dans certaines
conditions.
Utilisation de la glaci re aboissons
IMPORTANT :Une lois la glaciere a boissons install6e, attendez 24 heures avant de la
brancher. Dans le cas contraire, il est possible que I'unit6 ne fonctionne pas correctement.
Conception _ deux compartiments
La glaci¢re a boissons FBC36OD est fournie avec deux compartiments s6par6s. Chaque
compartiment a sa propre porte et un panneau de contr61e s6pare. Le compartiment du
c6t6 droit est pourvu de 3 6tag¢res de fil plates, chrom6es et ajustables et d'un panier
grillage pour les canettes et bouteilles de boissons telles que les bieres, I'eau et les sodas.
Le compartiment de gauche du mod¢le FBC36OD est fourni avec un r&telier a vin,
compose de 5 6tag¢res grillag6es horizontales et d'une 6tag¢re inclinee, pouvant contenir
18 bouteilles de vin standard au total. Cette conception vous permet de faire fonctionner
un compartiment ou les deux et de r6gler chacun d'eux sur une temperature differente.
Chaque panneau de contr61e affiche la temperature int6rieure actuelle du compartiment et
vous permet d'allumer ou d'eteindre ind6pendamment 1'6clairage int6rieur. Le mode
d'emploi ci-dessous est valable pour les deux compartiments et doit etre applique
separement.
MODE D'EMPLOI
Mettre I'unite en marche
La glaciere a boissons se met en marche automatiquement Iorsque vous la branchez.
Si vous desirez utiliser le reglage de temperature automatique (par d6faut), vous n'avez
rien d'autre a faire. Le mod¢le FBC36OD regle automatiquement la temperature du
compartiment a vin sur 55°F (13°C) et celle du compartiment des boissons sur 41°F (5°C).
Reportez-vous a la section suivante si vous d6sirez regler la temperature.
18

R_glages de temperature
Alors que le vin se conserve mieux a des temp6ratures comprises entre 56 et 58 degr6s
Fahrenheff (13 et 14 degr6s Celsius), I'unit6 d'ext6rieur FBC360D vous permet
6galement de conserver le vin a la temp6rature a laquelle vous le boirez. En g6n6ral, le
VIN ROUGE doit 8tre conserv6 a 60-61°F (15-16°C) et le VIN BLANC, qui est en g6n6ral
servi plus froid, a 54-55°t= (12-13°C) de pr6f6rence. Pour les bieres et les sodas,
choisissez la temp6rature convenant le mieux a vos invit6s ainsi qu'a vous-m8me.
Pour r6gler la temp6rature, appuyez sur le bouton SET (r6gler), puis utilisez les touches
vers le HAUT/BAS pour atteindre la temp6rature pr6f6r6e. Par exemple, si vous
conservez du vin rouge, vous pouvez r6gler la temp6rature sur 61 degr6s Fahrenheit (16
degr6s Celsius).
Lorsque la bonne temp6rature apparaft sur la fenetre d'affichage du panneau de contr61e,
appuyez sur SET (r6gler) pour confirmer. N'oubliez pas que, chaque compartiment ayant
des contr61es s6par6s, vous devrez r6gler s6par6ment la temperature des deux
compartiments.
VEUILLEZ NOTER : L'air froid descendant et I'air chaud montant, le bas et le haut de
I'unit6 seront a des temperatures 16gerement differentes. La sonde de temperature est
situee au milieu de chaque compartiment et enregistre la temperature a ce point. La
temperature du bas de I'unite sera toujours legerement inferieure.
Plateau d'6gouttement
Un plateau en plastique est place sous le compresseur, a I'arriere de I'unite (pres du bas).
Ce plateau recueille I'eau qui se condense a I'interieur de I'appareil. La chaleur provenant
du fonctionnement normal du compresseur devrait faire evaporer I'eau recueillie dans le
plateau.
I_clairage int6rieur
Chaque compartiment est pourvu d'un eclairage interieur qui peut _tre allume ou eteint en
appuyant sur le bouton ON/OFF (marche/arret) situe a gauche du panneau de contr61e. II
est deconseille de laisser ces lampes allumees pendant trop Iongtemps, car elles elevent
la temperature interne des compartiments. Pour remplacer les ampoules, voir la page 21.
Temoin de marche du compresseur
Lorsque le compresseur de I'unite est en marche, I'un des panneaux de contr61e ou les
deux affichent des ic6nes mobiles representant un ventilateur en mouvement. Les ic6nes
s'immobilisent des que le compresseur s'arr6te de fonctionner.
M6morisation des reglages de temperature
L'unite a ete con_;ue pour <<se souvenir )>du dernier mode de fonctionnement sur lequel
elle a ete reglee. En cas de panne ou de toute autre coupure de courant, I'unite se regle
automatiquement sur les temperatures precedentes des que le courant se retablit.
19
