Fri-Jado 5 User manual

HOOD
EN (Original Instruction) 9123903 / 2009
USER MANUAL
Exhaust-Hood Type 5
Exhaust-Hood Type 5 AC
Exhaust-Hood Type 8
Exhaust-Hood Type 8 AC
WARNING
Read the instructions before using the machine.

HOOD
EN 2 / 16
KEEP THIS USER MANUAL FOR FUTURE USE
© 2020 Fri-Jado B.V., Oud Gastel, The Netherlands.
We advise you to contact your supplier for the guarantee period and conditions. Further we refer
to our General Terms and Conditions for Sales and Delivery that are available upon request.
The manufacturer does not accept any liability for damage or injury caused by failing to adhere to
these regulations or by not observing the usual caution or care in actions, operation, maintenance
or repair activities, even if not explicitly described in this manual.
As a result of constant commitment to improvement, it may happen that your unit deviates in detail
from what is described in this manual. For this reason, the given instructions are only a guideline
for the installation, use, maintenance and repair of the unit referred to in this manual. This manual
has been composed with the utmost care. The manufacturer shall, however, not be held
responsible for any mistakes in this manual nor for any consequences thereof. The user is allowed
to copy this manual for own use. Further all rights are reserved and nothing in this manual may be
reproduced and/or made public in any way.
Modifications:
In case of unauthorized modifications in or on the unit, every liability on the part of the
manufacturer becomes null and void.

HOOD
EN 3 / 16
CONTENTS
1. INTRODUCTION..............................................................................................................4
1.1 General.............................................................................................................................4
1.2 Identification of the unit.....................................................................................................4
1.3 Pictograms and symbols...................................................................................................4
1.4 Safety instructions ............................................................................................................5
1.5 Service and technical support...........................................................................................5
1.6 Storage.............................................................................................................................6
1.7 Disposal............................................................................................................................6
2. DESCRIPTION OF THE UNIT..........................................................................................6
2.1 Technical description........................................................................................................6
2.2 Accessories......................................................................................................................6
3. INSTALLATION AND FIRST USE ................................................................................... 6
3.1 Unpacking the unit............................................................................................................6
3.2 Installation ........................................................................................................................7
3.2.1 Prepare the Exhaust-Hood ..........................................................................................7
3.2.2 Installing the Exhaust-Hood on a TDR.........................................................................8
3.3 First use............................................................................................................................8
4. OPERATION AND USE ...................................................................................................9
4.1 Switching on the unit.........................................................................................................9
4.2 Filter position detection (USA models only).......................................................................9
4.3 Charcoal (odor) filter pollution detection (USA models only) .............................................9
4.4 Switching off the unit.........................................................................................................9
4.5 Warnings on the grill unit (USA models only)....................................................................9
4.5.1 Message hood operation.............................................................................................9
4.5.2 Message filter placing..................................................................................................9
4.5.3 Message filter polluted.................................................................................................9
5. CLEANING AND MAINTENANCE.................................................................................10
5.1 Maintenance schedule....................................................................................................10
5.2 Weekly maintenance.......................................................................................................10
5.3 Semi-annual maintenance ..............................................................................................11
6. MALFUNCTIONS AND SERVICE.................................................................................. 12
6.1 Check the fan .................................................................................................................12
6.2 Replacing the mains cord ...............................................................................................12
7. TECHNICAL SPECIFICATIONS ....................................................................................13

HOOD
EN 4 / 16
1. INTRODUCTION
1.1 General
This manual describes the Exhaust-Hood. The features and controls are being described, along
with directions for the safest and most efficient use, in order to guarantee a long life of the unit.
The Exhaust-Hood is available for different type(s) of Fri-Jado equipment (Rotisserie). It can also
be placed on single or stacked (double) units.
All pictograms, symbols and drawings in this manual apply to all Exhaust-Hood models.
1.2 Identification of the unit
The identification plate can be found on the outside of the machine, and contains the following
data:
•Name of the supplier or the manufacturer
•Model
•Serial number
•Year of construction
•Voltage
•Frequency
•Power consumption
1.3 Pictograms and symbols
In this manual, the following pictograms and symbols are used:
WARNING
Possible physical injury or serious damage to the unit, if the instructions are not
carefully followed.
WARNING
Hazardous electrical voltage.
WARNING
Danger of getting injured by hot surfaces.
Suggestions and recommendations to simplify indicated actions.
Recycling symbol.

HOOD
EN 5 / 16
1.4 Safety instructions
WARNING
The outside of the unit can be very hot.
WARNING
Place no load on top of the unit.
WARNING
See installation instructions for grounding requirements.
WARNING
Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly.
The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and
regulations.
The unit may be operated by qualified and authorized persons only. Anyone working on or with this
unit must be familiar with the contents of this manual and carefully follow all guidelines and
instructions. Never change the order of the steps to be performed. The management must instruct
the personnel on the basis of this manual and follow all instructions and regulations.
The pictograms, labels, instructions and warning signs attached to the unit, are part of the safety
measures. They may never be covered or removed, and have to be clearly visible during the entire
lifetime of the unit.
Immediately repair or replace damaged or illegible pictograms, warnings and instructions.
•To avoid short-circuiting, never clean the unit using a water hose. For cleaning instructions,
see section 5.
•During use, the unit can get very hot.
•The unit must be cleaned regularly to ensure proper functioning.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
1.5 Service and technical support
The electrical schematics of your unit is included. In case of malfunctions you can contact your
dealer/service agent. Make sure you have the following data available:
•Model.
•Serial number.
This data can be found on the identification plate.

HOOD
EN 6 / 16
1.6 Storage
If the unit will not be used temporarily, and will be stored, follow these instructions:
•Clean the unit thoroughly.
•Wrap the unit from getting dusty.
•Store the unit in a dry, non-condensing environment.
1.7 Disposal
Dispose of the machine, any components or lubricants removed from it safely in
accordance with all local and national safety and environment requirements.
2. DESCRIPTION OF THE UNIT
2.1 Technical description
The Exhaust-Hood use a fan to lead the emitted damp and odor through a set of filters.
The Exhaust-Hood is controlled by the main switch.
For optimal safety the filter positioning detection and charcoal (odor) filter pollution detection
prevents the Rotisserie(s) from operating (American units only).
The plating of the unit is made of stainless steel.
The mains cable is provided with a plug.
2.2 Accessories
Your unit contains the following standard accessories:
•Grease filters (2 off).
•Charcoal filters (5 off).
•User manual.
For optional accessories see: www.frijado.com.
3. INSTALLATION AND FIRST USE
All packing materials used for this unit are suited for recycling.
After unpacking, check the state of the unit. In case of damage, store the packing material, and
contact the transporter within fifteen working days after receiving the goods.
3.1 Unpacking the unit
The Exhaust-Hood is placed in a cardboard box with protective corners on a wooden pallet.
The charcoal filters are with their plastic protection cover placed on top of the Exhaust-Hood.
Around the box there are two tightening straps.
Leave the plastic protection around the charcoal filters as long as possible to
minimize the time reduction of the filters.

HOOD
EN 7 / 16
1. Take the charcoal filters out of the box.
2. Take the unit out of the box.
3. Remove all remaining packing materials and protective layers from the Exhaust-Hood.
3.2 Installation
WARNING
Place the Exhaust Hood only on a levelled unit. A inclined plane of maximum 5° is
allowed.
WARNING
Ensure there is sufficient freedom above the unit.
WARNING
Note the mass of the Exhaust-Hood. Lift the hood with two or more persons.
WARNING
Electric chock hazard. Grounding instructions: only connect the appliance to an
alternating current provided by a grounded wall socket, with a mains voltage in
accordance with the information indicated on the data plate of the appliance.
It is the consumer's responsibility to make sure the electrical installation conforms
with current national and local codes and wiring regulations.
Do not use a multi plug or extension cord. Such can result in fire, electrical shock, or
other personal injury.
Failure to follow these instructions can result in death or serious injury.
Remove the grease filters prior placing the Exhaust-Hood to reduce mass for easier
lifting.
This section describes the installation on a single TDR unit. Nevertheless installation
is possible on other or double units.
3.2.1 Prepare the Exhaust-Hood

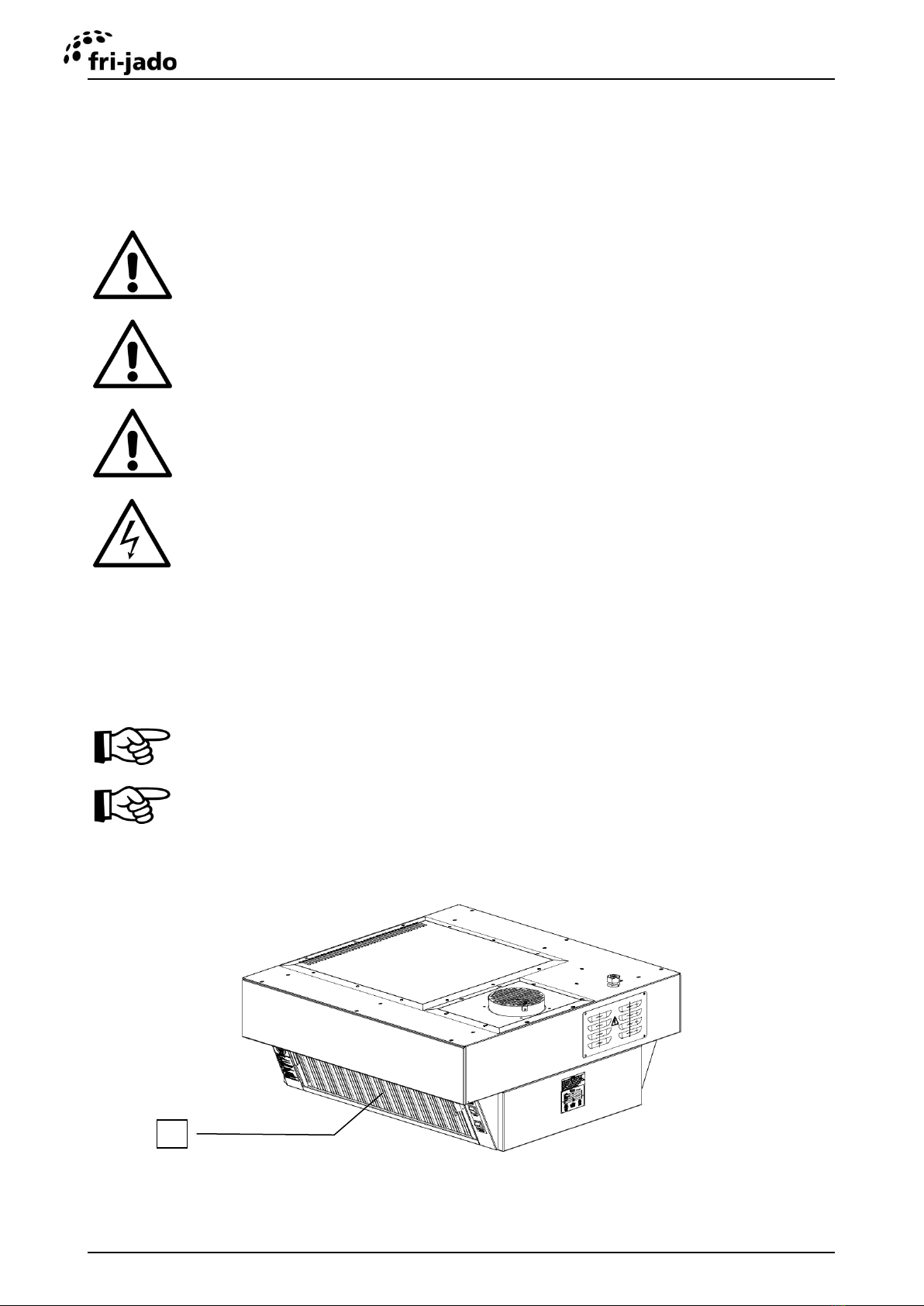

1. Remove the two grease filters [1]. Refer to section 5.2
1

HOOD
EN 8 / 16
3.2.2 Installing the Exhaust-Hood on a TDR

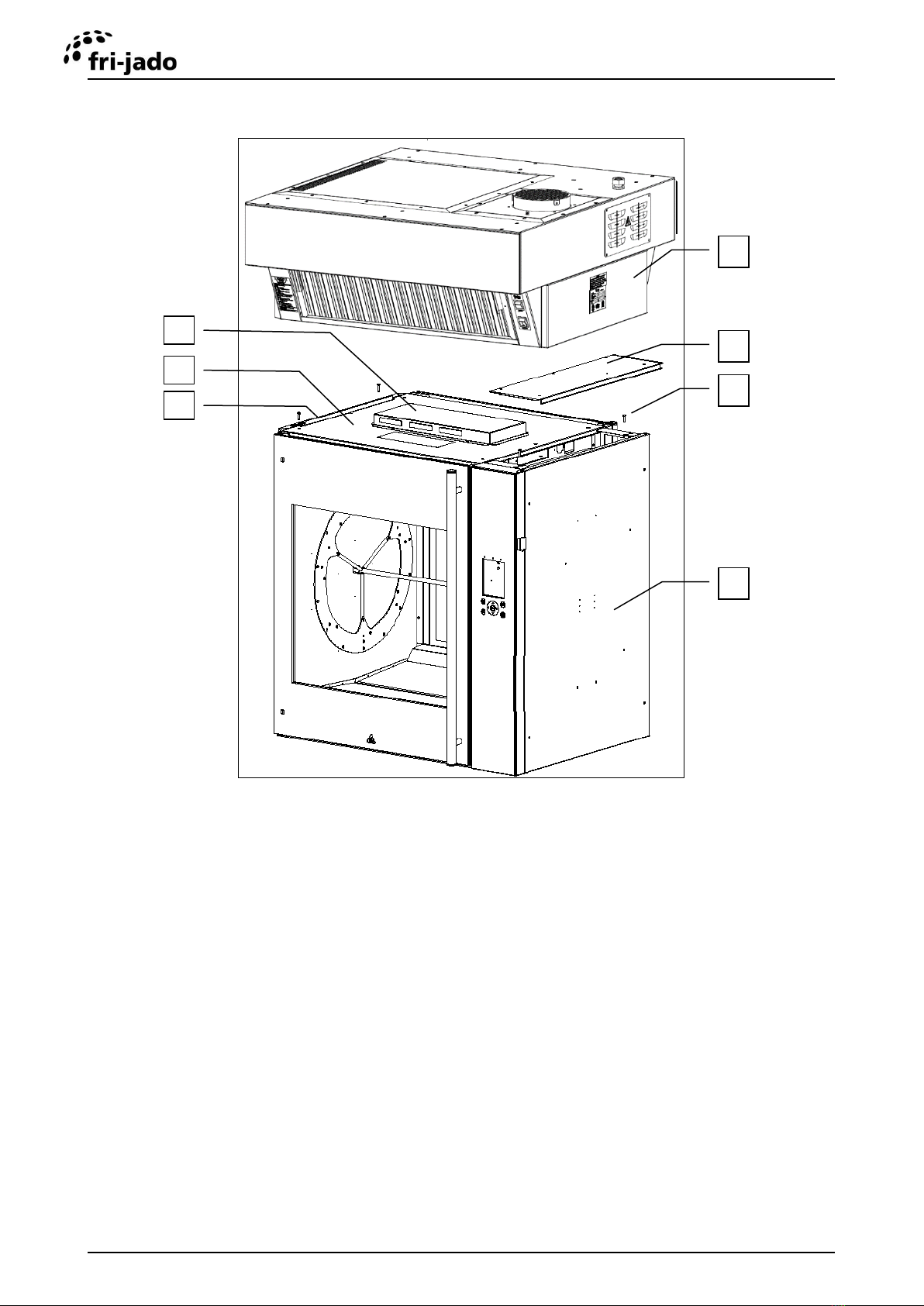

1. Demount the TDR side plates [4] and [5].
2. TDR5: Demount the TDR top plate [2] above the control compartment.
TDR8: Demount the TDR top plate [6], demount the ventilation hatch [7] and assemble it
on the supplied new top plate.
3. Place the Exhaust-Hood [1] on top of the TDR with the Exhaust-Hood exhaust direct
above the TDR control section. Take care of the wiring connected to the bottom of the
hood! (only USA models).
4. Secure the Exhaust-Hood with the four bolts [3] to the TDR.
5. Connect the wiring to the TDR according the electrical diagram of the TDR (only USA
models).
6. Remount the side plates [4] and [5].
3.3 First use
1. Clean the interior thoroughly.
2. Place the charcoal filters (without the protective plastic bags). Refer to section 5.3.
3. Place the grease-filters. Refer to section 5.2.
4. Switch on the power.
5. Reset the pollution function (only USA models).
6. Check the correct function of the hood.
5
4
3
1
2
7
6

HOOD
EN 9 / 16
Error 92
Hood: Filter polluted
Check product
Error 91
Hood: Filter placing
Check product
Hood: not active
Activate Hood
4. OPERATION AND USE
4.1 Switching on the unit
Switch on the Exhaust-Hood with the power button.
4.2 Filter position detection (USA models only)
The hood is provided with a detection on every filter. When they are not
placed correctly the warning light will lit and the Rotisserie(s) below the
hood will be prevented from operating.
Ensure that all filters are placed correctly.
4.3 Charcoal (odor) filter pollution detection (USA models
only)
The charcoal filters are monitored upon pollution. Once pollution is
detected the function will be set and the Grill(s) below the hood will be
prevented from operating and the reset button will lit.
Replace the charcoal filters and press the reset button to activate the
function.
4.4 Switching off the unit
Switch off the Exhaust-Hood with the power button.
4.5 Warnings on the grill unit (USA models only)
When the Exhaust hood is not in correct operating condition the following messages can be
shown:
4.5.1 Message hood operation
1. Switch on the Exhaust Hood.
2. Press the Exhaust Hood reset button.
4.5.2 Message filter placing
1. Check the correct placing of the hood
Charcoal filters (5 off) and grease filters (2 off).
4.5.3 Message filter polluted
1. Replace the polluted filters.
2. Reset the filter detection.

HOOD
EN 10 / 16
5. CLEANING AND MAINTENANCE
WARNING
Appliance must be disconnected from the power supply during cleaning or
maintenance and when replacing parts.
WARNING
Never use a water hose for cleaning. Water can seep into the unit through the
ventilation holes of the unit.
Because of hygiene aspects and optimum condition of the unit it is of utmost
importance to keep a daily cleaning pattern from first use onwards.
5.1 Maintenance schedule
Item
Action
Frequency
Exterior
•Clean, see section 5.2
•Use Stainless Steel cleaning spray to remove
stains, and restoring the gloss.
Weekly
Grease-filters
•Clean, see section 5.2
Weekly
Charcoal (odor) filters
•Replace, see section 5.3
Semi annual
5.2 Weekly maintenance
WARNING
Do not use aggressive or abrasive materials. These will damage the surface which
will make it more difficult to remove dirt.
The exterior:
1. Clean the exterior with cleaning agent or hot water combined with an appropriate cleaning
agent.
2. Dry the exterior thoroughly by using a dry cloth.
Clean the Grease-filters:
1. Switch off the unit.
2. Remove the grease-filters by moving the metal housing upwards and pull the bottom
section out of the Exhaust-Hood.
3. Clean the filters with cleaning agent or hot water combined with an appropriate cleaning
agent. Let the filters to dry.
4. Reassemble the grease-filters in reverse order.
5. Switch on the unit.
6. Press the reset button (Only USA models).

HOOD
EN 11 / 16
5.3 Semi-annual maintenance
Exchange the charcoal filters:
Use only original filters.
1. Switch off the unit.
2. Remove first the grease filters, refer to section 5.2.
3. Remove the charcoal filters. Unlock the charcoal filters by turn them counter clockwise.
4. Remove the support bracket [3] (type 8 only).
5. Place new charcoal filters in reverse order.
6. Replace the grease filters.
7. Switch on the unit.
8. Press the reset button (USA models only).
2
1
3

HOOD
EN 12 / 16
6. MALFUNCTIONS AND SERVICE
Before you contact your supplier/dealer in case of a malfunction, there are some items you can
check yourself:
•Is the power supply working properly?
•Check fuses and differential switch.
Item
Malfunction
Possible action
Fan
Fan not spinning
•Switch on the unit
•Check fuses and/or the differential
switch
•Check the fan, see section 6.1
Lamp filter
position
illuminated (*)
One or more filters not placed
correctly
•Verify the position of all charcoal
and grease filters
Reset button
illuminated (*)
Charcoal filter detection disabled.
•Press the reset button
•Replace the charcoal filters and
press the reset button
Rotisserie does
not operate (*)
Hood filters not placed correctly
and or charcoal filters pollution
detection deactivated
•Ensure correct placing of the filters
(lamp position is off)
•Press the reset button
Mains cord
Damaged
•Replace, see section 6.2
(*) USA models only.
6.1 Check the fan
WARNING
Remove the power plug from the wall socket.
1. Switch off the unit.
2. Remove the power plug from the wall socket.
3. Remove fan plate on top of the Exhaust-Hood.
4. Check what's blocking the fan blade.
6.2 Replacing the mains cord
WARNING
Hazardous electrical voltage.
If the mains cord is damaged, it must be replaced by the manufacturer, his service agent or a
similarly qualified person in order to avoid hazards.

HOOD
EN 13 / 16
7. TECHNICAL SPECIFICATIONS
WARNING
Consult the identification plate to get the proper specifications of the unit. The
electrical data may vary from country to country.
European Models
Model
Type 5
Type 5 AC
Type 8
Type 8 AC
Dimensions
- Width
835 mm
883 mm
995 mm
1045 mm
- Depth
852 mm
928 mm
971 mm
1080 mm
- Height
370 mm
370 mm
370 mm
370 mm
Weight
- Gross
90 kg
95 kg
97 kg
102 kg
- Net
72 kg
77 kg
77 kg
82 kg
Maximum ambient temperature
35 °C
35 °C
35 °C
35 °C
Sound pressure
< 70 dB(A)
< 70 dB(A)
< 70 dB(A)
< 70 dB(A)
Electrical installation
- Voltage
1N~ 230 V
1N~ 230 V
1N~ 230 V
1N~ 230 V
- Frequency
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
- Required power
0.4 kW
0.4 kW
0.4 kW
0.4 kW
- Max. nom. current
1.5/1.7 A
1.5/1.7 A
1.5/1.7 A
1.5/1.7 A
Plug1
Schuko 16 A
Schuko 16 A
Schuko 16 A
Schuko 16 A
Length of power cable
2,20 m
2,20 m
2,20 m
2,20 m
American Models
Model
Type 5
Type 8
Type 8 AC
Dimensions
- Width
33 inch
39 ¼ inch
41 ½ inch
- Depth
33 ½ inch
38 ¼ inch
42 ½ inch
- Height
14 ½ inch
14 ½ inch
14 ½ inch
Weight
- Gross
198 lbs
214 lbs
225 lbs
- Net
159 lbs
170 lbs
181 lbs
Maximum ambient temperature
95 °F
95 °F
95 °F
Sound pressure
< 70 dB(A)
< 70 dB(A)
< 70 dB(A)
Electrical installation
- Voltage
1~ 208 V
1~ 208 V
1~ 208 V
- Frequency
50/60 Hz
50/60 Hz
50/60 Hz
- Required power
0.4 kW
0.4 kW
0.4 kW
- Max. nom. current
1.5/1.7 A
1.5/1.7 A
1.5/1.7 A
Plug
NEMA 6-15P
NEMA 6-15P
NEMA 6-15P
Length of power cable
75 inch
75 inch
75 inch
1
Depending on Country

HOOD
EN 14 / 16
Notes.

HOOD
EN 15 / 16
Notes.

HOOD
EN 16 / 16
Fri-Jado Inc.
1401 Davey Road, Suite 100
Woodridge IL 60517
USA
Tel: [phone]
www.frijado.com
