Fridgmaster MTRL109A Operating instructions
How to use your new
Larder fridge
Model MTRL109A
FRIDGE MTRL109A D2.indd 1 26/3/08 09:59:32
2
SAFETY
WARNING
IT IS HAZARDOUS FOR ANYONE
OTHER THAN AUTHORISED SERVICE
PERSONNEL TO CARRY OUT
SERVICING OR REPAIRS WHICH
INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN
ELECTRIC SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
Locks
If your larder fridge is fitted with a lock to prevent children being
entrapped, keep the key out of reach and not in the vicinity of the
appliance. If disposing of an old larder fridge break off any old locks
or latches as a safeguard.
The appliance was designed and manufactured in compliance with
international safety standards. The following warnings are provided for
safety reasons and must be read carefully.
This appliance complies with the following
Community Directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;
- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility)
and subsequent amendments;
- 2002/96/CE.
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during
transit. Please contribute to a better environment by disposing of
the packaging materials in an environmentally friendly manner.
Observe local environmental standards when disposing packaging
material for recycling purposes.
Please ask your dealer or inquire at your local authority about current
means of disposal.
Keep packaging materials out of the reach of children! It can become
a choking or suffocation hazard.
Disposal of your old appliance
Old appliances are not worthless rubbish! Recycling old
appliances can reclaim valuable raw materials.
This appliance has been identified in accordance with the
European directive 2002/96/EC on Waste Electrical and
Electronic Equipment – WEEE.
The directive requires that old household electronic appliances must not
be disposed of in the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to optimise the recovery
and recycling of the materials they contain and reduce the impact on
human health and the environment. The crossed out “wheeled bin” symbol
on the product reminds you of your obligation, that when you dispose of
the appliance it must be separately collected.
Consumers may take their old appliances to public waste collection areas,
other communal collection areas, or if national legislation allows return it
to a retailer when purchasing a similar new product.
Old appliances still have some residual value. An environmentally friendly
method of disposal will ensure that valuable raw materials can be
recovered and used again. The refrigerant used in your appliance and
insulation materials require special disposal procedures. Ensure that none
of the pipes on the back of the appliance are damaged prior to disposal.
Up to date information concerning options for disposing of your old
appliance and packaging from the new one can be obtained from your
local council office.
Redundant appliances:
Cut off the mains plug and discard it. Refrigerators contain refrigerants
and the insulation contains gases. Refrigerant and gases must be disposed
of properly.
Ensure the tubing of the refrigerant circuit is not damaged prior to
proper disposal.
FRIDGE MTRL109A D2.indd 2 26/3/08 09:59:33
3
Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully.
They contain important information on how to install, use and maintain
the appliance. Keep all documentation for subsequent use or for the
next owner.
Technical safety
This appliance contains a small quantity of environmentally friendly but
flammable R600a refrigerant. Ensure that the tubing of the refrigeration
circuit is not damaged during transportation and installation. Leaking
refrigerant may ignite.
If damage has occurred
- Keep naked flames and/or ignition sources away from the appliance.
- Pull out the mains plug.
- Thoroughly ventilate the room for several minutes.
- Notify customer services.
The more refrigerant an appliance contains, the larger the room must be.
Leaking refrigerant can form a flammable gas-air mixture in rooms which
are too small. The room must be at least 1 m per 8 g of refrigerant. The
amount of refrigerant in your appliance is indicated on the rating label
on your appliance.
Important information when using the appliance
• Thisapplianceisnotintendedforusebypersons(includingchildren)
with reduced physical, sensory or mental capabilities, or experience or
knowledge, unless they have been given supervision or instructions
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play
with the appliance.
• Ifthesupplycordisdamaged,itmustbereplacedbythe
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• Neveruseelectricalappliancesinsidethelarderfridge(e.g.heater,
electric ice maker, etc.). Explosion hazard!
• Neveruseasteamcleanertocleantheappliance.Thesteam
may penetrate electrical parts and cause a short circuit. Risk of
electric shock!
• Donotstoreproductswhichcontainflammablepropellants(e.g.spray
cans) or explosive substances in the appliance. Explosion hazard!
• Donotstandorsupportyourselfonthebase,drawersordoors,etc.
• Beforecleaningtheappliance,pulloutthemainsplugorswitchoff
the fuse. Do not pull out the mains plug by tugging the cable.
• Bottlescontainingahighpercentageofalcoholmustbesealedand
stored in an upright position.
• Keepplasticpartsandthedoorsealfreeofoilandgrease.Otherwise,
the plastic and door seal will become porous.
• Nevercoverorblocktheventilationopeningsfortheappliance.
• Donotscrapeofffrostorstuckfrozenfoodwithaknifeorpointed
object. You could damage the refrigerant tubing. Leaking refrigerant
may ignite. Only use a plastic scraper.
• Inthecaseofmalfunction,undernocircumstancesshouldyou
attempt to repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or further malfunctioning
to the appliance.
• Whentheapplianceisunpluggedpleasewaitfor5minutesbefore
plugging it in again. Otherwise, the compressor will be overloaded.
• Donotuseelectricalappliancessuchasahairdryerorheatersnear
your larder fridge.
• Donotstoreinflammablegasesorliquidsinsideyourlarderfridge.
Children in the household
• Keepchildrenawayfromthepackaginganditsparts.Dangerof
suffocation from folding cardboard and plastic film!
• Donotallowchildrentotamperwiththecontrolsorplaywiththe
appliance. It is not a toy. Under no circumstances should children be
allowed to sit on the bins or hang from the door.
• Iftheappliancefeaturesalock,keepthekeyoutofthereach
of children.
General requirements
• Theapplianceisdesignedfordomesticuseinsidethehomeandisnot
intended for commercial or industrial use.
• Theappliancemustbeusedtostorefoodproductsbyadultsonlyand
according to the instruction manual.
• Trytoavoidkeepingthedooropenforlongperiodsoropeningthe
door too frequently in order to conserve energy.
• Donotfilltheappliancewithtoomuchfood:coldairmustcirculate
freely for food to be preserved properly.
SAFETY
FRIDGE MTRL109A D2.indd 3 26/3/08 09:59:33
4
GETTING TO KNOW YOUR LARDER FRIDGE INSTALLATION
Location
When selecting a position for your larder fridge you should make sure the floor is flat and firm and the room is
well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your larder fridge
near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight. Never place the larder fridge in a wall
recess or into fitted cabinets or furniture. When your larder fridge is working, the grille at the back may become
hot and the sides warm. It must therefore be installed so that there is 2cm (3/4”) of free space at the sides and
5cm at the rear. There is a built in airflow grille at the back of the larder fridge lid to ensure the correct distance
from the rear wall. The larder fridge door can either open to the right or the left, depending on the location which

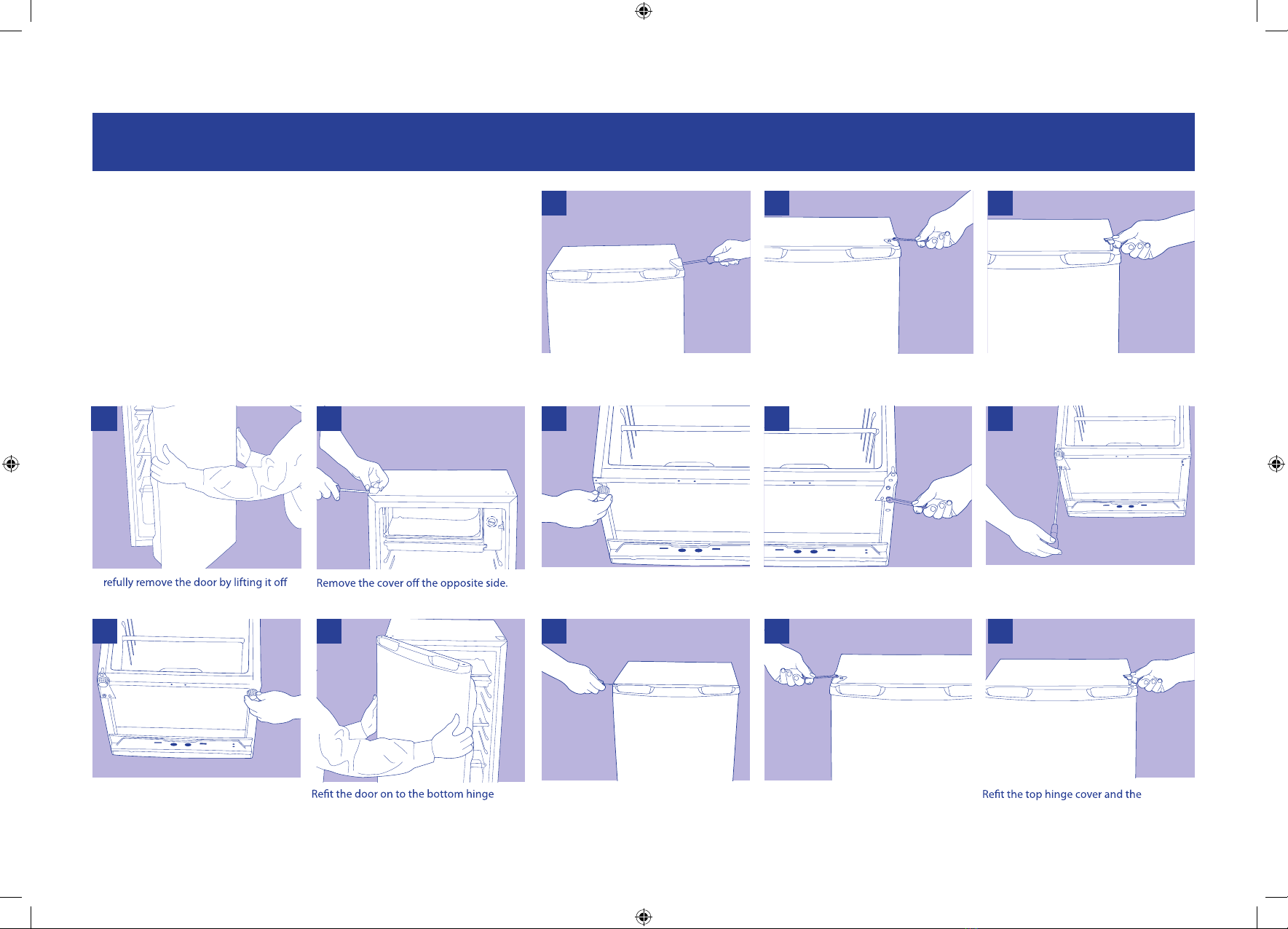

suits you. See page 6 if you want reverse the door swing. Do not drape the larder fridge with any covering.
Levelling the larder fridge
Once the larder fridge is put in its final location, make sure it is level. To do this use
the two levelling feet at the front of the larder fridge. If the larder fridge is not level,
the doors and magnetic seal alignments will be affected.
Cleaning before use
Wipe the inside of the larder fridge with a weak solution of bicarbonate of soda, then rinse with warm water using
a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. You could clean the
larder fridge externally with wax polish. If you require more information refer to CLEANING on page 8.
Before plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the larder fridge. If not,

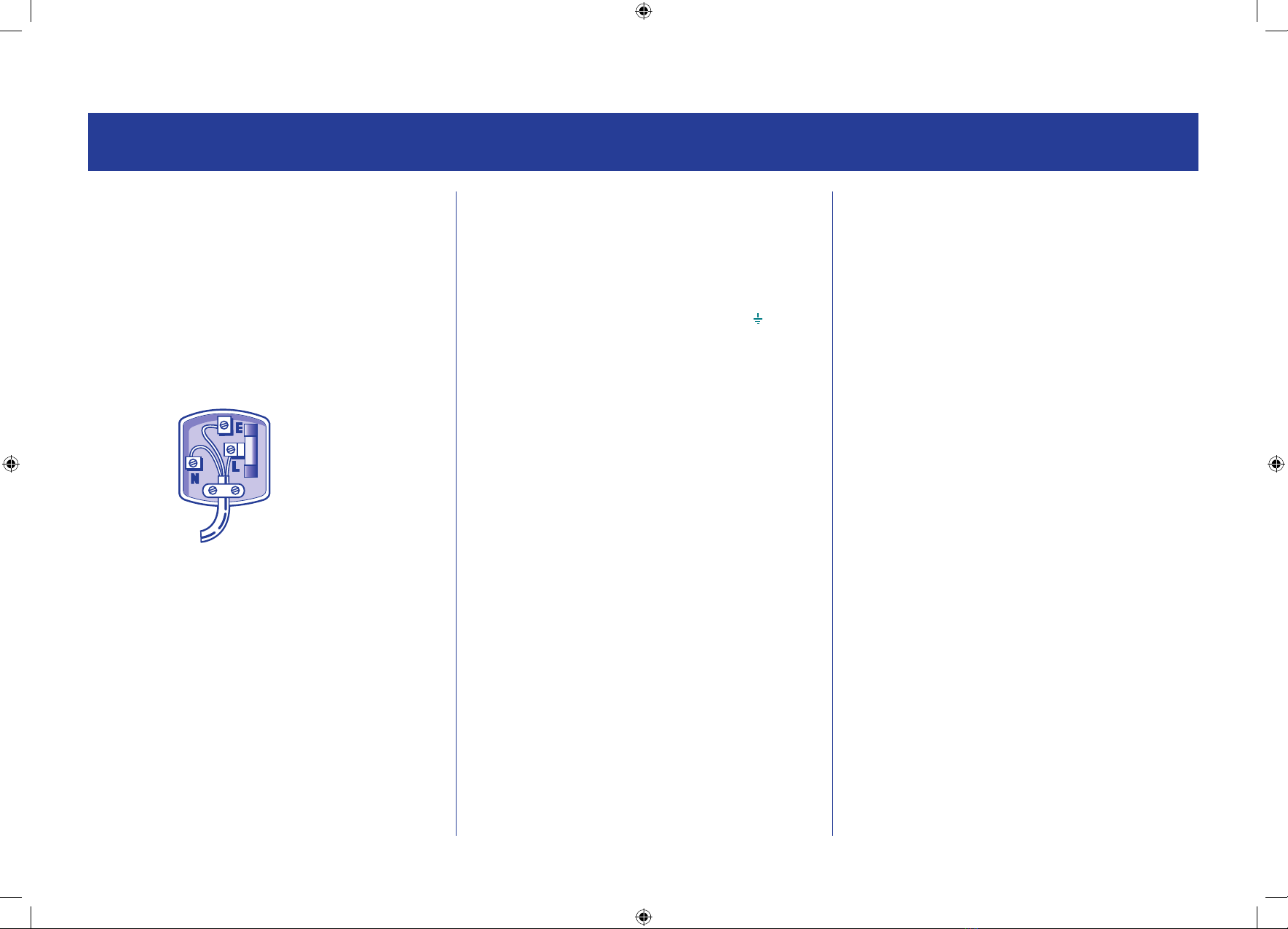

see the section called ELECTRICAL CONNECTIONS on page 9.
Before switching on!
DO NOT SWITCH ON UNTIL TWO HOURS AFTER MOVING THE LARDER FRIDGE. The coolant fluid needs time to settle.
Before using your larder fridge
Beforeplacinganyfoodinyourlarderfridge,turnthelarderfridgeonandwaitfor24hourstomakesureitis
working properly and to allow the larder fridge to fall to the correct temperature.
Before use
Please read these instructions carefully before using your new Fridgemaster
larder fridge. The larder fridge is for indoor and domestic use only.

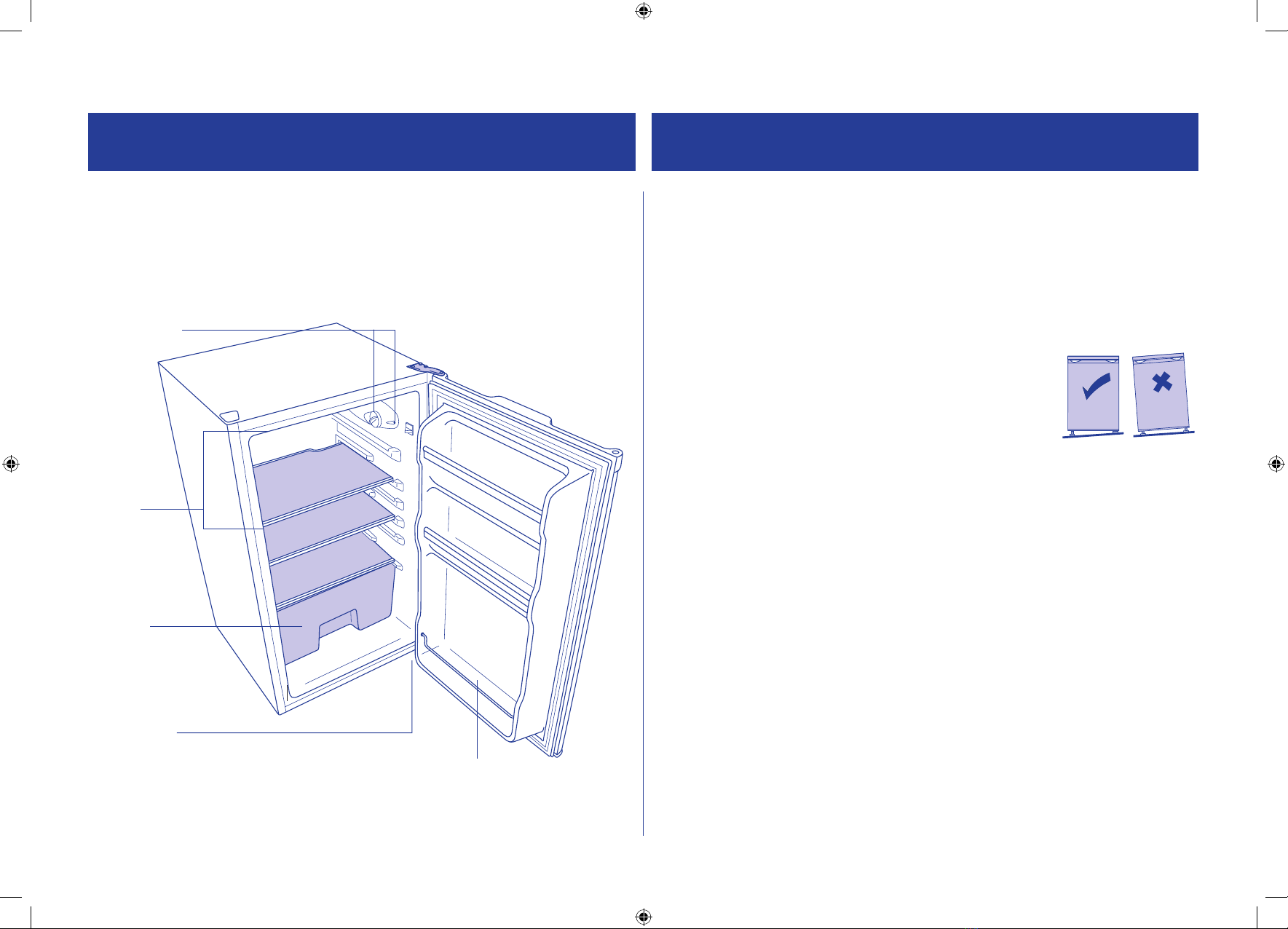

INTERNAL LIGHT
AND THERMOSTAT
SHELVES
BOTTLE STORAGE
LEVELLING FEET
SALAD BIN
FRIDGE MTRL109A D2.indd 4 26/3/08 09:59:34
5
USING YOUR FRIDGE
Switching on your larder fridge
1 Beforeconnectingthelarderfridgetothemainssupply,makesure
that the thermostat control dial located inside the larder fridge
compartment next to the internal light, is set between 3 to 4 but
closer to 3, which is the correct setting for use in a room of
average temperature.
2Wait 24 hours before placing food in the cabinet to allow for the
larder fridge to fall to the correct temperature.
Adjusting the temperature
The internal temperature of your larder fridge is controlled by the
thermostat control dial. There are 8 settings. Position 8 makes the larder
fridge coldest. Position 1 makes it the warmest. To adjust the temperature
turn the thermostat control dial to the preferred setting. Position 0 will
turn the larder fridge off.
Is this larder fridge cold enough?
If you are concerned that your larder fridge is not being kept cold enough,
and wish to check the temperature, you will need a special fridge/freezer
thermometer available from most supermarkets and hardware shops.
Place the thermometer on the middle shelf of the larder fridge, where it
can be read easily. Leave overnight, the temperature in the larder fridge
should be between 1˚C and 5˚C.
Noises inside the larder fridge!
If you have not owned a larder fridge before, you may notice that it
makes some rather unusual noises. Most of these are perfectly normal,
but you should be aware of them!
Gurgling, whooshing
These noises are caused by the circulation of the refrigerant liquid in the cooling
system. It has become more pronounced since the introduction of CFC free gases.
This is not a fault and will not affect the performance of your larder fridge.
Humming, purring or pulsating
This is the compressor motor working, as it pumps the refrigerant around
the system.
Tips for keeping food perfect in the
larder fridge
Take extra care with meat and fish
Cooked meats should always be stored on a shelf above raw meats to
avoid bacterial transfer. Keep raw meats on a plate which is large enough
to collect juices and cover it with cling film or foil.
Leave space around food
This will allow cold air to circulate around the larder fridge.
Wrap up food!
To prevent transfer of flavours and drying out, food should be separately
packed or covered. Fruit and vegetables need not be wrapped.
Let pre-cooked food cool properly
Always let pre-cooked food cool down before you put it in the larder
fridge. This will stop the internal temperature rising.
Shut the door!
To prevent cold air escaping, limit the number of times you open the door.
When returning from shopping, sort foods to be kept in your larder fridge
while the door is closed.
Where to store your foods in the larder fridge
Cool area
This is where to store foods which will keep longer if they are kept cool.
Milk, yogurt, fruit juices, hard cheeses eg, cheddar. Opened jars and
bottles of salad dressings, sauces and jams. Fats, eggs, butter, margarine,
low-fat spreads, cooking fats and lard. Eggs.
Coldest area: 1°C to 5°C
This is where foods which must be cold to keep them safe should be kept.
Raw and uncooked foods should always be wrapped.
• Pre-cookedchilledfoods,eg.readymeals,meatpies,softcheeses.
• Pre-cookedmeatseg.ham.
• Preparedsalads(includingpre-washedchopped,pre-packedmixed
green salads, rice, potato salad etc).
• Desserts,eg.fromagefrais,home-preparedfoodandleftoversor
Cream cakes.
Salad bin
This is the most humid part of the larder fridge. Vegetables, fruit, fresh salad
items eg. unwashed whole lettuce, whole tomatoes, radishes etc.
WERECOMMENDTHATALLPRODUCEKEPTINTHESALADBINISWRAPPED.
Note: Always wrap and store raw meat, poultry and fish on the lowest
shelf at the bottom of the refrigerator. This will stop them dripping onto,
or touching, other foods.
Do not store inflammable gases or liquids.
THERMOSTAT CONTROL DIAL
COOL
COOL
COLDEST
SALAD BIN
FRIDGE MTRL109A D2.indd 5 26/3/08 09:59:36
REVERSING THE DOOR SWING
6
The door of your larder fridge can
be reversed.
• deggulpnusiegdirfredralehterusnE
and empty.
•dnemmocereW youhave enoemos
to assist you.
Tools required
•Phillips style screwdriver.
•Flat bladed screwdriver.
•8mm socket or spanner.
•
When trying to gain access to the base of
the larder fridge, do not tip it back at more
than a 45° angle. Rest the larder fridge on
soft foam packaging or similar material to
avoid damaging the back of the appliance
Remove the top hinge cover. Remove the two hinge bolts with
a 8mm spanner.
Remove the top hinge.
Ca
the bottom hinge.
Remove both feet. Remove the bottom hinge bolts.
1 2 3
4 5 6
9
7
Fit the bottomhingeon theoppositeside.
84 5
511 12 1310
Replace both feet. .Fit thetophingeandtheboltsusingthe
8mm spanner.
Remove the blanking piece.
blanking piece
.
10mm socket or spanner
7

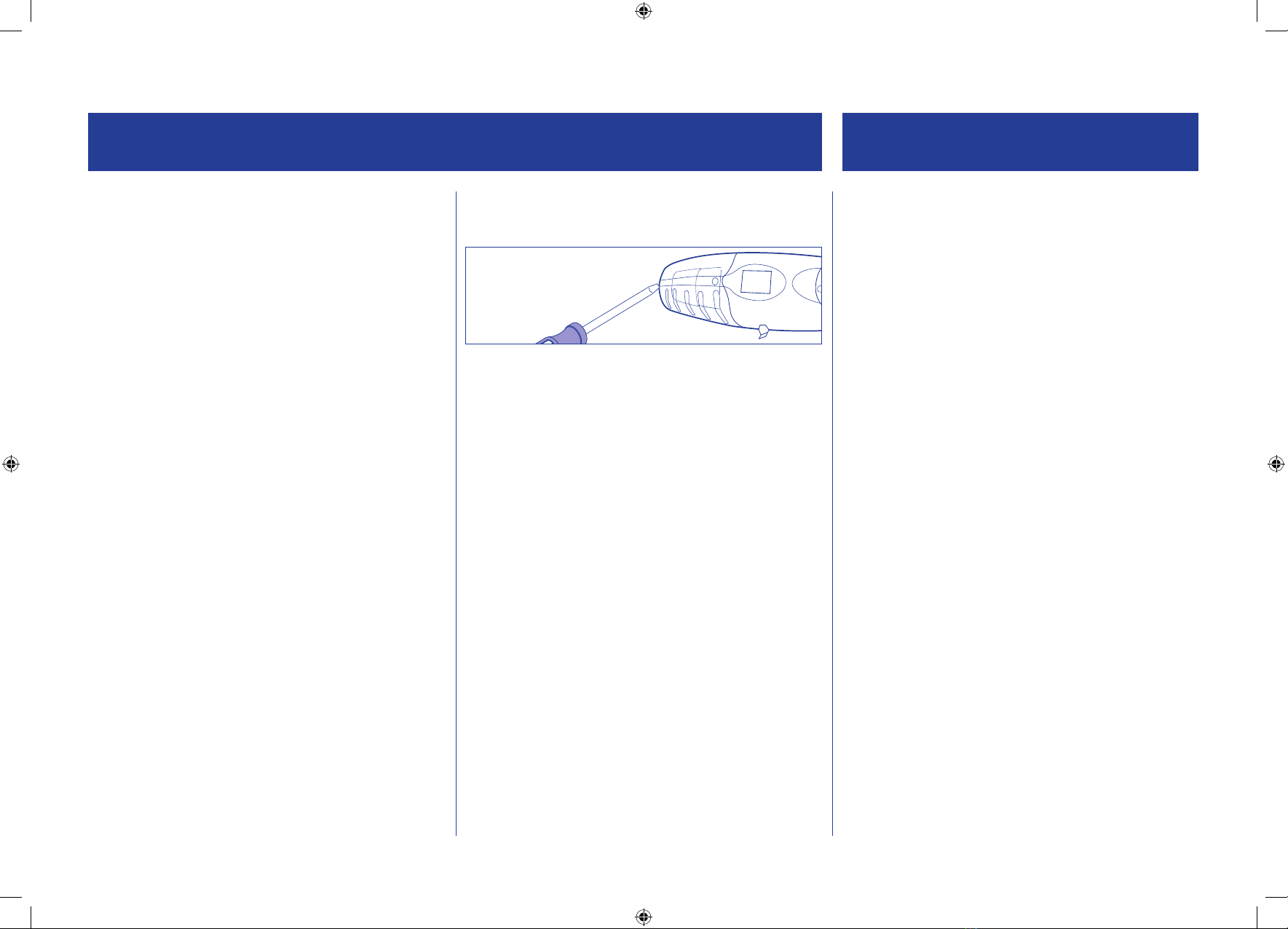

Changing the internal light
1 Beforecarryingoutthebulbreplacement,alwaysswitchoffand
disconnect the electrical supply.
2Use a small screwdriver to undo the screw securing the lamp cover.
3To remove the lamp cover, grasp the extended tab between thumb and
forefinger and push gently toward the back of the cabinet.
4Remove the old bulb by unscrewing in an anti-clockwise direction.
5Replace with a new bulb (15w) by screwing it in a clockwise direction
making sure that it is secure in the bulb holder.
6Replace the translucent light cover and re-secure with the screw
before re-connecting your larder fridge to the electrical supply and
switch on.
MAINTENANCE
The larder fridge is not working
Check it is plugged in and switched on. Check that the fuse in the plug
has not blown. Plug in another appliance, such as a lamp, to see if the
socket is working.
Condensation appears on the outside of the
larder fridge
This may be due to a change in the room temperature. Wipe off
any residue of moisture. If the problem continues call the customer
service department.
Noises
You may hear some unusual noises from time to time. See ‘Noises inside
the larder fridge’ on page 5.
If you are not able to identify and eliminate the faults according to
the above recommendations, contact the customer service department,
advising the model number of the appliance which is shown on the back
of the rating plate.
Do not attempt to repair your larder fridge yourself as it might endanger
you and others.
Moving your larder fridge
Location
Do not locate your larder fridge or near a heat source, eg. cooker, boiler
or radiator. Also avoid direct sunlight.
Levelling the larder fridge
Make sure the larder fridge is level. Use the rotating levelling feet at
the front. If the larder fridge is not level, the doors and magnetic seal
alignments will be affected.
Do not turn on the larder fridge for two hours
After the larder fridge is in place it needs to be left for two hours.
The coolant fluid needs time to settle.
Installation
Don’t cover or block the vents or grilles of your appliance.
Servicing
Repairs and maintenance of the appliance should only be performed
by an authorised, qualified technician.
TROUBLESHOOTING
FRIDGE MTRL109A D2.indd 7 26/3/08 09:59:44
8
TECHNICAL SPECIFICATIONS
Model MTRL109A
Rated Voltage (V) 220V-240V
Rated Frequency (Hz) 50
Energy Class A
Gross Volume (Litres) 105
(Cubic Feet) 3.71
Net Weight (kg) 27
Gross Weight (kg) 29
Product Dimension h/w/d (mm) 839/494/494
SoundDecibelRating(dB[A]) 39
Refrigerant R600a
The policy of Fridgemaster is one of continuously seeking new ways of
improving its products. Therefore the Company reserves the right to
change the specification of items illustrated and described, at any time.
Cleaning inside the larder fridge
You should clean the larder fridge internally with a weak solution of
bicarbonate of soda, then rinse with warm water using a wrung-out
sponge or cloth. Wipe the larder fridge dry before replacing the food.
Plug in and switch on the mains supply.
Cleaning the outside of the larder fridge
Use standard furniture polish to clean the larder fridge exterior.
Make sure that the doors are closed, to prevent polish getting on the
magnetic door seal or inside. The grille of the condenser at the back of
the larder fridge and the adjacent components can be vacuumed using
a soft brush attachment.
Cleaning the drainage hole
The drainage hole which is located at the back of the compartment can
get blocked and affect the automatic defrost function. You can unblock
it using a cotton bud, pipe cleaner or drinking straw (don’t suck!).
Cleaning tips
• Cleanwhenfoodstocksarelow.
CLEANING
FRIDGE MTRL109A D2.indd 8 26/3/08 09:59:44
9
ELECTRICAL CONNECTIONS
THISAPPLIANCEMUSTBEEARTHED.
ThisapplianceisfittedwithafusedthreepinplugtoBS1363
which will be suitable for use in all houses fitted with sockets to
current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut
off and carefully disposed of. To avoid a possible shock hazard, do not
insert the discarded plug into a socket.
Fitting a new plug
If for any reason you need to fit a new plug, the flexible mains lead must
be connected as shown here.
The wires in the mains lead fitted to this appliance are coloured in
accordance with the following code:
If the colours of the wires in the mains lead of this appliance do not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured Green and Yellow MUST be connected to the
terminal which is marked with the letter E (Earth) or symbol or coloured
Green.ThewirewhichiscolouredBlueMUSTbeconnected to the
terminalwhichismarkedwiththeletterNorcolouredBlack.Thewire
whichiscolouredBrownMUSTbeconnectedtotheterminalwhichis
marked with the letter L or coloured Red.
Beforerefittingtheplugcover,checkthattherearenocutorstraystrands
of wire inside the plug.
Usea13AmpBS1362fuse,onlyBSIorASTAapprovedfusesshouldbe
used. If you are in any way unsure which plug or fuse to use, always refer
to a qualified electrician.
Note: After replacing or changing a fuse on a moulded plug which has
a fuse cover, the cover must be refitted to the plug, the appliance must
not be used without a fuse cover. If lost, replacement fuse covers can be
obtained from an electrical shop.
This appliance complies with the following EEC Directives: 73 / 23 EEC
(Low Voltage Directive) 89 / 336 EEC (EMC Directive).
CONNECT GREEN
AND YELLOW TO EARTH (E)
(Note: some appliances do not
have earth wires.)
CONNECT
BLUE TO
NEUTRAL (N)
MAKE SURE THE CABLE IS
HELD BY THE CLAMP
CONNECT BROWN
TO LIVE (L)
FRIDGE MTRL109A D2.indd 9 26/3/08 09:59:46
FRIDGE MTRL109A D2.indd 10 26/3/08 09:59:46
FRIDGE MTRL109A D2.indd 11 26/3/08 09:59:46
FRIDGEMASTER LIMITED
Tuscany Way, Normanton
West Yorkshire, WF6 2UA
Tel: +44(0) 845 052 9006
Fax: + 44(0) 845 052 900
For further information please contact
the Fridgemaster Technical Helpline on:
0845 0508536
www.fridgemaster.co.uk
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed
at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
FRIDGE MTRL109A D2.indd 12 26/3/08 09:59:46
Table of contents
Other Fridgmaster Refrigerator manuals
