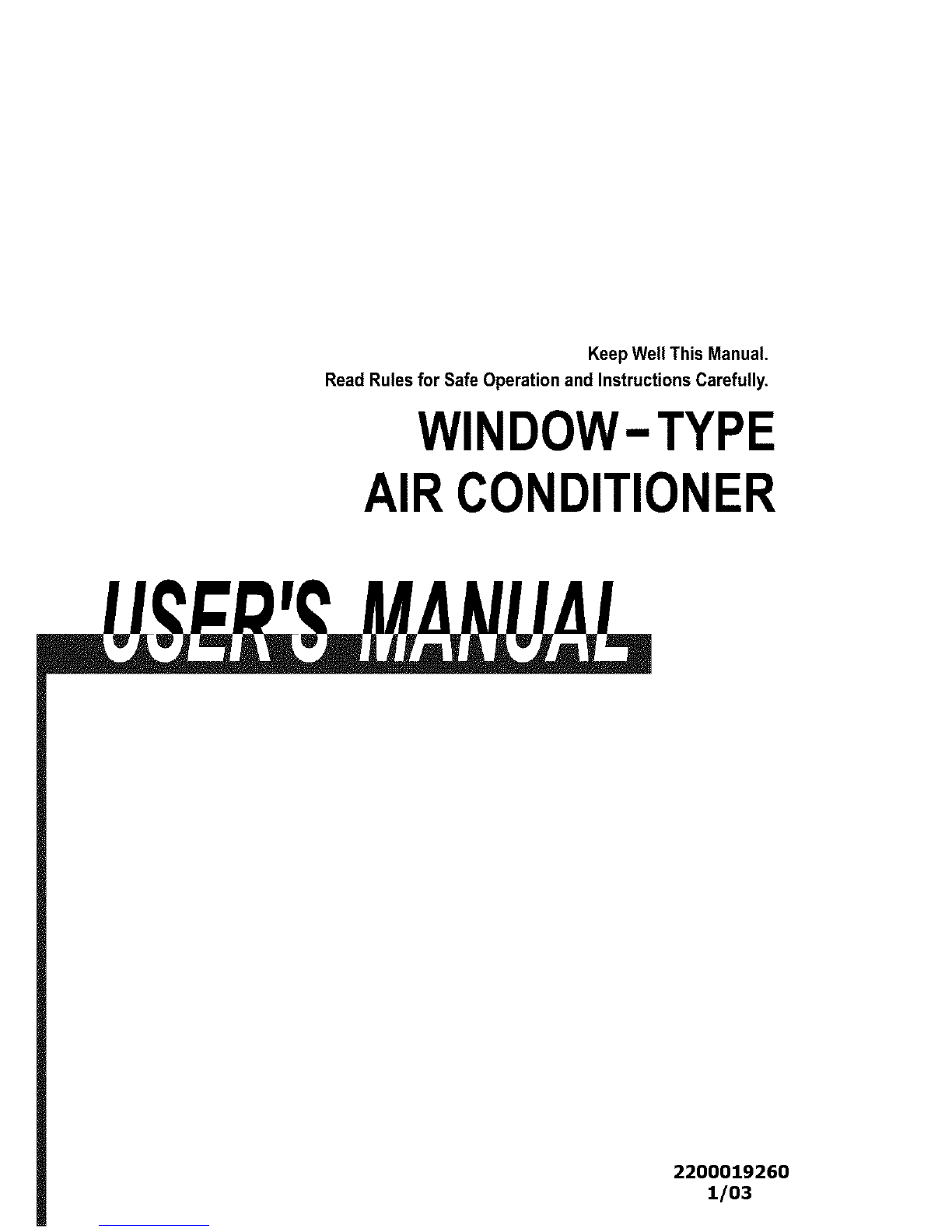

Frigidaire FAD052M7A1 User manual

Keep Well This Manual.
Read Rulesfor Safe Operation and Instructions Carefully.
WINDOW-TYPE
AIR CONDITIONER
2200019260
11o3

1. ELECTRICAL SAFETY RULES .............................................................. 1
2. UNIT PARTS IDENTIFICATION .............................................................. 2
3. POINTS FOR ATTENTION WHEN OPERATING .................................... 3
4. OPERATION PANEL(Cooling only type) ..................................................... 4
OPERATION INSTRUCTION .................................................................. 4
5. CAREAND MAINTENANCE ................................................................... 7
6. WINDOW INSTALLATION INSTRUCTIONS ......................................... 10
7. TROUBLESHOOTING TIPS ................................................................... 15

All wiring must comply with local and national electrical codes and
be installed by a qualified electrician. If you have any questions
regarding the following instructions, contact a qualified electrician.
Never insert your fingers or any foreign objects into the air outlet.
Take special care to warn children of these dangers.
To avoid the possibility of personal injury, be sure to disconnect
power to the unit before installing and/or servicing and/or cleaning.
If the supply cord is damaged, it must be replaced by the manu-
facturer or its service agent or a similar qualified person in order to
avoid a hazard.
1. The power cord is distinguished according to the cord color:
2. For your safety and protection, this unit is grounded through the power cord plug
when plugged into a matching wall outlet. Please contact the manufacturer or its
service agent or a similar qualified person if you want to replace it.
3. Electrical requirement., See the specifications)
4. Be sure that the unit being correctly grounded. The wall outlet should be provided
with reliable earth wire.
5. The unit should be provided with an individual branch circuit and the fuse size
should be same as that of the power cord plug and wall outlet.

\\\
Fig. 1
1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Operation panel
8. Power supply and plug
2

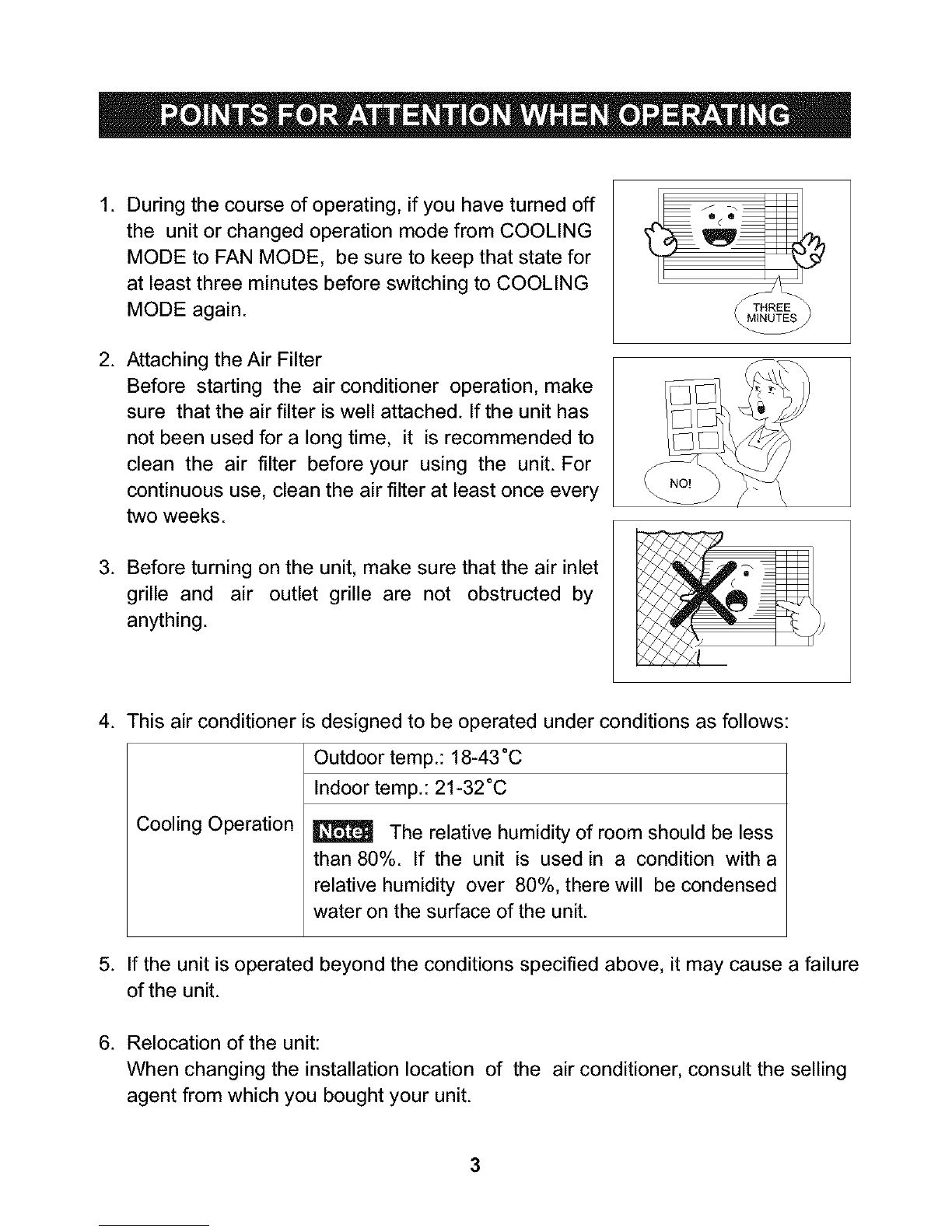

1. During the course of operating, if you have turned off
the unit or changed operation mode from COOLING
MODE to FAN MODE, be sure to keep that state for
at least three minutes before switching to COOLING
MODE again.
2. Attaching the Air Filter
Before starting the air conditioner operation, make
sure that the air filter iswell attached. If the unit has
not been used for a long time, it is recommended to
clean the air filter before your using the unit. For
continuous use, clean the air filter at least once every
two weeks.
3. Before turning on the unit, make sure that the air inlet
grille and air outlet grille are not obstructed by
anything.
4. This air conditioner is designed to be operated under conditions as follows:
Outdoor temp.: 18-43°C
Indoortemp.: 21-32°C
Cooling Operation _ The relative humidity of room should be less
than 80%. If the unit is used in a condition with a
relative humidity over 80%, there will be condensed
water on the surface of the unit.
5. Ifthe unit is operated beyond the conditions specified above, it may cause a failure
of the unit.
6. Relocation of the unit:
When changing the installation location of the air conditioner, consult the selling
agent from which you bought your unit.
3

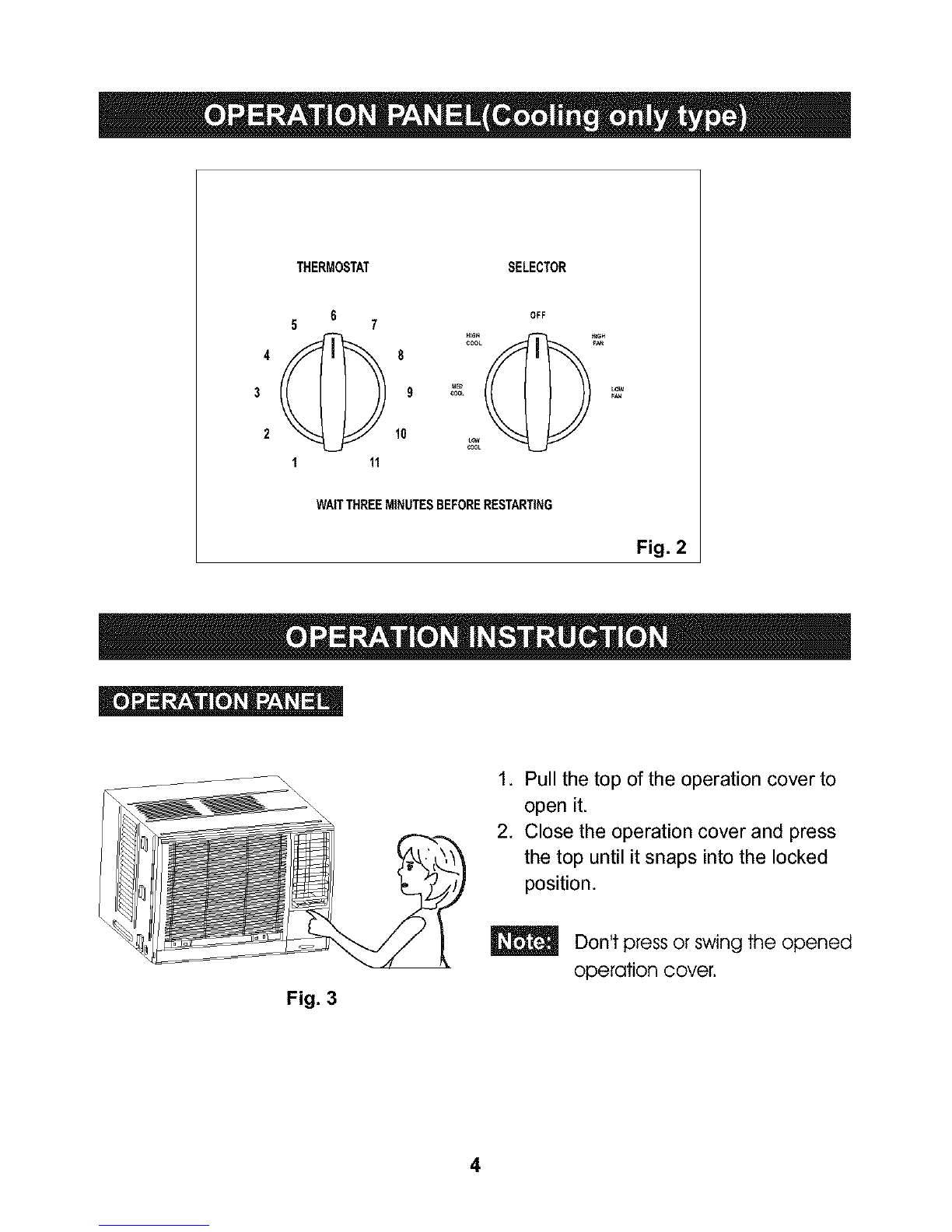

THERMOSTAT SELECTOR
6 OFF
5 7
48
u_ k_
2 10 _o,,
CC_L
I 11
WAITTHREEMINUTESBEFORERESTARTING
Fig. 2
1. Pull the top of the operation cover to
open it.
2. Close the operation cover and press
the top until it snaps into the locked
position.
Fig. 3
Don't press or swing the opened
operation cover,
4

imlmmr ttm
SELECTOR
OFF
H_H __W
LOW
To set desired cooling temperature, simply rotate
the SELECTOR knob to the appropriate setting.
"HIGH FAN" will circulate the air at a maximum
speed without cooling.
"MED FAN" will circulate the air at a middle speed
without cooling.
"HIGH FAN" provides cooling automatically with
maximum air circulation.
"MED COOL" provides cooling automatically with
middle air circulation.
"LOW COOL" provides cooling automatically with
minimum air circulation.
"OFF" will completely shut off the unit.
When turning the SELECTOR knob from "LOW COOL" to "HIGH COOL", keep
your speed as slow as possible. Do not change the operation mode between
"LOW COOL" and "HIGH COOL" too often.
THERMOSTAT
6
57
3 9
2 IO
1 11
The thermostat automatically starts and stops the
running of the compressor in the air conditioner in order
to control and maintain a comfortable room
temperature. When the room temperature reaches the
desired setting, cooling will automatically stop. When
the room temperature rises above, cooling resumes.
This results in efficient use of power and economical
cooling.
The operating method is as follows: turn along the
arrow, the temperature setting becomes lower. When
you feel it is too cool, rotate the knob to the original
direction. When you feel it is too hot, rotate the knob
to the "COOLER" direction.
5

During the cooling operation of the unit, when the thermostat knob is rotated
counterclockwise, allow at least three minutes before turning back the knob
to the "COOLER" direction. Otherwise the fuse may blow due to an
overload of the unit.
Horizontal air flow adjustment (manually)
Move the "T" shaped handle left or right to
adjust horizontal air flow.
Vertical air flow adjustment (manually) Fig. 4
To adjust vertical air flow direction, adjust any one
of the horizontal louver blades.
Fig. 5
6

This is usually kept in the closed position and
use only when clearing smoke and/or odors
from the room. When the ventilation switch is
pushed to "CLOSE", the fresh air ventilation is
closed; when the ventilation switch is pushed
to "VENT", the fresh air ventilation is opened.
• Keeping the fresh air ventilation
opened for a long time will reduce the
cooling effeciency.
To avoid the possibility of personal injury, be sure to disconnect power to the unit
before servicing and/or cleaning.
I
CHEMICALS
Do Not use gasoline, benzene, thinner
or any other chemicals, or any liquid
insecticide on the air conditioner, as
these substances may cause flaking
off of the paint, cracking or deformation
of plastic parts.
Never attempt to clean the unit by
pouring water directly over any of the
surface areas, as this will cause
deterioration of electrical components
and wiring insulation.
7

If the air filter becomes clogged with dust, air flow is obstructed and reduces cooling
efficiency. The air filter should be cleaned every two weeks.
Fig. 7
1. Removal of Air Filter
1) Press "PUSH" on the bottom corners of the inlet grill. See Fig. 7
2) Pull the air filter down to remove.
2, Cleaning of Air Filter
1) Remove the dust clogged in the filter by tapping it or vacuum clean it.
2) Wash the filter well with lukewarm water or a neutral cleaning agent.
3. Attaching the Air Filter
Installation of the air filter is the reverse of the removal process.
Never use hot water over 40°C(104°F) to clean the air filter and air fresher.
Never attempt to operate the unit without the air filter.
8

• Dust may accumulate on the front panel, use soft wet cloth with a neutral cleaning
agent to wipe it.
• Never use water over 50°C, alcohol, gasoline, acid, solvent or brush to clean the
front panel as this will damage the surface of the part.
OPERATING THE
_f_____-; ,. ,' _ANA_ONE
/z
1. Operating the fan alone for half a day
to dry out the inside of the unit.
2. Turn off power and remove plug from
wall outlet.
See POINTS FOR A-FFENTION
WHEN OPERATING on page 3.
9

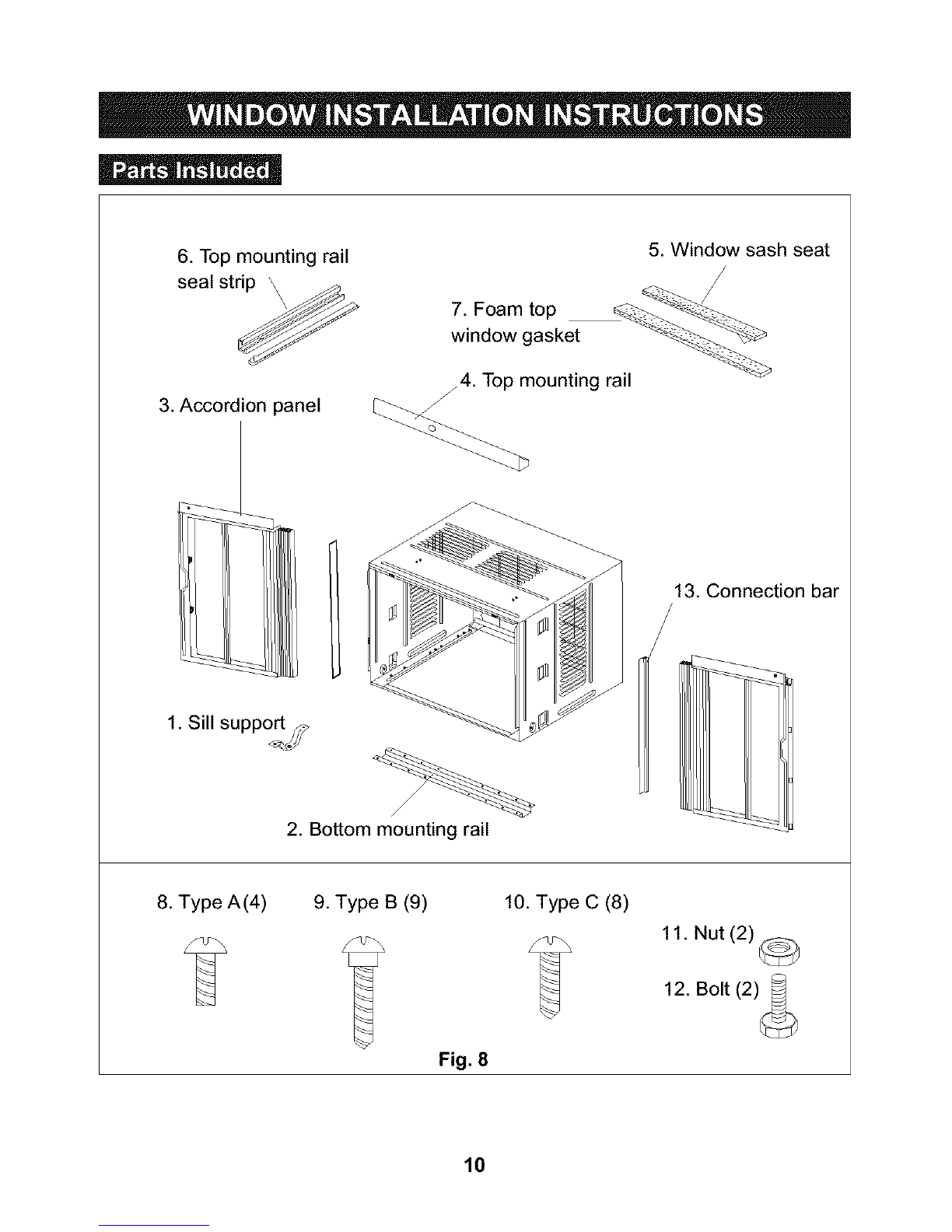

6. Top mounting rail
seal strip \ \\
3. Accordion panel
7. Foam top
window gasket
j4. Top mounting rail
5. Window sash seat
13. Connection bar
1. Sill suppo_
2. Bottom mounting rail
8. Type A (4) 9. Type B (9) 10. Type C (8)
Fig. 8
11. Nut (2)@
12. Bolt (2)_
10

A i=o, t,'-- "H'l

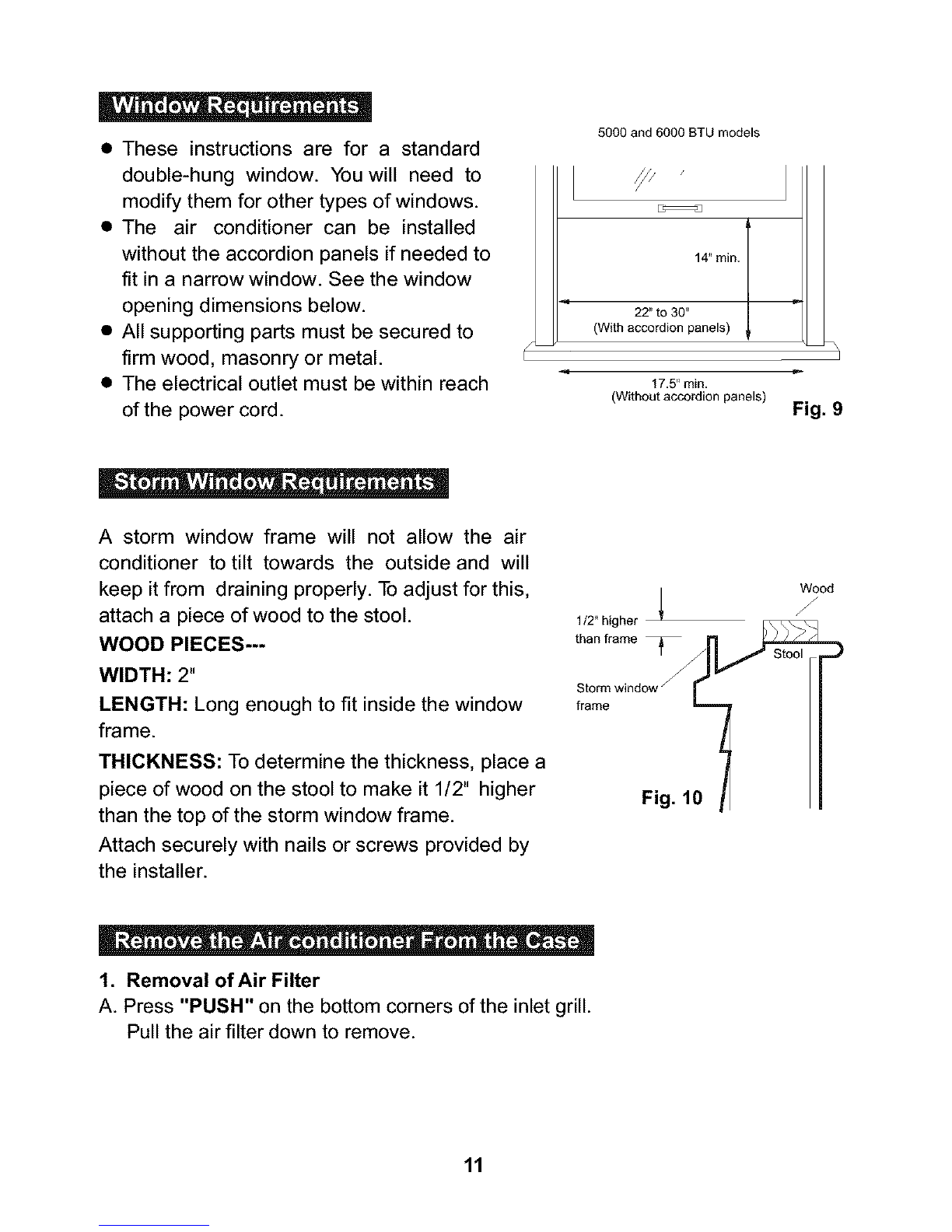

• These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed to
fit in a narrow window. See the window
opening dimensions below.
• All supporting parts must be secured to
firm wood, masonry or metal.
• The electrical outlet must be within reach
of the power cord.
i/
5000 and 6000 BTU models
14" rain,
22" to 30"
(With accordion panels)
17,5_'min,
(Without accordion panels) Fig. 9
eH _ = "
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. Toadjust for this,
attach a piece of wood to the stool.
WOOD PIECES---
WIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2" higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
1/2" higher 1
than frame
frame
Fig. 10
Wood
Stool
"_ "_ H • " • " . =
1. Removal of Air Filter
A. Press "PUSH" on the bottom corners of the inlet grill.
Pull the air filter down to remove.
11

B. Remove the 2 screws at the bottom, and remove
the frame from the cabinet.
Note: No need to remove the selector and
thermostat knobs.
C. Remove the 2 screws on each side of the case.
Keep these for later use.
D. Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
\%
Fig. 11
Fig. 12
Fig. 13
CAUTION!
• Besuretoremovethefoamsurroundingthecompressorwheninstalling_
•Ifnot,itwouldharmtheoperationofthecompressor.(See Fig.13) J
J
J/
A. Cut the window sash seal to the proper length.
Peel offthe backing and attach the seal to the
underside of the window sash.
Fig. 14
B. Remove the backing from the
top mounting rail seal strip
and attach it to the bottom of
the top mounting rail.
Fig. 15
C. Install the top mounting rail with 4 type A
screws on the outside of the case. Install the
bottom rail inside of the case with 4 type C
screws. Insert the frames for the accordion
panels into the top mounting rail and the
frame guides.
Fig. 16
Top mounting rail
12 Fig. 17

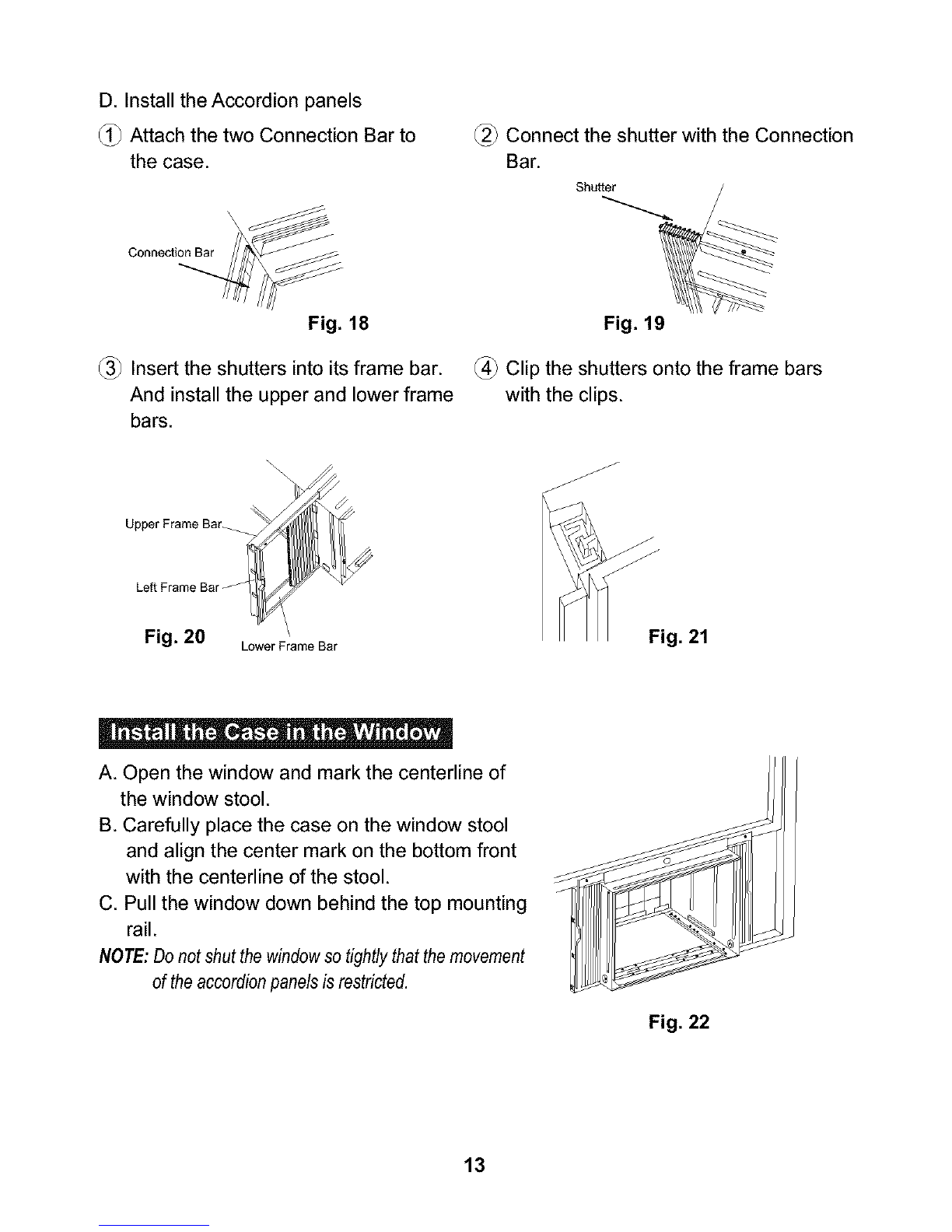

D. Install the Accordion panels
(_ Attach the two Connection Bar to
the case. Connect the shutter with the Connection Bar.
Shu_er
Fig. 18
(_ Insert the shutters into its frame bar.
And install the upper and lower frame
bars.
Fig. 19
Clip the shutters onto the frame bars
with the clips.
Fig. 20 Lower Frame Bar Fig. 21
., = _ = = oo
A. Open the window and mark the centerline of
the window stool.
B. Carefully place the case on the window stool
and align the center mark on the bottom front
with the centerline of the stool.
C. Pull the window down behind the top mounting
rail.
NOTE:Donotshutthewindowso tightlythatthemovement
oftheaccordionpanelsisrestricted.
Fig. 22
13

D. Loosely assemble the sill supports. Indoor Outdoor
\Nut Fig. 23
E. Select the position that will place the sill
supports near the outermost point on the
sill. Attach the sill supports to the case
track hole in relation to the selected
position using 4 type C screws in each
supports.
F. Adjust the bolt and the nut in each support
so that the case is installed with a slight tilt
to the outside. Use a level; about 1/3" will
be the correct case slant to the outside.
G. Secure the case to the window stool by using
6 type B screws.
H. Pull the accordion panels to each window
sash track. Attach them on each side to
the window sash and the window stool
using 5 type B screws.
Fig. 24
Sill support_
Fig. 25
J
Fig. 26
A. Cut the foam top window gasket to the
window width.
B. Stuff the foam between the glass and
the window to prevent air and insects
from getting into the room.
Fig. 27
14

I= • _e el = I I =
The installation process is the reverse of the removal
process on page 11 and 12. See Fig 11.
Fig. 28
Save time and money! Review the chart below first and you may not need to call for
service.
Possible Causes What To Do
Air conditioner The air conditioner is •Make sure the air conditioner plug is pushed
does not start unplugged, completely into the outlet.
The fuse is blown/circuit • Check the house fuse/circuit breaker box and
breaker is tripped, replace the fuse or reset the breaker.
Powerfailure. • Ifpowerfailure occurs, tum the airconditioner
OFF. When power is restored, wait 3 minutes to
restart the air conditioner to prevent tripping of
the compressor overload.
15

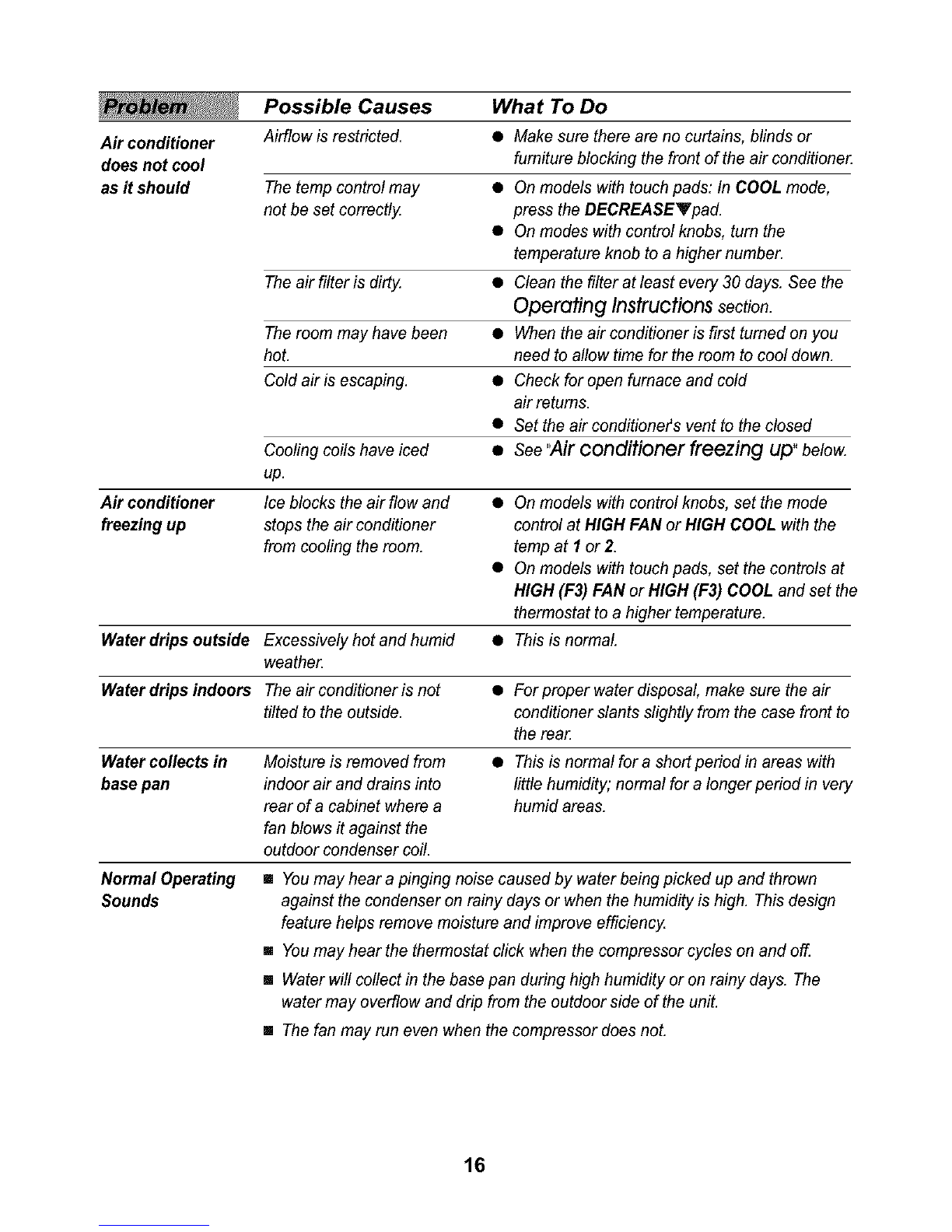

Possible Causes What To Do
Air conditioner Airflow is restricted. •Make sure there are no curtains, blinds or
does not cool fumiture blocking the front of the air conditione_
as it should The temp control may • On models with touch pads: In COOL mode,
not be set correctly, press the DECREASEYpad.
• On modes with control knobs, turn the
temperature knob to a higher number.
The air filter is dirty. • Clean the filter at least every 30 days. See the
Operoting Instructions section.
The room may have been • When the air conditioner is first turned on you
hot. need to allow time for the room to cool down.
Cold air is escaping. • Check for open furnace and cold
air retums.
• Set the air conditioners vent to the closed
Coofing coils have iced • See "Airconditioner freezing up"below.
up.
Air conditioner Ice blocks the air flow and • On models with control knobs, set the mode
freezing up stops the air conditioner control at HIGH FAN or HIGH COOL with the
from cooling the room. temp at 1 or 2.
• On models with touch pads, set the controls at
HIGH (F3) FAN or HIGH (1=3)COOL and set the
thermostat to a higher temperature.
This is normal
Water drips outside Excessively hot and humid •
weather.
Water drips indoors The air conditioner is not • For proper water disposal, make sure the air
tilted to the outside, conditioner slants slightly from the case front to
the rea_
Water collects in Moisture is removed from • This is normal for a short period in areas with
base pan indoor air and drains into little humidity; normal for a longer period in very
rear of a cabinet where a humid areas.
fan blows it against the
outdoor condenser coil.
Normal Operating [] You may hear a pinging noise caused by water being picked up and thrown
Sounds against the condenser on rainy days or when the humidity is high. This design
feature helps remove moisture and improve efficiency.
[] You may hear the thermostat click when the compressor cycles on and off
[] Water will collect in the base pan during high humidity or on rainy days. The
water may overflow and drip from the outdoor side of the unit.
[] The fan may run even when the compressor does not.
16

CS45-U
2200019260
