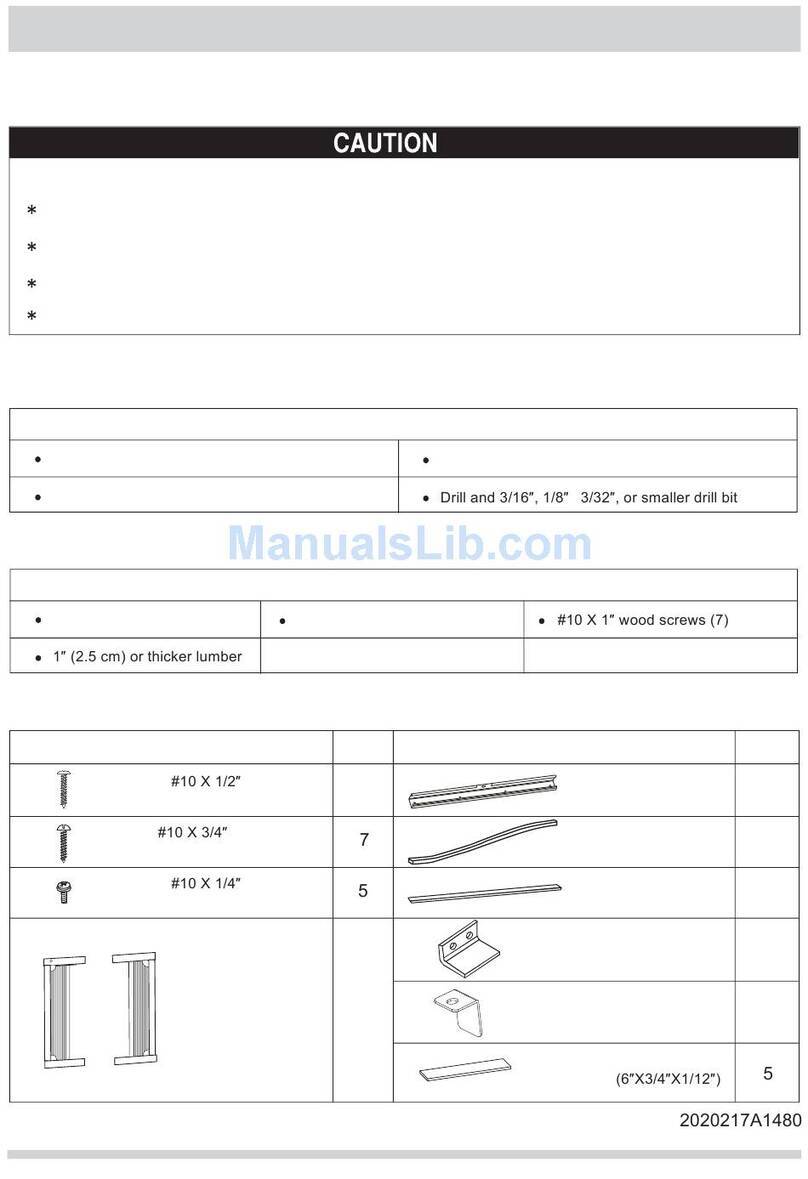

Frigidaire FAS296N2A User manual

Product No. FAS296N2A
Series heavy duty
Volts 230/208
BTU-Cooling 28500 BTU
Owner's Guide 309000855
Market North America
P40L2006.eps FAS296N2A.eps Heavy Duty FAS Wiring Diagram.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995406906
04/04/06
(EN/SERVICE/KC)
099
ROOM AIR
CONDITIONER
Model No.
FAS296N2
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995406906 FAS296N2A
04/04 2
RECOMMENDED SPARE PARTS

FAS296N2A Publication No: 5995406906
# Functional Parts 3 04/04
* Non-Illustrated Parts
RECOMMENDED SPARE PARTS
POS. NO PART NO. DESCRIPTION
1 5304414097 Rail, cabinet bottom, rear
2 5304408741 Grille, rear panel, aluminum
3 309623906 Cabinet, wrapper/sleeve
4 5303211056 Bracket, sash lock
5 5304414116 Rail, cabinet top, front
6 5304414933 Retainer, shutter mount, cabinet side
7 309645602 Shutter, accordion panel, RH/LH, window closure
8 5304414929 Frame, shutter, gray, RH, extension
9 5304416310 Rail, cabinet bottom, front
10 # 309904101 Compressor Assembly, w/electricals, & mtg grommets
11 # 5303306719 Condenser
12 309632916 Base, compressor mtg, with studs
13 309623201 Shroud, cond fan motor
14 309623501 Tray, evap drip
15 # 309642001 Evaporator
16 # 5304422465 Fan Blade, with clamp
17 # 309630616 Motor, fan
18 309630302 Cover, blower wheel, top
19 309623602 Bulkhead, control system
20 309623401 Bulkhead, air system
21 309900101 Frame, cabinet front
22 309900301 Louver, horizontal
23 309630102 Housing, blower scroll
24 # 309633001 Blower Wheel, plastic, with clamp
25 309630203 Plate, scroll cover
26 # 309902201 Remote Control, transmitter, with lcd
27 309900201 Panel, front grille
28 309900601 Handle, vent opener
29 309639001 Filter, micro-biologic, framed
30 309902801 Detent, vent handle
31 309321402 Door, vent, with actuator
32 309901704 Overlay, control display
33 309900501 Enclosure, input pcb, control panel
34 # 309901601 PC Board, input/display
35 5304413781 Hardware, PCB support
36 309630404 Control Box
37 # 309900701 Ionizer
38 309111201 Grommet, wire protector
39 309904601 Louver, vertical
40 # 309901501 PC Board, power, variable speed, 230 V
41 309900401 Wheel, louver adjuster
42 # 5304438658 Capacitor, 450 VAC, 45+7.5 mfd
43 5308017149 Holder, thermistor clip, 3/8 inch
44 5303303077 Strap, capacitor mtg.
45 # 309343120 Power Cord, electric, 12 AWG, gray, 230 V
46 # 309201602 Sensor, thermistor, ambient temp
47 # 309201603 Sensor, thermistor, evap defrost
48 # 309301502 Manifold Assembly, suction
49 5303302254 Nut, expansion type
54 # 309902301 Tube, suction, copper
55 # 309902401 Tube, connector, copper, capillary 2

Publication No: 5995406906 FAS296N2A
04/04 4
RECOMMENDED SPARE PARTS

FAS296N2A Publication No: 5995406906
# Functional Parts 5 04/04
* Non-Illustrated Parts
RECOMMENDED SPARE PARTS
POS. NO PART NO. DESCRIPTION
56 # 309903001 Tube, discharge, copper
57 # 309905101 Tube, capillary 1, copper
58 # 309905201 Tube, capillary 2, copper
59 # 309905301 Tube, capillary 3, copper
60 # 309905401 Tube, capillary 4, copper
61 # 309111005 Fitting, reducer .375 OD, .114/.117 ID, copper tube
62 # 309111002 Fitting, reducer .313 OD, .114/.117 ID, copper tube
63 # 5303290357 Strainer
64 309903101 Grommet, cooling tube
66 309904201 Seal, rubber, w/double holes
67 # 309903201 Tube, super cooling
68 5304414105 Bracket, cab support, RH
69 # 5304438657 Tube, process, copper
70 3001815 Support, angle bracket, window sill mt.
71 5304414106 Bracket, cab support, LH
72 5304414928 Frame, shutter, gray, LH, extension

Publication No: 5995406906 FAS296N2A
04/04 6
WIRING DIAGRAM
BK=Black(Noir) BL=Blue(Bleu) BR=Brown(Brun) G=Green(Vert) R=Red(Rouge) W=White(Blanc) Y=Yellow(Jaune)
Alternate Internal Overload Compressor (Autre Surcharge Interne Du Compresseur)
Ion.
J3210
309902101/01
Fan(Ventilateur)
Room Sensor (Sonde D' Ambiance)
Evap Sensor (Sonde Anti Givre)
Compressor (Compresseur)
Fan motor (Moteur Du Ventilateur)
Compressor capacitor (Condensateur Du Compresseur)
C
S
W
R
R
BK
Fan motor capacitor (Condensateur Du Ventilateur)
S
W
C
Connector (Connecteur)
Compressor Overload (Surcharge Du Compresseur)
R
R
BR
G (Vert)
GND
BK
N
Compressor Relay (Relais Du Compresseur)
3
4
BK
R
Ionizer(Ion)
(Optional) (Facultatif)
G (Vert)
GND
Ribbed (Blue) Raye(Bleu)
Plain (Brown) Ordinaire(Brun)
BK
WOR Y
(OU)
