Use & Care Manual
Beverage Center II
Welcome 2
Safety Instructions 3
Installation 4-5
Door Reversal 6
Features At A Glance 7
Temperature Controls 7
First Steps 8-12
Helpful Hints 13
Beverage Center Extra
Features
Optional Ice Service 14
Energy Saving Tips 15
Vacation and Moving Tips 15
Normal Operating Sounds 16
Care & Cleaning 17-18
Warranty Information 19
Troubleshooting 20-21
Before You Call 22
.....................................
.....................
..................................
.............................
.................
.................
..................................
...............................
......................................
...................
.....................
..........
..........
..........................
..................
.........................
...........................
13

2
WELCOME & CONGRATULATIONS
Congratulations on your purchase of a new beverage center!
We here at Electrolux Home Products, Inc. are very proud of
our product and we are completely committed to providing you
with the best service possible. Your satisfaction is our #1
priority.
Please read this Use & Care Manual very carefully. It contains
valuable information on how to properly maintain your new
beverage center.
We know you’ll enjoy your new beverage center and Thank
You for choosing our product. We hope you consider us for
future purchases.
PLEASE READ AND SAVETHESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your beverage center only as
instructed in this manual. These instructions are not meant to
cover every possible condition and situation that may occur.
Common sense and caution must be practiced when installing,
operating and maintaining any appliance.
Please record your model and serial numbers below for
future reference.This information is found on your serial
plate located inside the refrigerator compartment.
Questions?
1-800-944-9044
(United States)
1-800-265-8352
(Canada)

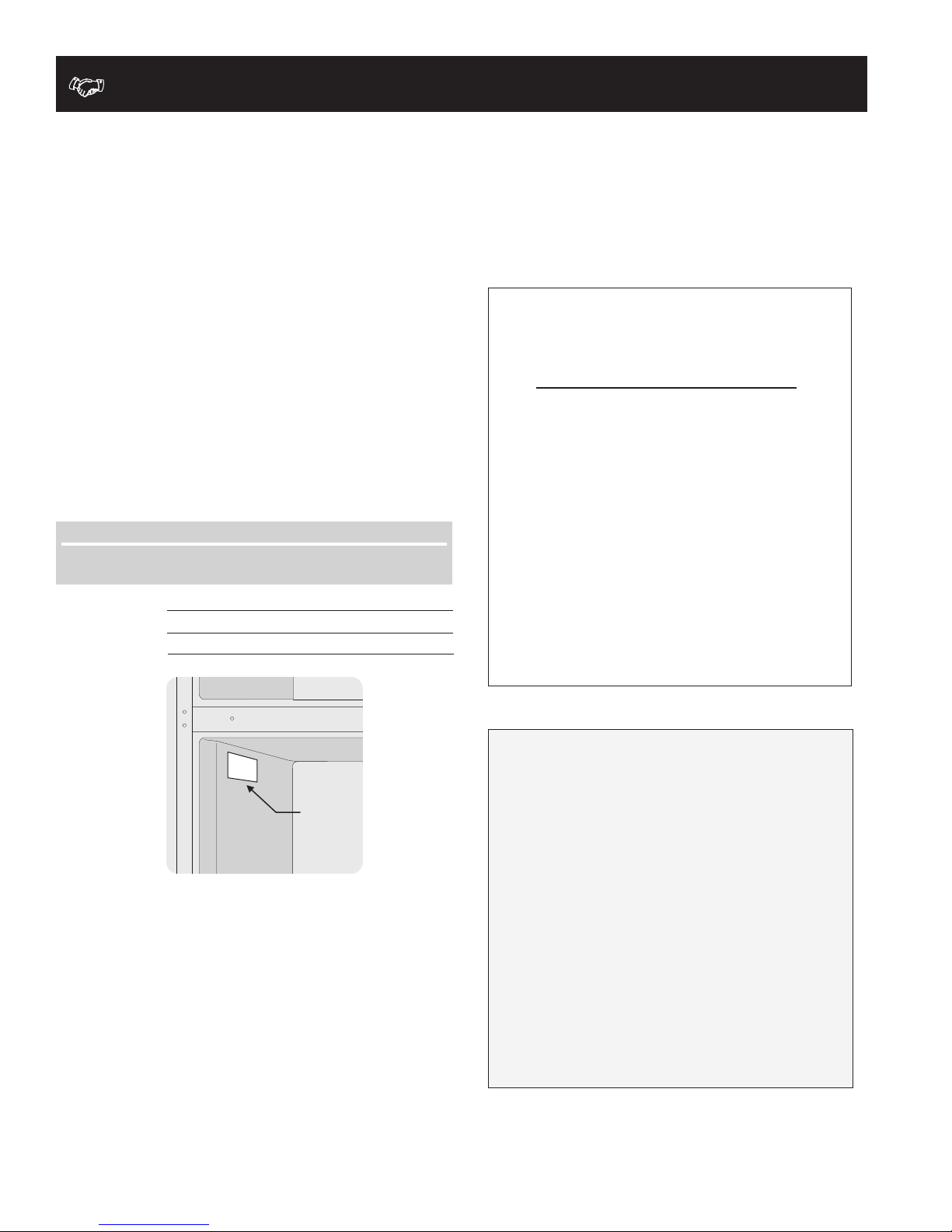

Serial Plate
PLEASE COMPLETE AND MAIL IN THE
PRODUCT REGISTRATION CARD
INCLUDED WITHYOUR BEVERAGE CENTER.
Please attach sales receipt
here for future reference.
ExtendYour Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To Enjoy These Benefits:
• Total freedom from repair bills so
unexpected repairs won’t upset your budget.
• Fast, convenient toll-free service is just a
phone call away.
• Top-quality repairs by factory-trained experts.
• Quick access to genuine replacement parts
so you can rest assured your Beverage Center
is repaired with the proper components.
NOTENOTE
NOTENOTE
NOTE
Use only soap and water to clean serial plate.
Model Number:
Serial Number:
Purchase Date:

3
IMPORTANT SAFETY INSTRUCTIONS
FORYOUR SAFETY
• Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
• Do not operate the beverage center in the presense of
explosive fumes.
• Avoid contact with any moving parts of the automatic ice
maker. (some models)
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after this beverage center is
unpacked. Children should NEVER use these items to play
with. Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
PROPER DISPOSAL OFYOUR BEVERAGE CENTER
Risk of child entrapment
Child entrapment and
suffocation are not problems of
the past. Junked or abandoned
refrigerators or freezers are still
dangerous – even if they will sit
for “just a few days.” If you are
getting rid of your old refrigerator
or freezer, please follow the
instructions below to help
prevent accidents.
Before you throw away your
old refrigerator/ freezer:
• Remove doors.
• Leave shelves in place so children may not easily climb
inside.
• Have refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
•The beverage center must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet. The
power cord of the appliance is equipped with a three-
prong grounding plug for your protection against electrical
shock hazards. It must be plugged directly into a properly
grounded three-prong receptacle. The receptacle must be
installed in accordance with local codes and ordinances.
Consult a qualified electrician. Do not use an extension
cord or adapter plug.
• If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
• Never unplug this beverage center by pulling on the
power cord. Always grip the plug firmly, and pull straight
out from the receptacle to prevent damaging the power
cord.
• Unplug this beverage center before cleaning and before
replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10%
or more. Operating this beverage center with insufficient
power can damage the compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent this beverage center from
being turned off accidentally.
• Avoid connecting this beverage center to a Ground Fault
Interruptor (GFI) circuit.
WARNINGWARNING
WARNINGWARNING
WARNING
Please Read All Instructions Before Using This beverage
center.
WARNINGWARNING
WARNINGWARNING
WARNING
These guidelines must be followed to ensure that safety
mechanisms in this beverage center will operate properly.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Turning the Air Flow and
Temperature Controls to “0”
turns off the compressor
and prevents your
Beverage Center from
cooling, but does not
disconnect the power to the
light bulb and other
electrical components. To
turn off power to your
Beverage Center you must
unplug the power cord from
the wall outlet.
WARNINGWARNING
WARNINGWARNING
WARNING
CO2CANISTER SAFE HANDLING
•CO
2canisters must be handled with extreme care. They
contain potentially hazardous high pressure
compressed gas.
•ALWAYS connect CO2gas canisters to a pressure
regulator.
•NEVER drop or throw the CO2canister.
•NEVER connect gas canister directly to keg.
•ALWAYS keep CO2canisters in a cool place (70º or less)
and away from heat.
• In case of CO2leakage, ventilate and evacuate the area
immediately.
•ALWAYS keep canister secured in an upright position.
• Check the Department of Transportation (D.O.T.) test
date on the canister neck and do not use if older than 5
years.
• Return outdated canister to your gas supplier for one
that is within the time limit.

4

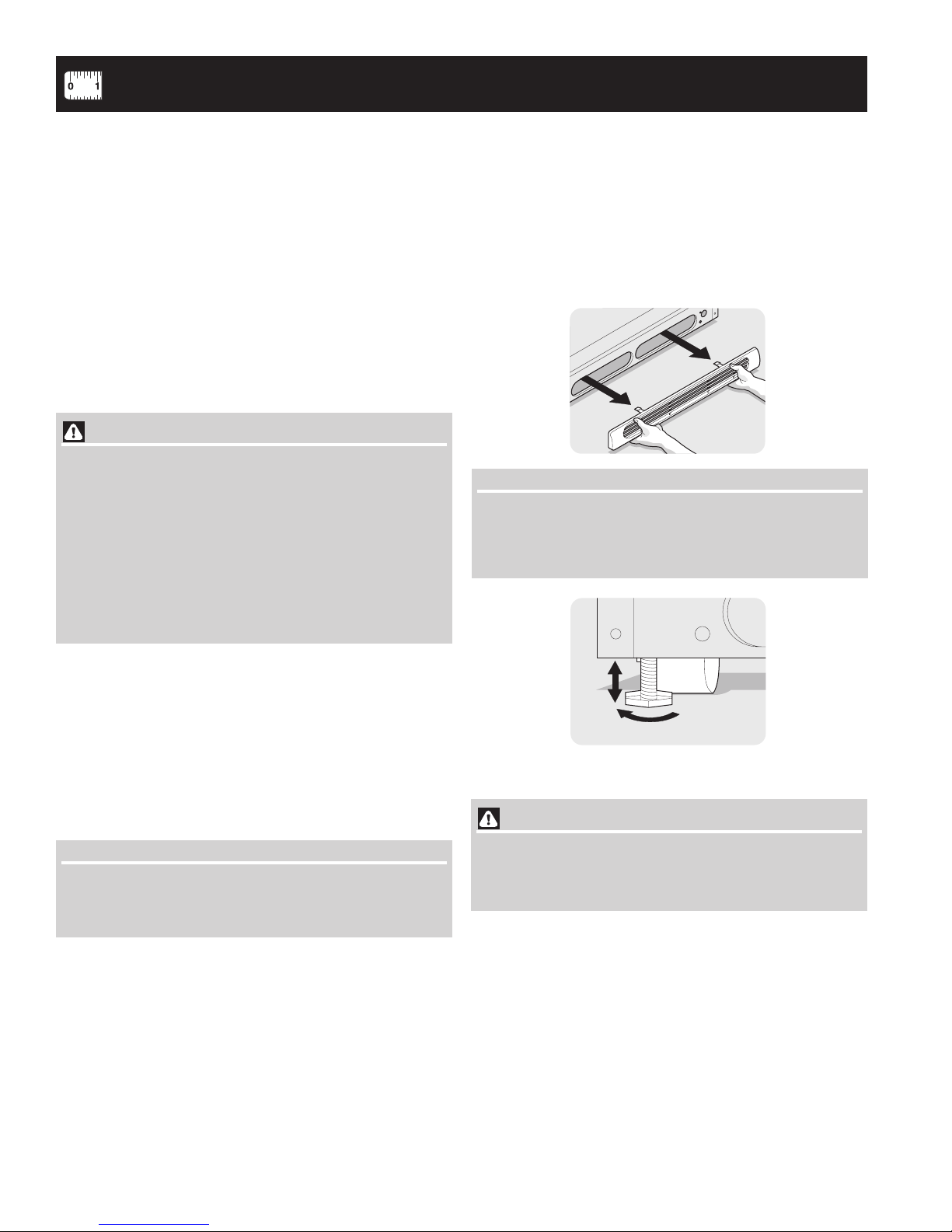

INSTALLATION
This Use & Care Manual provides specific operating
instructions for your model. Use this beverage center only as
instructed in this Use & Care Manual. Before starting this
beverage center, follow these important first steps.
LOCATION
• Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• If possible, place this beverage center out of direct
sunlight and away from the range, dishwasher or other
heat sources.
• This beverage center must be installed on a floor that is
level and strong enough to support a fully loaded
beverage center.
• Consider water supply availability for models equipped
with an automatic ice maker.
LEVELING
All four corners of your beverage center must rest firmly on a
solid floor. Your beverage center is equipped with adjustable
leveling screws to help level your unit.
Raise
Stationary Front Roller
with Leveling Screw
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
•Do Not install the beverage center where the
temperature will drop below 55°F (13°C) or rise above
110°F (43°C).The compressor will not be able to
maintain proper temperatures inside the beverage
center.
• DO NOT block the toe grille on the lower front of your
beverage center. Sufficient air circulation is essential
for the proper operation of your beverage center.
• THIS BEVERAGE CENTER IS NOT INTENDED FOR
OUTDOOR USE.
INSTALLATION
Installation Clearances
• Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8”
Back 1”
DOOR OPENING
NOTENOTE
NOTENOTE
NOTE
If your beverage center is placed with the door hinge side
against a wall, you may have to allow additional space so
the door can be opened wider.
Your beverage center should be positioned to allow easy
access to a counter when removing food. To make this
possible, the direction in which the doors open can be
reversed. See
Door Removal & Reversal Instructions .
NOTENOTE
NOTENOTE
NOTE
Raise the front of the beverage center enough so the doors
close freely when opened halfway. The beverage center
should slope ¼” to ½” from front to back. Then level the
beverage center from side to side.
To LevelYour
Beverage Center:
1. Remove toe grille.
2. Use adjustable wrench to adjust leveling screws.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
DO NOT ATTEMPT TO MOVE OR RELOCATE
THE BEVERAGE CENTER WITH A KEG
INSIDE.

5
INSTALLATION - CONNECTING ICE MAKER TO WATER SUPPLY
Before InstallingThe Water Supply Line,You Will Need
•Basic Tools: adjustable wrench, flat-blade screwdriver,
and PhillipsTM screwdriver
• Access to a household cold water line with water pressure
between 30 and 100 psi.
• A water supply line made of ¼ inch (6.4 mm) OD, copper
tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker
inlet valve at the back of the beverage center to your cold
water pipe. Then add approximately 7 feet (2.1 meters), so
the beverage center can be moved out for cleaning (as
shown).
• A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercing type
shutoff valve.
• A compression nut and ferrule (sleeve) for connecting the
water supply line to the ice maker inlet valve.
To Connect Water Supply LineTo Ice Maker Inlet Valve
1. Disconnect beverage center from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON
water supply and flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
3. Unscrew plastic cap from water valve inlet and discard
cap.
4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.
5. Push water supply line into water valve inlet as far as it
will go (¼ inch). Slide ferrule (sleeve) into valve inlet and
finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to
rear panel of beverage center as shown.
7. Coil excess water supply line (about 2½ turns) behind
beverage center as shown and arrange coils so they do
not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any
connections that leak.
9. Reconnect beverage center to electrical power source.
10. To turn ice maker on, lower wire signal arm (see ice
maker front cover for ON/OFF position of arm).
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Ensure that your water supply line connections comply with
all local plumbing codes.
NOTENOTE
NOTENOTE
NOTE
Water line kit number 5303917950, available from your
appliance dealer at additional cost, contains 25 feet (7.6
meters) of ¼ inch OD copper tubing, a saddle type shutoff
valve (nonpiercing), (2) ¼ inch brass compression nuts, (2)
ferrules/sleeves, and instructions for installing a water supply
line.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
It takes approximately 24 hours for the ice maker to begin
producing ice. Air in new plumbing lines may cause ice
maker to cycle two or three times before making a full tray of
ice. New plumbing may cause ice to be discolored or have
poor flavor. Discard ice made during the first 24 hours.
WARNINGWARNING
WARNINGWARNING
WARNING
To avoid electric shock, which can cause death or severe
personal injury, disconnect the beverage center from
electrical power before connecting a water supply line to
the beverage center.
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
To Avoid Property Damage:
•Copper tubing is recommended for the water supply
line.Water supply tubing made of ¼” plastic is not
recommended since it greatly increases the potential
for water leaks. Manufacturer will not be responsible
for any damage if plastic tubing is used for supply
line.
• DO NOT install water supply tubing in areas where
temperatures fall below freezing.
•Chemicals from a malfunctioning softener can
damage the ice maker. If the ice maker is connected
to soft water, ensure that the softener is maintained
and working properly.
