Frigidaire FGMC3065KW - Microwave Oven Combination Installation instructions

frigidaire.com
30" Electric
Signature Features
Microwave Combination Ovens
FGMC3065K W/ B
Quick Preheat
Preheat in less than six minutes.1
Eortless™ Convection
Takes the guesswork out of
convection cooking — our oven
does the converting for you.
Fits-More™ Microwave Oven
Extra-large microwave provides 2.0
cu. ft. of cooking space.
True Convection
Multi-rack baking is faster and more
even with True Convection.
Product Dimensions
Height 42-3/4"
Width 30"
Depth 24-1/2"
More Easy-To-Use Features
Eortless™ Reheat
Reheat almost anything with the touch
of a button.
Express-Select® Controls
Easily set cooking temperature or choose
one-touch cooking options.
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
One-Touch Options
Our ovens feature easy-to-use one-touch
buttons so you can cook pizza or chicken
nuggets — or even add a minute to the
timer — with the touch of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the half
rack and you’ll have extra height for tall
dishes.
Chicken Nugget Button
Easily bake perfect chicken nuggets with
the touch of a button.
Pizza Button
Easily bake perfect pizza with the touch of
a button.
Even Baking Technology
Our latest technology ensures even baking
every time.
Add-a-Minute
Easily add a minute to the oven timer in
the middle of a cycle without resetting.
Sabbath Mode (Star-K® Certified)
Available in:
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
White
(W)
Black
(B)

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Microwave Combination Ovens
FGMC3065K W/B 30" Electric
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMC3065K 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Features
Microwave Capacity (Cu. Ft.)
Window
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock / Clock
Touch Pad Buttons
Power Levels
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Reheat Button / Snack Button
Auto Melt / Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Keep Warm / Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start / User Preferences
Oven Features
Oven Capacity (Cu. Ft.)
Oven Window
Oven Lights
Hidden Bake Element
Convection System
Baking System
Broiling System
Quick Preheat
Bake / Broil Element (Watts)
Oven Rack Configuration
Oven Cleaning System
Oven Controls
Convection Conversion
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm / Add-a-Minute
Optional Accessories
3"-High White Bottom Trim
3"-High Black Bottom Trim
Certifications
Sabbath Mode (Star-K® Certified)
Specifications
Microwave Oven Interior ( H x W x D )
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select®
Color-Coordinated
Color-Coordinated
2.0
Large
Yes
White
16"
Yes
Yes / Yes
28
10
Yes
Yes
Yes
Yes / Yes
4
3
3
3
6
Yes / Yes
5
Yes
Yes / Yes
4.2
Extra-Large
2
Yes
True Convection
Even Baking Technology
Power Broil
Yes
2,200 / 4,000
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Quick Clean
Eortless™
Yes
Yes
Yes / Yes
PN # 318258703
PN # 318258704
Yes
10-1/2" x 17-3/8" x 18-5/8"
16-1/2" x 24-1/8" x 18-1/32"
Middle Bottom Rear
240V / 208V / 60Hz
7.0 /6.0
29.2/ 28.9
30
250 Lbs.
Microwave Combination Ovens
Frigidaire Baseline
Spacer
B
A
C
D
E
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
42-3/4"
30"
24-1/2"
40-15/16"
28-1/4"
45-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
41-1/8" / 41-1/4"
28-1/2" / 29"
23-1/2"

Accessories information available
on the web at frigidaire.com

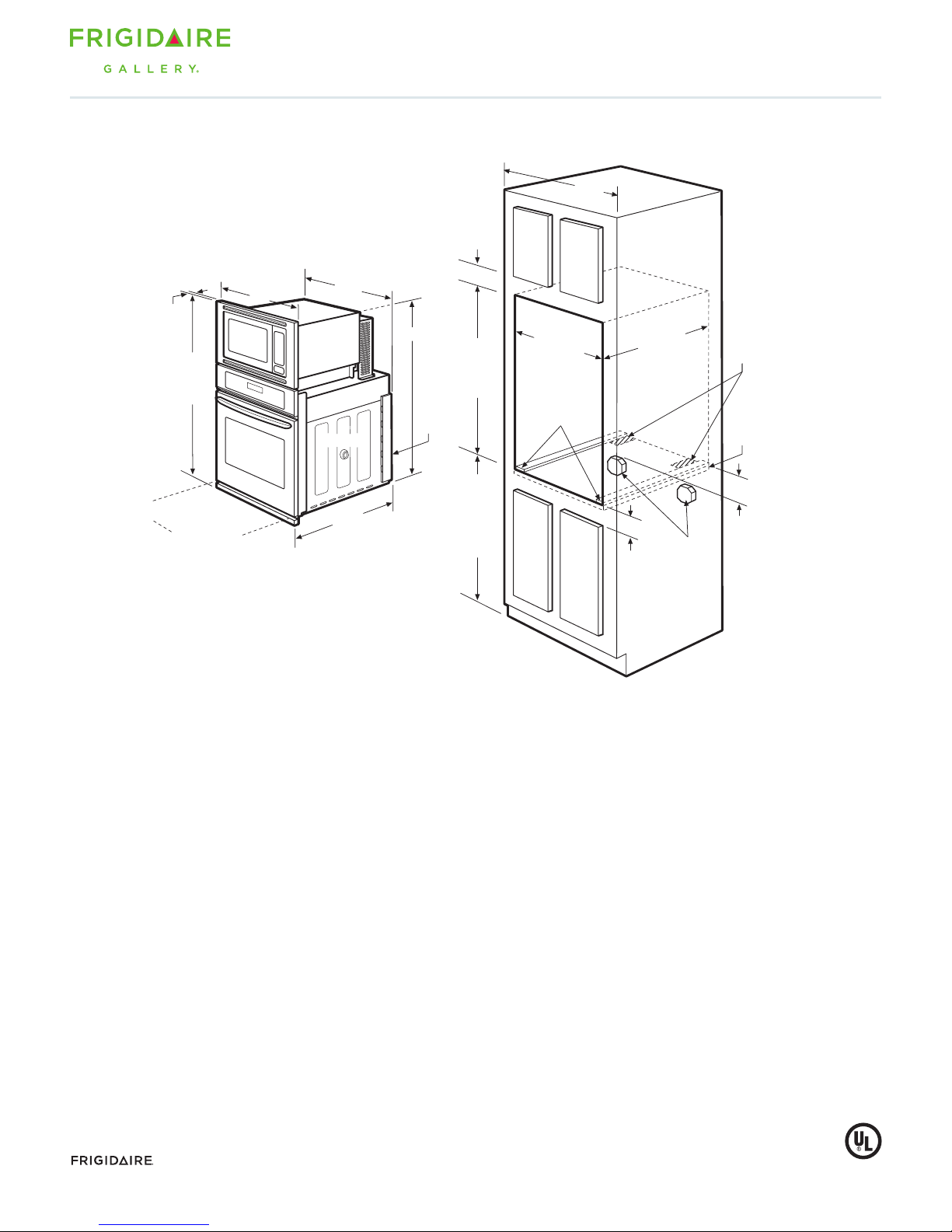

30" Microwave / Wall Oven Combination
Gallery
3" max.
11/4"
min.
1"min.
111/2"
suggested
distance
41/2"
min.
required
41 1/8"
min.
41 1/4"
max.
Full base
required
to support
225 lbs.
301/8"
min.
4" x 4"
opening
to route
armored
cable (right
or left side
depending
on model)
28 1/2" min.
29"max.
231/2" min.*
(critical
dimension)
2"-wide
wood spacers
(if needed)
*Critical
dimension –
MUST be
applied
Electrical
junction box
location (right
or left side)
Spacer
281/4"
423/4"
(includes
1" bottom
trim)
115/16"
24 1/2"
30"
4015/16"
Allow at least
21" clearance
for door depth
when open
Power
supply
location
(middle
bottom
rear)
•To adapt Microwave Combination Oven to fit cutout height greater
than 42-3/16", optional 3"-High Bottom Trim available.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Full oven base of solid plywood or similar material required,
capable of supporting 225 Lbs.
•Base must be level and cabinet front must be square.
•Microwave Combination Ovens are NOT approved to be
used in stackable or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•3"-High White Bottom Trim – (PN # 318258703).
•3"-High Black Bottom Trim – (PN # 318258704).
Microwave Combination Oven Specifications
•Product Shipping Weight (approx.) – 250 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•Connected Load (kW Rating) @ 240 / 208 Volts = 7.0 / 6.0 kW
•Amps @ 240 / 208 Volts = 29.2 / 28.9 Amps
•Recommended Circuit Breaker – 30 Amps
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•To adapt Microwave Combination Oven to fit cutout height greater
than 41-11/16", add one 2"-wide wood shim of appropriate height
to each side of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom trim will
hide shims at bottom. (Standard 1"-High Bottom Trim included.)
Microwave Combination Ovens
FGMC3065K W/B 30" Electric
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMC3065K 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
