Frigidaire Gallery FGMV153CL Installation guide

frigidaire.com
Signature Features
30" Over-The-Range
Product Dimensions
Height 16-13/32"
Width 29-7/8"
Depth 15-7/16"
More Easy-To-Use Features
Express-Select® Controls
Keep it fast and make it simple with
Express-Select® Controls that conveniently
set cooking temperature and time.
Sensor Cooking
Microwave automatically adjusts power
levels and cooking times to perfectly cook
a variety of items, effortlessly.
One-Touch Options
Our microwaves feature easy-to-use one-
touch buttons so you can bake a potato,
pop popcorn or add 30 seconds to the
timer with the touch of a button.
Two-Speed Ventilation
Freshen your kitchen and save space
with our over-the-range microwaves
that double as vent hoods.
Extra-Large 13-1/2" Diameter
Glass Turntable
Big bowls and large casserole dishes
are no problem for our extra-large
glass turntable.
Convection Cooking Rack
Stainless Steel Interior
Available in:
Black
(B)
White
(W)
Microwaves
FGMV153CL W/ B
SpaceWise® Rack
Our SpaceWise® Rack creates more
room so you can cook multiple dishes
at once.
Convection Option
Bake and brown your favorite foods
in your microwave oven with the
touch of a button — ten preset options
allow you to set the heat from 100 to
450 degrees.
Eortless™ Reheat
Reheat almost anything with the
touch of a button.
Convection & Microwave Option
Combine the speed and freshness of
microwave cooking with the browning
capabilities of a convection oven, all
with a simple one-touch button.
Featuring Convection

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMV153CL 08/12 © 2012 Electrolux Home Products, Inc.
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Capacity (Cu. Ft.)
Convection Option
Convection & Microwave Option
Watts (IEC-705 Test Procedure)
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock
Clock
Touch Pad Buttons
Power Levels
SpaceWise® Rack
Convection Cooking Rack
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Sensor Reheat Options
Snack Button
Beverage
Melt & Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Multi-Stage Cooking Option
Keep Warm
Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start
User Preferences
Ventilation System
Ducted / Ductless
Installation Option
Exhaust Fan (CFM)
Cooktop Light
Auto-Start Heat Sensor
Dishwasher-Safe Vent Filter
(Ductless Installation)
Power Ratings
Frequency (MHz)
Watts @ 120 Volts
Amps @ 120 Volts
Optional Accessories
36" White Filler Panel Kit
36" Black Filler Panel Kit
Specifications
Oven Interior (HxWxD)
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts1
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select®
Color-Coordinated
Color-Coordinated
1.5
Yes (100° - 450°)
Yes
900
Yes
Stainless Steel
13-1/2"
Yes
Yes
27
10
Yes
Yes
Yes
Yes
Yes
3
Yes
Yes
3
5
Yes
Yes
Yes
4
2
Yes
Yes
Yes
2-Speed
170 / 300
Yes
Yes
Yes
2,450
1,640
15
PN # MWFILKTWH
PN # MWFILKTBK
8-15/16" x 20-1/4" x 13-15/16"
Upper
120V / 60Hz / 15A
1.64
15
69 Lbs.
Microwaves
FGMV153CL W/ B 30" Over-The-Range
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
Cutout Dimensions
Height (Min. from floor to top of unit)
Width (Min.)
Depth (Min.)
Depth (Max.)
66"
30"
12"
13"
16-13/32"
29-7/8"
15-7/16"
30" Over-the-Range Microwave Oven w/Side Controls
Gallery
B
A
C
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.

Microwaves
FGMV153CL W/ B 30" Over-The-Range
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMV153CL 08/12 © 2012 Electrolux Home Products, Inc.

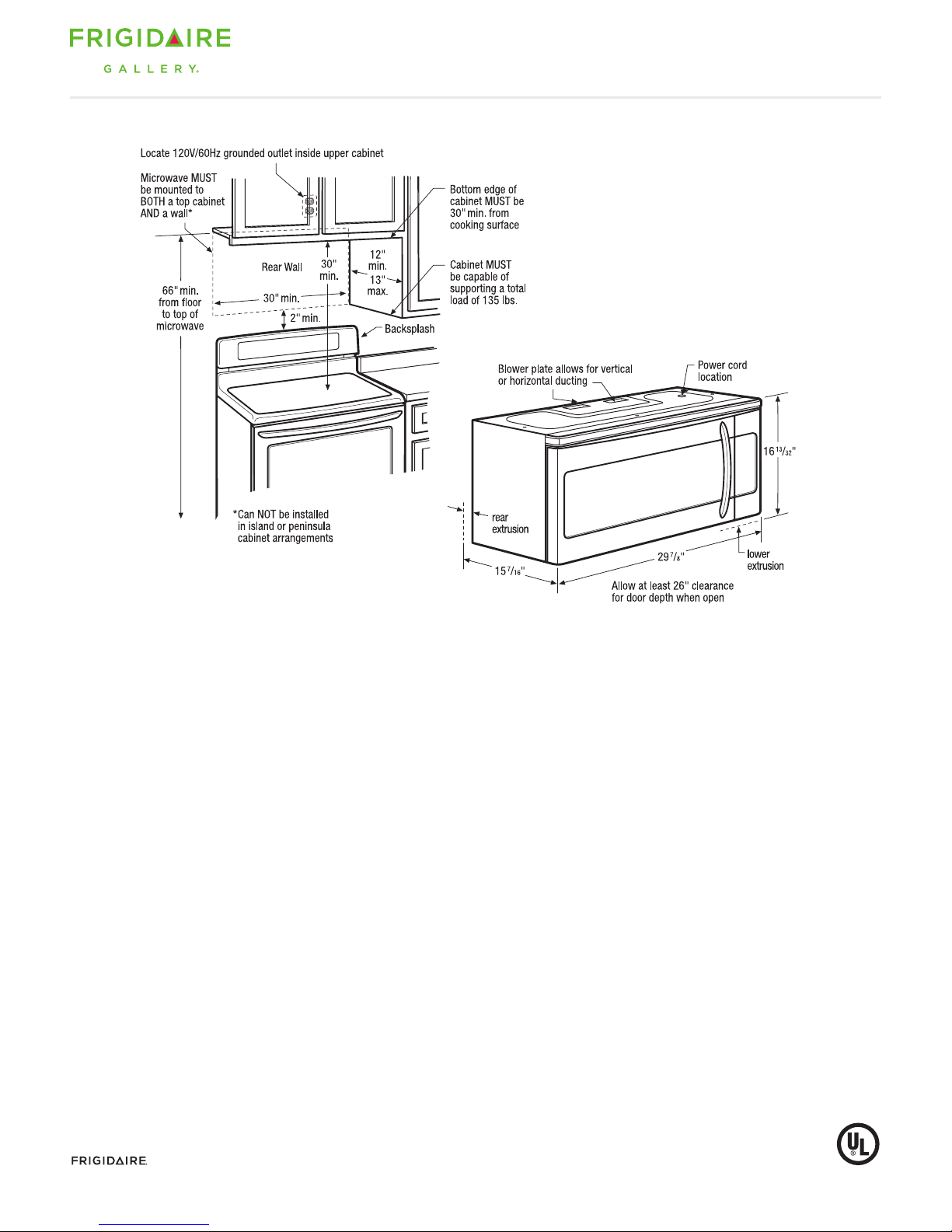

Microwave Specifications
•Product Shipping Weight (approx.) – 69 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.64 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 15 Amps
•Always consult local and national electric codes.
•Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for
power cord clearance when installing beneath smooth, flat cabinets.
•Microwave’s exhaust ventilation system is preset to recirculate air
inside with no ducting system required. Exhausting air outside is
optional, using either vertical or horizontal ducting system. (Refer to
Ducted Option Specifications for outside ventilation.)
•
For safe and proper installation, microwave MUST be mounted to
BOTH a top cabinet AND a wall, and connected to at least one wall
stud. Can NOT be installed in island or peninsula cabinet arrangements.
•Cabinet bottom MUST be level to insure proper installation.
•Cabinet MUST be capable of supporting a total load of 135 lbs.
•Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•Minimum distance of 30" required from cooking surface to bottom
edge of top cabinet.
•Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Panel Kit to fill
in gap between unit and cabinets.
•Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•For outside ventilation.
•Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no less
than 6" diameter.
•For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 120 equivalent feet.
•For horizontal installation, be sure to allow enough space between
wall studs to accommodate exhaust.
•Refer to installation instructions on web for detailed duct
preparation and converting exhaust vent blower system for exterior
exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• 36" White Filler Panel Kit – (PN # MWFILKTWH).
• 36" Black Filler Panel Kit – (PN # MWFILKTBK).
30" Over-the-Range Microwave Ovens
with Side Controls (FGMV154CL / FGMV153CL)
Gallery (1.5 Cu. Ft.)
