Frigidaire Gallery FGMO205K F User manual

frigidaire.com
Signature Features
24" Built-In
Microwaves
FGMO205K F/ W/ B
Eortless™ Reheat
Reheat almost anything with the
touch of a button.
One-Touch Options
Our microwaves feature easy-to-use
one-touch buttons so you can cook
chicken nuggets, baked potatoes or
popcorn with the touch of a button.
Fits-More™ Microwave
Extra-large microwave provides 2.0
cubic feet of cooking space.
Over 30 Options
Versatile settings include: Chicken
nuggets and snacks.
Product Dimensions
Height 13-3/8"
Width 24"
Depth 19-1/8"
More Easy-To-Use Features
Real Stainless Steel1
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Sensor Cooking
Microwave automatically adjusts power
levels and cooking times to perfectly cook
a variety of items, effortlessly.
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
One-Touch Add 30 Seconds
Built-In Trim Kit
Optional trim kit available in white, black
or stainless trim in 27" or 30" diameter.
Available in:
1Select models only.
Stainless
(F)
Black
(B)
White
(W)

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMO205K 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Trim Kit Face Plate)
E - Width (Trim Kit Face Plate)
13-3/8"
24"
19-1/8"
18"
30" / 27"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Width (Max.)
Depth (Min.)
16-3/4"
17"
24-3/4"
25"
20"
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Capacity (Cu. Ft.)
Convection
Watts (IEC-705 Test Procedure)
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock
Clock
Touch Pad Buttons
Power Levels
Accessory Metal Rack
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Sensor Reheat Button
Snack Button
Beverage
Melt & Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Multi-Stage Cooking Option
Keep Warm
Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start
User Preferences
Power Ratings
Frequency (MHz)
Watts @ 120 Volts
Amps @ 120 Volts
Optional Accessories
30" Stainless Steel Trim Kit
30" White Trim Kit
30" Black Trim Kit
27" Stainless Steel Trim Kit
27" White Trim Kit
27" Black Trim Kit
Specifications
Oven Interior (HxWxD)
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts1
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select®
Real Stainless Steel (F),
Color-Coordinated (W/B)
Push Button
2.0
1,200
Yes
White
16"
Yes
Yes
28
High (1 – 10)
Yes
Yes
Yes
Yes
Yes
4
3
4
3
6
Yes
Yes
5
Yes
Yes
Yes
2,450
1,700
14.3
PN # MWTK30KF
PN # MWTK30KW
PN # MWTK30KB
PN # MWTK27KF
PN # MWTK27KW
PN # MWTK27KB
10-1/2" x 17-3/8" x 18-5/8"
Right Top Rear
120V / 60Hz / 15 or 20A
1.7
15
46 Lbs.
Microwaves
FGMO205K F/ W/ B 24" Built-In
24" Built-In Microwave (2.0 cu.ft.)
with 27"or 30" Trim Kit
Professional and Gallery
B
C
rear
extrusion
30"or 27"
Trim Kit Faceplate
D
E
A

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Microwaves
FGMO205K F/ W/ B 24" Built-In
Microwave Specifications
•Product Shipping Weight (Approx.) – 46 Lbs. (not incl. Trim Kit)
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Always consult local and national electric codes.
•Microwave can stand alone on countertop or be built in with optional
30" or 27" Trim Kit (ordered by individual part number) which
includes Bottom Duct Assembly – shipped in separate box.
•Allow 21" minimum clearance for 90° door swing.
•Minimum 20" deep oven cutout dimension is critical for proper
installation for oven and faceplate to fit flush against cabinet front.
•Consult local building code, in the event that cutout opening may be
required to be enclosed with sides, ceiling and rear partition.
•Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•Base must be level and front of cabinet square for proper operation.
•Grounded outlet should NOT be located in shaded area, as indicated,
UNLESS cabinet depth is greater than 21".
•Can NOT be installed above any gas wall oven.
•Built-In Microwave is approved to be used in combination with any
Frigidaire® Electric Single Wall Oven and /or Warmer Drawer. (Refer to
model-specific Combination Installation Specification pages on web.)
•When used in combination with another Frigidaire® built-in product,
a minimum clearance of 2-7/8" required from bottom of Built-In
Microwave cutout to top edge of companion product’s faceplate,
leaving a 2" visible gap between both product faceplates.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions
Optional Accessories
•30" Stainless Steel Trim Kit – (PN # MWTK30KF).
•27" Stainless Steel Trim Kit – (PN # MWTK27KF).
•30" White Trim Kit – (PN # MWTK30KW).
•27" White Trim Kit – (PN # MWTK27KW).
•30" Black Trim Kit – (PN # MWTK30KB).
•27" Black Trim Kit – (PN # MWTK27KB).
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGMO205K 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Built-In Microwave with 27"or 30" Trim Kit
(Side Controls - 2.0 cu.ft.)
Professional and Gallery

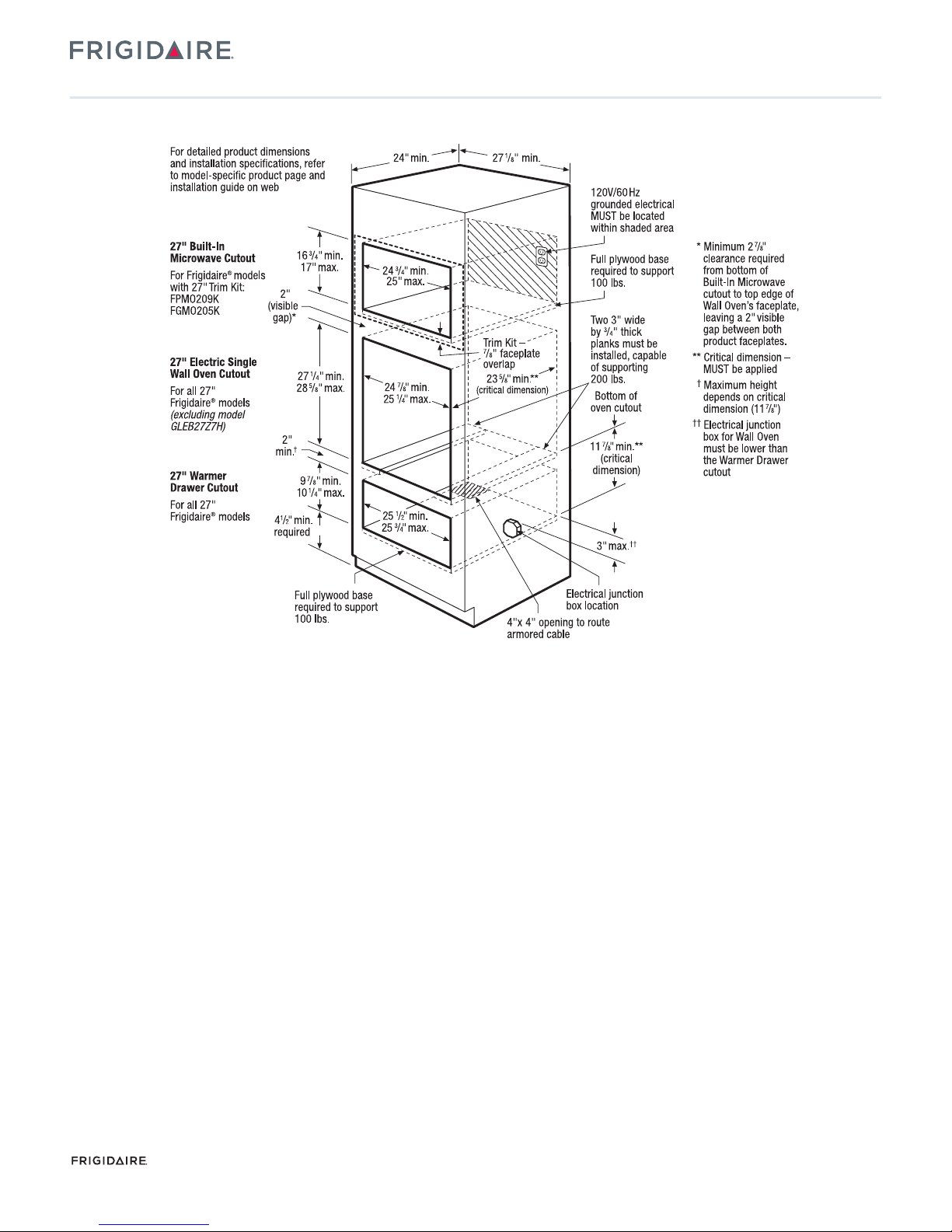

30" Combination Installation
Built-In Microwave / Single Wall Oven
Specifications
subject to change.
30" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs.
•To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"- High Bottom Trim included.)
•To adapt oven to fit cutout height greater than 28-5/8", optional
3"- High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
30" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Wall Oven cutout
to floor, 31" suggested.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
30" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS24_EW 30INST FR 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Frigidaire 30" Combination Installation –
24" Built-In Microwave (with 30" Trim Kit)
Electric Single Wall Oven

Specifications
subject to change.
30" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•To support Wall Oven when using in combination with Warmer
Drawer, two 3"-wide x 3/4"-thick planks must be installed as a base,
capable of supporting 200 Lbs. Do NOT use full base, since planks
are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•Voltage Rating – 120V / 450W / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 0.5 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120V = 3.8 Amps
•Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
30" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Warmer Drawer
cutout to floor.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
30" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Combination Installation
Built-In Microwave / Single Wall Oven / Warmer Drawer
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS24_EW_WD 30INST FR 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Frigidaire 30" Combination Installation –
24" Built-In Microwave (with 30" Trim Kit)
Electric Single Wall Oven
Warmer Drawer

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS24_EW 27INST FR 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
27" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Wall Oven cutout
to floor, 31" suggested.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
27" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs.
•To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"- High Bottom Trim included.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Frigidaire 27" Combination Installation –
24" Built-In Microwave (with 27" Trim Kit)
Electric Single Wall Oven (excluding model GLEB27Z7H)
27" Combination Installation
Built-In Microwave / Single Wall Oven

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS24_EW_WD 27INST FR 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Frigidaire 27" Combination Installation –
24" Built-In Microwave (with 27" Trim Kit)
Electric Single Wall Oven (excluding model GLEB27Z7H)
Warmer Drawer
27" Combination Installation
Built-In Microwave / Single Wall Oven / Warmer Drawer
27" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Warmer Drawer
cutout to floor.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
27" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•To support Wall Oven when using in combination with Warmer
Drawer, two 3"-wide x 3/4"-thick planks must be installed as a base,
capable of supporting 200 Lbs. Do NOT use full base, since planks
are necessary to allow for proper air displacement.
27" Warmer Drawer Specifications
•Voltage Rating – 120V / 450W / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 0.5 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120V = 3.8 Amps
•Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
