Frigidaire FGEW3045KF User manual

frigidaire.com
30" Electric
Single Wall Ovens
FGEW3045K F/ W/ B
Signature Features
Quick Preheat
Preheat in less than six minutes.1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Keep Warm Setting
Keep food warm until everything —
and everyone — is ready.
Express-Select™ Controls
Easily set cooking temperature or
choose one-touch cooking options.
Powerful Performance
Eortless™ Convection Conversion
Power and Quick Clean Options
Broil ( 3,400W )
Performance-Driven Style
Real Stainless Steel
Even Baking Technology
One-Touch Options
Keep Warm
Chicken Nuggets
More Easy-To-Use Features
Hidden Bake
Extra-Large Window
ADA Compliant*
Sabbath Mode (Star-K® Certified)
Capacities
4.2 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 29"
Width 30"
Depth 24-1/2"
Available in:
* When properly installed, meets the appliance standards
in the American with Disabilities Act and the Architectural
Barriers Act Accessibility Guidelines as published by the
United States Access Board on June 23, 2004.
1 Based on single rack cooking performance, not set
temperature, using PowerPlus™ Preheat.
Stainless
(F)
White
(W)
Black
(B)

FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGEW3045K 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Single Wall Ovens
FGEW3045K F / W/B 30" Electric
30" Single Electric Wall Oven
Gallery
Single Wall Oven Specifications
•Product Shipping Weight (approx.) – 175 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•Connected Load (kW Rating) @ 240 / 208 Volts = 4.1 / 3.0 kW
•Amps @ 240 / 208 Volts = 17.0 / 15.0 Amps
•Recommended Circuit Breaker – 20 Amps
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Suggested distance from floor is 31". Minimum required distance
is 4-1/2".
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•To adapt oven to fit cutout height greater than 28-5/8", optional
3"-High Bottom Trim available.
•Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs.
•Base must be level and cabinet front must be square.
•Single Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.
•Single Wall Ovens are approved to be used alone in under-counter
installation or beneath any approved Frigidaire® gas or electric
cooktop. (Refer to Gas or Electric Cooktop Installation Over 30" / 27"
Electric Single Wall Oven Specifications pages on web.)
•Single Wall Ovens are approved to be used in combination with any
Frigidaire® Warmer Drawer. (Refer to model-specific Warmer Drawer
product page for Combination Installation Specifications.)
•Single Wall Ovens are approved to be used in combination with
any Frigidaire® Built-In Microwave Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•3"-High Stainless Steel Bottom Trim – (PN # 318258707).
•3"-High White Bottom Trim – (PN # 318258703).
•3"-High Black Bottom Trim – (PN # 318258704).

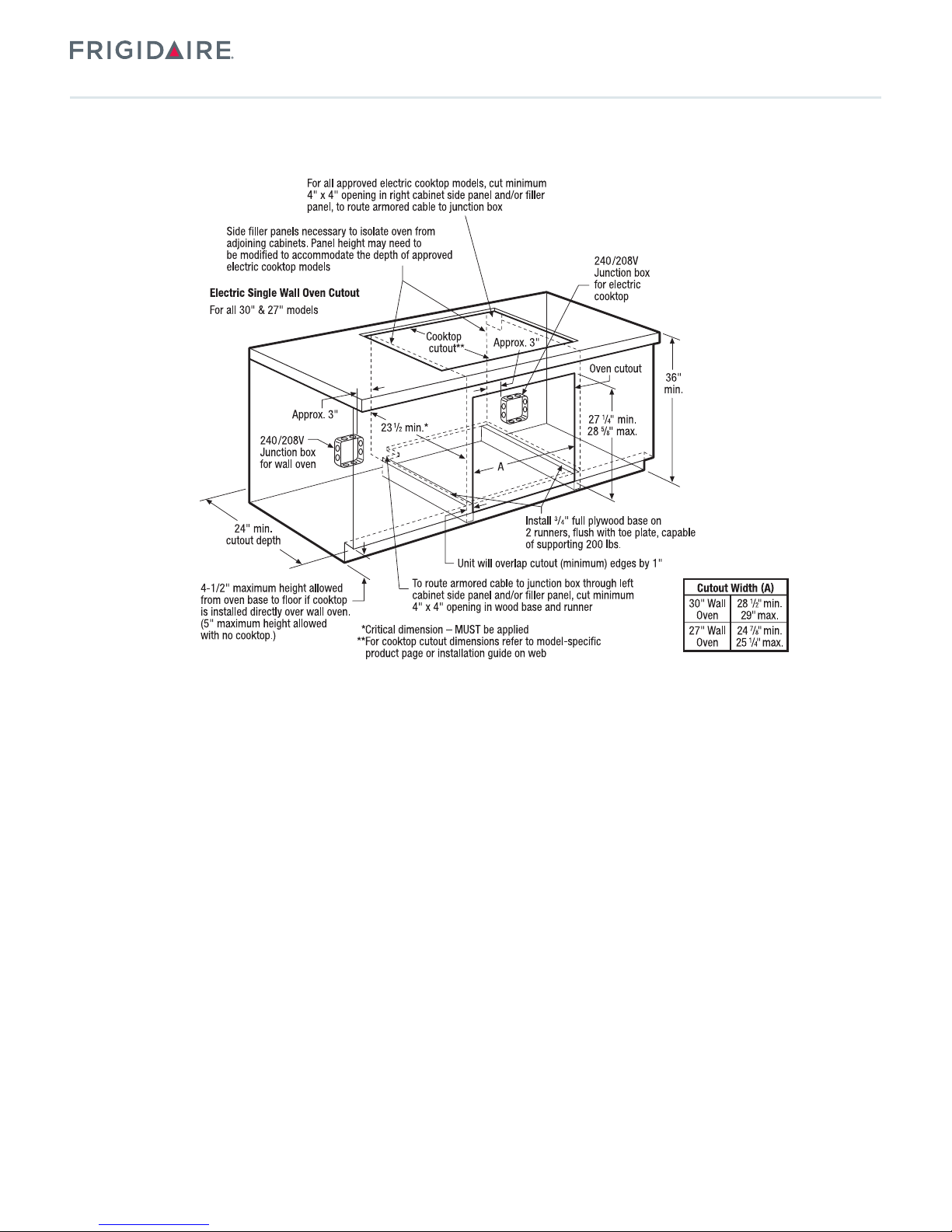

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Combination Frigidaire Electric Cooktop/
27" & 30" Electric Wall Oven Under-Counter Installation
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs. Install over two runners and flush
with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth
of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.

Specifications
subject to change.
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
GC_EW INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Combination Frigidaire Gas Cooktop/
27" & 30" Electric Wall Oven Under-Counter Installation
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs. Install over two runners and flush
with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Gas Cooktop Installation Over
30" / 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Gas Cooktop.
For detailed Gas Cooktop installation, refer to model-specific product
page and installation guide on web.
•Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth
of approved gas cooktop models.
•Minimum height opening of 6-1/2" (from top of counter) required
in right cabinet side panel and/or filler panel, to route gas and
electric hookups.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Gas Cooktop Installation
Over 30"/27" Electric Single Wall Oven

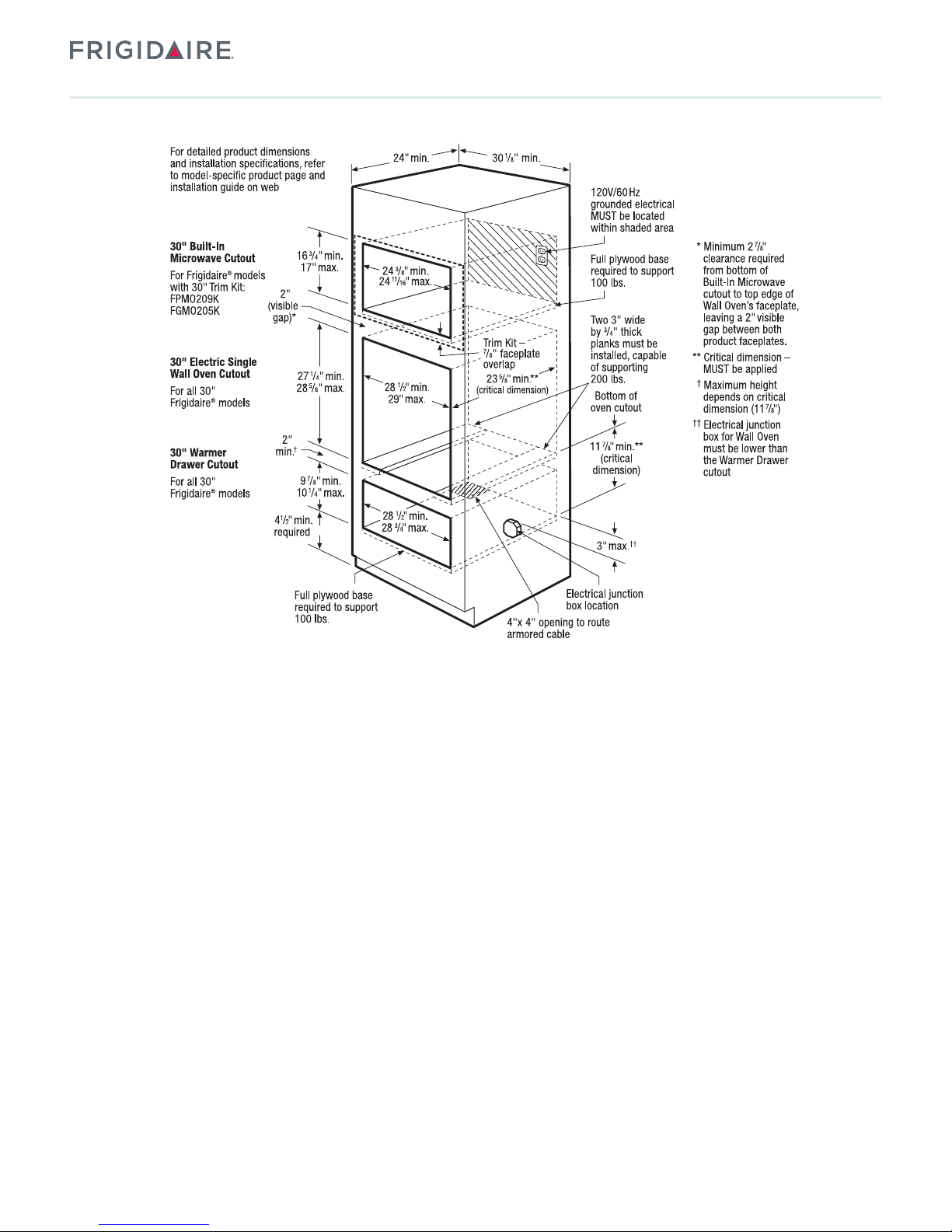

30" Combination Installation
Built-In Microwave / Single Wall Oven
Frigidaire 30" Combination Installation –
24" Built-In Microwave (with 30" Trim Kit)
Electric Single Wall Oven
30" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Wall Oven cutout
to floor, 31" suggested.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
30" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Full base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"- High Bottom Trim included.)
•To adapt oven to fit cutout height greater than 28-5/8", optional
3"- High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS_EW 30INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.

Specifications
subject to change.
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
MOSS_EW_WD 30INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Electric Single Wall Oven Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•To support Wall Oven when using in combination with Warmer
Drawer, two 3"-wide x 3/4"-thick planks must be installed as a base,
capable of supporting 200 Lbs. Do NOT use full base, since planks
are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•VoltageRating–120V / 450W / 60Hz / 15Amps
•ConnectedLoad(kWRating)@120Volts=0.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps@120V=3.8Amps
•Fullbaseofsolidplywoodorsimilarmaterialrequired,capableof
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
30" Combination Installation Specifications
•Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s
faceplate will fit flush against cabinet front.
•Bases must be level and cabinet front must be square.
•Minimum 4-1/2" required distance from bottom of Warmer Drawer
cutout to floor.
•Respect critical dimensions as noted for proper installation of
built-In products.
•Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•For built-in installation, microwave MUST be installed with optional
30" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 14.3 Amps
•Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
Frigidaire 30" Combination Installation –
24" Built-In Microwave (with 30" Trim Kit)
Electric Single Wall Oven
Warmer Drawer
30" Combination Installation
Built-In Microwave / Single Wall Oven / Warmer Drawer
