TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use &Care
of your Refrigerator
Important Safety Instructions......................2
Features at a Glance...................................4
Installation ................................................5
Door Removal Instructions..........................9
Installing Door Handles.............................11
Connecting Water Supply..........................14
Controls...................................................16
Automatic Ice Maker.................................18
242292001 (December 2012)
Storage Features......................................19
Storing Food and Saving Energy................23
Normal Operating Sounds and Sights.........24
Changing the Filter...................................25
Care and Cleaning....................................27
Before you Call.........................................30
Major Appliance Warranty .........................32

2
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, operation
or maintenance information which is
important but not hazard-related.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
Denitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Doors
Handles are secure and tight
Door seals completely to cabinet on all
sides
Freezer drawer is level across the top
Leveling
Refrigerator is level, side-to-side and
tilted ¼ inch (6 mm) front-to-back
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker (select models)
House water supply connected to
refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT SAFETY INSTRUCTIONS
For your Safety
• DO NOT store or use gasoline, or other
ammableliquidsinthevicinityofthisor
any other appliance. Read product labels
forwarningsregardingammabilityand
other hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
nishesiftheycomeincontactwithother
appliances or furniture.
WARNING
Please read all instructions before using this
refrigerator.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the refrigerator is unpacked. Children
should never use these items to play. Cartons
covered with rugs, bedspreads, plastic sheets
or stretch wrap may become airtight chambers,
andcanquicklycausesuffocation.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous
– even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator or
freezer, please follow the instructions below to
help prevent accidents.

3
IMPORTANT SAFETY INSTRUCTIONS
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Electrical information
• The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp,
AC only electrical outlet. The power cord of
theapplianceisequippedwithathree-
prong grounding plug for your protection
against electrical shock hazards. It must be
plugged directly into a properly grounded
three prong receptacle. The receptacle
must be installed in accordance with local
codesandordinances.Consultaqualied
electrician. Avoid connecting refrigerator to
a Ground Fault Interrupter (GFI) circuit. Do
not use an extension cord or adapter plug.
• If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
IMPORTANT
Pressing and holding the On/Off button for
three seconds, located on the left side of
the temperature control panel will disable
your refrigerator’s cooling system, but does
not disconnect the power to the light bulb
and other electrical components. To turn off
power to your refrigerator you must unplug
the power cord from the electrical outlet.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change.
• Never unplug the refrigerator by pulling on
thepowercord.Alwaysgriptheplugrmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
• Unplug the refrigerator before cleaning
and before replacing a light bulb to avoid
electrical shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigeratorwithinsufcientpowercan
damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned
off accidentally.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs
orHCFCs(chlorouorocarbonsor
hydrochlorouorocarbons).CFCsandHCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
properdisposalbyaqualiedtechnician.If
you intentionally release refrigerant, you may
besubjecttonesandimprisonmentunder
provisions of environmental legislation.
Proper Disposal of Refrigerators/
Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves
in place so
children may
not easily
climb inside.
• Have
refrigerant
removed by
aqualied
service technician.

4

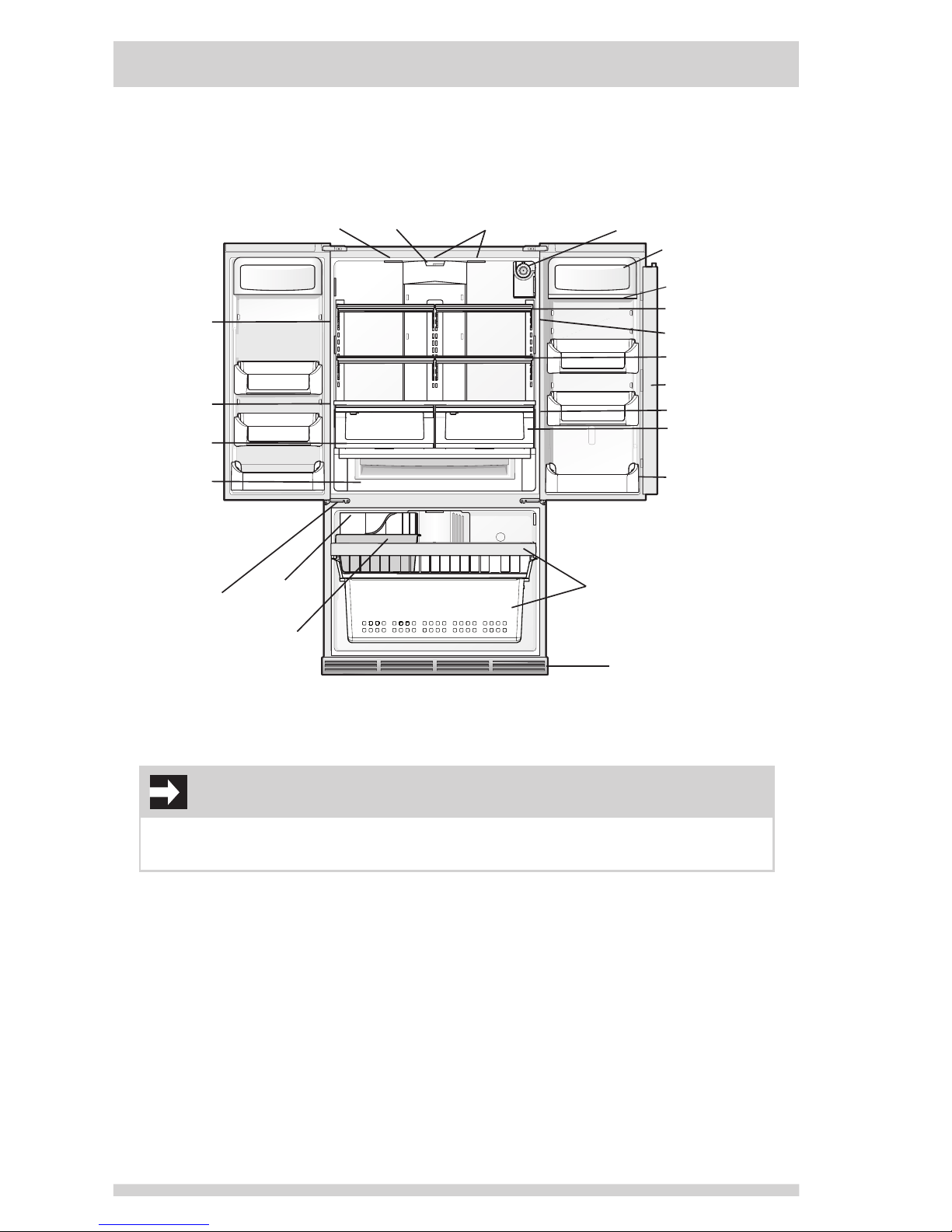

FEATURES AT A GLANCE
*Features may vary according to model
Toe Grille
SpillSafe™ Shelf
Dairy
Compartment
Ice Bin
*Ice Maker Freezer Baskets
Crisper Drawer
Crisper
Drawer
Water Filter
Adjustable
Hinges
*LED Cluster Light
Door Bin
Flipper Guide
Flipper Mullion
Deli Drawer
Air Filter
*LED Cluster Light
*LED
Cluster Light
Slide Under
Shelf
*LED
Cluster Light
*LED Cluster Light
*LED Cluster Light
IMPORTANT
Features not included with your refrigerator can be purchased at www.frigidaire.com
or by calling 1-800-944-9044.

5
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
INSTALLATION
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
ofyourrefrigerator.Sufcientaircirculation
is essential for the proper operation of your
refrigerator.
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before
starting the refrigerator, follow these important
rststeps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
• Therefrigeratormustbeinstalledonaoor
that is level and strong enough to support
a fully loaded refrigerator.
• Consider water supply availability for
modelsequippedwithanautomaticice
maker.
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top 3/8 inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing
food. For best use of refrigerator drawers and
freezer baskets, the refrigerator should be in a
position where both can be fully opened.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw

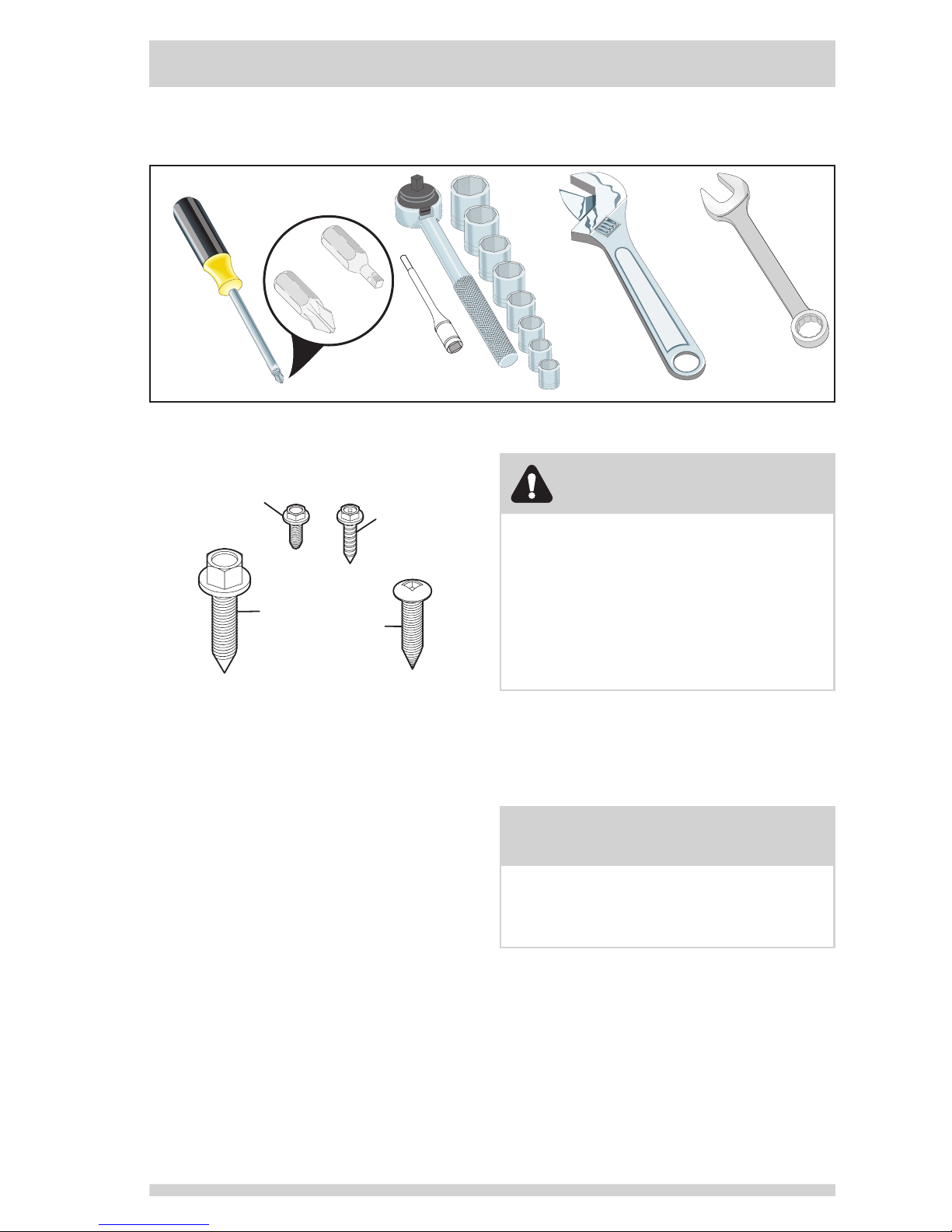

Components Provided:
Required Tools
You will need the following tools:
Adjustable
Wrench
3/8" Fixed
Wrench
Phillips Head
or
#2 Square
Drive Head
(OR)
Tools Necessary:
Socket
Wrench Set
Installation

6
INSTALLATION
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
Leveling Freezer Drawer
(if necessary)

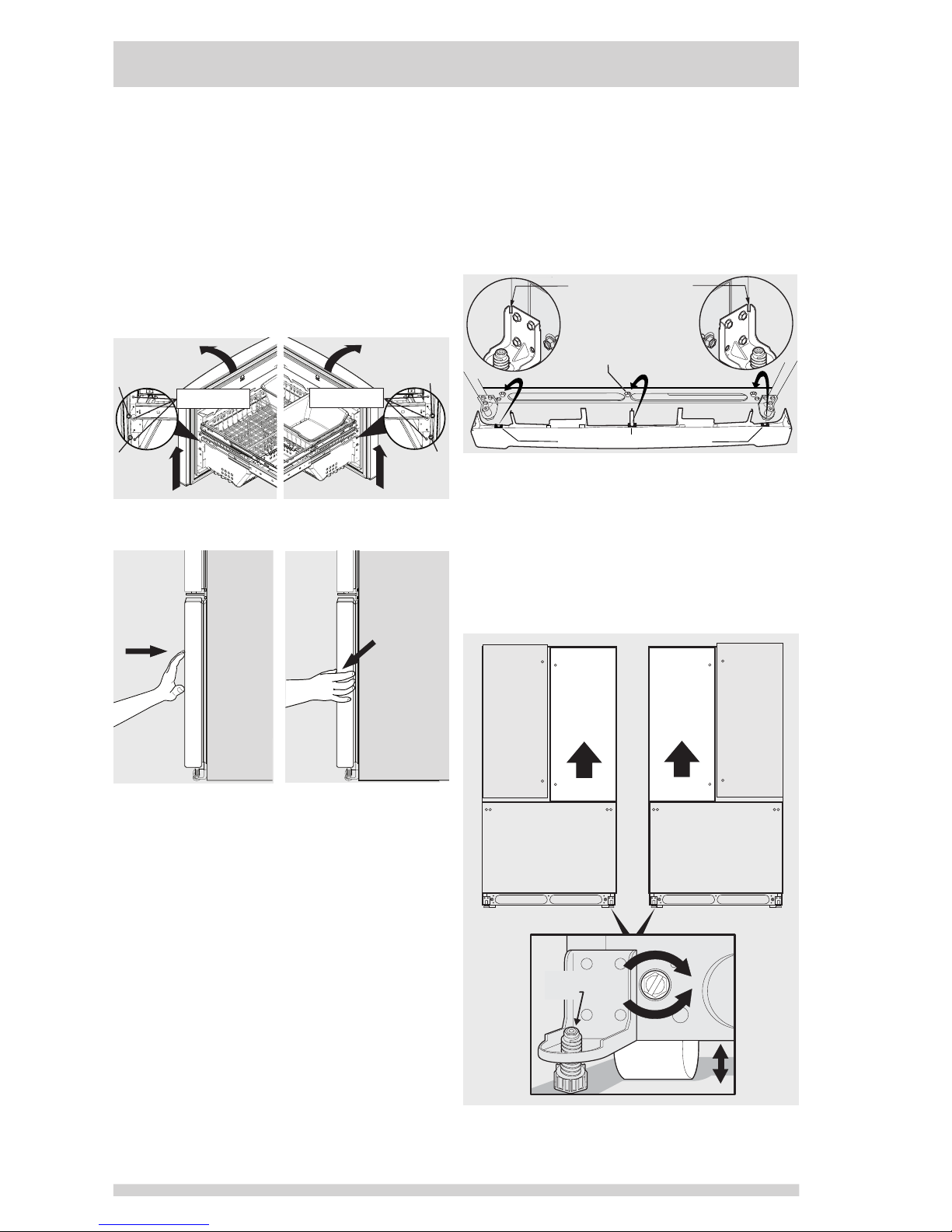

To level the cabinet using the front
rollers (select models):
1 Slightly open freezer drawer. Lift the
toe grille and gently pull forward (see
illustration).
 2 Youcanraiseorlowereachdoor.Usea⅜
inch socket wrench to turn the adjustment
screws (one per side).
1 Check gasket seal around top, bottom,
and sides of freezer drawer.
2 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
4 Tighten four drawer screws.
5 Recheck gasket seal.
Push
Against
Freezer
Drawer
Grab Drawer
At Center
From Both
Sides Then
Pull Drawer
Out
A B
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Raise
Lower
Anti-tip
Leg
Door
Door
 5 Installthetoegrillebyttingintoplace.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for nal positioning of your
refrigerator:
• All four corners of the cabinet must rest
rmlyontheoor.
• The sides should tilt ¼ inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
• Doors should align with each other and be
level.

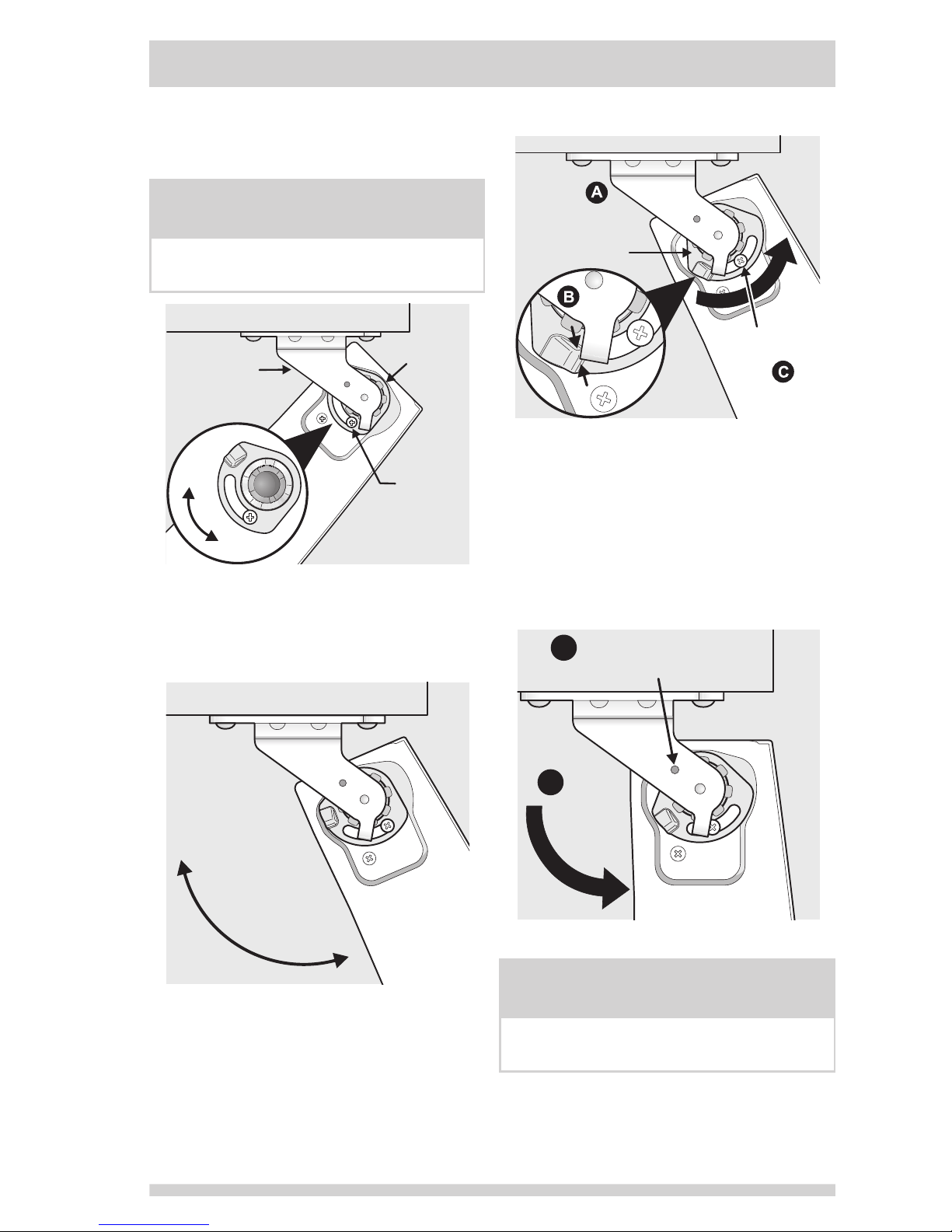

Most of these conditions can be met by raising
or lowering the adjustable front rollers.
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
4 After unit is leveled, lower anti-tip leg until
itcontactstheoor.

7
To adjust the door stop:
Door stop is adjustable between 85 to 145
degrees.
1 Open door to provide access to screw.
2 Loosen screw.
3 Adjust door to desired location.
4 Rotate door stop until it makes contact
with the lower hinge.
5 Retighten screw.
Open
Door
90
Degrees
A
BLoosen or Remove
Screw
Bottom of Door
Loosen/Remove Screw (where applicable)
6 Ensure door stops in desired location
before resuming normal use.
To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins on
door being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw.
Rotate
Door to Desired
Location
Adjusting Door
Rotate
Door
Stop
Re-tighten
Screw
Retighten Screw
Adjustable Door Stop
Door
Stop
Screw
Lower
Hinge
Min
Open
Max
Open
INSTALLATION
NOTE
View shown is looking up at the bottom of
the refrigerator door.
NOTE
Adjustable hinge should only be used after
doors have been leveled with rollers.

8
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
To adjust the ipper mullion:
 1 Loosenthescrewlocatedontheipper
mullion hinge.
 2 Adjustippermullionheight.Forproper
connectionwiththeippermullionguide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5mm)betweentheguideandipper
mullion.
3Retighten screw.
4 Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counterclockwise
(when viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Lower
Door
Hinge
Washer
Raise
Door
Raising/Lowering Door
INSTALLATION

9
DOOR REMOVAL INSTRUCTIONS

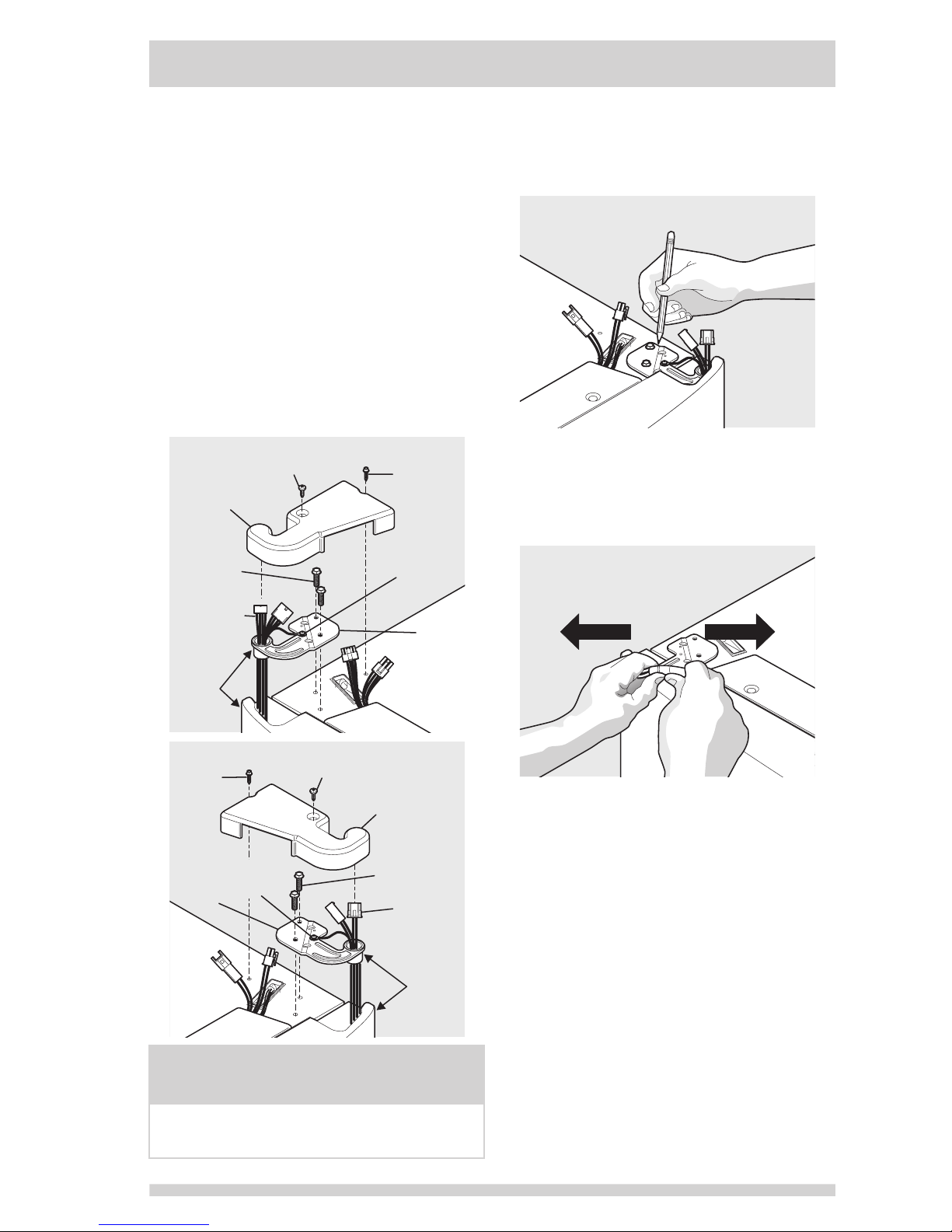

To remove the refrigerator doors:
1 Trace lightly around the door’s top hinges
with a pencil. This makes reinstallation
easier.
2 Disconnect the harness by grasping both
sidesoftheconnectorrmly,depressthe
latch, and pull apart. Remove the two
screws from the top hinge. Lift the door
off of the bottom hinge and set it aside.
Getting through narrow spaces
Ifyourrefrigeratorwillnottthroughan
entrance area, you can remove the doors.
Checkrstbymeasuringtheentrance.

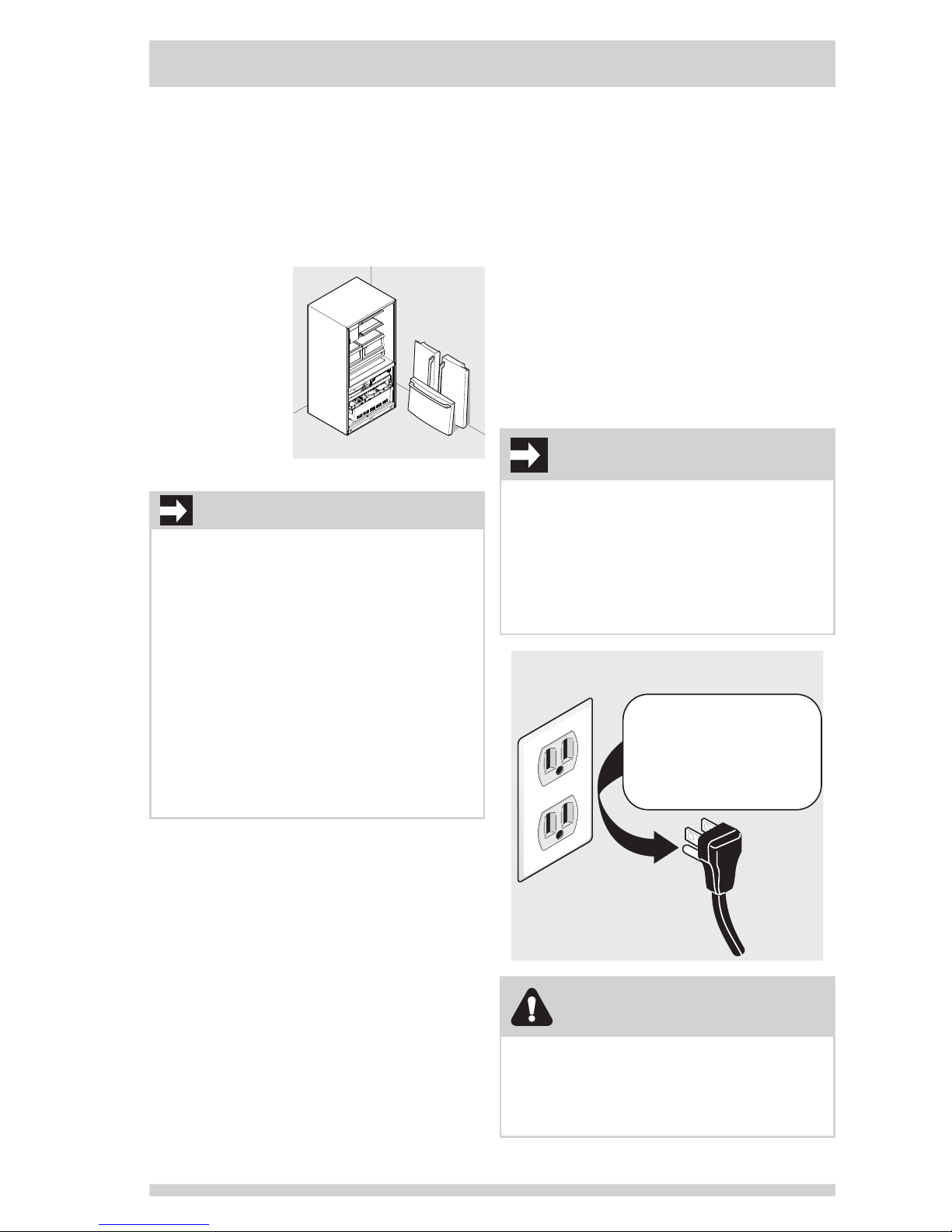

To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open the freezer drawer and remove the
toe grille (see “Installation” section).
3 Remove any food from the door shelves
and close the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Rear
Cover
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
Top
Hinge
Ground
Screw
NOTE
DO NOT remove the ground screw from
hinge.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw

10
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury, or damage to the doors or
handles.
CAUTION
Drawer is heavy. Use caution when lifting.
DOOR REMOVAL INSTRUCTIONS
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the “Installation” section for more details), and
replace the top hinge cover.
Lower Hinge Removal
4 Unscrew the three lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above
steps.
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left
sides (two screws on each side).
3 Lift drawer up and out to remove.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each
side are fully inserted into slots on each side.
6 Tighten four drawer screws.
7 Recheck gasket seal.
 8 Installthetoegrillebyttingintoplace.
2 Reinstall four drawer screws (two per
side), tighten down, and close drawer (C).
Push
Against
Freezer
Drawer
Grab Drawer
At Center
From Both
Sides Then
Pull Drawer
Out
A B
Assembly
Drawer Slides
Pin
Slot
Cabinet
Drawer
Fully Extend
Install Screws
(2) Each Side
3 Check gasket seal around top, bottom,
and sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
NOTE

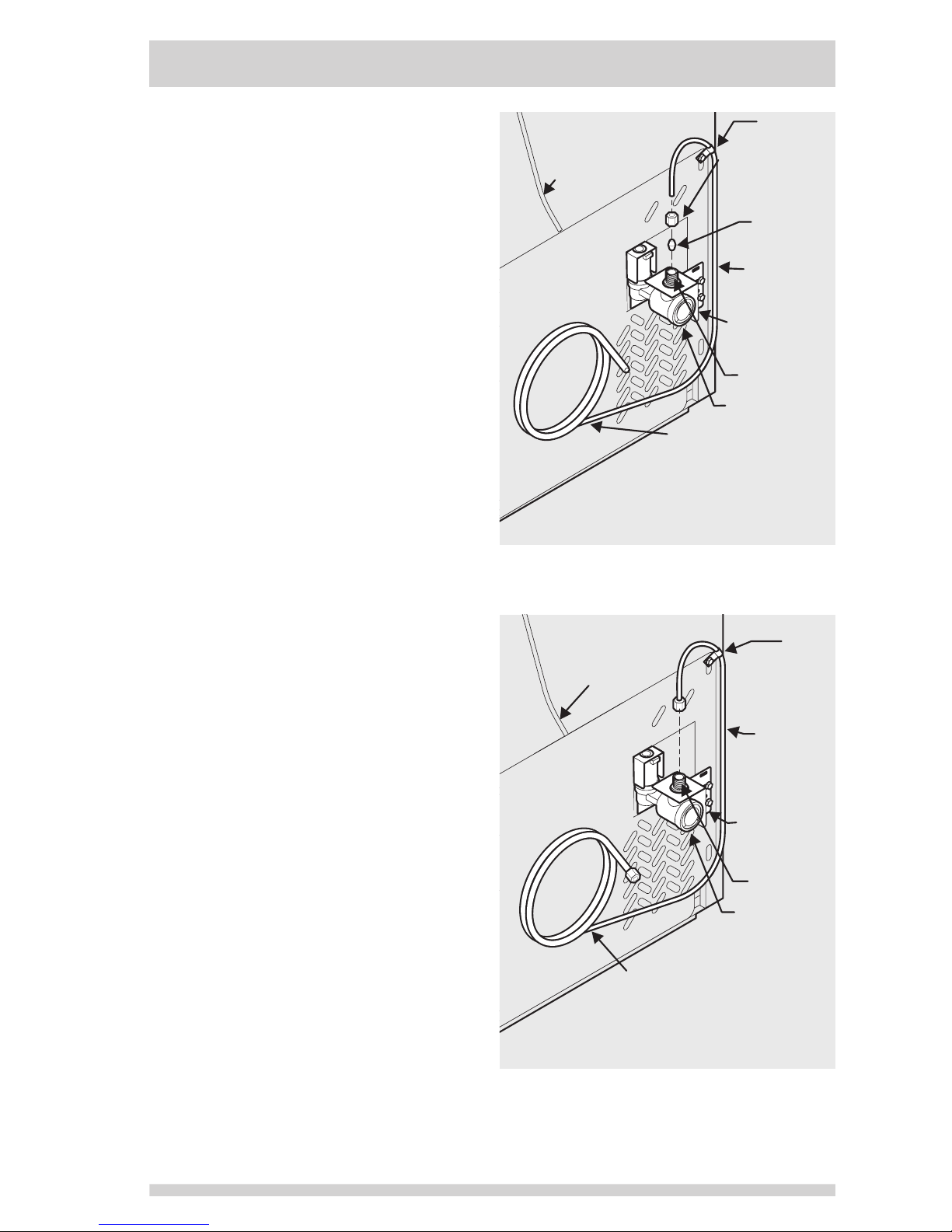

You will be pulling approximately three
feet of water tube from the back of the
refrigerator.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw

11
INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.

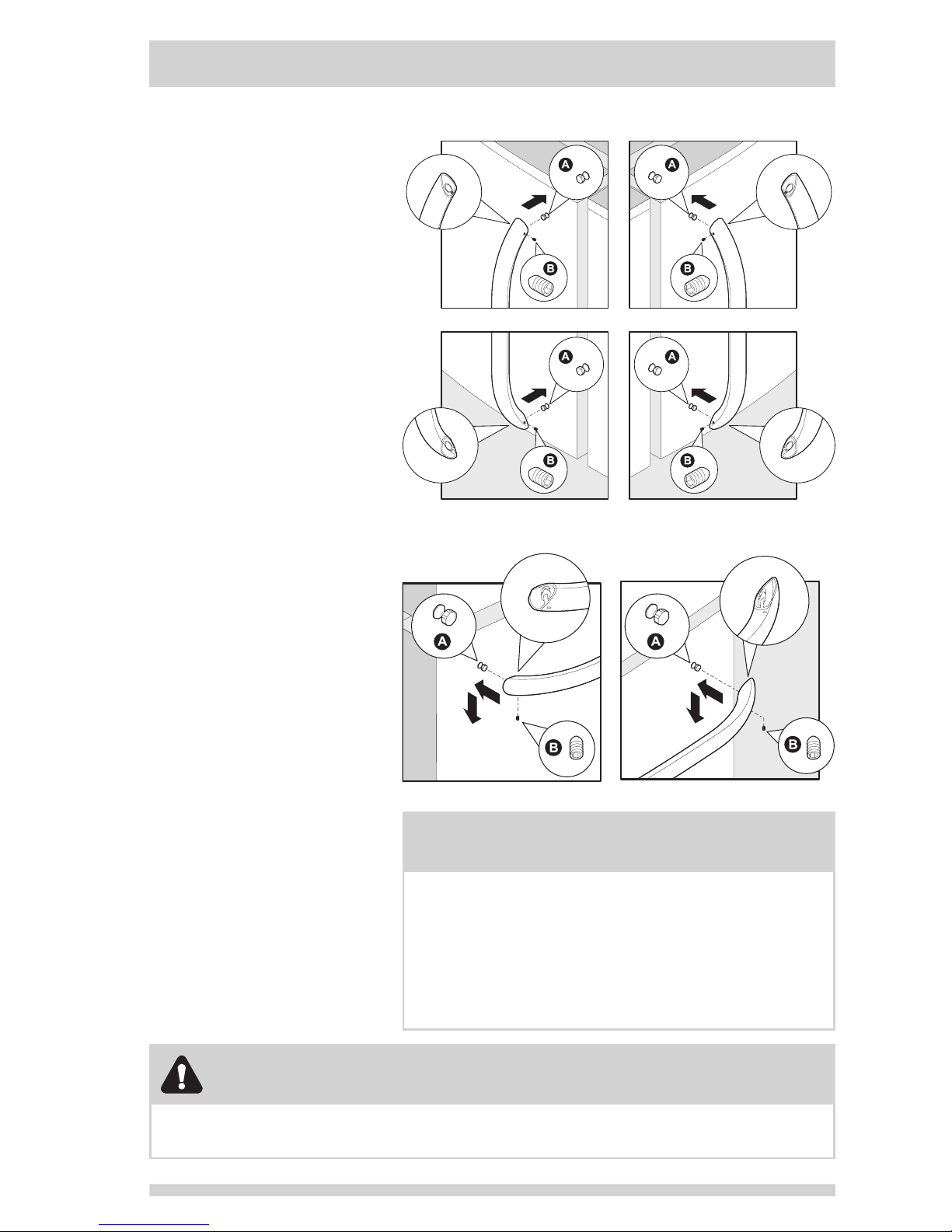

Door Handle Mounting
Instructions for
Frigidaire
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end caps over upper and
lower pre-installed shoulder
bolts (A) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door.
 3 Whileholdinghandlermly
against door, fasten upper
and lower Allen set screws
(B) with supplied Allen
wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
therstdoor.
5 Position freezer handle end
caps over left and right
pre-installed shoulder bolts
that are fastened to the door,
ensuring the holes for the set
screws are facing down.
 6 Whileholdinghandlermly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between
handle and door.
 7 Stillholdingthehandlermly
tothedoor,rmlytighten
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the right Allen set
screw(B)andrmlytighten
with supplied Allen wrench.
Mounting Freezer Handle
Mounting Refrigerator Handles

12
INSTALLING DOOR HANDLES
Door Handle Mounting
Instructions for
Frigidaire Gallery®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
pre-installed shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
 3 Whileholdinghandlermly
against door, fasten upper
and lower Allen set screws
(B) with supplied Allen
wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
therstdoor.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 Whileholdinghandlermly
against door, loosely tighten far
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between handle
and door.
7 Stillholdingthehandlermlyto
thedoor,rmlytightenfarleft
Allen set screw (B) with supplied
Allen wrench.
8Return to the far right Allen set
screw(B)andrmlytighten
with supplied Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.

13
Door Handle
Mounting Instructions
for Frigidaire
Professional®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
pre-installed shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
 3 Whileholdinghandlermly
against door, fasten upper
and lower Allen set screws
(B) with supplied Allen
wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
therstdoor.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
 6 Whileholdinghandlermly
against door, loosely tighten
far right Allen set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
7 Stillholdingthehandlermlyto
thedoor,rmlytightenfarleft
Allen set screw (B) with supplied
Allen wrench.
8Return to the far right Allen set
screw(B)andrmlytighten
with supplied Allen wrench.
9Firmly tighten the inside Allen
set screws.
INSTALLING DOOR HANDLES
Mounting Refrigerator Handles
Mounting Freezer Handle
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.

14
WARNING
To avoid electric shock, which can cause
death or severe personal injury, disconnect
the refrigerator from electrical power before
connecting a water supply line to the
refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice®water line kit 5305513409 (with
a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Frigidaire
recommends its Smart Choice®water line
kit 5305510264 (with a 20 ft. Copper Water
Line with self-tapping saddle valve). Please
refer to www.frigidaire.com/store for more
information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of ¼
inch plastic is not recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing in
areas where temperatures fall below
freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice
maker is connected to soft water, ensure
that the softener is maintained and
working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local plumbing
codes.
CONNECTING THE WATER SUPPLY
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools:adjustablewrench,at-blade
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch (6 mm)
OD, copper or stainless steel tubing. To
determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning
(as shown).
• A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
• Donotreusecompressionttingoruse
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.

15
To Connect Water Supply Line To Ice
Maker Inlet Valve
1. Disconnect refrigerator from electric power
source.
2. Place end of water supply line into sink or
bucket.TurnONwatersupplyandush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
3. Remove plastic cap from water valve inlet
and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (¼ inch/6 mm). Slide ferrule
(sleeve)intovalveinletandngertighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
overtighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled on
the tubing. Slide compression nut onto
valveinletandngertightencompression
nut onto valve. Tighten another half turn
with a wrench; DO NOT overtighten. See
Figure 2.
5. With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical power
source.
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft. Stainless Steel water line
from household water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
Figure 2
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop
to allow moving refrigerator out
for cleaning.)
CONNECTING THE WATER SUPPLY

16

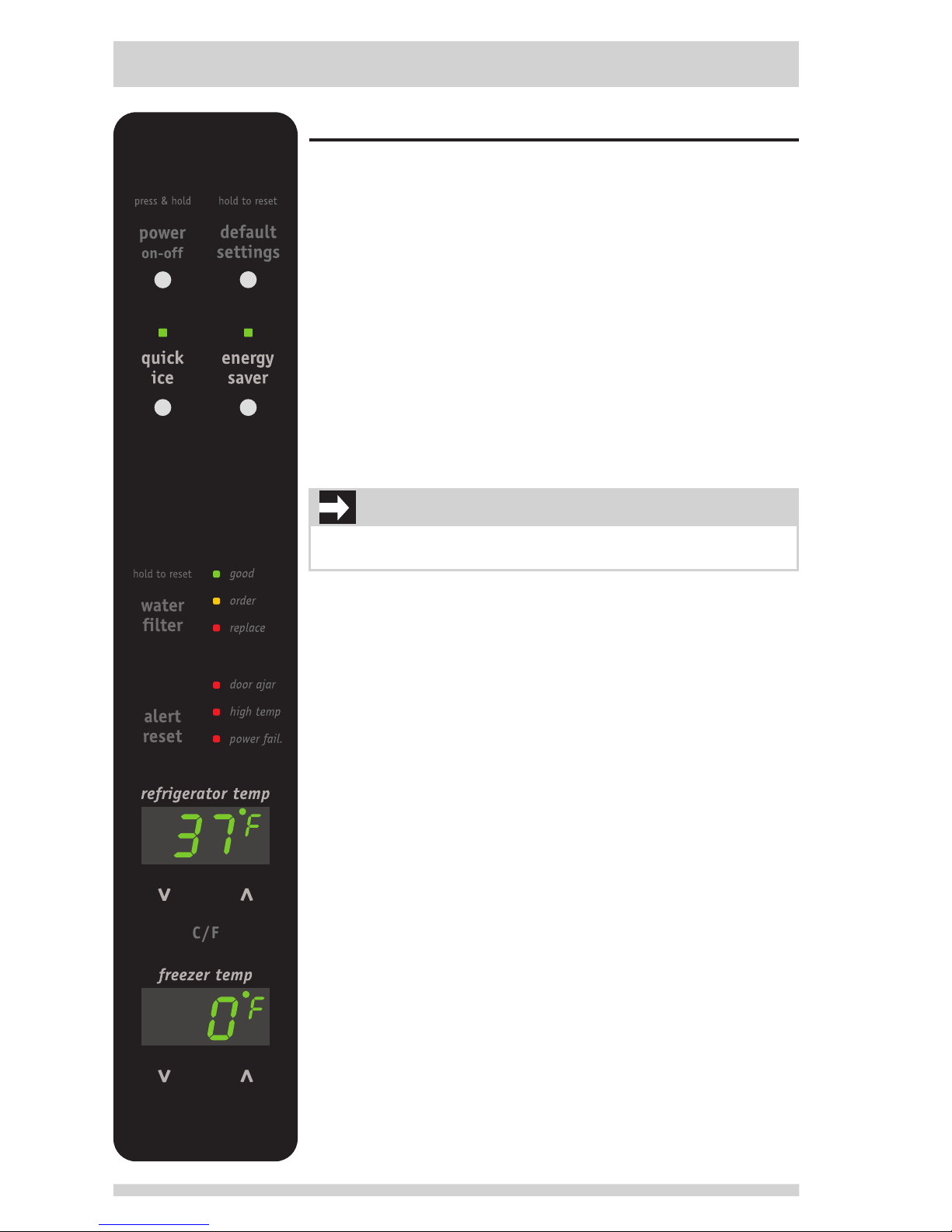

CONTROLS
Options may vary
A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
quickice Increasestheproductionofice
waterlter Pressandholdforthreesecondstoresetafterlter
change.
C/F Touch to toggle display from Fahrenheit to Celsius.
default settings Resets all refrigerator settings such as temp, temp
display and tones to their factory default settings.
Power on-off Press and hold for three seconds to turn off the cooling
system to clean the refrigerator. It also turns off the ice
maker. The temperature displays will read OFF.
Energy Saver Keep this switch set on energy saver (light on) for low-
est energy usage. If moisture appears on the cabinet
between the doors, pressing this button will turn the light
off and enable an electric heater used to reduce moisture
on the cabinet between the doors.
Setting cooling temperatures
Press the “∧” or “∨” indicator to adjust the temperature to the
desired setting.
Thetemperaturedisplaywillbegintoblinkwiththersttouch.The
display will time out after 10 seconds and return to the basic display.
Alarms
Door Ajar If the door has been left open for an extended period
of time, an alarm will sound and the door ajar indicator
will display on the bottom display of the control panel.
The alarm is turned off by closing the door. The mute
sounds key will blink to prompt the reset of any active
alarms. Press this key to reset any system alarms.
High Temp In the event of a high temperature condition, the
temperature display will blink and display “HI”. After
20 minutes, the alarm will sound and the high temp
indicator will be red on the bottom of the control panel.
The mute sounds icon will illuminate until pressed,
acknowledging the alarm, at which time the highest
temperature reached will be displayed and the refrigera-
tor will resume normal operation. In case the high temp
alarmisnotacknowledgedattherstalarmsoundtime
out,whenthedoorisrstopened,thealarmsoundwill
be repeated.
Power Fail In the event of a power failure, the power fail alert
will be displayed and the temperature display will blink
until the mute sounds icon is pressed, acknowledging
the alarm. Other modes may be turned off until the
alarm is acknowledged. The power fail alert is turned
off and the refrigerator will resume normal operation.
The high temp alarm may also be illuminated until a
safe operating range temperature has been reached.
IMPORTANT
Pressing the system on-off icon does not turn off power to your
refrigerator. You must unplug the power cord from the wall outlet.

17
CONTROLS
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the freezer “∨” and
refrigerator “∧”indicatorsforveseconds.The
display shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm
(some models) is active for health reasons. If
a high temperature alarm is activated during
this time, for example due to a door left ajar,
the alarm will sound intermittently for about
10 minutes. The alarm will then silence on
its own and a red high temperature icon will
display. The high temp icon will continue to
display, even if the door is closed, until the
Sabbath mode is exited and the icon reset.
The refrigerator will function normally once
the door is closed, without any violation of the
Sabbath/Holidays.
For further assistance, guidelines for proper
usage and a complete list of models
with the Sabbath feature, please visit
the web at http:\\www.star-k.org.
Sabbath Mode
NOTE
While in Sabbath Mode, neither the lights
nor the control panel will work until Sabbath
Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the control
panel.

18
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, lift the ice maker’s wire signal arm
to turn it off. Otherwise, the ice maker’s
llvalvemaymakealoudchatteringnoise
when it attempts to operate without water.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener
can damage the ice maker.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it is
completely dry.
AUTOMATIC ICE MAKER (select models)
Ice maker operation & care
After the refrigerator is installed properly, the
ice maker can produce ice within 24 hours. It
cancompletelyllanicebininaboutthree
days.
Whenusingtheicemakerforthersttimeand
in order for the ice maker to work properly, it is
necessarytoclearairfromwaterltertubing.
Once ice maker begins making ice, allow the
buckettollcompletely,thendiscardthe
rstTWOFULLbucketsofice.Itwilltakeat
leasttwodaystocompletelyllthebucketon
regular ice making mode or 1½ days on fast
ice mode.
The ice maker produces approximately four
pounds of ice every 24 hours depending on
usage conditions.
Turning the ice maker on and off

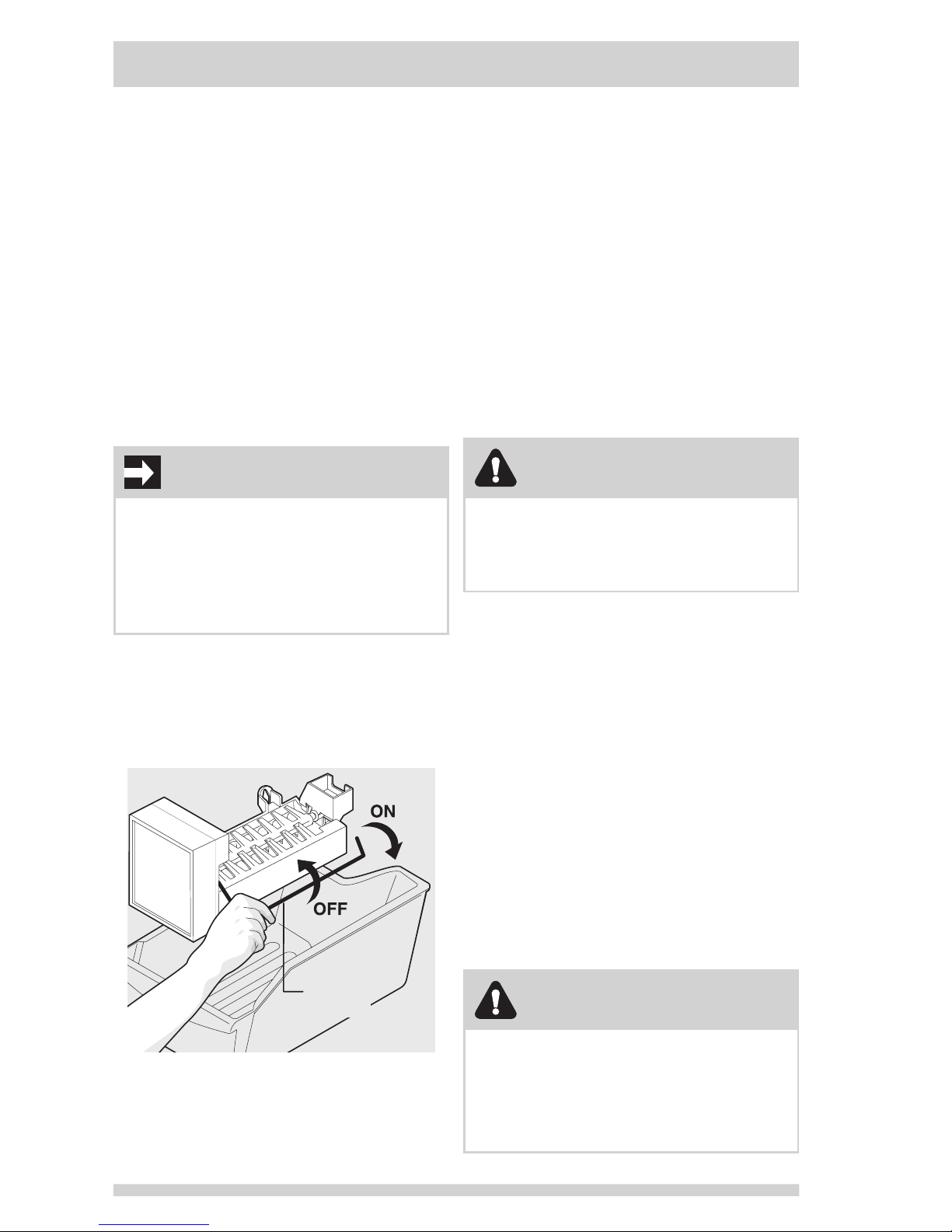

Ice production is controlled by lifting/lowering
the ice maker’s wire signal arm. To gain access
to the ice maker, pull the freezer drawer out. Lift
the wire signal arm to turn the ice maker OFF
and lower the wire signal arm to turn it ON.
Ice maker tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by lifting wire
signal arm.
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clean water.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and freeze together.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an
oddavor.Emptytheicebinasexplained
below.
Quick Ice Function
YourrefrigeratorisequippedwithaQuickIce
Function, that increases ice production. This
function terminates automatically.
Cleaning the ice maker
Wire
Signal Arm

19

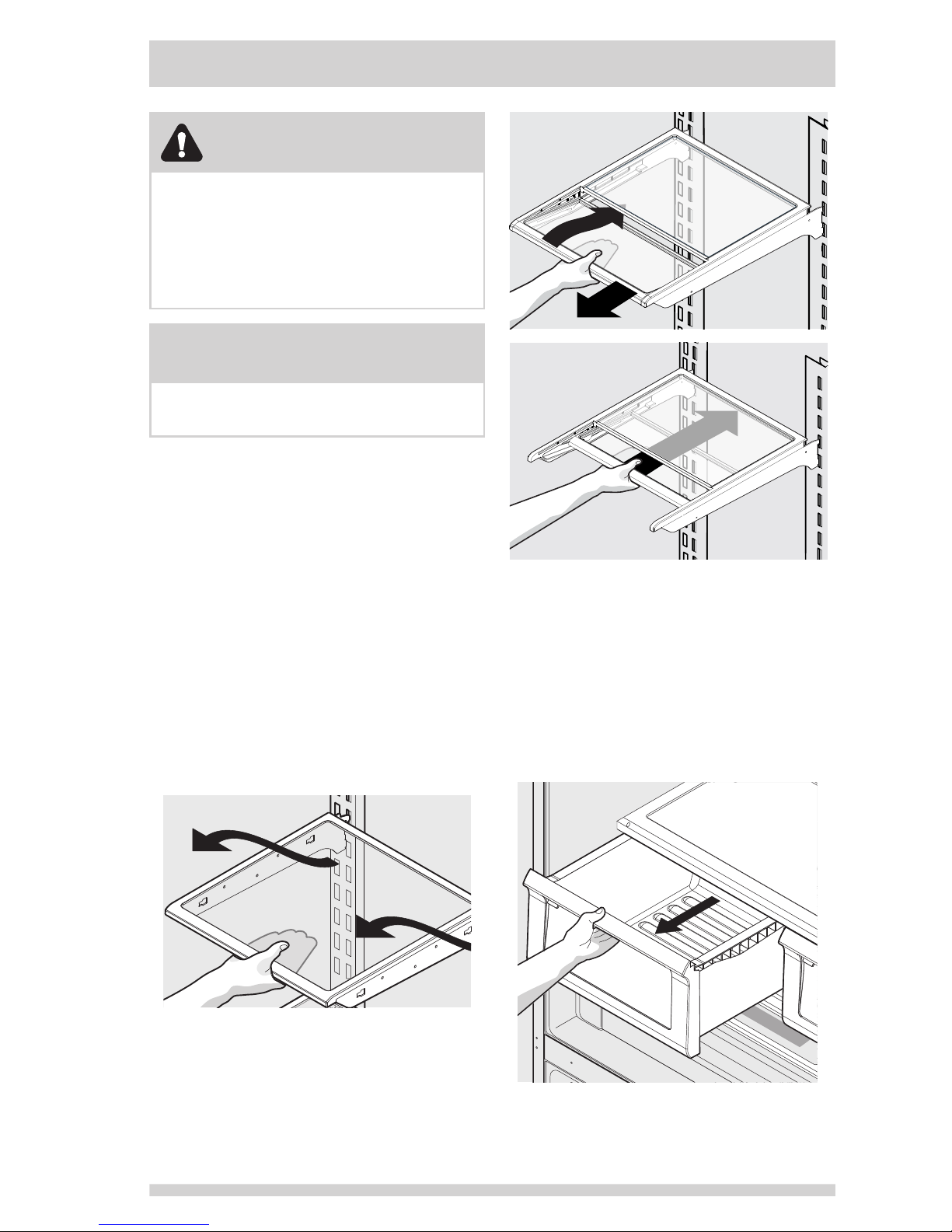

CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass shelves
to stabilize to room temperature before
cleaning. Do not wash in dishwasher.
STORAGE FEATURES
Your refrigerator includes SpillSafeTM glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of each
compartment.
To change the position of a shelf:
1 Remove all food from the shelf.
2 Lift the front edge up and pull the shelf
out.
3 Replace by inserting the mounting bracket
hooks into the desired support slots.
4 Lower the shelf and lock into position.
Shelf features
Drawers
Your refrigerator includes a variety of storage
drawers.Thesedrawersarelocatedinxed
positions at the bottom of the fresh food
compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
SpillSafeTM Shelf
Opening Crisper Drawer
Slide-Under Shelf
NOTE
Features may vary according to model.

20

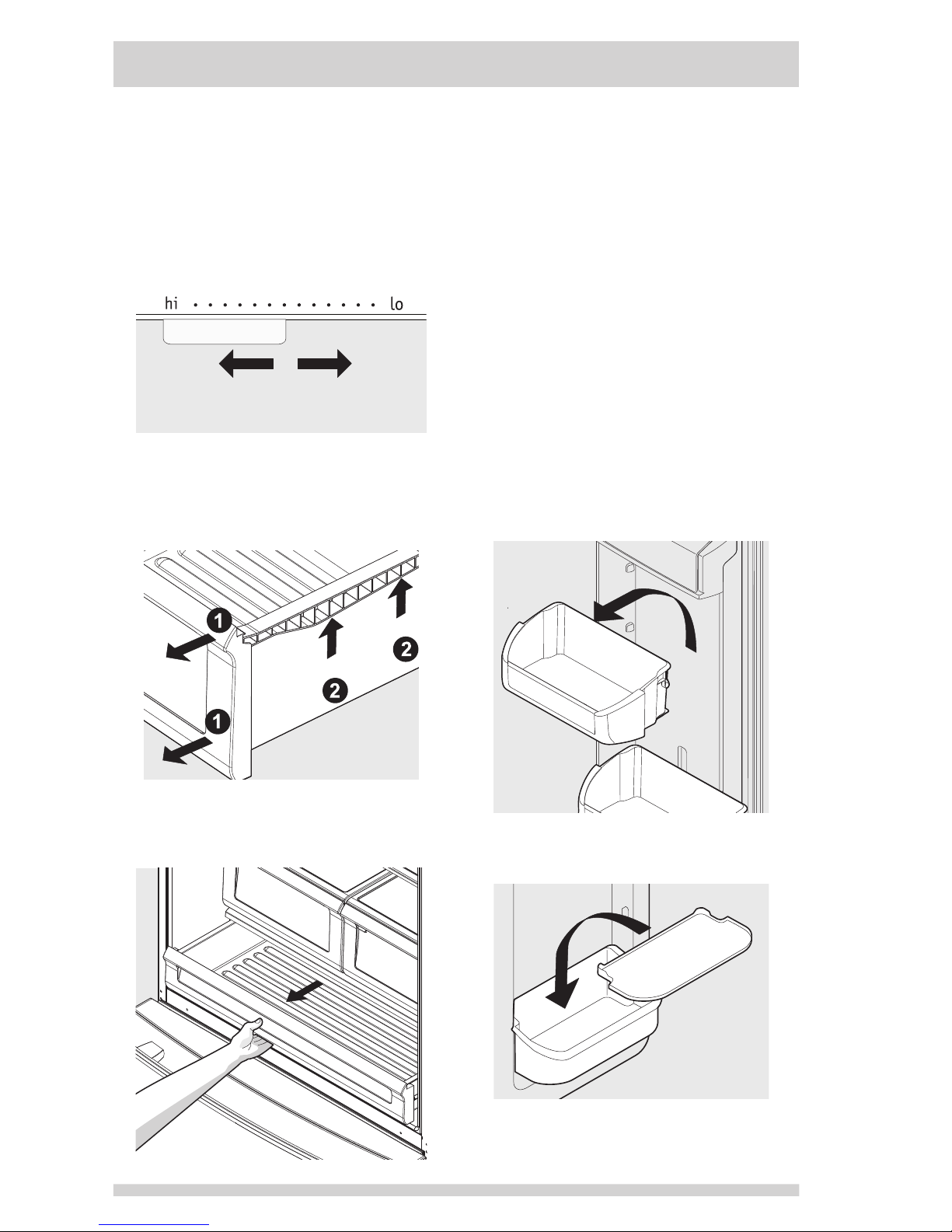

STORAGE FEATURES
Deli drawer
Ideal for storage of deli meats and cheese.
Adjustable Door Bin
6 Place bin liner into bin.
Doors
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Some of
themhavexedpositions,whileotherscanbe
adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enablequickselectionoffrequentlyused
items.
To change the position of an adjustable
door bin:
1 Remove all food from the door bin.
 2 Gripthebinrmlywithbothhandsandlift
it upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in
place.
Adjusting Crisper Humidity
Crisper humidity control
Crisper drawers include a sliding control for
adjusting the humidity inside the crisper. Leafy
vegetables keep best when stored with the
Humidity Control set on Higher Humidity. Fresh
fruits keep best when stored with the Humidity
Control set on Lower Humidity.
Removing Crisper Drawer
To remove the Crisper Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Vegetables Fruits
Humidity Control
Higher
Humidity
Lower
Humidity
