Frigidaire FRS22ZRG User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS20ZSGB0 FRS20ZSG R134a stainlessw/blk 115
FRS20ZSGB1 FRS20ZSG R134a stainlessw/blk 115
Publication No.
5995308599
980612
-EN/SERVICE /JLT
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS20ZSGB0
FRS20ZSGB1
©1998 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218682800
OWNER’S GUIDE - # 218854500
SERVICE DATA SHEET - # 218789700
101 Masters Blvd.
Anderson, SC 29624

06/98 2
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

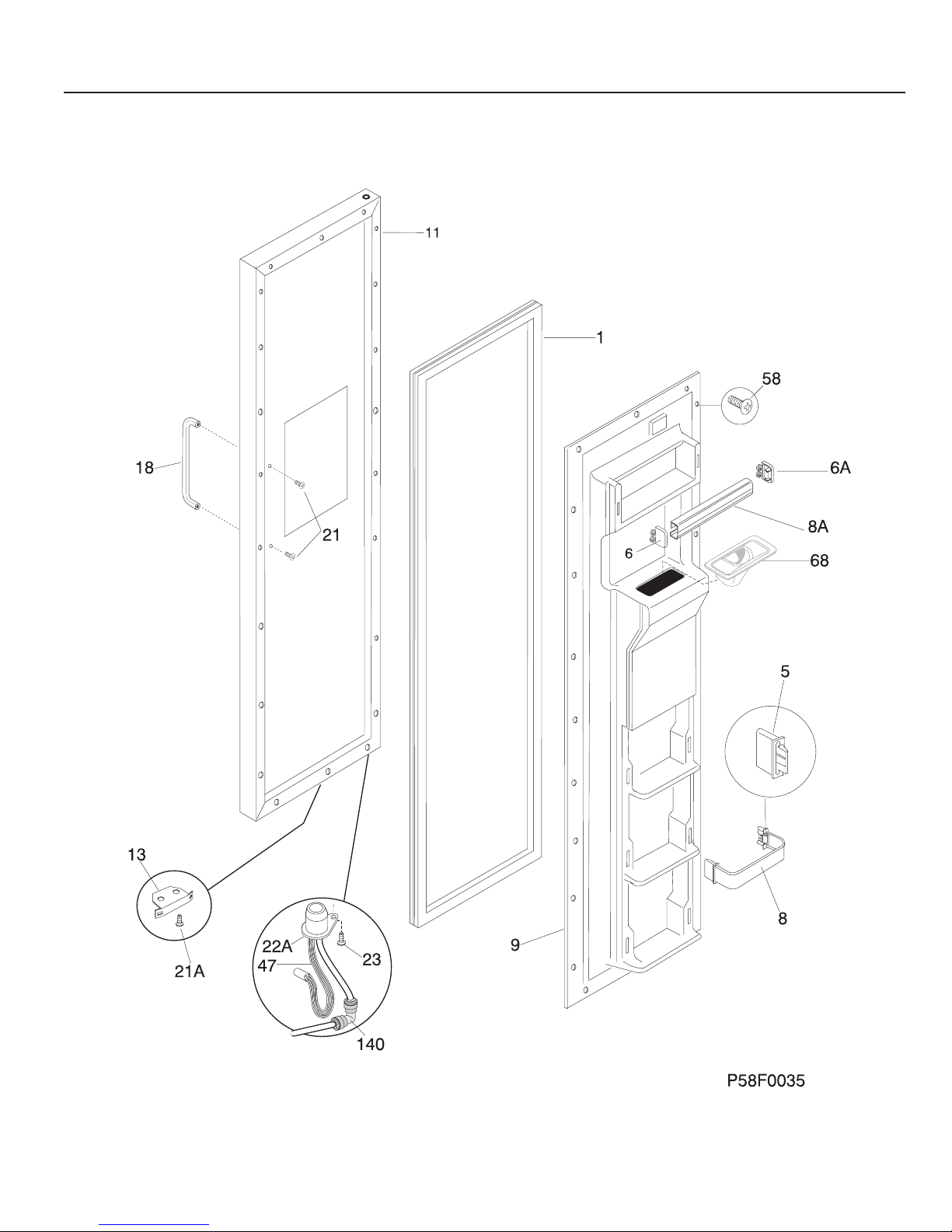

FREEZER DOOR

# = Fast-moving Parts 3 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
FREEZER DOOR
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
1 # 215734321 A B Gasket-frzr door,black ,magnetic
5 5303288950 A B Support-door rack,RH/LH
6 5303323484 A B Support-door rack,white ,LH
6A 5303323485 A B Support-door rack,white ,RH
8 5303320231 A B Rack-door
8A 215474047 A B Rack-door
9 218748601 A B Panel-inner door,frzr
11 218619097 A B Panel-frzr door,stainless steel ,w/foam insulatn
13 5303289522 A B Door Stop
18 218756501 A B Handle-door,stainless steel ,with insert
21 218709100 A B Screw-handle mtg,hex head ,10-32 x 1/2
21A 218578600 A B Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22A 215615300 A B Bushing-door,bronze
* 215598900 A B Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
23 5303001020 A B Screw,cr flat head ,8-32D x 1/2
47 218850101 A B Harness-wiring,frzr door
58 218781100 A B Screw,pan head ,#8-18 x 5/8
68 218020600 A B Chute-ice
140 218518700 A B Elbow-water tube
* 215361200 A B Foam Strip,handle mtg hole
* 218490900 A B Cleaner,stainless steel
* 5303917276 A B Insulation-door,fiberglass ,(bulk)

06/98 4
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599
REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
2 # 215734322 A B Gasket-refr door,black ,magnetic
3 218749301 A B Panel-inner door,refr
4 5303320230 A B Rack-door
5 5303288950 A B Support-door rack,RH/LH
7 5303308347 A B Door-dairy
12 218395401 A B Nameplate,black
13 5303289522 A B Door Stop
15 218618962 A B Panel-refr door,stainless steel ,w/foam insulatn
18 218756501 A B Handle-door,stainless steel ,with insert
21 218709100 A B Screw-handle mtg,hex head ,10-32 x 1/2
21A 218578600 A B Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22 5303289320 A B Bearing-hinge
26 3204522 A B Container-egg
27 218370101 A B Snugger-door bin,"paddle type" ,gallon door bin
27A 218714201 A B Retainer,tall bottle
49 218592305 A B Bin-door,gallon ,with trim
58 218781100 A B Screw,pan head ,#8-18 x 5/8
* 218490900 A B Cleaner,stainless steel
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
* 215361200 A B Foam Strip,handle mtg hole
REFRIGERATOR DOOR

06/98 6
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

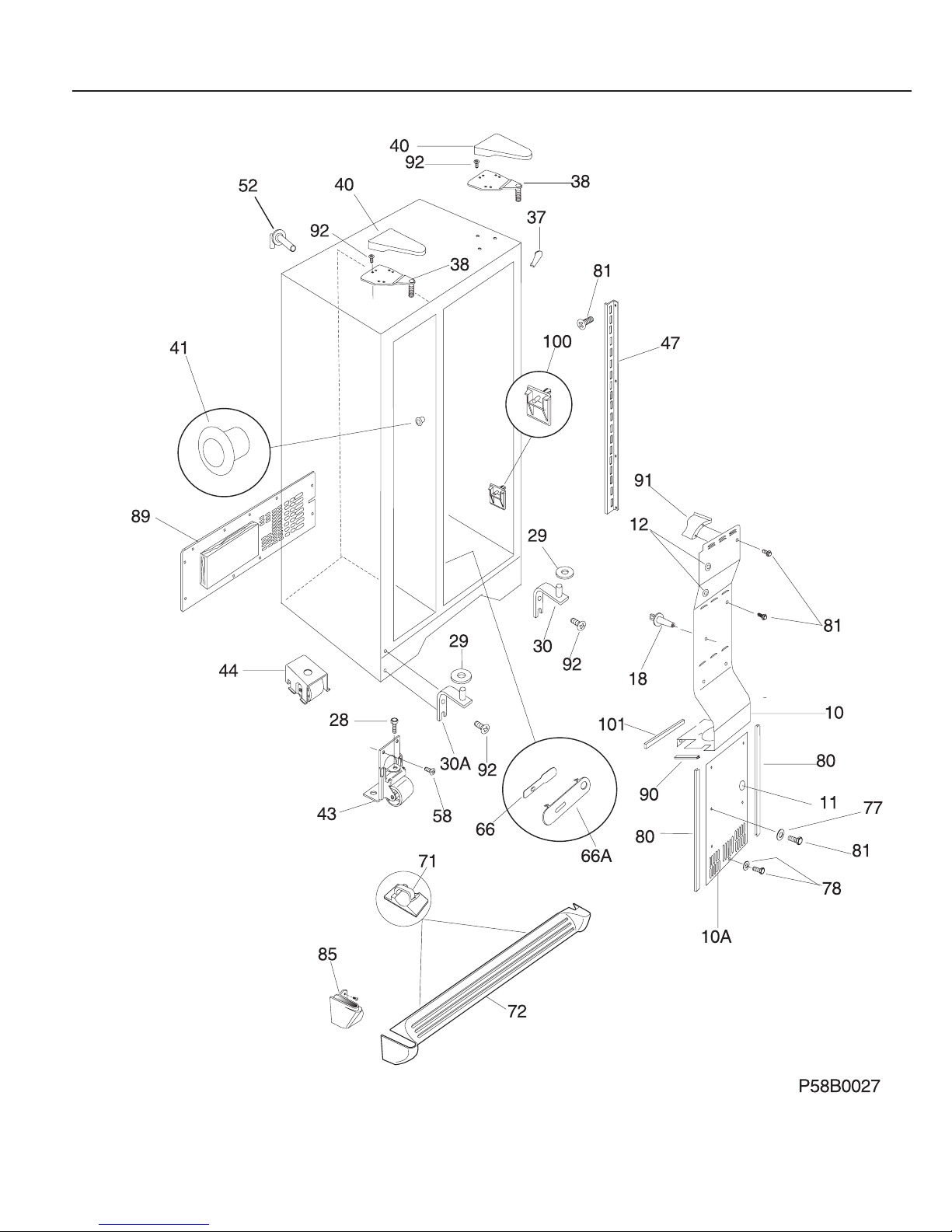

CABINET

# = Fast-moving Parts 7 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
10 218748901 A B Cover-air duct
10* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
10A 218751301 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
12 215230400 A B Plug-harness hole
18 5303289043 A B Support-air duct cvr,2.55" long
18* 5303289044 A B Support-air duct cvr,1.83" long
28 5303289062 A B Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215003200 A B Washer,.40 x .63 x .16 ,nylon
29 215314301 A B Washer,.40 x .75 x .06 ,nylon
29* 215598900 A B Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
30 5303289060 A B Bracket-lower hinge,w/hinge pin
30* 218730700 A B Tapping Plate,LH
30* 218730800 A B Tapping Plate,RH
30A 215009000 A B Bracket-lower hinge,LH ,w/hinge pin
37 5303321083 A B Trim-cabinet corner,black
38 218215214 A B Bracket-upper hinge,with closer ,black ,RH
38 218215216 A B Bracket-upper hinge,with closer ,black ,LH
40 218374409 A B Cover-upper hinge,black
41 5303001609 A B Grommet,shelf/rod mtg ,RH
41* 5308009759 A B Grommet,shelf mtg ,LH
43 218615300 A B Roller Assy,front ,(2)
43* 5308017044 A B Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8
4 218738300 A B Roller Assy,rear ,(2)
7 218659500 A B Channel-shelf mtg,side ,(2)
52 215454600 A B Tube-water inlet
58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500 ,special
66 215050201 A B Damper-meat keeper
66A 218171301 A B Cover-meat kpr dmpr
71 218515401 A B Clip-grille
72 218359615 A B Grille/Kickplate,black
77 5303001216 A B Washer-nylon,3/16 x 5/8 OD
78 5303274237 A B Screw-bracket,hex wshr hd ,8-32CA x 0.500
* 5308009617 A B Washer,ext tooth lock ,#10
80 218249802 A B Seal-coil cover,(2)
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,low profile
85 218359805 A B Cover-lower hinge,black
89 5303288947 A B Cover-machine compt
90 215022602 A B Seal-foam
90* 5303322647 A B Tape-foam
91 218836401 A B Deflector-air,ice maker
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
101 215305701 A B Seal-foam
* 5303001038 A B Washer,.28 x .62 x .19 ,nylon
* 5303305345 A B Paint,touch-up ,black
* 5308016571 A B Plug-button,cabinet liner
CABINET

06/98 8
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

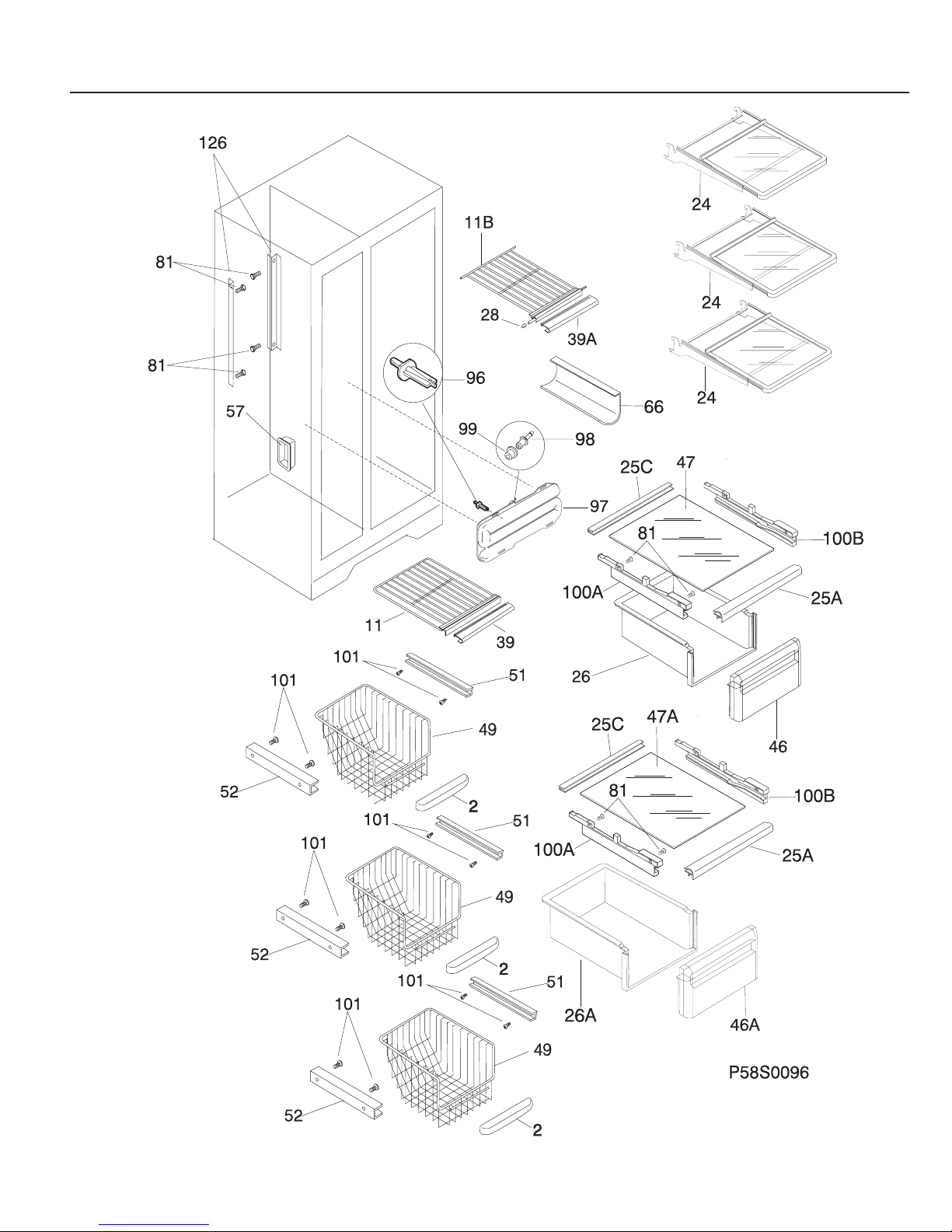

SHELVES

# = Fast-moving Parts 9 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
2 218747101 A B Handle-frzr basket
11 218298005 A B Shelf-freezer,sliding ,wire
11B 5303288963 A B Shelf-freezer,fixed wire
11B* 218159700 A B Spacer-shelf
24 218746001 A B Shelf-"Spill-Safe",sliding ,(3)
25A 218015301 A B Trim-storage pan cvr,snap-on ,front
25C 218015401 A B Trim-storage pan cvr,snap-on ,rear
26 5303306579 A B Pan-storage,upper
26A 5303288968 A B Pan-storage,lower
28 08013638 A B End Cap-shelf,protector ,
lower fzr shelf
39 215217562 A B Trim-frzr shelf
39A 215217563 A B Trim-frzr shelf
46 218278301 A B Front-storage pan,upper
46A 218278302 A B Front-storage pan,lower
47 218498118 A B Insert-pan cover,glass ,w/graphics
47A 215723551 A B Insert-pan cover,glass ,clear ,lower
49 218748301 A B Basket-sliding,(3)
51 5303288960 A B Hanger-basket,RH
52 215162501 A B Hanger-basket,LH,with/spring
57 5303271653 A B Ferrule-inner
66 5304402116 A B Rack-wine
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
96 215192600 A B Support-water tank
97 218759501 A - Water Tank Assy,includes tank ,grommets
97 218871301 - B Water Tank
98 5308015614 A - Connector-tube
99 5300186057 A - Grommet-tank
100A 218015501 A B Support-pan cover,LH
100B 218015601 A B Support-pan cover,RH
101 215005000 A B Screw,hex wshr hd ,8-18AB x 0.750 ,
gusset/hanger
* 215328300 A B Clip-shelf
SHELVES

06/98 10
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

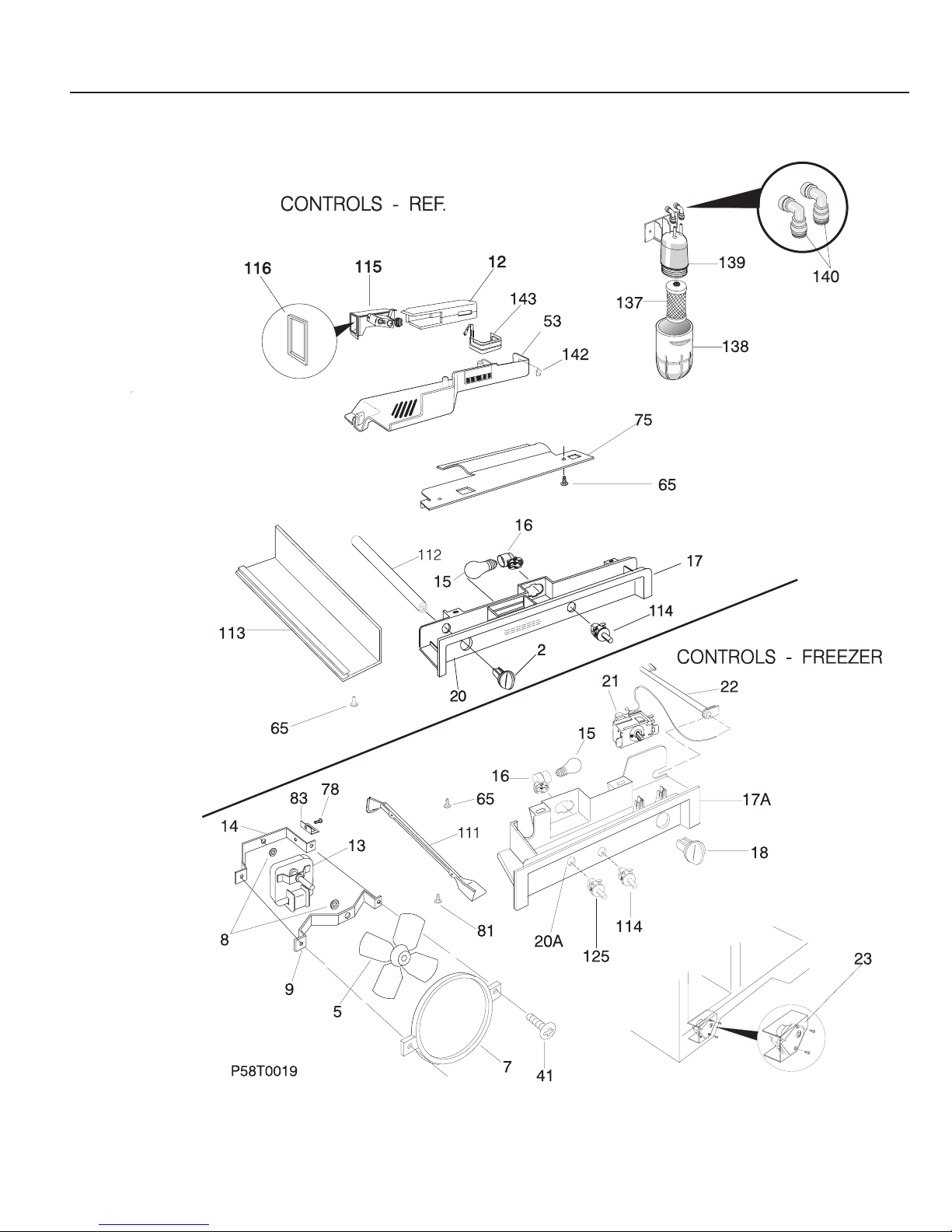

CONTROLS

# = Fast-moving Parts 11 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
2 5303307883 A B Knob-damper control,white/teal line
5 # 5308000010 A B Fan Blade,red
7 5308000124 A B Ring-fan orifice
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
10* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
12 215809600 A B Diffuser-air
13 # 218718402 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B Bracket-motor mtg,rear
15 5303001179 A B Light Bulb/Lamp,40 W
16 # 5303289050 A B Socket-light/lamp
17 218468702 A B Control Box,refr ,w/light tunnel
17A 5303321928 A B Control Box,frzr
17A* 215980800 A B Brace-frzr cont box
* 215188300 A B Screw-control box mtg,hex head ,
8-15A x 1.000,refr/frzr
18 5303307882 A B Knob-temp control
20 5303321927 A B Label-control box,refr
20A 5303322426 A B Label-control box,frzr
21 # 5303300027 A B Control-temperature
21* 5303001260 A B Screw-control mtg,pan hd ,6-32 x 0.250
22 5303319683 A B Housing-temp sensor,plastic
22* 218731102 A B Tube,insulator ,PVC ,white ,
on temp sensor
23 # 5303321133 A B Timer-defrost
23* 215277000 A B Cover-defrost timer,top
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 A B Shield-defrost timr,btm
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500 ,
serrated head
53 215809508 A B Box-damper control
65 5303001361 A B Pin-mounting,push-in ,plastic
75 218465101 A B Shield-light,refr
78 5303274237 A B Screw-bracket,hex wshr hd ,
8-32CA x 0.500
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
83 5308000107 A B Bracket-connector
111 5303289024 A B Wireway,frzr
112 215277101 A B Rod-damper extn
113 5303289047 A B Cover-dmpr rod ext
114# 5303289051 A B Switch-light/lamp,white
115# 215011504 A B Damper Assy,w/seal
116 215011400 A B Seal-damper,foam
125# 215334201 A B Switch-auger kill,white
137# 218710901 A B Filter-water,carbon ,with o’rings ,
and wrench
* 218710300 A B *Wrench-filter
138 218657401 A B Cup-water filter
139 218657500 A B Housing-water filtr
140 218518700 A B Elbow-water tube
141# 218658000 A - Valve-water filter,dual solenoid ,115V ,
w/nut
141# 218859701 - B Valve-water filter,dual solenoid ,115V ,
w/nut
142 218657701 A B Knob-indicator,filter replment
143 218696700 A B Heater-water filter
* # 218646000 A B Harness-wiring,filter heater
CONTROLS

06/98 12
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

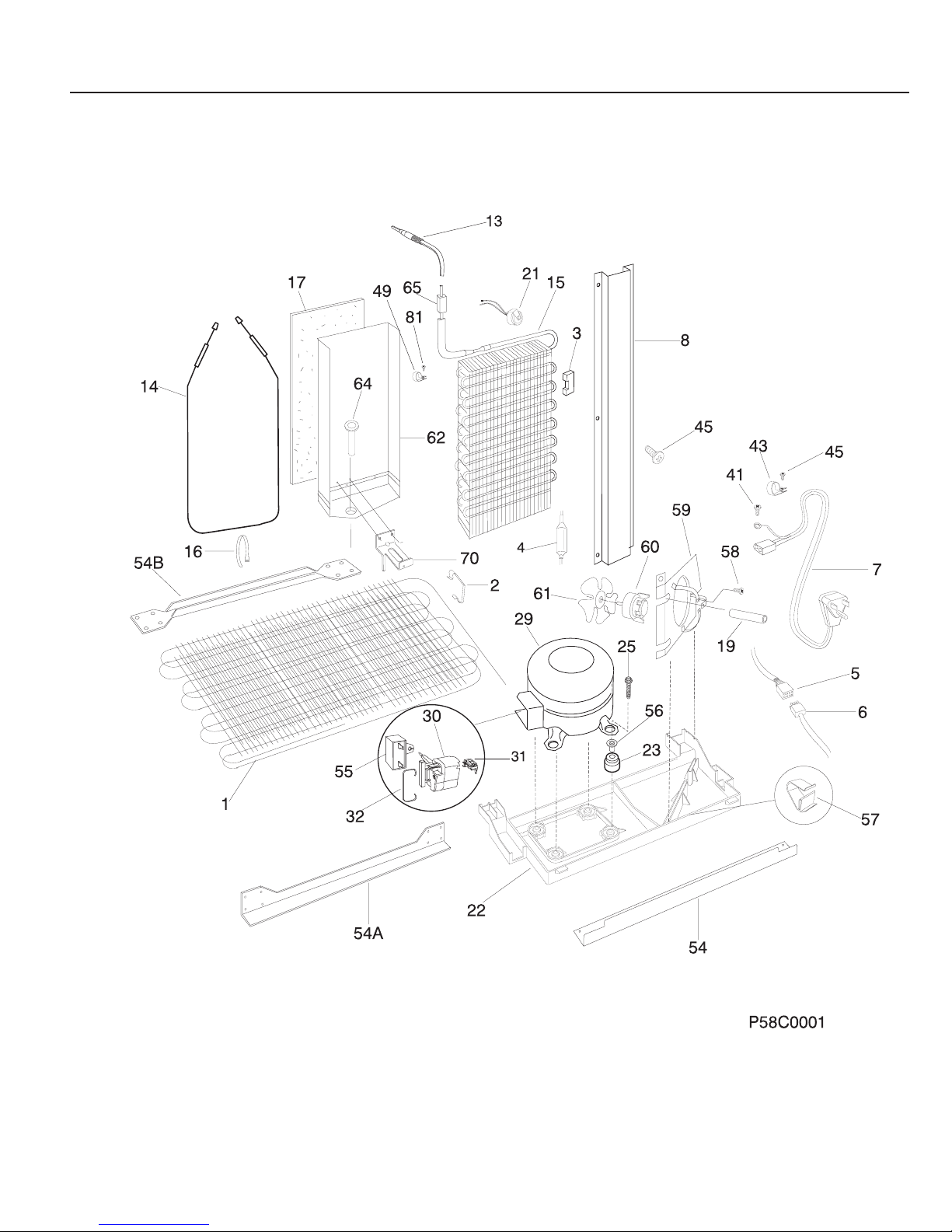

SYSTEM

# = Fast-moving Parts 13 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
1 218787700 A B Condenser
1* 5303289026 A B Spacer-tube
2 5303289029 A B Clip-cond mtg,(4)
3 218679603 A B Block-evap coil,styrofoam ,(2)
4 # 218541000 A B Drier-filter
5 218646100 A B Harness-wiring,main
5* 215005200 A B Harness-wiring,refr controls
5* 218646000 A B Harness-wiring,filter heater
5* 218815101 A B Harness-wiring,frzr controls
6 218741400 A - Harness-wiring,machine compt
6 218872701 - B Harness-wiring
7 215459201 A B Cord-electric power
8 218803400 A B Cover-wiring
8* 218754500 A B Screw,hex hd ser wshr ,#8-18 x 3/8
13 # 215746800 A B Heat Exchanger,suction line
14 # 218169801 A B Heater-defrost
15 # 218691302 A B Evaporator,R134a System
15* 3206414 A B Tube-inlet
16 5308000110 A B Strap-evap/heater,aluminum
17 5303289042 A B Insulator-evap
19 218631200 A B Tube,rubber
21 # 218673001 A B Thermostat-defrost
22 218811100 A B Base-compressor mtg,(drain pan)
23 218513300 A B Grommet-compr mtg,(4)
25 218773500 A B Screw-compressor mtg,hex washer head ,
10Bx11/4
29 # 5303917934 A B Compressor,R134a System ,w/electricals
30 # 216008904 A B Starter-PTC
31 # 5303321892 A B Overload Protector
32 218762900 A B Wire-bale
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500 ,
serrated head
43 215174700 A B Clamp-service cord,strain relief ,
galv steel
43* 5303001199 A B Clamp-wiring harness,strain relief ,
galv steel
43* 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
45* 218769200 A B Screw,hx wshr hd spec ,#6-32 x .5
45* 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec
45* 5303207328 A B Screw,hex wshr hd ,8-15A x 1
49 215506900 A B Bracket-evap mtg
54 5303289027 A B Rail-cabinet base,rear
54A 5303289311 A B Rail-compr support
54B 5303289292 A B Rail-cabinet base,front
55 # 218764601 A B Capacitor-run
56 218769300 A B Insert-compressor mtg
57 218247300 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr,hx serr wshr hd ,
8-36 x 7/16,(2)
59 5303289031 A B Shroud-cond fan mtr
60 # 215501800 A B Motor-condenser fan
61 5303289032 A B Blade-cond fan
61* 215004700 A B Nut,speed
61* 215223700 A B Grommet-silencer
62 215048201 A B Trough-drain,w/shield assy ,
& #17 insulator
64 5303289063 A B Tube-drain
65 5303289301 A B Spacer-tube
70 5303289041 A B Bracket-evap/cvr mtg
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
* 5303917166 A B Hot Tube Repair Kit,Service
SYSTEM

06/98 14
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599
DISPENSER

# = Fast-moving Parts 15 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
1 5308010366 A - Tube-water inlet,93" ,plastic ,
cut-to-size
1 5318582501 - B Tube-water inlet,93" ,plastic ,
cut-to-size
1* 215294101 A B Tube-water inlet,formed ,plastic ,
dispenser
1* 218658301 A - Tube-water inlet,filter ,
to filter valve,w/elbow
1* 218832202 - B Tube-water inlet,inlet valve ,to filter
1* 218770401 A - Tube-water inlet,inlet valve ,to filter
1* 218859801 - B Tube-water inlet,inlet valve ,to filter
2 218505303 A B Deflector-ice disp,black
3 # 215484300 A B Heater-door housing
4 218432103 A B Housing-dispenser,black
7 # 218841901 A B Switch-actuator,micro
7* 215944300 A B Shield-micro switch
8 218835701 A B Module-dispenser
10 218209800 A B Spring,dispenser door
12 218836203 A B Knob-selector,black
13 215748101 A B Ring-snap,actuator
14 218416166 A B Label-module cover,black
15 218284900 A B Light Bulb/Lamp,4 W ,115 V
16 215284900 A B Socket-light/lamp
17 215794400 A B Screw,#6 x 1/4
17A 215840700 A B Screw,truss head ,6-20 x 3/8
17A* 215923400 A B Washer-flat
23 5303299660 A B Drip Tray,black
24 218796503 A B Actuator Assy,black
26 215503200 A B Screw,cr pan hd ,10-16 x 1/2 ,
spec/hi-lo
27 218432600 A B Cam-slide
27A 218814901 A B Rocker-switch
28 218700603 A B Cover-module,black
30 215753600 A B Door Assy-ice chute,w/gasket,insul
33 # 218849801 A B Heater-disp throat
35 # 218740003 A B Heat Motor,115V
36 218835601 A B Cover-selector sw
38A# 218479900 A B Switch-micro
38B# 218835401 A B Switch-micro
39 218284600 A B Wire-ice door
40 218284500 A B Yoke-heat motor
41 215765400 A B Spring-actuator
43 215760300 A B Screw,#4 x 3/8
49 215794000 A B Bracket-heat motor
56 218434300 A B Screw-micro switch,pan head ,
4-24 x 9/16
61 215766000 A B Ring-retainer,micro switch
82 215296300 A B Screw,plask h/l ,#6 x 3/8
* 215781700 A B Clip-tube
* 218863101 A B Harness-wiring,disp
* 5300460947 A B Tape-I&W dispenser,double faced ,foam ,
60 x1-1/4 x1/32,(2)
DISPENSER

06/98 16
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

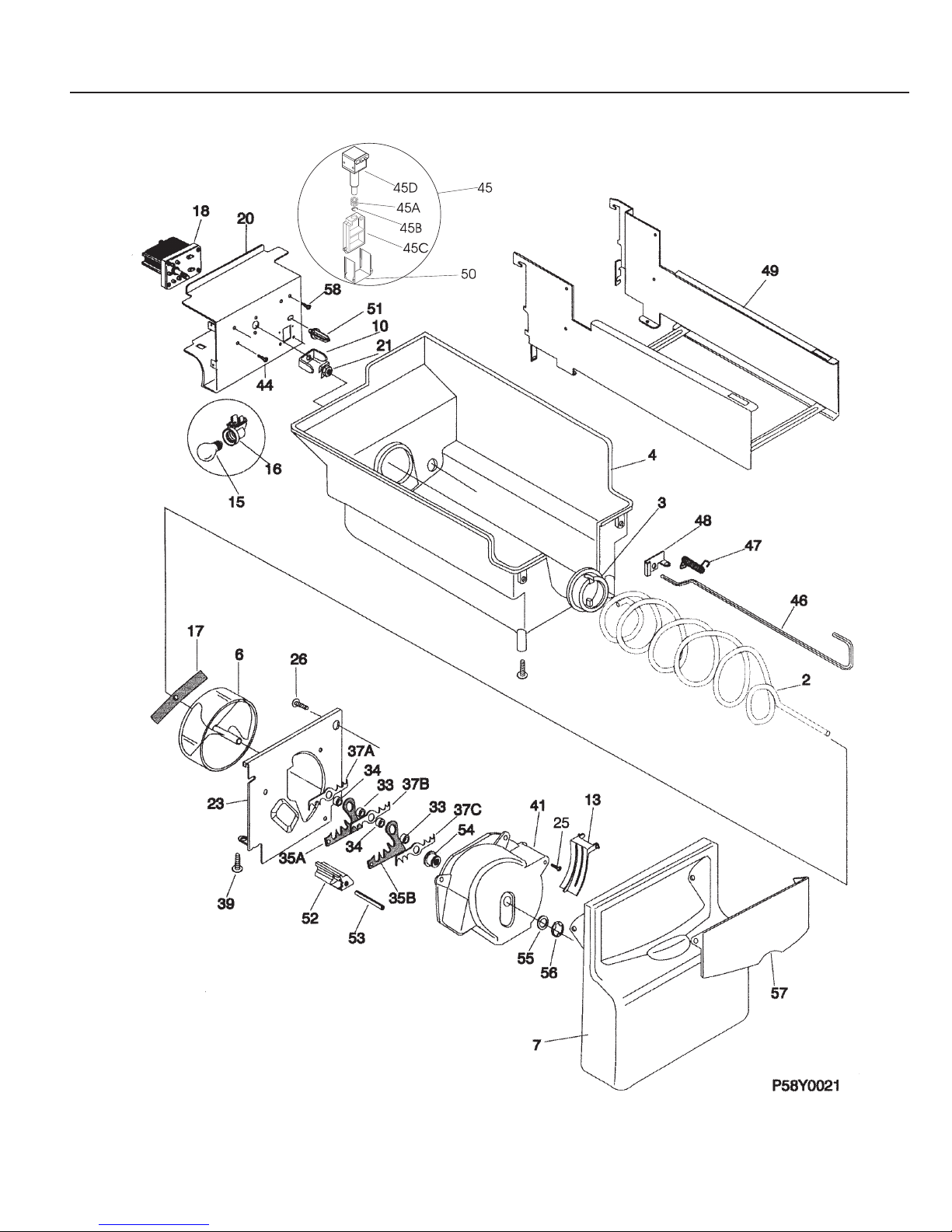

ICE CONTAINER

# = Fast-moving Parts 17 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 5304404330 A B Motor-auger
18* 5304404335 A B Harness-wiring,auger motor
20 5304404881 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw
26 215503200 A B Screw,cr pan hd ,10-16 x 1/2 ,
spec/hi-lo
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade-crusher,#1
37B 5304404350 A B Blade-crusher,#2
37C 5304404356 A B Blade-crusher,#3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x .25
45 # 5304404333 A B Solenoid Assy
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404880 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 215781700 A B Clip-tube
ICE CONTAINER

06/98 18
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599

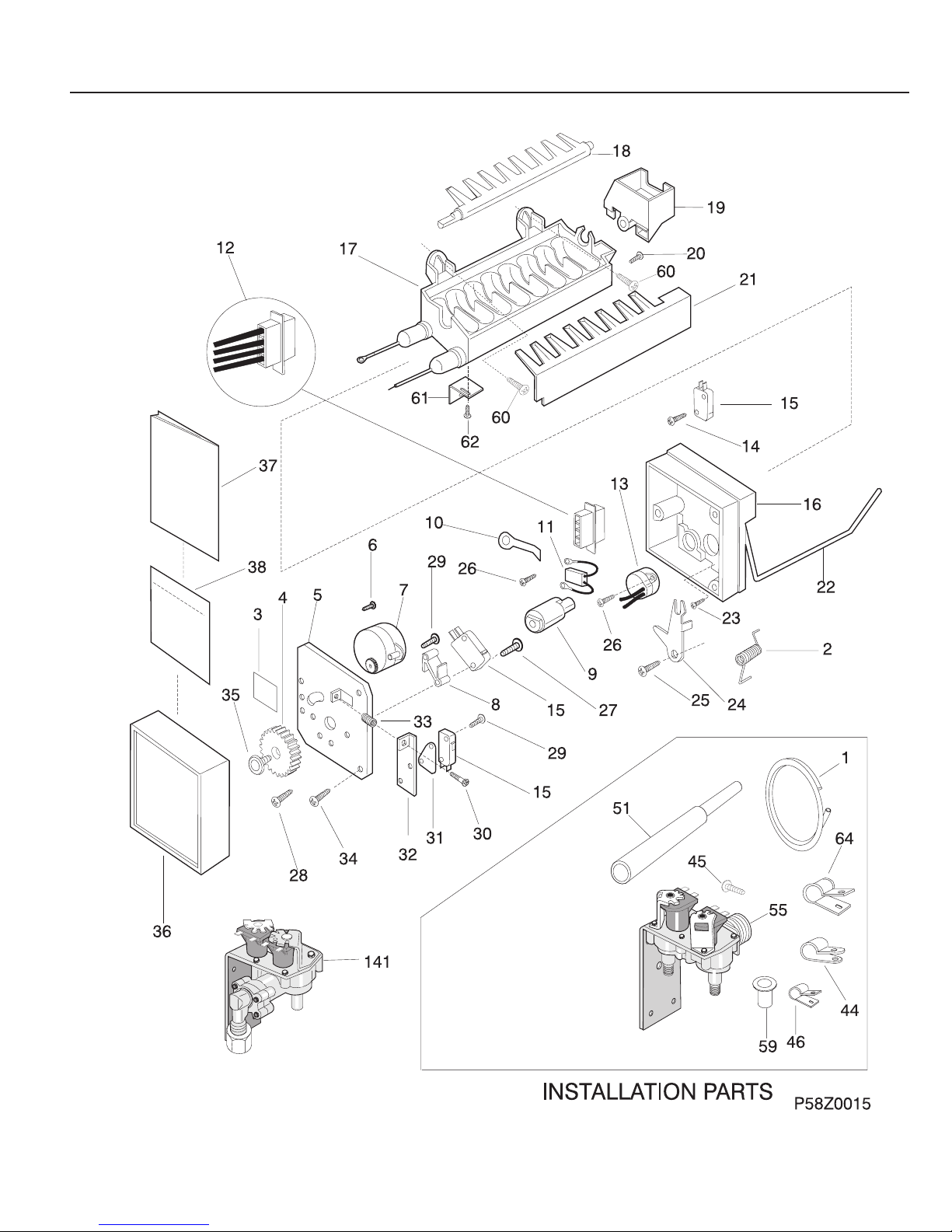

ICE MAKER

# = Fast-moving Parts 19 06/98
* = Non-Illustrated Parts
FRS20ZSGB0,FRS20ZSGB1 Publication No.
5995308599
A = FRS20ZSG (FRS20ZSGB0)
B = FRS20ZSG (FRS20ZSGB1)
POS. NO PART NO DESCRIPTION
1 5308010366 A - Tube-water inlet,93" ,plastic ,
cut-to-size
1 5318582501 - B Tube-water inlet,93" ,plastic ,
cut-to-size
1* 218658301 A - Tube-water inlet,filter ,
to filter valve,w/elbow
1* 218859801 - B Tube-water inlet,inlet valve ,to filter
2 3206348 A B Spring,shut-off arm
3 3206299 A B Plate-I.D.
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 1/4
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-holding sw
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff Assy
12 3206321 A B Connector Plug,wiring harness
12 # 3206349 A B Harness-wiring,IM internal ,with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 3206323 A B Screw-switch mtg,4-24 x 3/4 ,
sw to support,(2)
15 # 3206324 A B Switch,(3)
16 3206326 A B Support
17 # 5303320545 A B Mold-ice maker,with heater ,radius cube
18 3206328 A B Ejector
19 3206330 A B Bearing & Inlet
20 3206331 A B Screw,8-18 x 3/8 ,(2)
21 3206332 A B Ice Stripper
22 3206333 A B Arm,shut-off
23 3206334 A B Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 A B Lever-arm
25 3206336 A B Screw-arm levr/sprt,8-18 x 9/16
26 3206337 A B Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 A B Screw-sw&spcr/plate,4-40 x 1
28 3206339 A B Screw-timing stop,4-40 x 3/8
29 3206340 A B Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 A B Screw-timing,8-32 x 1
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 3206344 A B Spring
34 3206345 A B Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 A B Screw-gear/cam,6-20 x 0.437
36 3206347 A B Cover-complete
37 5303320544 A B Data Sheet,ice maker
38 5303207445 A B Envelope-data sheet
44 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
46 5303001193 A B Clamp-inlet tube,metal
51 215811600 A B Tube-fill
55 218832401 A B Valve-water filter,dual solenoid ,115V ,
w/nut
55* 218835800 A B Cap-water valve
55* 218873001 A B Cap-water valve
59 5303001191 A B Sleeve-tube insert
60 5303207328 A B Screw,hex wshr hd ,8-15A x 1
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM mtg brkt,hex hd ,#8-32 x 3/8
64 5303001549 A B Clamp-copper tube,steel
141# 218698900 A - Valve-water inlet,dual solenoid ,115V
141# 218859701 - B Valve-water filter,dual solenoid ,115V ,
w/nut
* 215290100 A B Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
* 218731600 A B Nut,7/16 x 20 ,nylon
* 5308000200 A B Nut,7/16 x 20 ,nylon
* 218836401 A B Deflector-air,ice maker
* 5308000205 A B Adapter-water sply
ICE MAKER

06/98 20
Publication No. FRS20ZSGB0,FRS20ZSGB1
5995308599
WIRING
