Frigidaire FRS24MWG User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS24MWGD2 FRS24MWG R134a System almond 115
FRS24MWGW2 FRS24MWG R134a System white 115
MARKET
North American
Publication No.
5995318861
990303
-EN/SERVICE/KB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS24MWG
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218682800
OWNER’S GUIDE - # 218870500
SERVICE DATA SHEET - # 218905000
101 Masters Blvd.
Anderson, SC 29624

03/99 2
Publication No. FRS24MWG
5995318861
FREEZER DOOR

# = Fast-moving Parts 3 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
FREEZER DOOR
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
1 # 215734303 A - Gasket-frzr door,almond ,magnetic
1 # 215734313 - B Gasket-frzr door,white ,magnetic
5 5303288950 A B Support-door rack,RH/LH
6 5303323484 A B Support-door rack,white ,LH
6A 5303323485 A B Support-door rack,white ,RH
8 218807004 A B Rack-door,w/end caps
8A 215474025 A B Rack-door
9 218510601 A B Panel-inner door,frzr
11 5303918094 A - Panel-ext frzr door, almond, w/foam insulatn
11 5303918095 - B Panel-ext frzr door, white, w/foam insulatn
13 5303289522 A B Door Stop
18 218762703 A B Handle-door,black
21 218886801 A B Screw-8-32 X 1/2 #10 Truss ca,
21A 218578600 A B Screw-door stop mtg, phl truss hd, 10-16 x 3/4
22A 215615300 A B Bushing-door,bronze
23 5303001020 A B Screw,cr flat head ,8-32D x 1/2
37 215867093 A B Trim-handle,black ,upper ,w/chrome band
37A 215867092 A B Trim-handle,black ,lower ,w/chrome band
37A* 215782300 A B Lock-handle trim,snap-in
37A* 215940700 A B Lock-handle trim,stick-on
37A* 218676001 A B Band-decorative,chrome ,handle trim
47 218895301 A B Harness-wiring,frzr door
58 218781100 A B Screw,pan head ,#8-18 x 5/8
68 218020600 A B Chute-ice
140 218518700 A B Elbow-water tube
* 215598900 A B Washer-flat, .691x1x.05, zinc, I&W hinge brkt
* 5303917276 A B Insulation-door,fiberglass ,(bulk)

03/99 4
Publication No. FRS24MWG
5995318861

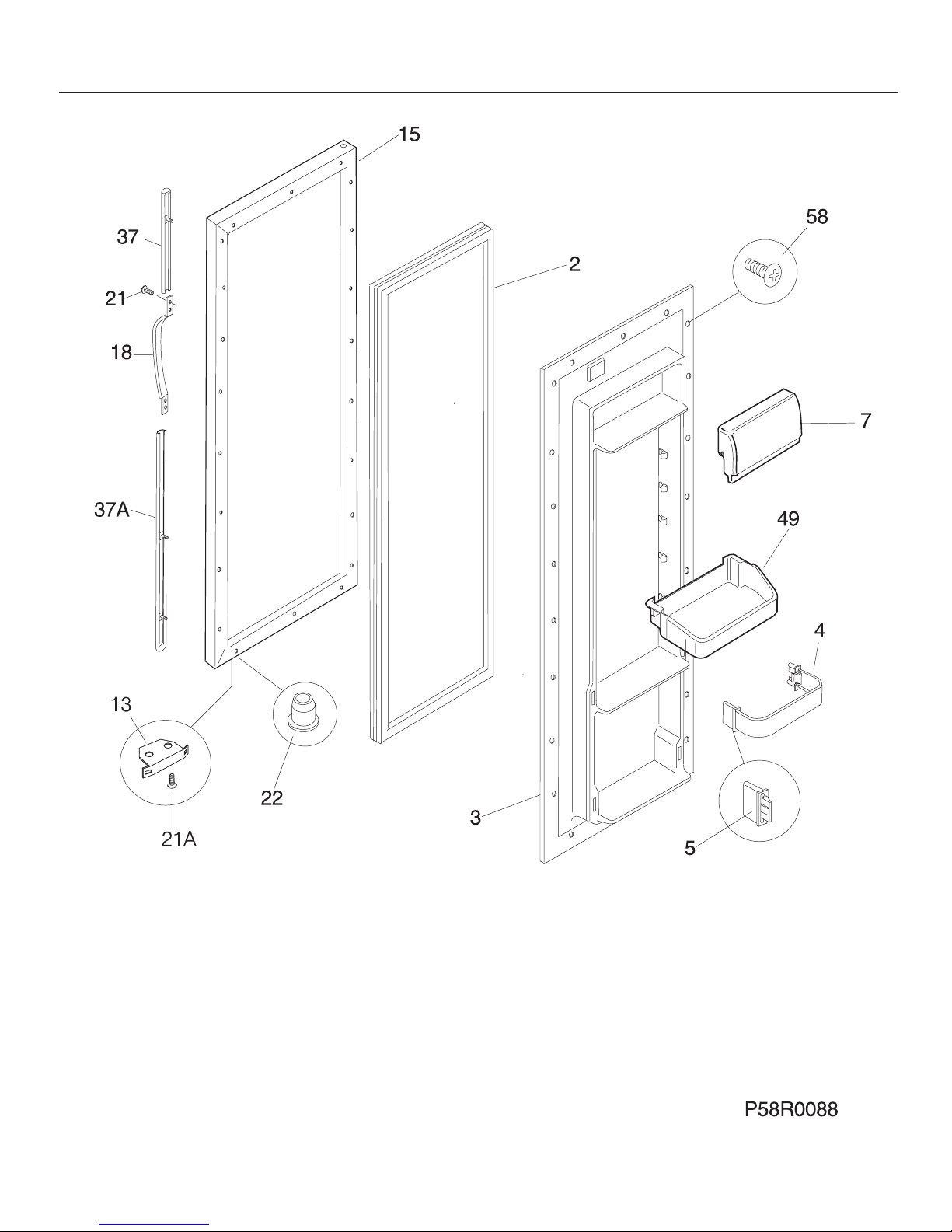

REFRIGERATOR DOOR

# = Fast-moving Parts 5 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
2 # 215734304 A - Gasket-refr door,almond ,magnetic
2 # 215734314 - B Gasket-refr door,white ,magnetic
3 215390401 A B Panel-inner door,refr
4 218807002 A B Rack-door,w/end caps
5 5303288950 A B Support-door rack,RH/LH
7 5303308608 A B Door-dairy
13 5303289522 A B Door Stop
15 5303917499 A - Panel-refr door,almond ,w/foam insulatn
15 5303917498 - B Panel-refr door,white ,w/foam insulatn
18 218762703 A B Handle-door,black
21 218886801 A B Screw-8-32 X 1/2 #10 Truss ca,
21A 218578600 A B Screw-door stop mtg, phl truss hd, 10-16 x 3/4
22 5303289320 A B Bearing-hinge
37 215867093 A B Trim-handle,black ,upper ,w/chrome band
37A 215867092 A B Trim-handle,black ,lower ,w/chrome band
37A* 215782300 A B Lock-handle trim,snap-in
37A* 215940700 A B Lock-handle trim,stick-on
37A* 218676001 A B Band-decorative,chrome ,handle trim
49 215441608 A B Bin-door,gallon
58 218781100 A B Screw,pan head ,#8-18 x 5/8
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

03/99 6
Publication No. FRS24MWG
5995318861
CABINET

# = Fast-moving Parts 7 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
10 215637602 A B Cover-air duct
10* 5308009617 A B Washer,ext tooth lock ,#10
10A 215637401 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
12 215230400 A B Plug-harness hole
18 5303289043 A B Support-air duct cvr,2.55" long
18* 5303289044 A B Support-air duct cvr,1.83" long
28 5303289062 A B Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 A B Washer,.40 x .75 x .06 ,nylon
29 215598900 A B Washer-flat, .691x1x.05, zinc, I&W hinge brkt
29* 218871201 A B Washer,nylon ,0.363 ID w/nibs
30 5303289060 A B Bracket-lower hinge,RH ,w/hinge pin
30* 218730800 A B Tapping Plate,RH
30A 215009000 A B Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 A B Tapping Plate,LH
37 5303321082 A - Trim-cabinet corner,almond
37 5303321081 - B Trim-cabinet corner,white
38 218215221 A - Bracket-upper hinge, with closer, almond
38 218215223 A - Bracket-upper hinge, with closer, almond
38 218215213 - B Bracket-upper hinge, with closer, white, RH
38 218215215 - B Bracket-upper hinge, with closer, white, LH
40 5303318774 A - Cover-upper hinge,almond
40 5303318773 - B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf/rod mtg ,RH
41* 5308009759 A B Grommet,shelf mtg ,LH
43 218615300 A B Roller Assy,front ,(2)
43* 5308017044 A B Screw-roller mtg, spcl ind hex hd, 5/16-18(23)x7/8
44 218738300 A B Roller Assy,rear ,(2)
47 218659500 A B Channel-shelf mtg,side ,(2)
52 215454600 A B Tube-water inlet
58 5308002748 A B Screw, hex wshr hd, 8-15A x 0.500, special
66 215050201 A B Damper-meat keeper
66A 218171301 A B Cover-meat kpr dmpr
71 218515401 A B Clip-grille
72 218359609 A B Grille/Kickplate,black
77 5303001216 A B Washer-nylon,3/16 x 5/8 OD
78 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500
80 218249802 A B Seal-coil cover,(2)
80* 5303289036 A B Gasket-coil cover,(2)
80* 5303289037 A B Gasket-air duct cvr,(2)
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
85 218359805 A B Cover-lower hinge,black
89 215176300 A B Cover-machine compt
90 215022602 A B Seal-foam
90* 5303322647 A B Tape-foam
91 218770000 A B Deflector-air,air duct cover
92 5303001479 A B Screw-hinge mtg, hex hd, 1/4-20 x 0.875, (6)
100 5303288973 A B Support-pan cover
101 215305702 A B Seal-foam
101* 218663103 A B Gasket-air duct cvr
* 218902101 A B Cap-protector, lower hinge
* 5303305325 A - Paint,touch-up ,almond
* 5303305324 - B Paint,touch-up ,white
* 5308016571 A B Plug-button, cabinet liner, icemaker holes
CABINET

03/99 8
Publication No. FRS24MWG
5995318861
SHELVES

# = Fast-moving Parts 9 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
2 5303298147 A B Trim-basket
11 218298003 A B Shelf-freezer,sliding ,wire
11A 5304405879 A B Shelf-freezer,fixed wire
24 215919139 A B Frame-refr shelf,cantilever
25 218147701 A B Cover-storage pan
25* 5303307878 A B Trim-storage pan cvr, upper, w/humidity hole
25* 5303308340 A B Control-humidity
25A 218015302 A B Trim-storage pan cvr,snap-on ,front
25C 218015402 A B Trim-storage pan cvr,snap-on ,rear
26 5303289500 A B Pan-storage,upper
26A 5303289501 A B Pan-storage,lower
28 08013638 A B End Cap-shelf,protector, lower fzr shelf
29 215919415 A B Trim-refr shelf,front ,(3)
39 215217543 A B Trim-frzr shelf
39A 215217558 A B Trim-frzr shelf
40 5303300033 A B Glass-refr shelf,clear
41 215919815 A B Trim-refr shelf,rear
42 215002301 A B Hanger-pan/tray,LH
42* 215002401 A B Hanger-pan/tray,RH
46 5303308604 A B Front-storage pan,upper
46A 5303308605 A B Front-storage pan,lower
47 5303289387 A B Insert-pan cover,glass ,clear
47A 215723552 A B Insert-pan cover,glass ,clear
49 5303296573 A B Basket-sliding
51 5303296575 A B Hanger-basket,RH
52 215162502 A B Hanger-basket,LH,with spring
52* 5303299662 A B Hanger-basket,LH
57 5303271653 A B Ferrule-inner
62 5303289517 A B Tray-deli
67 5303308609 A B Front-deli tray
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
96 215192600 A B Support-water tank
97 218871301 A B Water Tank
100A 218015501 A B Support-pan cover,LH
100B 218015601 A B Support-pan cover,RH
101 215005000 A B Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger
123 215005100 A B Screw-roller/hanger,8-10 x .438
126 218867401 A B Channel,auger mtg ,LH
126* 218867402 A B Channel,auger mtg ,RH
* 215328300 A B Clip-shelf
* 218159700 A B Spacer-shelf
* 5303001038 A B Washer,.28 x .62 x .19 ,nylon
SHELVES

03/99 10
Publication No. FRS24MWG
5995318861

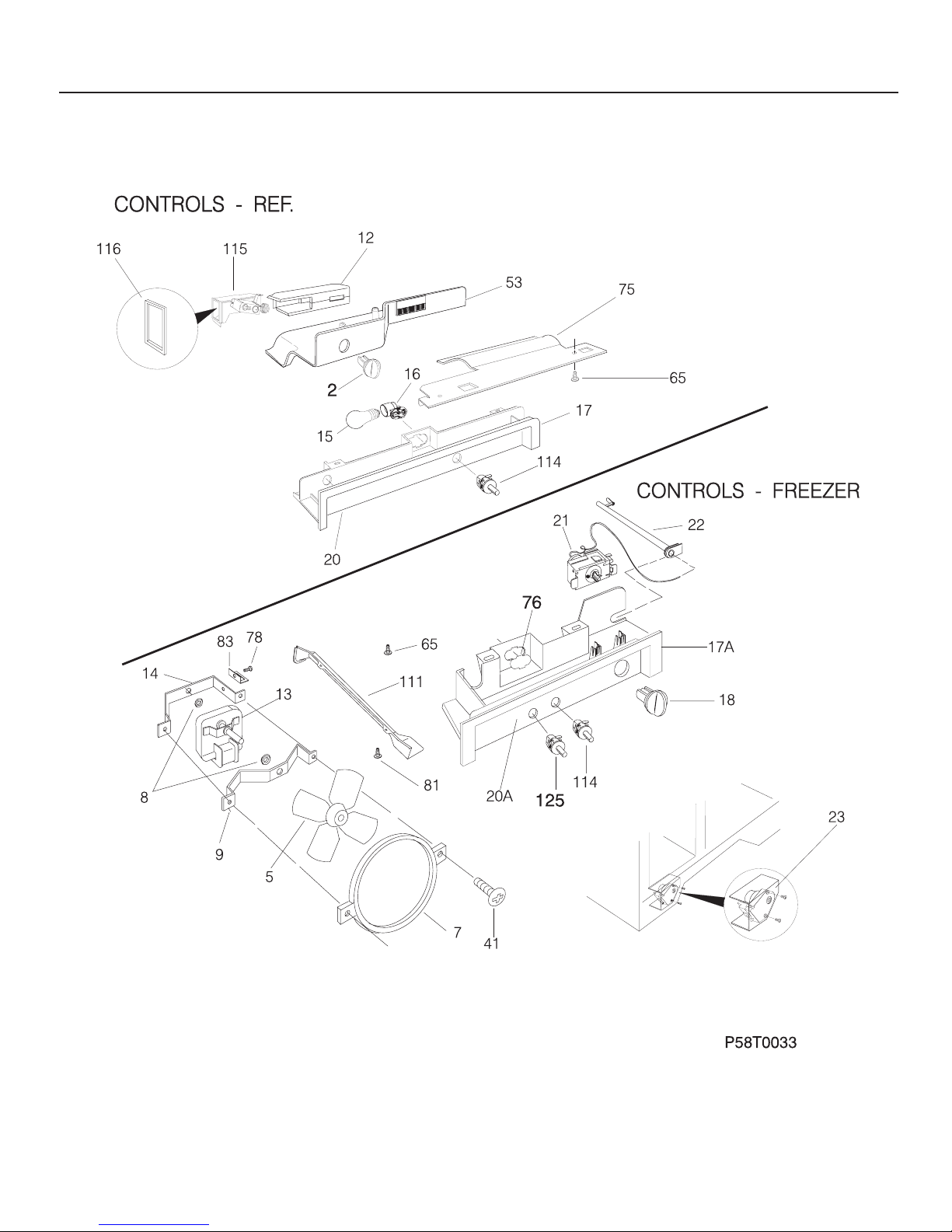

CONTROLS

# = Fast-moving Parts 11 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
2 215028605 A B Knob-damper control
5 # 5308000010 A B Fan Blade,red
7 5308000124 A B Ring-fan orifice
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
12 215809600 A B Diffuser-air
13 # 215426200 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B Bracket-motor mtg,rear
15 5303001179 A B Light Bulb/Lamp,40 W
16 # 5303289050 A B Socket-light/lamp
17 5303296805 A B Control Box,refr
17A 5303296581 A B Control Box,frzr
17A* 215188300 A B Screw-control box mtg, hex hd, 8-15A x 1.000,refr/frzr
18 5303308568 A B Knob-temp control,frzr
20 5303296804 A B Label-control box,refr
20A 5303308611 A B Label-control box,frzr
21 # 5303300027 A B Control-temperature
22 5303319683 A B Housing-temp sensor,plastic
22* 218731102 A B Tube, insulator, PVC, white, on temp sensor
23 # 215846602 A B Timer-defrost
23* 215277000 A B Cover-defrost timer,top
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 A B Shield-defrost timr,btm
41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, serrated head
41* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809505 A B Box-damper control
65 5303001361 A B Pin-mounting,push-in ,plastic
75 218465101 A B Shield-light,refr
76 218225800 A B Cover-light socket
78 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
83 5308000107 A B Bracket-connector
111 5303297842 A B Wireway,frzr
114# 5303289051 A B Switch-light/lamp,white
115# 215011502 A B Damper Assy,w/seal
116 215011400 A B Seal-damper,foam
125# 215334201 A B Switch-auger kill,white
CONTROLS

03/99 12
Publication No. FRS24MWG
5995318861
SYSTEM

# = Fast-moving Parts 13 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
1 # 218787900 A B Condenser
1* 5303208866 A B Spacer-tube
1* 5303289026 A B Spacer-tube
2 5303289029 A B Clip-cond mtg,(4)
3 218679603 A B Block-evap coil,styrofoam ,(2)
4 # 218541000 A B Drier-filter
5 218646100 A B Harness-wiring,main
5* 215005200 A B Harness-wiring,refr controls
5* 218815101 A B Harness-wiring,frzr controls
6 218897101 A B Harness-wiring,machine compt
7 215459201 A B Cord-electric power
8 218803400 A B Cover-wiring
8* 218754500 A B Screw,hex hd ser wshr ,#8-18 x 3/8
13 # 215006701 A B Heat Exchanger,suction line
14 # 218169802 A B Heater-defrost
15 # 218691301 A B Evaporator,R134a System
15* 3206414 A B Tube-inlet
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 5303289496 A B Insulator-evap
19 218631200 A B Tube,rubber
21 # 5316269001 A B Thermostat-defrost
22 218811100 A B Base-compressor mtg,(drain pan)
23 218513300 A B Grommet-compr mtg,(4)
25 218773500 A B Screw-compr mtg, hex wshr hd, 10Bx11/4
29 # 218374511 A B Compressor,R134a ,w/o electricals
30 # 216008902 A B Starter-PTC
31 # 5303308603 A B Overload Protector
32 215012000 A B Wire-bale
41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, serrated head
43 215174700 A B Clamp-service cord, strain relief, galv steel
43* 5303001199 A B Clamp-wiring harness, strain relief, galv steel
43* 5308000133 A B Clamp,nylon ,.75 OD tube
45 218769200 A B Screw,hx wshr hd spec ,#6-32 x .5
45 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec
49 215506900 A B Bracket-evap mtg
54 5303289027 A B Rail-cabinet base,rear
54* 215732700 A B Screw,pan head ,10-12A x 0.50
54A 5303289311 A B Rail-compr support
54B 5303289292 A B Rail-cabinet base,front
55 # 218764602 A B Capacitor-run
56 218769300 A B Insert-compressor mtg
57 218247300 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 5303289031 A B Shroud-cond fan mtr
60 # 215501800 A B Motor-condenser fan
61 5303289032 A B Blade-cond fan
61* 215004700 A B Nut,speed
61* 215223700 A B Grommet-silencer
62 215048701 A B Trough-drain,w/shield assy & #17 insulator
64 5303289063 A B Tube-drain
65 5303289301 A B Spacer-tube
70 5303289041 A B Bracket-evap/cvr mtg
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
* 5303917214 A B Hot Tube Repair Kit,Service
SYSTEM

03/99 14
Publication No. FRS24MWG
5995318861

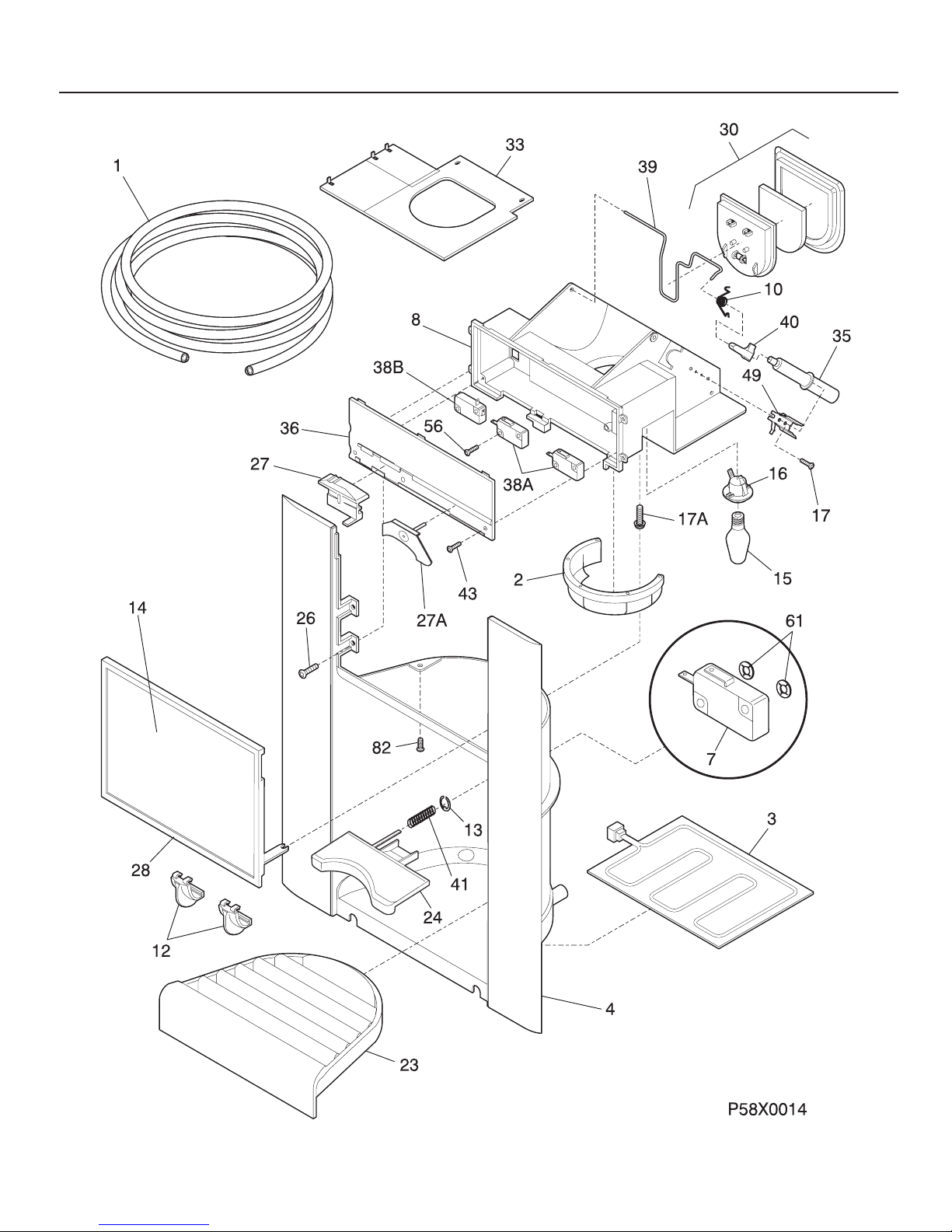

DISPENSER

# = Fast-moving Parts 15 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
1 5318582501 A B Tube-water inlet, 93", plastic, cut-to-size
1* 215294101 A B Tube-water inlet, formed, plastic, dispenser
2 218505302 A - Deflector-ice disp,almond
2 218505301 - B Deflector-ice disp,white
3 # 215484300 A B Heater-door housing
4 218432102 A - Housing-dispenser,almond
4 218432101 - B Housing-dispenser,white
7 # 218841901 A B Switch-actuator,micro
7* 215944300 A B Shield-micro switch
8 218835701 A B Module-dispenser
10 218209800 A B Spring,dispenser door
12 218836202 A - Knob-selector,almond
12 218836201 - B Knob-selector,white
13 215748101 A B Ring-snap,actuator
14 218416159 A - Label-module cover,almond
14 218416158 - B Label-module cover,white
15 218284900 A B Light Bulb/Lamp,4 W ,115 V
16 215284900 A B Socket-light/lamp
17 215794400 A B Screw,#6 x 1/4
17A 215840700 A B Screw,truss head ,6-20 x 3/8
17A* 215923400 A B Washer-flat
23 5303297845 A - Drip Tray,almond
23 5303297844 - B Drip Tray,white
24 218796502 A - Actuator,almond
24 218796501 - B Actuator,white
26 215503200 A B Screw, cr pan hd, 10-16 x ½, spec/hi-lo
27 218432600 A B Cam-slide
27A 218814901 A B Rocker-switch
28 218700602 A - Cover-module,almond
28 218700601 - B Cover-module,white
30 215753600 A B Door Assy-ice chute,w/gasket,insul
33 # 218870201 A B Heater-disp throat
35 # 218740003 A B Heat Motor,115V
36 218835601 A B Cover-slctr switch,ice dispenser
38A# 218479900 A B Switch-micro,single pole ,double throw
38B# 218835401 A B Switch-micro,single pole ,single throw
39 218284600 A B Wire-ice door
40 218284500 A B Yoke-heat motor
41 215765400 A B Spring-actuator
43 215760300 A B Screw,#4 x 3/8
49 215794000 A B Bracket-heat motor
56 218434300 A B Screw-micro switch, pan head, 4-24 x 9/16
61 215766000 A B Ring-retainer,micro switch
82 215296300 A B Screw,plask h/l ,#6 x 3/8
* 215781700 A B Clip-tube
* 218863101 A B Harness-wiring,disp
* 5300460947 A B Tape-I&W dispenser, double faced, foam,
60 x1-1/4 x1/32,(2)
DISPENSER

03/99 16
Publication No. FRS24MWG
5995318861

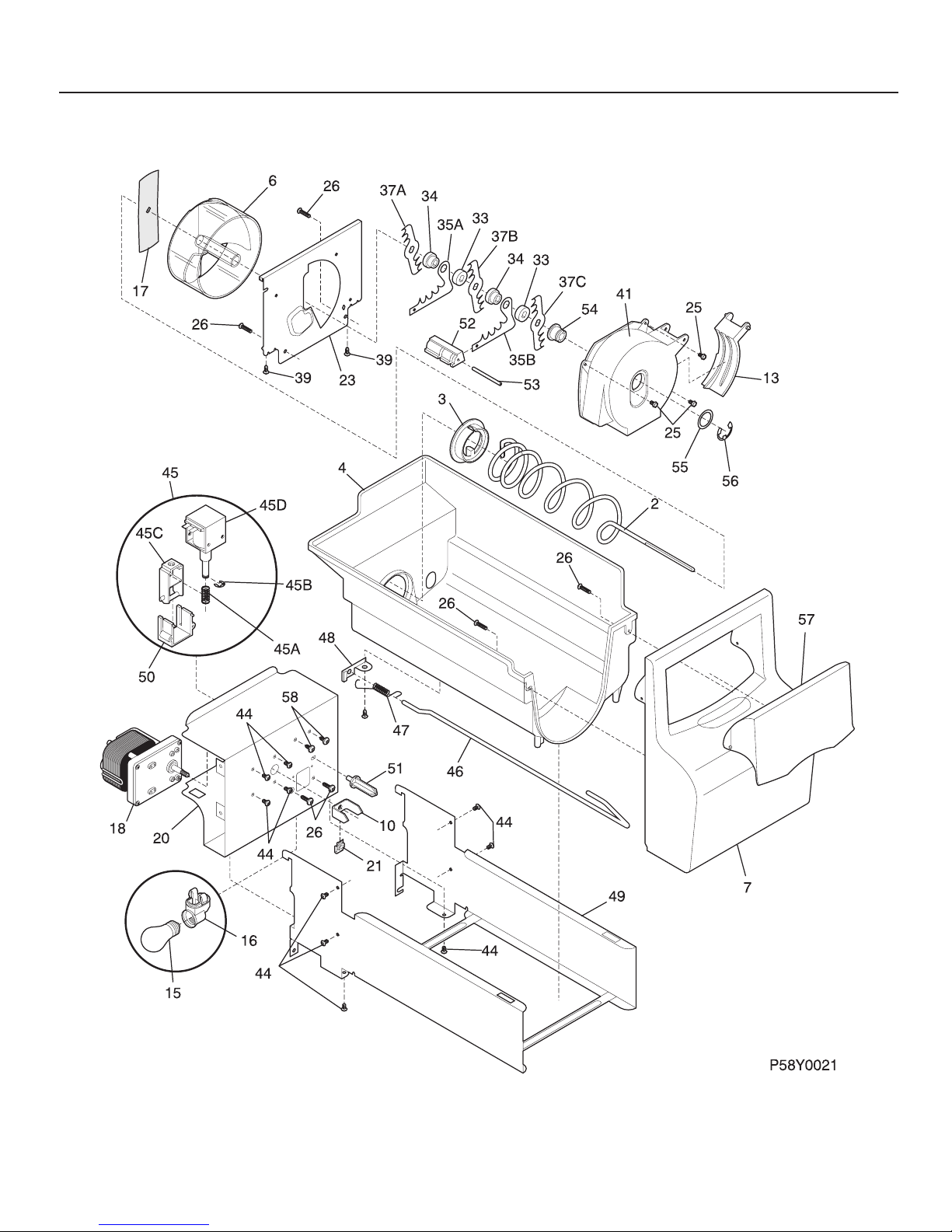

ICE CONTAINER

# = Fast-moving Parts 17 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 5304404330 A B Motor-auger
18* 5304404335 A B Harness-wiring,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw
26 215503200 A B Screw, cr pan hd, 10-16 x ½, spec/hi-lo
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade-crusher,#1
37B 5304404350 A B Blade-crusher,#2
37C 5304404356 A B Blade-crusher,#3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x .25
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 215781700 A B Clip-tube
* 218842802 A B Ice Container Assy
ICE CONTAINER

03/99 18
Publication No. FRS24MWG
5995318861
ICE MAKER

# = Fast-moving Parts 19 03/99
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995318861
A = FRS24MWG (FRS24MWGD2)
B = FRS24MWG (FRS24MWGW2)
POS. NO PART NO DESCRIPTION
1 5318582501 A B Tube-water inlet, 93", plastic, cut-to-size
2 3206348 A B Spring,shut-off arm
3 3206299 A B Plate-I.D.
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 1/4
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-holding sw
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff,icemaker ,complete assy
12 3206321 A B Connector Plug,wiring harness
12 # 3206349 A B Harness-wiring,IM internal ,with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 3206323 A B Screw-switch mtg, 4-24 x ¾, sw to support,(2)
15 # 3206324 A B Switch,(3)
16 3206326 A B Support
17 # 5303320545 A B Mold-ice maker,radius cube ,with heater
18 3206328 A B Ejector
19 3206330 A B Bearing & Inlet
20 3206331 A B Screw,8-18 x 3/8 ,(2)
21 3206332 A B Ice Stripper
22 3206333 A B Arm,shut-off
23 3206334 A B Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 A B Lever-arm
25 3206336 A B Screw-arm levr/sprt,8-18 x 9/16
26 3206337 A B Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 A B Screw-sw&spcr/plate,4-40 x 1
28 3206339 A B Screw-timing stop,4-40 x 3/8
29 3206340 A B Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 A B Screw-timing,8-32 x 1
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 3206344 A B Spring
34 3206345 A B Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 A B Screw-gear/cam,6-20 x 0.437
36 3206347 A B Cover-ice maker,complete
37 5303320544 A B Data Sheet,ice maker
38 5303207445 A B Envelope-data sheet
44 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
46 5303001193 A B Clamp-inlet tube,metal
47 5308000205 A B Adapter-water sply,straight
51 215811600 A B Tube-fill
55 # 218720500 A B Valve-water,dual solenoid ,115 V
55* 218835800 A B Cap-water valve
59 5303001191 A B Sleeve-tube insert
60 5303207328 A B Screw,hex wshr hd ,8-15A x 1
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM mtg brkt,hex hd ,#8-32 x 3/8
64 5303001549 A B Clamp-copper tube,steel
* 215290100 A B Screw-solenoid valve, hx hd-slot wshr, 12-24 x 3/4
* 218699501 A B Icemaker,*
ICE MAKER

03/99 20
Publication No. FRS24MWG
5995318861
WIRING SCHEMATIC
