PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26RBCW0 FRS26RBC R134a white 115
MARKET
North America
Publication No.
5995391520
030606
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26RBC
©2003 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 240598618
OWNER’S GUIDE - 240389311
SERVICE DATA SHEET - 240389610
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

06/03 2
Publication number FRS26RBCW0
5995391520
FREEZER DOOR

# = Fast-moving Parts 3 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390602 Gasket-frzr door,white ,magnetic
4A 240334201 Bin-door,frzr-upper
4B 240351601 Bin-door
11 240451802 Door-frzr,white ,complete assy
13A 240537102 Door Stop,white ,frzr
18 218762701 Handle-door,white
21A 5308016566 Screw,hex washer hd, 8-15A x 0.625, low profile
21C 218781100 Screw,pan head ,8-18 x 0.625
22A 240328202 Bearing-hinge,closer
22C 240328402 Bearing-hinge,upper
37A 215870629 Trim-handle,2.47" ,white, w/satin AL band
37A* 218676004 Band-decorative, satin aluminum, handle trim
68 240467701 Chute-ice
* 240545101 Connector-water,straight
* 240552101 Harness-wiring,door
* 5303918256 Dispenser heater kit

06/03 4
Publication number FRS26RBCW0
5995391520
REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
2 # 240390601 Gasket-refr door,white ,magnetic
4 240323001 Bin-door,pseudo ,bottom
7 240326203 Door-dairy
13 240537101 Door Stop,white ,ref
15 240451902 Door-refr,white ,complete assy
18 218762701 Handle-door,white
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 Screw,pan head ,8-18 x 0.625
22 240328201 Bearing-hinge,closer
22B 240328401 Bearing-hinge,upper
37A 215870629 Trim-handle, 2.47", white, w/satin AL band
37A* 218676004 Band-decorative,satin aluminum, handle trim
49 240356401 Bin-door,gallon
REFRIGERATOR DOOR

06/03 6
Publication number FRS26RBCW0
5995391520
CABINET

# = Fast-moving Parts 7 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
10 240435902 Cover-air duct
10A 240475902 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 # 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex washer hd, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337601 Trim-cabinet corner,white ,(2)
38 240327202 Bracket-upper hinge
40 240327005 Cover-upper hinge,white
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 218659500 Channel-shelf mtg,side ,(2)
58 218749600 Screw,#10 pan hd ,8-18 x .5
66B 240374301 Diffuser-air
66B* 240518802 Pin-push,push-in ,plastic
72 240324402 Grille/Kickplate,white
81 5308016566 Screw, hex washer hd, 8-15A x 0.625, low profile
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 Cover, access, system compt ,with label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support,crisper cover ,front ,(4)
100* 240350802 Support,crisper cover ,rear ,(4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240396801 Clamp,tube/wiring ,nylon ,black/natural
* 240479601 Plug,button ,cab liner holes ,(2)
* 240481601 Shim-lower hinge
* 5303305324 Paint,touch-up ,white
CABINET

06/03 8
Publication number FRS26RBCW0
5995391520
SHELVES

# = Fast-moving Parts 9 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
2 240434604 Trim-basket
11 240338802 Shelf-freezer,flip-up
11A 240338702 Shelf-freezer,fixed wire
11B 240338704 Shelf-freezer,fixed wire
24 240373108 Frame-shelf,cantilever
25 240350702 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240350902 Cover-crisper pan,lower
26 240351005 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
26A 240362201 Control-humidity
27 240351207 Pan-crisper,lower
29 240357706 Trim-shelf,front
39 240430706 Trim-shelf,11.21" ,front
39B 240430702 Trim-shelf,12.39" ,front
40 240350623 Glass-shelf,16.76" x 17.60"
41 240357806 Trim-shelf,rear
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240530402 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile
97 240545302 Water Tank Assy,coiled tubing, rear filter
100 240326302 Cover-water tank
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
126 218867405 Channel, auger mtg, LH
126 218867406 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover
SHELVES

06/03 10
Publication number FRS26RBCW0
5995391520
CONTROLS

# = Fast-moving Parts 11 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
13 # 240315803 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 Bracket-motor mtg,rear
15 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature
16 218906801 Socket-light/lamp
17 240383301 Box-control,front
17* 240439902 Harness-wiring,control box
18 240360801 Knob,temp control
21 # 240383703 Control-temperature
21A 5304421768 Control-temperature
22 218660702 Tube-insulator
23 240554501 Control-defrost, adaptive timer, PC board
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
41 5303001343 Screw, hex washer head, 8-15A x 0.500
45 241500301 Screw, hex washer head, 8-18AB x 0.500
53 240369501 Box-control
81 5308016566 Screw, hex washer hd, 8-15A x 0.625, low profile
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
115 240521107 Damper Assy, w/seal
137# 240389101 Filter-water, carbon, with o’rings
138 240434401 Cup-water filter
138* 218904301 O-ring,wtr filter cup
139 240434301 Housing-water filtr
140 240545201 Elbow-water tube
149 240331602 Shroud-fan orfice
150 240394102 Insulation-water filter cover
151 240376002 Cover-water filter
* 3205266 Edge Protector,wiring harness
CONTROLS

06/03 12
Publication number FRS26RBCW0
5995391520
SYSTEM

# = Fast-moving Parts 13 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil,styrofoam ,(2)
4 # 218944001 Drier-filter,R134a System
6 240346402 Harness-wiring,machine compt
6* 240439901 Wiring Harness,controls
6* 240449601 Harness-wiring
14 # 5303918253 Defrost Heater Kit
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
21 5303918214 Thermostat-defrost,kit
22 240330003 Base-compressor
22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 Pan-defrost drain
29 # 5303918254 Compressor,w/electricals
30 # 218721119 Starter,PTC
32 218973501 Clamp,elec cont mtg ,compressor
34 240405201 Grommet,rubber ,black ,cond tube/wire
41 240555001 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
44* 5303001199 Clamp-wiring harness, strain relief, galv steel
45 5308016566 Screw,hex washer head ,8-15A x 0.625, low profile
55 # 218909901 Capacitor, run, 50/60 Hz, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 215004600 Screw, hx serr wshr hd, 8-36 x 7/16, cond fan motor, (2)
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal,shroud
59* 240359401 Screw-fan shroud,(2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket,(3)
60 # 240334003 Motor-condenser fan
61 # 240315401 Fan Blade, galv steel, condenser fan
61A 215004700 Nut,speed
61B 215004800 Grommet-silencer
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
72 218397000 Button-handle mtg, dovetail
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain,lower
85 240346201 Tube-connector,suction
86 240409302 Spacer-cond tube,black
* 5303918213 Heat Exchanger Kit, suction line
* # 5303918222 Hot Tube Repair Kit, Service
SYSTEM

06/03 14
Publication number FRS26RBCW0
5995391520
DISPENSER

# = Fast-moving Parts 15 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
4 5304428805 Cover-module, white
8 5304421823 Module-dispenser, white
10 5304426649 Spring-torsion
14 240323908 Label-module cover, white
17 5304421619 Screw
23 240323601 Drip Tray,white
24 5304421825 Actuator-water, white
24A 5304421826 Actuator-ice, white
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
38A# 5304421617 Switch-micro,single pole, double throw
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l ,#6 x 3/8
43* 240363401 Screw-#8-18 X ½
56 5304421830 Screw-micro switch, pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
* 215781700 Clip-tube
* 5303918256 Dispenser heater kit
DISPENSER

06/03 16
Publication number FRS26RBCW0
5995391520
ICE CONTAINER

# = Fast-moving Parts 17 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice,bucket only
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 240326904 Motor-auger
18* 5304407107 Wiring Harness,auger motor
20 5304407106 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw,hex washer head ,8-32T x 0.375
26 215503200 Screw,cr pan hd ,10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x 0.250
49 5304404329 Rail Assy
51 5304404336 Rotation Stop
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
* 215781700 Clip-tube
* 240323807 Ice Container Assy,w/moving parts
ICE CONTAINER

06/03 18
Publication number FRS26RBCW0
5995391520
ICE MAKER

# = Fast-moving Parts 19 06/03
* = Non-Illustrated Parts
FRS26RBCW0 Publication No.
5995391520
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve to ice maker
2 5304420650 Spring,shut-off arm
3 3206299 Label,ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ice maker, complete assy
12 # 240352601 Wiring Harness, ice maker, internal, with plug
13 # 3206322 Thermostat Assy,ice maker
14 5304420652 Screw,4 x 0.750 ,switch mtg.
15 # 3206324 Switch,(3)
16 5304420653 Support,phenolic
17 # 5303320545 Mold-ice maker,Radius Cube ,with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop,4-40 x 0.375
29 3206323 Screw,4-24 x 0.750 ,(6)
30 3206341 Screw-timing adj,8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw,plazscrew ,8-10 ,(3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip,(2) ,tube mtg.
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 Screw,hex washer head ,8-15A x 0.500
46 5303001193 Clamp,.50 ID ,steel ,water tube
46* 5308000133 Clamp,nylon ,.625 ID
51 240387101 Tube-water,ice mold fill ,extension
55 # 240531101 Valve-water,triple solenoid
55* 218709100 Screw,hex head ,10-32 x 0.500
55* 240363601 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling,ice maker
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* 240352411 Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

06/03 20
Publication number FRS26RBCW0
5995391520

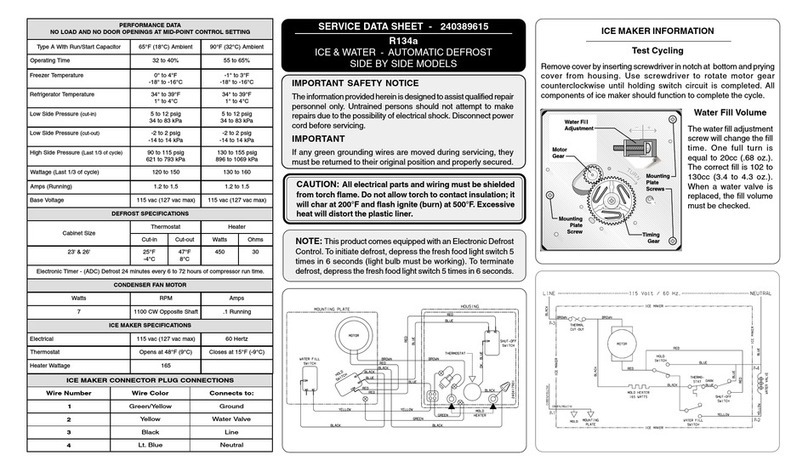

WIRING SCHEMATIC
