Frigidaire FRS26W2BS User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26W2BSB2 FRS26W2BS R134a stain/blk 115
MARKET
North America
Publication No.
5995377446
020826
-EN/SERVICE /DCS
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26W2BS
©2002 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 218791402
OWNER’S GUIDE - 240389307
SERVICE DATA SHEET - 240389607
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

08/02 2
Publication No. FRS26W2BSB2
5995377446

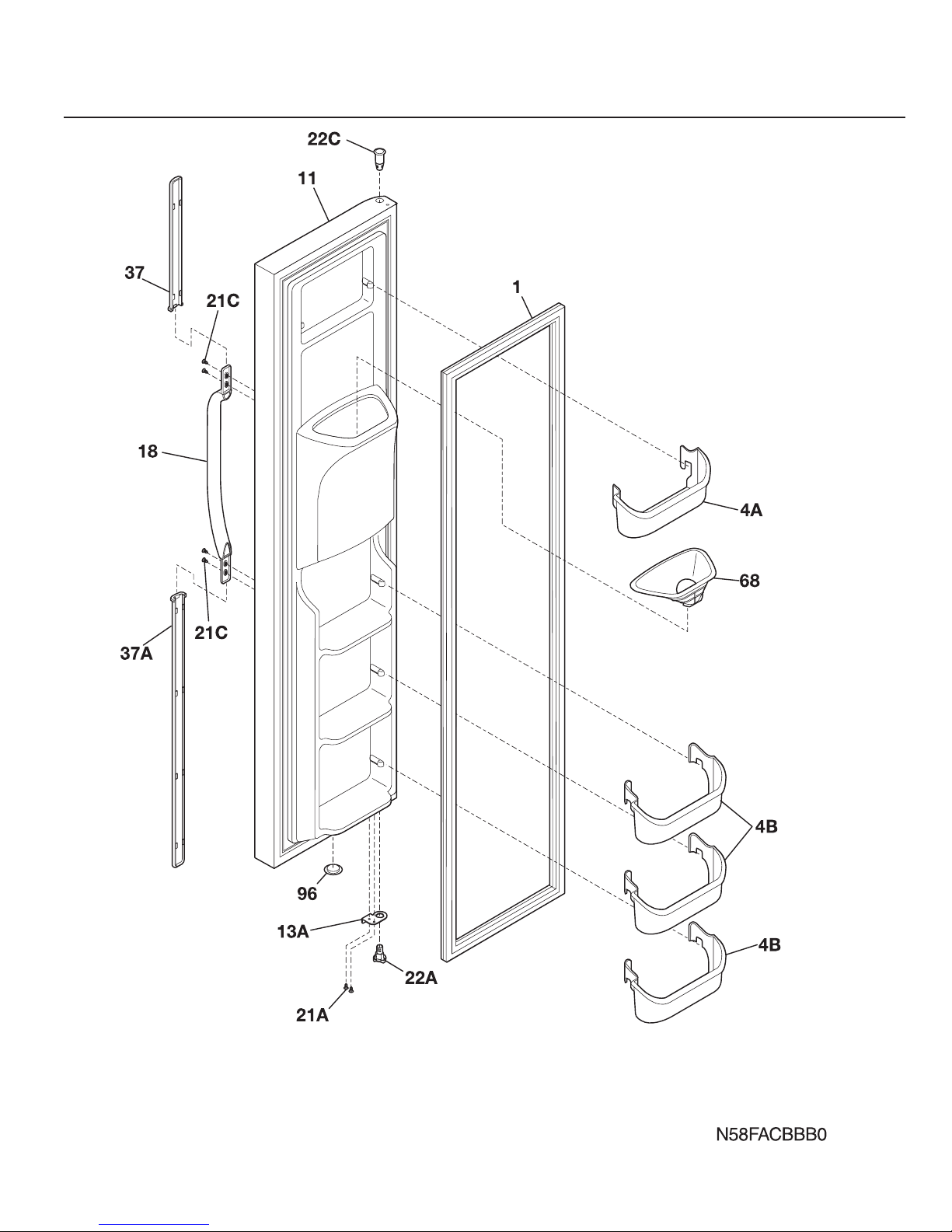

FREEZER DOOR

# = Fast-moving Parts 3 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390606 Gasket-frzr door,black ,magnetic
4A 240334201 Bin-door,frzr-upper
4B 240351601 Bin-door
11 240451896 Door-frzr,stainless steel ,complete assy
13A 240537106 Door Stop,black ,frzr
18 218762703 Handle-door,black
21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
21C 218781100 Screw,pan head ,8-18 x 0.625
22A 240328202 Bearing-hinge,closer
22C 240328404 Bearing-hinge,black ,upper
37 218811620 Trim-handle,black ,upper
37A 218811617 Trim-handle,black ,lower
37A* 215782300 Lock-handle trim,snap-in
37A* 218676004 Band-decorative,satin aluminum ,handle trim
68 240467701 Chute-ice
96 240345506 Plug,door foam hole ,black
* 218490900 Cleaner,stainless steel
* 240552101 Harness-wiring,door
* 240545101 Connector-water,straight
* 5303918256 Dispenser heater kit

08/02 4
Publication No. FRS26W2BSB2
5995377446
REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
2 240390605 Gasket-refr door,black ,magnetic
4 240323001 Bin-door,pseudo ,bottom
7 240326203 Door-dairy
13 240537105 Door Stop,black ,ref
15 240451960 Door-refr,stainless steel ,complete assy
18 218762703 Handle-door,black
21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
21C 218781100 Screw,pan head ,8-18 x 0.625
22 240328201 Bearing-hinge,closer
22B 240328403 Bearing-hinge,upper
37 218811620 Trim-handle,black ,upper
37A 218811617 Trim-handle,black ,lower
37A* 215782300 Lock-handle trim,snap-in
37A* 218676004 Band-decorative,satin aluminum ,handle trim
49 240356401 Bin-door,gallon
96 240345506 Plug,door foam hole ,black
* 218490900 Cleaner,stainless steel
REFRIGERATOR DOOR

08/02 6
Publication No. FRS26W2BSB2
5995377446
CABINET

# = Fast-moving Parts 7 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
10 240435902 Cover-air duct
10A 240475902 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 # 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner,black ,(2)
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge,black
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 218659500 Channel-shelf mtg,side ,(2)
58 218749600 Screw,#10 pan hd ,8-18 x .5
66B 240374301 Diffuser-air
66B* 240518802 Pin-push,push-in ,plastic
72 240324406 Grille/Kickplate,black
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
89 240326104 Cover,access ,system compt ,with label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 Support,crisper cover ,front ,(4)
100* 240350802 Support,crisper cover ,rear ,(4)
150 240368701 Guide-control bulb
* 240396801 Clamp,tube/wiring ,nylon ,black/natural
* 240479601 Plug,button ,cab liner holes
* 240481601 Shim-lower hinge
* 5303305345 Paint,touch-up ,black
CABINET

08/02 8
Publication No. FRS26W2BSB2
5995377446

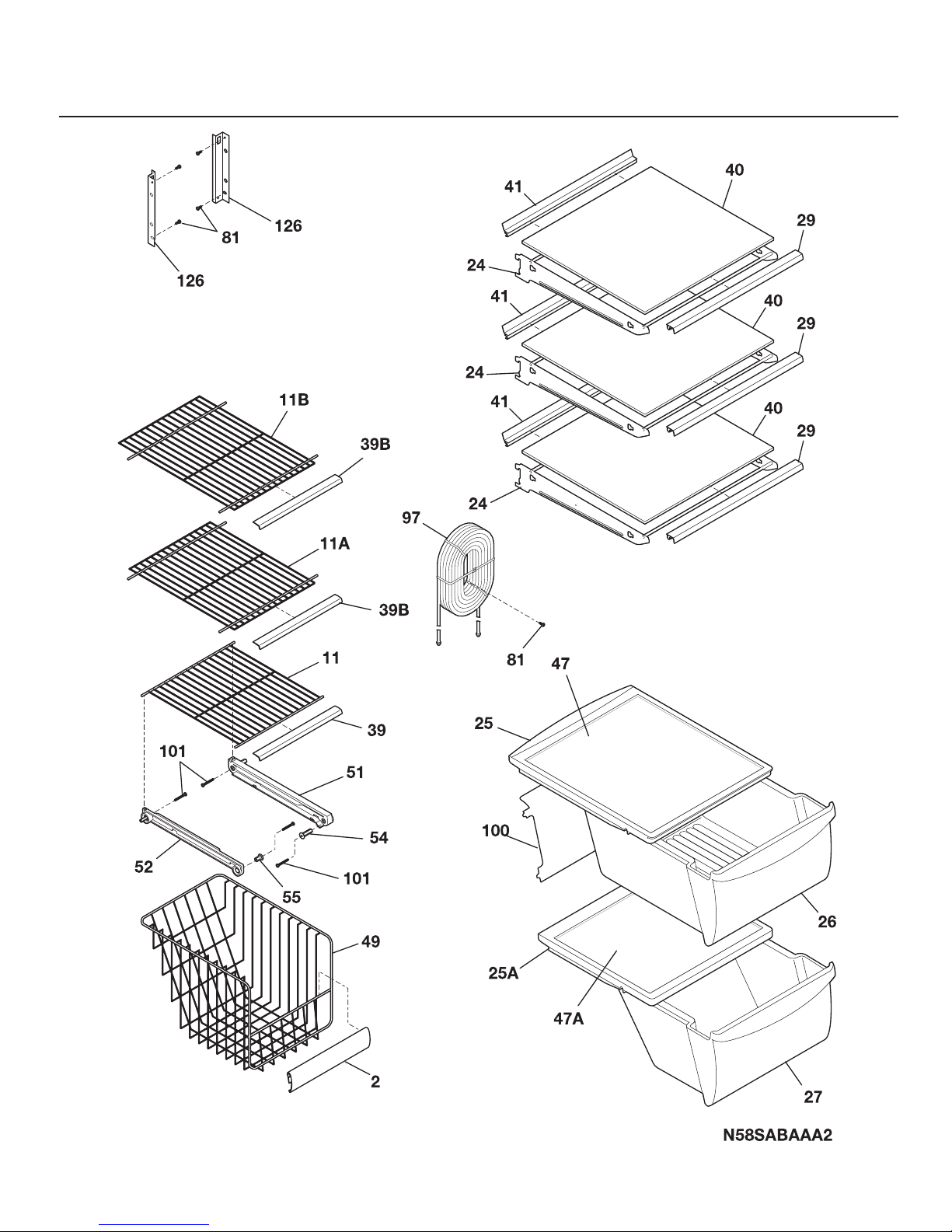

SHELVES

# = Fast-moving Parts 9 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
2 240434604 Trim-basket
11 240338802 Shelf-freezer,flip-up
11A 240338702 Shelf-freezer,fixed wire
11B 240338704 Shelf-freezer,fixed wire
24 240373108 Frame-shelf,cantilever
25 240350702 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240350902 Cover-crisper pan,lower
26 240351007 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
27 240351207 Pan-crisper,lower
29 240357706 Trim-shelf,front
39 240430706 Trim-shelf,11.21" ,front
39B 240430702 Trim-shelf,12.39" ,front
40 240350623 Glass-shelf,16.76" x 17.60"
41 240357806 Trim-shelf,rear
47 240350649 Insert-pan cover,glass
47A 240350603 Insert-pan cover,glass
49 240530402 Basket-sliding
51 240343002 Hanger-basket,RH
52 240343102 Hanger-basket,LH
54 240351901 Plug-hanger,right hand
55 240352001 Plug-hanger,left hand
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
97 240545301 Water Tank Assy,coiled tubing ,no filter
100 240326302 Cover-water tank
101 218493100 Screw,hex washer head ,8-18AB x 1-3/4
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
* 218791402 Label,energy guide
SHELVES

08/02 10
Publication No. FRS26W2BSB2
5995377446

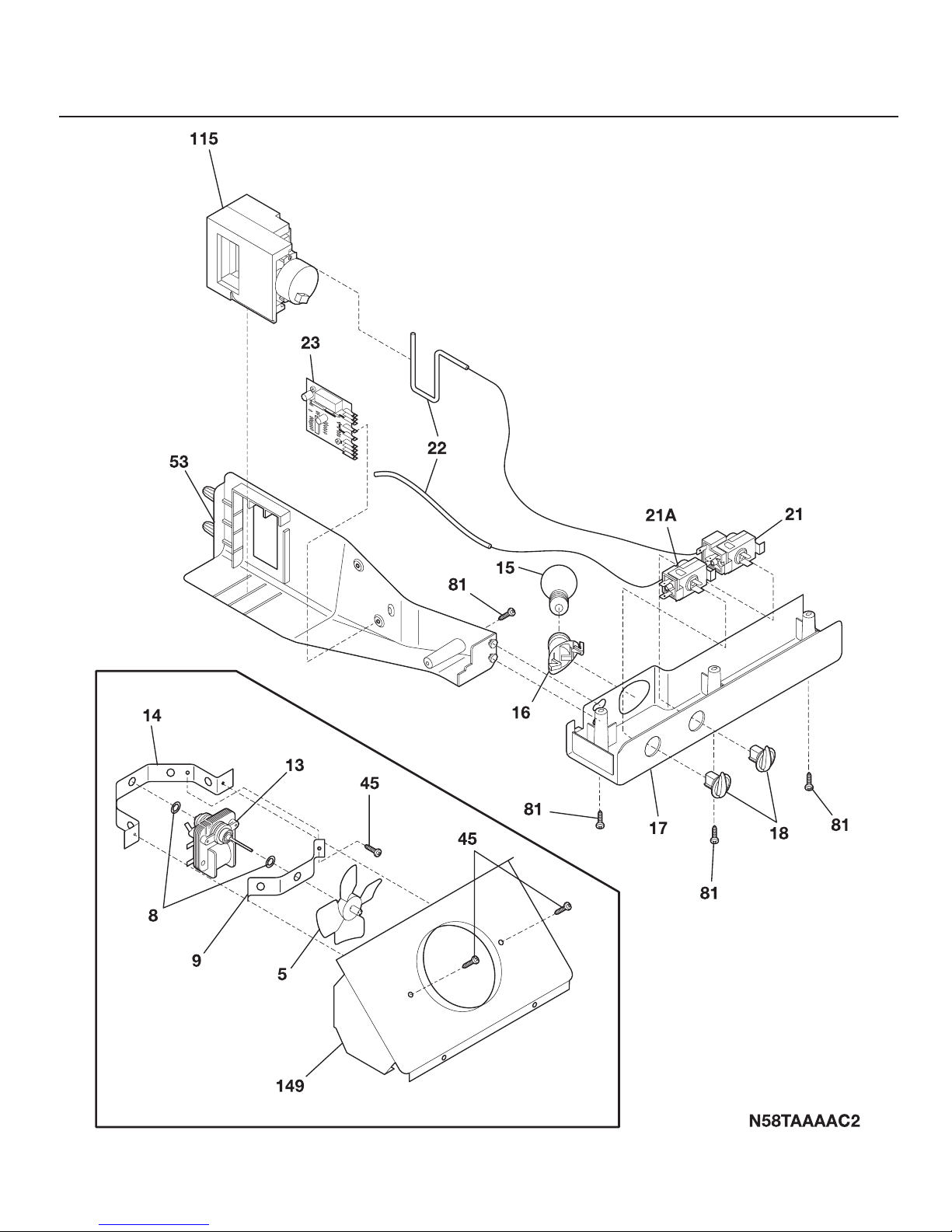

CONTROLS

# = Fast-moving Parts 11 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
13 # 240315803 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 Bracket-motor mtg,rear
15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature
16 218906801 Socket-light/lamp
17 240383302 Box-control,front
17*# 240556902 Wiring Harness,controls
18 240360801 Knob,temp control
21 # 240383703 Control-temperature
21A 5304429601 Control-temperature
22 218660702 Tube-insulator
23 240554502 Control-defrost,adaptive timer ,PC board
23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)
45 5303001343 Screw,hex washer head ,8-15A x 0.500
53 240549201 Box-control
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
115 240521106 Damper Assy,w/seal
149 240331602 Shroud-fan orfice
* 3205266 Edge Protector,wiring harness
CONTROLS

08/02 12
Publication No. FRS26W2BSB2
5995377446

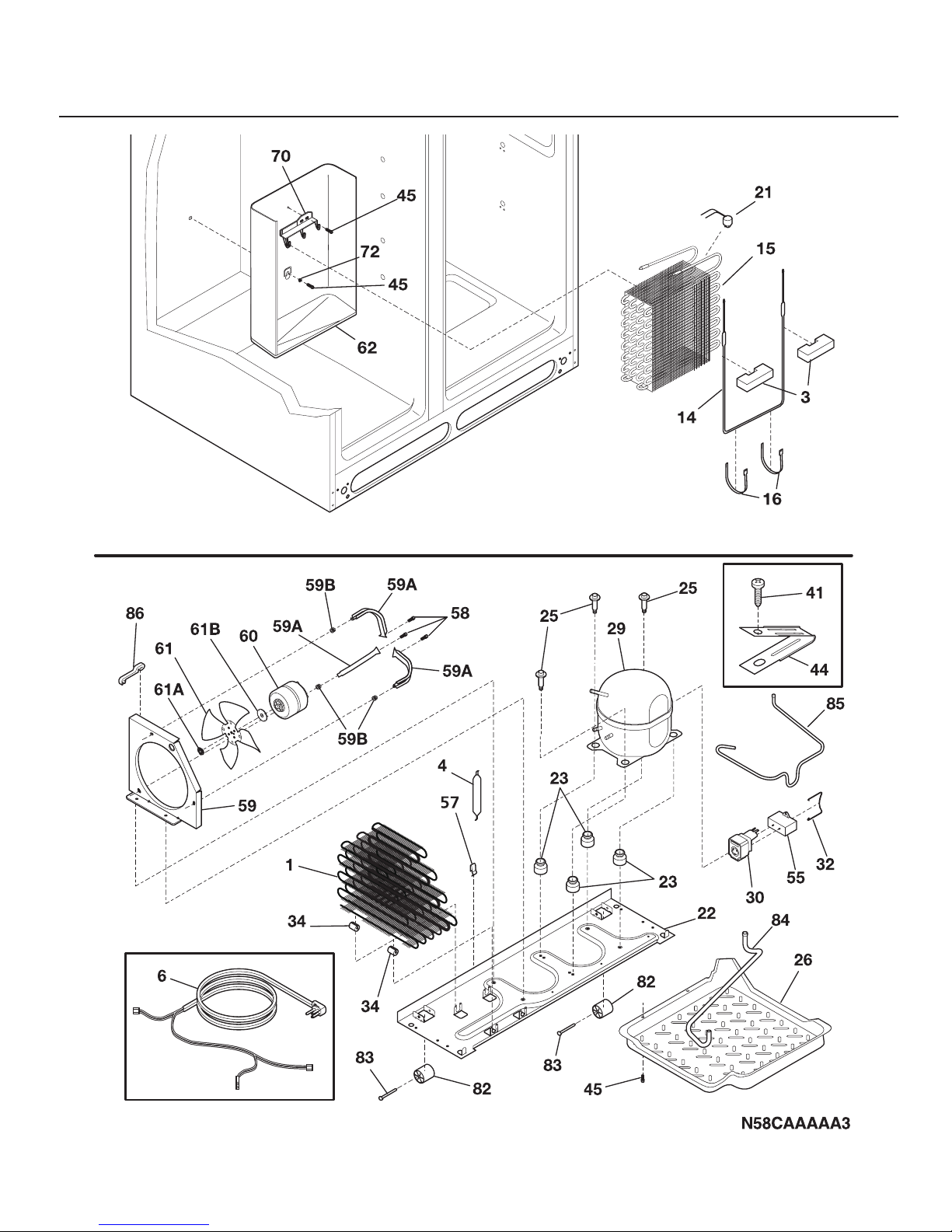

SYSTEM

# = Fast-moving Parts 13 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil,styrofoam ,(2)
4 # 218944001 Drier-filter,R134a System
6 240346402 Harness-wiring,machine compt
6* 240449601 Harness-wiring
6* # 240556902 Wiring Harness,controls
14 # 5303918253 Defrost Heater Kit
15 # 5303918216 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
21 5303918214 Thermostat-defrost,kit
22 240330003 Base-compressor
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF
26 240332602 Pan-defrost drain
29 # 5303918254 Compressor,w/electricals
30 # 218721119 Starter,PTC
32 218973501 Clamp,elec cont mtg ,compressor
34 240405201 Grommet,rubber ,black ,cond tube/wire
41 218897001 Screw,hex washer head ,8-32 x 1/4
44 215174700 Clamp-service cord,strain relief ,galv steel
45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad
57 240542601 Clip-wiring harness
58 240346801 Screw-cond fan mtr,hx serr wshr hd ,8-32 x 7/16,(3)
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal,shroud
59* 240359401 Screw-fan shroud,(2)
59A 240346501 Bracket-support,cond mtr ,(3)
59B 240346601 Grommet-bracket,(3)
60 # 240397101 Motor-condenser fan
60* 240397201 Connector-shaft
61 # 240315401 Fan Blade,galv steel ,condenser fan
61A 218956701 Nut,speed ,fan blade
61B 218956801 Grommet-silencer
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
72 218397000 Button-handle mtg,dovetail
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
84 5304421068 Tube-drain,lower
85 240346201 Tube-connector,suction
86 240409302 Spacer-cond tube,black
* # 5303918213 Heat Exchanger Kit,suction line
* # 5303918222 Hot Tube Repair Kit,Service
SYSTEM

08/02 14
Publication No. FRS26W2BSB2
5995377446
DISPENSER

# = Fast-moving Parts 15 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet,inlet valve ,to ice maker
4 5304424550 Cover-module,black
8 5304424549 Module-dispenser
10 5304421626 Spring-torsion
14 240323917 Label-module cover,black
17 5304421619 Screw
23 240323603 Drip Tray,black
24 5304422026 Actuator-water,black
24A 5304422025 Actuator-ice,black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
38A# 5304421617 Switch-micro,single pole ,double throw
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw,plask h/l ,#6 x 3/8
56 5304421830 Screw-micro switch,pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
* 5303918256 Dispenser heater kit
DISPENSER

08/02 16
Publication No. FRS26W2BSB2
5995377446
ICE CONTAINER

# = Fast-moving Parts 17 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice,bucket only
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 240326904 Motor-auger
18* 5304407107 Wiring Harness,auger motor
20 5304407106 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw,hex washer head ,8-32T x 0.375
26 215503200 Screw,cr pan hd ,10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x 0.250
49 5304404329 Rail Assy
51 5304404336 Rotation Stop
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
* 215781700 Clip-tube
* 240323807 Ice Container Assy,w/moving parts
ICE CONTAINER

08/02 18
Publication No. FRS26W2BSB2
5995377446

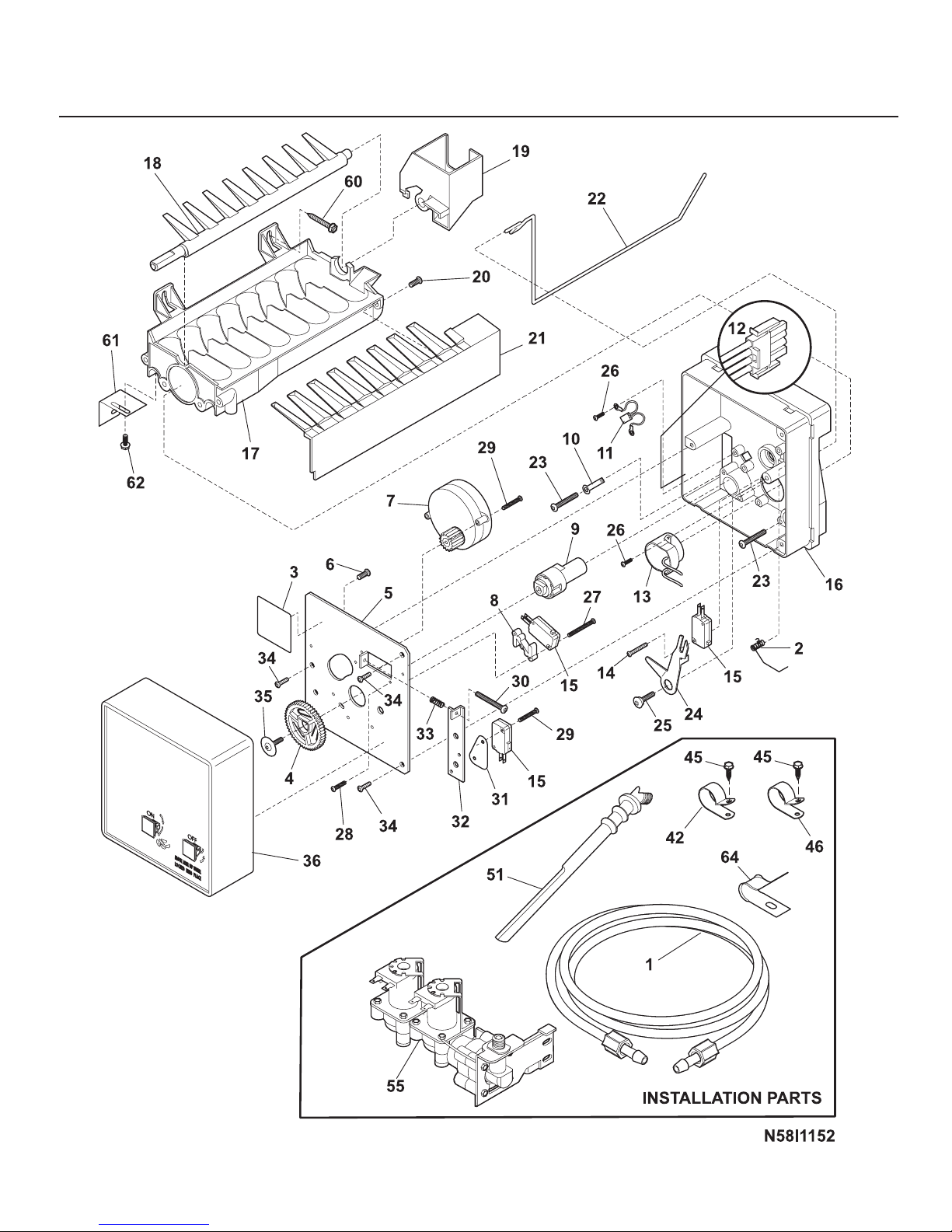

ICE MAKER

# = Fast-moving Parts 19 08/02
* = Non-Illustrated Parts
FRS26W2BSB2 Publication No.
5995377446
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet,inlet valve ,to ice maker
2 5304420650 Spring,shut-off arm
3 3206299 Label,ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff,ice maker ,complete assy
12 # 240352601 Wiring Harness,ice maker ,internal ,with plug
13 # 3206322 Thermostat Assy,ice maker
14 5304420652 Screw,4 x 0.750 ,switch mtg.
15 # 3206324 Switch,(3)
16 5304420653 Support,phenolic
17 # 5303320545 Mold-ice maker,Radius Cube ,with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw,8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw,8-32 x 0.875 ,mold-to-support ,(3)
24 3206335 Lever Arm
25 3206336 Screw,8-18 x 0.562 ,lever arm/sprt
26 5304420654 Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 Screw,4-40 x 1.000 ,hold switch mtg ,(2)
28 3206339 Screw-timing stop,4-40 x 0.375
29 3206323 Screw,4-24 x 0.750 ,(6)
30 3206341 Screw-timing adj,8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw,plazscrew ,8-10 ,(3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 218515402 Clip,(2) ,tube mtg.
42* 5303001199 Clamp-wiring harness,strain relief ,galv steel
45 5303001343 Screw,hex washer head ,8-15A x 0.500
46 5303001193 Clamp,.50 ID ,steel ,water tube
51 240387101 Tube-water,ice mold fill ,extension
55 # 240531001 Valve-water,dual solenoid ,115 V
55* 240542901 * Cap-water valve
60 5303207328 Screw,hex washer head ,8-15A x 1.000 ,(2)
61 218721500 Bracket-leveling,ice maker
62 218737900 Screw-IM brkt mtg,hex washer head ,8-32D x 0.375
64 5303001549 Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 Adapter-water supply,nut & sleeve ,compression ftg
* 240352411 Ice Maker,Radius Cube ,115 V ,no instl parts
ICE MAKER

08/02 20
Publication No. FRS26W2BSB2
5995377446

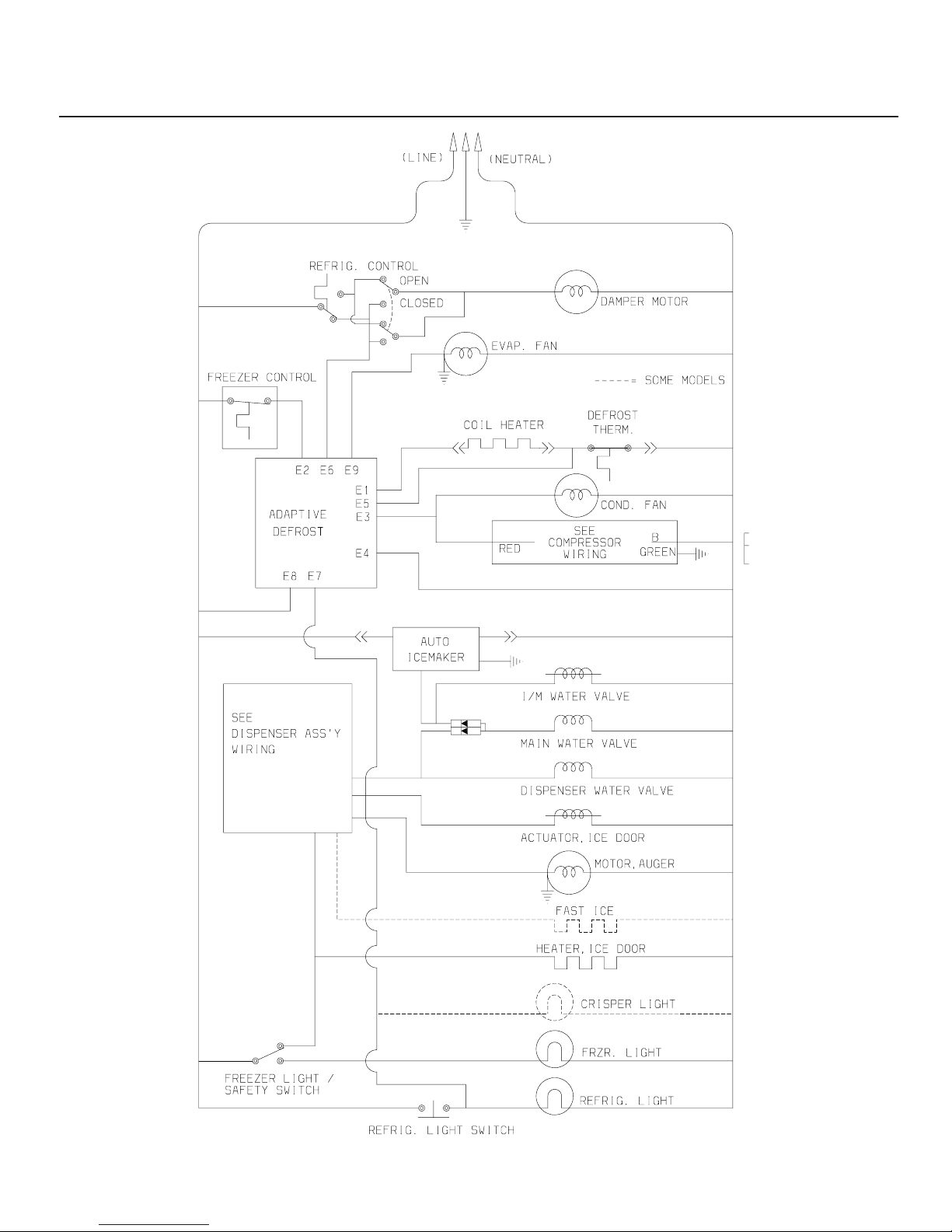

WIRING SCHEMATIC
