Frigidaire FRS6R4E User manual

Product No. FRS6R4EB9 FRS6R4EW9
Series R134a R134a
Color black white
Volts 115 115
Wiring Diagram 241526901 241526901
Owner's Guide 241695301 241695301
Market North America North America
Energy Guide 241585977 241585977
Service Data Sheet 240389616 240389616
N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps
N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA10.eps N58XDAAAA1.eps
N58YBAAAA0.eps N58I1151.eps W241526901A.eps S241526901A.eps
u x Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995469961
06/07/14
(EN/SERVICE/WC)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6R4E
Copyright ©2006 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995469961 FRS6R4E
07/06 2

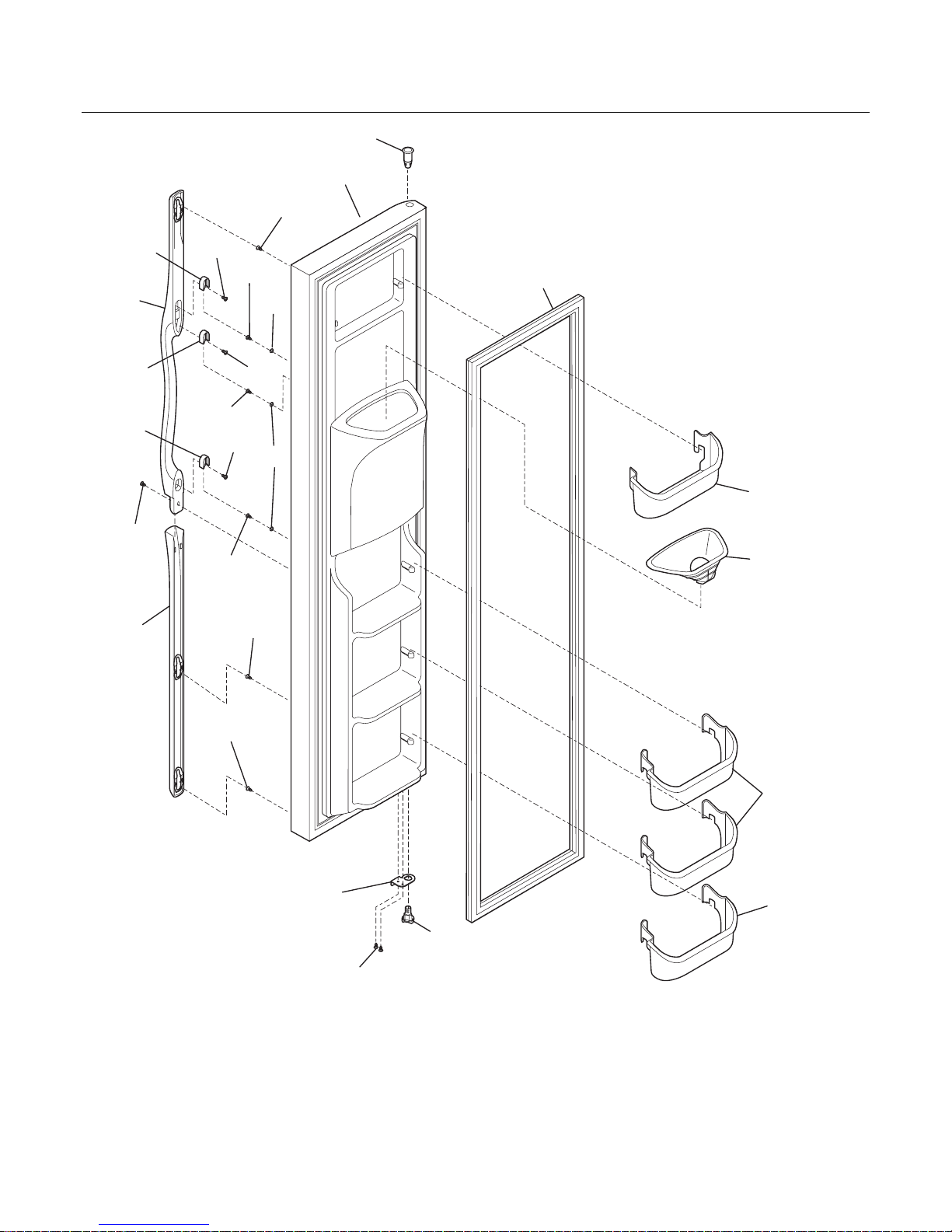

FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FCCBBB2

FRS6R4E Publication No: 5995469961
# Functional Parts 3 07/06
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
1 # 241674806 A - Gasket-frzr door, black, magnetic
1 # 241674802 - B Gasket-frzr door, white, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 241668151 A - Door-frzr, black, complete assy
11 241668112 - B Door-frzr, white, complete assy
13A 240581906 A - Door Stop, black, frzr
13A 240581902 - B Door Stop, white, frzr
18 240359108 A - Handle-door, black, LH
18 240359106 - B Handle-door, white
21 218781101 A B Screw, pan head, 8-18 x 0.625
21A 240598402 A B Screw, 10-32 x 1/2
21C 240521304 A B Screw, #8-18 x 3/4
22A 240328204 A - Bearing-hinge(frz), black, closer
22A 240328202 - B Bearing-hinge(frz), closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge, natural, upper
37 240359203 A - Trim-handle, 30.13", black, lower
37 240359201 - B Trim-handle, 30.13", white, lower
68 241525101 A B Chute-ice
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503204 A B Screw, cr pan hd, 10-16
* 5303918256 A B Dispenser heater kit
* 240352102 A B Connector-water, straight
* 240552101 A B Harness-wiring, door

Publication No: 5995469961 FRS6R4E
07/06 4
REFRIGERATOR DOOR
21C
21
21
21
21C
21C
21
74
74
74
21A
22
13
72
72
73
73
73
18
37
15
22B
2
7
49
49
4
4
N58RCCBBB11

FRS6R4E Publication No: 5995469961
# Functional Parts 5 07/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
2 # 241674805 A - Gasket-refr door, black, magnetic
2 # 241674801 - B Gasket-refr door, white, magnetic
4 240323001 A B Bin-door, pseudo, bottom
7 240326203 A B Door-dairy
13 240581905 A - Door Stop, black, ref
13 240581901 - B Door Stop, white, refr
15 240451908 A - Door-refr, black, complete assy
15 240451900 - B Door-refr, white, complete assy
18 240359103 A - Handle-door, black, RH
18 240359101 - B Handle-door, white
21 218781101 A B Screw, pan head, 8-18 x 0.625
21A 240598402 A B Screw, 10-32 x 1/2
21C 240521304 A B Screw, #8-18 x 3/4
22 240328203 A - Bearing-hinge, black, closer
22 240328201 - B Bearing-hinge(ref), closer
22B 240328404 A - Bearing-hinge, black, upper
22B 240328402 - B Bearing-hinge, natural, upper
37 240359203 A - Trim-handle, 30.13", black, lower
37 240359201 - B Trim-handle, 30.13", white, lower
49 240356401 A B Bin-door, gallon
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503204 A B Screw, cr pan hd, 10-16

Publication No: 5995469961 FRS6R4E
07/06 6
CABINET

FRS6R4E Publication No: 5995469961
# Functional Parts 7 07/06
* Non-Illustrated Parts
CABINET
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
10 240435912 A B Cover-air duct
10A 240475911 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - Plate-door closer
22 240457701 - B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337603 A - Trim-cabinet corner, black, (2)
37 240337601 - B Trim-cabinet corner, white, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A - Cover-upper hinge, black
40 240327005 - B Cover-upper hinge, white
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B Roller Assy, adjustable, front, (2)
45 241500301 A B Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324406 A - Grille/Kickplate, black
72 240324402 - B Grille/Kickplate, white
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B Cover access
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 5303305345 A - Paint, touch-up, black
* 5303305324 - B Paint, touch-up, white

Publication No: 5995469961 FRS6R4E
07/06 8

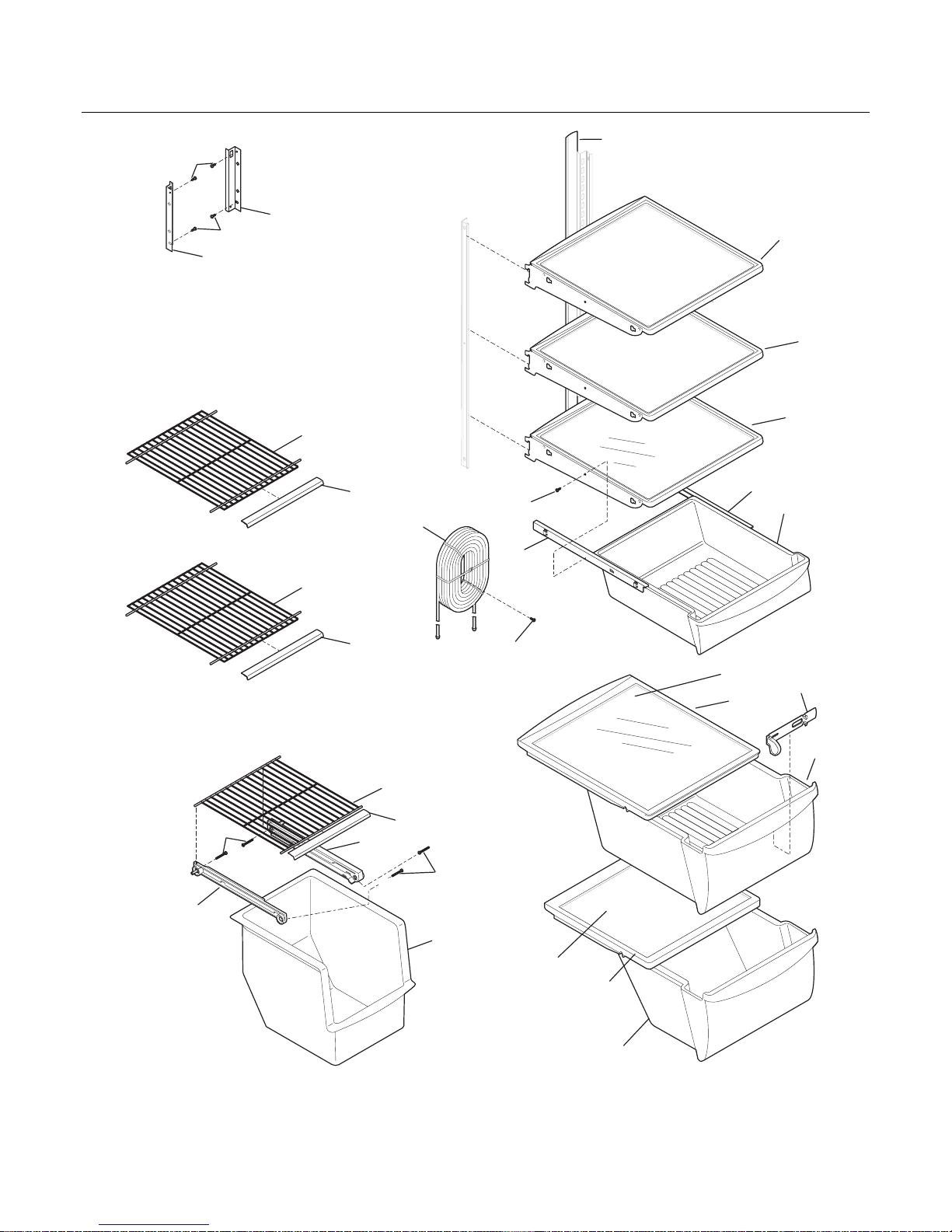

SHELVES
N58SJCAAB12
11B
11A
126
81
81
126
39B
39B
97
81
24
24
24
42
62
123
42
51
25
26
47
25A
27
47A
52
101
101
49
11
39
26A
140

FRS6R4E Publication No: 5995469961
# Functional Parts 9 07/06
* Non-Illustrated Parts
SHELVES
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
11 241657602 A B Shelf, flip up, wire
11A 241657502 A B Shelf, fixed, freezer
11B 241657504 A B Shelf, fixed, upper, freezer
24 240355208 A B Shelf-"Spill-Safe", fixed
25 240350702 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
26 240351005 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26A 240362201 A B Control-humidity
27 240351206 A B Pan-crisper, lower
39 240430706 A B Trim-shelf, 11.21", front
39B 240430702 A B Trim-shelf, 12.39", front
42 240356501 A B Track, meat pan hanger, RH
42 240365401 A B Track, meat pan hanger, LH
47 240350633 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
49 240564401 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
62 240342806 A B Pan-meat
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 A B Water Tank Assy, coiled tubing, rear filter
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover

Publication No: 5995469961 FRS6R4E
07/06 10

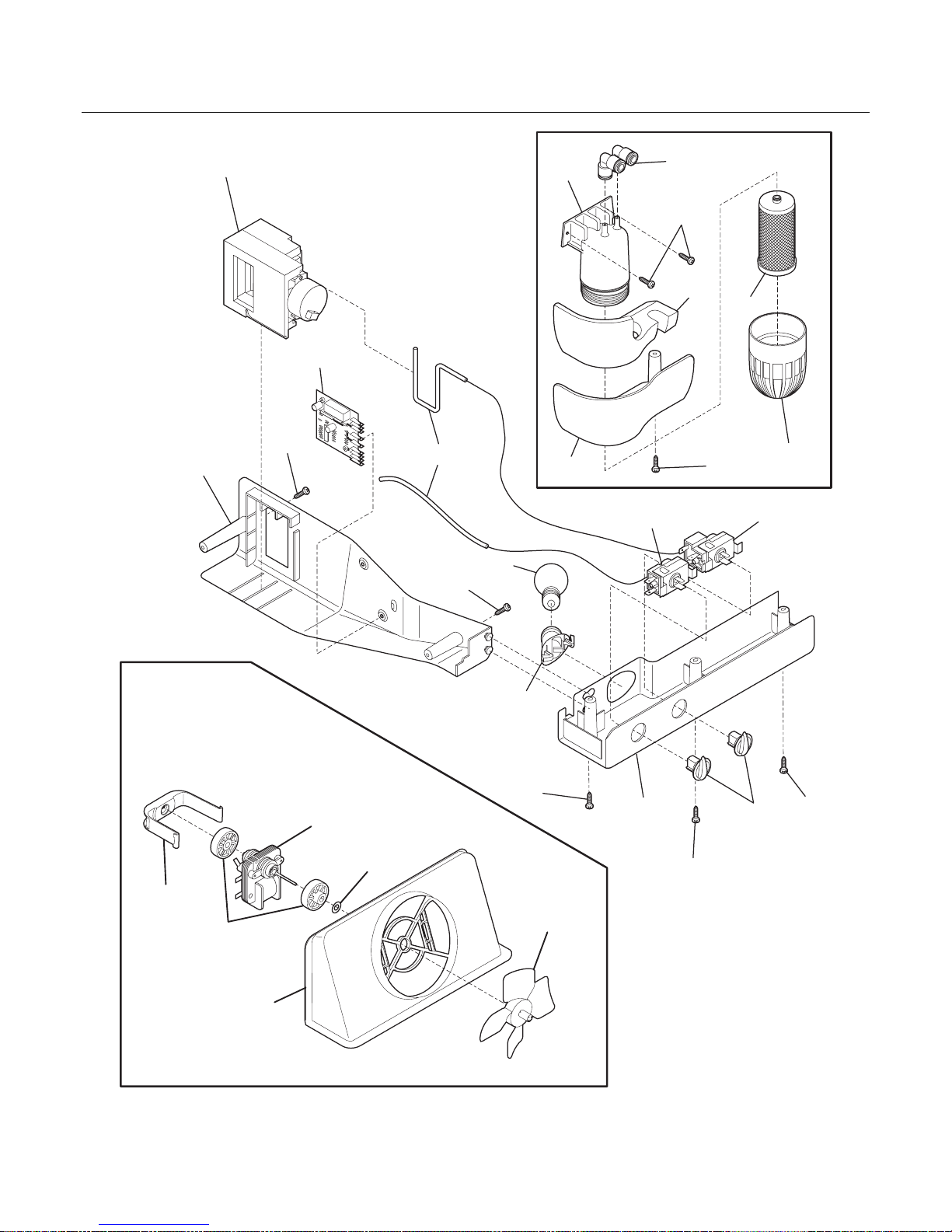

CONTROLS
140
139
81
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA6
149
14
13
9
8
5

FRS6R4E Publication No: 5995469961
# Functional Parts 11 07/06
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241563601 A B Bushing-motor mtg, (2)
13 240369702 A B Motor-evap fan
14 241517701 A B Clip, evap fan motor
15 241555401 A B Light Bulb
16 # 241513901 A B Socket-light
17 240383301 A B Box-control, front
17* 241537802 A B Harness-wiring, control box
18 240360801 A B Knob, temp control
21 # 241586501 A B Control-temperature
21A 5304421067 A B Control-temperature, frzr section
22 218660704 A B Tube, insulator, plastic
23 # 241508001 A B Control-defrost, adaptive timer, PC board
23* 5304455649 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 240369501 A B Box-control
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B Screw, #8AB x 1 3/4"
115 241600902 A B Damper Assy, w/seal
137# 240389102 A B Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 241563501 A B Shroud-fan orfice
149* 241528306 A B Seal, shroud
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter

Publication No: 5995469961 FRS6R4E
07/06 12
SYSTEM
N58CAAAAA10
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS6R4E Publication No: 5995469961
# Functional Parts 13 07/06
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 5303305677 A B Drier-filter, R12 & R134a
6 241586801 A B Harness-wiring, machine compt
6* 241537802 A B Harness-wiring, control box
6* 241651601 A B Harness-wiring
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 A B Pan-defrost
29 5303918323 A B Compressor, w/electricals
30 # 241524608 A B Starter-PTC
32 240553401 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 218897004 A B Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B Bracket-cond motor assy
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
60 240525402 A B Motor, condensor fan
61 # 240524101 A B Fan Blade, galv steel, condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 241719501 A B Tube-connector, suction
* # 5303918222 A B Hot Tube Repair Kit, service
* 5303918213 A B Heat Exchanger Kit, suction line

Publication No: 5995469961 FRS6R4E
07/06 14
ICE & WATER DISPENSER

FRS6R4E Publication No: 5995469961
# Functional Parts 15 07/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241679003 A - Cover-module, black
4 241679001 - B Cover-module, white
8 241680507 A - Module-dispenser
8 241680505 - B Module-dispenser
10 241688901 A B Spring-torsion
14 240570206 A - Label-module cover, black
14 240570204 - B Label-module cover, white
15 241689401 A B Light Bulb
16 240548901 A B Socket-light
17 241679801 A B Screw
17A 241679901 A B Screw, switch mtg.
23 241649003 A - Drip Tray, black
23 241649001 - B Drip Tray, white
24 241682003 A - Actuator-water, black
24 241682001 - B Actuator-water, white
24A 241681903 A - Actuator-ice, black
24A 241681901 - B Actuator-ice, white
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
38A# 241689101 A B Switch-micro, single pole, double throw
38A* 241679201 A B Harness-wiring
38C# 241679101 A B Switch
38C* 241686001 A B Harness-wiring
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296300 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
88 241686101 A B Shield-light
* 218515401 A B Clip
* 5303918256 A B Dispenser heater kit

Publication No: 5995469961 FRS6R4E
07/06 16
ICE CONTAINER

FRS6R4E Publication No: 5995469961
# Functional Parts 17 07/06
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
2 5304428402 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice, bucket only
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 241624801 A B Bar-drive
13 5304404359 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 5304404345 A B Drive Blade
18 # 5304440392 A B Motor-auger
18*# 240352601 A B Wiring Harness, internal, with plug
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 215503200 A B Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade, round
35B 5304404352 A B Fixed Blade, square
37A 5304404348 A B Blade, crusher #1
37B 5304404350 A B Blade, crusher #2
37C 5304404356 A B Blade, crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral, fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 240323813 A B Ice Container Assy, w/moving parts
* 240507202 A B Deflector-ice container

Publication No: 5995469961 FRS6R4E
07/06 18
ICE MAKER

FRS6R4E Publication No: 5995469961
# Functional Parts 19 07/06
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS6R4E (FRS6R4EB9)
BFRS6R4E (FRS6R4EW9)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B Spring-shutoff arm, ICE MAKER
3 5304456657 A B Nameplate
4 5304456658 A B Gear
5 5304456659 A B Plate-mounting
6 5304456691 A B Screw, M 3x20 #3, valve plate
7 # 5304445222 A B Motor-ice maker Svo
7* 5304445223 A B Spring Beam
8 5304456661 A B Spacer-hold switch
9 5304456662 A B Cam
10 5304456689 A B Holder-thermostat
11 # 5304456663 A B Thermal Cutoff, ICE MAKER
12 5304456664 A B Harness-wiring
13 5304456665 A B Thermostat, ICE MAKER
14 5304456666 A B Screw, M 3x20 #2, (6)
15 # 5304456667 A B Switch-micro, (3)
15* 5304456688 A B Terminal
16 5304456668 A B Support
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304456670 A B Ejector-ice
18* 5304455843 A B Harness-wiring
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304456671 A B Bearing & Inlet, fill cup
20 5304455677 A B Screw, 8-32 x 3/8
21 5304456672 A B Ice Stripper
22 5304456673 A B Shut-off Arm
23 5304456674 A B Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375, (4)
27 5304456677 A B Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B Screw, M 4x6 #2
29 5304456678 A B Screw, M 3x12 #3, (2)
30 5304456679 A B Screw-timing adj, M 4x25 #3
31 5304456680 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304456682 A B Spring, shut-off arm
34 5304456683 A B Screw, M 4x12 #2, (3)
35 5304456684 A B Screw
36 5304456685 A B Cover-ice maker
36* 5304456690 A B Label, on/off
42 218515403 A B Clip-grille
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 A B Tube-water, ice mold fill, extension
55 # 240531101 A B Valve-water, triple solenoid

Publication No: 5995469961 FRS6R4E
07/06 20
ICE MAKER
