Frigidaire FRT17G5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT17G5AQ0 FRT17G5A R134a, Dynamic bisque (right) 115
FRT17G5AT0 FRT17G5A R134a, Dynamic bisque (left) 115
FRT17G5AW0 FRT17G5A R134a, Dynamic white (right) 115
FRT17G5AZ0 FRT17G5A R134a, Dynamic white (left) 115
MARKET
North America
Publication No.
5995359378
011005
-EN/SERVICE/KHB
390
TOP MOUNT
REFRIGERATOR
Model No.
FRT17G5A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - #240398801
OWNER’S GUIDE - #240400105
SERVICE DATA SHEET - #240379007

10/01 2
Publication No. FRT17G5A
5995359378
DOOR

# = Fast-moving Parts 3 010/01
* = Non-Illustrated Parts
FRT17G5A Publication No.
5995359378
A = FRT17G5A (FRT17G5AQ0)
B = FRT17G5A (FRT17G5AT0)
C = FRT17G5A (FRT17G5AW0)
D = FRT17G5A (FRT17G5AZ0)
POS. NO PART NO DESCRIPTION
1 # 240370903 A B C D Gasket-frzr door,white ,magnetic
2 # 240370904 A B C D Gasket-refr door,white ,magnetic
4 240331404 A B C D Rack-door,18.65"
5 240311502 A B C D Support-door rack,2 liter ,RH
6 240311501 A B C D Support-door rack,2 liter ,LH
7 240337703 A B C D Door-dairy,w/o graphics ,clear
8 240331405 A B C D Rack-door,16.21"
10 240381302 A B - - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - C D Plug-button,hinge brg hole ,white ,(2)
11 240420102 A B - - Door,frzr ,bisque ,complete assy
11 240420101 - - C D Door,frzr ,white ,complete assy
12 240415203 A B - - Label-nameplate,bisque
12 240415201 - - C D Label-nameplate,white
13 240312407 A B - - Door Stop,bisque ,ref
13 240312403 - - C D Door Stop,white ,ref
13A 240312408 A B - - Door Stop,bisque ,frzr
13A 240312404 - - C D Door Stop,white ,frzr
14 240494002 A B - - Plug-button,bisque
14 240494001 - - C D Plug-button,white
15 240420202 A B - - Door,refr ,bisque ,complete assy
15 240420201 - - C D Door,refr ,white ,complete assy
18 218668004 A B - - Handle-door,bisque
18 218668001 - - C D Handle-door,white
21 240383401 A B C D Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B C D Bearing-hinge,natural color ,(8)
37 215870633 A B - - Trim-handle,2.47" ,bisque, w/satin AL band
37 215870629 - - C D Trim-handle,2.47" ,white, w/satin AL band
37* 218676004 A B C D Band-decorative,satin aluminum, handle trim
48A 240383901 A B C D Bin-door,2-liter
48B 240383801 A B C D Bin-door,gallon
96 240345503 A B C D Plug-foam hole,white
DOOR

10/01 4
Publication No. FRT17G5A
5995359378

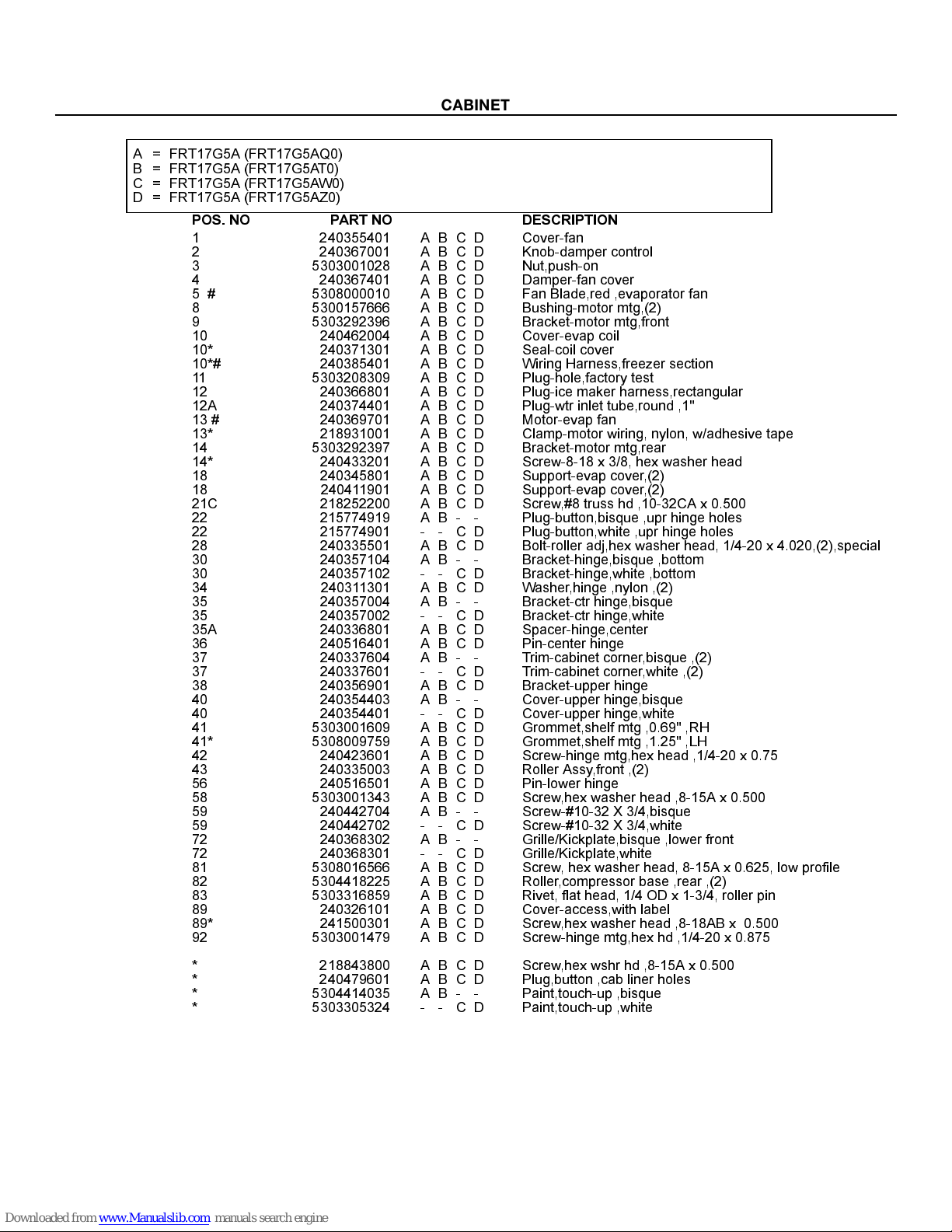

CABINET

# = Fast-moving Parts 5 010/01
* = Non-Illustrated Parts
FRT17G5A Publication No.
5995359378
A = FRT17G5A (FRT17G5AQ0)
B = FRT17G5A (FRT17G5AT0)
C = FRT17G5A (FRT17G5AW0)
D = FRT17G5A (FRT17G5AZ0)
POS. NO PART NO DESCRIPTION
1 240355401 A B C D Cover-fan
2 240367001 A B C D Knob-damper control
3 5303001028 A B C D Nut,push-on
4 240367401 A B C D Damper-fan cover
5 # 5308000010 A B C D Fan Blade,red ,evaporator fan
8 5300157666 A B C D Bushing-motor mtg,(2)
9 5303292396 A B C D Bracket-motor mtg,front
10 240462004 A B C D Cover-evap coil
10* 240371301 A B C D Seal-coil cover
10*# 240385401 A B C D Wiring Harness,freezer section
11 5303208309 A B C D Plug-hole,factory test
12 240366801 A B C D Plug-ice maker harness,rectangular
12A 240374401 A B C D Plug-wtr inlet tube,round ,1"
13 # 240369701 A B C D Motor-evap fan
13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D Bracket-motor mtg,rear
14* 240433201 A B C D Screw-8-18 x 3/8, hex washer head
18 240345801 A B C D Support-evap cover,(2)
18 240411901 A B C D Support-evap cover,(2)
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A B - - Plug-button,bisque ,upr hinge holes
22 215774901 - - C D Plug-button,white ,upr hinge holes
28 240335501 A B C D Bolt-roller adj,hex washer head, 1/4-20 x 4.020,(2),special
30 240357104 A B - - Bracket-hinge,bisque ,bottom
30 240357102 - - C D Bracket-hinge,white ,bottom
34 240311301 A B C D Washer,hinge ,nylon ,(2)
35 240357004 A B - - Bracket-ctr hinge,bisque
35 240357002 - - C D Bracket-ctr hinge,white
35A 240336801 A B C D Spacer-hinge,center
36 240516401 A B C D Pin-center hinge
37 240337604 A B - - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C D Trim-cabinet corner,white ,(2)
38 240356901 A B C D Bracket-upper hinge
40 240354403 A B - - Cover-upper hinge,bisque
40 240354401 - - C D Cover-upper hinge,white
41 5303001609 A B C D Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B C D Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D Roller Assy,front ,(2)
56 240516501 A B C D Pin-lower hinge
58 5303001343 A B C D Screw,hex washer head ,8-15A x 0.500
59 240442704 A B - - Screw-#10-32 X 3/4,bisque
59 240442702 - - C D Screw-#10-32 X 3/4,white
72 240368302 A B - - Grille/Kickplate,bisque ,lower front
72 240368301 - - C D Grille/Kickplate,white
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller,compressor base ,rear ,(2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326101 A B C D Cover-access,with label
89* 241500301 A B C D Screw,hex washer head ,8-18AB x 0.500
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218843800 A B C D Screw,hex wshr hd ,8-15A x 0.500
* 240479601 A B C D Plug,button ,cab liner holes
* 5304414035 A B - - Paint,touch-up ,bisque
* 5303305324 - - C D Paint,touch-up ,white
CABINET

10/01 6
Publication No. FRT17G5A
5995359378
SHELVES

# = Fast-moving Parts 7 010/01
* = Non-Illustrated Parts
FRT17G5A Publication No.
5995359378
A = FRT17G5A (FRT17G5AQ0)
B = FRT17G5A (FRT17G5AT0)
C = FRT17G5A (FRT17G5AW0)
D = FRT17G5A (FRT17G5AZ0)
POS. NO PART NO DESCRIPTION
11 240358001 A B C D Shelf-freezer
11* 5303299664 A B C D Spacer-shelf
12 240362502 A B C D Diffuser-air,top
13 240362601 A B C D Diffuser-air,bottom
13* 240392601 A B C D Seal-diffuser
14 240505801 A B C D Switch-light/lamp
15 240436701 A B C D Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C D Socket-light/lamp
17 240368001 A B C D Box-control
17*# 240388701 A B C D Wiring Harness,control box
18 240360801 A B C D Knob-control
21 # 5304421256 A B C D Control-temperature
22A 240468201 A B C D Tube, sensor sleeve, 31 inch , plastic, white
23 # 215846606 A B C D Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240372401 A B C D Frame-shelf, sliding, full width
24A 240372404 A B C D Frame-shelf, sliding, full width, w/hanger tabs
25 240364722 A B C D Cover-crisper pan
25B 240361202 A B C D Control-humidity
25C 240361301 A B C D Damper-humidity control
26 240364503 A B C D Pan-crisper,(2)
28 3201150 A B C D End Cap,freezer shelf ,protector
29 240357703 A B C D Trim-shelf,front
31 240354203 A B C D Pan-meat,w/o graphics ,clear
40 240350663 A B C D Glass-shelf,22.16" x 16.08" ,refr
41 240357803 A B C D Trim-shelf,rear
42 240460401 A B C D Hanger-meat pan,LH
42 240460501 A B C D Hanger-meat pan,RH
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D Screw-roller/hanger,8-10 x 0.438
SHELVES

10/01 8
Publication No. FRT17G5A
5995359378
SYSTEM

# = Fast-moving Parts 9 010/01
* = Non-Illustrated Parts
FRT17G5A Publication No.
5995359378
A = FRT17G5A (FRT17G5AQ0)
B = FRT17G5A (FRT17G5AT0)
C = FRT17G5A (FRT17G5AW0)
D = FRT17G5A (FRT17G5AZ0)
POS. NO PART NO DESCRIPTION
1 # 240444401 A B C D Condenser,dynamic
4 # 218944001 A B C D Drier-filter,R134a System
6 240496101 A B C D Harness-wiring,machine compt
6* # 240385401 A B C D Wiring Harness,freezer section
6* # 240388701 A B C D Wiring Harness,control box
14 # 5303918203 A B C D Defrost Heater Kit
15 # 5303918257 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater,aluminum ,(2)
17 240434001 A B C D Trough-drain
18 240362301 A B C D Insulation Block,RH
20 240362401 A B C D Insulation Block,LH
21 # 5303918202 A B C D Thermostat-defrost,kit
22 240330005 A B C D Base-compressor
22* 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg,(4)
25 240491501 A B C D Screw-compressor mtg, 1/4-28 x 1.16,shoulder, typ CF
26 240332603 A B C D Pan-defrost drain
29 # 5303918249 A B C D Compressor,w/electricals
30 # 218721113 A B C D Starter-PTC
32 218740800 A B C D Clamp,elec cont mtg ,compressor
34 240405201 A B C D Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B C D Screw,hex washer head, 8-32 x 1/4
44 5303001199 A B C D Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B C D Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C D Clip-wiring harness
58 240346801 A B C D Screw-cond fan mtr,hx serr wshr hd, 8-32 x 7/16,(3)
59 240315501 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal,shroud
59* 240359401 A B C D Screw-fan shroud,(2)
59A 240346501 A B C D Bracket-support,cond mtr ,(3)
59B 240346601 A B C D Grommet-bracket,(3)
60 # 240397101 A B C D Motor-condenser fan
61 # 240315401 A B C D Fan Blade,galv steel ,condenser fan
61* 240397201 A B C D Connector-shaft
61A 218956700 A B C D Nut,speed
61B 218956801 A B C D Grommet-silencer
82 5304418225 A B C D Roller,compressor base ,rear ,(2)
83 5303316859 A B C D Rivet,f lat head, 1/4 OD x 1-3/4, roller pin
84 240500801 A B C D Tube-drain,lower
85 240346201 A B C D Tube-connector,suction
86 240409302 A B C D Spacer-cond tube,black
* 218843800 A B C D Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B C D Clamp,tube/wiring ,nylon ,black/natural
* # 5303918263 A B C D Heat Exchanger Kit,suction line
* 5303918222 A B C D Hot Tube Repair Kit,Service
SYSTEM

10/01 10
Publication No. FRT17G5A
5995359378
WIRING SCHEMATIC

# = Fast-moving Parts 11 010/01
* = Non-Illustrated Parts
FRT17G5A Publication No.
5995359378
WIRING DIAGRAM
