Frigor FHC 85 User manual

REFRIGERATORREFRIGERATOR
FHC 85
Fridge
REFRIGERATORREFRIGERATOR
USER'S MANUALUSER'S MANUAL

1.Name of parts1.Name of parts
PARTS AND FEATURESPARTS AND FEATURES
11
44
55
22
33
88
99
Top CoverTop Cover
Freezer Compartment DoorFreezer Compartment Door
Freezer CompartmentFreezer Compartment
Shelves of refrigerator chamberShelves of refrigerator chamber
Leveling LegsLeveling Legs
Bottle RacksBottle Racks
Door Storage CompartmentDoor Storage Compartment
Temperature Control KnobTemperature Control Knob
Recessed HandleRecessed Handle
1
66
77
1010
Crisper boxCrisper box
1111
1010
1111
1212
Glass coverGlass cover
Door switchDoor switch

2.Correctly positioning2.Correctly positioning
¡À¡À
¡À¡À
10%10%
10%10%
++
__
50Hz50Hz
60Hz60Hz
NN
(+220-240)V~(+220-240)V~
230V~230V~
Well Ventilating
Power Supply
Power Line Cord
Protection from Moisture
There is need of good ventilation around the refrigerator for easy
dissipation of heat, high efficiency of refrigeration and low power
consumption. For this purpose, sufficient clear space should be
need around the refrigerator. Its back is at least 100mm away from
the wall, its sides at least have a space of 100mm separately and
the height from over its top is not less than 200mm. A clear space
should be left to open its doors to 160
The refrigerator is only applied with power supply of single phase
alternating current of (220-240)V~/50Hz;230V~/60Hz.If fluctuation
of voltage in the district user is of so large that the voltage
exceeds the above scope, for safety sake, be sure to apply a.c.
automatic voltage regulator to the refrigerator. The refrigerator
must employ a special power socket instead of common one with
other electric appliances. Its plug must match the socket with
ground wire.
The cord should be neither lengthened nor folded into
coil during operation. Moreover, it is forbidden that cord
is kept close onto the compressor at the back of the
refrigerator, the surface temperature of which is quite
high when operating. Touching with it would deactivate
the insulation or cause leakage for electricity.
Avoiding placing the refrigerator in a place where heavy
moisture is present so as to minimize possibility of rusty
for its metal parts. Still more, the refrigerator is forbidden to
be directly sprayed by water, otherwise, poor insulation and
current leakage would occur.

2.Correctly Positioning2.Correctly Positioning
Protection from Heat
Fixing Stable
Keep Away from Danger
Moving
Floor on which refrigerator will be placed must be flat
and solid. It should not be laid on any soft material such as
foam plastic, etc. If the refrigerator is not on the same level,
adjust the screws suitably. The refrigerator should not be
placed near anything which may echo.
It is inadvisable that the refrigerator is placed near
any volatilizable or combustible such as gas, petrol,
alcohol, lacquer and banana oil, etc. The above-mentioned
objects can not be stored in the refrigerator.
When fixed or moved, the refrigerator can not be
set horizontally or declined to more than 45 or
upside-down.
The refrigerator should be far away from any heat
source or direct sunshine.

Water contained in food or getting into air inside the refrigerator by opening doors
may form a layer of frost inside, It will weaken the refrigerator when the frost is thick,
while it is more than 2mm thick, you should defrost.
Defrosting in freezer chamber is operated manually. Before defrosting, take the food,
the ice tray and the shelf out into the cold storing chamber temporarily then set the
knob of the temperature regulator to position"0"(where the compressor will stop working)
and leave the door open until ice and frost dissolve thoroughly deposited at the bottom
of the freezer chamber, wipe off the water with soft cloth.,In the case of speeding up the
defrosting, you may put a bowl of warm water (about 50 C )into the freezer chamber, and
be sure to set the knob of the temperature regulator to original position after defrosting.
It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while
defrosting to prevent deformation of the inner case.
It's also inadvisable to scrape of ice and frost or separate food from the containers
which have been congealed together with the food with sharp tool or wooden bars,
so as not to damage the inner casing or the surface of the evaporator.
If the supply cord of this appliance is damaged, it must only be replaced by a repair
shop appointed by the manufacturer, because special purpose tools are required.
3.Cautions3.Cautions

55

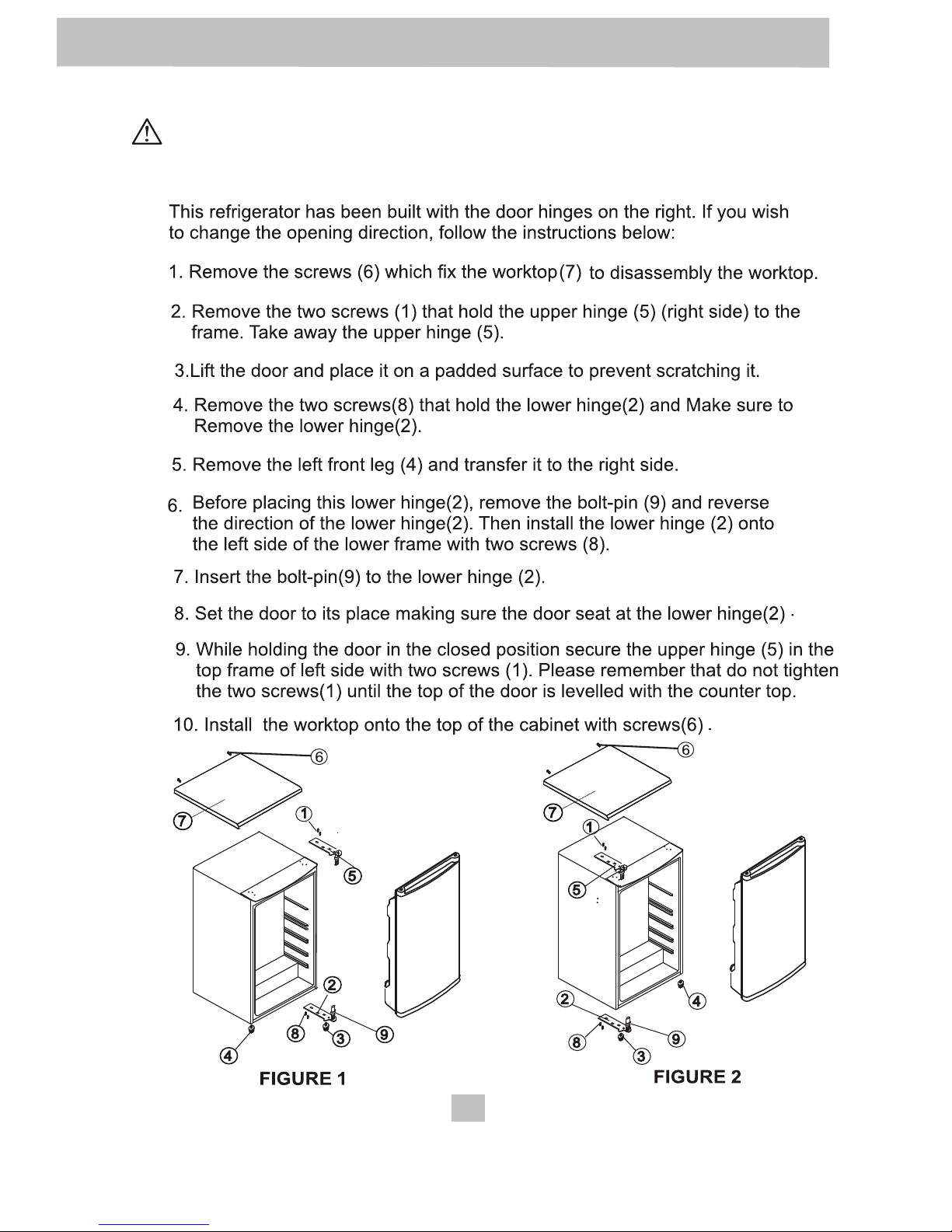

4.Changing the reversible door4.Changing the reversible door
Reversing the door
Warning!
Door opening from left side
Door opening from right side
When changing the side at which the door opens, the appli-
ance must not be connected to the mains. Remove plug from the
mains beforehand.

66
The refrigerator should be cleaned and maintained once a month.
When performing maintenance, make absolutely sure that the power plug
is first disconnected from the power outlet.
Wipe the inner and outer surface of the refrigerator and its accessories with
wet cloth. If they are too dirty, scrub them with neutral detergent, and then
clean them with water and dry them with clean cloth. After this, a small
quantify of glass wax is recommended to polish the refrigerator surface with
a flannelette.
For cleaning, don't use hot water, diluent, petrol, alcohol, kerosene, washing
powder, cleanser, aikailinous detergent, acid, Chemical cloth, etc. So as not
to damage the lacquer coat and plastics. It is forbidden than the refrigerator
is directly sprayed with water. Otherwise, it would cause rusty or weaken the
insulation.
Be careful to upkeep the sealing rubber bars of the doors. They should always
be cleaned.
If the plastic parts in refrigerator remain contaminated for a long time by oil
(animal or vegetable), they will be easy aged and possibly cracked. The drain
pan gets dirty very easily if it is not cleaned regularly, bad odours will be produ-
ced, get into the habit of cleaning this pan regularly.
6. Maintenance6. Maintenance

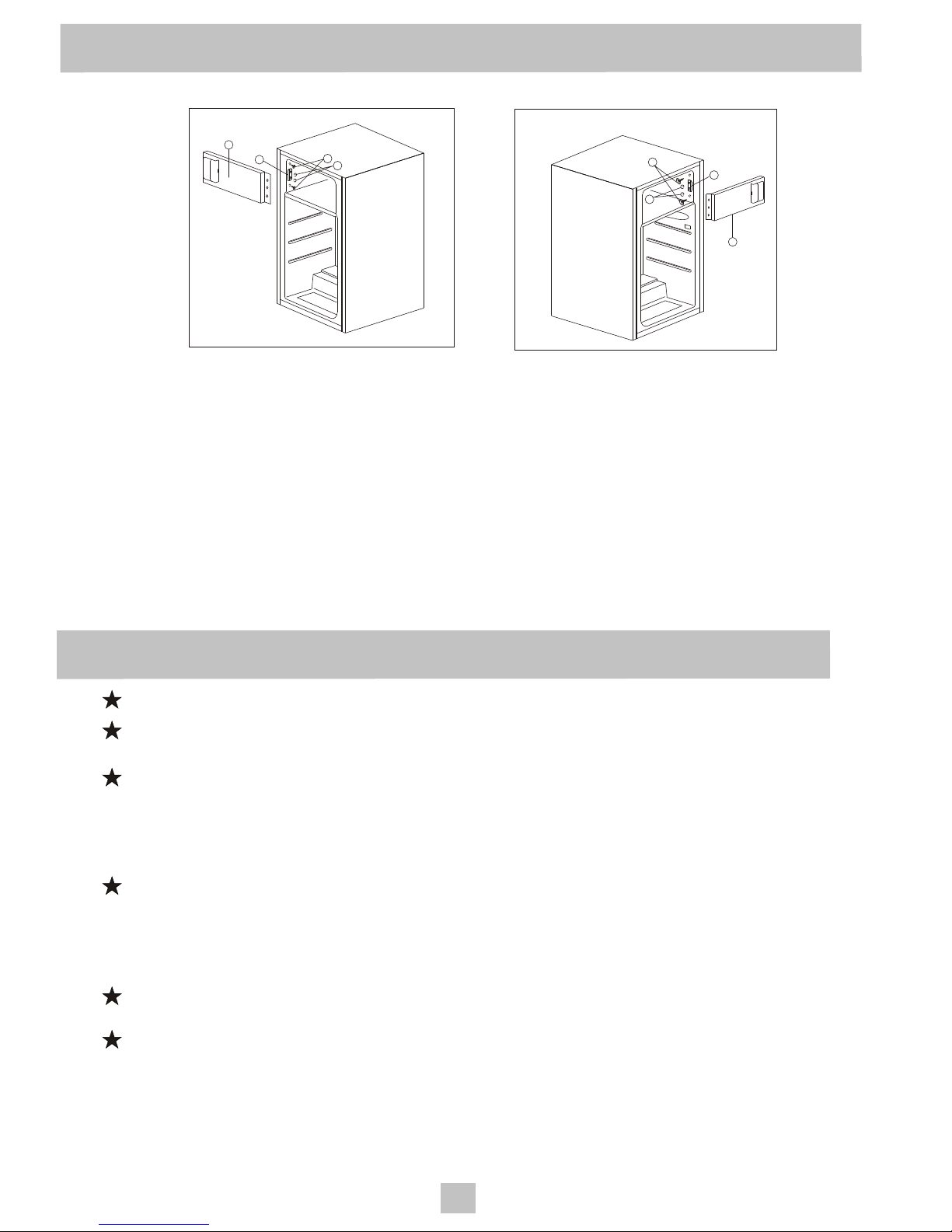

5.5. Freezer Room Door ReverseFreezer Room Door Reverse
12
3
4
1
3
4
2
BEFORE DOOR REVERSE AFTER DOOR REVERSE
1. Unscrew the two plastic screws (1) on the left side with screwdriver.
2. Take off the two screws caps(2) on the door handle bracket (3) and uninstall the
door handle bracket(3).
3. Unscrew thefreezer room door (4) on the right side andtake it off. Then reverse
it and installit to the left side by using the same screws.
4. Reverse the door handle bracket(3) and install it onto the right side and put on the
2 screw caps(2).
5. Install the two plastic screws(1) onto the right side with screwdriver.

7
7. Troubleshooting
Check if there is a power failure.
Check if the power plug is plugged into the power outlet.
Check that the fuse has not blown.
1. When the refrigerator does not work
The temperature control dial may be set too high.
If you place foodstuffs containing a lot of moisture directly under the cool
air outlets, they will freeze easily. This does not indicate a malfunction.
2. When the refrigerator is cooling excessively
The food may be packed too tightly together which will block the flow of cool air.
You may have put something hot or a lot of foodstuffs into the refrigerator .
The door may not have been closed properly.
The door gaskets may be damaged.
The refrigerator may not be ventilated.
There may be insufficient clearance between the refrigerator and the surfaces
Immediately both sides and above.
The temperature control dial may not be set properly.
3. When the refrigerator is not cooling sufficiently
Check that the drain pipe and the drain hose are not clogged.
Check that the drain pan is housed properly.
4. When the defrosting water overflows inside the refrigerator and onto the floor.
Condensation may form on the outside when the humidity is high such as during
a wet season. This is the same result as the condensation formed when chilled
water is poured into a glass. It does not, therefore, indicate a failure, wipe dry
with a dry cloth.
5. When condensation form on the outside of the refrigerator.
6. When you hear a sound like water flowing .
7. When the cabinet's side panel heats up
The side panel of the cabinet will heat up when the door is opened or closed
frequently, when starting the unit and when the unit operates in summer with
high ambient outside temperature, In such case, do not touch the panel, it
results from the dissipation of the heat from inside the cabinet, and it does
not mean that something is wrong with the refrigerator.
A sound like water flowing is the refrigerant flowing. It does not Indicate a
malfunction.

88
8. Technical specifications8. Technical specifications
*Specifications are subject to change without prior notice.
*For the detailed technical specifications, please refer to the nameplate at
the back of the refrigerator..

CKEQ-Z01
