Froilabo BM340 User manual

ULT FREEZERS
-45 °C / -86 °C
User Manual
Ref: UM_BMEVO_EN_rev0.7

Please read carefully this manual before first use!
This document has been prepared with the utmost care possible.
However, Froilabo declines all responsibility in the event of errors or
omissions. The same applies to any damage arising from the use of
information contained in this manual.

TABLE DES MATIERES
1. CERTIFICATE OF CONFORMITY..................................................................................................................3
2. WARRANTY ..............................................................................................................................................4
3. GENERAL INFORMATIONS ........................................................................................................................5
4. INSTALLATION OF THE DEVICE ..................................................................................................................6
4.1 DELIVERY AND UNPACKING.....................................................................................................................................6
4.2 SETTING UP AND INSTALLATION...............................................................................................................................6
4.3POWER SUPPLY....................................................................................................................................................7
4.4 TEMPERATURE RANGE...........................................................................................................................................7
4.5 CONSTRUCTION AND INSULATION ............................................................................................................................7
4.6 TECHNICAL CHARACTERISTICES AND REFRIGERATION SYSTEM.........................................................................................9
4.7 SAMPLE STORAGE...............................................................................................................................................11
4.8 SAMPLE STORAGE...............................................................................................................................................12
4.9 COMMISSIONING ...............................................................................................................................................12
5. FIRST CONTACT WITH YOUR FREEZER.....................................................................................................14

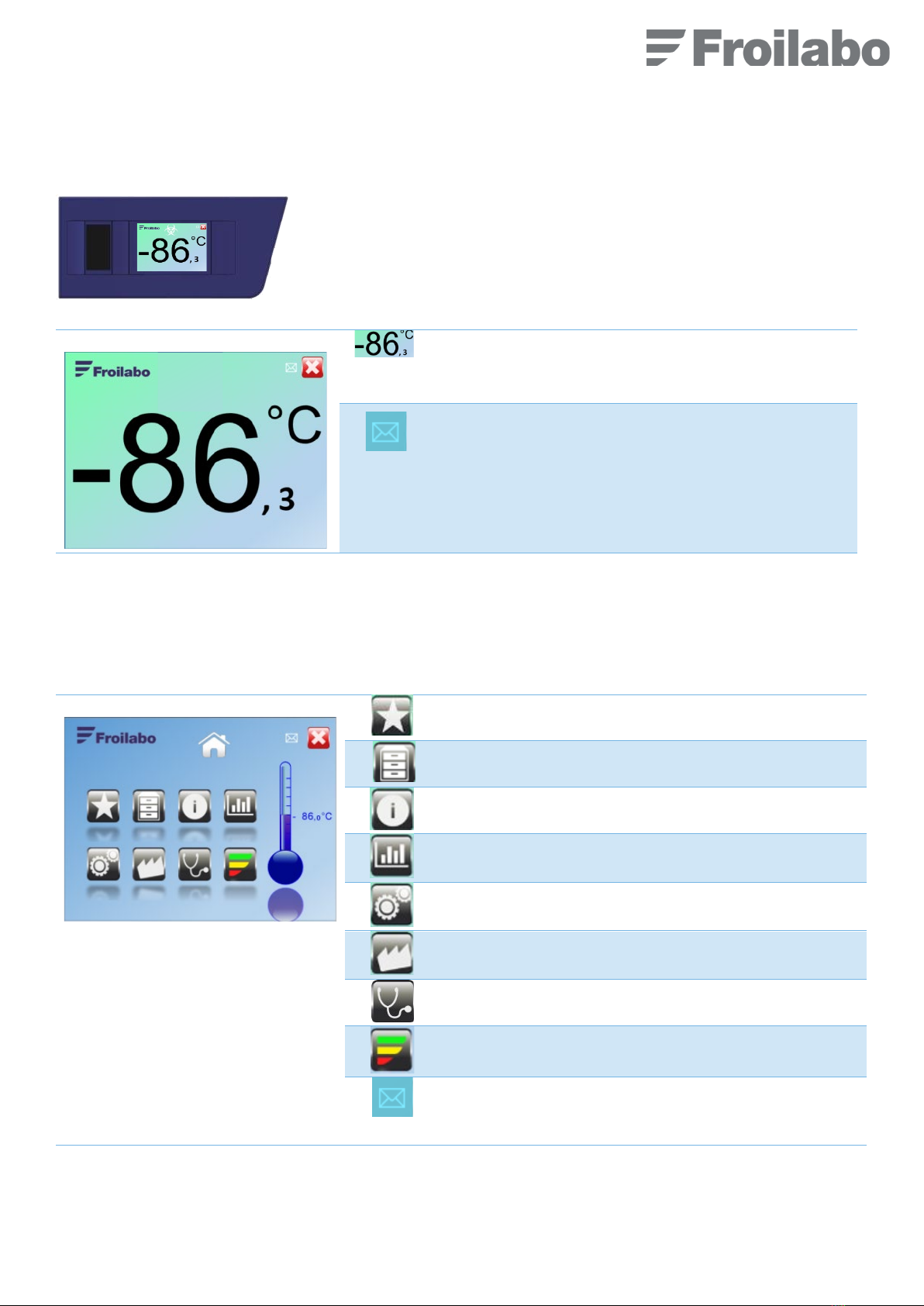

5.1 MAIN SCREEN....................................................................................................................................................14
5.2 HOME SCREEN ...................................................................................................................................................14
6. ALARMS AND ERROR CODES ..................................................................................................................16
6.1 BATTERY BACK UP...............................................................................................................................................16
6.2 ALARM DISPLAY .................................................................................................................................................16
6.3 STOP THE ALARM ...............................................................................................................................................16
6.4 ALARM HIGH TEMPERATURE.................................................................................................................................16
7. GENERAL USE .........................................................................................................................................18
7.1 NUMERIC KEYPAD...............................................................................................................................................18
7.2 ENTERING A MESSAGE .........................................................................................................................................18
7.3 TEMPERATURE SETPOINT ADJUSTEMENT AND PASSWORD MODIFICATION ......................................................................19
7.4 « USER PREFERENCES »MENU..............................................................................................................................19
7.5 « SAMPLE LOCATION »MENU...............................................................................................................................20
7.6 « PRODUCT INFORMATION » MENU.......................................................................................................................23
7.7 « STATISTICS » MENU .........................................................................................................................................23
7.8 « CONFIGURATION » MENU .................................................................................................................................24
7.9 « FACTORY » MENU ...........................................................................................................................................26
7.10 « DIAGNOSTIC » MENU ..............................................................................................................................26
7.11 « ECO » MENU .........................................................................................................................................27

7.12 FREEZER CLOSURE......................................................................................................................................28
7.13 AIR FILTER MAINTENANCE ...........................................................................................................................28
7.14 DATA RECORDING......................................................................................................................................28
7.15 EXAMPLE OF TEMPERATURES DATA’S SHAPING ................................................................................................29
8. OPTIONS .................................................................................................................................................32
8.1 REMOTE ALARM.................................................................................................................................................32
8.2 CO2/N2BACKUP ..............................................................................................................................................32
8.3 SLOWING DOWN TEMPERATURE RISE (CRYO-ACCUMULATOR)......................................................................................34
8.4 CHART RECORDER...............................................................................................................................................34
8.5 SYSTEM BOSS ...................................................................................................................................................36
9. STORAGE ELEMENTS...............................................................................................................................37
10. MAINTENANCE AND SERVICE CONTRACT ...............................................................................................38
10.1 SAFETY RULES ...........................................................................................................................................38
10.2 USER MAINTENANCE ..................................................................................................................................38
10.3 LONG STOP PERIOD ....................................................................................................................................41
10.4 ANNUAL MAINTENANCE..............................................................................................................................41
11. SAFETY....................................................................................................................................................43
11.1 LIQUID CO2BACKUP ..................................................................................................................................43
11.2 LIQUID NITROGEN BACKUP..........................................................................................................................44
12. TRANSPORTATION AND WASTE DISPOSAL .............................................................................................47
12.1 TRANSPORTATION .....................................................................................................................................47
12.2 WASTE DISPOSAL ...................................................................................................................................... 47
13. CONTACT ................................................................................................................................................48
MAINTENANCE CONTRACT ...................................................................................................................................49

1
WARNING: GENERAL INFORMATION AND SAFETY INSTRUCTIONS
It is necessary to strictly follow the instructions of use of this manual to ensure the proper functioning of the device or
to exercise a possible resort to warranty.
To use this manual :
•Read these instructions carefully before using the device for the first time.
•Follow the instructions in the operating instructions.
•This manual is part of the product. Please conserve it.
•If you need to transfer this device, do not forget to attach the user manual.
•In case of loss, upon request, we will provide you with a new user manual.
Concerning these devices, some risks are to be taken into consideration (indicated by symbols):
ENVIRONNEMENT:
Concerning products that does not use natural cooling, these devices may contain fluorinated greenhouse gases under
the KYOTO protocol.
Waste treatment methods: Do not allow the product to disperse into the environment.
Destruction / Disposal: Consult the manufacturer or supplier for information on recovery or recycling.
Companies installing, servicing, maintaining, repairing or commissioning equipment containing refrigerants must have
This pictogram is intended to draw your attention to informations, observations of great importance,
potential danger or a risk of personal injury.
Information: this symbol informs the user of advice and additional information allowing him / her to
make optimal use of the product.
Warning! This symbol indicates the safety measures to be followed by the user or the technician, in
order to guarantee the physical integrity of people in the vicinity of the device. These measures must be
followed with the utmost care.
The pictogram is intended to remind you to pay attention to hot surfaces.
The pictogram is intended to remind you to pay attention to electric risk.
The pictogram is intended to remind you to pay attention to risk of asphyxiation.
Danger extreme cold temperature! Potential hazard due to ultra-low temperature of the freezer and
contents.

2
a certificate referred to in Article R543-76 of the French Environment Code or an equivalent certificate issued in one of
the member states of the European Union.

3
1. Certificate of conformity
FROILABO SAS hereby certifies that the equipment listed below:
Low temperatures freezers -45°C and Ultra Low temperatures freezers -86°C EVOLUTION (EVO)
Comply with the applicable standards and technical directives:
•EN 61010-1 – Safety requirements for electrical equipment for measurement, control and laboratory use - Part
1: general requirements,
•2014/35/EU – Low Voltage Directive,
•2014/30/EU – EMC Directive, Class A equipment.
Nota: this equipment is not designed for operation in explosive atmospheres (ATEX). Furthermore, they may not be
used to store flammable, corrosive or explosive substances.

4
2. Warranty
Optimal performance will be achieved following correct installation and operating instructions provided in that manual.
Froilabo SAS guarantees that the equipment will operate optimally in accordance with the conditions of installation and
use set out of this manual.
The warranty period is: 24 months.
This warranty is extended to:
•5 years on the following parts: fan, compressors, condenser and regulator*
•10 years on the VIP insulation
*For parts, the warranty is limited to spare parts, other costs (transport, travel, labor) remain the responsibility of the
customer.
During this period, in case of malfunction of your device, the warranty is limited to:
•free repair or exchange of equipment
•functioning improvement
It must be clear that the trouble or failure must be related to a defect in the material or manufacture. Any other claim
for compensation is excluded.
Lifespan of the product is around 10 years minimum.
The right use includes following the instructions in the user manual and performing the inspection and maintenance
work.
The photos used in this document are not contractual.

5
3. General Informations
Ensure that all persons installing, using and repairing the equipment are aware of the potential hazards
related to their work, of the safety measures to respect and have read and understood the instructions
included in this user manual.
If hazardous or potentially hazardous products are used, only persons fully familiar with the equipment should handle
these products. These persons must be capable to conduct an overall assessment of the potential risks. Please contact
us if you have any questions regarding the use of the equipment or the instructions. Under no circumstances Froilabo
may be held liable for the quality of material stored in the freezers.
Nota: the equipment that you have purchased is designed for professional use. Nevertheless, impacts to the frame and
vibrations should be avoided. Ensure that the equipment is inspected at regular intervals appropriate for its frequency
of use. Also check (at least once every two years) that labels relating to safety and unauthorised use are properly in
place. If backup systems using liquid CO2or N2vapour injection are used, please refer to the corresponding safety data
sheets.

6
4. Installation of the device
4.1 DELIVERY AND UNPACKING
Use a pallet truck to move the freezer on its pallet. It is imperative to keep the freezer unpacked to avoid any risk of
tipping over. The device can be placed on the ground and maneuvered thanks to the wheels. After positioning the device
in the desired location, remove the various protective plastics and shims.
Do not forget to remove the foam padding shelves (at the bottom thereof) to avoid damaging the gates when closing
the door once the freezer is at -80 ° C.
Froilabo freezers are delivered on a pallet equipped with an unloading ramp. In fact, they do not require specific
equipment to get off the pallet. Please refer to the handling and unpacking sheet attached to the device.
After the reception, please check the contents of the delivery.
Do not use sharp objects to avoid damaging the paint. Do not tip the device. Preserve the device as much as
possible from all vibrations. Two people are needed to move the device.
Protective gloves should always be worn!
4.2 SETTING UP AND INSTALLATION
The freezer is designed for use under the following environmental conditions (according to EN 61010-1):
•Indoor use only
•Maximum altitude: 2000 m
•Ambient temperature range between 18 ° C and 32 ° C
•Maximum relative humidity of 80% for temperatures up to 22 ° C
•Supply voltage ripple < ±10 % of rated voltage
•Supply network voltage surges: category II (Standard IEC 60364-4-44)
•Maximum level of room pollution: 2
340 liters
515 liters
690 liters
1 detachable power cord L=2.50m with IEC19 connector
1 filter cassette
1 set of 2 keys
1 pressure relief valve + 1 x foam valves
1 user manual
1 shelf
2 shelves
3 shelves
2 brackets
4 brackets
6 brackets

7
BM Evolution freezers are Class A devices within the meaning of the EMC Directive.
In order to minimize energy consumption and reach announced performances, place the unit in a well-ventilated room,
away from sources of heat (radiator, heating ...) and avoid direct exposure to the sun. Place it on a flat surface. It is
essential for its proper functioning that the device is level. If necessary, use rigid shims.
It is important to ensure that no obstacle (wall, switchgear) interferes with the ventilation of the appliance (air inlet and
outlet). Remove about 200mm from each side of the freezer.
Lower the 2 front levelling feet, by performing an additional ¼ turn after contact with the ground.
The temperature of the room must not exceed + 35 ° C. The moisture content in the air should ideally not exceed 50%
RH. The use of air conditioning can significantly extend the life of compressors.
If you are using a liquid CO2or LN2liquid backup device, refer to the safety data sheets at the end of this manual.
4.3 POWER SUPPLY
See the manufacturer’s plate at the rear of the unit. 3 models are available:
-Voltage 230V ~ +/-10%, 50 Hz, protected by aM 12 A fuse.
-Voltage 110V ~ +/-10%, 50/60 Hz, protected by aM 20 A fuse.
-Voltage 220V ~ +/-10%, 60Hz, protected by aM 12 A fuse.
For voltage 220V ~ +/-10%, 60 Hz, refer to the characteristics of the voltage 230V ~ +/-10% 50 Hz in the previous table.
The connectors of the device (USB, serial port) must be connected to circuits rated S.E.L.V., according to standard IEC
61010-1: 2010.
4.4 TEMPERATURE RANGE
The BM ULT Freezer is factory set to optimise its power consumption.
On the -86°C model, the set point can be adjusted from -55°C to -90°C. The default setting is -80°C.
On the -45°C model, the set point can be adjusted from -20°C to -45°C. The default setting is -45°C.
The ambient temperature (recommended between +18°C and +35°C, ideally between 20°C and 25°C) also has a
significant impact on the power consumption of the equipment.
4.5 CONSTRUCTION AND INSULATION
The one-piece electro-galvanized steel exterior body is protected by an epoxy paint.
The inner tub is made of stainless steel. The thermal insulation is ensured by a set of insulating panels under vacuum /
polyurethane foam. The insulated swing door is mounted on a pivot.
The closing and sealing of the door are ensured by a progressive tightening handle.

8
Heated pressure relief valve:
The pressure relief valve allows a balance of pressures between the inside and the outside of the freezer which makes
it easier to open the door.
Frequent doors opening favours the introdution of moisture in the freezer and may induce frost formation after the air
intake tube where the valve is attached. A calibrated foam is placed into the air intake tube to limit this phenomenon.
Froilabo freezers are equipped with a heated pressure relief valve allowing a quick return to the ambient pressure inside
the enclosure, either after a door opening or after the injection of CO2or LN2, and without ice formation in the valve well.
In normal operation, this valve does not require any maintenance.
The heating element of the valve starts to heat when the temperature inside the freezer reaches -15 ° C.
However, check regularly (depending on use) that the pressure relief valve (located on the side of the device) and the
calibrated foam are working properly. Reposition it properly after cleaning.

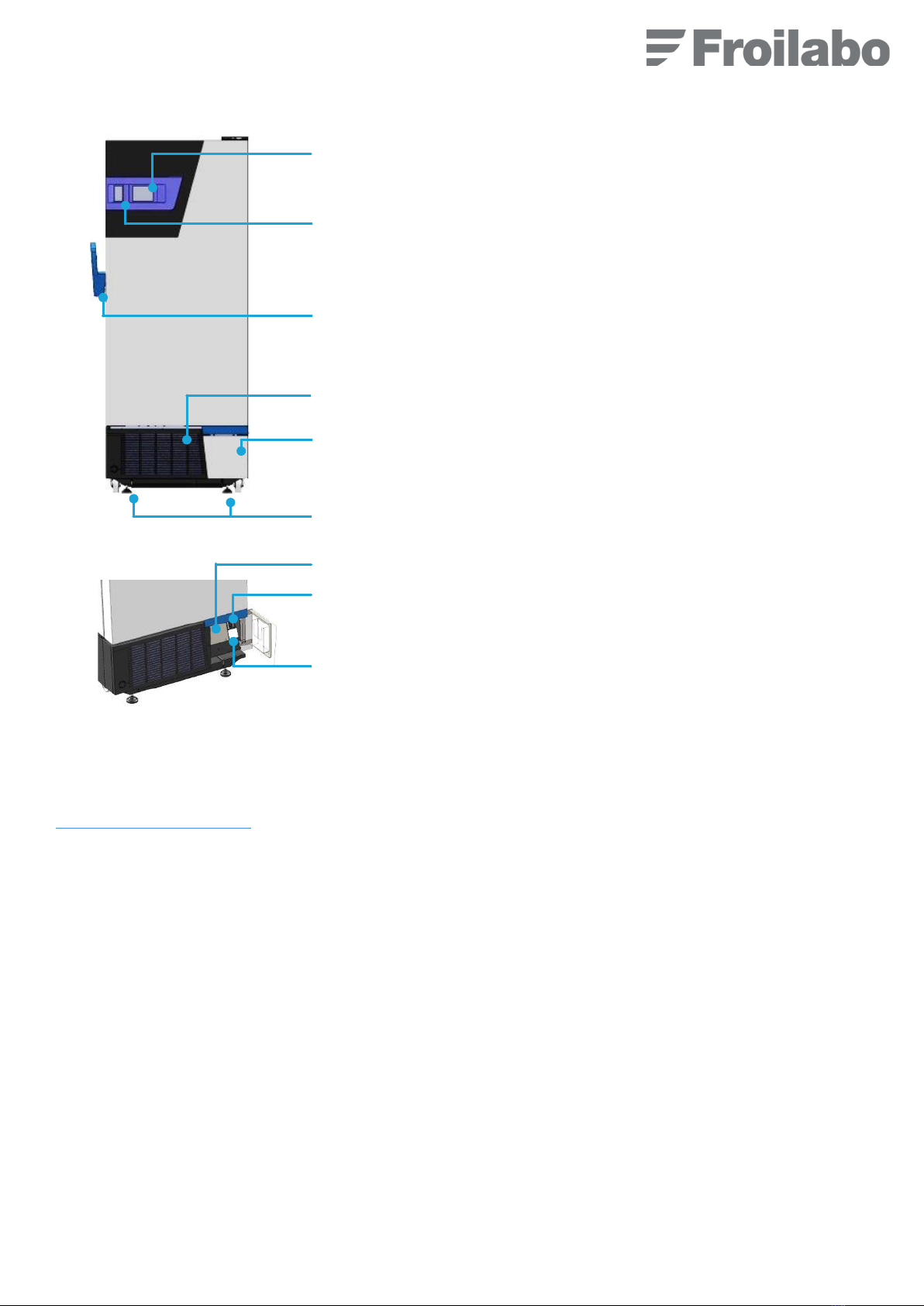

Interactive touch-sensitive screen (Evolution
model)
Touch-sensitive alarm window
Lockable handle
Filter cassette
Lower door
Front view
Lower door panel opened
Stabilising legs
Alarm warning lights
Disk recorder unit (optional)
Screen (Essential model)

9
After stopping the freezer completely, remove the valve foam to dry. Before restarting the freezer, replace the dry foam.
After CO2 or LN2 injection, it is necessary to dismantle the decompression valve and reposition the inner circular silicone
membrane properly in order to ensure the correct sealing inside of the valve.
Heating door seal:
Froilabo freezers are equipped with a heating door seal to prevent the formation of ice and thus maintain an optimal
seal of the freezer.
Refer to the "Maintenance, cleaning and decontamination" section for cleaning the door seal.
Air filter:
In order to maintain the cooling performance of the device and to preserve the compressors lifespan, an air filter is
placed in front of the condenser.
It is necessary to dust or wash this filter as frequently as necessary.
A device must never operate without a filter.
Clamping handle:
The device has a progressive tightening handle. Its double action makes it easier to open and close the door. The freezer
door can be locked thanks to the key lock located on the side of the handle.
4.6 TECHNICAL CHARACTERISTICES AND REFRIGERATION SYSTEM
Technical characteristics:
FREEZER MODEL BM340 BM515 BM690
-86 -45 -86 -45 -86 -45
GENERALITIES
Gross volume (litres) 340 340 515 515 690 690
Number of compartments 2 2 3 3 4 4
Freezer mass (kg) 223 178 267 222 330 285
Maximum power consumption
230V (Watts) (BoSS System) 1500 1500 2150 1500 2150 1500
Power consumption* 230V, 50
Hz (Watts) 900 1000 1150 1000 1150 1000

10
Maximum power consumption
110V (Watts) (BoSS System) 1600 1700 2400 1700 2400 1700
Power consumption* 110V, 60
Hz (Watts) 1000 1100 1400 1100 1400 1100
Minimum power of cooling of
the room containing the freezer
in continuously (W)
850 950 1200 950 1200 950
Acoustic pressure measured in
dB(A) (BoSS System) 76
Acoustic pressure measured in
dB(A) (in regulation mode) 56
OUTSIDE DIMENSIONS
Height (mm) 1280 1280 1640 1640 2000 2000
Width (mm) 875 875 875 875 875 875
Depth (mm) 970 970 970 970 970 970
Clearance required at the rear of
the unit (mm) 200 200 200 200 200 200
Maximum dimension with door
open (mm) 1750 1750 1750 1750 1750 1750
Maximum width with door open
(mm) 1150 1150 1150 1150 1150 1150
Maximum door opening angle 110° 110° 110° 110° 110° 110°
GROSS INTERNAL
DIMENSIONS EXCLUDING
RACKS
Height (mm) 716 716 1076 1076 1436 1436
Width (mm) 630 630 630 630 630 630
Depth (mm) 752 752 752 752 752 752
Notes
* Power consumed in regulation mode, all parts activated and stabilized, at 23 ° C in atmosphere and with empty cabinet.
On an equivalent product, hydrocarbon (HC) gases allow a reduction in power consumption up to 25%, as the need of cooling.
Refrigeration system:
FREEZER MODEL BM340 BM515 BM690
Standard
cooling
Natural
cooling
Standard
cooling
Natural
cooling
Standard
cooling
Natural
cooling
TWO-STAGE -86°C MODELS
Stage 1 hermetic compressor
power (Watt) 580 380 780 580 780 580
Stage 2 hermetic compressor
power (Watt) 380 380 580 580 580 580

11
Stage 1 R417a refrigerant – load (g) 600 / 600 / 600 /
Stage 2 R508b refrigerant – load (g) 300 / 300 / 300 /
Stage 1 R290 refrigerant – load (g) / 140 / 200 / 200
Stage 2 R170 refrigerant – load (g) / 190 / 80 / 90
SINGLE-STAGE -45°C MODELS
Hermetic compressor power 380 580 780
Isceon 89 refrigerant – load (g) 600 600 600
Capillary expansion yes yes yes
Air condenser as standard yes yes yes
4.7 SAMPLE STORAGE
Technical characteristics:
In order to avoid any risk of deterioration of the elements of construction and to guarantee the announced technical
performances, the following instructions must be respected:
•Do not place strong corrosive products inside the freezer.
•Do not place explosives or highly flammable products in the freezer.
•Leave a minimum space of 3 cm along the internal walls.
•Do not remove several shelves together.
•Take care not to prevent the closing of the wickets when closing the door.
In order to avoid the risk of tipping over a heavily loaded device, it is forbidden to pull several sliding shelves and / or
drawers simultaneously.
The maximum permissible load for each sliding shelf or drawer must never be exceeded (75 kg).
These devices are not explosion-proof.
The internal surfaces of the freezer and its contents can be extremely cold (-86 ° C). Protect yourself
accordingly (specially adapted gloves).
It is possible to replace an extractible shelf for a shelf. A shelf cannot, however, be replaced by an extractible shelf.
BM340
BM515
BM690
Level 4
/
/
1 shelf
Level 3
/
1 shelf
1 shelf or 1 extractible
shelf
Level 2
1 shelf
1 shelf or 1 extractible
shelf
1 shelf or 1 extractible
shelf
Level 1
No fixture
No fixture
No fixture

12
4.8 SAMPLE STORAGE
The control panel is located towards the top of the door. It includes a main screen and a touch-sensitive alarm window.
The main screen is a touch-sensitive one.
4.9 COMMISSIONING
Follow the instructions in the correct sequence:
1. Remove any foam wedge shelves.
2. Put the On/Off switch to the On position (it activates 24V). A buzzer sounds for 30 seconds.
3. Connect the freezer to a power outlet protected by a 30 mA differential circuit breaker.
4. The compressor(s) and fan will start up. The freezer will make a sound.
5. Froilabo is displayed on the screen, then the internal temperature of the freezer.
6. Adjust the set point if necessary (Set to-45°C or -80°C by default, depending on model).
7. Set the date.
8. Wait until the freezer reaches the set temperature (3 to 4 hours depending on the model).
9. Load the freezer.
Touch-sensitive
main screen
Touch-sensitive
alarm window

13
Note 1: the temperature in the freezer may rise if loaded with “hot” products. The high temperature alarm could
trigger.
Note 2: The On/Off switch only cuts off the internal 24V power supply requested by the processor and display. The
freezer remains powered as long as the power cable is connected to the mains.
Qualified staff must perform any electrical maintenance.
When the device is installed, the injection must only be activated once the target temperature has been
reached, otherwise the cylinders will be unloaded during the first temperature decrease.
Rear view
On/Off switch
Switch position (set
back within the
freezer)
Close-up view of the switch

14
5. First contact with your freezer
5.1 MAIN SCREEN
When the freezer is in use, the screen on the left is permanently displayed.
Main display
Temperature measured
An envelope flashes when a new message is received.
Biohazards or radioactivity symbols can be displayed at the
top of this screen and can be activated in the user preference
menu (section 5.6). This is only a visual indication.
5.2 HOME SCREEN
Press anywhere on the main display to show the Home screen. The Home screen provides access to all available menus.
If the screen is not touched during 1 minute, the main display automatically resumes.
Home screen
User preferences menu
Sample location menu (activated if the option is valid)
Information menu
Statistics menu
Setting menu (password required)
Factory settings (unused by the customer)
Diagnostics menu
Eco menu
Access to a free text area where it is possible to enter a
message.
The envelope will flash to indicate a new message.

15
Adjust the temperature setpoint
protected by password
(default 11111)
Back to main screen

16
6. Alarms and error codes
6.1 BATTERY BACK UP
In the event of power outage, the buzzer, remote alarm and CO2injection (optional) functions remain active,
powered by a 24V backup battery supplied as standard. The temperature display is also maintained.
Warning: the compressors are no longer powered and thus the freezer therefore does not cool.
6.2 ALARM DISPLAY
Error messages are displayed on the touch screen.
If a fault occurs, the screen turns red.
Temperature is displayed.
Press the “i” button for error identification.
A pictogram illustrating the fault is displayed in the centre of the
screen.
A brief error with description and action to be taken are displayed
in English beneath the pictogram.
6.3 STOP THE ALARM
When the alarm start, visual and sound alarms are triggered.
When the alarm is triggered, it is possible to deactivate the sound by
pressing on the black rectangle located on the left of the screen
(encircled in red on the picture).
6.4 ALARM HIGH TEMPERATURE
The high temperaure alarm is inhibated during the first decrease of the freezer and is activated when the freezer reach
storage temperature (-80°C by default).
