Fuerst FB42 User manual

ROTARY MOWER
FB42
Published 08/01 Serial No. FB42-10017 Through Current P/N 00768114C
© 2004 Alamo Group Inc.
FUERST
1020 S. Sangamon Ave.
Gibson City, IL 60936
217-784-4261
OPERATOR'S MANUAL
This Operator's Manual is an integral part of the safe operation
of this machine and must be maintained with the unit at all
times. READ, UNDERSTAND, and FOLLOW the Safety and
Operation Instructions contained in this manual before
operating the equipment.
$0.00

TO THE OWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator
who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe
the rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form
in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
and on the Warranty Form that you retain.

TABLE OF CONTENTS
SAFETY SECTION ....................................................................................................................................... 1-1
Safety Information .................................................................................................................................. 1-2

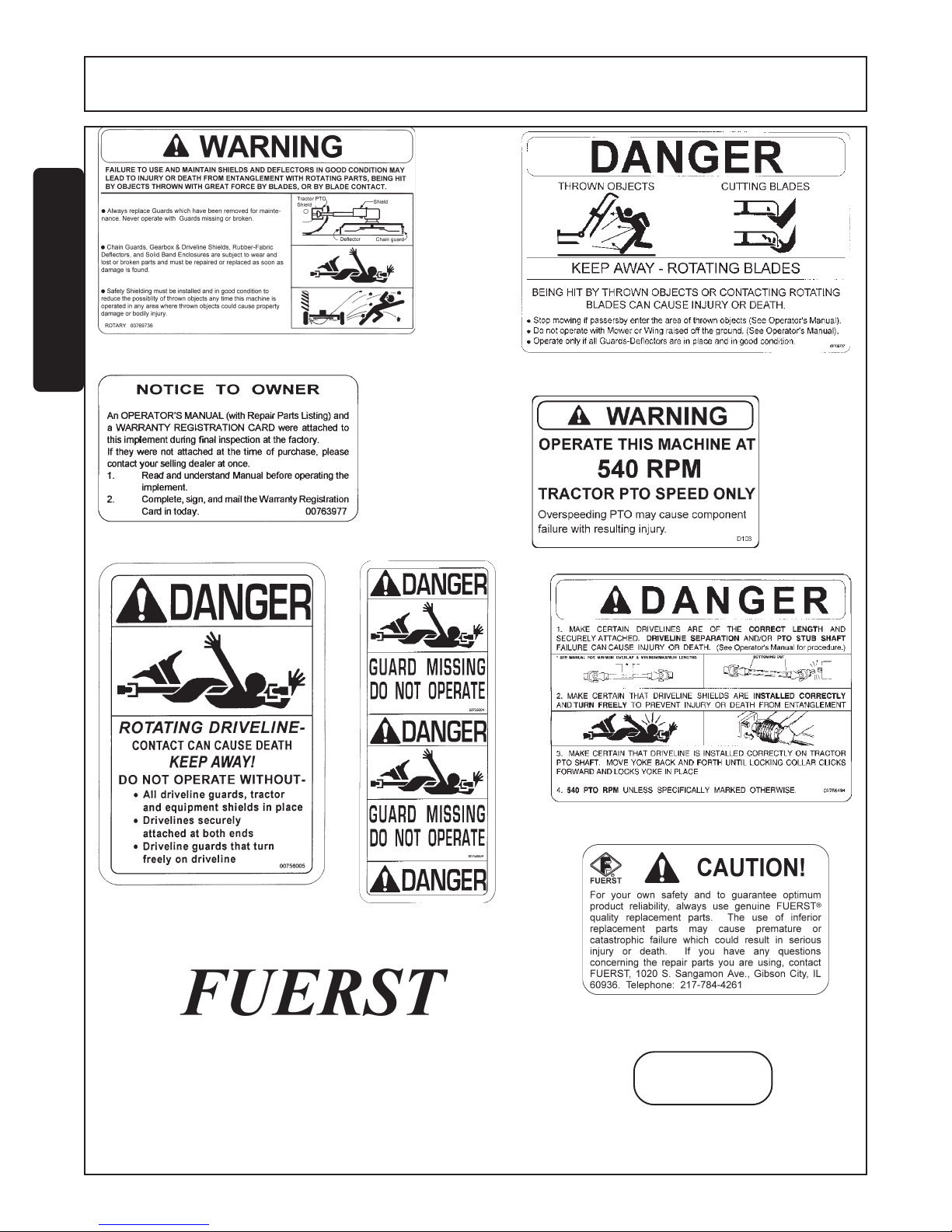

Safety Decal Location ............................................................................................................................ 1-11
INTRODUCTION SECTION ......................................................................................................................... 2-1
ASSEMBLY SECTION ................................................................................................................................. 3-1
Dealer Set-up Instructions ...................................................................................................................... 3-2
Shear Pin Driveline Installation ............................................................................................................... 3-2
Shield Assembly ..................................................................................................................................... 3-2
A-Frame Installation ................................................................................................................................ 3-3
TailwheelInstallation ............................................................................................................................... 3-3
Hydraulic Relief Assembly ...................................................................................................................... 3-4
OPERATION SECTION................................................................................................................................ 4-1
MAINTENANCE SECTION ........................................................................................................................... 5-1
Lubrication ............................................................................................................................................. 5-2
Gearbox .................................................................................................................................................. 5-3
Driveline ................................................................................................................................................. 5-4
Blades Sharpening ................................................................................................................................. 5-5
Blade & Carrier Removal ........................................................................................................................ 5-6
Blade Carrier Installation ........................................................................................................................ 5-6
Storage .................................................................................................................................................. 5-7
Torque Chart .......................................................................................................................................... 5-7
Gearbox Service Instructions .................................................................................................................. 5-8

SAFETY
SECTION
Safety Section 1-1

Safety Section 1-2FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
A safe and careful operator is the best operator. Safety is of primary importance to the
manufacturer and should be to the owner/operator. Most accidents can be avoided by being
aware of your equipment, your surroundings, and observing certain precautions. The first
section of this manual includes a list of Safety Messages that, if followed, will help protect the
operator and bystanders from injury or death. Read and understand these Safety Messages
before assembling, operating or servicing this mower. This equipment should only be operated
by those persons who have read the Manual, who are responsible and trained, and who know
how to do so safely and responsibly.
The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal
Word are intended to warn the owner/operator of impending hazards and the degree of
possible injury faced when operating this equipment.
CAUTION! The lowest level of Safety Message; warns of possible injury. Decals
located on the Equipment with this Signal Word are Black and Yellow.
WARNING! Serious injury or possible death! Decals are Black and Orange.
DANGER! Imminent death/critical injury. Decals are Red and White. (SG-1)
Practice all usual and customary safe working precautions and
above all---remember safety is up to YOU. Only YOU can prevent
serious injury or death from unsafe practices.

Safety Section 1-3
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
READ, UNDERSTAND, and FOLLOW the following Safety
Messages. Serious injury or death may occur unless care is
taken to follow the warnings and instructions stated in the Safety
Messages. Always use good common sense to avoid hazards.
(SG-2)

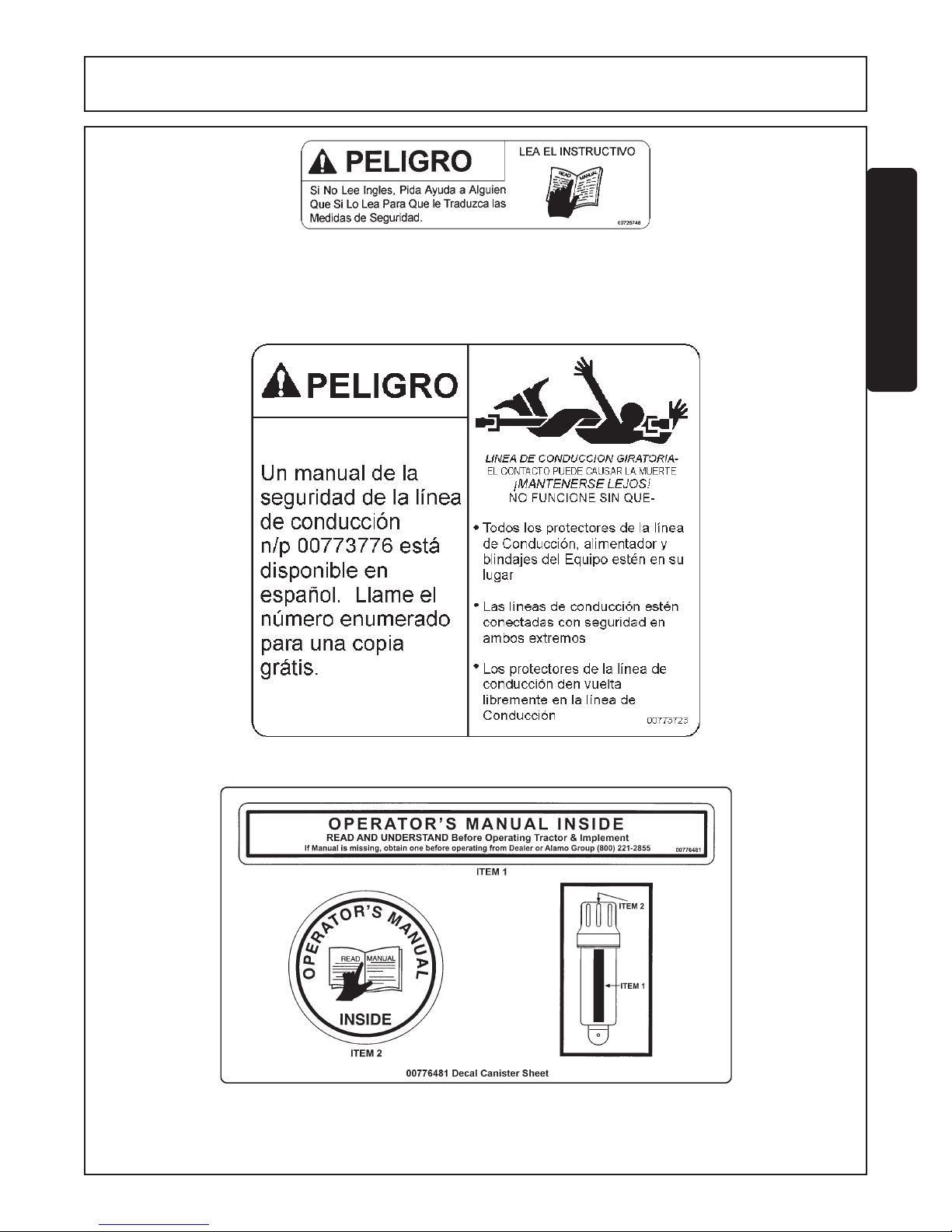

Si no lee Ingles, pida ayuda a alguien que si lo lea
para que le traduzca las medidas de seguridad. (SG-3)
PELIGRO! ¡LEA EL
INSTRUCTIVO!
DANGER! Never operate the Tractor or Implement until you have read and
completely understand this Manual, the Tractor Operator’s Manual,
and each of the Safety Messages found in the Manual or on the Tractor
and Implement. Learn how to stop the tractor engine suddenly in an
emergency. Never allow inexperienced or untrained personnel too
operate the Tractor and Implement without supervision. Make sure
the operator has fully read and understood the manuals prior to
operation. (SG-4)
WARNING! Always maintain the safety decals in good readable condition. If the decals are missing, damaged,
or unreadable, obtain and install replacement decals immediately. (SG-5)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such
a way as to be clearly visible and legible. When transporting the
Equipment use the Tractor flashing warning lights and follow all local traffic
regulations. (SG-6)
WARNING! Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement,
any of its components or any Implement function. (SG-8)
DANGER! BEFORE leaving the tractor seat, always engage the brake and/or set the
tractor transmission in parking gear, disengage the PTO, stop the engine,
remove the key, and wait for all moving parts to stop. Place the tractor
shift lever into a low range or parking gear to prevent the tractor from rolling.
Never dismount a Tractor that is moving or while the engine is running.
Operate the Tractor controls from the tractor seat only. (SG-9)
WARNING! Operate this Equipment only with a Tractor equipped with an approved
roll-over-protective system (ROPS). Always wear seat belts. Serious
injury or even death could result from falling off the tractor--particularly
during a turnover when the operator could be pinned under the ROPS.
(SG-7)

Safety Section 1-4FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DANGER! Never allow children or other persons to ride on the Tractor or Implement.
Falling off can result in serious injury or death. (SG-10)
DANGER! Never allow children to operate or ride on the Tractor or Implement.
(SGM-11)
WARNING! Do not mount the Tractor while the tractor is moving. Mount the Tractor
only when the Tractor and all moving parts are completely stopped.
(SG-12)
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
DANGER! Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up
to prevent sudden or inadvertent falling which could cause serious
injury or even death. (SG-14)
WARNING! The operator and all support personnel should wear hard hats, safety
shoes, safety glasses, and proper hearing protection at all times for
protection from injury including injury from items thrown by the
equipment. (SG-16)

Safety Section 1-5
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
WARNING! Transport only at safe speeds. Serious accidents and injuries can
result from operating this equipment at unsafe speeds. Understand the
Tractor and Implement and how it handles before transporting on streets
and highways. Make sure the Tractor steering and brakes are in good
condition and operate properly.
Before transporting the Tractor and Implement, determine the safe
transport speeds for you and the equipment. Make sure you abide
by the following rules:
Be aware of the operating conditions. Do not operate the Tractor with
weak or faulty brakes. When operating down a hill or on wet or rain
slick roads, the braking distance increases: use extreme care and
reduce your speed. When operating in traffic always use the Tractor’s
flashing warning lights and reduce your speed. Be aware of traffic
around you and watch out for the other guy. (SG-19)
2. Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to operate at
a higher speed. Use extreme care and reduce your speed when
turning sharply to prevent the tractor and implement from turning
over. Determine the maximum safe turning speed for you and this
equipment before operating on roads or uneven ground.
3. Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly control
the equipment.
1. Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping characteristics
of the Tractor and Implement. As you increase the speed of the
Tractor the stopping distance increases. Determine the maximum
safe transport speed for you and this Equipment.
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS! Tractors with or without an
Implement attached can often be noisy enough to cause permanent
hearing loss. We recommend that you always wear hearing
protection if the noise in the Operator’s position exceeds 80db.
Noise over 85db over an extended period of time will cause severe
hearing loss. Noise over 90db adjacent to the Operator over an
extended period of time will cause permanent or total hearing loss.
Note: Hearing loss from loud noise [from tractors, chain saws,
radios, and other such sources close to the ear] is cumulative over
a lifetime without hope of natural recovery. (SG-I7)
WARNING! Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion
or while tractor engine is running. Make sure the tractor engine is off before working on the
Implement. (SG-20)

Safety Section 1-6FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners,
worn or broken parts, and leaky or loose fittings. Make sure all pins
have cotter pins and washers. Serious injury may occur from not
maintaining this machine in good working order. (SG-21)
WARNING! Always read carefully and comply fully with the manufacturers instructions
when handling oil, solvents, cleansers, and any other chemical agent.
(SG-22)
DANGER! Never run the tractor engine or mower engine in a closed building or without adequate
ventilation. The exhaust fumes can be hazardous to your health. (SG-23)
DANGER! Never allow children to play on or around Tractor or Implement. Children can slip or fall off the
Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing
themselves or others. (SG-25)
DANGER! KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement
and possible serious injury or death. (SG-24)
WARNING! Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause
Implement driveline or blade failures resulting in serious injury or death. (SG-26)
DANGER! NEVER use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or
Implement, an operator on prescription or over-the-counter medica-
tion must consult a medical professional regarding any side effects
of the medication that would hinder their ability to operate the
Equipment safely. NEVER knowingly allow anyone to operate this
equipment when their alertness or coordination is impaired. Serious
injury or death to the operator or others could result if the operator is
under the influnce of drugs or alcohol. (SG-27)

Safety Section 1-7
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
DANGER! Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with
the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may
cause serious injury or death. (SG-29)
WARNING! Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting.
Never mow in darkness or foggy conditions where you cannot clearly see at least 100 yards in front
and to the sides of the tractor and mower. Make sure that you can clearly see and identify passersby,
steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects.
If you are unable to clearly see this type of items discontinue mowing. (SGM-1)
DANGER! There are obvious and hidden potential hazards in the operation of this
Mower. REMEMBER! This machine is often operated in heavy brush
and in heavy weeds. The Blades of this Mower can throw objects if
shields are not properly installed and maintained. Serious injury or
even death may occur unless care is taken to insure the safety of the
operator, bystanders, or passersby in the area. Do not operate this
machine with anyone in the immediate area. Stop mowing if anyone
is within 100 yards of mower. (SGM-2)
DANGER! All Safety Shields, Guards and Safety devices including
(but not limited to) - the Deflectors, Chain Guards, Steel
Guards, Gearbox Shields, PTO integral shields , and
Retractable Door Shields should be used and maintained
in good working condition. All safety devices should be
inspected carefully at least daily for missing or broken
components. Missing, broken, or worn items must be
replaced at once to reduce the possibility of injury or
death from thrown objects, entanglement, or blade
contact. (SGM-3)
DANGER! The rotating parts of this machine have been designed and tested for rugged use. However,
the blades could fail upon impact with heavy, solid objects such as metal guard rails and
concrete structures. Such impact could cause the broken objects to be thrown outward at
very high velocities. To reduce the possibility of property damage, serious injury, or even
death, never allow the cutting blades to contact such obstacles. (SGM-4)
WARNING! Extreme care should be taken when operating near loose objects such
as gravel, rocks, wire, and other debris. Inspect the area before
mowing. Foreign objects should be removed from the site to prevent
machine damage and/or bodily injury or even death. Any objects that
cannot be removed must be clearly marked and carefully avoided by
the operator. Stop mowing immediately if blades strike a foreign
object. Repair all damage and make certain rotor or blade carrier is
balanced before resuming mowing. (SGM-5)
WARNING! Many varied objects, such as wire, cable, rope, or chains, can become entangled in the operating
parts of the mower head. These items could then swing outside the housing at greater velocities
than the blades. Such a situation is extremely hazardous and could result in serious injury or even
death. Inspect the cutting area for such objects before mowing. Remove any like object from the
site. Never allow the cutting blades to contact such items. (SGM-6)

Safety Section 1-8FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Mow at the speed that you can safely operate and control the tractor and mower. Safe mowing
speed depends on terrain condition and grass type, density, and height of cut. Normal ground
speed range is from 0 to 5 mph. Use slow mowing speeds when operating on or near steep slopes,
ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to
be avoided. (SGM-7)
WARNING! Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind
the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where
you can safely operate and control the tractor and mower. Never mow an area that you have not
inspected and removed debris or foreign material. (SGM-8)
WARNING! Do not put hands or feet under mower decks. Blade Contact can result
serious injury or even death. Stay away until all motion has stopped and
the decks are securely blocked up. (SGM-9)
DANGER! Replace bent or broken blade with new blades. NEVER ATTEMPT TO STRAIGHTEN OR WELD
ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE
WITH SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES.
(SGM-10)
DANGER! Rotary Mowers are capable under adverse conditions
of throwing objects for great distances (100 yards
or more) and causing serious injury or death. Follow
safety messages carefully.
STOP MOWING IF PASSERSBY ARE
WITHIN 100 YARDS UNLESS:
-Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable
condition;
-Mower sections or Wings are running close to and parallel to the ground without exposed
Blades;
-Passerby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material such as rocks, cans,
glass, and general debris has been removed.
NOTE: Where there are grass and weeds high enough to hide debris that could be struck
by the blades, the area should be: inspected and large debris removed, mowed at an
intermediate height, inspected, closely with any remaining debris being removed, and
mowed again at desired final height. (This will also reduce power requiredto mow, reduce
wear and tear on the Mower drivetrain, spread cut material better, eliminate streaking, and
make the final cut more uniform.) (SRM-1)
WARNING! Do not mow with two machines in the same area except with Cab tractors with the windows closed.
(SGM-11)

Safety Section 1-9
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
WARNING! Do not let the Blades turn when the Mower Deck is raised for any
reason, including clearance or for turning. Raising the Mower
deck exposes the Cutting Blades which creates a potentially
serious hazard and could cause serious injury or even death
from objects thrown from the Blades. (SRM-7)
WARNING! Never leave Tractor and Implemented unattended while the implement is in the lifted position.
Accidental operation of lifting lever or a hydraulic failure may cause sudden drop of unit with
injury or death by crushing. To properly park the implement when disconnecting it from the tractor,
lower the stand and put the retaining pin securely in place, or put a secure support under the A-
Frame. Lower the implement carefully to the ground. Do not put hands or feet under lifted
components. (S3PT-1)
WARNING! Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up
hills only at a low speed and using a gradual steering angle. Rear mounted implements move the
center of gravity to the rear and remove weight from the front wheels. Make certain, by adding
front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up,
loss of steering control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent
loss of steering control which could result in property damage or possible injury. Do not
transport unless 3-Point lift lever is fully raised and in the latched transport position. Dropping
implement in transport can cause serious damage to the tractor and/or Implement and possibly
cause the operator or others to be injured or killed. (S3PT-2)
DANGER! There are obvious and hidden potential hazards in the operation of this Implement as in all
power-driven or pulled equipment. REMEMBER! This machine is often operated in rough terrain
conditions that include tall grass, weeds, gullies, holes, slopes, hidden obstructions and the like.
Serious injury or even death may occur unless care is taken to assure the safety of the operator
and bystanders in the area. Do not operate this machine with anyone in the immediate area.
(S3PT-7)
DANGER! Make sure the PTO shield, integral driveline shields, and input shields are
is installed when using PTO-driven equipment. Always replace any
shield if it is damaged or missing. (S3PT-8)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair
work on the Implement. Place the Implement on the ground or
securely blocked up, disengage the PTO, and turn off the tractor
engine. Push and pull the Remote Cylinder lever in and out several
times prior to starting any maintenance or repair work. (S3PT-9)
WARNING! The rotating parts of this machine continue to rotate even after the PTO has been turned off. The
operator should remain in his seat for 60 seconds after the brake has been set, the PTO
disengaged, the tractor turned off, and all evidence of rotation has ceased. (3PT-10)
“Wait a minute...Save a life!”

Safety Section 1-10FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to
Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment
Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)
DANGER! Always disconnect the main PTO Driveline from the Tractor before performing service on the
Implement. Never work on the Implement with the tractor PTO driveline connected and running.
Rotating Parts, Blades or Drivelines could turn without warning and cause immediate
entanglement, injury or death. (S3PT-11)
PARTS INFORMATION
Fuerst implement use matched system components for blades, hangers, rollers, and bearings. These parts
are made and tested to Fuerst specifications. Non-genuine "will fit" parts do not consistently meet these
specifications. The use of “will fit” parts may reduce implements performance, void warranties, and present
a safety hazard. Use genuine Fuerst mower parts for economy and safety. (SPFB-1)
SEE YOUR FUERST DEALER

Safety Section 1-11
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DECALS
ITEM PART NO. QTY TYPE DESCRIPTION
1 00725746 1 DANGER Peligro - Spanish Translation
2 00773723 1 DANGER Peligro - Spanish Driveline
3 00749117 1 DANGER Multi-Hazard
4 00756004 1 DANGER Shield Missing (Not Shown)
5 00756005 1 DANGER Rotating Driveline (Not Shown)
6 00756494 1 DANGER Driveline
7 00769737 1 DANGER Blades Thrown
8 00769736 1 WARNING Shields & Deflector
9 00760657 1 IMPORTANT Genuine Parts
10 03200347 * SIGN SMV
11 00763977 1 INSTRUCT Notice to Owner
12 D103 1 INSTRUCT 540 RPM
13 00768111 2 NAME FB42
15 IJ1835 2 LOGO Fuerst
16 nfs 1 S/N PLATE Serial Number Plate
17 00776481 1 INSTRUCT Operators Manual Inside
18 00776031 1 --------------- Canister, Operators Manual
19 00768114C 1 --------------- Operators Manual
20 10058000 3 --------------- Bolt
21 00024100 6 --------------- Flatwasher
22 02959924 3 --------------- Locknut
* Furnished by the Tractor Manufacturer
10
9
1
2
8
6
16
11
15
13
7
812
20
21
17
18
22

Safety Section 1-12FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
DECALS
3 - 00749117 - Not Shown
(See Inside Front Cover of Manual)
9 - 3438305
15 -IJ1835
7 - 00769737
6 - 00756494
FB42
13 - 00768111
8 - 00769736
5 - 00756005
4 - 00756004
11 - 00763977
12 - D103

Safety Section 1-13
FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
1 - 00725746
2 - 00773723
DECALS
17 - 00776481

Safety Section 1-14FB42 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning
employer and employee equipment operators. This section is not intended as a legal interpretation of the law and
should not be considered as such.
Employer-Employee Operator Regulations
U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA
This Act Seeks:
“...to assure so far as possible every working man and woman in the nation safe and healthful
working conditions and to preserve our human resources...”
DUTIES
Sec. 5 (a) Each employer-
(1) shall furnish to each of his employees employment and a place of employment which are free
from recognized hazards that are causing or are likely to cause death or serious physical harm to
his employees;
(2) shall comply with occupational safety and health standards promulgated under this Act.
(b) Each employee shall comply with occupational safety and health standards and all rules,
regulations and orders issued pursuant to this Act which are applicable to his own actions
and conduct.
OSHA Regulations
OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter,
the employer shall instruct every employee in the safe operation and servicing of all equipment with
which the employee is, or will be involved.”
Employer Responsibilities:
To ensure employee safety during Tractor and Implement operation, it is the employer’s responsibility to:
1. Train the employee in the proper and safe operation of the Tractor and Implement.
2. Require that the employee read and fully understand the Tractor and Implement Operator’s manual.
3. Permit only qualified and properly trained employees to operate the Tractor and Implement.
4. Maintain the Tractor and Implement in a safe operational condition and maintain all shields and guards on the
equipment.
5. Ensure the Tractor is equipped with a functional ROPS and seat belt and require that the employee operator
securely fasten the safety belt and operate with the ROPS in the raised position at all times.
6. Forbid the employee operator to carry additional riders on the Tractor or Implement.
7. Provide the required tools to maintain the Tractor and Implement in a good safe working condition and provide
the necessary support devices to secure the equipment safely while performing repairs and service.
8. Require that the employee operator stop mowing if bystanders or passerbys come within 100 yards.
Child Labor Under 16 Years of Age
Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility
to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment
Standard Administration, Wage & Home Division, Child Labor Bulletin #102.)
FEDERAL LAWS AND REGULATIONS

INTRODUCTION
SECTION
Introduction Section 2-1

Introduction Section 2-2
INTRODUCTION
FB42 08/01
© 2004 Alamo Group Inc.
INTRODUCTION
This Rotary Mower is designed with care and built with quality materials by skilled workers. Proper assembly,
maintenance, and operating practices, as described in this manual, will help the owner/operator get years of
satisfactory service from the machine.
The purpose of this manual is to familiarize, instruct, and train. The Assembly Section instructs the owner/
operator in the correct assembly of the Mower using standard and optional equipment. The Parts Listing section
is designed to familiarize the owner/operator with replaceable parts on the Mower. This section provides exploded
assembly drawings of each mower component illustrating each piece and the corresponding part number.
Careful use and timely service saves extensive repairs and costly downtime losses. The Operation and
Maintenance Sections of the manual train the owner/operator how to work the Mower correctly and attend to
appropriate maintenance. The Trouble Shooting Guide helps diagnose difficulties with mower and offers solution
to the problems.
Safety is of primary importance to the owner/operator and to the manufacturer. The first section of this manual
includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or
death. Many of the Safety Messages will be repeated throughout the manual. The owner/operator/dealer should
know these Safety Messages before assembly and be aware of the hazards of operating this mower during
assembly, use, and maintenance. The Safety Alert Symbol combined with a Signal Word, as seen below, is
intended to warn the owner/operator of impending hazards and the degree of possible injury faced when operating
this machine.
The lowest level of Safety Message; warns of possible minor injury. Decals
located on the Mower with this Signal Word are Black and Yellow.
Serious injury or possible death! Decals are Black and Orange.
Imminent death/critical injury. Decals are Red and White.
CAUTION
WARNING
DANGER
