Furious Team Volcano Box Installation guide
WELCOME TO THE
BASIC MANUAL
VOLCANO BOX
VOLCANO BOX PACKAGING CONTENTS
1 x Volcano Box
1 x Main cable to connect to the phone
32 x jigs*
1 x RX TX Cable*
1 x A2B usb cable*
http://www.volcano-box.com/resellers.html
http://forum.gsmhosting.com/vbb/f723/ http://forum.gpgindustries.com/downloads.php?do=cat&id=164
http://www.volcano-box.com
http://www.volcano-box.com/videos.html
Volcano Box Ofcial Resellers Volcano Box Homepage Volcano Box Video Help Center
Volcano Box Ofcial Support Area Volcano Box Ofcial Download Area
VOLCANO BOX DETAILS
This is power button use for
power to box. When you want
to use box on simple USB ( no
need extra power) you must
Un-press it means it must stay
in Switched OFF Condition
if you don’t want your box take
power from usb then press it (
switch on Condition ) and Insert
9 Dc Volts in box then your box
will not take current from USB. It
will take all current from 9v
It’s for connecting Main cable to box so you can
connect phones with main cable and main cable
will connect with box. It’s 26 pin connector which
can Auto pin nd from 24 pins. Pin number 26
and 25 is VCC and GND xed. You can also put
VCC and GND on any pin which can dened
from software
It’s for connect any RJ45 cable
or you can use it for Test point
Connection. You can connect
any pin to any place. Volcano
box can auto pin nd from
RJ45 Plug Too.
8PIN RJ45 FEMALE
CONNECTOR

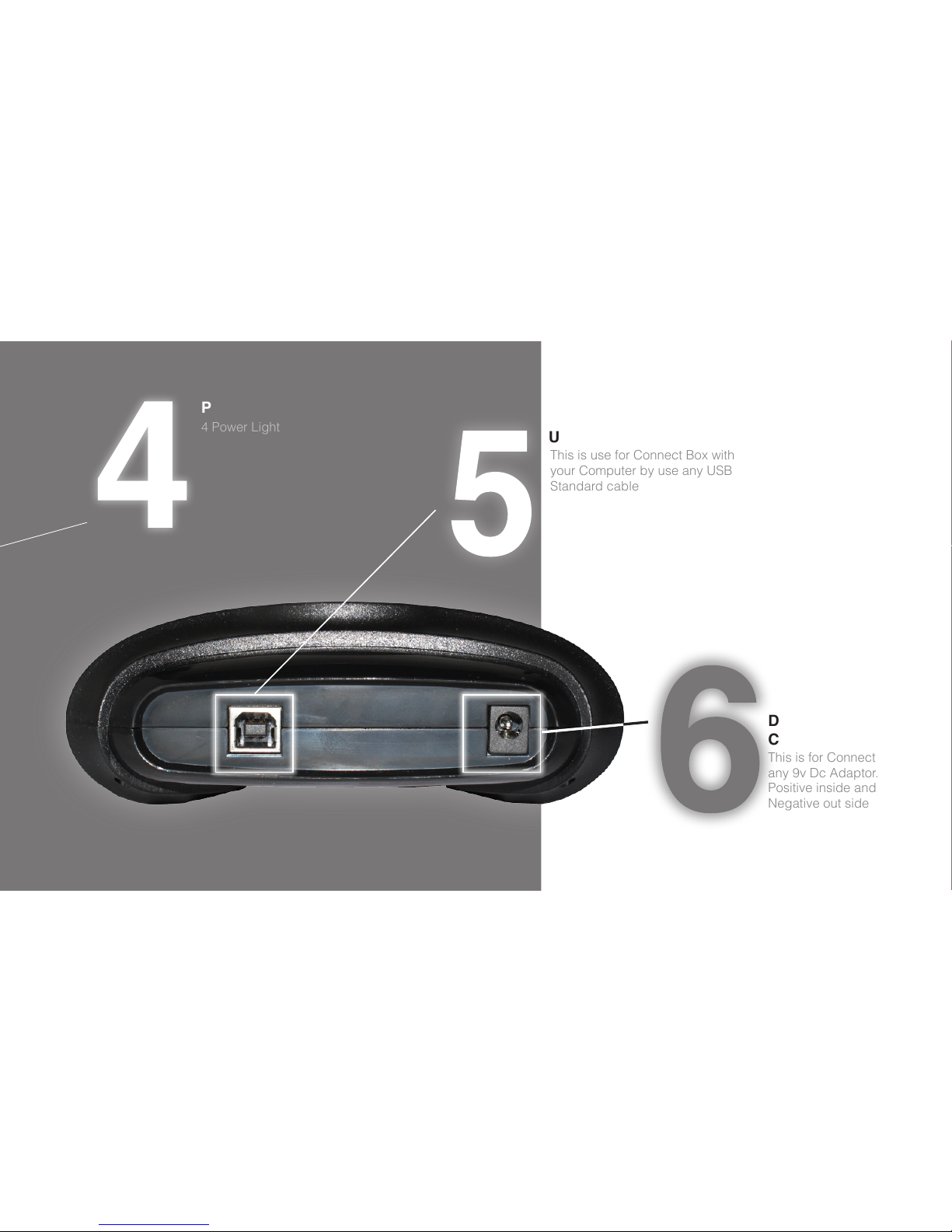

This is use for Connect Box with
your Computer by use any USB
Standard cable
This is for Connect
any 9v Dc Adaptor.
Positive inside and
Negative out side
4 Power Light
POWER LIGHT
USB FEMALE CONNECTOR
DC PIN FEMALE
CONNECTOR

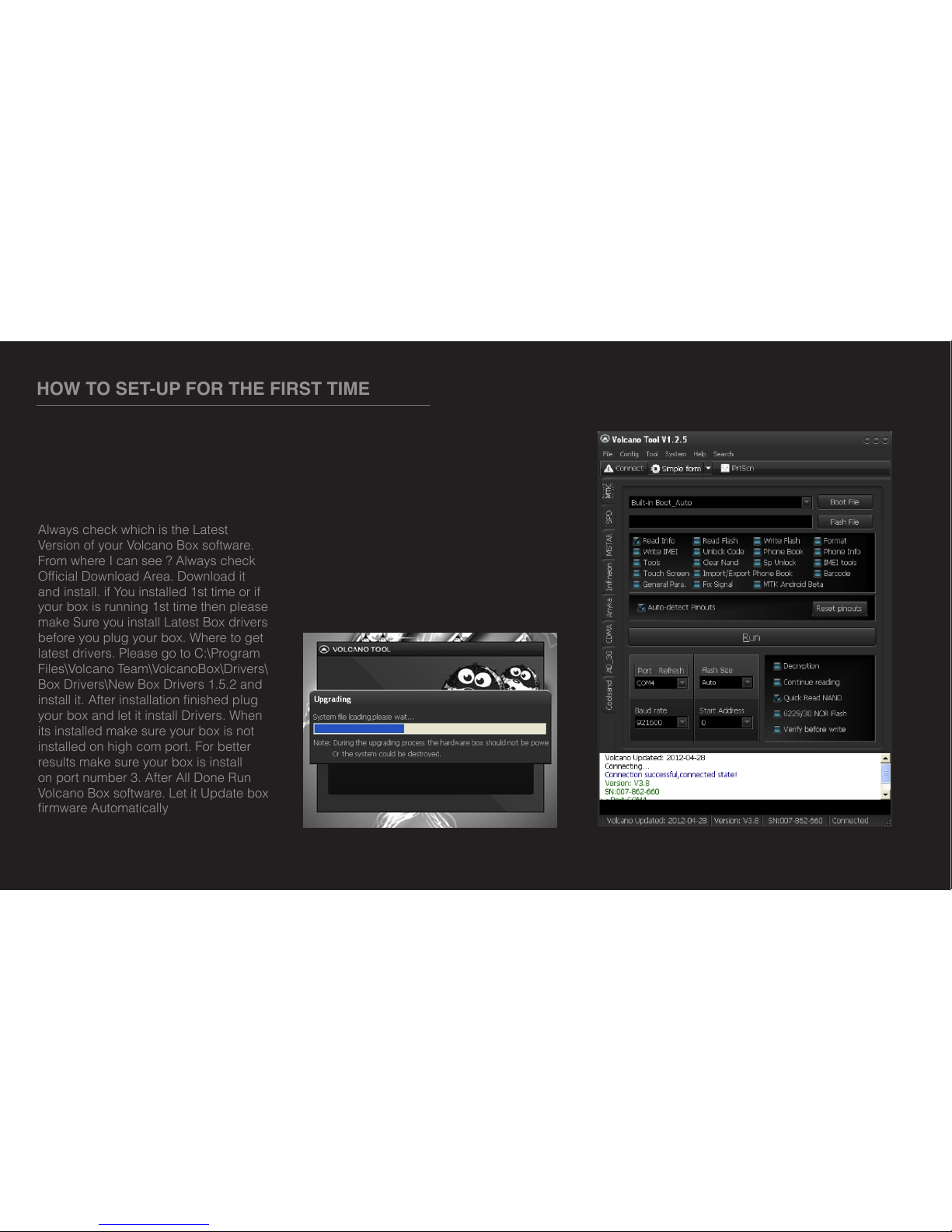

HOW TO SET-UP FOR THE FIRST TIME
Always check which is the Latest
Version of your Volcano Box software.
From where I can see ? Always check
Ofcial Download Area. Download it
and install. if You installed 1st time or if
your box is running 1st time then please
make Sure you install Latest Box drivers
before you plug your box. Where to get
latest drivers. Please go to C:\Program
Files\Volcano Team\VolcanoBox\Drivers\
Box Drivers\New Box Drivers 1.5.2 and
install it. After installation nished plug
your box and let it install Drivers. When
its installed make sure your box is not
installed on high com port. For better
results make sure your box is install
on port number 3. After All Done Run
Volcano Box software. Let it Update box
rmware Automatically
AFTER IT`S
COMPLETE IT WILL
OPEN VOLCANO
BOX SOFTWARE,
IT WILL LOOK LIKE
THIS

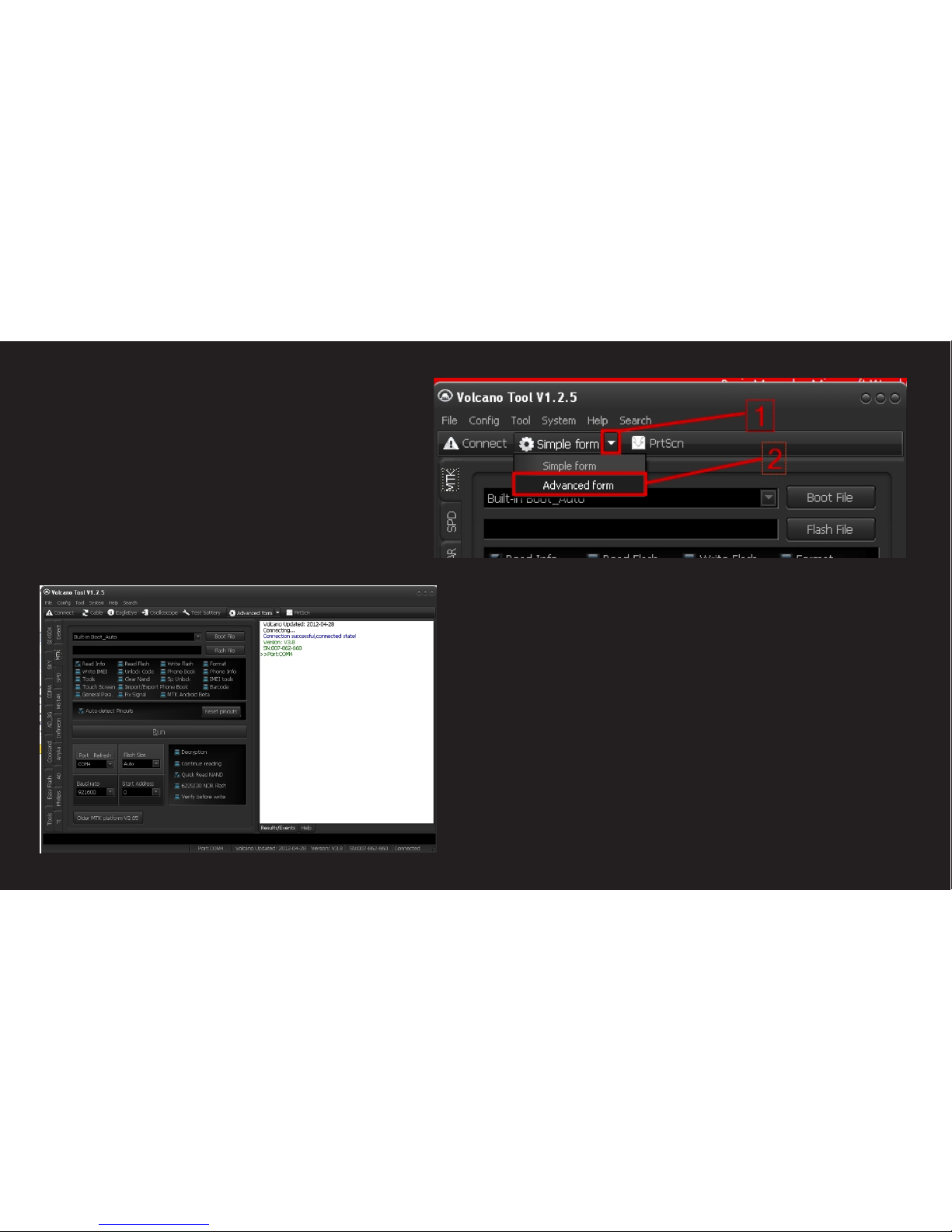

AFTER CLICK ON SIMPLE
FORM ARROW AND CLICK
ON ADVANCE FORM
AFTER THIS IT WILL SHOW
LIKE THIS

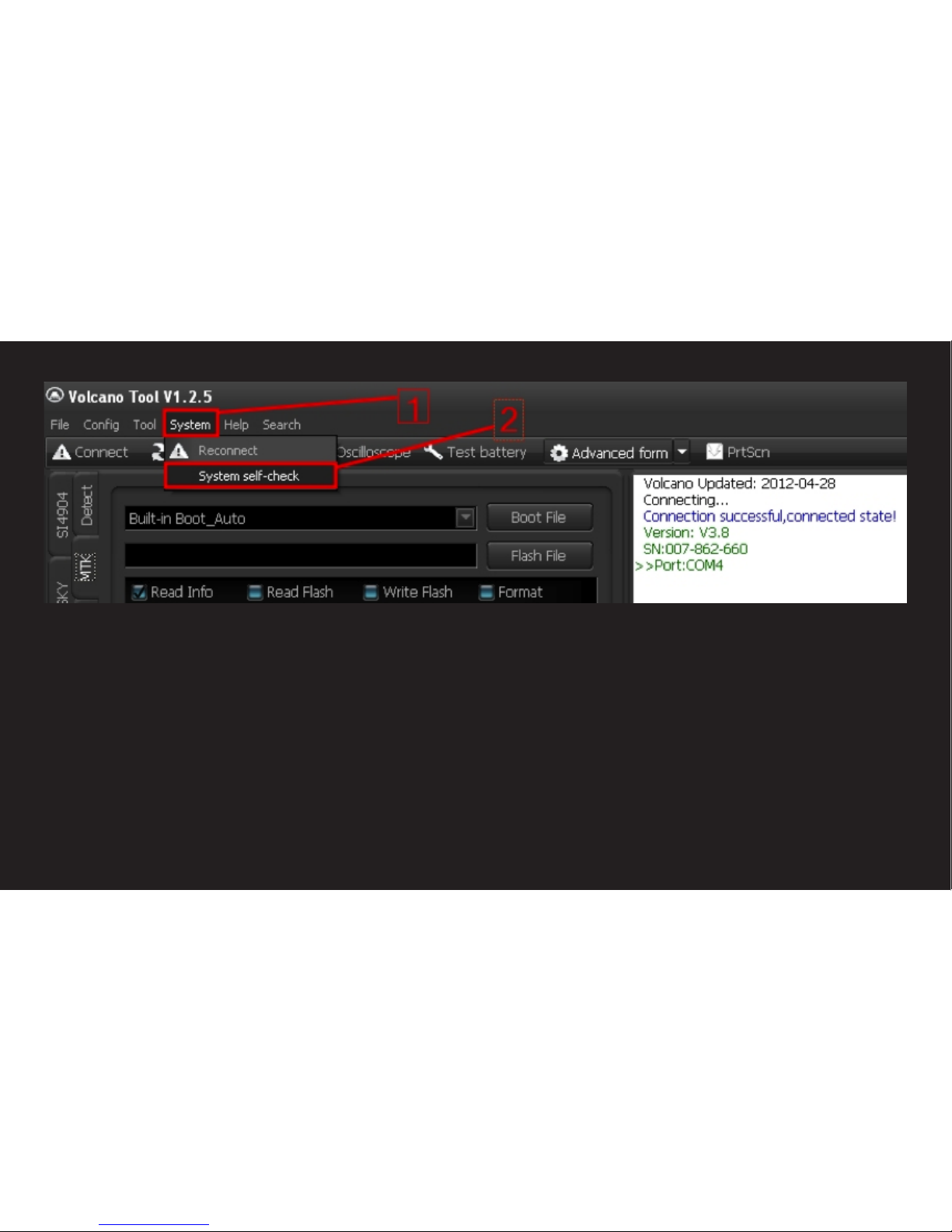

AFTER THIS CLICK ON SYSTEM THEN
CLICK ON SYSTEM SELF CHECK
After this your Box is
now Ready for RUN

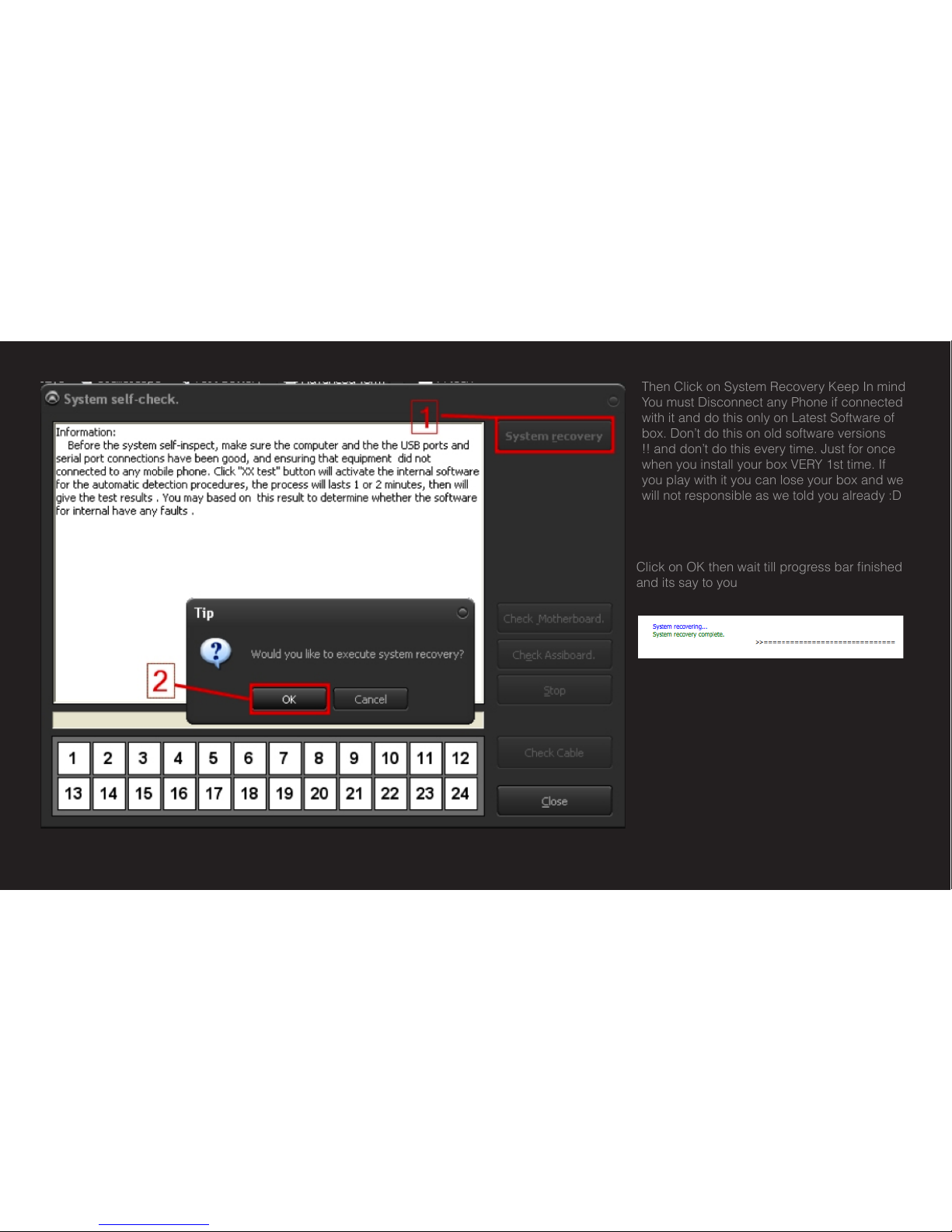

Then Click on System Recovery Keep In mind
You must Disconnect any Phone if connected
with it and do this only on Latest Software of
box. Don’t do this on old software versions
!! and don’t do this every time. Just for once
when you install your box VERY 1st time. If
you play with it you can lose your box and we
will not responsible as we told you already :D
Click on OK then wait till progress bar nished
and its say to you

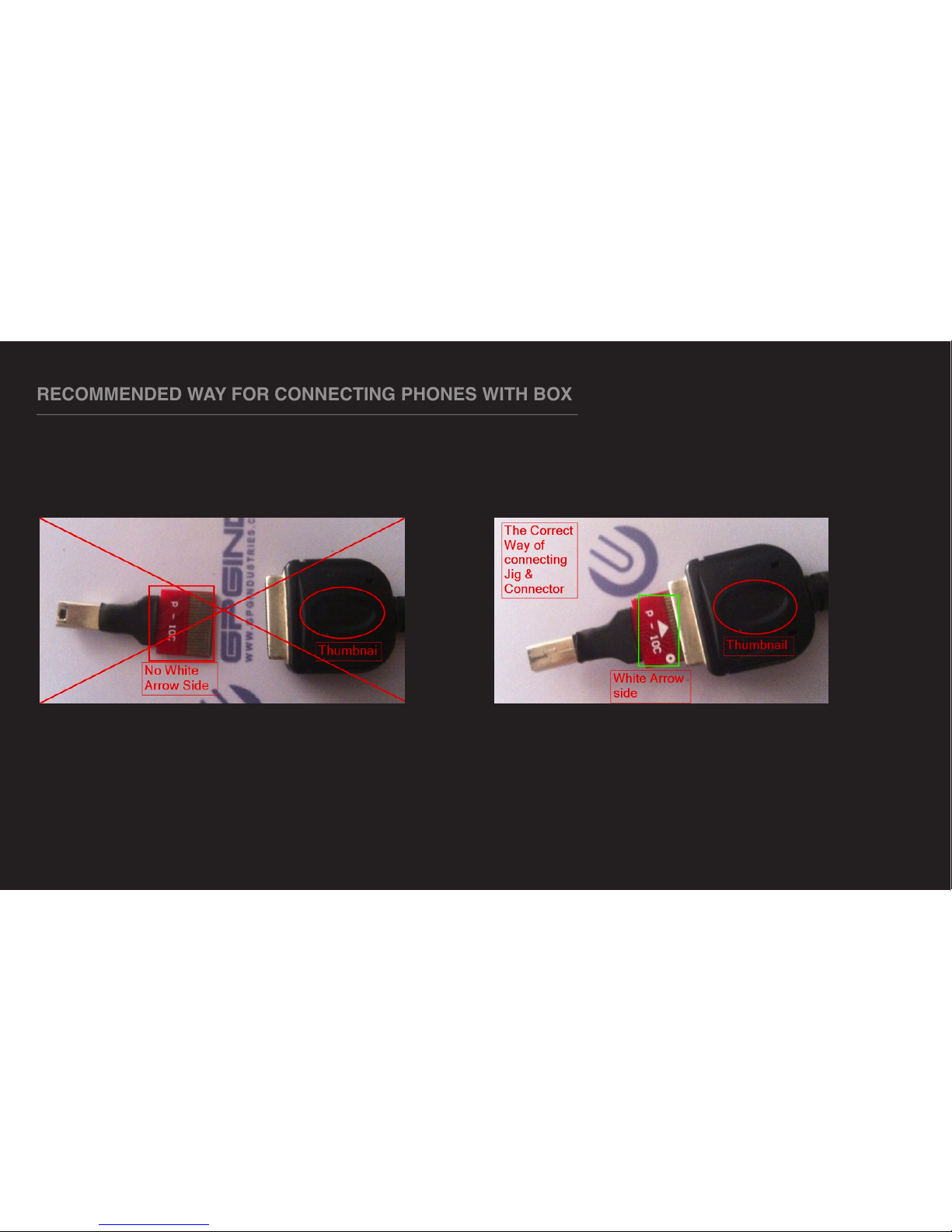

RECOMMENDED WAY FOR CONNECTING PHONES WITH BOX
For best results always connect your phone by this
way. If you connect your phones by this why you will
avoid lot of problem
Don’t Connect your
JIG & Cable like this
Always connect like this!
HOW TO CONNECT MTK PHONES
Connect Jig to cable correct way as I
show you above. Connect Power from
main cable to Phone. Select MTK tab
from Volcano box software. Click on
Read Flash/Write Flash/Format etc.
Press and hold Power Button from
Phone keyboard. Click on Run. It will
done
IF YOU GOT
ANY ERROR OR
PROBLEM
PLEASE CHECK
OUR SUPPORT
AREA
HOW TO CONNECT SPD PHONES
Connect Jig to cable correct way as I
show you above. Connect Power from
main cable to Phone. Select SPD tab
from software. Click on read ash/ Write
ash/Format etc. Select Proper Boot ac-
cording to you phone cpu. Don’t press
and hold power button (Keep in mind
SPD phones don’t need to press and
hold power buttons) click on run
There is Few type of SPD
phones which you must
need to select proper boot
for example SPD6600L.
SPD6610/20. SPD6800H etc.
so how to know which SPD
phone have SPD6600L CPU
or 6610/20
1st of all, Connect mobile with
digital power supply and do
not press power button
If you see your supply taking
.05 this mean your phone
is 6600LX (6600L7/6600L3
etc) series
If you see your supply taking
.03 this mean your phone is
661X (6610/6620 etc) series
SPD 6610
How to connect Mstar Phones
If your phone show 0.05 then
you phone should be 6600L or
6800h etc. and if your phone
show 0.03 then your phone
should be SPD6610/20 so
please check boots. If you got
any other problem just check
our support area.
When you connect any SPD
phone 1st time then it will ask
for drivers. Please Install Lat-
est SPD drivers from (for 32bit
system) C:\Program Files\
Volcano Team\VolcanoBox\
Drivers\Phone Drivers\SPD
New Drivers 1.5.6.1\x86\
driver (for 64bit system) C:\
Program Files\Volcano Team\
VolcanoBox\Drivers\Phone
Drivers\SPD New Drivers
1.5.6.1\x64\driver
Connect Jig to cable correct
way as I show you above.
Connect Power from main
cable to Phone. Select
Mstar tab from Volcano box
software. Click on Read Flash/
Write Flash/Format etc. Press
and hold Power Button from
Phone keyboard. Click on
Run. It will done.
When you connect Mstar
phone 1st time it will install
Drivers. If still failed to install
drivers then give path from C:\
Program Files\Volcano Team\
VolcanoBox\Drivers\Phone
Drivers\Mstar 2
SPD 6610

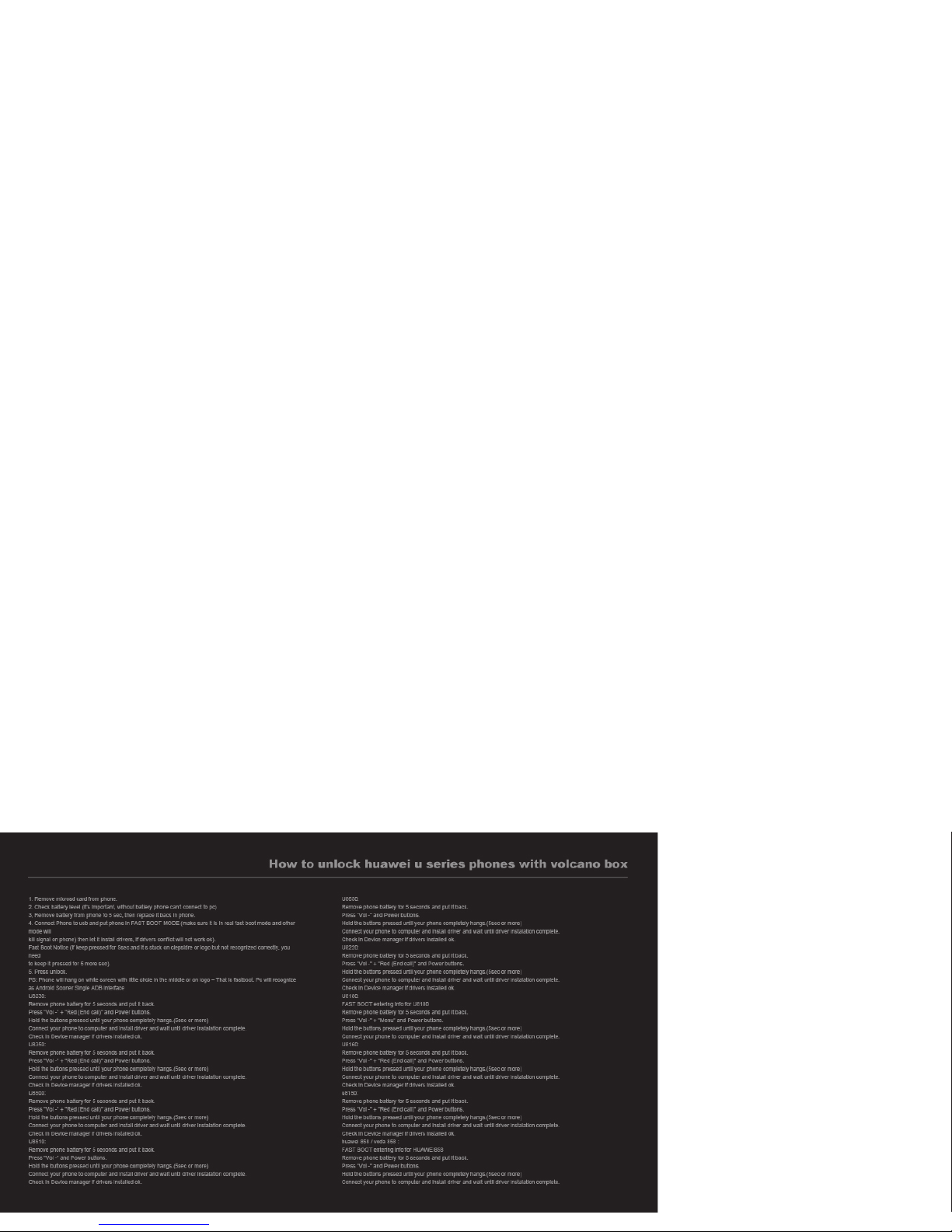

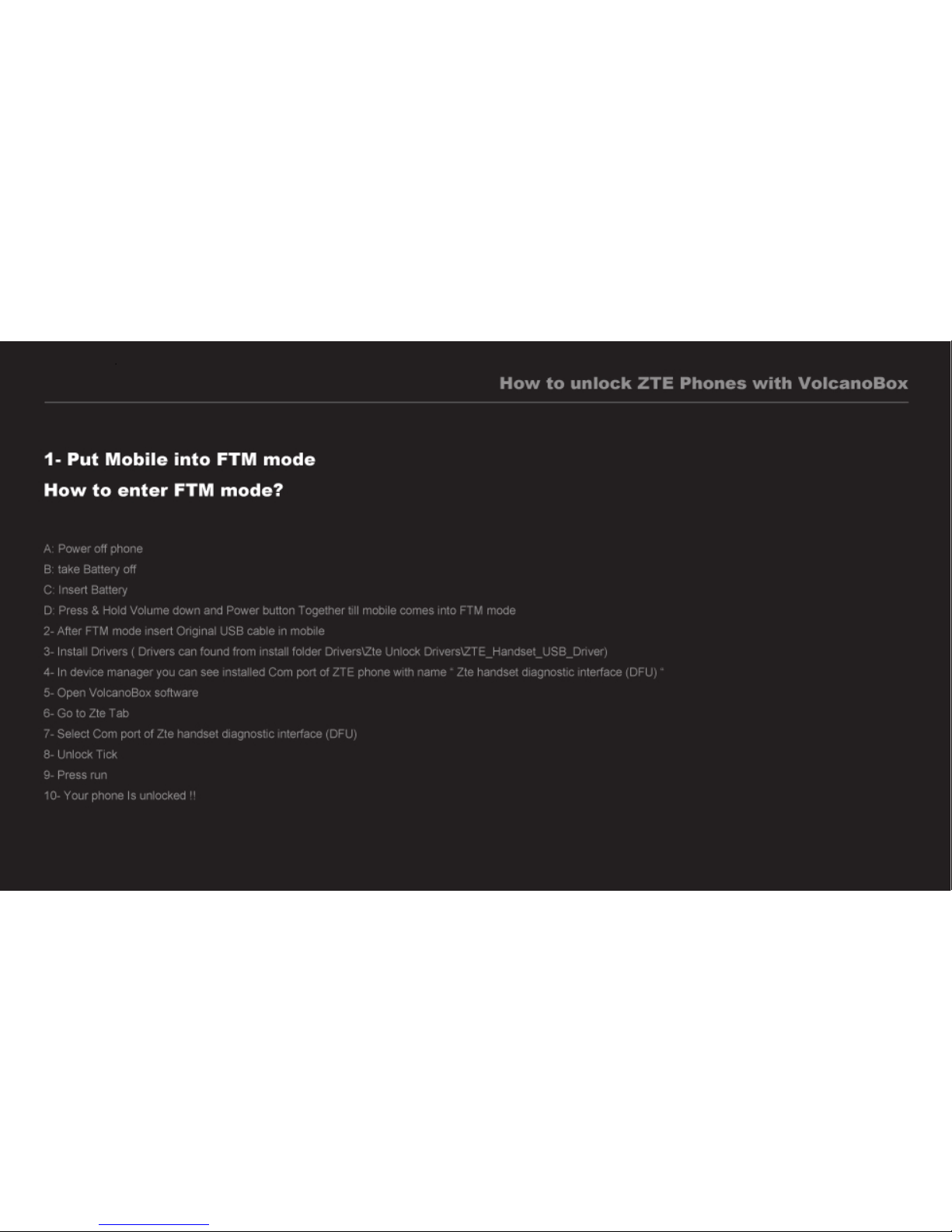

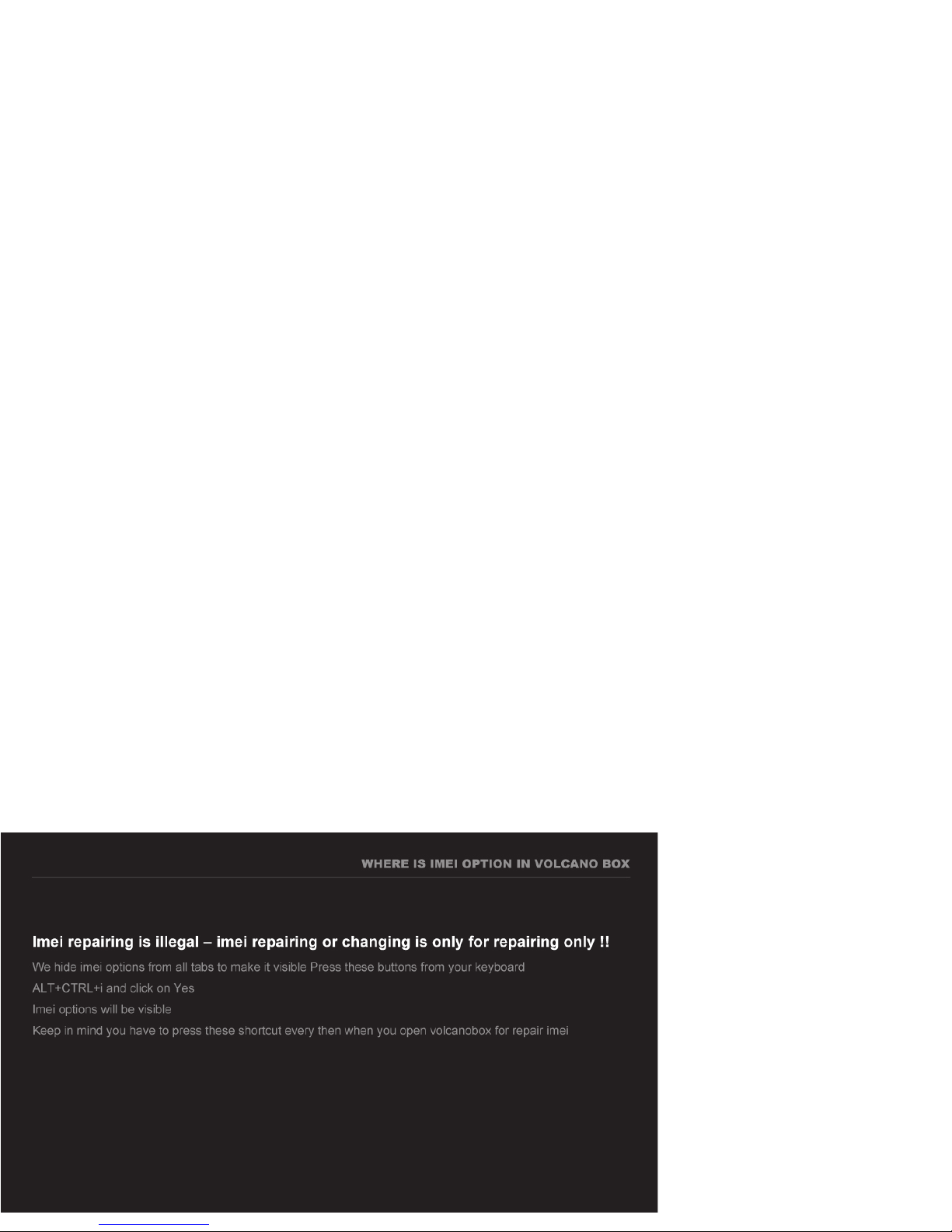

This is Basic Guide
for all Volcano Box
users….
We Will Create more
Advance Tutorial
Shortly…
