F1000-UPS OWNER’S MANUAL
F1000-UPS GUIDE DE L’UTILISATEUR
F1000-UPS MANUAL DEL PROPIETARIO

4
F1000-UPS OWNER’S MANUAL
FURMAN’S F1000-UPS FEATURES
• SMP (Series Multi-Stage Protection) Surge Protection
• LiFT (Linear Filtering Technology) Noise Filtration
• EVS (Extreme Voltage Shutdown) Voltage Protection
• Dual Learning IR Output Controls
• RS-232 with Open Source Code Protocol
• Fully Programmable
• Power Management Software Included
• USB Interface
• Critical Load Management
INTRODUCTION
Thank you for purchasing a Furman F1000-UPS Uninterruptible Power Supply, and congratulations on your choice. The F1000-
UPS Uninterruptible Power Supply features Furman’s revolutionary Series Multi-Stage Protection (SMP) circuit, Extreme Voltage
Shutdown (EVS), and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our
customers have come to expect from Furman - uncompromised AC protection and purification. Our F1000-UPS has been precisely
engineered to exceed the critical demands of audio/video professionals, contractors, broadcasters, and musicians alike.
SMP (SERIES MULTI-STAGE PROTECTION)
Furman’s SMP surge suppression virtually eliminates service calls and costly “down time”. Traditional surge suppression circuits
sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system and repair of your
surge suppressor. Not so with Furman’s SMP. Damaging transient voltages are safely absorbed, clamped, and dissipated. Your
connected equipment is protected, while your Furman protects itself!
Unique to Furman’s SMP is its unparalleled clamping voltage, defined as the amount of voltage that is allowed to pass through to
your equipment when the protection device is subjected to a transient surge or spike. While other designs offer clamping voltages
that are well above 330 Vpk, Furman’s SMP clamps at 188 Vpk, (133 VAC RMS) even when tested with multiple 6000 Vpk - 3000
amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.
EVS (EXTREME VOLTAGE SHUTDOWN)
Furman’s trusted over/under-voltage (EVS) circuitry protects against prolonged overvoltage conditions, such as accidental connec-
tions to 208 or 240 VAC, or an intermittent neutral. It does so by monitoring the incoming voltage and, when an unsafe condition is
detected, triggering a relay which shuts off the incoming power until the over/under-voltage condition is corrected.
LIFT (LINEAR FILTERING TECHNOLOGY)
Unfortunately, traditional AC power conditioners have been designed for unrealistic laboratory conditions. Prior technologies,
whether multiple-pole or conventional series-mode filters, could actually harm audio and video performance more than they help, due
to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than
10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destruction of sensitive
digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s
LiFT takes a different approach, ensuring optimal performance through linear AC noise filtering with no ground contamination.
SAFETY INFORMATION
Before you begin unpacking your unit, Inspect the F1000-UPS upon receipt. In addition to this manual the box should contain the
following:
1. F1000-UPS Unit
2. DB 9 Serial Cable
3. Rack Mounting Kit
4. Power Control Software CD
5. USB Cord

5
FRANÇAIS
ENGLISH ESPAÑOL
IMPORTANT SAFETY INSTRUCTIONS
(Please read prior to installation)
This manual contains important instructions that should be followed during installation and maintenance of the F1000-UPS and
batteries.
Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before
attempting to unpack, install, or operate.
CAUTION! The F1000-UPS must be connected to an AC power outlet with fuse or circuit breaker protection.
DO NOT plug the machine into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the
F1000-UPS.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT!
Furman does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect opera-
tion or safety of any life support equipment, with any medical applications, or patient care.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected.
CAUTION! To prevent the risk of fire or electric shock install in a temperature and humidity controlled indoor area, free of con-
ductive contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before installing a component.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near aquariums. Condensa-
tion from the aquarium can come in contact with metal current contacts and cause the machine to short out.
NOTE: AC Power management devices, such as a UPS, have certain limitations with regard to reactive loads and wattage. The
F1000-UPS has a handling capacity of 1000VA or approximately 5 amps. Excessive power consumption beyond these specifica-
tions can affect battery life and performance.
INSTALLATION
Your new F1000-UPS may be used immediately upon receipt. However, recharging the battery for at least six to eight hours is
recommended to insure that the battery’s maximum charge capacity is achieved. Charge loss may occur during shipping and
storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the ON as well as the
OFF position. If you wish to use the software, connect the enclosed USB cable to the USB port on the F1000-UPS and an open
USB port on the computer.
With the F1000-UPS unit OFF and unplugged, plug your equipment into the unit’s rear panel AC outlets. DO NOT plug a space
heater, vacuum cleaner, paper shredder or other large electrical device into the F1000-UPS. The power demands of these de-
vices will overload and possibly damage the unit.
Plug the F1000-UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a
fuse or circuit breaker and does not service equipment with large electrical demands (e. g. refrigerator, copier, etc.) Avoid using
extension cords. If used, the extension cord must be UL or CSA Listed, minimum 14 AWG, 3-wire grounded, and rated for 15
Amps.
Press and hold the power switch for 2 seconds to turn the F1000-UPS on. The display will say “Initializing”, followed by the normal
operation screen.
The rear panel circuit breakers will open and power to the connected equipment will be turned OFF if an overload is detected.
To correct this, turn the F1000-UPS off, unplug at least one piece of equipment, wait 10 seconds, check to make sure that the
circuit breakers are reset, and turn the unit on.
The F1000-UPS will automatically charge the battery whenever it is plugged into an AC outlet.
To maintain optimal battery charge, leave the F1000-UPS plugged into an AC outlet at all times.

6
F1000-UPS OWNER’S MANUAL
NOTE: To store your F1000-UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery
every three months to ensure battery life.
OPERATION
FRONT PANEL DESCRIPTION
Power Switch
Press and hold the power button for 2 seconds to turn the F1000-UPS ON or OFF.
Menu Navigation Knob
Rotate clockwise to navigate to the next screen, counter-clockwise to return to the previous screen, push to select menu item.
IR Detector
IR Detector, for sampling IR remote control signals.
Removable Battery Access Panel
Easy to remove for battery access and replacement.
FRONT PANEL DISPLAY LED DESCRIPTIONS
Status Display
LCD displays status and menu navigation items
Outlet Bank 1 Indicator
Illuminated blue when outlet bank 1 is switched on
Outlet Bank 2 Indicator
Illuminated blue when outlet bank 2 is switched on
Line Fault Indicator
This LED will illuminate in red to warn the user that a wiring problem such as a bad/missing ground or reversed wiring exists within
the AC receptacle. If illuminated, disconnect all equipment and contact an electrician to insure outlet is properly wired.
REAR PANEL DESCRIPTION
Outlet Bank 1 - Critical Load Outlets
Four battery powered, SMP protected outlets for critical-load equipment insures temporary uninterrupted operation of connected
equipment during a power failure.
Outlet Bank 2 - Non-Critical-Load Outlets
Four battery powered, SMP protected outlets for connected equipment insures temporary uninterrupted operation of connected
equipment during a power failure. These outlets will shut off when the batteries drain to a designated level to reserve remaining bat-
tery charge for the critical load outlets.
IR Control Section
Indicator LED’s – Indicates status
IR Output Jacks – Standard 1/8” (3.5mm) mono jack for connection to an IR flasher (IR flashers not included)
Circuit Breakers for Overload Protection
Resettable circuit breakers provide optimal overload protection.
RS-232 Serial Communication Port
The serial port allows connection and communication between the F1000-UPS and an automation or computer system. This allows
the installer to program a number of variables including the Critical Load Battery Threshold.
See the software documentation for more information.
AC Power Cord
Captive, heavy-duty shielded power cord.
USB to Computer
USB port allows communication between F1000-UPS and computer.

7
FRANÇAIS
ENGLISH ESPAÑOL
Setup Mode
The setup menu allows the user to adjust several of the operating parameters of the unit.
Please refer to diagrams on page 53 for a detailed map of the menu structure.
Setup Menu Navigation
Clockwise (CW) rotation of the navigation dial advances the menu to the next item. If the menu is at the last item, SYSTEM INFO,
return to Normal Operation Mode.
Counter clockwise (CCW) rotation of the navigation dial sends the menu to the previous item. If the menu is at the first item,
DISPLAY BRIGHTNESS, return to Normal Operation Mode.
Pressing the navigation dial selects the current menu item.
If there is no activity of the navigation dial for 60 seconds, the menu will automatically return to Normal Operation Mode.
Parameter Selection and Adjustment
CW rotation of the navigation dial INCREASES the selected parameter, or advances to the NEXT available value.
CCW rotation of the navigation dial DECREASES the selected parameter, or goes back to the PREVIOUS value.
Pressing the navigation dial selects the current parameter value.
If there is no activity of the navigation dial for 60 seconds, return to Normal Operation Mode.
If the BACK parameter is selected, return to the menu item selection.
Display Brightness
Display Brightness adjusts the brightness of the display backlight.
Display Scroll Mode
If enabled, the display will automatically advance to the next screen every 5 or 10 seconds.
Display Sleep Mode
With Display Sleep Mode enabled, the Display will go to the lowest brightness setting (25%) after the designated time of inactivity
of the Navigation Dial {30 SEC, 60 SEC }.
OPERATING MODES
Normal Operation (Utility Power) Mode
When connected to a live power source, the F1000-UPS provides power and is ready to provide protection from under- and over-
voltages.
Rotate the navigation dial to scroll through the screens.
Automatic Voltage Regulation (AVR) Mode
Sensitive AVR: when receiving input voltages of 99 VAC – 135 VAC, the F1000-UPS supplies a regulated voltage of
120 VAC ± 5%.
Standard AVR: when receiving input voltages of 94 VAC – 142 VAC, the F1000-UPS supplies a regulated voltage of
120 VAC ± 10%.
OFF: AVR is disabled. No voltage correction.
UPS Mode
In the event of a loss of power to the unit, over-voltage, or under-voltage, the F1000-UPS will function as a battery back-up. An
audible alarm will sound and the display will indicate the fault as well as the number of minutes of battery life remaining.

8
F1000-UPS OWNER’S MANUAL
The display will return to the set brightness level upon entering Setup Mode, or UPS Mode.
Automatic Regulation Setup
Setup for Automatic Voltage Regulation parameters.
Outlet Bank 2 Setup
Adjusts the battery charge threshold in which Outlet Bank 2 is shut off to conserve power for the critical loads connected to Outlet
Bank 1. If set to OFF, Outlet Bank 2 will shut off immediately when the unit goes into UPS Mode.
IR1 Control Setup
IR1 Control Setup is a two-step process in which the IR remote control signal is sampled, and tested by outputting the learned signal
on the output jack.
IR Output Delay
IR Output Delay is the time delay before outputting the IR signals on the IR output jacks after the unit goes into UPS mode.
IR Output Delay time starts at 0 sec, incremented in 5 sec intervals, with a maximum value of 60 sec.
Setup Buzzer Mode
Change the UPS BUZZER MODE to set it to on or off.
UPS Test Mode
UPS Test Mode places the unit in UPS Mode temporarily to verify that the UPS inverter can adequately supply the connected load.
System Info
Displays the brand, model number and firmware revision
ADVANCED OPERATION
A connection to a UPS can benefit projector bulbs, server based products, and units with volatile electronic memories found in but
not limited to Pro Audio, Broadcast, and High-End Home Theater equipment. The F1000-UPS takes this to the next level with a num-
ber of features designed specifically for AC Power back up applications.
Critical Load Function
One of the user programmable settings in the F1000-UPS software is the Low Battery Non-Critical Load (NCL) Shutoff threshold.
This sets the battery capacity level at the point where the NCL outlets are turned off and all remaining battery power is reserved
for equipment plugged into the 4 critical load outlets. This value is stored internally by the UPS and is not dependent on having the
software running on a computer.
Patent-pending Learning IR Control
The learning IR function lets you program the F1000-UPS to send standby or shut-down commands to components such as DLP
ceiling projectors. If the power fails, the projector’s lamps are turned off while the F1000-UPS continues providing battery power to
the projector’s cooling fan. Proper shutdown is ensured and expensive lamps are protected from damage.
NOTE: This function should only be used with discrete IR codes. Programming an On/Off toggle command could result in the equip-
ment being turned ON during a power failure!
IR Power Failure Operation
The F1000-UPS can learn two IR commands. The learned commands will be transmitted on both output jacks so you have the ability
to control 2 different pieces of equipment or use a 2-step macro for one component.
1. After a power failure and the selected delay, the IR codes will be sent to both outputs. The IR LED’s will flash once per second dur-
ing the delay time and will stop flashing after the IR code is sent.
2. If the delay settings are the same for both IR1 and IR2, the IR2 code will be sent to both outputs 2 seconds after IR1.
3. The IR commands will also be transmitted immediately after the battery charge falls below the critical load battery threshold. This
ensures that equipment will be shutdown properly if the F1000-UPS’s load level is extremely high and the backup time would be less
than the selected IR output delay.
4. There is no IR output after the power is restored to the system.

9
FRANÇAIS
ENGLISH ESPAÑOL
To program IR output:
1. From the setup menu, turn the Menu Navigation Knob until IR1 Setup is displayed. Push the Menu Navigation Knob to
select.
2. Turn the Menu Navigation Knob until IR1 Program is displayed.
3. The screen will display the message “READY TO SAMPLE REMOTE”. Press the button on the remote.
4. If the signal was learned, then the screen will display the message “IR1 SAMPLED” and advance to the “TEST IR” screen.
Press the navigation knob to test.
5. If the signal was not learned, the screen will display the message “IR1 SAMPLE FAIL”, then it will return to the IR1 Pro
gram screen. Repeat steps 3 and 4.
6. To program another IR device, from the Setup menu, turn the Menu Navigation Knob until IR2 Setup is displayed. Follow
steps 3-5.
RS-232 Communications Protocol & Command Set
The RS-232 serial interface can be used in the following ways:
1. Initial system setup. An installer can use a notebook computer to set the variables within the Power Control software. Once the
setup is completed, the notebook computer can be disconnected. All settings are stored in the F1000-UPS.
2. Connection to a PC or Network: Functionality is very similar to a standard UPS with a PC.
The F1000-UPS can provide continued power to maintain recording capabilities of any number of devices in the event of a black
out or brown out. It is also capable of saving open documents and shutting down the PC during extended power failures. This
requires a permanent RS-232 connection to the PC and having the Power Control software running in the background on the PC.
(Windows based OS only; Mac Energy Saver software compatible)
3. Integration with sophisticated automation systems like AMX and Crestron:
The serial communications command set and protocol is open and is published later in this manual. This information can be used
by the automation system programmer for both F1000-UPS control by the automation system and reporting of power events by
the F1000-UPS to the automation system.
Communications Protocol
Connector Pin-out: Pin 2, Transmit. The F1000-UPS transmits data on this pin.
Pin 3, Receive. The F1000-UPS receives data on this pin.
Pin 5, SG (signal ground).
Baud Rate: 2400bps
Start Bits: 1
Data Bits: 8
Stop Bits: 1
Parity: None
Flow Control: None
Controller Commands
Commands and responses are in the form of ASCII character strings terminated with a carriage return <CR> ASCII character 13
(hex). If the state variable LINEFEED MODE = ON, a linefeed character (<LF>, 0Ah, 10d) will follow the carriage return.
Incoming messages (to the F1000-UPS) shall be terminated with one of the following characters: NUL (00h, 00d), carriage
return (<CR>, 0Dh, 13d) or line feed (<LF>, 0Ah, 10d).
The F1000-UPS shall discard the incoming message under the following conditions:
The message overruns the receiver buffer (32 characters).
No terminating character (NUL, <CR>, <LF>) is received within 500ms of receipt of the last character.
The following are commands sent by the controlling equipment to the F1000-UPS.
NOTE: Responses are only transmitted if unsolicited feedback is enabled (!SET_FEEDBACK)
Pin 2 -Transmit
Pin 3 - Receive Pin 3 - Receive
Pin 2 -Transmit
1
6
2
7
3
8
4
9
5
1
6
2
7
3
8
4
9
5Pin 5 - Signal Ground
RS232 Pin-out

10
F1000-UPS OWNER’S MANUAL
ALL ON
Turns on all outlets. Turn on is immediate with no delay.
Send to UPS: !ALL_ON<CR>
If power is not switched off due to low battery conditions:
Action: Turn on Outlet Bank 1
Response from UPS: $BANK 1 = ON<CR>
If UPS battery level > Shutoff Threshold
Action: Turn on Outlet Bank 2
Response from UPS: $BANK 2 = ON<CR>
If UPS battery level < Shutoff Threshold
Action: Turn off Outlet Bank 2
Response from UPS: $BANK 2 = OFF<CR>
$BATTERY = charge%<CR>
Action: Activate Power Button
Response from UPS: $BUTTON = ON<CR>
ALL OFF
Turns off all outlets. Turn off is immediate with no delay.
Send to UPS: !ALL_OFF<CR>
Action: All outlets will turn off
Response from UPS: $BANK 1 = OFF<CR>
Response from UPS: $BANK 2 = OFF<CR>
Response from UPS: $BUTTON = OFF<CR>
SWITCH OUTLET BANK
Turns a specific outlet bank on or off. Switching is immediate with no delay.
Send to UPS: !SWITCH bank state<CR>
bank = {1, 2}
state = {ON, OFF}
Example: !SWITCH 2 ON<CR> (turns on outlet bank 2)
If power to bank 1 is switched:
Action: Switch power to Outlet Bank 1
Response from UPS: $BANK 1 = state<CR>
If power to bank 2 is switched AND battery level > Shutoff Threshold:
Action: Switch power to Outlet Bank 2
Response from UPS: $BANK 2 = state<CR>
If UPS battery level > Shutoff Threshold
Action: Turn on Outlet Bank 2

11
FRANÇAIS
ENGLISH ESPAÑOL
Response from UPS: $BANK 2 = ON<CR>
If UPS battery level < Shutoff Threshold
Action: Turn off Outlet Bank 2
Response from UPS: $BANK 2 = OFF<CR>
$BATTERY = charge%<CR>
If power button is OFF and state is changed to ON
Action: Activate Power Button
Response from UPS: $BUTTON = ON<CR>
If entered bank or state are invalid
Response from UPS: $INVALID_PARAMETER<CR>
SET BANK 2 THRESHOLD
Sets the battery level threshold in which Outlet Bank 2 shuts off.
Send to UPS: !SET_BATTHRESH level<CR>
level is a number between 20 and 100 represents the battery charge level where Outlet Bank 2 is shut off to the reserve re-
maining battery charge for the equipment connected to Outlet Bank 1. level shall be rounded up to the nearest interval of 10.
If level is >19 AND level <101
Action: SHUTOFF THRESHOLD will be set to a value between 20 and 100.
Response from UPS: $BTHRESH = level<CR>
If specified level is invalid
Action: No action will be taken
Response from UPS: $INVALID_PARAMETER<CR>
SET BUZZER MODE
With Buzzer Mode ON, the buzzer will sound during UPS Mode.
Send to UPS: !SET_BUZZER mode<CR>
mode = {ON, OFF}
If specified mode is invalid
Action: No action will be taken, UPS will request a valid mode setting
Response from UPS: $INVALID_PARAMETER<CR>
$BUZZER = mode<CR>
SET AVR MODE
Sets AVR (Automatic Voltage Regulation) MODE.
Command: !SET_AVR mode<CR>
mode = {OFF, STANDARD, SENSITIVE}
If specified mode is invalid
Action: No action will be taken, UPS will request a valid mode setting

12
F1000-UPS OWNER’S MANUAL
Response from UPS: $INVALID_PARAMETER<CR>
$AVR = mode<CR>
SET FEEDBACK MODE
Sets the feedback mode to ON (unsolicited) or OFF (polled).
When ON, a message will be sent to the controller every time the status of an input (i.e. button), output (i.e. outlet) or power state
(i.e. overvoltage) changes.
If feedback is OFF, the controller must request status with a query (see Queries section for more details).
Send to UPS: !SET_FEEDBACK mode<CR>
mode = {ON, OFF}
If specified mode is invalid
Action: No action will be taken, UPS will request a valid mode setting
Response from UPS: $INVALID_PARAMETER<CR>
$FEEDBACK = mode<CR>
SET LINEFEED MODE
With LINEFEED MODE set, a linefeed character (<LF>, 10d, 0Ah) is appended to each response.
Send to UPS: !SET_LINEFEED mode<CR>
mode = {ON, OFF}
If specified mode is invalid
Action: No action will be taken, UPS will request a valid mode setting
Response from UPS: $INVALID_PARAMETER<CR>
$LINEFEED = mode<CR>
SET METER BRIGHTNESS
Sets the LCD display and outlet bank indicator brightness.
Send to UPS: !SET_BRIGHT xxx<CR>
xxx = {100, 075, 050, 025}
If specified brightness setting is invalid
Action: No action will be taken, UPS will request a valid brightness setting
Response from UPS: $INVALID_PARAMETER<CR>
$BRIGHTNESS = xxx<CR>
SET DISPLAY SCROLL MODE
Sets the LCD display SCROLL mode
Send to UPS: !SET_SCROLLMODE xxx<CR>
xxx = {5SEC, 10SEC, OFF}
If specified display scroll mode is invalid
Action: No action will be taken, UPS will request a valid mode setting
Response from UPS: $INVALID_PARAMETER<CR>
$SCROLL_MODE = xxx<CR>

13
FRANÇAIS
ENGLISH ESPAÑOL
SET DISPLAY SLEEP MODE
Sets the LCD display SLEEP mode
Command: !SET_SLEEPMODE xxx<CR>
xxx = {30SEC, 60SEC, OFF}
If specified display sleep mode is invalid
Action: No action will be taken, UPS will request a valid mode setting
Response from UPS: $INVALID_PARAMETER<CR>
$SLEEP_MODE = xxx<CR>
RESET FACTORY SETTINGS
Resets all of the custom configuration settings
Send to UPS: !RESET_ALL<CR>
Action: Sets all state variables to the default values
Response from UPS: $FACTORY SETTINGS RESTORED<CR>
SEND QUERIES
IDENTIFY
Request that the unit identify itself.
Send Query to UPS: ?ID<CR>
Action: Model number and firmware revision will be provided.
Response: $FURMAN<CR>
$F1000-UPS<CR>
$FIRMWARE revision<CR>
OUTLET STATUS
Requests the on/off status of the outlet banks
Send Query to UPS: ?OUTLETSTAT<CR>
status = {ON, OFF}
Action: On/off status for outlets will be provided.
Response: $BANK1 = status<CR>
$BANK2 = status<CR>
POWER STATUS
Requests the status of the input voltage. The responses are the same as Power Fault Status Change.
Send Query to UPS: ?POWERSTAT<CR>
Action: Power status messages will be returned
Response: Normal operation
$PWR = NORMAL<CR>
Overvoltage $PWR = OVERVOLTAGE<CR>
Undervoltage $PWR = UNDERVOLTAGE<CR>
Lost Power $PWR = LOST POWER<CR>
Test Mode $PWR = TEST<CR>

14
F1000-UPS OWNER’S MANUAL
VOLTAGE
Requests the input and output voltages
Send Query to UPS: ?POWER<CR>
Action: Voltage status messages will be displayed
Response: $VOLTS_IN = vvv<CR>
$VOLTS_OUT = vvv<CR>
$WATTS = xxxx<CR>
$VA = xxxx<CR>
xxx is expressed in decimal format. If the value is less than 100, the hundreds digit is represented with a 0. For example a line volt-
age of 92VAC would be expressed as: $VOLTAGE = 092<CR>
LOAD LEVEL STATUS
Requests the load level, expressed as percentage of maximum.
Send Query to UPS: ?LOADSTAT<CR>
Action: Load level will be displayed
Response: $LOAD = xxx<CR>
xxx is the load level (percentage of maximum load) expressed in decimal format. If the value is less than 100, the hundreds digit is
represented with a 0.
BATTERY LEVEL STATUS
Requests the battery level, expressed as a percentage of maximum (full charge).
Send Query to UPS: ?BATTERYSTAT<CR>
Action: Load level will be displayed
Response: $BATTERY = xxx<CR>
xxx is the battery charge level (percentage of maximum charge) expressed in decimal format. If the value is less than 100, the hun-
dreds digit is represented with a 0.
LIST CONFIGURATION
Requests a list of all configurable parameters and current settings.
Send Query to UPS: ?LIST_CONFIG<CR>
Action: List of configurable parameters and current settings will be displayed.
Response: $BTHRESH = level<CR>
$BUZZER = mode<CR>
$AVR = mode<CR>
$FEEDBACK = mode<CR>
$LINEFEED = mode<CR>
$BRIGHTNESS = xxx<CR>
$SCROLL_MODE = xxx<CR>
$SLEEP_MODE = xxx<CR>

15
FRANÇAIS
ENGLISH ESPAÑOL
LIST OF ALL COMMANDS AND QUERIES
Send Query to UPS: ?HELP<CR>
Action: List of all commands and queries will be displayed
Response: !ALL_ON<CR>
!ALL_OFF<CR>
!SWITCH<CR>
!SET_BATTHRESH<CR>
!SET_BUZZER<CR>
!SET_AVR<CR>
!SET_FEEDBACK<CR>
!SET_LINEFEED<CR>
!RESET_ALL<CR>
!SET_BRIGHT<CR>
!SET_SCROLLMODE<CR>
!SET_SLEEPMODE<CR>
?ID<CR>
?OUTLETSTAT<CR>
?POWERSTAT<CR>
?VOLTAGE<CR>
?LOADSTAT<CR>
?BATTERYSTAT<CR>
?LIST_CONFIG<CR>
?HELP<CR>
RESPONSES & MESSAGES
OUTLET STATUS CHANGE
CONDITION RESPONSE
Outlet Bank 1 changes state $BANK1 = status<CR>
Outlet Bank 2 changes state $BANK2 = status<CR>
status = {ON, OFF}
POWER BUTTON STATUS CHANGE
CONDITION RESPONSE
Power Button changes ON/OFF status $BUTTON = status<CR>
status = {ON, OFF}
POWER FAULT STATUS CHANGE
CONDITION RESPONSE
Overvoltage State $PWR = OVERVOLTAGE<CR>
Undervoltage State $PWR = UNDERVOLTAGE<CR>
Lost Power State $PWR = LOST POWER<CR>
Test Mode $PWR = TEST<CR>
Recovery Mode $PWR = RECOVERY<CR>
Normal Operation Mode $PWR = NORMAL<CR>
Low Battery $LOWBAT<CR>
AVR Stage $AVRSTATE = state<CR>
state = {BOOST, BUCK}
Remaining Backup Time $TIME = xxx<CR>
xxx = backup time
Battery State $BATTSTATE = xxx<CR>
xxx = {CHARGE, DISCHARGE, FULL}
Power Control Software
Complete Instructions are available by clicking on Help on the Power Control Software welcome screen.

16
F1000-UPS OWNER’S MANUAL
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following mea-
sures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be
specified in the instruction.
CAUTION: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the
nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect
I/O devices to this equipment.
CAUTION: Any changes or modifications not expressly approved by the guarantee of this device could void the user’s authority to
operate the equipment.
SERVICE
If you require technical support or equipment service, please contact the Furman Service Department at 877-486-4738. You may
also email [email protected].
All equipment being returned for repair must have a Return Authorization (RA) number. To get an RA number, please call the Fur-
man Service Department.
Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment,
and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please
enclose a note giving your name, address, phone number and a description of the problem.

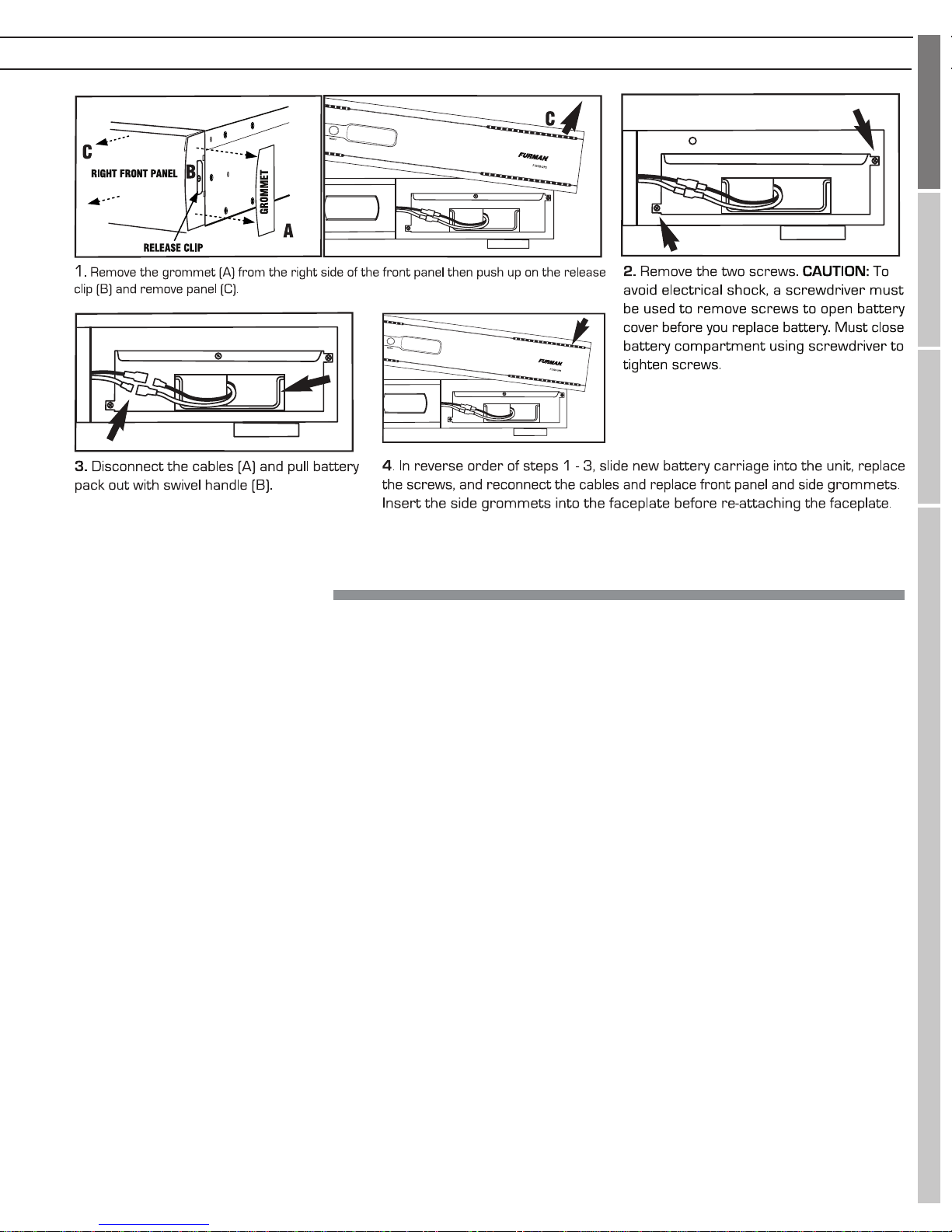

FACEPLATE REMOVAL AND BATTERY REPLACEMENT
CAUTION: RISK OF ENERGY HAZARD! 12V, maximum 9 Ampere-hour batteries. Before replacing batteries, remove conductive
jewelry such as chains, wrist watches and rings. High energy through conductive materials could cause severe burns.
CAUTION: DO NOT dispose of batteries in a fire. The batteries may explode.
CAUTION: DO NOT open or mutilate batteries. Released material is harmful to the skin and eyes and may be toxic.
CAUTION: To reduce risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit overcurrent protec-
tion in accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION: To avoid electric shock, turn off the unit and unplug it from the AC power source before servicing battery.
CAUTION: To avoid electric shock, a screwdriver must be used to remove screws to open battery cover before replacing bat-
tery carriage. Must close battery compartment using a screwdriver to securely tighten screws before turning on or plugging
in the unit.

17
FRANÇAIS
ENGLISH ESPAÑOL
3 YEAR LIMITED WARRANTY
SAVE YOUR SALES RECEIPT! Your receipt is your proof of purchase and confirms the product was purchased at an authorized
Furman dealer. It will need to be submitted to Furman in order to process any warranty claims.
Please contact Furman Customer Service for information regarding 2-year Battery Warranty and used battery recycling/dis-
posal program and rules.
Furman, a brand of Panamax Inc., warrants its F1000-UPS (the “Product”) as follows:
Furman warrants to the original Purchaser of the Product that the Product sold hereunder will be free from defects in material
and workmanship for a period of three year from the date of purchase. If the Product does not conform to this Limited Warranty
during the warranty period (as herein above specified), Purchaser shall notify Furman of the claimed defects by calling 707-763-
1010. If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize Purchaser to return
the Product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice show-
ing the purchase date. Shipping charges to Furman headquarters must be prepaid by the Purchaser of the product. Furman
shall, at its own expense, furnish a replacement Product or, at Furman’s option, repair the defective Product. Return shipping
charges back to Purchaser will be paid by Furman.
THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Furman does not warrant against damages or defects arising out of improper or abnormal use of handling of the Product, or
against defects or damages arising from improper installation. This warranty shall be cancelable by Furman at its sole discretion
if the product is modified in any way without written authorization from Panamax Inc. This warranty also does not apply to Prod-
ucts upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman.
THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective Prod-
uct in the manner and for the period provided above. Furman shall not have any other obligation with respect to the Products or
any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this
Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. This Limited Warranty
states the entire obligation of Furman with respect to the Product. If any part of this Limited Warranty is determined to be void
or illegal, the remainder shall remain in full force and effect.
B
A
NOTE: Recharge the UPS unit for 4-8 hours to ensure the battery backup performs expected runtime.

18
F1000-UPS OWNER’S MANUAL
SPECIFICATIONS
INPUT
Voltage: 85 – 137 Vac
Frequency: 57 – 63 Hz
AC POWER
Surge Protection: Non-sacrificial SMP (Series Multi-Stage Protection)
Current Rating: 12 A
Overvoltage Shutoff, fast rise: 150 ± 5 V
Overvoltage Shutoff, slow rise: 132 ± 5 V
Undervoltage Shutoff: 90 ± 5 V
Noise Attenuation: 10 dB @ 10kHz, 40 dB @ 100 kHz, 50 dB @ 500kHz
Linear Attenuation Curve: From 0.05 - 100 Ohms line impedance
Automatic Voltage Regulation,
Sensitive Mode Capture Range: 99 – 135 V
Automatic Voltage Regulation,
Sensitive Mode Output Range: 120 ± 5%
Automatic Voltage Regulation,
Standard Mode Capture Range: 94 – 142 V
Automatic Voltage Regulation,
Standard Mode Output Range: 120 ± 10%
UPS OUTPUT
Voltage: 120 ± 5 V Simulated Sine Wave
Frequency: 60 Hz ± 1%
UPS Output Capacity: 1000VA, 600W @ 0.6pf
UPS Backup Time: 3 minutes at full load
Transfer Time: < 10ms
DIMENSIONS
Product: 4” H x 17” L x 13” W (w/feet)
3.5” H x 17” L x 13” W (w/o feet)
Weight: 36 lbs.

19
FRANÇAIS
ENGLISH ESPAÑOL
F1000-UPS FRONT PANEL
F1000-UPS REAR PANEL
Power Switch Rotary Knob For Menu
Infa-red Detector
Battery Access
PanelLCD Menu Display
Outlet Bank 1 Status
Indicator Outlet Bank 2 Status
Indicator
Line Fault indicator
Outlet Bank 1, Critical Load
Outlet Bank 2, Non-critial Load
Captive AC Power Cord
Infa-Red Control
Circuit Breakers
RS-232 Serial Port
USB Port

20
F1000-UPS GUIDE DE L’UTILISATEUR
CARACTÉRISTIQUES DU F1000-UPS DE FURMAN
• Protection contre les surtensions SMP (Series Multi-Stage Protection)
• Filtrage des parasites LiFT (Linear Filtering Technology)
• EVS (Extreme Voltage Shutdown)
• Double fonction d’apprentissage de commandes infrarouges
• Port RS-232 à code source libre
• Entièrement programmable
• Logiciel de gestion de l’alimentation inclus
• Interface USB
• Gestion de la charge critique
INTRODUCTION
Nous vous remercions d’avoir acheté un F1000-UPS onduleur de Furman et nous vous félicitons pour votre choix. La F1000-
UPS onduleur munis des circuits de protection contre les surtensions révolutionnaires de Furman, SMP (Series Multi-Stage
Protection) et EVS (Extreme Voltage Shutdown), et de notre technologie exclusive de filtrage des parasites LiFT (Linear Filtering
Technology). Ces technologies combinées incarnent exactement ce à quoi nos clients s’attendent de Furman, soit une protection
et une purification du courant AC sans compromis. Notre F1000-UPS onduleur a été conçue précisément pour excéder les
exigences pointues des professionnels de l’audio-vidéo, des entrepreneurs, des diffuseurs et des musiciens.
SMP (SERIES MULTI-STAGE PROTECTION)
La technologie SMP de Furman élimine presque entièrement les appels de service et les coûteuses minutes de pannes. Les
circuits de protections traditionnels contre les surtensions doivent être réparés lorsqu’exposés à des pointes de tension
transitoires, impliquant le démantèlement de votre système. Ce n’est pas le cas avec le circuit SMP de Furman. Les voltages
transitoires nuisibles sont absorbés, contraints et dissipés de façon sécuritaire. Votre équipement branché est protégé, tandis
que votre appareil Furman se protège lui-même!
Ce qui différencie le circuit SMP de Furman est sa contrainte du voltage imbattable, soit le niveau de voltage qui est transmis
à votre équipement quand le circuit de protection est soumis une pointe de tension transitoire. Tandis que d’autres circuits de
protection offrent une contrainte de voltage se situant bien au-delà de 330 Vpk, le circuit SMP de Furman amorce sa contrainte
à 188 Vpk (133 VCA RMS), même lorsque testé avec des surtensions à répétition de 6000 Vpk — 3000 A! Ce niveau de
protection sans précédent n’est offert qu’avec la technologie SMP de Furman.
EVS (EXTREME VOLTAGE SHUTDOWN)
Le circuit de protection contre les surtensions EVS éprouvé protège contre les surtensions prolongées, comme un branchement
accidentel dans une prise de 208 à 240 VCA, ou à un neutre intermittent. Pour y arriver, il surveille la tension électrique
entrante et, lorsqu’il détecte une situation dangereuse, déclenche un relai qui coupe l’alimentation jusqu’à ce que la surtension
soit éliminée et que l’alimentation soit rétablie.
LIFT (LINEAR FILTERING TECHNOLOGY)
Malheureusement, les modules filtres CA traditionnels ont été conçus pour être utilisés dans des conditions de laboratoire non
réalistes. Les vieilles technologies, que ce soit des filtres à pôles multiples de modes conventionnels, pouvaient en vérité nuire au
son et à l’image plus qu’elles n’aidaient à cause des pointes résonnantes issues d’une conception archaïque non linéaire. Dans
certaines conditions, ces technologies peuvent en fait ajouter plus de 10 dB de bruit à l’alimentation en CA! Pire encore, les
pointes de tension excessives et la contamination de la mise à terre par le bruit issu de l’alimentation en CA peuvent mener à la
perte de données, à la nécessité de redémarrer les préréglages numériques ou à la destruction de convertisseurs numériques
sensibles. La technologie LiFT de Furman emprunte une voie différente, assurant une performance optimale avec un filtrage
linéaire du bruit issu de l’alimentation en CA, sans contamination de la mise à terre.
