Furnotel FSEFB-0304 User manual

Single Head Contact Grill
Instruction Manual
FSEFB-0304
Shinelong International Co., Ltd
Web: http://www.furnotel.cn
E-mail: [email protected]
Fax:[phone]
TEL: [phone]
Address: 301,Building 1,Tian An Hi-tech Ecological
Park Panyu Avenue Panyu,Guangzhou,China

Single Head Contact Grill is electric heating products desktop pill the
latest development of our company, its unique style, the overall
structure is reasonable, convenient operation, small size, beautiful shape.
The thickened iron plate and the unique heating tube are uniformly
distributed. The temperature is fast, and the precise temperature
controller is controlled by temperature. The surface temperature
distribution is balanced to meet the needs of customers fully and quickly.
Luxurious appearance design, the structure is safe, has the thermal
insulation layer, safety. To improve the thermal efficiency. The furnace
produced fish balls, smooth, tender, crisp clip constantly, not only has
the taste of fish, fish flavor, and more absorbed, one person operation
are now sold, can also be sent outside the restaurant the hotel, shopping
malls, supermarkets, packaged and delivered, a good project.
This manual introduces the FSEFB-0304 Single Head Contact Grill. Please
read this manual carefully before use, in order to operate correctly and
use it to maximize the function of this product.
一、Performance Characteristics
1.An automatic scale controller is used to set the required temperature.
2.Adopt heat resistant, heat insulation material, double layer heat
insulation process design, safety, energy saving and high efficiency.
3.Fine iron balls of iron, each plate can only 28 balls, convenient and
practical.

二、Basic Parameter
Name
Single Head Contact Grill
Model
FSEFB-0304
Voltage
220-240V～/50Hz
Power
2 kW
Plate size(mm)
200 X 320 X 36
Proportional register
1
Temperature setting range
50℃~320℃
Dimension（mm）
255 X440 X 178

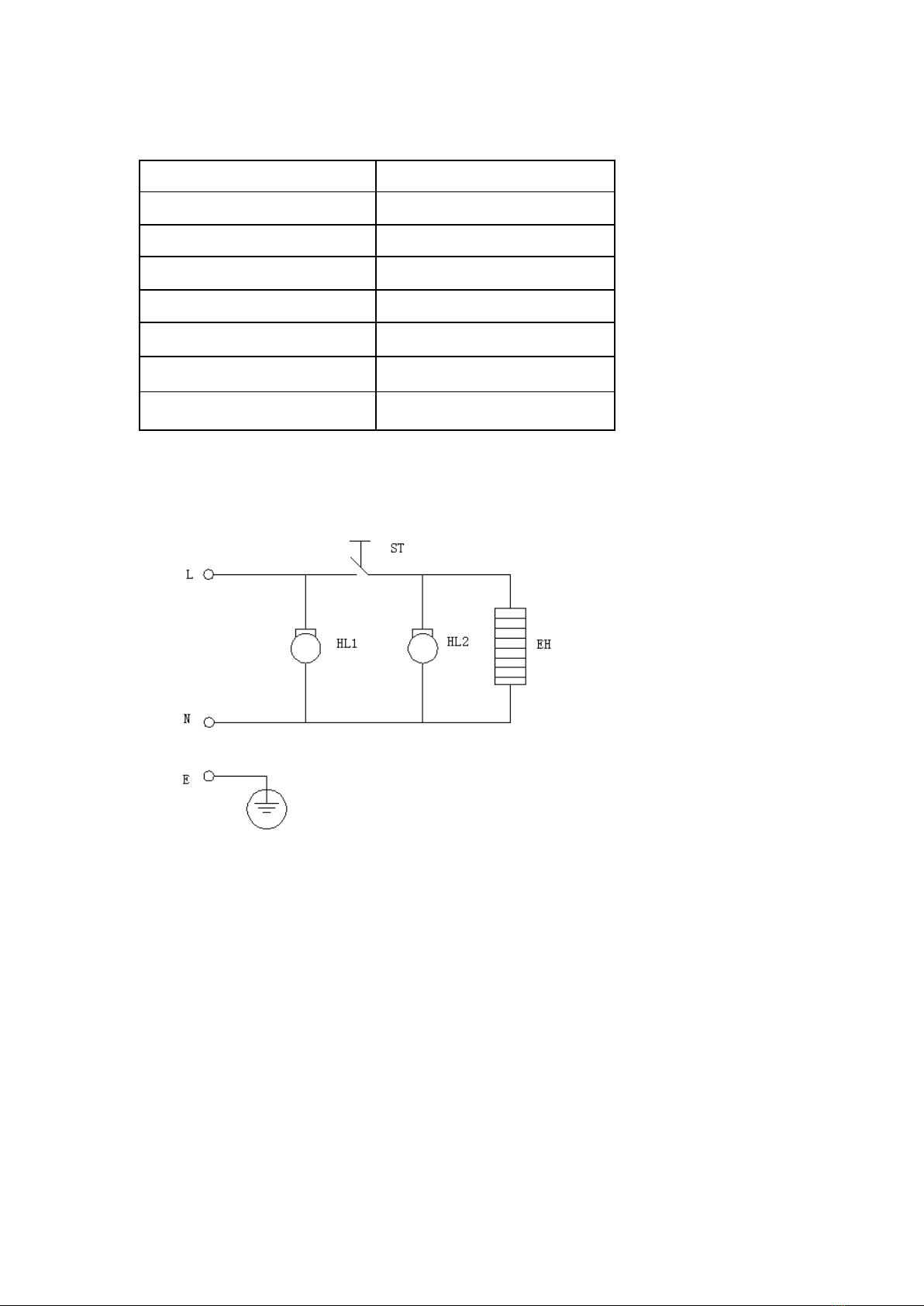

三、Schematic diagram of electrical equipment
ST-------Proportional device HL1---------Power indicator HL2---------Working light
EH-------Electrothermal tube E-------Housing earthing bolt
四、Operation instructions
1.The proportion of device is arranged on the furnace surface in front of
the power supply is switched on, the green light, clockwise rotation
respectively proportional actuator, the desired temperature value at the
required temperature, the yellow indicator light, the electric heating

tube to work, when the temperature rise to the required temperature,
automatically cut off the power supply of the thermostat, and the green
indicator light, yellow light goes out, the electric heating tube stops
working when the temperature decreased slightly, the thermostat will
automatically switch on the power, yellow light, green light, electric
heating tube heating recovery, temperature rise, this repeated cycle, to
ensure that the temperature in the range of set value constant.
2.The desired temperature can be adjusted according to the
requirements so as to make the prepared food obtain an ideal effect.
3.If abnormal phenomena occur during use, the utility model must be
stopped immediately, and the utility model can be used continuously
after checking and troubleshooting.
五、Installation notes
1.The furnace should be placed in a smooth place, left and right side of
the non combustible items above 10CM, desktop use should be non
flammable (such as brick wall) 20CM above.
2.The power supply voltage must be in line with the power supply
voltage of the nameplate.
3.The user shall install suitable power switches, fuses and electric
leakage protectors near the equipment. No sundries can be piled in front
of the switch, so it is easy to operate.
4.The equipotential connection terminals of the equipment are located

behind the furnace, and the ground shall be grounded according to the
standard requirements to ensure the safety and reliable connection.
5.The ground wire (Huang Lvxian) of the equipment is connected with
the power supply, and the ground wire is reliably connected with the
copper bolt which is in accordance with the safety performance of the
earth wire.
6.Before starting, check all the electrical components of the whole
machine and make sure the earthing is reliable.
六、General troubleshooting
Problem
Reason
Solves
1.When the power is on, the
indicator light does not turn
on
1.Power switch fuse fuse
2.Bad contact of power line
1.Replace the fuse
2.Fasten the power cord
2.Yellow indicator light does
not go out, furnace
temperature rise shall
not be controlled
1.Wrong indication of the
indicator light
2.The thermostat is out of
order
1.Wiring in correct line
2.Replace thermostat
3.The light is not normal and
the furnace temperature is
normal
1.Poor contact of the
indicator light
2.Indicator burned out
1.Fastening connection
2.Replace the indicator light
The above failure items are for reference only. If any faults occur, they
shall be stopped immediately and shall be notified to the technical
personnel for inspection and maintenance as soon as possible!
七、Transportation and storage
During the course of transportation, severe shock and collision should be
avoided. When not in use for a long time, it should be stored in a well
ventilated, air dry and non corrosive gas warehouse. Rainproof and

corrosion prevention measures should be adopted for temporary
storage.
八、Cleaning and maintenance
1.In cleaning and maintenance, the power shall be cut off to prevent
accidents.
2.After the daily work, the wet towel with no corrosive detergent can be
used to clean the surface of the furnace body and the outlet line of the
power supply. Water is not allowed to be washed directly so as not to
damage the electrical performance.

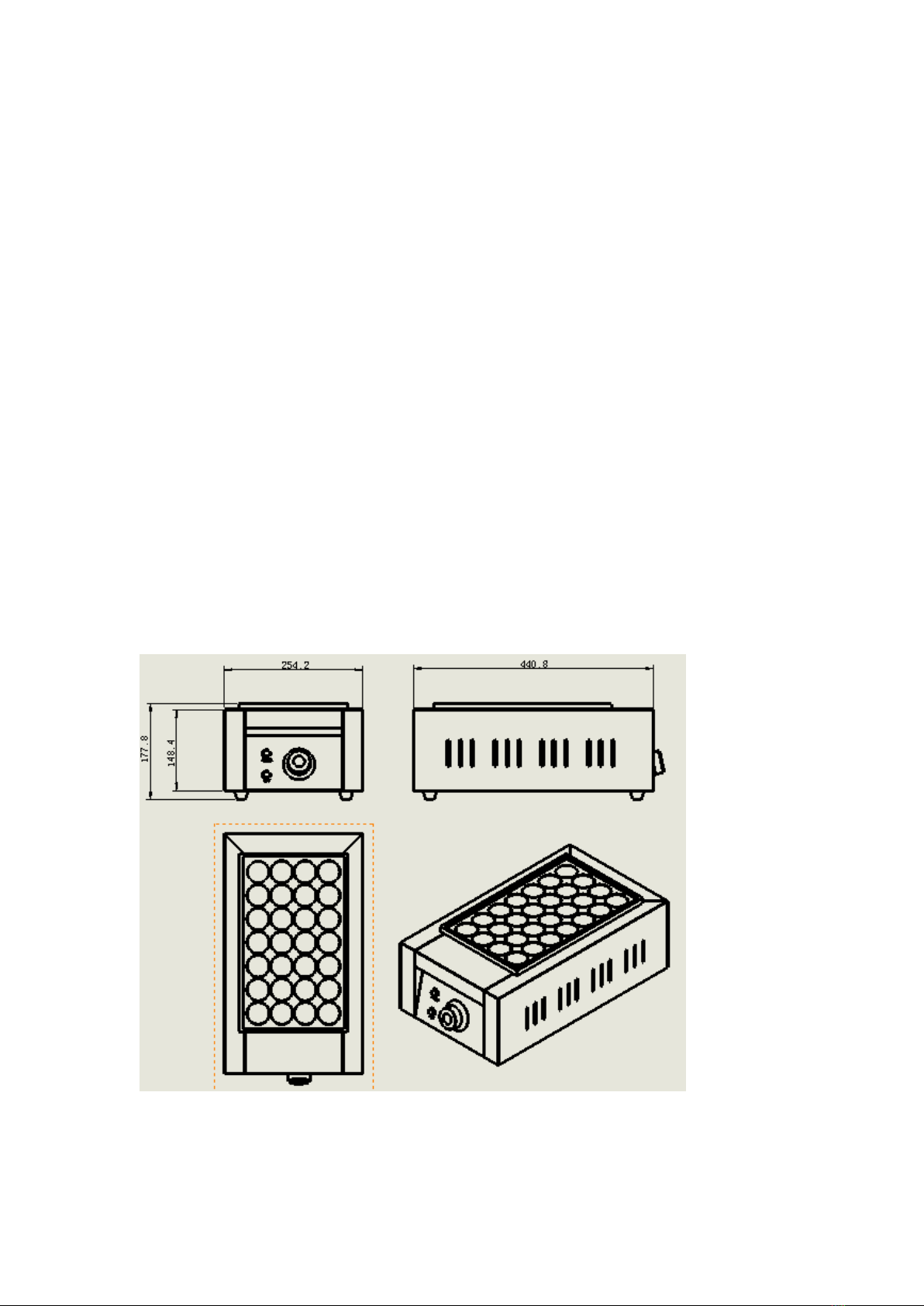

Product dimension drawing
Random Enclosure:A copy of the instruction manual

△
！Warning
This product must be safely earthed before use!
Clean the furnace body and the surface of the board when
cleaning!
This machine shell must be earthed to ensure safety. Thank you
for your cooperation!
