FDW18SAS-SS
*This product is suitable for use in modular homes
and recreational vehicles.

The electric dishwasher of model, besides the common characteristics of other
household dishwashers, it has its own specialties:
FDW18SAS-SS
Error alarm
Fault codes display would inform the user of
abnormal statusof themachine.
4washprograms
You can choose desired programaccordingto the
soiled level.Such as: heavy,normal,light,speed.
Stainless steel tub
You need not warry about stain of tub.
Rinse aid Warning Indicator
If the rinse aid are running low, there will be clearly
displayed on the panel alertingyou to top them up,
toensurethatthemachinecontinues tooperate at
optimum performance.
1
The manufacturer, following a policy of constant
development and up-dating of the product,may
make modifications without giving prior notice.

This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance ;If it is not fit
for the outlet .have a proper outlet installed
by a qualified electrician.
Under certain conditions, Hydrogen gas may be produced in a hot-water system that hasnot been
usedfor two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes. This will release any
accumulated hydrogen gas.As the gas is flammable, do not smoke or use an open flame during this
time.
2
Keepchild away from detergent and rinse aid, keep
child away from the open door of thedishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check themanufactures
recommendations.
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap ,
laundry detergent, or hand washing detergent
in your dishwasher. Keepthese products out of
children.
During installation, the powersupply must not
be excessively or dangerously bent or flattened.
Thedoor should not be left in the open position
since this could present atrippinghazards.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading items tobe washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
When using your dishwasher, you should prevent
plastic item from contactingwith heating element.
If the supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent or a
similarlyqualifiedpersonin ordertoavoida
hazard.
Please disposeofpackingmaterials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The appliance is not intended for use by young
children or infirm persons without supervision.
Dishwasherdetergents are strongly alkaline,they
can be extremely dangerousifswallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Young children should be supervised to ensure that
theydonotplaywiththeappliance.
Check that the detergent receptable is empty after
completion of thewash cycle.

To get the best performance from yourdishwasher, read all operating instructions before using
itfor the firsttime.
3
1
2
23
ON/OFF Button: To turn on/offthe power supply.
1
2
Program button :press the button toselectwashcycles.
3
4
Poweronlight:TocomeonwhenPowerON/OFF
button is presseddown.
5
RinseAid Warning Light: To come on whenthe dispenser
needs tobe refilled.
6
65
1
2
3
4
5
6
7
8
9
10
UpperRack
SprayArms
Lower Rack
Water Softener
Detergent Dispenser
Silverware Basket
MainFilter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
CoarseFilter
InletValve
Junction Box
9
10
12
11
3
2
14
4
Start /Pause button: To start the selected
washing program or pause the washing program
when the machine is working.
Power indicator light:To show the powersupply.
11 12

4
Light.
Heavy
Normal
For normally soiled loads,
such as , plates,glasses
and lightlysoiled pans.
standard daily cycle.
pots
For lightly soiled loads,such
as plates,glasses,bowlsand
lightly soiled pans.
For the heaviestsoiled
loads, such as pots, pans,
casserole dishes and dishes
thathave been sittingwith
dried foodon them for a
while.
A shorter wash for lightly
soiled loads that do not
needdrying.
Speed
15g
95
85
4.41
3.54
3.54
2.7
125
(AHAM)
The inlet water temperature is 120 °F, If not , the wash performance will reduce.
Wash (50 )
Rinse
Drying
Pre-wash
(55 )
℃
℃
0.51
0.37
0.291
Pre-wash
Wash (51 )
Rinse
Rinse(67 )
Drying
℃
℃
Wash (50 )
Rinse
Drying
Pre-wash
Rinse (55 )
℃
℃
Pre-wash
Pre-wash (50 )
Wash (53 )
Rinse
Rinse (62 )
Drying
℃
℃
℃
18g
18g
18g
Longer heating time,
but not reaching required
temperature
Malfunction of temperature sensor or of
heating element.
Failure of temperature sensor
Short circuit or break of temperature sensor
Open circuit or break of temperature sensor
Failure of temperature sensor
65 0.29

5
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
IFTHE WATERISN'T TOOHARD,YOUMAYALSOPREVENT THEFORMATIONOFDEPOSITS BYADDING
DETERGENT.
The amount ofdetergent needed can vary due to differences in waterhardness.To determine the water hardness in
your area,contact yourlocal waterutility or areawatersoftening company. The harder thewater,the more detergent
you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the
correct amount.
To remove hard water spots, try thefollowing:
Rundishes througha normal wash program.
Remove allmetal dishware,such as cutlery,pans, etc.,
from the dishwasher.
Do notadd detergent.
Pour two cups of vinegar into a bowl and set the bowl face
up on the lower rackof the dishwasher.
Runthedishesthroughanormalwash program.
If this doesn't work, try the same process with 1 / 4 cup of
citric acid crystals instead of vinegar.
Useonly detergent specificallymade for use in dishwashers.
Keep yourdetergent fresh anddry.Don'tput powderdetergent
into thedispenser untilYou're readyto washdishes.
Therinse aidis released during the final rinse to prevent
water from forming droplets on your dishes thatcan leave
spots and streaks. It also improvesdrying by allowing
water to"sheet"off thedishes.
Your dishwashers aredesigned to use liquid rinse aids.
The rinse aid dispenser is located inside the door next to
the detergent dispenser. To fill the dispenser, open the
cap and pour the rinse aid into the dispenser until the level
indicator turns completely black. The dispenser holds
about 100ml of liquid rinse aid.
Be careful not to overfill the dispenser, because this could
cause over sudsing. Wipe away any spills with a damp cloth.
Don't forget to replace the cap before you close the
dishwasher door.
If you have soft water, you may not need rinse aid for it may
causeawhitefilmtodeveloponyourdishes.
YOU MAYNOTADDTOO MUCH DETERGENTTOPREVENTTHEFORMATION OFDEPOSITS BECAUSEYOUR
DISHWASHERS
HAVE SPECIALLY-DESIGNED WATER SOFTENERS.
The dispenser must be refilled before the start of each wash cycle followingthe instructions provided in the" Wash
Cycle
Table".Your dishwashers than conventional dishwashers. Generally, only one
tablespoonof
detergent is needed for a normal wash load.Also, more heavily soiled items need more detergent.Always add the
detergent just
before starting dishwasher, otherwise it could get dampand will not dissolve properly.
use less detergent and rinse aid
To openthe dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aid into the dispenser,being careful
not to overfill.
Replace thecapby inserting italigned with "open"
arrow and turning it to theclosed(right) arrow.
Ameasured amount of rinse aidisreleased duringthe finalrinse.Aswith detergent, theamount
of rinse aid needed for your dishes depends on the hardness of the water inyour area. Too much
rinseaidcanresult inlather of foamingandcause cloudiness orsteakson your dishes. Ifthe
waterinyourareaisverysoft,youmaynotneedrinseaid.Ifyoudo,youcandilutetherinseaid
withan equalamountof water.
The rinse aiddispenser has four settings.Always start withthe dispenser set on" 2 ". If spotsand
poordrying areproblems, increase theamount of rinseaiddispensed byremovingthe dispenser
lid and rotating the dial to"3". If the dishes still are not drying properly orare spotted, adjust the
dial to"4".. We suggest you to set on "2" .
Button
Indicator
Dispenser cap
Adjustable setting
Adjustable setting

6
If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means.
Theblack dot ontherinseaid dispenser indicatesthe amountof rinse aidinthedispenser.Astherinse aiddiminishes,
the size of the black dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of theblack dot on the rinse
aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4full -Should refillto eliminate spotting
Empty
Indicator
The upper rack is designedto hold moredelicate and lighter dishware such as glasses, coffee and teacup and
saucers, aswell asplates,small bowls andshallow pans(aslongas theyarenot too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
Theupperrackcanbeadjustedforheightbyputtingwheelsofdifferentheightintotherails.
We recommendthat you place large items which are most difficult to clean intothe lower rack: pots, pans, lids,
serving dishesand bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids onthe sideof the racks in orderto avoidblocking the rotationof the
topspray arm.
Pots, servingbowls, etc, must always be placed topdown.
Deeppotsshouldbe slanted toallow waterto flowout.
The bottom rack feature fold down tinerows so thatlarger or more pots and pans canbe loaded.
1 Cups
2
3
3Glasses
2Saucer
1
3
2
Serving bowl
4
Fruit bowl
8
7
9Dinnerplates
Silverware basket
6Bread and butter plates
Servingplate
4
4
6
6
5
5
7
8
3
9

Silverware should be placed inthe silverware basket with handlesat the bottom: If the rack hasside baskets,
the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed
in the horizontal position at the front of the upper rack.
7
When the washing cycle has finished, the buzzer of dishwasher will mooing 8 seconds , then stop. O
urn offthe appliance using the ON/OFF button,. Waita few minutes before unloading the dishwasher to avoid
handling the dishes and utensilswhile they are still hot and more susceptible to breakage.Theywill also dry better.
pen the door,
t
A forgotten dish can be added any time before the detergent cup opens.
Press the start/reset button to stop the washing.
After the spray arms stop working,you can open the door
completely.
Add forgotten dishes.
Close the door,and p the
dishwasher will work after 3 seconds.
ress the start/reset button
4
3
2
1
1. Make surethat the plug 0f the appliance is inserted into the wall socket;
2.Make sure that the water supply is turned on to full pressure;
3. Load the dish (see the section entitled loading the dishwasher ;
4.Pourthe detergent (see the section entitled detergent and Rinse aid ;
5.Press the on/off button ,the on/off light will turn on;
6.Press the program button to selectprogram;
7.
“”
）
“”
）
Close the door andpress the start/pause button, the machine will work.
It is dangerousto open the doorwhen washing, because the hot water may scald you.
the machine will working after10 seconds.continue
Ifyou open the door , the machine will pause. When you close thedoor,during awash cycle
Acycle that is underway can only be modified if it has only been running for a short
time. Otherwise,the detergent mayhavealready been released,and theappliance may
have already drained the wash water. If this is the case, the detergent dispenser must
be refilled (see the section entitled " Loading the Detergent " ).
to stop thewashing. Press theprogramme button more than 3 seconds
to cancel the running programme. Then you can select other programmes (seethe section entitled "
Startingawashcycle...").
1
2
press the start/pause button
8
Do not let any item extend through bottom.
1
1
1
1
1
4
7
1
1
1
6
4
4
4
4
4
4
4
3
3
3
3
3
5
5
5
5
5
5
5
5
3
3
3
6
2
2
2
2
2
2
2
2
Teaspoons
4
Soupspoons
2
Salad Forks
1
Serving fork
Serving spoon
6
Knife
5
3
Dinner forks 7

9
Coarse filter
Larger items,such aspieces of bone or glass, that could clog the drain are trapped
in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs
on top of this filter andlift it out.
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub.
There are three componentsof the filtering system: the main filter, the coarsefilter, and the fine filter.
2
2
Fine filter
This filter holds soiland food residue in the sump area and prevents it from being
redeposited on the dishes during a cycle.
Mainfilter
Food and soil particles trapped by thisfilter are pulverized by aspecial jet on
the lower spray arm and washed down the drain.
1
3
3
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet and water valve.pipe
(Useapantocatchthewater.)
Reconnect the water inlet to the
water valve. pipe
Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
5
4
3
2
1
It is necessary to clean the spray arms regularly for hard water chemicals will clogthe spray arm jets and bearings.
To remove thespray arm, Washthearms in soapyandwarm water and use a soft brushto cleanthejets.
Replace them after rinsingthem thoroughly.
1
Step Turnthe filterin anti-clockwisedirection,
then lift it up.
：
1
Step liftthe Mainfilterup：
2
Step liftthe Finefilter up：
3
2
13
If do it from step1 to step 3, the filter systemwill be removed; Reverse operate by placing the
main filter ,then screw up the fine filter to finish installation

10

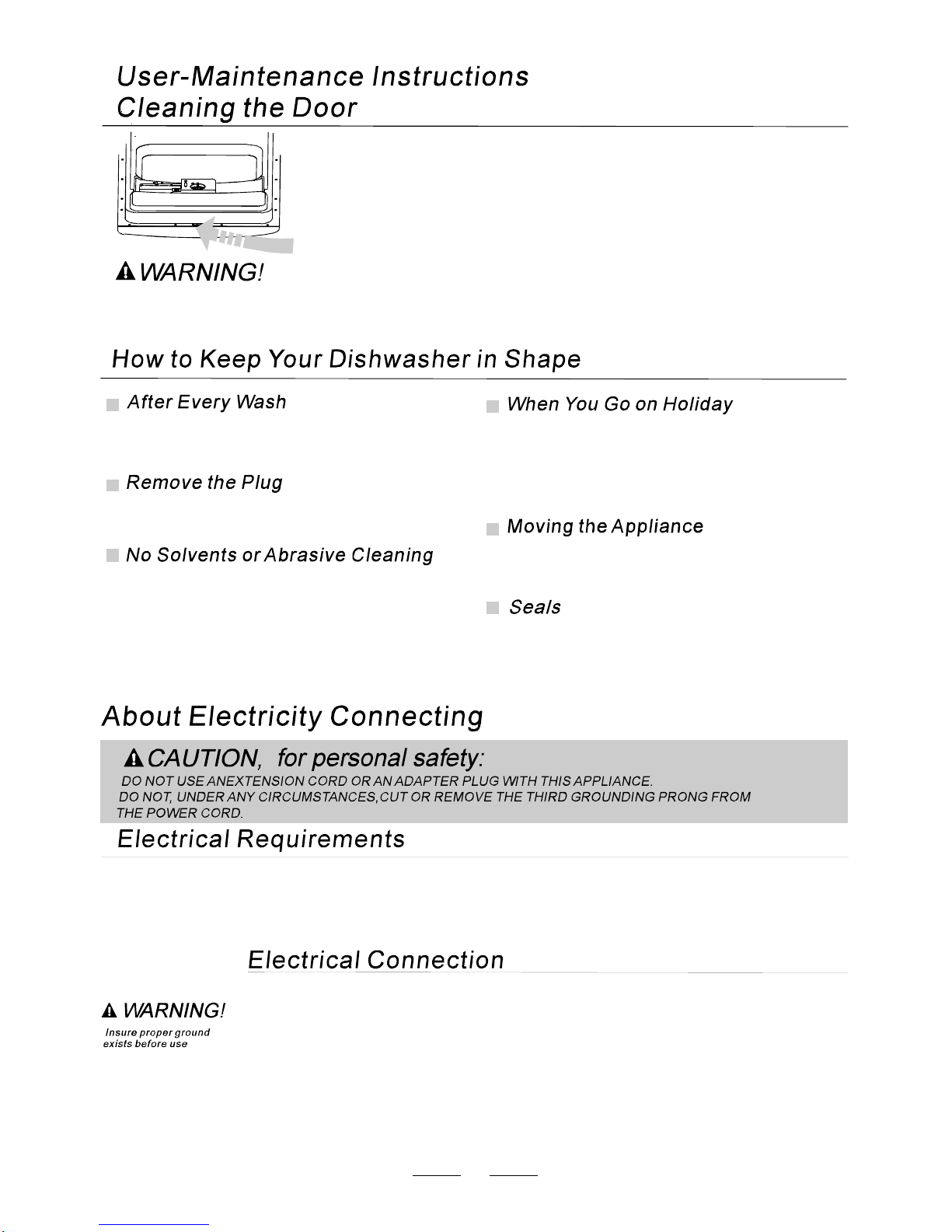

Never usea spray cleaner to clean the door panelfor it could damage thedoor lock and electrical components.
It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots
on the stainless steel surface.
To clean the edge around the door, you should use only a soft warm, damp rag.
To prevent penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfacesbecause
they will scratch the finish. Some papers towelscan alsoscratch or leave marks
onthe surface.
Afterevery wash, turn offthe water supply to the
appliance and leave the door slightly ajar so that
moisture and odorsare not trapped inside.
Before cleaning or performing maintenance, always
remove theplug from the socket.Do notrun risks.
Tocleantheexteriorandrubberpartsofthedishwasher,
do not use solvents or abrasive cleaning products.
Rather,use only a clothand warm soapy water.
To remove spotsor stains from the surface ofthe
interior, use a cloth dampened with water and a little
white vinegar, or acleaning product made specifically
for dishwashers.
When you go onholiday, it isrecommened that you
run a wash cycle with the dishwasher empty and then
remove theplug from the socket, turn off the water
supply and leave the door of the appliance slightly ajar.
This will help the seals last longer and prevent odors
from forming withintheappliance.
Iftheappliancemustbemoved,trytokeepitinthe
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odors to form in the
dishwasheris food that remainstrappedin theseals.
Periodic cleaning with a damp spongewill preventthis
from occurring.
This dishwasher is designed for operationon an adequately wired individual 120VAC,60Hz.Use requiredfuse
16 amps. Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended
and provide separate circuit serving only this appliance. Outletshould be placed in adjacentcabinet.
After making sure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical system issized for the maximum
voltage on therating plate, insert the plug intoan electrical socketwhichis earthed properly.
If the electricalsocket to whichthe appliance must beconnected is not appropriate tor theplug,
replace the socket, rather than using a adaptors or the like as they could cause overheating
and burns.

11
Before you call for service
Problem Possible Causes What To Do
Noise Some of the sounds you’ll Detergent cup opening.
hear are normal The motor starting during the drying period.
Water draining out of the tub immediately after you
start the dishwasher.
Utensils are not secure in the Make sure everything is secured in dishwasher.
rack or something small has
dropped into the rack
Motor hums
.
Detergent left in Dishes block the
Reposition the dishes.
dispenser cups Detergent cover
Water will not pump
Drain is clogged
out of the tub
Suds in the tub
Rinse agent was spilled Always wipe up rinse agent spills immediately.
Stained dishwasher parts Detergent with Some detergents contain colorant (pigment or dyes) that
Colorant was used will discolor the tub interior with extended use. Check the
detergent cup for signs of any discoloration. If cup is
discolored, change to detergent without any colorant.
Cascade, Cascade Completeand Electrasol Dishwashing
Detergents have been approved for use in our dishwashers.
Some tomato-based Use of theRINSE ONLY cycle after adding the dish to the
foods can stain load can decrease the level of staining.
Dishes and flatware Low inlet water temperature Make sure inlet water temperature is correct (see page 4).
not clean Water pressure is temporarily low
Turn on a faucet. Is water coming out more slowly than usual?
If so, wait until pressure is normal before using your dishwasher.
Air gap is clogged Clean the air gap.
Improper rack loading Make sure large dishware does not block the detergent
dispenserorthewasharms.
Troubleshooting Tips
Save time and money! Review the charts on the following pages.
You may not need to call for service.
Correct detergent was not used
Dishwasher has not been used on a regular basis.
If you do not use your dishwasher for long time,
pleaseselectand run the shortestwash program
once every week. This will help keep the seal
moist to avoid Motorhums.
Check if your kitchen sink isdraining well.If not,
pleaseaskplumber to deal with.
.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the wash
cycle to drain out the water . Repeat if necessary.
Check coarse the filter
(see section titled )" Cleaning The Filter "
Check drain hose.

12
Problem Possible Causes What To Do
Spots and filming
UseJet-Dry rinse agent to remove spots and prevent new film buildup.
on glasses and
To remove stubborn spots and pre-existing film from glassware:
flatware
1 Remove all metal utensils from the dishwasher.
2 Do not add detergent.
3 Start the dishwasher and allow to run for 30 minutes. Dishwasher
will now be in the main wash.
4 Open the door and pour 2 cups (500 ml) of white vinegar into the
bottom of the dishwasher.
5 Close the door and allow to complete the cycle. If vinegar rinse does not
work: Repeat as above,Except use 1/4 cup (60 ml) of citric acid crystals
instead of vinegar.
Cloudiness on Combination of soft water and This is called Etching and is permanent. To prevent this from happening,
glassware
too much detergent
Use less detergent if you have soft water. Wash glassware in the shortest
cycle that will get them clean.
Water temperature entering Lower the water heater temperature.
the dishwasher exceeds 150°F
Black or gray
Aluminum utensils have
Remove marks with a mild, abrasive cleaner.
marks on dishes
rubbed against dishes
Yellow or brown film Tea or coffee stains Remove the stain by hand, using a solution of 1/2 cup bleach and
on inside surfaces 3cupswarmwater.
CAUTION
Before cleaning interior wait at least 20 minutes after a cycle for the
temperature to cool down. Failure to do can result scald.
An overall yellow or brown film can
A special filter in the water supply line is the only way to correct
be caused by iron deposits in water this problem. Contact a water softener company.
White film on inside Hard water minerals To clean the interior, apply dishwasher detergent to a damp sponge.
surfaces Wear rubber gloves. Do not use any type of cleanser other than
dishwasher detergent because it may cause foaming or sudsing.
Cascade CompleteAnd Electrasol Automatic Dishwashing Detergents
have been approved for use in your dishwasher.
Dishes don t dry '
Low inlet water temperature
Make sure inlet water temperature is correct (see page 4 ).
Rinse agent dispenser is empty Check the rinse agent dispenser.
Dishwasher won t
' Fuse is blown, or the
Replace fuse or reset circuit breaker. Remove any other appliances
circuit breaker tripped from the circuit.
Steam Thisisnormal Steam comes through the vent during washing, drying and when
water is being pumped out.
Extremely hard water
Low inlet water temperature
Overloading the dishwasher
Improper loading
Old or damp powder detergent
Rinse agent dispenser empty
Too little detergent
Before you call for service
run
The installation ofthepipes
and electricalequipments
should be done by professionals.
Electrical Shock Hazard Disconnect
electricalpower before installing dishwasher.
Failure todo so can result indeath or
electrical shock.

13
