FUTUREROBOT S100 User manual

S100
Dual/Quad Core x86 Smart Camera

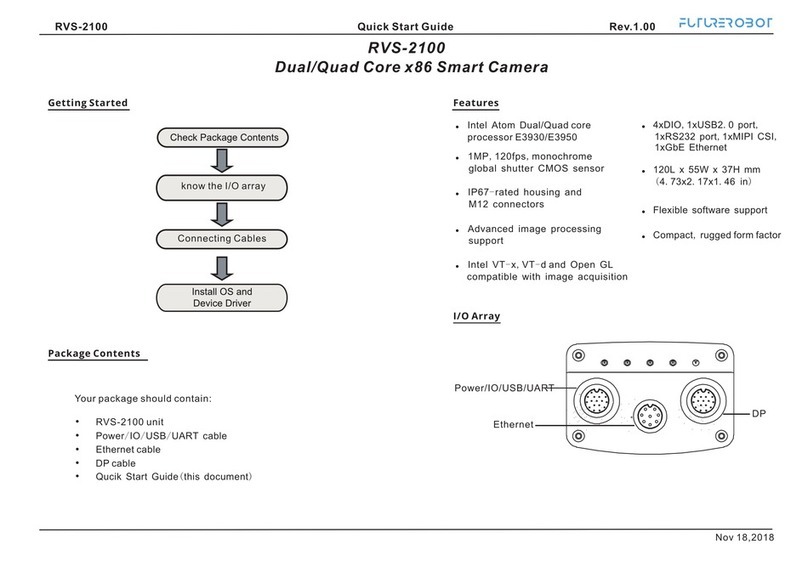

Getting Started
Package Contents
Features
I/O Array
Oct 8,2018
USB
Power/IO/DP/UART
Ethernet
Your package should contain:
. S100 unit
. Power/IO/DP/UART cable
.Intel Atom Dual/Quad core
processor E3930/E3950
.1MP,120fps,monochrome
global shutter CMOS sensor
.IP67-rated housing and
M12 connectors
.Advanced image processing
support
.Intel VT-x,VT-d and Open GL
compatible with image acquisition
.4xDIO,1xUSB2.0 port,
1xRS232 port,1xMIPI CSI,
1xGbE Ethernet
.120L x 55W x 37H mm
(4.73x2.17x1.46 in)
.Flexible software support
.Compact, rugged form factor
S100 Quick Start Guide Rev.1.00
. Ethernet cable
. USB cable
. Qucik Start Guide(this document)
Connecting Cables
know the I/O array

S100 Quick Start Guide Rev.1.00
Contact Futurerobot
Web:
Tel: [phone]
Fax: [phone]
http://www.futurerobottech.com
Copyright 2018 Futurerobot Technology Co.,LTD
Contents and specifications subject to change
without notice
Oct 8,2018
Installing the OS and Device Driver
1. Download the latest driver from the Futurerobot website.
http://www.futurerobottech.com
2. Run.
3. Follow the installation instructions.
4. When prompted,restart your system.
5. After restarting,check the system’s Device Manager and ensure
that the entries as shown appear.
Ethernet cable Power/IO/USB/UART cable DP cable
Connecting USB、Ethernet、Power/IO/DP/UART cables
1. Align the alignment pin (device side) with the alignment
channel (cable side)
2. Fully insert the cable connector.
3. Tighten the threaded collar (cable side) to fix the connection.
DC24V
Server
Ethernet
DP
Power/IO/USB/RS232
DP
PLC
Keyboard
Mouse
USB Dongle
