G-Force PRO Y0LMX22S300 User manual

Model: Y0LMX22S300
SKU: 060-1324-0
OPERATOR’S MANUAL/MANUEL DE L’UTILISATEUR
Imported by/ Importé par
Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Made in China/ Fabriqué en Chine
READ & UNDERSTAND INSTRUCTION MANUAL.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
22" Cordless Lawn Mower Self Propelled
Tondeuse automotrice sans l de 22 po
120v
LITHIUM-ION
TM/MC
LISEZ ET COMPRENEZ LE MANUEL D’UTILISATION.
CONSERVEZ TOUS LES AVERTISSEMENTS ET INSTRUCTIONS POUR
RÉFÉRENCE ULTÉRIEURE.
TM/MC
TM/MC
TM/MC

2
TM/MC
TABLE OF CONTENTS
Description of Product Parts ....................................................................................................................7
Intended use………………………………....................................................................................................7
Technical Specications……………........................................................................................…………......7
Safety Information………...................................................................................................………………....8
Assembly …………...........................................................................................…………………………..13
Adjustment ………............................................................................................…………………………..14
Operation……………………………...........................................................................................…………14
Maintenance and Storage ...............................………………..........................................................……16
Troubleshooting ..................................................................................................…………………………18
Warranty .................................................................................................................................................19
WARNING
1. For safe operation,read and understand the instruction manual.
2. To reduce the risk of electric shock, do not expose to water or operate on wet ground.
3. Replace damaged parts immediately.
4. Disconnect and remove battery prior to servicing.
5. Remove the battery pack before servicing or removing blade.
6. Do not reach under blade guard. Go across slopes,not up and down. Do not operate within
100 ft. of people or animals.
7. Do not mow when children or others are around. Keep safety devices(guards, shields,
switches etc. in place and working.
8. Look down and behind before and while moving backwards.
9. Remove objects that could be thrown by the blade.
10. To reduce the risk of eye injury, wear safety glasses.
11. Meet CPSC blade safety requirements.
12. Use only 120V Li-ion battery Y0L120BAT2.5 and battery charger
Y0L120CGR.

3
120v
LITHIUM-ION
TM/MC
TM/MC
TM/MC
15 16
Fig. 1
Fig. 2 Fig. 3
Fig. 4
A B
C D E F
17 18 19
1
2
3
4
5
67
8
9
10
11
12
13
14
TM/MC
TM/MC
TM/MC
120v
LITHIUM-ION
TM
™
120v
LITHIUM-ION
TM
™
G
H

4
TM/MC
Fig. 5
Fig. 7
Fig. 9
Fig. 11
Fig. 6
Fig. 8
Fig. 10
Fig. 12

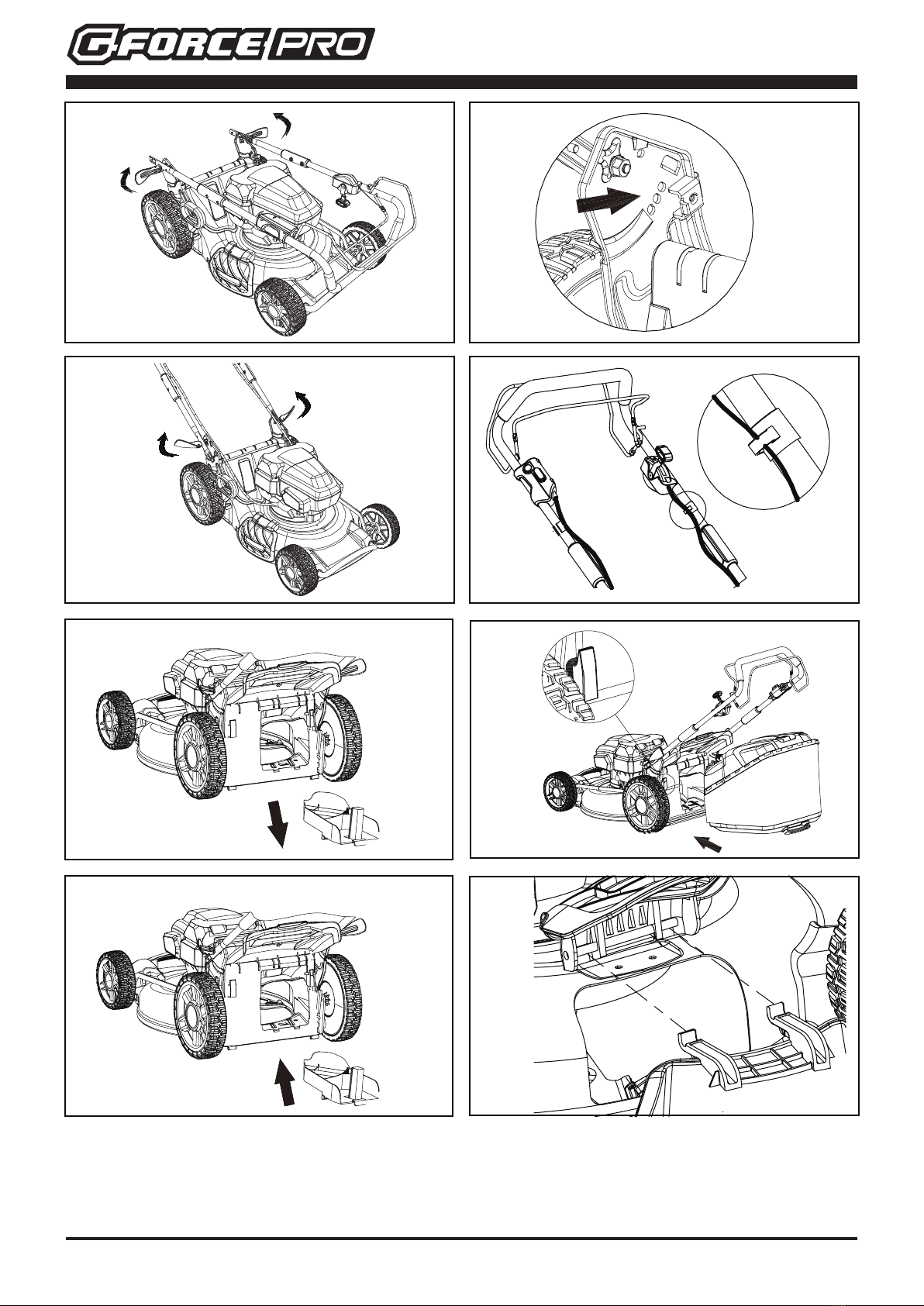

5
120v
LITHIUM-ION
TM/MC
+
-
Fig. 14
Fig. 16
Fig. 18
Fig. 20
Fig. 15
Fig. 19
Fig. 17
Fig. 13

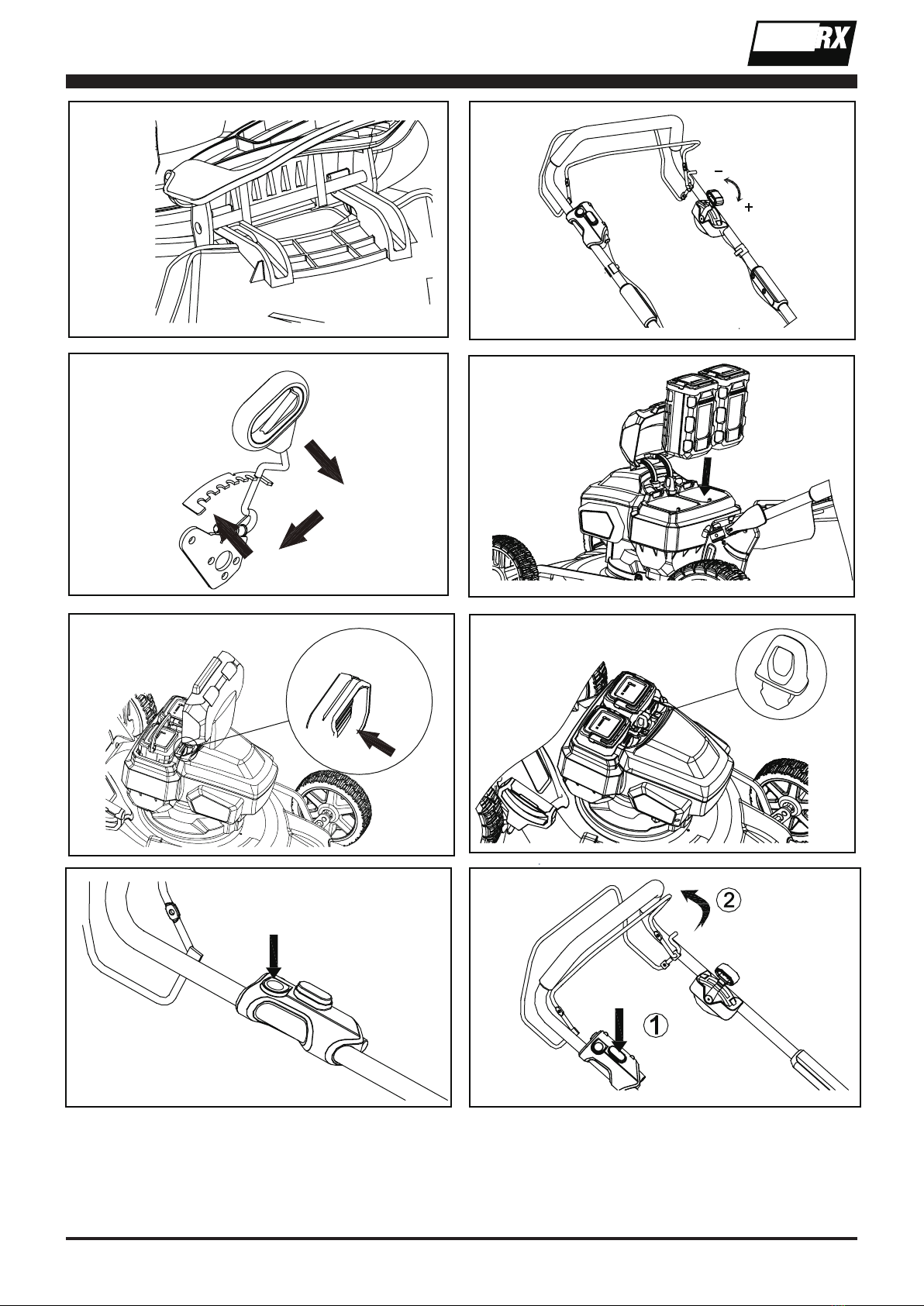

6
TM/MC
Fig. 22
Fig. 24
Fig. 21
Fig. 23
Fig. 25
Fig. 27
Fig. 26
1
2
120v
LITHIUM-ION
TM
kca
P
y
re
t
t
aBV
0
2
1
Max.113 F
5.2
T
AB
0
2
1F
Y:l
e
d
o
Mk
caPyr
e
t
t
aB
V
0
2
1
lair
tsudnI
htr
o
N
wa
sen
n
e
K
5563
.c
nIceto
r
eM
.
yln
o
s
roo
dni
er
ots
dn
ae
sU
GNI
NR
A
W
.
y
t
i
licaf
g
n
ir
ut
cafu
n
amCEMUSataan
i
hC
n
iedaM
hA5.2:
yti
capa
C
y
r
e
tta
B
.C.D
V0
2
1
:
eg
a
tl
oV
2
8
7
1
33
E
AG RE
DL
P
P
A
GNIN I E
C
N
A
.R
GC021
F
Yregr
ahc
V
0
21CEMU
Sr
ofylno
e
s
U
441
0
3A
G
,wasenneK
,
y
a
wk
raP
TM/MC
120v
LITHIUM-ION
TM/MC
TM/MC
TM/MC
120v
LITHIUM-ION
TM/MC
TM/MC
120v
LITHIUM-ION
TM/MC
TM/MC
120v
LITHIUM-ION
TM/MC
TM/MC
120v
LITHIUM-ION
TM/MC
TM/MC
120v
LITHIUM-ION
TM/MC

7
120v
LITHIUM-ION
TM/MC
DESCRIPTION OF PRODUCT PARTS
Parts list (See Fig. 1, Fig. 2 & Fig. 3)
1. Blade-Stop/Start lever
2. Self-propelled speed-adjustment lever
3. Grass bag full indicator
4. Handle quick release lever
5. Battery pack cover
6. Front bumper
7. Side discharge cover
8. Cutting height adjustment handle
9. Grass bag
10. Rear safety ap
11. Safety lock button
12. Power ON/OFF button
13. Upper handle
14. Self-propelled switch lever
15. Mulching plug
16. Side discharge chute
17. Safety key
18. Battery pack
19. Battery charger
NOTICE!
1. Remove everything form the bag except the
lawn mower.
2. Open carton completely by cutting each corner
from top to bottom.
3. Remove the lawn mower from carton.
Delivery list (See Fig.4)
A. Main machine x 1
B. Grass bag x 1
C. Manual x 1
D. Cable clip x 2 (Pre-assembled)
E. Mulching plug x 1 (Pre-assembled)
F. Side discharge chute x 1
G. Battery pack x 2
H. Battery charger x 1
Carefully remove the machine and parts from
its packaging. Identify all the parts packaged in
the carton against the parts list. Please contact
our customer service center Monday - Friday
between 8:00 AM and 9:00 PM, Saturday -
Sunday between 9:00 AM to 5:00 PM at 1-833-
818-4111 if anything is missing.
WARNING! If any parts are damaged or
missing, do not operate this tool until the missing
parts are replaced. Failure to heed this warning
could result in serious personal injury.
NOTE! Always recycle the packaging in
accordance with local recycling laws.
TECHNICAL SPECIFICATIONS
Item No. Y0LMX22S300
Voltage/Capacity 120 V DC / 2.5 Ah Li-ion
Deck Size 22 "
Cutting Size 21 "
Cutting Height 7 positions: 1 1/4 to 3 3/4"
(3.1 to 9.5 cm)
Self-Propelled 5 Speeds
Grass Bag Capacity 70 L
No-load Speed 3000 RPM
Booster Function Yes (3500 RPM)
Wheel Size 8" Front / 12" Rear
Charger Input: 100~120 V, 50/60 Hz,
Output: 120 V DC, 4 A
Charging Time 40 Minutes
Weight 90.4 lb (41 kg)
Battery Pack Type Y0L120BAT2.5
Adapter Type Y0L120CGR
INTENDED USE
This cordless lawn mower is intended for use in
maintaining residential lawns only.
The machine is to be used only for its prescribed
purpose, any other use is deemed to be a
case of misuse. The user/operator and not the
manuafacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.

8
TM/MC
Do not expose and operate the
tool in rain.
Wait until all machine components
have completely stopped before
touching them. The blades
continue to rotate after the
machine is switched o󰀨, a rotating
blade can cause injury.
Remove disabling device before
maintenance.
Look behind while backing.
Do not open or remove
safety shields while engine
is running.
Steep slope hazard.
Severing of toes or ngers
rotary mower blade.
Thrown or ying objects
whole body exposure.
Wear hearing protection.
Wear eye protection.
Wear gloves.
To reduce the risk of injury, user
must read instruction manual
carefully.
Keep bystanders away.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols
and the explanations with them deserve your
careful attention and understanding. The symbol
warnings do not, by themselves, eliminate any
danger. The instructions and warnings they give
are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand
all safety instructions in this Operator’s Manual,
including all safety alert symbols such as
“DANGER,” “WARNING,” and “CAUTION” before
using this tool. Failure to follow all instructions
listed below may result in electric shock, re, and/
or serious personal injury.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols
that may appear on this product. Read,
understand, and follow all instructions on the
machine before attempting to assemble and
operate.

9
120v
LITHIUM-ION
TM/MC
Do not expose and operate the
tool in rain.
Wait until all machine components
have completely stopped before
touching them. The blades
continue to rotate after the
machine is switched o󰀨, a rotating
blade can cause injury.
Warning symbols on the battery pack Warning symbols on the charger
Batteries contain Li-ion. Waste
batteries should be sorted for eco-
friendly. Do not dispose of waste
batteries as unsorted municipal
waste.
Do not throw into water
Do not litter to re.
Do not subject the battery to strong
sunlight over long periods and do
not leave it on a heater (max. 113
˚F).
+-
The charger is for indoor use only.
Double insulation
Pole orientation
Protective 6.3 A limited.
Do not expose and operate the tool
in rain.
T6.3A
max. 113 ˚F

10
TM/MC
SAFETY RULES FOR LAWN MOWER
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
MOWER
WARNING: When using lawn mowers,
basic safety precautions should always be
followed to reduce the risk of re, electric shock,
and personal injury, including the following:
1. Avoid Dangerous Environment - Don't use
lawn mowers in damp or wet locations.
2. Don't Use In Rain.
3. Keep Children Away - All visitors should be
kept a safe distance from work area.
4. Dress Properly - Do not wear loose clothing
or jewelry. They can be caught in moving
parts. Use of rubber gloves and footwear is
recommended when working outdoors.
5. Use Safety Glasses - Always use face or dust
mask if operation is dusty.
6. Use the right tool - Do not use lawn mower
for any job except that for which it is intended.
7. Don't Force Lawn Mower - It will do the job
better and safer at the rate for which it was
designed.
8. Don't Overreach - Keep proper footing and
balance at all times.
9. Stay Alert - Watch what you are doing. Use
common sense. Do not operate lawn mower
when you are tired.
10. Disconnect battery pack when not in use,
before cleaning or servicing, when changing
accessories such as blades, and the like.
11. Store lawn mower indoors when not in use.
Lawn mower should be stored in an indoor,
dry and locked place - keep out of reach of
children.
12. Maintain Lawn Mower With Care - Keep
cutting edges sharp and clean for best and
safest performance.
13. Follow instructions for lubricating and
changing accessories.
14. Keep handles dry, clean, and free from oil
and grease.
15. Keep guards in place and in working order.
16. Keep blades sharp.
17. Keep hands and feet away from cutting area.
18. Objects struck by the lawn mower blade can
cause severe injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to each mowing.
19. If lawn mower strikes a foreign object, follow
these steps:
1) Stop lawn mower. Release the switch.
2) Unplug battery pack.
3) Inspect for damage.
4) Repair any damage before restarting and
operating the lawn mower.
20. Use identical replacement blades only.
21. Use only genuine spare parts. Only these
spare parts are designed and suitable for
the product. The use of other spare parts not
only voids the warranty, but also endanger
yourself and your environment.
SAVE THESE INSTRUCTIONS
Training
1. Read the instructions carefully. Make sure
you understand the instructions and are
familiar with the controls and the correct use
of the product.
2. Never allow children or people unfamiliar
with these instructions to use the product.
Local regulations can restrict the age of the
operator.
3. Never operate the product while people,
especially children, or pets are nearby.
4. Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
Preparation
1. While operating the product always wear
substantial footwear and long trousers. Do
not operate the product when barefoot or
wearing open sandals. Avoid wearing clothing
that is loose tting or that has hanging cords
or ties.
2. Thoroughly inspect the area where the
product is to be used and remove all objects
which can be thrown by the product.
3. Before using, always visually inspect to
see that the blade, blade bolt and the blade
assembly are not worn or damaged. Replace
worn or damaged components in sets to
preserve balance. Replace damaged or
unreadable labels.
General Operation
1. Use the tool only with specically designated
battery packs. Use of any other battery packs
may create a risk of injury and re.
2. Operate the product only in daylight or in

11
120v
LITHIUM-ION
TM/MC
good articial light.
3. Do not expose tool and charger to rain or wet
conditions. Water entering a tool or charger
will increase the risk of electric shock.
4. Avoid operating the product in wet grass.
5. Always be sure of your footing on slopes.
6. Walk, never run.
7. For wheeled rotary mowers, mow across the
face of slopes, never up and down.
8. Exercise extreme caution when changing
direction on slopes.
9. Do not mow excessively steep slopes.
10. Use extreme caution when reversing or
pulling the product towards you.
11. Stop the blade(s) if the appliance has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the product to and from the area
to be mowed.
12. Never operate the appliance with defective
guards or shields, or without safety devices,
for example deectors and/or grass catchers,
in place.
13. Switch on the motor carefully according to
instructions and with feet well away from the
blade(s).
14. Do not tilt the product when switching on the
motor, except if the product has to be tilted
for starting. In this case, do not tilt it more
than absolutely necessary and lift only the
part, which is away from the operator. Always
ensure that both hands are in the operating
position before returning the appliance to the
ground.
15. Do not start the machine when standing in
front of the discharge opening.
16. Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.
17. Do not transport the product while the cutting
blade is running.
18. Switch o󰀨 and remove the key/battery pack
from the machine. Make sure that all moving
parts have come to a complete stop.
• whenever you leave the product,
• before clearing blockages or unclogging
chute,
• before checking, cleaning or working on the
product,
• after striking a foreign object. Inspect the
product for damage and make repairs before
restarting and operating the product;
19. If the product starts to vibrate abnormally
(check immediately)
• inspect for damage,
• replace or repair any damaged parts,
• check for and tighten any loose parts.
20. Use only with the battery packs and chargers
listed below:
Battery pack Charger
Y0L120BAT2.5 Y0L120CGR
SPECIAL OPERATION SAFETY FOR THE
CHARGER
1. Recharge only with the charger specied
by the manufacturer. Do not use the original
charger on other li-ion batteries or on any
other type of battery—re or explosion may
occur.
2. Check the battery charger, cable and plug
each time before using. Do not use the
battery charger when defects are detected.
Do not open the battery charger yourself and
have it repaired only by qualied personnel
using original spare parts.
3. The charger is designed to use standard
household 100-120 V, 50/60 Hz power
source. The charger’s plug must match the
outlet. Never modify the plug in any way.
Unmodied plugs and matching outlets will
reduce risk of electric shock.
4. Do not abuse the cord of charger. Never use
the cord for carrying, pulling or unplugging
the charger. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
5. Make sure the charger cord is located so
that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
6. Keep the battery charger clean.
Contamination may cause the danger of
electric shock.
7. Protect the battery charger from rain and
moisture. The penetration of water in a
battery charger increases the risk of electric
shock.
8. Do not operate the battery charger on easily
inammable surfaces (e.g. paper, textiles,
etc.) or in combustible environments. There
is danger of re due to the heating of the
battery charger during charging.
9. The temperature range over which the
battery pack can be charged is typically 32° F
to 113° F. Therefore, charging e󰀨orts outside
the prescribed temperature range may
automatically be blocked by the protection

12
TM/MC
circuitry of the battery pack. Longest life and
best performance can be obtained if the
battery pack is charged in the normal room
condition.
10. Disconnect charger from the power supply
when not in use. This will reduce the risk of
electric shock or damage to the charger if
metal items should fall into the opening.
11. The charger is for indoor use only.
SPECIAL OPERATION SAFETY FOR THE
BATTERY PACK
1. The Li-ion battery pack is not fully charged
at the factory. Before attempting to use it, the
battery must be fully charged rst.
2. The battery pack should be recharged when
it fails to produce su󰀩cient power on jobs
which were easily done previously. DO NOT
CONTINUE using product with its battery in a
depleted condition.
3. Do not charge the battery in an air
temperature below 32° F or above 113° F.
This is important and will prevent serious
damage to the battery. Longest life and best
performance can be obtained if the battery is
charged when air temperature is about 68 ˚F.
4. When the machine continues to be used and
the battery temperature is above 113° F, the
battery can not be charged, even you put on
the charger. Let the machine cool for some
times and wait the temperature reduced, it
can be charged again .
5. Protect the battery pack against heat, e.g.
including against continuous sun exposure
and re. There is a danger of explosion.
6. Do not carry individual battery packs in your
pockets or bags, as they could short-circuit
against other metal items.
7. If an exposed li-ion battery pack does start a
re, it wll burn even more violently if it comes
into contact with water or even the moisture
in the air. DO NOT throw water on a burning
li-ion battery! A re extinguisher must be
used.
8. If the battery pack becomes too hot to the
touch during charging, disconnect and switch
o󰀨 immediately. Contact G-FORCE PRO
immediately at 1-833-818-4111.
9. Do not open the battery yourself. There is
danger of a short circuit.
10. When battery pack is not in use, keep it
away from other metal objects, lie paperclips,
coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns
or a re.
MAINTENANCE AND STORAGE
1. Keep all nuts, bolts and screws tight to be
sure the product is in safe working condition.
2. Check the grass collector frequently for wear
or deterioration.
3. Be careful during adjustment of the product
to prevent entrapment of the ngers between
moving blades and xed parts of the product.
4. Always allow the product to cool down before
storing.
5. When servicing the blades, be aware that
even though the power source is switched
o󰀨, the blades can still be moved.
6. Replace worn or damaged parts for safety.
Use only genuine replacement parts and
accessories.
7. DO NOT attempt to open the charger
and battery pack. There are no customer
serviceable parts inside. Return to any
authorized service center.
8. Store the appliance with battery pack
fully charged at the room temperature
(around 68° F).
9. Every deep discharge cycle decrease the
capacity of battery pack. To prolong battery
life, recommend to charge the battery every
6 months, which over extended periods of
time without use.
Service
a) Have your tool repaired by an authorized
service agent. This tool is manufactured
in accordance with the relevant safety
regulations. To avoid danger, equipment must
only be repaired by qualied technicians.
b) Only use parts and accessories made for this
machine by the manufacturer. Failure to do
so can result in personal injury.
RESIDUAL RISKS
Even if you are operating this product in
accordance with all the safety requirements,
potential risks of injury and damage remain. The
following dangers can arise in connection with the
structure and design of this product:
- Health defects resulting from vibration
emission if the product is being used over
long periods of time or not adequately
managed and properly maintained.

13
120v
LITHIUM-ION
TM/MC
- Injuries and damage to property due to
broken application tools or the sudden impact
of hidden objects during use.
- Danger of injury and property damage
caused by ying objects.
Warning! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical ivmplants. To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
ASSEMBLY
Unfold the handle
1. Rotate the handle quick release levers to
release the operation handle. (See Fig. 5).
2. Rotate the handle and then position the lower
handle lock pin into the mower bracket - one
of the three angle positions. (See Fig. 6)
3. Lock the handle in place by closing the quick
release levers- make sure that the handle is
securely locked in position. (See Fig. 7)
Check the cable clips tting
Make sure the cable clips ts on upper handle
securely and the cable into the cable clips.
(See Fig. 7)
Fit grass bag onto the mower
1. Lift the rear ap and remove the pre-
assembled mulching plug from the machine.
(See Fig.9)
2. Insert the grass bag onto the hooks. Release
the rear ap to secure the grass bag in
position. (See Fig. 10)
Installing the mulching plug
NOTE: Switch o󰀨 the tool and make sure that the
blade has stopped completely. Then remove the
battery completely.
1. Lift the rear ap with one hand and push
the mulching plug into the rear discharge
chute until it is locked in place. Make sure
that the mulching plug is locked in position.
(See Fig. 11).
2. Release the rear ap, it will close back to
cover the mulching plug.
3. If you want to remove the mulching plug, hold
the handle of the mulching plug, press down
the hook with your nger, meanwhile lift it
upward slightly and pull it out.
Installing the side discharge chute
NOTE: Switch o󰀨 the tool and make sure that the
blade has stopped completely. Then remove the
battery completely.
1. The mulching plug should be installed as
described above.
2. Lift the side discharge cover with one hand
and hook in the side discharge chute with the
other hand. (See Fig. 12)
3. Release the side discharge cover to secure
the chute in position. (See Fig. 13)
Set required function
WARNING! Before changing any
accessory, switch o󰀨 the tool and make sure that
the blade has stopped completely. Then remove
the battery completely.
NOTE: This lawn mower has three functions.
These functions can be converted by changing
accessory setting as described above. Please
see the following chart for detail.
Mulching
plug
Grass
bag
Side
discharge
chute
Collection * × √×
Mulching * √× ×
Side Discharge
*
√×√
“√”: installed “×”: uninstalled
* The following information:
Collection: the grass has been cut and collected
by grass bag.
Mulching: mulch the grass, by cutting into small
pieces which then degrade and fertilise the lawn
Side discharge: the grass has been cut and
distributed to the side of the machine.

14
TM/MC
ADJUSTMENT
WARNING: Never operate the cutting
height adjustment handle roughly. Switch o󰀨 the
tool and make sure that the blade has stopped
completely.
Adjust the cutting height
The cutting height is centrally adjusted by the
cutting height adjustment handle.
Di󰀨erent cutting heights can be selected as
follows:
1. Pull the adjusting handle outwards. (See Fig.
15)
2. Move it forwards or backwards to select the
desired cutting height.
3. Return adjusting handle back into plate.
Make sure the lever is secured in position.
From position 1 to position 7, the cutting
height ranges from 1.25 " to 3.75 ".
Adjust the self-propelled speed
This lawn mower features a self-propelled
function. The self-propelled speed also can be
changed by pushing the speed adjustment lever
forwards and backwards. It has 5 speeds for your
option, from 1.75 MPH to 3 MPH, the lever can
be stopped at the lever can be stopped at the
speed position desired for each operator. (See
Fig. 14)
OPERATION
To insert the battery pack
1. Open the battery pack cover and hold it in
place. (See Fig. 16)
2. Align the groove on the battery pack with the
corresponding ribs in the receptacle of the
device.
3. Depress the battery pack with moderate force
until it was locked in place (Make sure that
the battery handle is folded down).
4. Repeat the above procedure to assemble the
2nd battery pack.
5. Close the cover.
WARNING: Make sure that the tool is
“POWER OFF”.
NOTE: The tool can also work normally with only
one battery pack.
Battery Pack Y0L120BAT2.5 (See Fig. 26)
① Lift handle
② Main housing
③ Indicator button
④ Green LED lamps
⑤ Red LED lamp
Battery Pack Operation (See Fig. 27)
1. When you push the power indicator button,
the green LED lights will show the power
remaining. (see Fig. 27① )
2. When the battery pack over discharges or
remains very low power, the red LED light will
ash. (see Fig. 27② )
3. When the battery pack temperature is
exceeded, the red LED light will ash. Cool it
down for 10~20 minutes. (see Fig. 27② )
4. When there is fault with the battery pack, the
red LED light will ash. (see Fig. 27② )
5. Once the battery pack is correctly located
in the charger, the 4 green LED lights of the
battery pack will ash LED lights to indicate
the charging process. At the same time the
green LED light of the charger will ash
continuously during normal charging, while
the red LED light is still on. (see Fig. 27③ )
To remove the battery pack from the tool
1. Open the battery pack cover and hold it in
place.
2. Press the battery pack release button, the
battery pack will spring out automatically.
（See Fig. 17）
3. Lift up the carrying handle and remove the
battery pack.
Safety Key
The machine is tted with a safety key, this
prevents the accidental start up of your cordless
lawnmower.
The safety key has been designed to totally
disable the lawnmower when the key is removed.
(See Fig. 18)
If the safety key is lost or broken, please call the
G-FORCE PRO service hot-line at
1-833-818-4111.
To Switch ON:
1. Depress the center of the power ON/OFF
button and hold down for 2 seconds- The
green LED light will be ON.This means the
tool is powered on normally. (See Fig. 19)
2. Depress the safety lock button and keep
it in place. Whilst pulling the blade-Stop/

15
120v
LITHIUM-ION
TM/MC
Start lever towards the handle and hold it in
position. The motor will start to work, blade
will rotate. Then release the safety lock
button. (See Fig. 20)
3. During the normal operation, once the
capacity of battery pack becomes low, the
LED light of Power ON/OFF button will turn
red.
Battery Packs Transfer.
If there are two battery packs installed, one
of the battery packs will automatically be
powered OFF. The mower will work until
the red LED light ashes and the tool stops
working automatically. In this case, release
the blade Stop/Start lever, the power supply
will be automatically switched over to the
other battery pack. The LED light for power
ON/OFF button will turn green again. Then
operate the mower as per step 2.
CAUTION!
1. Do not start the motor in tall grass.
2. Before starting the lawn mower, ensure
that the battery pack and safety key are
correctly installed in place.
3. Before operating the lawn mower, remove
stones, loose pieces of wood and other
objects from the cutting area.
To Switch OFF:
1. Release the blade-Stop/Start lever.
2. Depress the center point of power ON/OFF
button, and hold it in place for 2 seconds. The
LED light will turn RED. Release the power
button. The red LED light will ash three
times then turn o󰀨.
3. When mower is powered ON but there is
no operation for 3 minutes, the LED light of
power button will ash for 3 seconds then the
mower will be powered o󰀨 automatically.
WARNING:
The blade will continue to rotate for 3 seconds
after the mower has been switched o󰀨.
Use the Self-propelled function
This unit is equipped with self-propelled system.
The self-propelled function can be used
independently and together with the cutting
blade operating, it is not dependent on the blade
rotation.
Use self-propelled function without blade
rotation
1. Turn the power ON/OFF button ON.
2. Push the self-propelled switch lever towards
the handle and hold it in position. The lawn
mower will start to move automatically. (See
Fig. 21)
To adjust the speed, please refer to “Adjusting
the self-propelled speed” section. (See Fig.
14)
3. To stop the moving lawn mower, just release
the self-propelled switch lever.
Use self-propelled function with the blade for
cutting
1. Start the mower as previously mentioned.
2. While holding the blade-Stop/Start lever
with one hand, then also engage the self-
propelled switch lever and the machine will
then start to move automatically.
3. Adjust the self-propelled speed-adjustment
lever to the desired driving speed.
Operate the lawn mower
Operation on a slope:
Slopes are a major factor related to slip-and-fall
accidents, which can result in severe injury.
WARNING: Always be sure of your footing
on slopes. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not
mow it.
DO:
- Mow across the face of slopes; never mow
up and down. Exercise extreme caution when
changing direction on slopes.
- Watch for holes, ruts, rocks, hidden objects,
or bumps which can cause you to slip or trip.
Tall grass can hide obstacles.
DO NOT:
- Do not mow near drop-o󰀨s, ditches or
embankments; you could lose your footing or
balance.
- Do not mow slopes greater than 15 degrees.
- Do not mow on wet grass. Unstable footing
could cause slipping.
Mower overload protection
To prevent overload conditions, do not try to cut
too much grass at one time. Slow down your
cutting pace or raise the cut height. Your mower
has built-in overload circuit protection. When the
mower is overloaded, the motor will stop. switch

16
TM/MC
the mower OFF and remove the battery. Check to
see if grass has collected beneath the deck and
clear it if necessary, then restart the mower.
Battery high temperature protection
The battery pack will generate heat during
operation. The heat dissipates more slowly in
hot weather. If the battery `temperature exceeds
more than 158˚ F during operation, the protection
circuit will immediately turn o󰀨 the mower to
protect the battery pack from damage. Release
the bail handle, wait until the battery pack cools
down, then restart the mower.
Function of Grass Bag full indicator
1. If the grass bag is empty or it is not lled with
grass, the grass full indicator will open. (see
Fig. 22 ①)
2. If the grass bag is lled with grass the grass
full indicator will close. (see Fig. 22 ②)
Emptying the grass bag
When the grass bag full indicator starts to close
during grass cutting, it is time to empty the grass
bag.
NOTE: Before taking o󰀨 the grass bag, switch
OFF the power and wait until the blade has come
to a stop.
1. To take o󰀨 the grass bag, use one hand to lift
up ejector ap and the other to grab onto the
carry handle. The ejector ap automatically
falls down after removing the grass bag and
closes o󰀨 the rear chute opening.
2. Empty the grass debris in the grass bag, and
ret grass Bag.
NOTE: If any grass residue is caught in the
discharge chute, clean it using a brush. Do not
remove grass debris in the discharge chute or on
the blade by hand or with your feet. Instead
use suitable tools such as a brush or broom. To
ensure that the cut grass can be collected into
grass bag, the discharge opening and inside the
discharge chute must be cleared of any blockage.
MAINTENANCE AND STORAGE
WARNING ！
Before performing any maintenance or cleaning
work, always ensure that the battery pack/safety
key has been removed and wait until the blade
has stopped completely and the tool has cooled
down.
Cleaning
Cleaning the product
– Use a soft brush to remove any accumulated
dust and debris. Wear safety glasses to
protect your eyes whilst cleaning.
– Wipe down the product enclosure with a
slightly damp cloth. Do not spray the unit with
water. Exposure to water may destroy the
switch unit and the electric motor.
Maintenance
NOTE: Always wear gardening gloves when
handling or working near the sharp blades.
1) Keep all nuts, bolts and screws tight to be
sure that the machine is in safe working
condition.
2) Check the grass bag frequently for wear or
deterioration.
3) Examine the machine and replace worn or
damaged parts for safety.
Removing/Installing the blade (See Fig. 23 &
Fig. 24)
1. Using a wrench of correct size locate on the
blade bolt nut.
2. Wearing heavy gloves hold the blade xed
and turn the wrench anti-clockwise and
remove the bolt.
3. Fitting the replacement blade correctly with
marking facing up and align pegs correctly
then t the bolt and retighten the bolt securely
to torque 36- 43 Ft. Lb.
WARNING ！
Replace or re-sharpen the mowing blade at
the end of the mowing season. Always have
the mowing blade re-sharpened or replaced
by a customer service center (measurement
of imbalance).
Unbalanced blades will cause the lawn
mower to vibrate violently-risk of accident!

17
120v
LITHIUM-ION
TM/MC
Battery Maintenance:
Use the following procedures to enable optimum
usage of the battery:
1. Protect the battery against moisture and
water.
2. Store the battery only with in a temperature
range from 32˚ F to 113˚ F. As an example,
do not leave the battery in the lawn mower in
direct sunlight.
3. Clean the battery occasionally with a soft,
clean and dry brush.
4. If you do not use the product for a long time,
please charge and discharge the battery pack
once every 6 months.
Storage and transport
After cleaning the unit thoroughly, store it in a dry
room and allow the motor to cool down.
1. Release the Handle Quick release levers,
and fold the handles down.
2. Position the lower handle lock pin into the
mower bracket. Lock the handles in place by
closing the Quick release handle.
3. The machine can be stored at. (See Fig. 25)
NOTE:
Remove the safety key and battery packs. Ensure
cables are not trapped when folding/unfolding
the handle. If stored vertically –Make sure it is
position in a corner so that the blade is facing
inwards to a wall and it is secure to prevent
accidentally falling over.
Transport
Use the original packaging to ship whenever
possible.

18
TM/MC
TROUBLE SHOOTING
WARNING ！
Before performing any repair work, always ensure that the battery pack/safety key has been removed
and wait until the blade has stopped completely and the tool has cooled down .
WARNING ！
Always wear heavy duty gloves when adjusting or cleaning, especially when handling sharp objects.
Fault/malfunction Cause Remedy
Mower fails to start Safety key is not inserted Insert safety key
Battery is not correctly inserted Remove the battery and reinsert
Mower standing in high grass Start motor on shorter grass or already
mowed area ;change cutting height if
necessary
The mower housing is clogged Clean housing so that the blade can
move freely
Battery has no power check and recharge battery
Mower stops working /
loses power
Cutting height is improper Adjust the cutting height
Discharge chute/ housing is blocked Clean the discharge chute/ housing
Cutting blade is worn or damaged Replace with New blade from dealer
service centre
Battery performance decreasing
Mower Overloaded -Red light
displayed switch box
Check the battery performance and
charge it if necessary
Wait until reset occurs – Green light
displayed on switchbox
Grass bag is not lled
su󰀩ciently
Cutting height is too Low Adjust and increase cutting height
The lawn / grass is wet Allow the lawn to dry
Discharge chute/ housing is blocked Clean the discharge chute/ housing
Underside of the mower deck is
clogged.
Clean the underside of the mower deck
Cutting blade is worn or damaged. Replace it by the customer service
center
Mower vibrating at high-
er speed
Cutting blade is unbalanced Balance the blade by grinding each
cutting edge equality
Blade is Loosened /incorrectly tted Tighten the blade bolt
Mower does not mulch
properly
Cutting height set to low
Deck has wet grass on underside of
deck
Adjust cutting height
Clean underside of deck and wait until
grass is dry
Mower cuts unevenly The blade is damaged
Blade is assembled incorrectly
Sharpen the blade or replace
Re-assemble blade correctly

19
120v
LITHIUM-ION
TM/MC
WARRANTY
Product Warranty
Please keep your original purchase receipt in a safe place as proof of purchase.
Warranty coverage for this product must be veried by the original purchase receipt.
The warranty period begins on the day that the product was purchased from an authorized retailer of
G-FORCE PRO products. Warranty coverage only applies to the original purchaser and is not trans-
ferrable. Warranty coverage is only provided on products purchased from authorized G-FORCE PRO
retailers. Warranty only applies to products purchased and operated in the USA, CANADA. Any product
purchased or operated outside of the USA, CANADA is not covered by any warranty.
(1) Five-Year Warranty on Model: Y0LMX22S300 lawn mower tool only and
Three-Year Warranty on 120vRX Battery Pack and Charger
FOR FIVE YEARS from the date of original retail purchase, this G-FORCE PRO product is warranted
against defects in material or workmanship. Defective products will be repaired at no-charge (excluding
shipping).
FOR THREE YEARS from the date of original retail purchase, the G-FORCE PRO 120vRX battery pack
and charger are warranted against defects in material workmanship. Defective products will be repaired
at no-charge (excluding shipping).
Commercial use voids the warranty. This warranty does not cover accidental damage, unreasonable use,
normal wear and tear, neglect or non-compliance with the Operating, Safety and Maintenance Instruc-
tions. All service, outside of normal maintenance as described in this manual, must be done by an autho-
rized service technician. Any unauthorized service or changes to the original conguration of this product
will void the warranty. All parts and accessories used on and with this product must be manufactured
and/or authorized by G-FORCE PRO brand.
(2) Ninety-Day Warranty – Accessories
The accessories included with the Y0LMX22S300 including blade, side discharger chute and mulching
plug, and other similar parts are warranted against manufacturer defects for residential use only for a
period of 90 days from date of purchase.
Warranty does not cover loss of use or other consequential damages arising from any of the above, nor
does it cover repairs made or attempted by unauthorized persons.
This warranty is void if the product is used for commercial, rental or industrial purposes.
Certain parts, attachments and accessories are subject to normal wear and tear and are excluded from
the warranty.
Service and Warranty Claims Process
Contact the G-FORCE PRO Support Center toll-free at 1-833-818-4111 Monday - Friday between 8:00
AM and 9:00 PM, Saturday - Sunday between 9:00 AM to 5:00 PM for service and warranty support.
G-FORCE PRO Service Support agents can help you troubleshoot problems over the phone to get you
back up and running as quickly as possible. In the situation where service or warranty inspection is need-
ed, please follow these steps:
1. Call G-FORCE PRO at 1-833-818-4111 Monday - Friday between 8:00 AM and 9:00 PM, Saturday
- Sunday between 9:00 AM to 5:00 PM.
2. Send in proof-of-purchase and serial number (if applicable) to conrm warranty Coverage as directed
by G-FORCE PRO.
3. If service or a warranty evaluation is requested, G-FORCE PRO will provide an RGA number that
should be used in all communications with Yard Force and is required to be indicated on the product itself
and on the outside of the box.
4. All shipments to G-FORCE PRO must have an RGA number. Any shipment received that does not
have an RGA number clearly marked on the outside of the box will be refused.
5. All shipments must be sent pre-paid, G-FORCE PRO does not pay for any shipping costs for service
or warranty evaluation. G-FORCE PRO is not responsible for any packages that are lost by carrier. We
recommend that shipments are made by a carrier that provides tracking and delivery conrmation.
For more information or to ask questions, please call toll-free 1-833-818-4111 Monday - Friday between
8:00 AM and 9:00 PM, Saturday - Sunday between 9:00 AM to 5:00 PM.
SAVE THESE INSTRUCTIONS

1-833-818-4111
Monday - Friday between 8:00 AM and 9:00 PM, Saturday - Sunday
between 9:00 AM to 5:00 PM
Imported by
Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Made in China
TM/MC
