Galaxy One-Speed Automatic Washers Original instructions

Owner's Manual and
Installation Instructions
Galaxy TM
One-Speed
AUTOMATIC WASHERS
with Water Temperature Control
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8 www.sears.ca
8530569 PRINTED IN U.S.A. 3/02

BEFORE USING 2
GALAXY AUTOMATIC WASHER WARRANTY _ _ _ 3
WASHER SAFETY 4
INSTALLATION REQUIREMENTS 6
INSTALLATION INSTRUCTIONS 10
WASHER USE .......... 14
LAUNDRY TIPS 22
WASHER CARE 24
TROUBLESHOOTING ..... 25
WE SERVICE WHAT WE SELL 29
Please read this manual. It will help
you install and operate your new Galaxy
washer in the most economical way.
For more information about the care
and operation of Galaxy appliances, call
your nearest Sears store. You will need
the complete model and serial
numbers when requesting information.
Your washer's model and serial numbers
are located on the Model and Serial
Number Plate.
Use the space below to record the model
number and serial number of your new
Galaxy washer.
Model No.
Serial No.
Date of Purchase
Model and Serial
Number Plate
Keep this book and your Sears
Salescheck (receipt) in a safe place
for future reference.

90-DAY WARRANTY LIMITED 5-YEAR WARRANTY
ON MECHANICAL AND ON PLASTIC TUB*
ELECTRICAL PARTS After ninety days and untilfive years
For ninety days from the date of from date of purchase, Sears willfurnish
purchase, when the washer is installed a replacement plastic tub for any plastic
and operated in accordance with the tub which is defective in material or work-
instructions in the Owner's Manual, Sears manship. You will be charged for labor.
will repair or replace any mechanical or
electrical parts in this washer, if defective
in material or workmanship.
LIMITED 2-YEAR WARRANTY
ON GEARCASE PARTS*
After ninety days and until two years from
the date of purchase, Sears will furnish
replacement parts for any defective
gearcase parts. You will be charged for
labor.
If the washer is subjected to other than private family use, the above warranty
coverage is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST
SEARS SERVICE CENTER IN THE UNITED STATES OR CANADA.
This warranty applies only while this product is in use in the United States or
Canada. This warranty gives you specific legal rights, and you may have other rights
which vary from state to state or province to province.
Sears Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario MSB 2B8
*In Canada, a different warranty may apply. For warranty information, contact Sears Canada Inc.
by referencing the service numbers located on the back page of this manual.

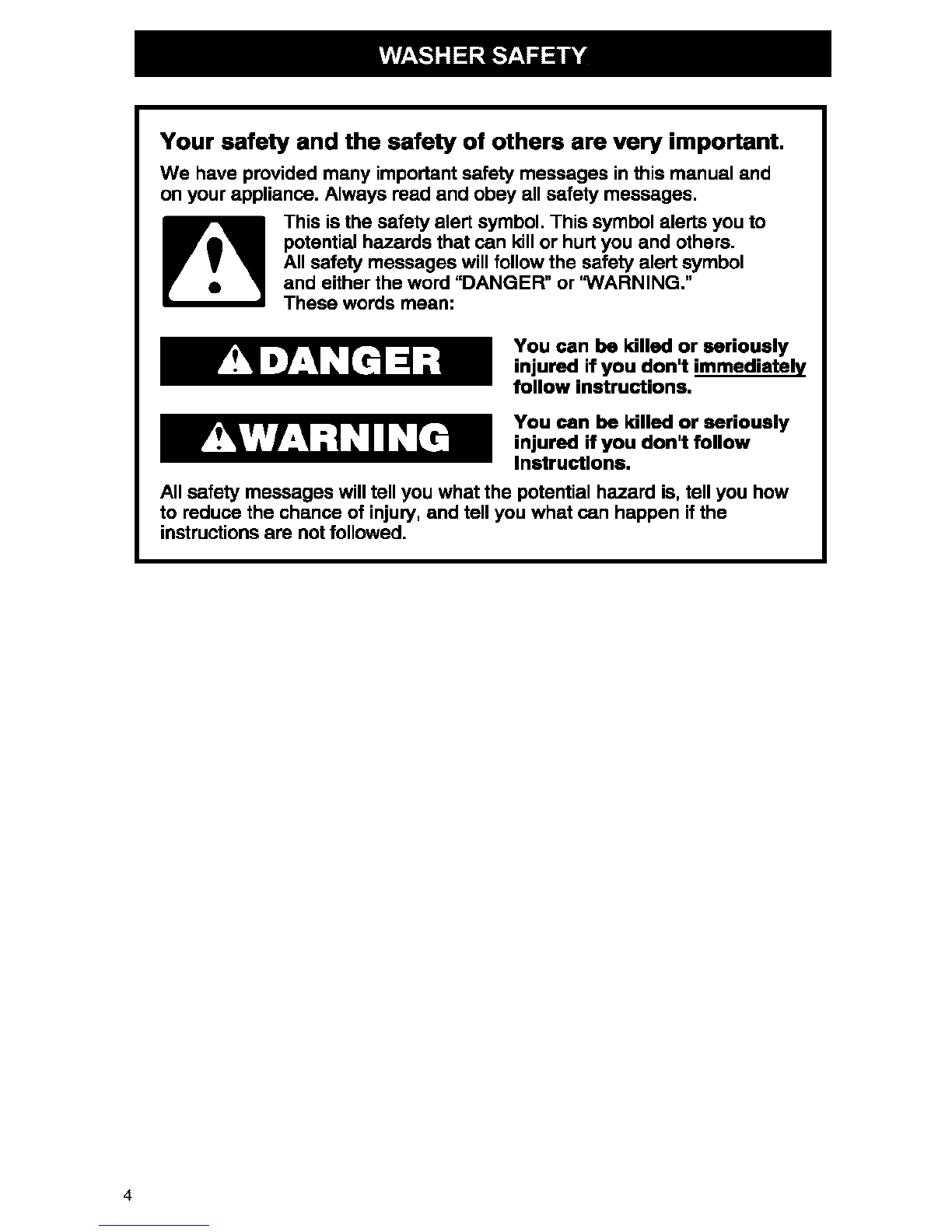

Your safety and the safety of others are very important.
We have provided many importantsafety messages inthis manual and
on yourappliance. Always read and obey all safety messages,
This isthe safety alert symbol,This symbolalertsyou to
potentialhazards that can killor hurtyou and others.
All safety messages willfollowthe safety alert symbol
and eitherthe word'=DANGER"or "WARNING."
These words mean:
You can be Idlled or seriously
injured if you don't immediatel£
follow instructions.
You can be Idlled or seriously
injured if you don't follow
Instructions.
Allsafety messageswilltell you what the potentialhazard is, tellyou how
to reducethe chance of injuw,and tell you what can happen ifthe
instructionsare not followed.

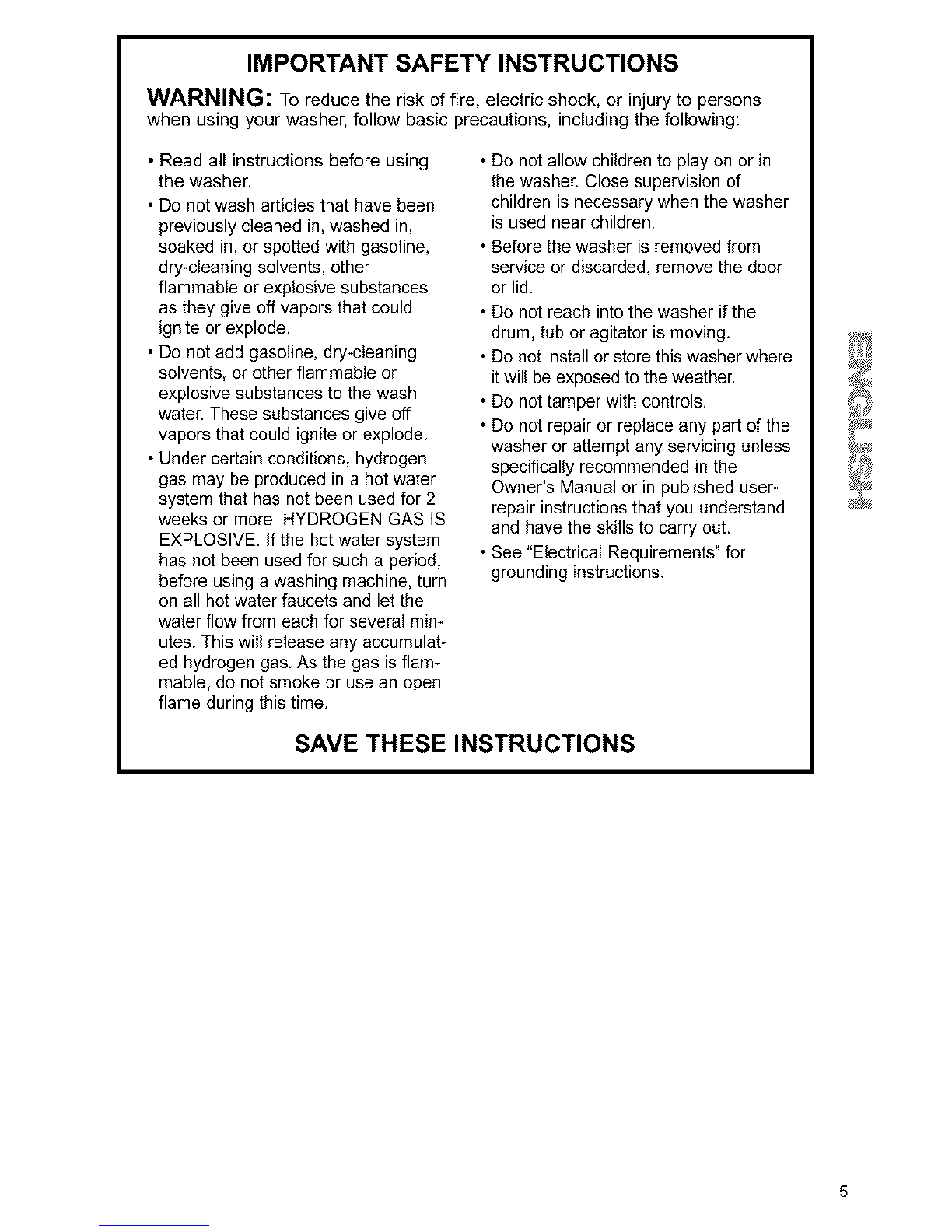

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons
when using your washer, follow basic precautions, including the following:
• Read all instructions before using
the washer,
• Do not wash articles that have been
previously cleaned in, washed in,
soaked in, or spotted with gasoline,
dry-cleaning solvents, other
flammable or explosive substances
as they give off vapors that could
ignite or explode.
• Do net add gasoline, dry-cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors that could ignite or explode.
• Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for 2
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the bet water system
has not been used for such a period,
before using a washing machine, turn
on all hot water faucets and let the
water flow from each for several min-
utes. This will release any accumulat-
ed hydrogen gas. As the gas is flam-
mable, do not smoke or use an open
flame during this time.
• Do not allow children to play on or in
the washer. Close supervision of
children is necessary when the washer
is used near children.
• Before the washer is removed from
service or discarded, remove the door
or lid.
• Do net reach into the washer if the
drum, tub or agitator is moving.
• Do not install or store this washer where
it will be exposed to the weather,
• Do not tamper with controls.
• Do not repair or replace any part of the
washer or attempt any servicing unless
specifically recommended in the
Owner's Manual or in published user-
repair instructions that you understand
and have the skills to carry out,
• See "Electrical Requirements" for
grounding instructions.
SAVE THESEINSTRUCTIONS

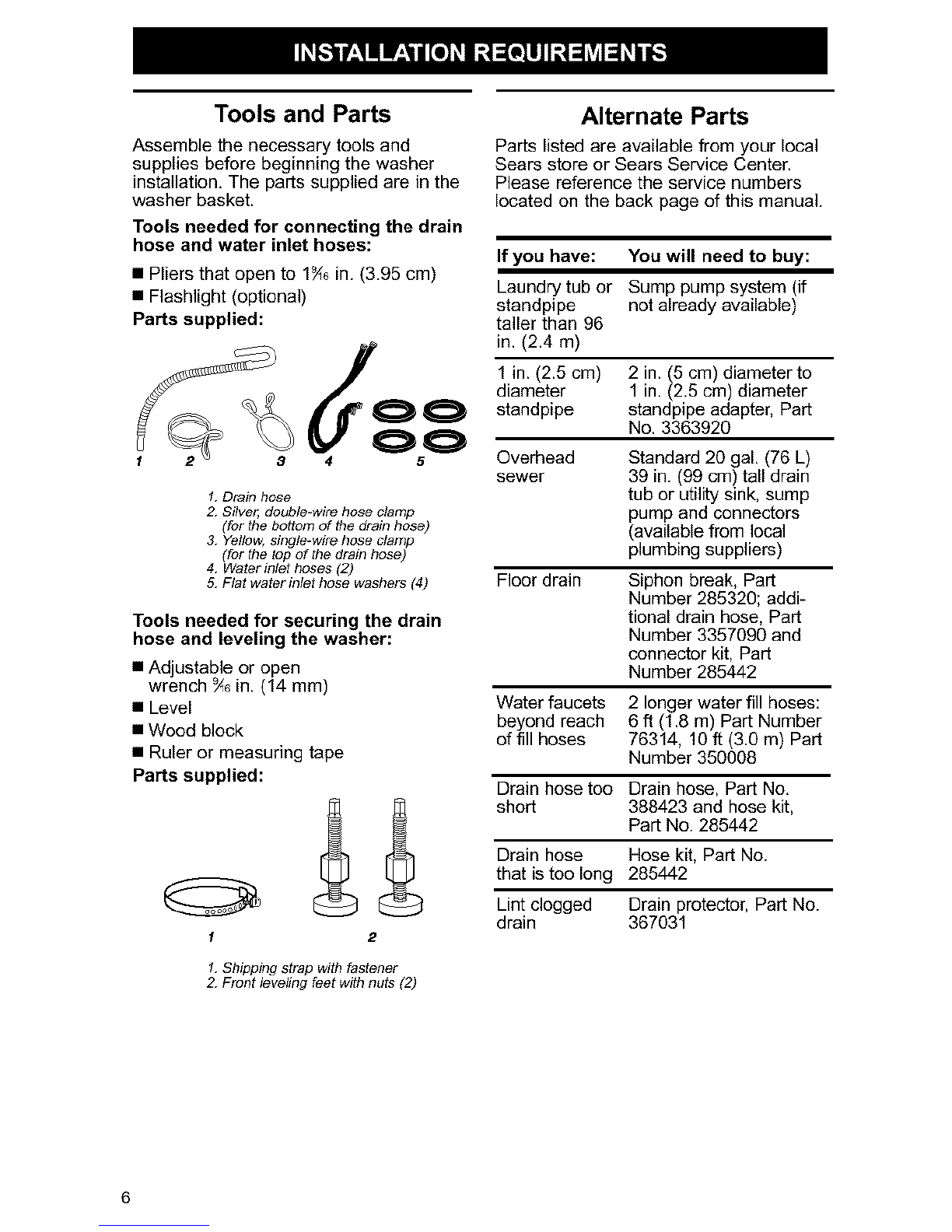

Tools and Parts
Assemble the necessary tools and
supplies before beginning the washer
installation, The parts supplied are in the
washer basket.
Tools needed for connecting the drain
hose and water inlet hoses:
• Pliers that open to I_G in. (3.95 cm)
• Flashlight (optional)
Parts supplied:
O0
O0
4S
1.Drain hose
2. Silve5 double-wire hose clamp
(for the bottom of the drain hose)
3. Yellow, single-wire hose clamp
(for the top of the drain hose)
4. Water inlet hoses (2)
&Flat water inlet hose washers (4)
Tools needed for securing the drain
hose and leveling the washer:
• Adjustable or open
wrench _'6in. (14 mm)
• Level
• Wood block
• Ruler or measuring tape
Parts supplied:
1 2
1.Shipping strap with fastener
2. Front leveling feet with nuts (2)
Alternate Parts
Parts listed are available from your local
Sears store or Sears Service Center.
Please reference the service numbers
located on the back page of this manual.
If you have: You will need to buy:
Laundry tub or Sump pump system (if
standpipe not already available)
taller than 96
in. (2.4 m)
1 in. (2.5 cm) 2 in. (5 cm) diameter to
diameter 1 in. (2,5 cm) diameter
standpipe standpipe adapter, Part
No. 3363920
Overhead Standard 20 gaL (76 L)
sewer 39 in. (99 cm) tall drain
tub or utility sink, sump
pump and connectors
(available from local
plumbing suppliers)
Floor drain Siphon break, Part
Number 285320; addi-
tional drain hose, Part
Number 3357090 and
connector kit, Part
Number 285442
Water faucets 2 longer water fill hoses:
beyond reach 6 ft (1.8 m) Part Number
of fill hoses 76314_ 10 ft (3.0 m) Part
Number 350008
Drain hose too Drain hose, Part No,
short 388423 and hose kit,
Part No. 285442
Drain hose Hose kit, Part No.
that is too long 285442
Lint clogged Drain protector, Part No.
drain 367031

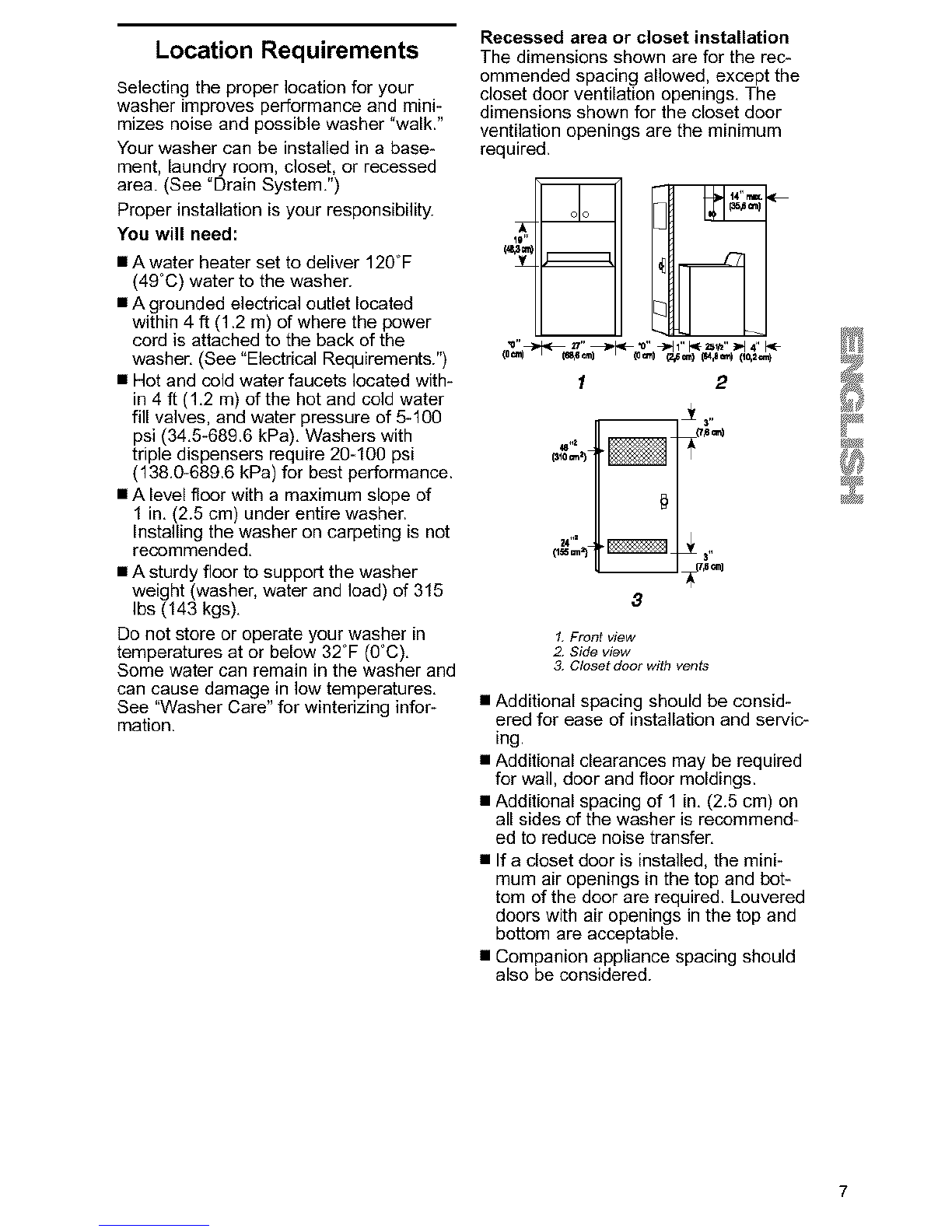

Location Requirements
Selecting the proper location for your
washer improves performance and mini-
mizes noise and possible washer "walk."
Your washer can be installed in a base-
ment, laundry room, closet, or recessed
area. (See "Drain System.")
Proper installation is your responsibility.
You will need:
• A water heater set to deliver 120°F
(49%) water to the washer.
• A grounded electrical outlet located
within 4 ft (1.2 m) of where the power
cord is attached to the back of the
washer. (See "Electrical Requirements.")
• Hot and cold water faucets located with-
in 4 ft (1.2 m) of the hot and cold water
fill valves, and water pressure of 5-100
psi (34.5-689.6 kPa). Washers with
triple dispensers require 20-100 psi
(138.0-689.6 kPa) for best performance.
• A level floor with a maximum slope of
1 in. (2.5 cm) under entire washer.
Installing the washer on carpeting is not
recommended.
• A sturdy floor to support the washer
weight (washer, water and load) of 315
Ibs (143 kgs).
Do not store or operate your washer in
temperatures at or below 32°F (0'C).
Some water can remain in the washer and
can cause damage in low temperatures.
See "Washer Care" for winterizing infor-
mation.
Recessed area or closet installation
The dimensions shown are for the rec-
ommended spacing allowed, except the
closet door ventilation openings. The
dimensions shown for the closet door
ventilation openings are the minimum
required.
m
f2
3"
24 "m
-- _,6ml
3
1. Front view
2. Side view
3. Closet door with vents
• Additional spacing should be consid-
ered for ease of installation and servic-
ing.
• Additional clearances may be required
for wall, door and floor moldings.
• Additional spacing of 1 in. (2.5 cm) on
all sides of the washer is recommend-
ed to reduce noise transfer.
• If acloset door is installed, the mini-
mum air openings in the top and bot-
tom of the door are required. Louvered
doors with air openings in the top and
bottom are acceptable.
• Companion appliance spacing should
also be considered.

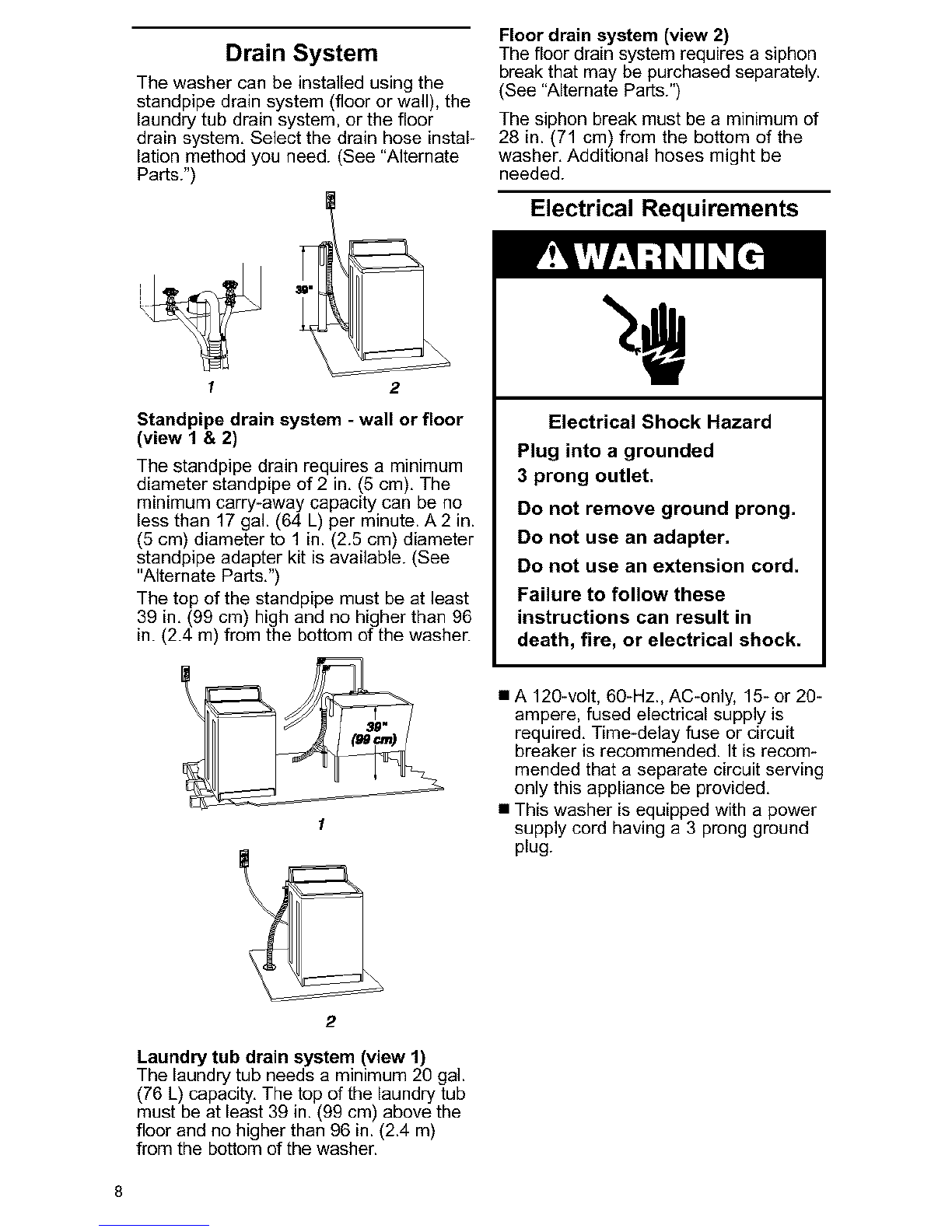

Drain System
The washer can be installed using the
standpipe drain system (floor or wail), the
laundry tub drain system, or the floor
drain system, Select the drain hose instal-
lation method you need. (See "Alternate
Parts.")
I2
Standpipe drain system - wall or floor
(view 1 & 2)
The standpipe drain requires a minimum
diameter standpipe of 2 in. (5 cm). The
minimum carry-away capacity can be no
less than 17 gal. (64 L) per minute. A 2 in.
(5 cm) diameter to 1 in. (2.5 cm) diameter
standpipe adapter kit is available. (See
"Alternate Parts.")
The top of the standpipe must be at least
39 in. (99 cm) high and no higher than 96
in. (2.4 m) from the bottom of the washen
Floor drain system (view 2)
The floor drain system requires a siphon
break that may be purchased separately.
(See "Alternate Parts.")
The siphon break must be a minimum of
28 in. (71 cm) from the bottom of the
washer. Additional hoses might be
needed.
Electrical Requirements
Electrical Shock Hazard
Plug into a grounded
3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
aA 120-volt. 60-Hz, AC-only, 15- or 20-
ampere, fused electrical supply is
required. Time-delay fuse or circuit
breaker is recommended. It is recom-
mended that a separate circuit serving
only this appliance be provided.
a This washer is equipped with a power
supply cord having a 3 prong ground
plug.
2
Laundry tub drain system (view 1)
The laundry tub needs a minimum 20 gal.
(76 L) capacity, The top of the laundry tub
must be at least 39 in. (99 cm) above the
floor and no higher than 96 in. (2.4 m)
from the bottom of the washer.
8

• To minimize possible shock hazard, the
cord must be plugged into a mating, 3
prong, ground-type outlet, grounded in
accordance with local cedes and ordi-
nances. Ifa mating outlet is not avail-
able, it is the personal responsibility and
obligation of the customer to have the
properly grounded outlet installed by a
qualified electrician.
• If codes permit and a separate ground
wire is used, it is recommended that a
qualified electrician determine that the
ground path is adequate.
• Do not ground to a gas pipe.
• Check with a qualified electrician if you
are not sure the washer is properly
grounded.
• Do not have a fuse in the neutral or
ground circuit.
1. 3 prong grounding plug
2. 3 prong grounding-type outlet
3. Ground prong
4 Power supply cord

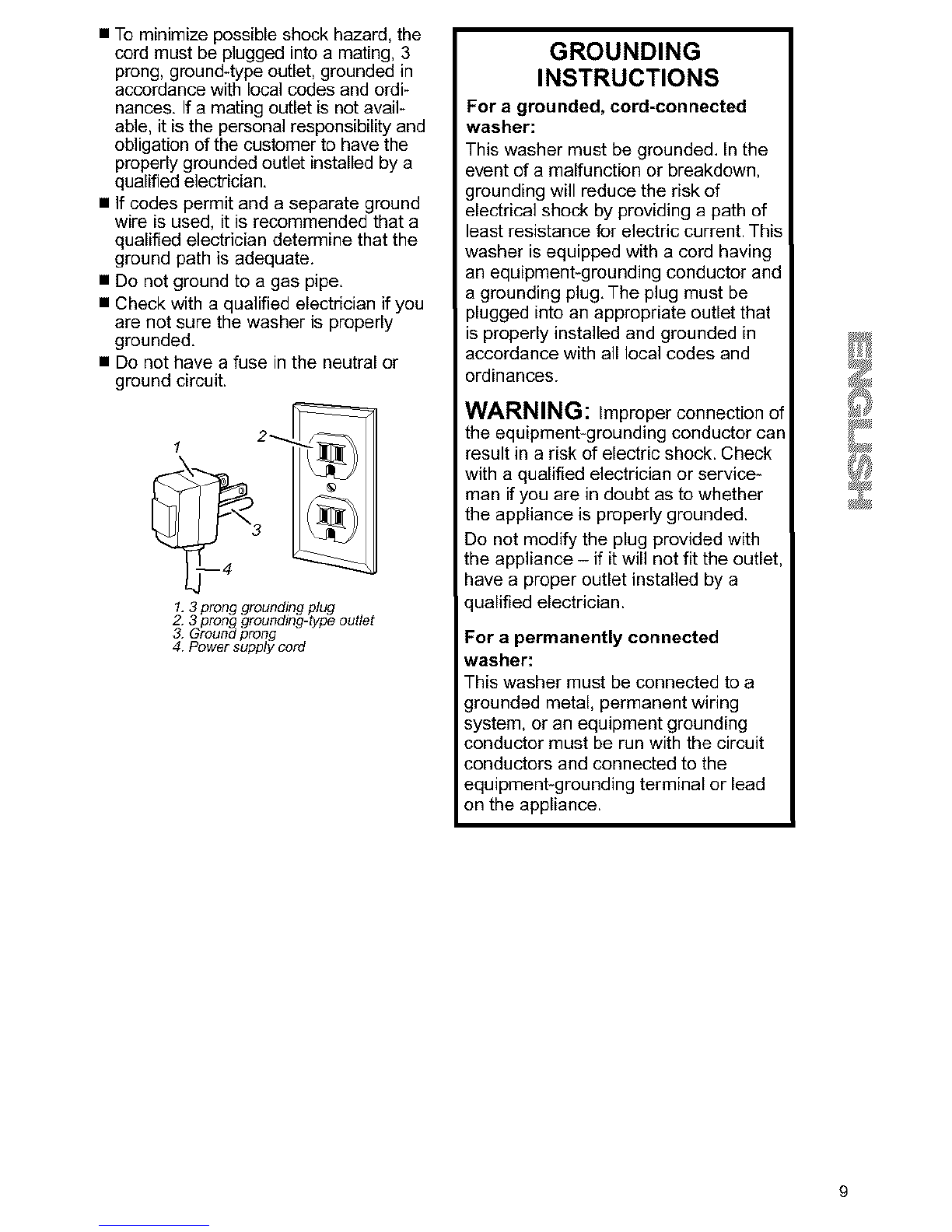

GROUNDING
INSTRUCTIONS
For a grounded, cord-connected
washer:
This washer must be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of
electrical shock by providing a path of
least resistance for electric current. This
washer is equipped with a cord having
an equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING: Improper connection of
the equipment-grounding conductor can
result in arisk of electric shock. Check
with a qualified electrician or service-
man if you are in doubt as to whether
the appliance is properly grounded.
Do not modify the plug provided with
the appliance - if it will not fit the outlet
have a proper outlet installed by a
qualified electrician.
For a permanently connected
washer:
This washer must be connected to a
grounded metal, permanent wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the appliance.

Before You Start 3. Cut the shipping strap about 16 in,
(40 cm) from plug end, Look for the
words "CUT HERE." Discard end with
the cotter pins, Slide remainder of
shipping strap from the power cord.
You will use the remainder of the
shipping strap later to secure the
drain hose.
• To prevent floor damage, set the
washer onto cardboard before moving
across floor.
• Move the washer to within approximate-
ly 3 ft (90 cm) of the final location.
Remove Shipping Strap
Removing the shipping strap is necessary
for smooth operation. If the shipping strap
is not removed, the washer will make
excessive noise.
1, Do not cut yellow strap. Pull yellow
strap firmly, until completely removed
from washer. Depending on your
model, there will be either two or three
cotter pins on the end of the shipping
strap when it is pulled out of the
washer. The electrical plug is attached
to this shipping strap.
2, Pull firmly to remove the end of the
shipping strap that remains pinned to
the back of the washer, This will
release the rear self-leveling feet.

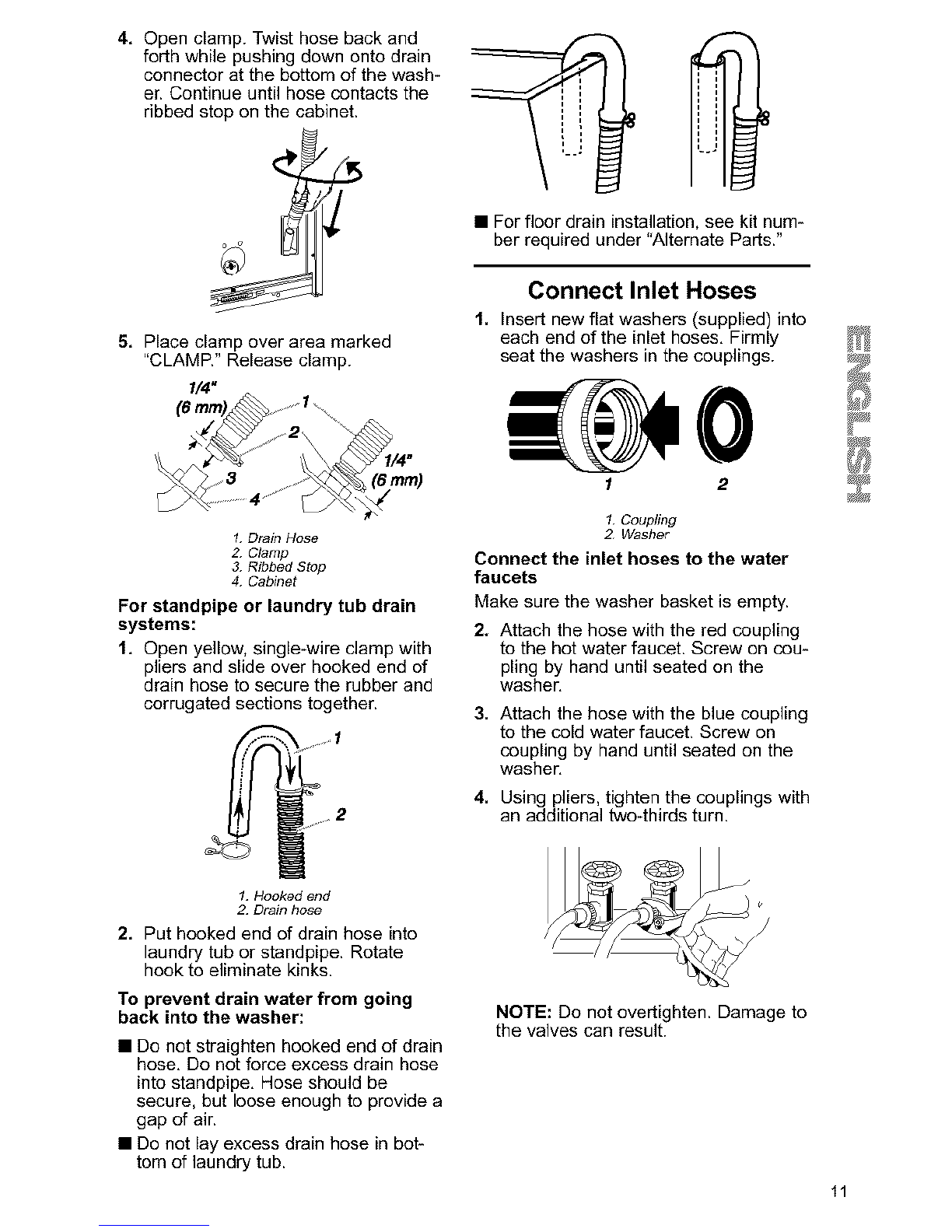

Connect Drain Hose
Proper connection of the drain hose will
protect your floors from damage due to
water leakage. To prevent the drain hose
from coming off or leaking, it must be
installed per the following instructions.
IMPORTANT: To ensure proper installa-
tion, this procedure must be followed
exactly,
1. Check the drain hose to see if it is
the proper length.
2, Wet the inside of the straight end of
the drain hose with tap water, DO
NOT USE ANY OTHER LUBRICANT.
3. Squeeze ears of silver, double-wire
clamp with pliers to open, Place
clamp over the straight end of the
drain hose _ in. (6 ram) from the end.
1/4"
(6 mm)
10

4, Open clamp. Twist hose back and
forth while pushing down onto drain
connector at the bottom of the wash-
er. Continue until hose contacts the
ribbed stop on the cabinet.
Y
5, Place clamp over area marked
"CLAMR" Release clamp.
ram)
1. Drain Hose
2. Clamp
&Ribbed Stop
4. Cabinet
For standpipe or laundry tub drain
systems:
1, Open yellow, single-wire clamp with
pliers and slide over hooked end of
drain hose to secure the rubber and
corrugated sections together.
• For floor drain installation, see kit num-
ber required under "Alternate Parts."
Connect Inlet Hoses
1. Insert new flat washers (supplied) into
each end of the inlet hoses, Firmly
seat the washers in the couplings.
I2
1. Coupling
2. Washer
Connect the inlet hoses to the water
faucets
Make sure the washer basket is empty.
2. Attach the hose with the red coupling
to the hot water faucet. Screw on cou-
pling by hand until seated on the
washer,
3. Attach the hose with the blue coupling
to the cold water faucet. Screw on
coupling by hand until seated on the
washer,
4. Using pliers, tighten the couplings with
an additional two-thirds turn.
1. Hooked end
2. Drain hose
2. Put hooked end of drain hose into
laundry tub or standpipe. Rotate
hook to eliminate kinks.
To prevent drain water from going
back into the washer:
• Do not straighten hooked end of drain
hose, Do not force excess drain hose
into standpipe, Hose should be
secure, but loose enough to provide a
gap of air.
• Do not lay excess drain hose in bot-
tom of laundry tub.
NOTE: Do not overtighten. Damage to
the valves can result.
11

12
Clear the water lines
5. Run water through both faucets and
inlethoses, into a bucket or laundry
tub, to get rid of particles in the water
lines that might clog the inlet valve
screens.
Connect the inlet hoses to the washer
6. Attach the hose with the red coupling
to the HOT water (bottom) inlet valve.
Attaching the red coupling first makes
it easier to tighten connection with
pliers. Screw on coupling by hand
until seated on the washer, Using pli-
ers, tighten the couplings with an
additional two4hirds turn.
NOTE: Do not overtighten. Damage
to the valves can result.
I\
1. Cold water inlet valve (blue)
2. Hot water inlet valve (red)
NOTE: The inlet valve may be on the
right or the left side of the washer,
depending on your model.
7. Attach the hose with the blue cou-
pling to the COLD water (top) inlet
valve. Screw on coupling by hand
until seated on the washer. Using pli-
ers, tighten the couplings with an
additional two4hirds turn.
NOTE: Do not overtighten. Damage
to the valves can result.
Check for leaks
8. Turn on the water faucets and check
for leaks. A small amount of water
might enter the washer. You will drain
this later.
NOTE: Replace inlet hoses after 5
years of use to reduce the risk of hose
failure. Record hose installation or
replacement dates for future reference.
• If you only connect one water
hose, you must cap off the remain-
ing water inlet port.
• Periodically inspect and replace
hoses if bulges, kinks, cuts, wear,
or leaks are found.
1,
2.
3,
Secure Drain Hose
Drape the power cord over the console.
Remove any cardboard used to move
washer.
Locate the remaining piece of ship-
ping strap (not the end with the cotter
pins) from step 3 of "Remove
Shipping Strap," Use it to wrap the
drain hose together with the laundry
tub or standpipe. Push fastener into
the nearest hole in the shipping strap.
Remaining portion of Shipping Strap
4, Wrap the drain hose to the laundry
tub leg or standpipe with the tie strap.
(See illustration.)
If the washer faucets and the drain
standpipe are recessed, put the
hooked end of the drain hose in the
standpipe. Tightly wrap the tie strap
around the water inlet hoses and the
drain hose.
Level Washer
Properly leveling your washer prevents
excessive noise and vibration.
Install the front leveling feet
1. Prop up the front of the washer about
4 in. (10.2 cm) with a wood block or
similar object. The block needs to
support the weight of the washer.
2, Screw the lock nut onto each foot to
within 1 in. (2.5 cm) of the base.
(2.5 cm)
-- J
3. Screw the feet into the correct holes
at the front corner of the washer until
the nuts touch the washer.
NOTE: Do not tighten the nuts until
the washer is level.

4. Tiltthewasherbackandremovethe 3,
woodblock.Gentlylowerthewasher
tothefloor. 4,
5. Slide to final location.
6. Check the levelness of the washer
by placing a level on the top edges
of the washer; first side-to-side, then
front4o-back. 5,
6,
7,
Check to be sure you have all of
your tools.
Check to be sure that the yellow
shipping strap was removed from the
back of the washer and used to
secure the drain hose.
Dispose/recycle all packaging
materials.
Check to be sure the water faucets
are on.
Check for leaks around faucets and
inlet hoses.
If the washer is not level, move the
washer out slightly, tip back, prop up
the front of the washer with the wood
block and adjust the feet up or down
as necessary. Repeat this step until
washer is level.
7. After the washer is in the final Ioca*
tion and level, use a %6in, (1,43 cm)
open*end wrench to turn the nuts on
the feet tightly against the washer
cabinet.
If the nuts are not tight against the
washer cabinet, the washer may
vibrate.
8. Tilt the washer forward until the rear
of the washer is at least 4 in, (10,2
cm) off the floor, You may hear the
self-adjusting rear feet click into
place. Lower the washer to the floor.
Complete Installation
1. Check the electrical requirements, Be
sure that you have the correct electri-
cal supply and the recommended
grounding method. (See "Electrical
Requirements.")
2. Check to be sure all parts are now
installed, If there is an extra part, go
back through the steps to see which
step was skipped.
Electrical Shock Hazard
Plug into a grounded
3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
8, Plug into a grounded 3 prong outlet.
9, Remove the protective film on the
console and any tape remaining on
the washer.
10, Read "Washer Use."
11. To test your washer, measure half of
the normal recommended amount of
powdered or liquid detergent and
pour it into the washer basket or
detergent dispenser (on some mod-
els). Close the lid. Select any cycle,
and then press START. Allow it to
complete one whole cycle.
13

To get the maximum cleaning and
fabric care from your washer, please
read and follow these instructions.
NOTE: The drawings in this section show
the basic features of all models covered
by this manual, Refer to the supplied
"Feature Sheet" for your washer's particu-
lar features.
Fire Hazard
Never place items in the washer
that are dampened with gasoline
or other flammable fluids.
No washer can completely
remove oil.
Do not dry anything that has
ever had any type of oil on it
(including cooking oils).
Doing so can result in death,
explosion, or fire.
WARNING: To reduce the risk of fire,
electric shock, or injury to persons,
read the IMPORTANT SAFETY
INSTRUCTIONS before operating this
appliance.
14

STARTING YOUR WASHER
1, Add measured detergent directly into
washer basket, Then place a load of
sorted clothes in the washer.
2. Close washer lid.
3, Set WATER LEVEL Control Q based on
the size of your wash load.
4, Set the WATER TEMPERATURE
Control 0.
5, Push the Cycle Selector Control (Timer)
Knob (_ in and turn to the right, Set
cycle and time according to the type of
fabric in the load.
6. Pull the Cycle Selector Control (Timer)
Knob (_ out, The dial will rotate as the
cycle progresses. The knob will not
rotate.
STOPPING/RESTARTING
YOUR WASHER
• To stop the washer at any time, push
the Cycle Selector Control (Timer)
Knob in (_.
• Pull the knob out to restart.
WATER LEVEL WATER _E RAT_JRE
warm
Galaxy
pE_MANENTpRE$$
15

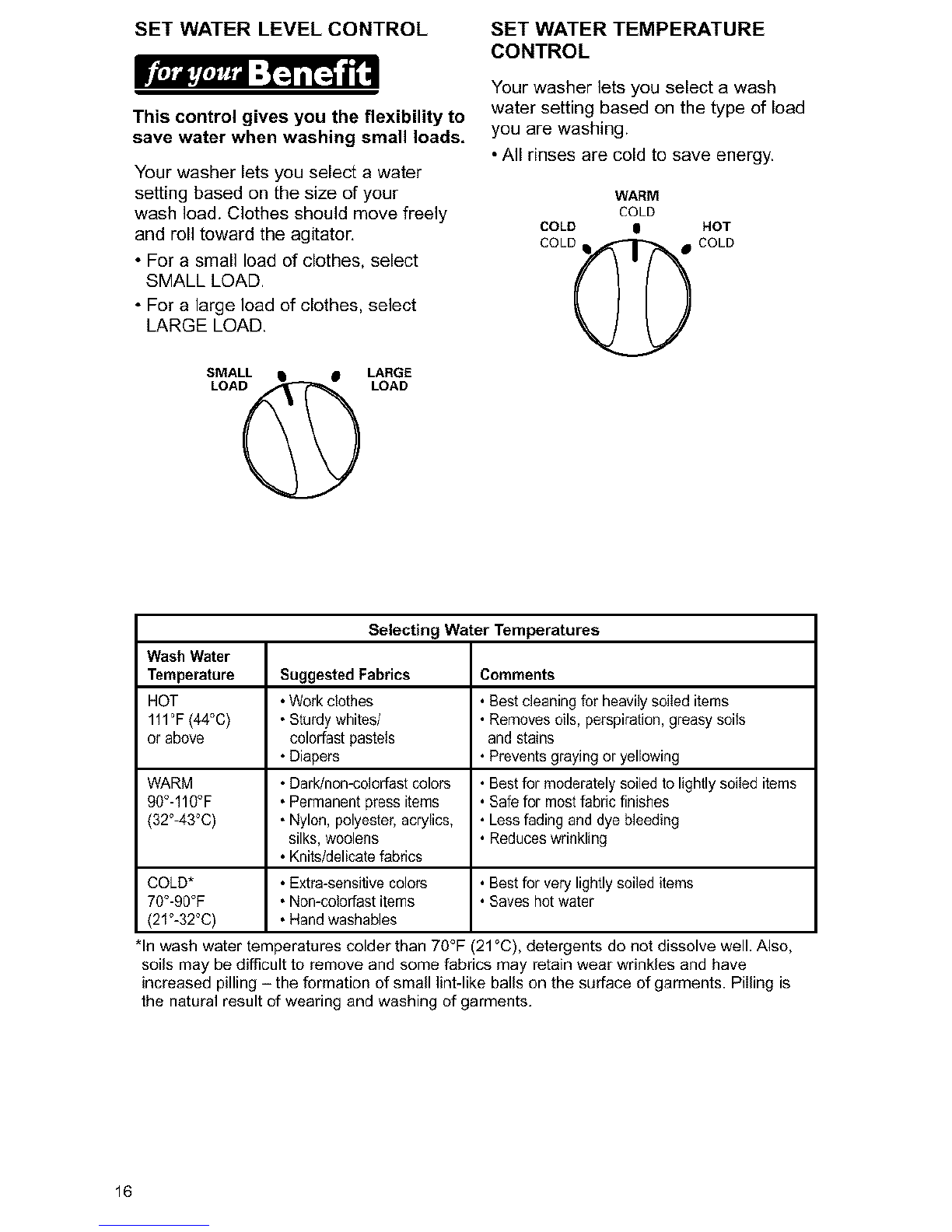

SET WATER LEVEL CONTROL
This control gives you the flexibility to
save water when washing small loads,
Your washer lets you select a water
setting based on the size of your
wash load. Clothes should move freely
and roll toward the agitator.
• For a small load of clothes, select
SMALL LOAD.
• For a large load of clothes, select
LARGE LOAD.
SMALL • • LARGE
LOAD_ LOAD
SET WATER TEMPERATURE
CONTROL
Your washer lets you select a wash
water setting based on the type of load
you are washing.
• All rinses are cold to save energy.
WARM
COLD
COLD 0 HOT
COLD, COLD
Selecting Water Temperatures
Wash Water
Temperature Suggested Fabrics Comments
HOT •Work clothes •Best cleaning for heavily soiIed items
111°F(44°C) • Sturdy whites/ • Removes oils, perspiration, greasy soils
or above colorfast pastels and stains
• Diapers • Prevents graying or yellowing
WARM • Dark/non-colorfast colors • Best for moderately soiled to lightly soiled items
90°-110°F • Permanent press items • Safe for most fabric finishes
(32°-43°C) • Nylon, polyester, acrylics, • Less fading and dye bleeding
silks, woolens • Reduceswrinkling
• Knits/delicate fabrics
COLD* • Extra-sensitive colors • Best for very lightly soiled items
70°-90°F • Non-coIorfast items • Saves hot water
(21°-32°C) • Hand washables
*In wash water temperatures colder than 70°F (21°C), detergents do not dissolve well. Also,
soils may be difficult to remove and some fabrics may retain wear wrinkles and have
increased pilling - the formation of small lint-like bafis on the surface of garments. Piiling is
the natural result of wearing and washing of garments.
16

SETTING YOUR CYCLE
SELECTOR (TIMER) CONTROL
Use this control to choose the agitation
time and to start the washer.
• For heavy soil and sturdy fabrics,
use the full time.
• For light soil and delicate fabrics,
use less time.
PERMANENT PRESS
Ft'j'=!/'j,'_' :[q i[q _"
The PERMANENT PRESS Cycle
includes aload cooling process
that reduces wrinkling compared
to other cycles.
You can select up to 8 minutes of
wash time.
NOTE: When the timer reaches PAUSE,
the washer will drain and pause for no
more than two minutes while some of
the wash water is drained and replaced
with rinse water.
HEAVY DUTY
Usethis cycle _ getupto 14 minutes
washtime _rstu_y orheavilysoiled
loads.
GENTLE
Use this cycle for cleaning lightly to
moderately soiled delicate items and
washable knits. The cycle features a
periodic agitation and soak.
SOAK
Use this cycle to help remove heavy soils
and stains that need pretreatment.
• Use WARM water when soaking. Hot
water can set stains,
• Use the amount of detergent or presoak
additive recommended by the
manufacturer.
•When the SOAK cycle ends, add deter-
gent and set a new wash cycle,
NOTE: Some "HAND WASH" items,
particularly wool, naturally shrink when
washed either in the sink or in the wash-
er. Keep this in mind when you purchase
items labeled "HAND WASH." Items that
shrink should be dried flat. Block these
items by gently stretching to original mea-
surements.
PERMANENTPRESS
REGULAR
6 SHORT
SHORT
HEAVY DUTY 10
_8GENTLE
17

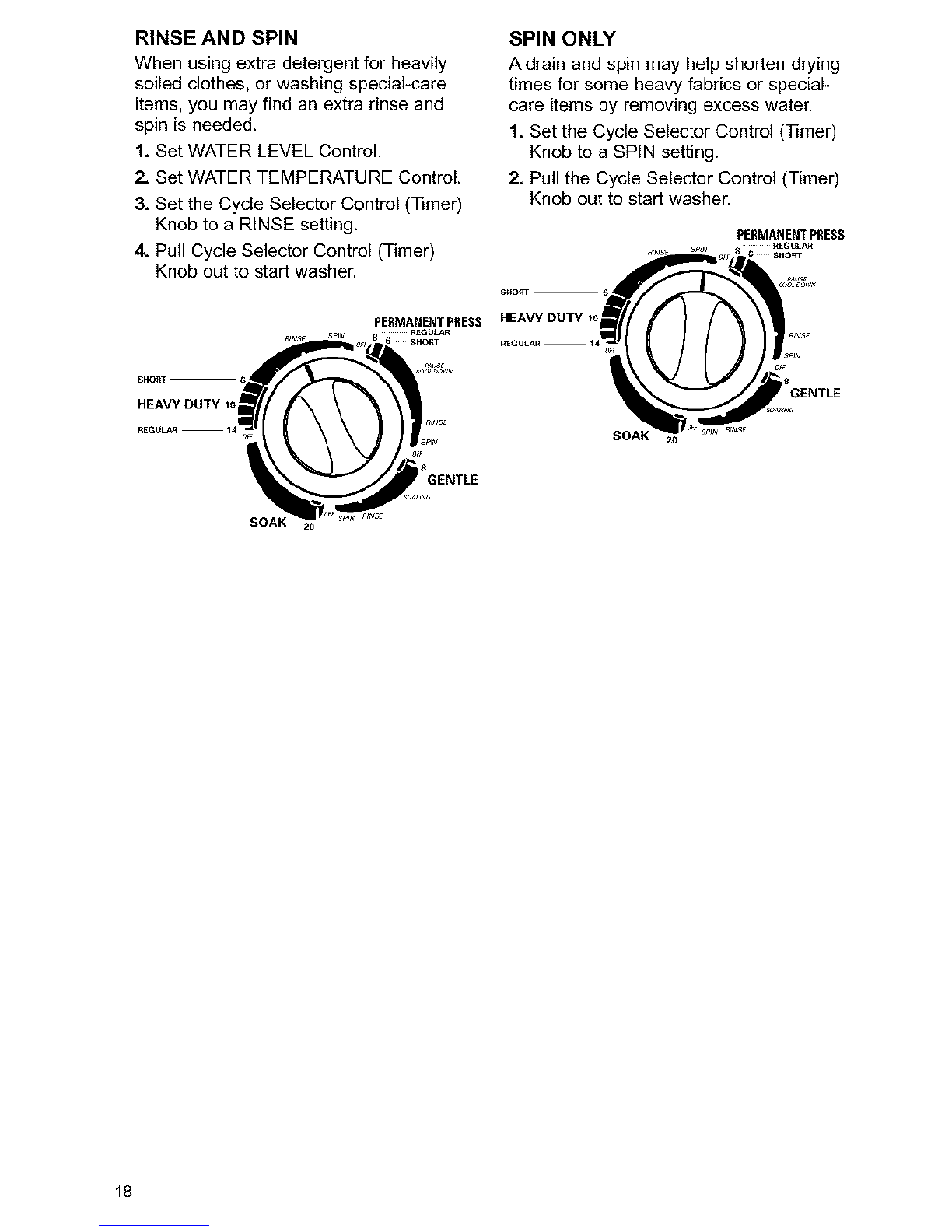

RINSE AND SPIN
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may find an extra rinse and
spin is needed.
1. Set WATER LEVEL Control
2, Set WATER TEMPERATURE Control.
3, Set the Cycle Selector Control (Timer)
Knob to a RINSE setting,
4, Pull Cycle Selector Control (Timer)
Knob out to start washer.
SPIN ONLY
A drain and spin may help shorten drying
times for some heavy fabrics or special-
care items by removing excess water.
1, Set the Cycle Selector Control (Timer)
Knob to a SPIN setting.
2, Pull the Cycle Selector Control (Timer)
Knob out to start washen
PERMANENTPRESS
nEGUL_
SHORT
HEAVY DUTY 1c
PERMANENT PRESS HEAVY DUTY _
6SHORT
_8GENTLE
iSGENTLE
SOAK 20
18

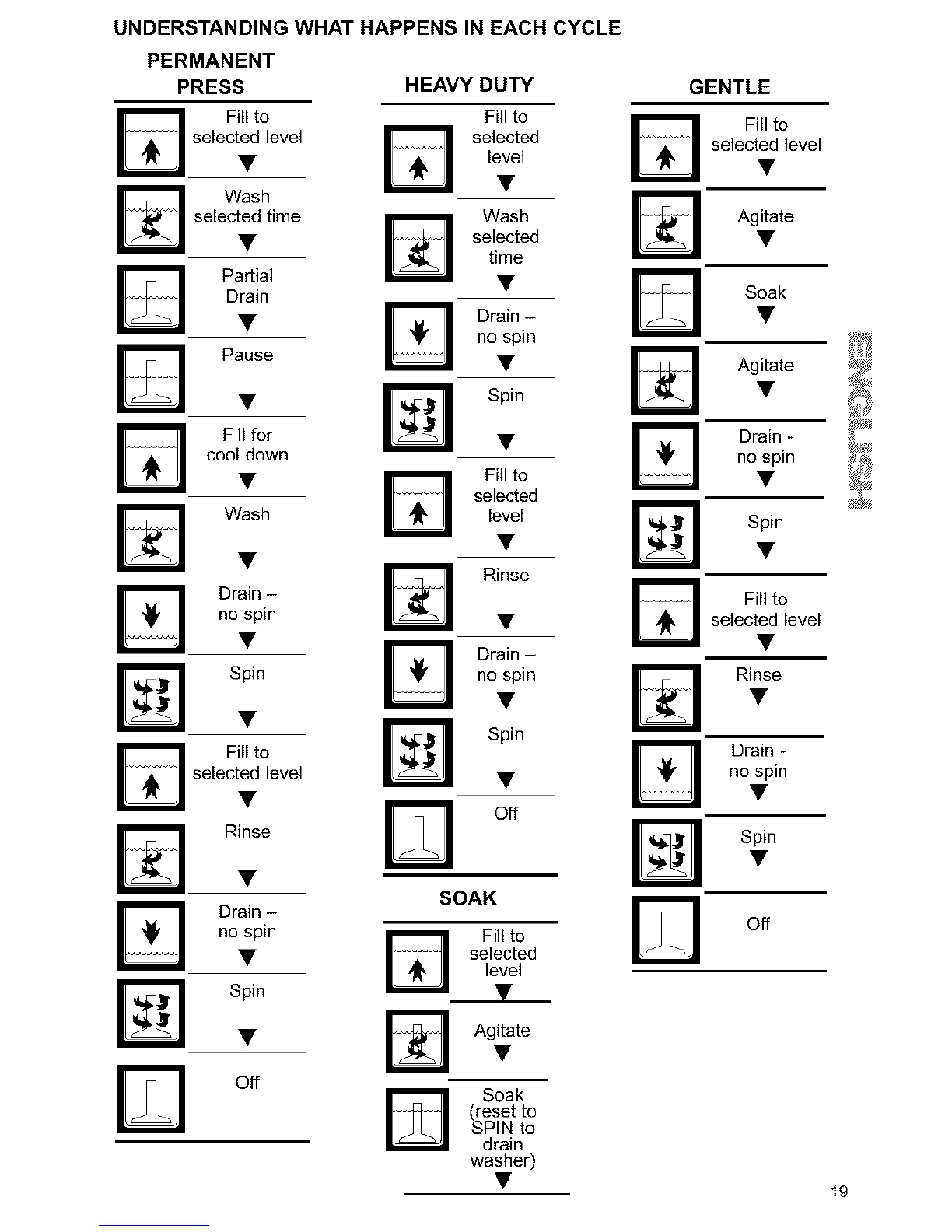

UNDERSTANDING WHAT HAPPENS IN EACH CYCLE
PERMANENT
PRESS HEAVY DUTY
Fill to _Fill to
selected level selected
• level
Wash
selected time Wash
• selected
time
Partial •
Drain
• r_ Drain -
no spin
Pause •
• Spin
Fill for •
cool down
• _ Fill to
Wselected
Wash level
Rinse
_ Drain -
no spin
•IZIDrain-
Spin no spin
Spin
Fill to
selected level •
• Off
Rinse
Drain -
no spin
Spin
Off
SOAK
Fill to
selected
level
GENTLE
II i Fill to
Z selected level
Agitate
I_ Soak
Agitate
no spin
Spin
Fill to
selected level
Rinse
_ Drain -
no spin
Spin
Off
Agitate
Soak
_set to
IN to
drain
washer)
19

STRAIGHT VANE AGITATOR
This agitator is found
in Galaxy large capacity
washers. Its design
is well-suited to handle
your everyday loads.
UNDERSTANDING NORMAL
WASHER SOUNDS
Your new washer may make sounds
that your old one didn't. Because the
sounds are unfamiliar, you may be
concerned about them.
The following describes some of the
normal sounds you may hear and what
causes them.
During Washing
When you select a small load size setting
for asmall wash load, your washer has a
lower water level. With this lower water
level, you may hear a clicking sound from
the upper portion of the agitator.
During Drain
The rate that water is drained from your
washer depends on your installation. If
water is drained quickly from the washer,
you may hear air being pulled through the
pump. This happens during the end of
draining.
After Drain and Before Spin
When the cycle changes from draining
to spinning, you may hear anoise as the
gearcase shifts.
2O
