Gamma+ Yealink W52P User manual

© Gamma 2014. All rights reserved. Confidential.
Yealink W52P
Full User Guide

© Gamma 2014. All rights reserved. Confidential.
Contents
Introduction................................................................................................................................................... 4
How to set up the Yealink W52P ................................................................................................................. 5
Register Handset ......................................................................................................................................... 5
De-register Handset..................................................................................................................................... 5
Upgrade handset firmware........................................................................................................................... 6
Main Menu Structure.................................................................................................................................... 7
Status........................................................................................................................................................... 8
Intercom ....................................................................................................................................................... 8
Voice Mail..................................................................................................................................................... 8
Call Features................................................................................................................................................ 8
Directory....................................................................................................................................................... 8
Phone Settings............................................................................................................................................. 9
Advisory Tones..................................................................................................................................... 9
Ring Tones............................................................................................................................................ 9
Screen Saver........................................................................................................................................ 9
Colour Schemes ................................................................................................................................... 9
Display Backlight................................................................................................................................... 9
Keypad Light......................................................................................................................................... 9
Notification Light ................................................................................................................................... 9
Time Format........................................................................................................................................ 10
Date Format........................................................................................................................................ 10
Input Method....................................................................................................................................... 10
Shortcuts............................................................................................................................................. 10
Language............................................................................................................................................ 10
Auto Answer........................................................................................................................................ 11
Auto Intercom...................................................................................................................................... 11
Speed Dial .......................................................................................................................................... 11
Handset Reset.................................................................................................................................... 11
Eco Mode............................................................................................................................................ 11

© Gamma 2014. All rights reserved. Confidential.
Repeater Mode ................................................................................................................................... 11
Handset Name.................................................................................................................................... 11
Supported Call Features............................................................................................................................ 12
Hold/Resume ............................................................................................................................................. 12
Call Mute.................................................................................................................................................... 12
Redial a call................................................................................................................................................ 12
Transfer a call ............................................................................................................................................ 12
Conference Call ......................................................................................................................................... 13
Call Forwarding.......................................................................................................................................... 13
Do Not Disturb............................................................................................................................................ 14
Voice Mail................................................................................................................................................... 14

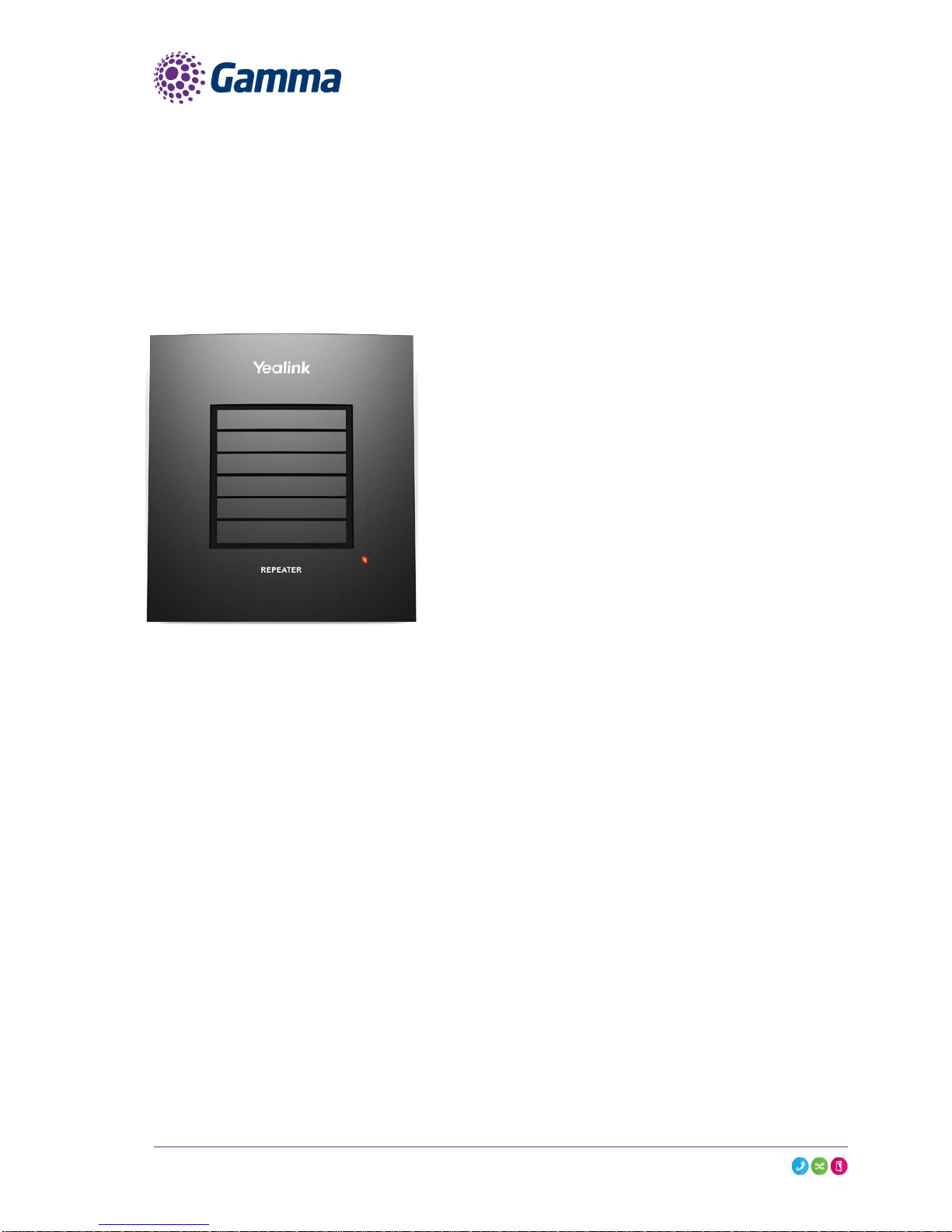

DECT Repeater (RT10) ............................................................................................................................. 15
Useful information...................................................................................................................................... 15
Single Repeater .................................................................................................................................. 15
Multiple Repeaters.............................................................................................................................. 16
LED Status.......................................................................................................................................... 17
Registering a repeater................................................................................................................................ 17
Auto Registration ................................................................................................................................ 17
Manual Registration............................................................................................................................ 18
Placement .................................................................................................................................................. 19
Verification Tone ........................................................................................................................................ 20
De-Registration .......................................................................................................................................... 20

© Gamma 2014. All rights reserved. Confidential.
Introduction
This user guide will help you to navigate and use your Yealink W52P. It will give you an overview of your
handset, and walk you through tasks so you can successfully use your phone to perform basic and
advanced functions.

© Gamma 2014. All rights reserved. Confidential.
How to set up the Yealink W52P
The phone will arrive pre-configured and simply needs to be connected to the internet and powered up.
Your Administrator should know how to do this for you. There are some network/router level settings that
must be applied or the Horizon service will not work. For further details on these please refer to the Horizon
user guide.
Usually the handset that comes in the same box with the base station is pre-associated with it and it is
possible to register up to 5 handsets to a Yealink W52P base station. In case the handset is not already
associated with the base station, or if you would like to associate more handsets to the base station, you
can find the required steps below.
Register Handset
Press the button on the base station for few seconds. Once the registration LED flashes slowly, this
means that the base station is in the registration mode.
Press “OK” on the handset to enter the main menu
Select Settings Registration Register Handset
Once you see the available base station, select it and press “OK”
Enter the registration PIN which is 0000 and press “Done”
Note1: Once the handset is registered it will automatically get a name such as H1.
Note 2: In order to check that the registration was successful and the device is ready to make/receive calls
go to Main Menu Status Line Status
De-register Handset
In order to de-register a handset from the base station, follow the steps below:
Press “OK” to enter the main menu
Go to Settings Registration De-reg. Handset
Enter the PIN which is 0000 and press “Done”
Select the handset that you want to de-register, press “OK” and then “Yes”
Note: You can de-register any handset that is associated with the base station

© Gamma 2014. All rights reserved. Confidential.
Upgrade handset firmware
When the handset registers to the base station, it will check if there is any new handset firmware. If the
handset is placed on the charger cradle and a new firmware is available then the handset will automatically
update. In case that the handset is not placed in the charger cradle then a message will be displayed on
the screen to inform you that there is a new firmware available. In order for the handset to start the
upgrading process you have to confirm by pressing the “Upgrade” soft key.
Note: To double check that your handset is using the latest firmware, go to the Main Menu Settings
Upgrade Firmware Upgrade
On the Firmware releases section you can find the base station FW and the handset FW which corresponds
to each base station FW.
Please note, the batteries in the handset are not covered under manufactures warranty. These are standard
AAA batteries. In the unlikely event you encounter any issues with the handset holding charge, we
recommend you try alternate batteries.

© Gamma 2014. All rights reserved. Confidential.
Main Menu Structure
The handset menu has a number of levels. The main menu is the top-level menu, which consists of six
menu items: Status, Intercom, Voice Mail, Call Features, Directory and Settings.

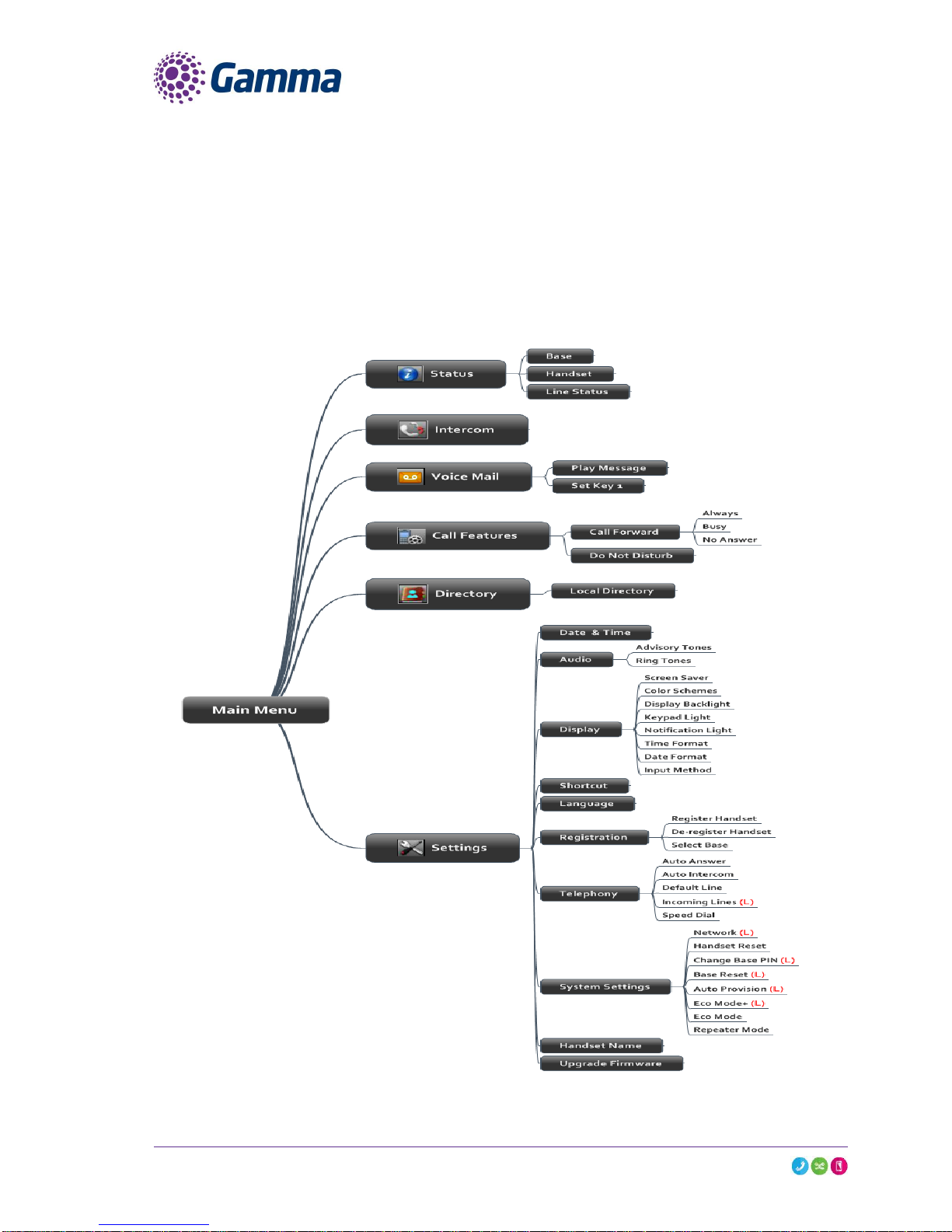

The next diagram is showing the structure of the main menu and the options that are available to the end
users. For security reasons some options have been locked (L).

© Gamma 2014. All rights reserved. Confidential.
Status
You can view the system status of the base station and the handset. Below is the available information:
Base Station Status: Information about the IP Address, MAC address, firmware version and network
settings will be included
Handset Status: Information for the hardware version, model, IPUI code and firmware version of the
handset can be found
Line Status: You can check the status of the line
Intercom
Using this feature you can make internal calls to the other handsets that are registered under the same
base station.
Voice Mail
Play Message: You can access your voice mail system
Set Voice Mail: It is not recommended to make any changes on the voice mail settings
Set Key 1: By default if you press the key 1 you will call to the voice mail
Call Features
Call Forwarding: There are 3 call forwarding types
Always Forward: Incoming calls are immediately forwarded.
Busy Forward: Incoming calls are immediately forwarded if the line is busy.
No Answer Forward: Incoming calls are forwarded if not answered after a period of time.
Do not Disturb: If the DND is enabled all the incoming calls will be rejected
Directory
You can configure up to 500 local contacts. All the contacts will be saved on the base station. Currently
only the local directory is available.
Note: LDAP-Corporate directory search is not available on this particular device.

© Gamma 2014. All rights reserved. Confidential.
Phone Settings
Only the settings that can be changed will be described. The locked settings are not be included.
Advisory Tones
Advisory tones are acoustic signals of your handset, which inform you of different actions and states. The
following advisory tones can be configured independently of each other:
Keypad Tone: plays when a user presses any key of the keypad.
Confirmation: plays when a user saves settings or places the handset in the charger cradle.
Low Battery: plays when the capacity of the batteries is low and the handset requires charging.
Ring Tones
Ring tones are used to indicate incoming calls. You can set 9 different ring tones to distinguish the incoming
line on your handset. You can also set a ring tone for an incoming intercom call. When receiving an
incoming call, the handset rings the specified ring tone. Also you can set the ringtone volume.
Screen Saver
The screen saver of the handset is designed to protect your LCD screen by filling it with an analogue clock.
You can enable the screen saver to protect the LCD screen if you do not use your handset for a long time.
When the screen saver is enabled, an analogue clock will be activated and appear on the LCD screen if
the handset is idle for approximately 10 seconds.
Colour Schemes
You can change the background of your handset by changing the colour theme. There are 2 colour themes
available.
Display Backlight
Handset backlight status in the charging state or out of the charging state can be configured independently
of each other. If enabled, the backlight is always on. Otherwise, the backlight is turned off after the handset
is idle for a period of time. But the backlight is automatically turned on when an incoming call arrives, a key
is pressed or the status of handset changes. You can disable the backlight to save power.
Keypad Light
You can enable the keypad light to make the keypad light up when any key is pressed. This helps you
distinguish keys from each other in a dark environment.
Notification Light
Notification light is used to indicate voice mails and missed calls. When the handset receives a voice mail
or misses a call, the message key LED flashes red. You can configure the notification light to indicate the
voice mails or missed calls respectively.

© Gamma 2014. All rights reserved. Confidential.
Time Format
You can configure the time format of your device. The handset supports two time formats (12 Hour or 24
Hour).
Date Format
You can configure the date format of your device. The handset supports seven date formats. The available
date formats are listed in the following table:
Date Format
Example
WWW MMM DD
Sat. Feb 15
DD-MMM-YY
14- Feb -15
YYYY-MM-DD
2015-02-14
DD/MM/YYYY
14/02/2015
MM/DD/YY
02/14/15
DD MMM YYYY
14 Feb 2015
WWW DD MMM
Sat. 14 Feb
Input Method
The handset provides you with 12 different input methods. You can disable the infrequently used input
method. Then you can only switch among the enabled input methods when editing.
Shortcuts
There are two types of shortcut on the handset: changeable and unchangeable shortcuts. A feature is pre-
assigned to each shortcut. For example, the star (*) button to turn on/off the silent mode and the hash (#)
button to lock/unlock the keypad are unchangeable.
The changeable shortcuts are the two soft keys and four navigation keys. The available features that can
be assigned to each key may vary.
You can assign the frequently used features to the changeable shortcuts of your handset.
This helps you get quick access to a feature by pressing the corresponding shortcut directly without having
to scroll through the menu when the handset is idle.
Language
Even if the language of the handset is not locked, the language has been defined on the configuration file
and is set to “English” by default. That means even if the end user makes any changes to the language,
once the device restart it will have the English language.

© Gamma 2014. All rights reserved. Confidential.
Auto Answer
When auto answer feature is enabled, you can simply answer the incoming calls by picking up the handset
from the charger cradle without having to press the off-hook key. The auto answer feature works only if the
handset is placed in the charger cradle.
Auto Intercom
The handset can automatically answer an incoming external intercom call and play warning tone only when
there is only one handset subscribed and no call in progress on the handset.
To automatically answer an incoming internal intercom call, you need to enable auto intercom feature on
the handset. The following configuration types of auto intercom feature are available for selection:
On (Beep On): Auto intercom feature is on. The handset will answer an incoming internal intercom
call automatically and play a warning tone.
On (Beep Off): Auto intercom feature is on. The handset will answer an incoming internal intercom
call automatically without a warning tone.
Off: Auto intercom feature is off. You need to answer an incoming internal intercom call by pressing
the Accept soft key.
Speed Dial
Speed dial allows you to perform single-digit dialling to predefined numbers. You can assign the important
numbers of your local directory to the speed dial keys of your handset.
Handset Reset
You can reset individual settings that you have made on the handset. Resetting handset will not overwrite
settings of directory, call history, voice mail and the handset registration to the base station.
Eco Mode
Eco mode greatly reduces the transmission power and signal output when the phone is in the talk mode.
The attenuation range is 20m. When the distance between the base station and the handset is over 20m,
the eco mode is disabled automatically.
Repeater Mode
Repeater mode extends the radio coverage of the base station. The repeater has the same radio coverage
as the base station. This feature is especially useful for users who require mobility in large areas. If the
repeater mode is enabled, and a repeater is registered to the base station, the handset registered to the
base station can be used either in the base station or the repeater coverage area, thereby providing users
with greater freedom in mobility. Later on we will explain how to use the repeater with the base station.
Handset Name
The handset will be assigned a name by default if successfully registered to the base station (i.e. H1, H2
etc.). You can personalise the handset name.

© Gamma 2014. All rights reserved. Confidential.
Supported Call Features
Hold/Resume
You can place an active call on hold. At any time, at most one active call can be in progress on your
handset. You can answer or make another call while placing the original call on hold.
To put a call on Hold press Options soft key and then select Hold.
To resume the call press the Resume soft key.
If 2 calls are on hold at the same time you can use the Up/Down arrow or the Swap soft key to swap
between the two calls
Call Mute
While you are on a call you can mute your microphone so the other party will not be able to hear you.
To mute your microphone press the key. To un-mute the microphone press again the same key.
Redial a call
The redial number list stores the twenty last dialled phone numbers. When the memory of the redial number
list is full, the handset will automatically erase the oldest dialled number when a new number is dialled.
To go to the redial list press the key.
Transfer a call
There are 3 different types of call transfer:
Blind Transfer
To perform a blind transfer during a call, select the Options soft key and then press Transfer. Or you can
press the key directly.
Enter the number or select the handset that you would like to transfer the call to, and then press Transfer
or the key.
Attended Transfer before Answer
To perform an attended transfer before the other party answers the phone, select the Options soft key and
then press Transfer. Or you can press the key directly.
Enter the number or select the handset that you would like to transfer the call to, and then press the
key to dial out.

© Gamma 2014. All rights reserved. Confidential.
Once you receive the ring back tone and before the other party answers the phone press Transfer or the
key.
Attended Transfer after answer
To perform an attended transfer before the other party answers the phone, select the Options soft key and
then press Transfer. Or you can press the key directly.
Enter the number or select the handset that you would like to transfer the call to, and then press the
key to dial out. After the other party answers the phone press Transfer or the key.
Conference Call
In order to initiate a conference call, follow the steps below:
Place a call to User A
Press the Options soft key and then select Conference
Enter the number of the User B that you would like to add to the conference and then press or
or or the “OK” soft key to dial out.
When User B answers the call press the Conf. soft key to join all the parties into the conference
bridge.
To add another User into the conference bridge follow the steps above. Up to 4 parties (including
yourself) can be in the conference call.
To end the conference call, press the key.
Call Forwarding
There are 3 types of call forwarding that can be managed by the device:
Call Forward Always:
Incoming calls are immediately forwarded to the specified number
Call Forward Busy:
Incoming calls are forwarded to the specified number when the line is busy
Call Forward No Answer:
Incoming calls are forwarded to the specified number if the call is not answered after a period of time.
Below are the steps in order to enable one of the call forwarding options:
Go to the Main Menu

© Gamma 2014. All rights reserved. Confidential.
Press Call Features ( ) and then Call Forward
Select the Call Forwarding type that you want
Provide the relevant information (i.e. Number , time) then press Save
Do Not Disturb
When the DND is activated, all the incoming calls will be rejected automatically. Below are the steps to
enable or disable the DND:
Go to the Main Menu
Press Call Features ( ) and then Do Not Disturb
Enable or Disable the feature
Press OK
Voice Mail
When you are receiving a voice mail, the icon is appearing on the screen with the number of unread
voice mails. Also the message key flashes red.
There are 3 different ways to access your voice mail:
Press the message key, and then Select the voice mail
Press and hold the digit key 1
Press to go to the main menu, then select Voice Mail and then select Play Message

© Gamma 2014. All rights reserved. Confidential.
DECT Repeater (RT10)
The Yealink Repeater (RT10) can be deployed to extend the range of the W52P IP DECT phone to cover
areas where reception was previously not available. All the usual handset functions are supported by the
base station in the extended radio range. The repeater, base station and cordless handset employ wireless
connection. In this section we will describe the process to register/de-register a repeater to a base station
and also some tips will be provided on how to deploy a repeater.
Useful information
Repeater has the same radio coverage (up to 300m in unobstructed outdoor areas and up to 50m inside
buildings) as the base station.
Repeater does not increase the quantity of call paths and it does share the call paths with the base station.
Adding a repeater is similar to adding a base station on the multi-cell system.
Single Repeater
In this case an extended coverage range (30m) is required. You can install a repeater within the base
station coverage area. The separation distance between the base station and repeater is 30m. The base
will hand over calls to the repeaters as the user moves from the base station coverage area into the
extended coverage area. If you want to extend the coverage range, you can extend the separation distance
between the base station and repeater.

© Gamma 2014. All rights reserved. Confidential.
Multiple Repeaters
Up to 6 repeaters can be registered to one base station to extend available reception range for all registered
handsets. All repeaters must be installed within the base station coverage area (up to 300m in unobstructed
outdoor areas and up to 50m inside buildings), as shown in the figure below. It is not possible to install the
repeaters in series or “daisy-chain”.
The maximum number of handsets that can be registered to your base station is not affected by the
repeater. The repeater can be used to extend the coverage range in all directions, allowing several floors
to be covered.
If the repeater is placed correctly (overlapping the coverage area of the base station), the handsets can
move freely within the total coverage area while on a call.

© Gamma 2014. All rights reserved. Confidential.
LED Status
The DECT repeater has one LED indicator describing the repeater operations. The following table provides
instructions on repeater operations and LED indications:
LED
Indication
Operation
Off
Power off
Red
Slowly flashes
Unregistered, searching for base station
Red
Double flashes
Searching for base station in the registration
mode or performing registration procedure.
Red
Steady on
Registered to base station, ready for use
Red
Shortly flashes
Attempting handset connection
Registering a repeater
The repeater can register to the base station in two ways:
Auto Registration
Manual Registration
Note: The “Repeater Mode” must be enabled on the base station. In order to do that, go to Main Menu
Settings System Settings Repeater Mode Change
Auto Registration
To register a repeater automatically:
Switch on the repeater and check if the LED indicator on the repeater double flashes. If the LED
indicator does not double flash, you need to de-register the repeater first. Please refer to “De-
registration”. If the LED indicator double flashes, go to next step
Switch off the repeater (disconnect the power adapter).
Set the base station in registration mode. Long press the paging key on the base station till the first
LED flashes.

© Gamma 2014. All rights reserved. Confidential.
Switch on the repeater (connect the power adapter).
The LED indicator on the repeater flashes. After a short while, the LED indicator stays on
permanently indicating that registration is completed, and the repeater is ready for use. The first LED
on the base station flashes after the registration is completed. You can press the paging key to
cancel the flash.
Note: If the registration is not successful, the LED indicator will flash continuously. In this case, repeat steps
from Switch off Repeater.
Manual Registration
The repeater, base station and handset must be accessible before performing the registration. If you want
to register more than one repeater, the registration must be performed separately for each repeater.
To register a repeater manually:
Set the repeater in registration mode.
Switch on the repeater for 1-5 seconds and then switch it off. Switch it on once more and leave it
there.
The LED indicator on the repeater flashes slowly. You now have five minutes to complete the registration.
If the registration is not completed within this period, you must start over again.
Set the base station in registration mode.
Long press the paging key on the base station till the first LED flashes.
The LED indicator on the repeater flashes.
If the LED flashes fast without interruptions, go to Assign a repeater number. If the LED flashes fast with
interruptions, go to Registration of handset.
Registration of handset.
You must re-register the handset even if the handset used was already registered to the base station. Now
the LED indicator flashes fast without interruptions.
Assign a repeater number.
You must now assign a repeater number to the repeater (choose from 2 to 7, for up to 6 repeaters):
Press #*9 and the off-hook key on the handset. The LED indicator illuminates.
Press a number between 2 and 7. When the repeater has accepted the chosen number, the LED
indicator will flash a corresponding number of times. If you miss the confirmation flash, press the
number again.
Accept the registration by pressing the * key, and then press the on-hook key. The repeater is now
automatically restarted: the LED indicator goes off for 2 seconds, flashes for a brief moment and
then stays illuminated. The registration of the repeater is completed. You can now disconnect the
power adapter and move the repeater to the selected location (disconnecting the power will not clear
the registration).

© Gamma 2014. All rights reserved. Confidential.
Note: Each number can be assigned only once when using more than one repeaters on a base station.
Repeater number and handset number are independent of each other.
Below is the flowing diagram of the Auto and Manual Registrations:
Placement
To achieve optimum performance for the repeater, it is important to find a good location. Below are some
tips:
Choose a raised position for both the base station and repeater wherever possible.

© Gamma 2014. All rights reserved. Confidential.
When positioning the repeater, avoid obstacles that can interfere with radio transmission such as
thick wall and metal structures that may be in the coverage area between the base station and
repeater.
Avoid interference from other electrical appliances such as micro-wave ovens, Hi-Fi equipment,
computers etc.
Keep a minimum of 10 meters between multiple repeaters to avoid coverage areas overlapping.
Do not hide base station/repeater behind furniture etc.
The base station/repeater must be placed where the signal is needed
Note: The LED indicator remains on constantly after the repeater has been switched on. If the LED flashes,
the repeater is too far away from the base station or reception is hindered by obstacles.
Verification Tone
To find the best possible location for the repeater, you may need to try various locations. Place a call and
walk around with the handset to determine the base station’s coverage area. The verification tone allows
you to easily check the extent of the repeater’s coverage area. The tone is audible on the handset during
a call.
To activate the verification tone on the repeater:
Switch off the repeater (disconnect the power adapter).
Switch it on for 1 to 5 seconds and switch it off again.
Switch it on again. The LED indicator on the repeater flashes slowly.
Switch it off again.
Switch it on again.
The verification tone is then activated.
Place a call using the handset to check whether the handset is working in the extended area of the repeater.
If the call is successfully handled by the repeater, you can hear the verification tone from the handset every
few seconds.
To deactivate the verification tone, repeat the above steps.
De-Registration
If you want to register the repeater to another base station using the auto registration method, de-register
the repeater beforehand as described below:
Switch off the repeater (disconnect the power adapter).
Switch it on for 1 to 5 seconds and switch it off again.
Switch it on for 25 to 35 seconds and switch it off again.
After a while, the LED indicator on the repeater double flashes, and the repeater is ready for a new auto
registration.
Other manuals for Yealink W52P
1
Table of contents
Popular Cordless Telephone manuals by other brands

Panasonic
Panasonic KX-TG2237S - 2.4 GHz Digital Cordless... operating instructions

Gigaset
Gigaset Gigaset 4170 isdn operating instructions

Polycom
Polycom BUSINESS VOICEEDGE 335 series CHEAT SHEET

AT&T
AT&T TL32100 quick start guide

Radio Shack
Radio Shack 43-3575 quick start guide

Panasonic
Panasonic KX-TGA659E installation manual
