GardePro B180C User manual

Baby Monitor
Instruction Manual
Camera (Baby Unit) Model# B180C
Monitor (Parent Unit) Model# B180M
Doc V3.1.3 EN

TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS......................................1
2. WHAT IS INCLUDED............................................ 4
3. SYSTEM INTRODUCTION....................................5
3.1. ABOUT THE MONITOR.............................5
3.2. ABOUT THE CAMERA.............................. 7
4. GETTING STARTED.............................................. 9
4.1. POWER THE CAMERA.............................. 9
4.2. POWER THE MONITOR AND CONNECT 9
4.3. MOUNT THE CAMERA ON THE WALL.10
5. OPERATION ON THE MONITOR....................... 12
5.1. SHORTCUT MENU in Fn.......................... 12
5.2. OPERATION MENU in M......................... 17
5.3. THE OPERATION KEYS.......................... 35
5.4. THE NOTICE OF THE SYSTEM...............37
6. TROUBLESHOOTING......................................... 39
7. SPECIFICATION AND TESTS............................. 44
8. WARRANTY........................................................ 47

Page 1 / Total 45
1. SAFETY INSTRUCTIONS
Thank you for choosing our products and allowing us to serve you
and your family. We hope you will enjoy the exceptional quality of
our products and services. We will continue our efforts to meet
your needs and expectations in the future. Your suggestions will
help us think more deeply to meet your standards perfectly.
This instruction manual can assist you in gaining a thorough
understanding of our product and guide you in solving any problem
that may arise during use. Please read this instruction manual
carefully before using the device.
WARNING
DANGER - Keep the adapter cord 3ft(1m) away from the baby
to prevent the risk of entanglement and suffocation.
NEVER place the camera or power supply inside a child's
cot/crib.
SHOCKING WARNING - To prevent electric shock, NEVER
use the camera or monitor near water, including near a bathtub,
sink, laundry tub, wet basement, etc.
Use only the AC adapters and cords provided in the box. Never
use unofficial third-party power adapters or cords that are not
specifically designed for the device, as they may cause damage.
This product is not a toy. Do not allow children to play with it.
You MUST check your child’s activity regularly, as this product
cannot alert parents to the silent activities of a child.
This product is not intended for use as a medical monitor.
This product cannot replace adult guardianship.
Always unplug the AC adapters from wall outlets and power
sources during periods of non-use.

Page 2 / Total 45
This product is intended for indoor use only.
This product must be assembled by an adult. Please keep small
parts away from children during assembly.
Never cover the set with a towel, blanket, etc.
Never install the baby monitor set near a heat source.
Never touch the plug with a sharp or metal object.
BATTERY WARNING
Rechargeable Li-ion Battery
Do not open, puncture, crush or drop the battery in the monitor.
Never replace the battery in the monitor. This can result in the
risk of explosion, fire, overheating, and leakage of the
electrolyte.
Do not short the external contacts of the monitor.
Do not leave the monitor in a car exposed to direct sunlight for a
long time.
Do not attempt to charge the monitor again if you notice that it is
overheating.
Monitor and Camera Settings and Usage
This baby monitor system (or set including monitor and camera)
meets all relevant standards related to electromagnetic fields and is
safe to use when operating following the instruction manual.
If you purchase a camera SEPARATELY from us, you must
follow the instructions in the manual to connect it to a compatible
monitor for use.
Place the monitor on a flat surface, such as a dressing table,
writing desk, or shelf.
Fix the camera in a location where babies can be easily

Page 3 / Total 45
observed.
Keep the camera's temperature sensor away from the cooling
holes at the back to ensure precise ambient temperature.
Please keep this manual in a secure location for future reference.
Important Notes for Installing Baby Monitor
When using your baby monitor, you must ensure that the
devices can establish radio communication. The distance of
communication between the camera and monitor may be
impacted by environmental conditions. Due to the unstable and
constantly changing nature of wireless communication, the
distance and signal quality may fluctuate, which is a normal
occurrence.
Large metal objects, such as refrigerators, metal doors, or
reinforced concrete, may block radio signals between two units.
The strength of the signal may be weakened by solid structures
like walls, as well as radio or electrical equipment such as
televisions and computers.
If the signal is weak, try relocating the device to a different
indoor location or adjusting the monitor's antenna.
Do not place the parent unit and the camera within one meter of
each other, as it may cause howling if the volume is set too high.
When you first receive the product, the parent unit may have a
protective film. You can choose to keep it on or remove it.

Page 4 / Total 45
2. WHAT IS INCLUDED
This baby monitor set includes a parent unit and one or more baby
unit according the user's order.
1) 1 x Monitor (parent unit), 1 x 5V/2A Power Adapter for
Monitor, and 1 x 3ft/1m USB power & data cord.
B180M monitor (parent unit) Accessories
2) Baby unit: Each baby unit is equipped with a camera and a set
of accessories. 1 x Camera, 1 x 5V/2A Power Adapter for
Camera, 1 x 9ft/3m USB cord, and 1 x Wall Mount.
B180C camera (baby unit) Accessories
3) 1 x Instruction Manual
For Monitor
For camera

Page 5 / Total 45
3. SYSTEM INTRODUCTION
3.1. ABOUT THE MONITOR
The B180M is a monitor designed for parents, featuring a 5-inch
HD screen and 11 buttons (M,Fn, and OK are multi-function
buttons, following the guidance on the screen).

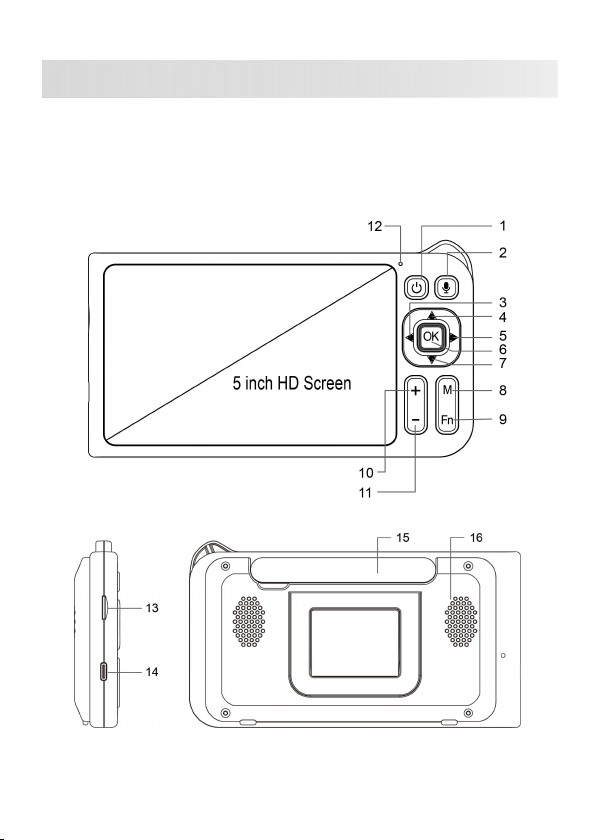

Figure 1: B180M Monitor (Front view)
Figure 2: B180M Monitor (Side and Back view)

Page 6 / Total 45
Table 1: Monitor Operation Buttons
Buttons
Descriptions
1Power
Press and hold for on/off.
Sleep/Wake up.
2Talk
Push and hold to talk.
3Left
Pan left.
4Up
Tilt up.
5Right
Pan right.
6OK OK
For recording or confirmation in menu.
7Down
Tilt down.
8Menu M
For Functions and Settings.
9Shortcut Fn
For frequently used functions.
10 Volume up +
11 Volume down -
Table 2: Monitor's sockets and interfaces
Sockets and Interfaces
Descriptions
12 Microphone
Pickup sound.
13 Micro-SD socket
For micro-SD card for firmware
upgrading,data saving etc.
14 USB type-C jack
For power & data.
15 Antenna
For wireless transceiver
16 Speaker
Play sound.

Page 7 / Total 45
3.2. ABOUT THE CAMERA
Figure 3: B180C Camera
The B180C camera can monitor the baby, play lullabies, and detect
sound, motion, and environmental temperature.
Table 3: Camera Interfaces and descriptions
Interfaces
Descriptions
1 Camera lens
Full HD lens with infrared night vision.
2 Microphone
Pickup sound
3 Micro-SD socket
For firmware upgrading, and video storage.
*Tilt up to the maximum position to see.
4 Speaker
Play sound.
5 Indicator light
Show the camera's status: Green for power

Page 8 / Total 45
on, Flashing Green for
connecting/updating, and OFF for
successful operation.
* It can be turned off/on by the monitor.
6 Temperature sensor
Detect the environment temperature.
* Keep it away from back cooling holes.
7 USB type-C jack
Supplying power, supporting 5V/2A only.
8 Mounting hole
For mounting on the wall using the wall
mount accessories.
9PAIR
Press the button to add the camera to the
monitor following the instructions on the
screen.

Page 9 / Total 45
4. GETTING STARTED
This standard baby monitor system consists of a monitor (parent
unit) and a paired camera (baby unit).
To connect a SEPARATLY PURCHASED camera, please
follow Section 5: "MENU" > "Camera Management" > "+" to add.
4.1. POWER THE CAMERA
1) Correctly insert the USB-A plug of the 9ft power cord into the
5V/2A power adapter jack. Make sure to insert the cord in the
correct orientation to avoid damaging the cable or device.
2) Correctly insert the USB-C plug of the 9ft power cord into the
USB type-C jack of the camera.
3) Insert the power adapter into your power outlet and ensure that
it is switched on. You will now see the green light of the
camera flashing, indicating that it is powered well.
4.2. POWER THE MONITOR AND CONNECT
1) Correctly insert the USB-A plug of the 3ft power & data cord
into the 5V/2A power adapter jack.
2) Correctly insert the cord's USB-C plug into the monitor's USB
type-C jack.
3) Insert the power adapter into one of your power outlets and
ensure that it is switched on.
4) Press and hold the Power button " " for approximately 2
seconds, then the screen will light up, and within about 15
seconds, the live stream will appear on the screen.
CONGRATULATIONS! You have completed the most important
task! You can take care of your baby now!

Page 10 / Total 45
If you cannot view the live stream, you may see operation guidance
on the screen, or you can refer to Section 6 (Troubleshooting) for
further assistance.
4.3. MOUNT THE CAMERA ON THE WALL
Figure 4: Wall Mount
Before installing the camera, assess the effectiveness of your
installation and verify the camera's positioning by placing it against
the wall at the desired location. Position the camera at a distance of
more than 3ft from your baby's crib to ensure optimal viewing.
1) Securely hold the bracket against the wall. Then, use a marker
to indicate the locations of the three mounting holes.
2) Use a 1/5-inch (6mm) drill bit to create three holes at the
marked locations on the wall.
3) Insert the three anchors into the wall and gently tap them with a
hammer until they are flush with the surface of the wall.
4) Align the anchor holes on the wall, place the bracket, and insert
the three screws through the three holes of the bracket into the
anchors. Tighten the screws securely.
5) Locate the mounting hole on the bottom of the camera and
align it with the head of the bracket. Rotate the camera around
Bracket seat
Head bolt
Seat bolt
Bracket head
Anchor
Screw

Page 11 / Total 45
the hole until it is firmly attached to the bracket.
6) Rotate the head bolt of the bracket to securely attach the camera.
Next, adjust the camera to a suitable position and securely
tighten the bracket's seat bolt.
7) Connect the power adapter to the camera unit.
8) Ensure that the camera unit is properly secured. If it is loose,
you may need to tighten the screws and bolts more securely.
Tip: You may use wall clips (not included) to secure the power
cord away from the crib or out of the baby’s reach.
Tip2: You may visit the help video in our website from Menu ->
Help -> Guide videos to find the link.

Page 12 / Total 45
5. OPERATION ON THE MONITOR
You may operate the baby monitor by menu (the "M" key) or
shortcut (the "Fn" key) or key-pressing. Some of the frequently
functions of the menu are in the Fn, the shortcuts key.

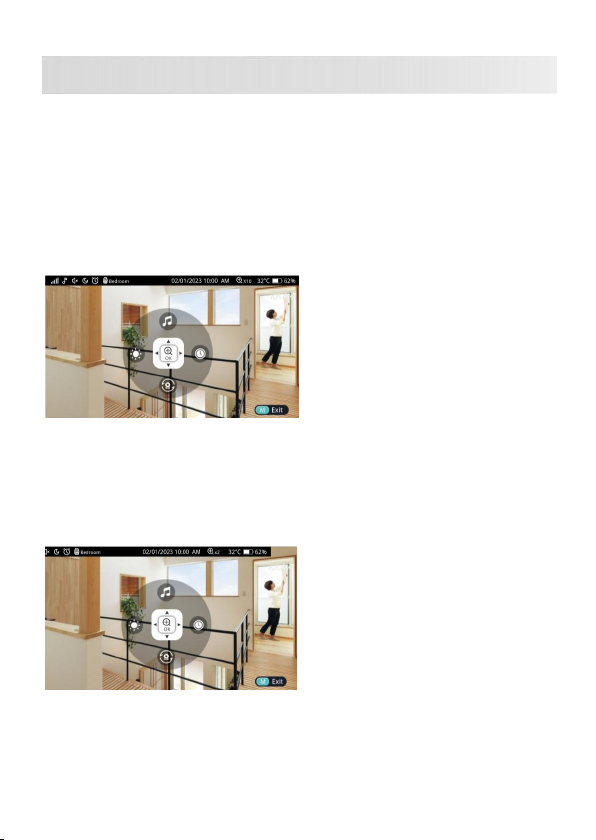

5.1. SHORTCUT MENU in Fn
Press Fn you will find this human-machine interface:
5.1.1 ZOOM
Press Fn and then press OK, you will zoom the image, the
zoom factor will cycle from x2, x4, x8 to x1(Original image).

Page 13 / Total 45
5.1.2 LULLABIES
Press Fn and then press Up, it will play lullabies.
If none camera is connected you will see a notice:
If you have selected an online camera you will see this:
The default focus is all loop mode, you can loop all the lullabies
one by one after you press OK on the ALL icon.
You can press UP /Down /Left /Right to shift to different icon.
The icon’s circle will turn green when you pass it by. The music
icon whose song is playing will turn green.
You can press OK on Song1~Songx to play single loop mode.

Page 14 / Total 45
You can press Down to Stop icon on bottom bar.
You can press Stop icon to stop lullabies. It will be changed to Play
icon , you can press the Play icon to start playing again.
You can press Left button after you pass by Stop/Play icon to go to
lullabies timer icon, Press OK on timer icon, you can
press Right /Left button to select a lullaby timer duration. After
you press OK on the duration the timer will start at once. When the
timer is up and the lullabies will be stopped automatically.
You can press volume up “+” and volume down “-” to adjust the
volume of lullabies only when the focus is on any music icon
including ALL and Songx(x=1,2...).

Page 15 / Total 45
On the bottom bar you can see the progress of each piece of music
that is playing.

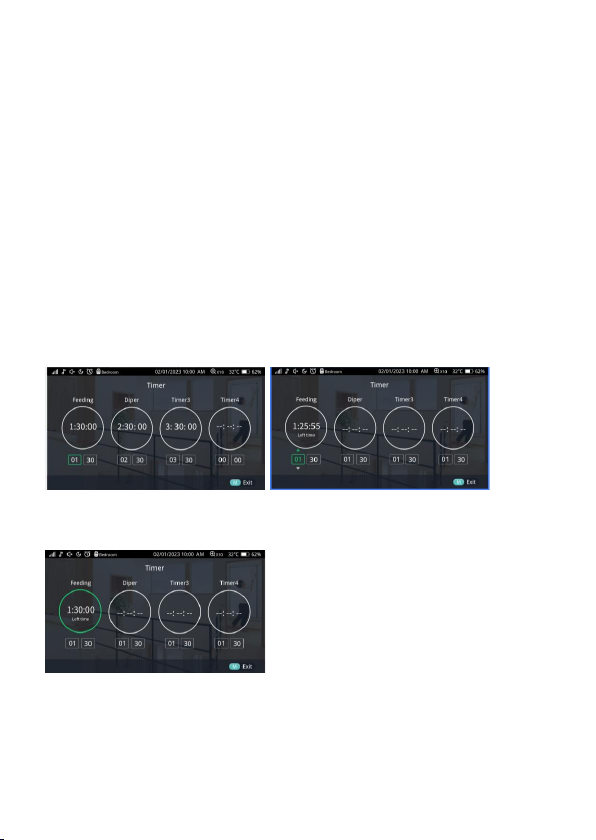

5.1.3 TIMER
Press the Fn and Right buttons simultaneously to enter the timer
interface.
You will see four sets of timers that can run in parallel.
To adjust any timer, press OK on the hour and minute icon after
shifting different icons using the Up /Down /Left /Right buttons.
The Up and Down buttons will make the digit higher or lower.
After adjusting, press OK again to confirm.
Then press Up button to move to the circle, press OK to start the
timer, press OK again to stop timer.

Page 16 / Total 45

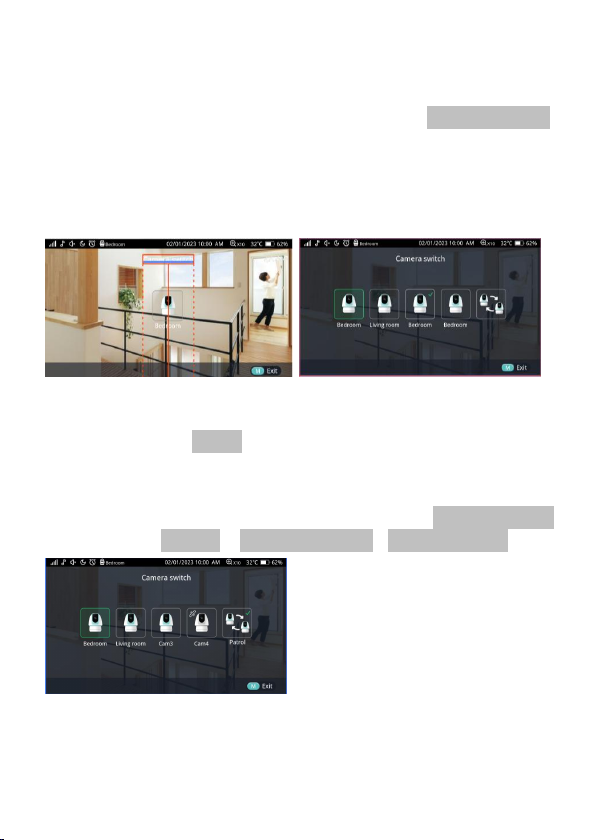

5.1.4 CAMERA SWITCH
You can press the Fn and Down button to enter Camera switch
interface.
If there is only one camera you can just find a camera icon. If
there are more than one camera, you can select different camera
to display on your monitor.
You can press Left /Right to shift to different icon. The icon’s
frame will turn green when you pass over it. You can press OK to
select a camera or Patrol mode. The selected camera icon will be
ticked.
If you select Patrol mode, you will see the video from each online
camera one by one on the monitor according to the Patrol interval
you have set in MENU >General settings >Patrol interval.
The patrol interval can be 5 seconds, 10 seconds, 20 seconds, 30
seconds, or 60 seconds.
If a camera is offline, the offline mark can be seen on the upper left

Page 17 / Total 45
corner of the camera icon. Under patrol mode, the monitor will
quickly jump from the offline camera to another online camera.
5.1.5 BRIGHTNESS
You can press the Fn and Left button to enter Brightness interface.
You can press Left button to make the screen darker, or press the
Right button to make the screen brighter.
The brightness level ranges from 0 (lowest) to 5 (highest). The
brighter the screen, the more power is consumed. At night, even
with the brightness level at 0, it can meet your needs.
5.2. OPERATION MENU in M
Table 4: Menu Settings of Monitor
Menu
Description
Utilities
Some frequently used functions such as
Media/Album, Brightness, Lullabies, Camera
Shift/Switch, Timers etc. Some are the same
with the Fn, the shortcuts.
Camera Settings
Sound detection, Temperature monitoring,
Motion detection, Night vision, Indicator lights,

Page 18 / Total 45
etc.
Alarm*
Duration, Volume, Sound, Timer, and more.
*Alarm may conclude Timer in some versions.
General Settings
Date, Time, Display, Patrol, etc.
Camera
Management
Remove the Camera on the Monitor:
Press Mbutton to enter menu > Navigate to
camera management > Select a camera > OK
to remove camera > OK.
Add the Camera:
On the Monitor: Press Mbutton to enter
menu > Navigate to camera management >
Select "+" >Press OK to add a camera.
On the Camera: Press the "PAIR" button
located under the camera within 30 seconds.
Software Update
Version information, Monitor firmware
updates, Camera firmware updates, etc.
Help
Contact us, Guide videos, and links to
Instruction Manuals, etc.
*To keep up to date with the latest versions,
please refer to the detailed operation
instructions provided by the links in "Help".
You can press the Mbutton to enter the menu.
