EN-2 dzl 560 Quick Start Manual
*HWWLQJ6WDUWHG
n :$51,1*
See the ,PSRUWDQW6DIHW\DQG3URGXFW
,QIRUPDWLRQ guide in the product
box for product warnings and other
important information.
Before you use your device for the
rst time, you should complete these
tasks.
1. Mount the device (page 2).
2. Register the device (page 4).
3. Check for updates:
• Software updates (page 4).
• Free map update (page 5).
4. Download the fullowner’s manual
(page 5)
5. Enter a truck or RV prole
(page 6).
0RXQWLQJWKH'HYLFH
n :$51,1*
This product contains a lithium-ion
battery. To prevent the possibility of
personal injury or product damage
caused by battery exposure to extreme
heat, remove the device from the
vehicle when exiting or store it out of
direct sunlight.
Before you use your device on battery
power, you should charge it.

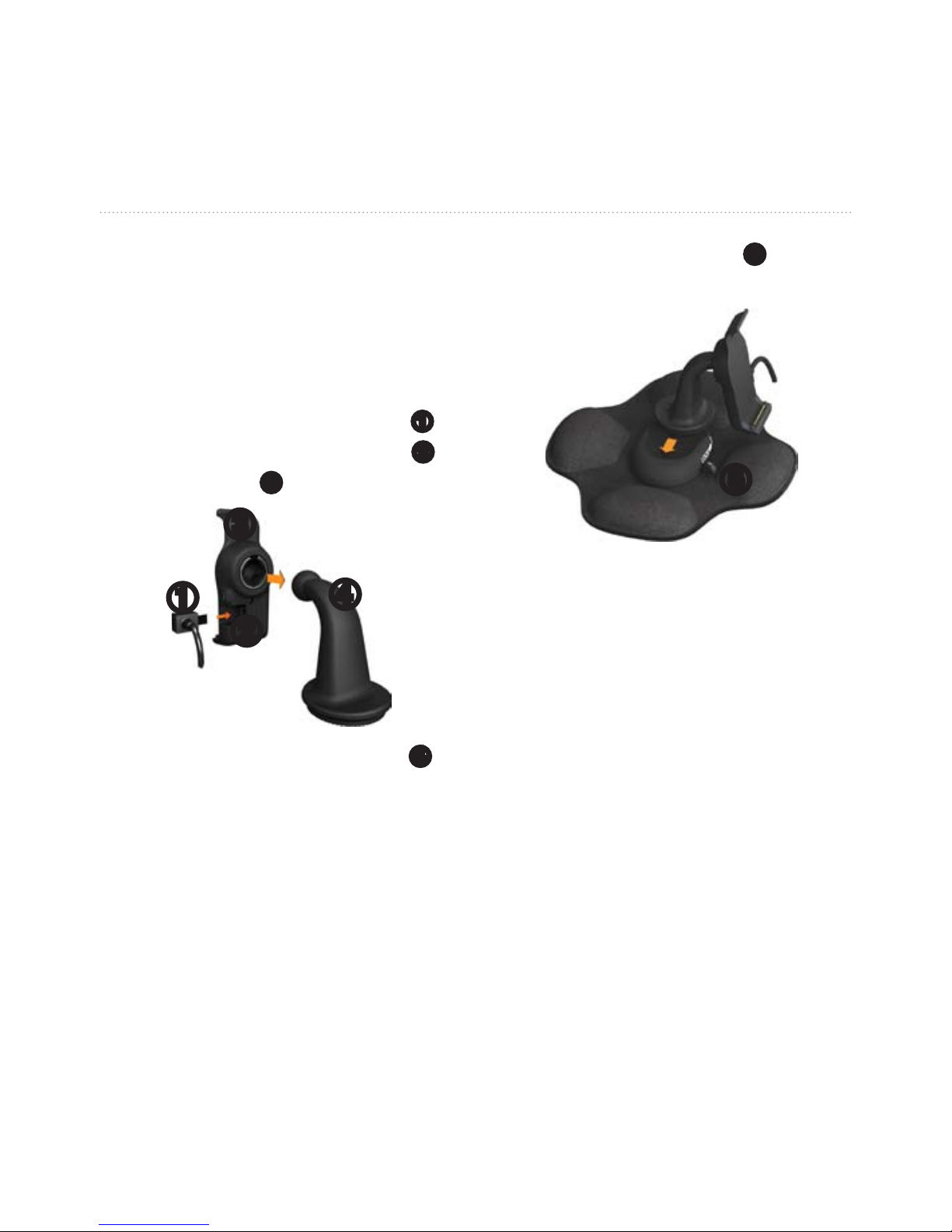

1. Plug the vehicle power cable
➊
into the mini-USB connector
➋
on the cradle ➌ .
➋
➊
➌
➍

dzl 560 Quick Start Manual EN-3

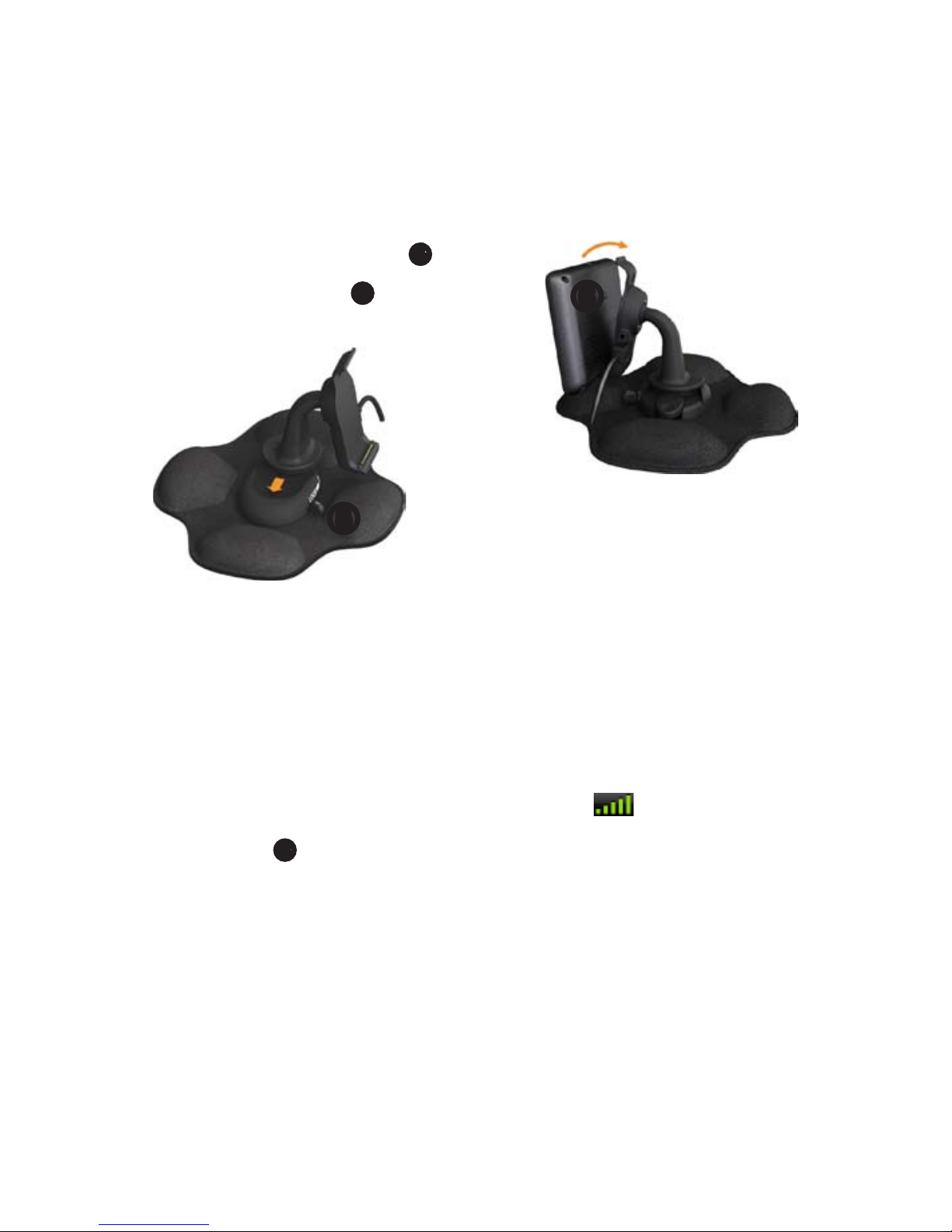

2. Snap the cradle onto the arm ➍ .
3. Slide the locking lever
➎ on the
base to the unlocked position.
➎
4. Slide the disk on the bottom
of the arm into the base until it
clicks.
5. Slide the locking lever to the
locked position.
6. Fit the bottom of the device into
the cradle.
7. Tilt the device
➏ back until it
snaps.
➏
8. Plug the other end of the vehicle
power cable into a power outlet in
your vehicle.
After you have connected the
device to vehicle power, the
following occurs.
• The device turns on.
• The device acquires satellite
signals. When at least one of
the bars is green, your
device has acquired satellite
signals.
127(: The device may need
a clear view of the sky to
acquire satellite signals.

EN-4 dzl 560 Quick Start Manual
• The device charges as you
drive. in the status bar
indicates the status of the
internal battery.
$ERXWP\'DVKERDUG
Use myDashboard to register your
device, check for software and map
updates, access product manuals and
support, and more.
6HWWLQJ8SP\'DVKERDUG
1. Connect the USB cable to the
micro-USB connector
➊ on the
device.
➊
2. Connect the USB cable to the
USB port on your computer.
3. Go to www.garmin.com
/dashboard.
4. Follow the on-screen instructions.
5HJLVWHULQJWKH'HYLFH
1. From myDashboard, click
5HJLVWHU1RZ.
2. Follow the on-screen instructions.
3. Keep the original sales receipt, or
a photocopy, in a safe place.
8SGDWLQJWKH6RIW DUH
1. Open myDashboard (page 4).
2. If necessary, under Software
Updates, click 8SGDWH1RZ.
3. Follow the on-screen instructions.

dzl 560 Quick Start Manual EN-5
Q0DSV*XDUDQWHH
Your device is eligible for one
free map update within 60 days of
acquiring satellites while driving with
your device. You are not eligible for
the free map update if you register
by phone or wait longer than 60
days after the rst time you acquire
satellites while driving with your
device. For more information, go to
www.garmin.com/numaps.
8SGDWLQJ0DSV
1. Open myDashboard (page 4).
2. Register the device (page 4).
3. If necessary, under Map Updates,
click 8SGDWH1RZ.
4. Follow the on-screen instructions.
'R QORDGLQJWKH2 QHU¶V
0DQXDO
The owner’s manual for your device
is available on the Garmin Web site.
The owner’s manual for the dzl
includes more information about the
device features for semi-trailer trucks
and RVs.
1. Open myDashboard (page 4).
2. Click 0DQXDOV.
3. Click 'RZQORDG next to the
manual you want.
4. Click to save the le to your
computer.

EN-6 dzl 560 Quick Start Manual
(QWHULQJD7UXFNRU59
3UR¿OH
n :$51,1*
Entering your vehicle prole does
not guarantee that your vehicle’s
characteristics will be accounted for
in all route suggestions. It is your
responsibility to account for your
vehicle’s height, length, weight,
and other relevant restrictions when
driving. Always defer to all posted
road signs and road conditions when
making driving decisions.
Before you can operate in Truck or
RV mode, you must enter your truck
or RV prole.
Truck transportation mode is selected
the rst time you turn on your device.
You can select 6ZLWFK0RGH to enter
an RV prole.
1. When the warning screen appears,
touch $JUHH.
2. Touch <HV to enter your truck
prole.
3. Follow the on-screen instructions.
'HYLFH2YHUYLH
➊
➋
➊
3R HUNH\
➋
PLFUR6'

FDUGVORW
5HVHWWLQJWKH'HYLFH
You can reset the device if it stops
functioning.
1. Hold the 3RZHU key for 8 seconds,
and release it.
The device turns off.

dzl 560 Quick Start Manual EN-7
2. Wait 1 second.
3. If the device is using battery
power, press and release the
3RZHU key.
8VLQJWKH0DLQ0HQX
➊
➋➌
➍➐ ➑ ➎➏
• Touch ➊ to select a transportation
mode.
• Touch
➋ to nd a destination.
• Touch
➌ to view the map.
• Touch
➍ to stop a route.
• Touch
➎ to detour a route.
• Touch
➏ to make a call when
connected to a compatible mobile
phone.
Go to www.garmin.com/bluetooth
for information.
• Touch
➐ to adjust the volume.
• Touch
➑ to open the menu of
tools and settings.
)LQGLQJ7UXFNLQJ3RLQWV
RI,QWHUHVW
The detailed maps loaded in your
device contain trucking points of
interest, such as rest areas, truck
stops, and weigh stations.
1. From the main menu, touch
:KHUH7R? > 3RLQWVR ,QWHUHVW >
7UXFNLQJ.
2. Select a category.
3. If necessary, select a subcategory.
4. Select a destination.
5. Touch *R.

EN-8 dzl 560 Quick Start Manual
8VLQJ([LW6HUYLFHV
You can nd services such as fuel,
food, lodging, rest areas, vehicle
repair, truck stops, and weigh stations
at upcoming highway exits. The
device displays available services
based on the usage mode. Exit
service information is available only
on controlled access roads, such as
interstates.
127(: Exit services are not available
for Pedestrian mode.
1. While navigating a route, from the
main menu, touch :KHUH7R" >
([LW6HUYLFHV.
2. Select an option.
)ROOR LQJ<RXU5RXWH
127,&(
The speed limit icon feature is for
information only and does not replace
the driver’s responsibility to abide
by all posted speed limit signs and to
use safe driving judgment at all times.
Garmin will not be responsible for
any trafc nes or citations that you
may receive for failing to follow all
applicable trafc laws and signs.
Your route is marked with a magenta
line on the map. If you depart from
the original route, your device
recalculates the route. A speed limit
icon could appear as you travel on
major roadways.
When you are driving in Truck mode
or RV mode, a tone may sound
and may appear, indicating that
truck suitability for this roadway is
unknown. Always obey posted signs

dzl 560 Quick Start Manual EN-9
and regulations.
➊➋
➌
➍➎ ➏
➐➑➒➓
• Touch ➊ to view the next turn.
The turn indicator also tells you
which lane you should be in to
prepare for your next maneuver,
when available.
• Touch
➋ to view the turn list.
• Touch
➌ to zoom in and zoom
out.
• Touch
➍ to view warning
information, when available
(page 6).
• Touch
➎ to view information
about the location.
• Touch and drag
➏ to view a
different area of the map.
• Touch
➐ to return to the main
menu.
• Touch and hold
➐ from any
screen to return to the main menu.
• Touch
➑ to display a different
data eld.
• Touch
➒ to view trip information.
• Touch
➓ to change the speed limit
if the speed limit icon shown on
the map is incorrect.
This icon displays an indicator for
a truck speed limit.

EN-10 dzl 560 Quick Start Manual
8VLQJD%DFNXS&DPHUD
If a composite video backup camera
has been installed in your vehicle, you
can view the output of the camera on
your device.
Connect the camera to the video-
in jack
➊ on the cradle.
➊
The camera output appears when a
video signal is present.
$ERXW7UDI¿F
n &$87,21
If you choose to recalculate your
route when you are navigating in
Truck mode, the recalculated route
might include roads that have not
been veried for truck accessibility.
You should use caution and good
judgment and obey all posted signs
and regulations.
127,&(
Garmin is not responsible for the
accuracy or timeliness of the trafc
information. Trafc information is not
available in all areas.
Your device can receive FM Trafc
Message Channel (TMC) trafc
content. The FM TMC trafc
subscription is automatically enabled
and does not require an additional
subscription purchase to activate. The
FM TMC trafc receiver is integrated

dzl 560 Quick Start Manual EN-11
in the vehicle power cable included
in the box.
For information about trafc receivers
and coverage areas, go to www
.garmin.com/trafc.
3DLULQJ<RXU3KRQH
Before you can pair them, your phone
and your device must be turned on
and within 33 ft. (10 m) of each other.
1. From the dzl main menu, touch
7RROV > 6HWWLQJV > %OXHWRRWK >
%OXHWRRWK>(QDEOHG>6DYH.
2. Enable the Bluetooth®component
on your phone.
3. Enable Find Me/Discoverable/
Visible mode on your phone.
127(: This might be in a
menu called Settings, Bluetooth,
Connections, or Hands-free.
4. On the dzl, touch $GG3KRQH>
2..
5. Select your phone from the list.
6. Touch 2..
A prompt to pair the phone with
your device appears on the phone.
7. On your phone, accept the pairing.
8. If necessary, enter the device
Bluetooth PIN () in your
phone.
*HWWLQJ0RUH,QIRUPDWLRQ
You can nd more information about
this product on the Garmin Web site.
• Go to www.garmin.com
/ontheroad.
• Go
to http://buy.garmin.com to
purchase accessories.
• Touch 7RROV > +HOS.

&RQWDFWLQJ*DUPLQ
3URGXFW6XSSRUW
Contact Garmin Product Support if
you have any questions about this
product:
• In the USA, go to www.garmin
.com/support, or call Garmin USA
at [phone].
• In the UK, call Garmin (Europe)
Ltd. at 0808 2380000.
• In Europe, go to www.garmin
.com/support and click &RQWDFW
6XSSRUW for in-country support
information, or contact Garmin
(Europe) Ltd. by phone at +44 (0)
870.8501241.
Garmin®and the Garmin logo are trademarks
of Garmin Ltd. or its subsidiaries, registered
in the USA and other countries. cityXplorer™,
dzl™, myTrends™, and nüMaps Guarantee™are
trademarks of Garmin Ltd. or its subsidiaries.
These trademarks may not be used without the
express permission of Garmin. The Bluetooth®
word mark and logos are owned by the Bluetooth
SIG, Inc., and any use of such name by Garmin
is under license. Mac®is a trademark of Apple
Computer, Inc., registered in the U.S. and other
countries. microSD™ is a trademark of SD-3C,
LLC. Windows®is a registered trademark of
Microsoft Corporation in the United States and
other countries.
© 2010-2011 Garmin Ltd.
or its subsidiaries

GƝ]O


RZQHU¶VPDQXDO

© 2011 Garmin Ltd. or its subsidiaries
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced,
copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without
the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy
of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of
this manual or of any revision hereto, provided that such electronic or printed copy of this manual must
contain the complete text of this copyright notice and provided further that any unauthorized commercial
distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change
or improve its products and to make changes in the content without obligation to notify any person
or organization of such changes or improvements. Go to the Garmin Web site (www.garmin.com) for
current updates and supplemental information concerning the use and operation of this and other Garmin
products.
Garmin®, the Garmin logo, and MapSource®are trademarks of Garmin Ltd. or its subsidiaries, registered
in the USA and other countries. cityXplorer™, dzl™, ecoRoute™, Garmin Lock™, myGarmin™, myGarmin
Agent™, myTrends™, nüMaps Guarantee™, nüMaps Lifetime, nüRoute™, and trafcTrends™are
trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express
permission of Garmin.
The Bluetooth®word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such name by
Garmin is under license. Mac®is a trademark of Apple Computer, Inc., registered in the U.S. and other
countries. microSD™is a trademark of SD-3C, LLC. Windows®is a registered trademark of Microsoft
Corporation in the United States and other countries.

dzl 560 Owner’s Manual i
7DEOHRI&RQWHQWV
7DEOHRI&RQWHQWV
*HWWLQJ6WDUWHG 
0RXQWLQJWKH'HYLFH 
$ERXWP\'DVKERDUG 
(QWHULQJD7UXFNRU593UR¿OH 
$FTXLULQJ6DWHOOLWHV 
'HYLFH2YHUYLHZ 
$GMXVWLQJWKH6FUHHQ
%ULJKWQHVV
 
5HVHWWLQJWKH'HYLFH 
$GMXVWLQJWKH9ROXPH 
8VLQJWKH0DLQ0HQX 
8VLQJWKH2QVFUHHQ
%XWWRQV
 
8VLQJWKH2QVFUHHQ
.H\ERDUG 
7UDQVSRUWDWLRQ0RGHV
8VLQJD%DFNXS&DPHUD
6HDUFKLQJIRUD/RFDWLRQ 
)LQGLQJDQ$GGUHVV 
8VLQJWKH/RFDWLRQ0DS 
)LQGLQJD/RFDWLRQ8VLQJ
WKH0DS
 
)LQGLQJ 7766HUYLFHV 
8VLQJ([LW6HUYLFHV 
)LQGLQJ7UXFNLQJ3RLQWVRI
,QWHUHVW
 
6HWWLQJD+RPH/RFDWLRQ 
$ERXW3RLQWVRI,QWHUHVW 
)LQGLQJ<RXU/DVW3DUNLQJ
6SRW 
9LHZLQJD/LVWRI5HFHQWO\
)RXQG/RFDWLRQV 
)DYRULWHV 
(QWHULQJ&RRUGLQDWHV 
&KDQJLQJWKH6HDUFK$UHD 
3ODQQLQJD7ULS 
6FKHGXOLQJD7ULS 
DYLJDWLQJD6DYHG7ULS 
(GLWLQJD6DYHG7ULS 
6HWWLQJD6LPXODWHG/RFDWLRQ 
6LPXODWLQJD5RXWH 

ii dzl 560 Owner’s Manual
7DEOHRI&RQWHQWV
1DYLJDWLRQ 
0DS)HDWXUHV:KLOH
DYLJDWLQJ 
8VLQJWKH DYLJDWLRQ0DS 
9LHZLQJ7ULS,QIRUPDWLRQ 
9LHZLQJWKH7XUQ/LVW 
9LHZLQJWKH H[W7XUQ 
9LHZLQJWKH-XQFWLRQ9LHZ 
6HOHFWLQJD5RXWH
&DOFXODWLRQ0RGH 
$GGLQJ2QH3RLQWWRWKH
$FWLYH5RXWH 
7DNLQJD'HWRXU 
6WRSSLQJWKH5RXWH 
$ERXWP\7UHQGV 
8VLQJWKH3HGHVWULDQ
DYLJDWLRQ0DS
 
7UDI¿F 
6XEVFULSWLRQ$FWLYDWLRQ 
7UDI¿F5HFHLYHU 
5HFHLYLQJ7UDI¿F,QIRUPDWLRQ 
$ERXWWKH7UDI¿F,FRQ 
7UDI¿FRQ<RXU5RXWH 
9LHZLQJWKH7UDI¿F0DS 
6HDUFKLQJIRU7UDI¿F'HOD\V 
$GGLQJD6XEVFULSWLRQ 
$ERXW2IIHUVDQG
$GYHUWLVHPHQWV 
8VLQJ7UXFNLQJ)HDWXUHV 
$ERXW,)7$/RJJLQJ 
$ERXW+RXUVRI6HUYLFH 
8VLQJWKH7RROV 
9LHZLQJ&XUUHQW/RFDWLRQ
,QIRUPDWLRQ 
8VLQJ+HOS 
$ERXWHFR5RXWH 
8VLQJWKH3LFWXUH9LHZHU 
8VLQJWKH:RUOG&ORFN 
8VLQJWKH&DOFXODWRU 
&DSWXULQJ6FUHHQVKRWV 
8VLQJWKH8QLW&RQYHUWHU 
+DQGV)UHH3KRQH&DOOV 
$ERXW3DLULQJWKH'HYLFHV 

dzl 560 Owner’s Manual iii
7DEOHRI&RQWHQWV
5HFHLYLQJD&DOO 
8VLQJWKH'HYLFH'XULQJ
D&DOO
 
'LDOLQJD3RLQWRI,QWHUHVW 
'LDOLQJD XPEHU 
(QWHULQJ<RXU3KRQH
XPEHU 
3ODFLQJ&DOOV8VLQJ9RLFH
'LDO
 
&KHFNLQJWKH3KRQH6WDWXV 
'DWD0DQDJHPHQW 
)LOH7\SHV 
$ERXW0HPRU\&DUGV 
7UDQVIHUULQJ)LOHV7R<RXU
&RPSXWHU 
'HOHWLQJ)LOHV 
&XVWRPL]LQJWKH'HYLFH 
6\VWHP6HWWLQJV 
&XVWRPL]LQJWKH0DLQ0HQX 
$GGLQJ7UXFNRU593UR¿OHV 
$XWRPRELOH7UXFNDQG59
DYLJDWLRQ6HWWLQJV
 
3HGHVWULDQ DYLJDWLRQ
6HWWLQJV
 
&KRRVLQJ5RXWH
3UHIHUHQFHV 
'LVSOD\6HWWLQJV 
/DQJXDJH6HWWLQJV 
9LHZLQJ0DS,QIRUPDWLRQ 
%OXHWRRWK6HWWLQJV 
(QDEOLQJ7UDI¿F 
5HVWRULQJ6HWWLQJV 
$SSHQGL[ 
:DUQLQJ,FRQV 
3RZHU&DEOHV 
&DULQJIRU<RXU'HYLFH 
$ERXW*DUPLQ/RFN 
(UDVLQJ8VHU'DWD 
%DWWHU\,QIRUPDWLRQ 
&KDQJLQJWKH)XVHLQWKH
9HKLFOH3RZHU&DEOH 
5HPRYLQJWKH'HYLFH&UDGOH
DQG0RXQW
 
$ERXWQ0DSV/LIHWLPH 

iv dzl 560 Owner’s Manual
7DEOHRI&RQWHQWV
'HYLFH0RGHOV 
3XUFKDVLQJ$GGLWLRQDO0DSV 
&XVWRP3RLQWVRI,QWHUHVW 
6DIHW\&DPHUDV 
3XUFKDVLQJ$FFHVVRULHV 
&RQWDFWLQJ*DUPLQ3URGXFW
6XSSRUW 
6SHFL¿FDWLRQV 
7URXEOHVKRRWLQJ 
,QGH[ 

dzl 560 Owner’s Manual 1
*HWWLQJ6WDUWHG
*HWWLQJ6WDUWHG
n :$51,1*
See the ,PSRUWDQW6DIHW\DQG3URGXFW
,QIRUPDWLRQ guide in the product
box for product warnings and other
important information.
Before you use your device for the
rst time, you should complete these
tasks.
1. Mount the device (page 1):
• Portable friction mount
(page 2).
• Dash mount (page 3).
• External antenna (page 5).
2. Register the device (page 6).
3. Check for updates:
• Software updates (page 6).
• Free map update (page 7).
4. Enter a truck or RV prole
(page 7).
5. Acquire satellites (page 7).
0RXQWLQJWKH'HYLFH
n :$51,1*
This product contains a lithium-ion
battery. To prevent the possibility of
personal injury or product damage
caused by battery exposure to
extreme heat, remove the device from
the vehicle when exiting or store it
out of direct sunlight.
Before you use your device on
battery power, you should charge it.
The dzl comes with either a portable
friction mount or an adhesive dash
mount.

2 dzl 560 Owner’s Manual
*HWWLQJ6WDUWHG
,QVWDOOLQJWKH3RUWDEOH
)ULFWLRQ0RXQW
If you are using a portable friction
mount, you should follow these
instructions.
1. Plug the vehicle power cable
➊
into the mini-USB connector
➋
on the cradle ➌ .
➋
➊
➌
➍
2. Snap the cradle onto the arm ➍ .
3. Slide the locking lever
➎ on the
base to the unlocked position.
➎
4. Slide the disk on the bottom
of the arm into the base until it
clicks.
5. Slide the locking lever to the
locked position.
6. Fit the bottom of the device into
the cradle.
