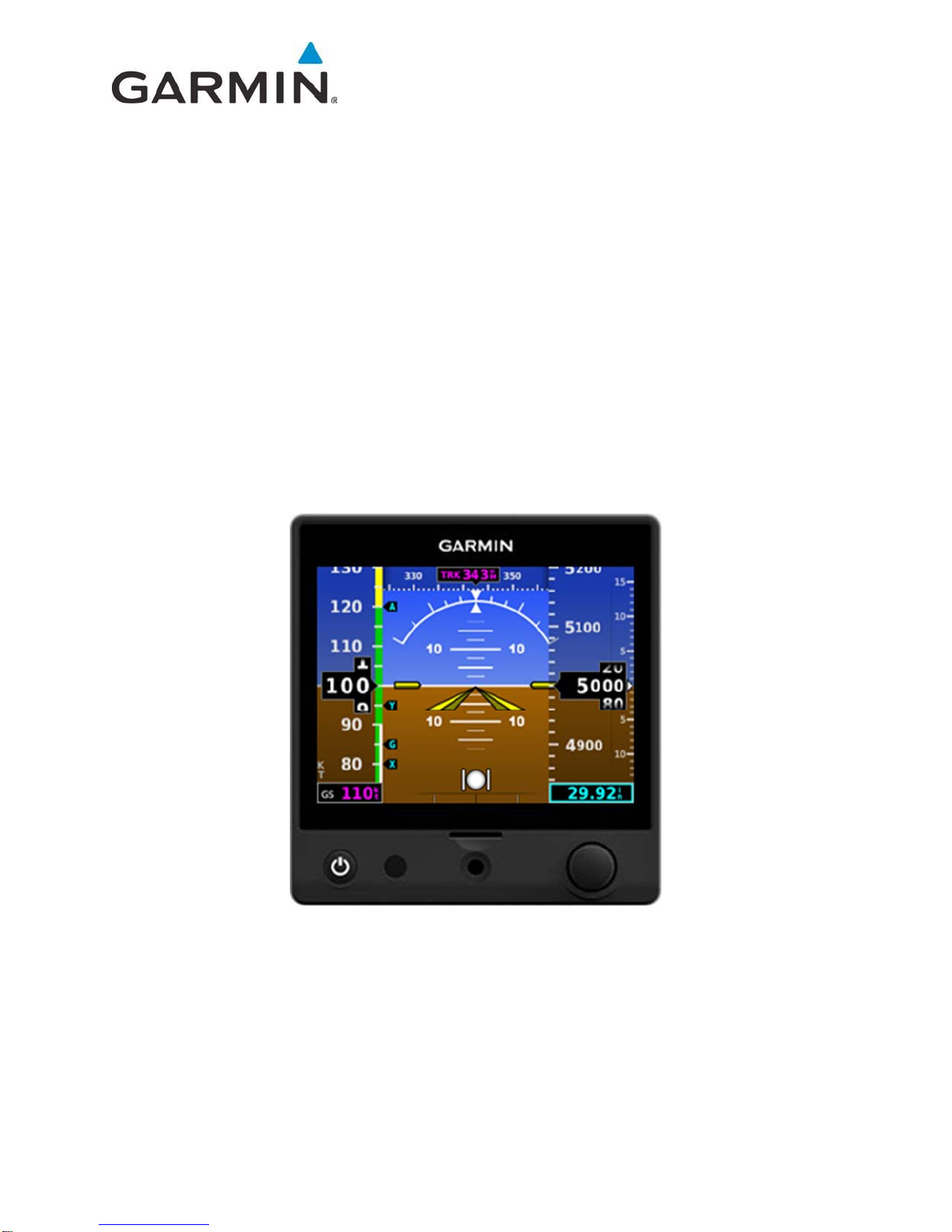

Garmin G5
Electronic Flight Instrument
Part 23 AML STC Pilot
’ s Guide

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page A
©2016 Garmin International or its subsidiaries
All Rights Reserved
Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted,
disseminated, downloaded or stored in any storage medium, for any purpose without the express prior
written consent of Garmin. Garmin hereby grants permission to downloada single copy ofthismanual
and
of any revision to this manual onto a hard drive or other electronic storage medium to be viewed
and to
print one copy of this manual or of any revision hereto, provided such electronic or printed copy
of this
manual or revision must contain the complete text of this copyright notice and provided further
any
unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Garmin® and flyGarmin® are registered trademarks of Garmin International or its subsidiaries. G5™ is
a trademark of Garmin International or its
subsidiaries. These trademarks may not be used without the
express permission of Garmin.
Garmin International, Inc
1200 E. 151st Street Olathe, KS 66062 USA
Telephone:[phone]
Technical Support and Field Service Engineers: 888.606.5482
www.flyGarmin.com
Garmin (Europe) Ltd.
Liberty House
Bull Copse Road
Hounsdown Business Park
Southampton, SO40 9LR, UK
Telephone: [phone]
Fax: [phone]
Garmin AT,Inc.
2345 Turner Rd. SE
Salem, OR 97302 USA
Telephone:[phone]

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page B
RECORD OF REVISIONS
Revision Revision Date Description
1 7/21/16 Initial Release

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page i
INFORMATION SUBJECT TO EXPORT CONTROL LAWS
This document may contain information which is subject to the Export Administration Regulations
(“EAR”) issued by the United States Department of Commerce (15 CFR, Chapter VII, Subchapter C)
and
which may not be exported, released, or disclosed to foreign nationals inside or outside of the United
States
without first obtaining an export license. A violation of the EAR may be subject to a penalty of
up to 10
years imprisonment and a fine of up to $1,000,000 under Section 2410 of the Export
Administration Act of
1979. Include this notice with any reproduced portion of this document.
NOTE:
The display uses a lens with a special coating that may be sensitive to skin oils, waxes, and
abrasive cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTI-
REFLECTIVE COATING. It is very important to clean the lens using a clean, lint-free cloth and
a cleaner that is specified as safe for anti-reflective coatings. Avoid any chemical cleaners or
solvents that can damage plastic components.
NOTE:
Use of polarized eyewear may cause the display to appear dim or blank.
NOTE
All images used in this document are current at the time of publication but are subject to change
and may not be up to date.

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page ii
TABLE OF CONTENTS
SECTION ..............................................................................................................................................PAGE
1SYSTEM DESCRIPTION.........................................................................................................................1
1.1 G5 Electronic Flight Instrument........................................................................................................1
1.2 Bezel Overview................................................................................................................................2
1.3 MicroSD™Cards ...............................................................................................................................3
2OPERATION............................................................................................................................................4
2.1 G5 Annunciations.............................................................................................................................4
2.2 G5 Attitude.......................................................................................................................................4
2.3 Backlight Intensity............................................................................................................................5
3ACCESSING FUNCTIONALITY..............................................................................................................6
3.1 Pages...............................................................................................................................................6
3.2 Menu ................................................................................................................................................6
3.3 PFD Page.........................................................................................................................................7
4SYSTEM MESSAGES...........................................................................................................................16

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 1 of 16
1 SYSTEM DESCRIPTION

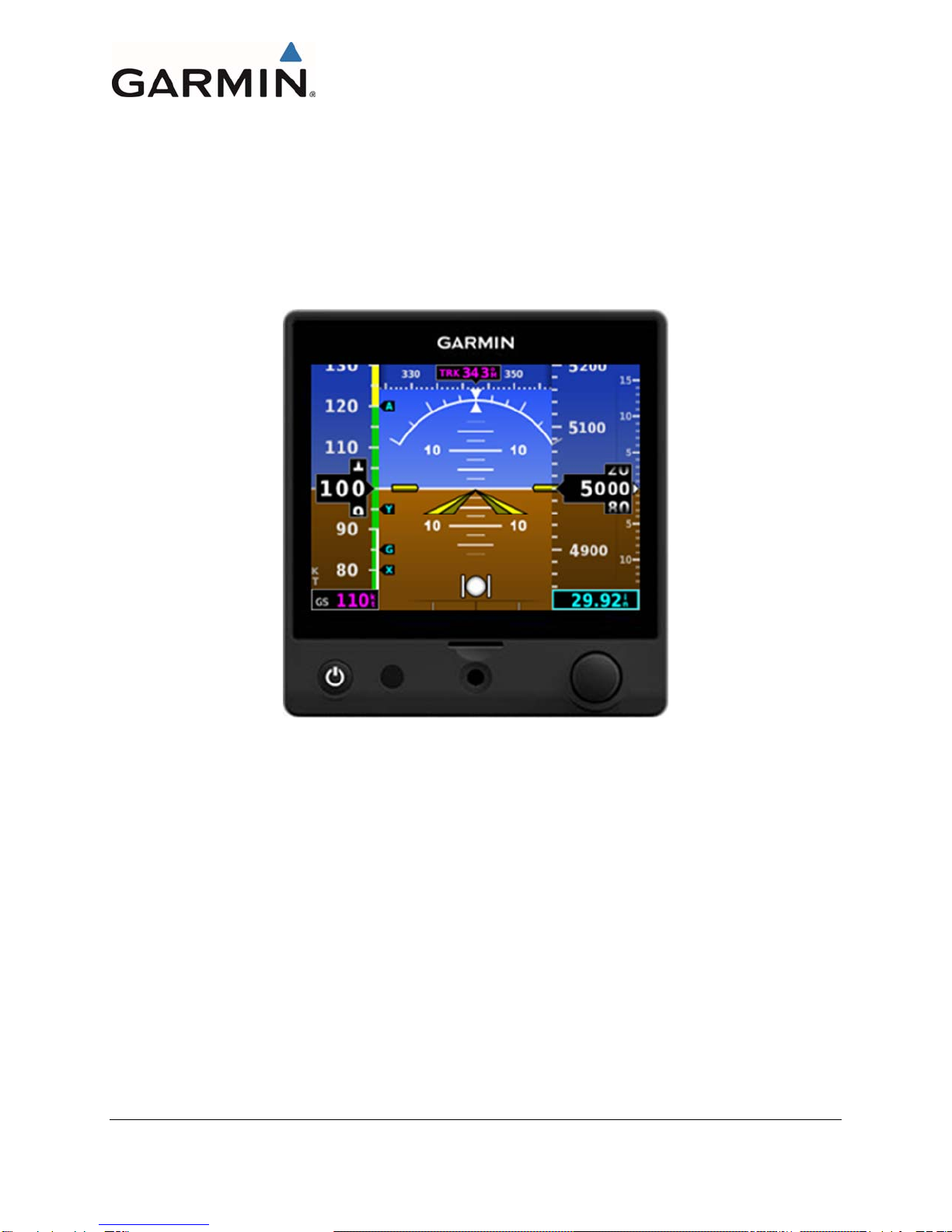

1.1 G5 Electronic Flight Instrument
The G5 Electronic Flight Instrument contains integrated attitude/air data sensors that provide
display of attitude and secondary display of airdata information. TheG5 features a bright, sunlight
readable, 3.5-inch color display. In the case of aircraft power loss, the G5 battery sustains the
G5 flight display with up to 4 hours of power.
G5 Electronic Flight Instrument

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 2 of 16

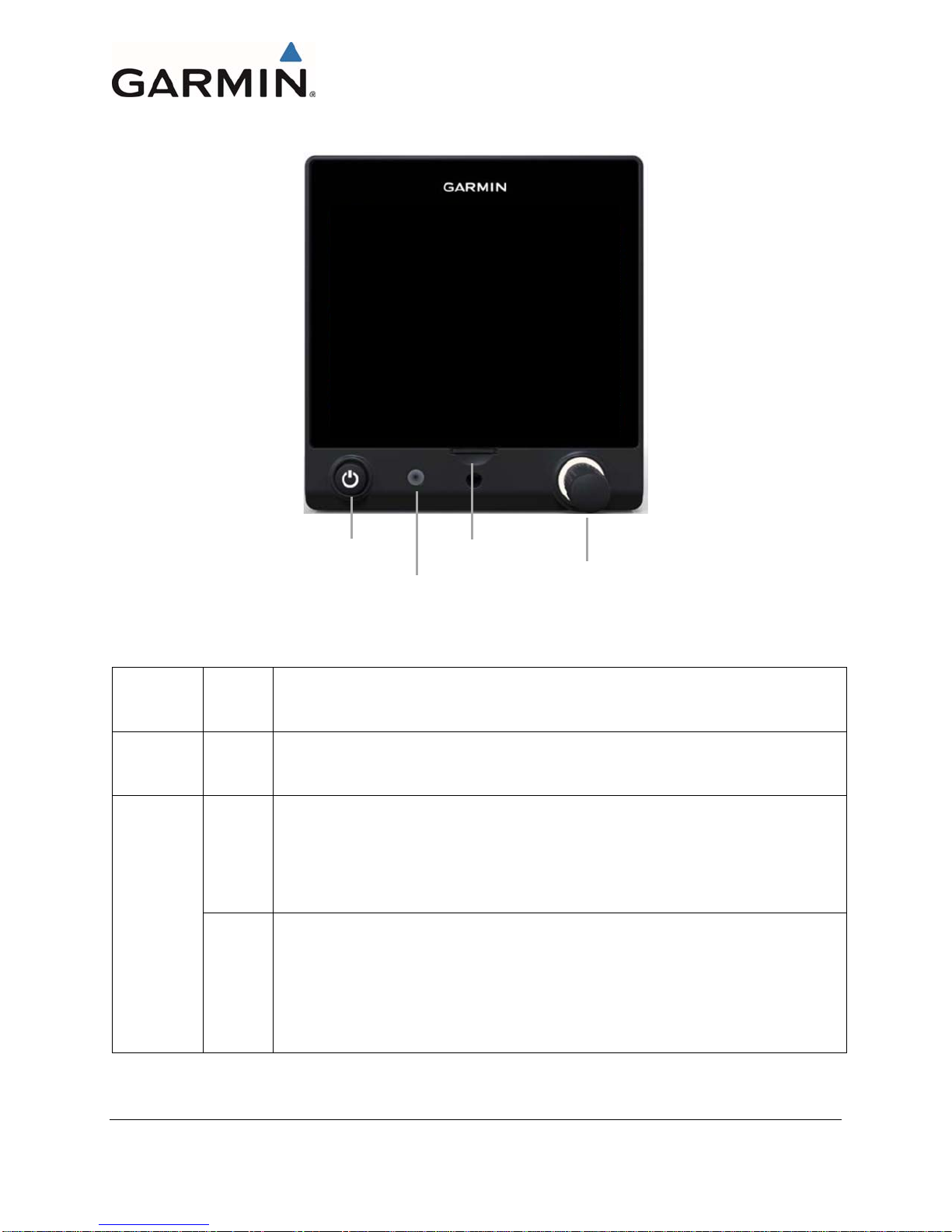

1.2 Bezel Overview
Power On/Off microSD™
Backlight Card Slot Knob
Ambient
Light Sensor
G5 Bezel Overview
Power
Button Press to turn unit ON. Press and hold for 5 seconds to turn unit OFF. Once on, press to adjust the backlight.
microSD
™
Card Slot Insert microSD card to update software and log data.
Knob Press Press to access the Menu
From the Menu, press to select the desired menu item.
Press to accept the displayed value when editing numeric data or
selecting from a list.
Turn From the Main Menu, turn the Knob to move the cursor to the desired
menu item.
Rotate to adjust the barometric setting.
Turn to select the desired value when editing numeric data or
selecting from a list.

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 3 of 16
1.3 MicroSD™Cards
The G5 data card slot uses micro Secure Digital (SD) cards. The microSD™card can be used for
software updates and data logging. The maximum supported card size is 32G.
Installing a microSD™Card:
1) Insert the microSD™card in the microSD™card slot with the card contacts facing down
(the card should be flush with the face of the bezel).
2) To eject the card, gently press on the microSD™card to release the spring latch.

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 4 of 16
2 OPERATION
2.1 G5 Annunciations
When a G5 function fails, a large red ‘X’ is displayed over the instrument(s) or data experiencing
the failure. Upon G5 power-up, certain instruments remain invalid as equipment begins to
initialize. All instruments should be operational within one minute of power-up. If any instrument
remains flagged and it is not likely an installation related problem, the G5 should be serviced by
a Garmin-authorized repair facility.
G5 Failure Indications
2.2 G5 Attitude
The G5 calculates aircraft attitude using information from its built-in inertial sensors. The G5 also
uses GPS and airspeed data to provide the most accurate attitude information. The G5 should
display valid attitude within the first minute of power-up.
If the G5 senses that the attitude solution is valid, but not yet within the internal accuracy limits,
"ALIGNING" is displayed. The displayed attitude information is still accurate and usable while
this indication is shown. The G5 can align itself both while taxiing and during level flight.
Attitude Aligning Indication

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 5 of 16
If the G5 senses that the attitude solution is invalid, “ALIGNING KEEP WINGS LEVEL” is
displayed. No attitude information is displayed while this indication is shown. The G5 can align
itself both while taxiing and during level flight.
Attitude Aligning Keep Wings Level Indication
If the G5 inertial sensors fail, “ATTITUDE FAIL” is displayed in addition to a red-X flag. No attitude
information is displayed while this indication is shown.
Attitude Failure Indication
2.3 Backlight Intensity
When set to Auto, the backlight is automatically adjusted according to ambient light conditions.
When set to Manual, the backlight level is set by the pilot.
Adjusting backlight intensity:
1) While the unit is turned on, press the Power Button.
2) Turn the Knob to adjust the backlight intensity.
3) Press the Knob to close the backlight page.
Setting the backlight intensity to automatic:
1) While the unit is turned on, press the Power Button.
2) Press the
Power Button again to select Auto.
3) Press the Knob to close the backlight page.

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 6 of 16
3 ACCESSING FUNCTIONALITY

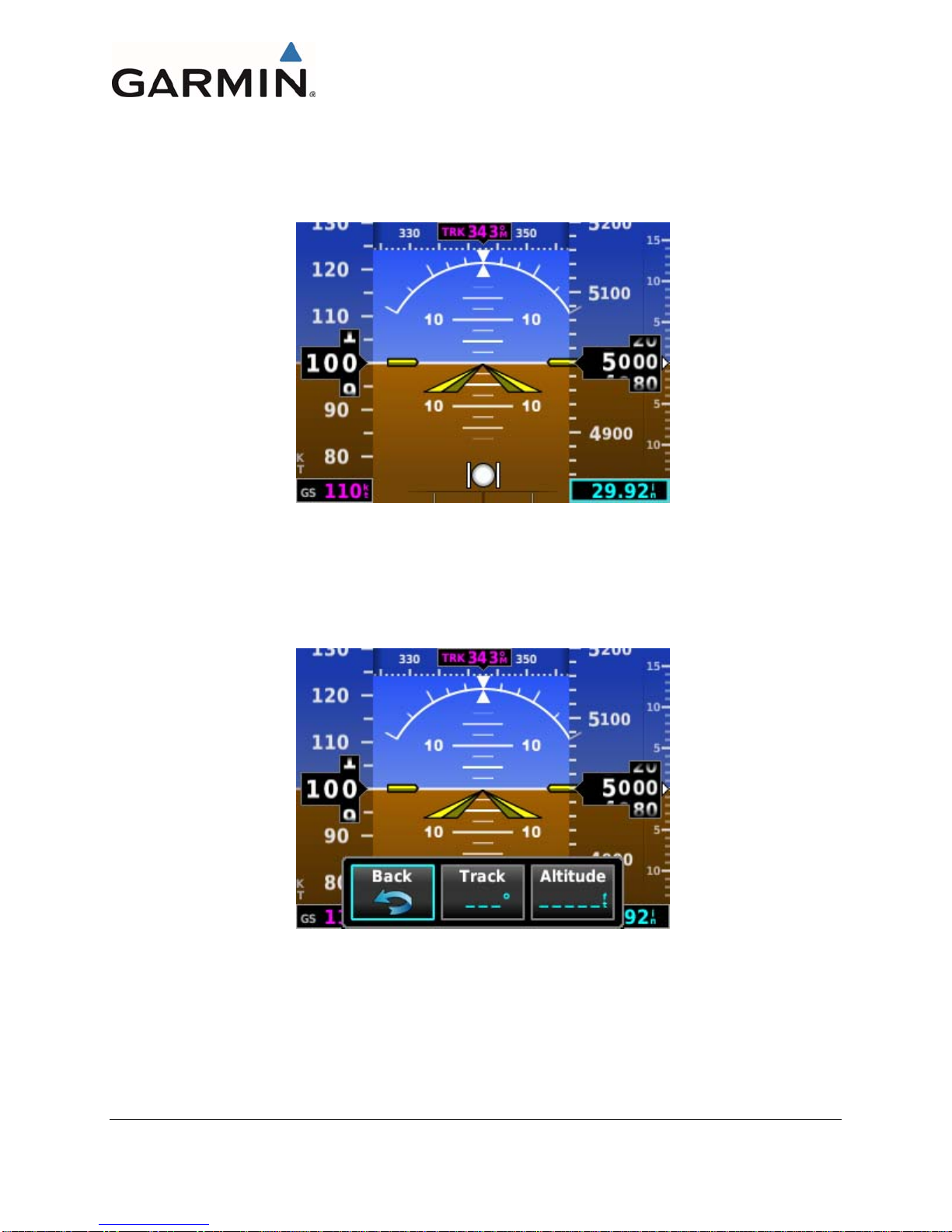

3.1 Pages
The G5 is in PFD page format only.
PFD Page
3.2 Menu
Press the Knob to access the G5 Menu. Navigate the menu by rotating the Knob and make
selections by pressing the Knob.
PFD Page Menu

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 7 of 16
3.3 PFD Page
The G5 PFD Page displays a horizon, airspeed, attitude, altitude, and vertical speed.
The following flight instruments and supplemental flight data are displayed on the PFD Page:
G5 PFD Flight Instruments
Airspeed Indicator Selected Altitude Bug
Attitude Indicator Vertical Speed Indicator
Pitch Scale Current Altitude
Current Airspeed Altimeter
Aircraft Symbol Selected Altitude
Slip/Skid Indicator Ground Track
Ground Speed (GS) Selected Ground Track
Altimeter Barometer Setting Vspeed Reference
Turn Rate Indicator Battery Status Indicator
1
2
3
4
5
6
7 8
1
2
3
4
5
6
7
8
9
12
11
15
16
10
13
14
17
18
9
10
11
12
13
14
15
16
17
18

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 8 of 16
3.3.1 Airspeed Indicator
NOTE:
The G5 Vspeed Reference values depend upon the aircraft’s specific system configuration and
may vary from the examples discussed in this section.
The Airspeed Indicator displays airspeed on a rolling number gauge using a moving tape. The
numeric labels and major tick marks on the moving tape are marked at intervals of 10 MPH or
KT, as indicated at bottom of airspeed tape). The actual airspeed is displayed inside the black
pointer. The pointer remains black until reaching never-exceed speed (VNE), at which point it
turns red.
A color-coded (red, white, green, yellow, and red/white “barber pole”) speed range strip is located
on the moving tape. The colors denote flaps operating range, normal operating range, caution
range, and never-exceed speed (VNE). A red range is also present for low speed awareness.
The Airspeed Trend Vector is a vertical, magenta line, extending up or down on the airspeed
scale, shown to the right of the color-coded speed range strip. The end of the trend vector
corresponds to the predicted airspeed in 6 seconds if the current rate of acceleration is
maintained. If the trend vector crosses VNE, the text of the actual airspeed readout changes to
yellow. The trend vector is absent if the speed remains constant or if any data needed to calculate
airspeed is not available due to a system failure.
Airspeed Indicator
Vspeed References
Ground Speed
Airspeed Trend Vector
Airspeed Color Ranges
Actual Airspeed

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 9 of 16
3.3.2 Vspeed Reference
Vspeed references including VNE, Vno, Vso, Vs1, Vfe, Va, Vx, Vy, VYse, Vg, Vr, are displayed
on the G5 (as configured during installation.)
When airspeed is present, the Vspeeds configured are displayed at their respective locations to
the right of the airspeed scale; otherwise, the Vspeeds are displayed at the bottom of the airspeed
indicator.
Vspeed References
Vspeed References

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 10 of 16
3.3.3 Attitude Indicator
Attitude information is displayed over a virtual blue sky and brown ground with a white horizon
line. The Attitude Indicator displays the pitch (indicated by the yellow symbolic aircraft on the
pitch scale), roll, and slip/skid information.
The horizon line is part of the pitch scale. Pitch markings occur at 2.5˚intervals through all pitch
ranges. When the aircraft enters an unusual pitch attitude, red extreme pitch warning chevrons
pointing toward the horizon are displayed on the Attitude Indicator starting at 60˚above and 40˚
below the horizon line.
The inverted white triangle indicates zero on the roll scale. Major tick marks at 30˚and 60˚and
minor tick marks at 10˚, 20˚, and 45˚are shown to the left and right of the zero. Angle of bank is
indicated by the position of the pointer on the roll scale.
Slip/skid is indicated by the location of the ball.
Attitude Indicator
Roll Pointer
Roll Scale
Horizon Line
Aircraft Symbol
Slip/Skid Indicator
Land Representation
Pitch Scale
Sky Representation
Roll Scale Zero
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 11 of 16

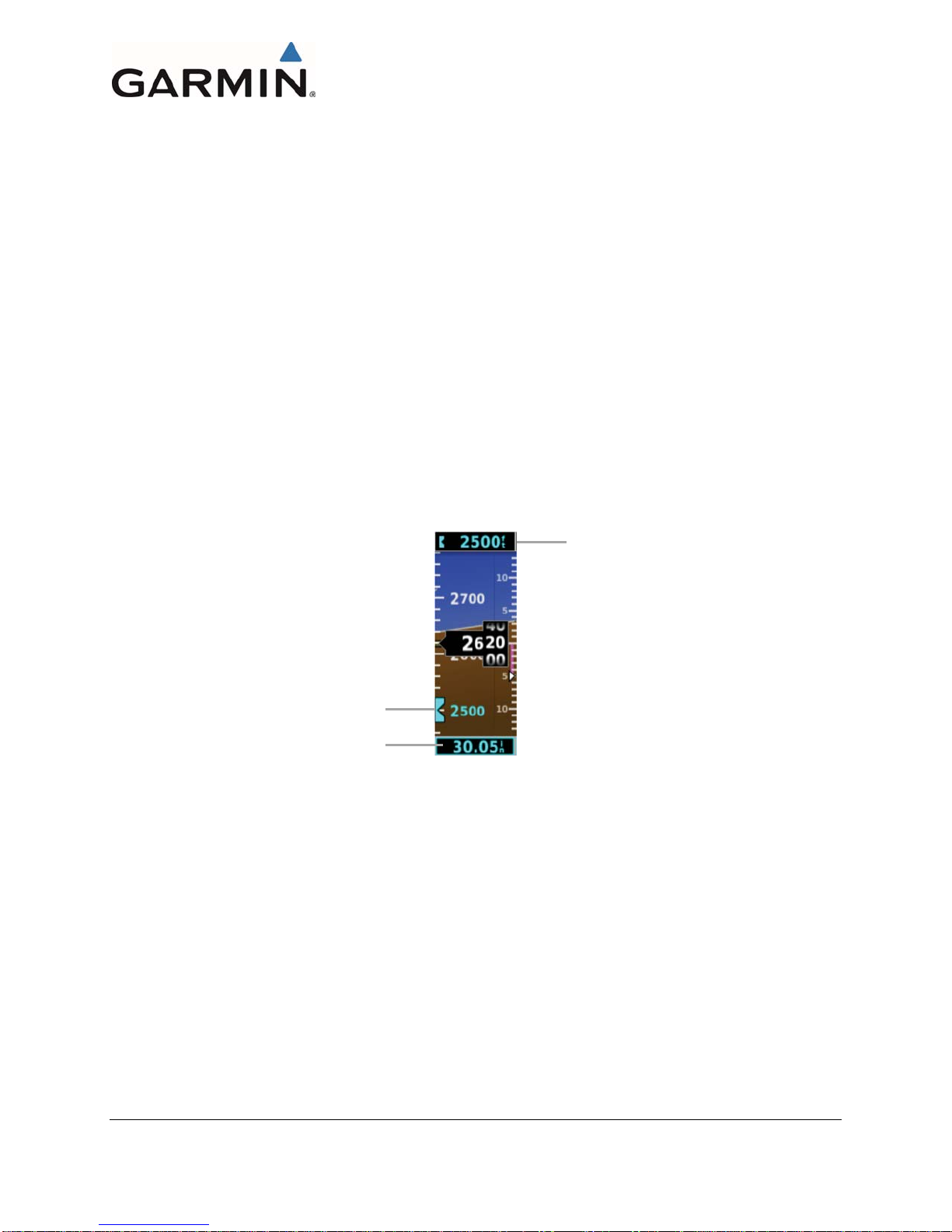

3.3.4 Altimeter
The Altimeter displays 400 feet of barometric altitude values at a time on a rolling number gauge
using a moving tape. Numeric labels and major tick marks are shown at intervals of 100 feet.
Minor tick marks are at intervals of 20 feet. The current altitude is displayed in the black pointer.
The Selected Altitude is displayed above the Altimeter in the box indicated by a selection bug
symbol. A bug corresponding to this altitude is shown on the tape. If the Selected Altitude
exceeds the range shown on the tape, the bug appears at the corresponding edge of the tape.
Setting the selected altitude:
1) Press the Knob to display the Menu.
2) Select
Altitude and use the Knob to change the Selected Altitude.
Syncing to the current altitude:
1) Press the Knob to display the Menu.
2) Select
Altitude and press and hold the Knob to sync the Selected Altitude to the current
altitude.
Altimeter
3.3.5 Barometric Pressure
The barometric pressure setting is displayed below the Altimeter in inches of mercury (in Hg).
Selecting the altimeter barometric pressure setting:
Turn the Knob to set the barometric pressure.
Selected Altitude
Selected Altitude Bug
Barometric Setting

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 12 of 16
3.3.6 Altitude Alerting
The Altitude Alerting function provides the pilot with a visual alert when approaching the Selected
Altitude. Whenever the Selected Altitude is changed, the Altitude Alerter is reset. The following
will occur when approaching the Selected Altitude:
• Passing within 1000 feet of the Selected Altitude, the Selected Altitude (shown above
the Altimeter) flashes for 5 seconds.
• When the aircraft passes within 200 ft of the Selected Altitude, the Selected Altitude
flashes for 5 seconds to indicate that the aircraft is approaching the selected altitude.
• After reaching the Selected Altitude, if the pilot flies outside the deviation band (±200
Feet of the Selected Altitude), the Selected Altitude changes to yellow text on a black
background, flashes for 5 seconds.
Deviation of ±200 ft
Altitude Alerting Visual Annunciation

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 13 of 16
3.3.7 Turn Rate Indicator
The Turn Rate Indicator is located at the bottom of the PFD Page. A magenta Turn Rate Trend
Vector shows the current turn rate. A standard-rate turn (3 deg/sec) is shown on the indicator by
the trend vector stopping at the standard turn rate tick mark.
Turn Rate Indicator
Turn Rate
Trend Vector
Turn Rate Indicator
(Standard Rate Tick Marks)

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 14 of 16
3.3.8 Ground Track
A Ground Track Tape is displayed at the top of the PFD Page and displays numeric labels every
10°. Major tick marks are at 5° intervals and minor tick marks at 1° intervals.
When displaying Ground Track, a magenta bug is displayed on the tape.
Adjusting the selected ground track:
1) Press the Knob to display the Menu.
2) Select Track and use the Knob to change the Selected Track.
Syncing to the current ground track:
1) Press the Knob to display the Menu.
2) Select Track and press and hold the Knob to sync the selected ground track to the
current ground track.
Selected Ground Track
Current
Ground
Track
Selected
Ground
Track Bug

Garmin G5 Part 23 AML STC Pilot’s Guide 190-01112-12
Rev. 1
Page 15 of 16
3.3.9 Vertical Speed Indicator (VSI)
The Vertical Speed Indicator displays the aircraft vertical speed using a non-moving tape to the
right of the altimeter. The current vertical speed is displayed using a white arrow along the tape.
Vertical Speed Indicator
3.3.10 Battery Status Indicator
The current charge level of the battery is indicated by the filled-in portion of the battery icon. The
battery icon turns yellow or red to indicate a low-battery condition.
41-100%
21-40%
0-20%
When the G5 is powered by the battery, the estimated time until the battery is empty is displayed
in hours and minutes. Otherwise, the current charge level of the battery in percent is displayed
as a numeric value.
When the G5 is connected to external power and the battery is being charged, a lightning bolt
symbol appears over the battery icon.
Charging
Current Vertical Speed
