Garnet 610 User manual

M_Garnet 61 0_2017
Printed in China
Massage Chair
Garnet 610

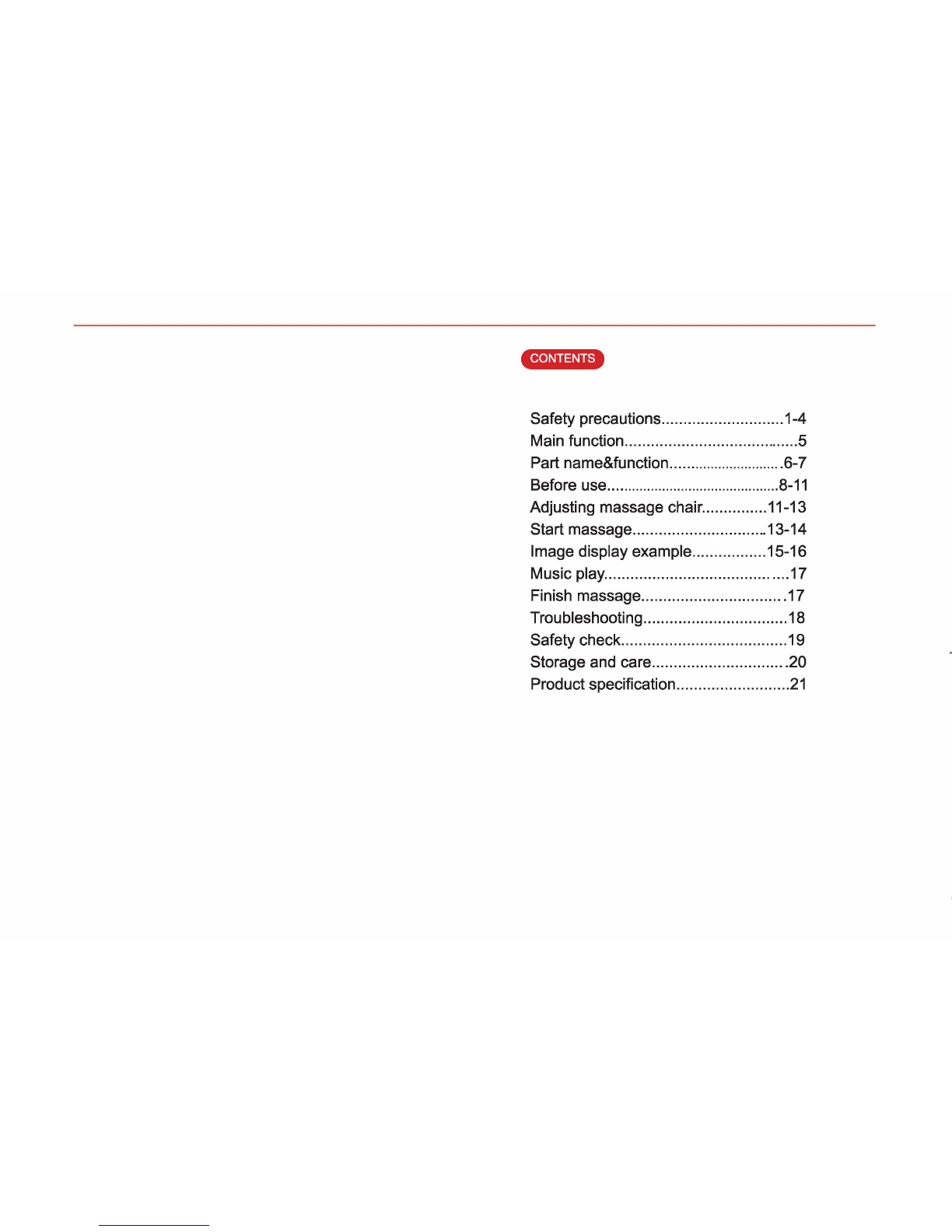

CONTENTS
Safety precautions............................1-4
Main function........................................5
Part name&function......
o. 0000.0000 00000 ooo. 00 .6-7
Before use.... 00 0 00 00 0 00 00 0 00 000 00 0 00 00 0 00 00 0 00 0 00 00 0 0.8-11
Adjusting massage chair............... 11-13
Start massage...............................13-14

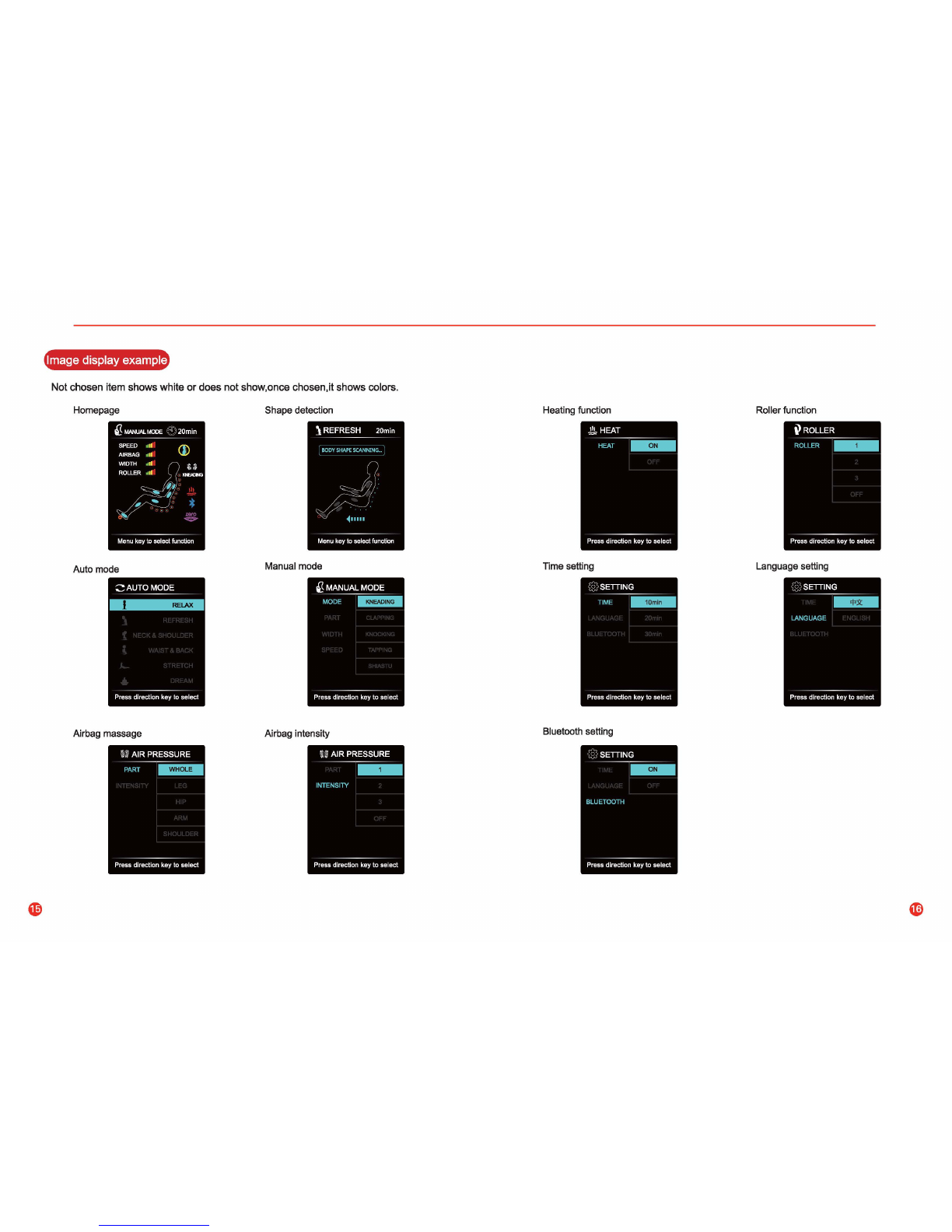

Image display example................. 15-16

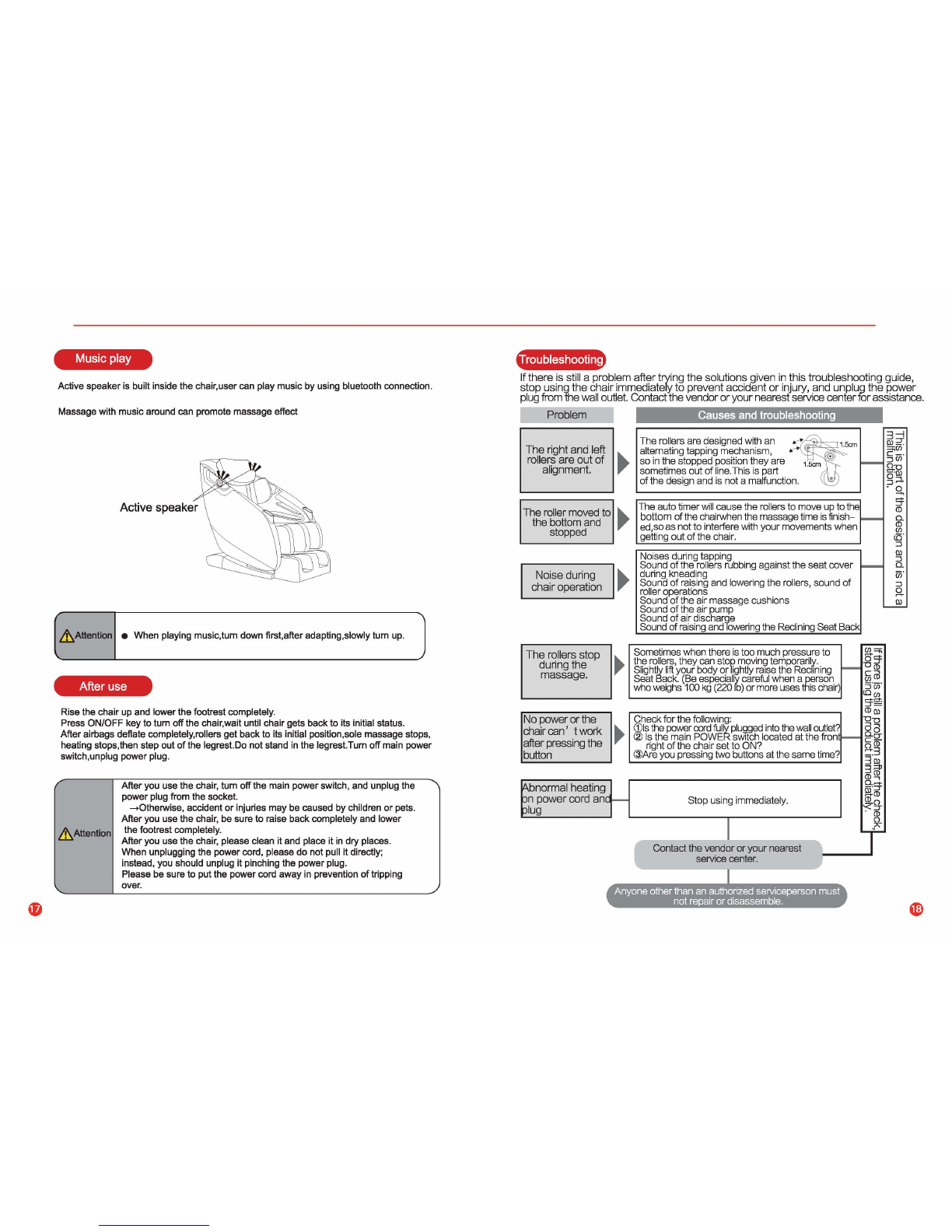

Music play.......................................... 17
Finish massage.................................17
T
ro ubIeshooting.................................18

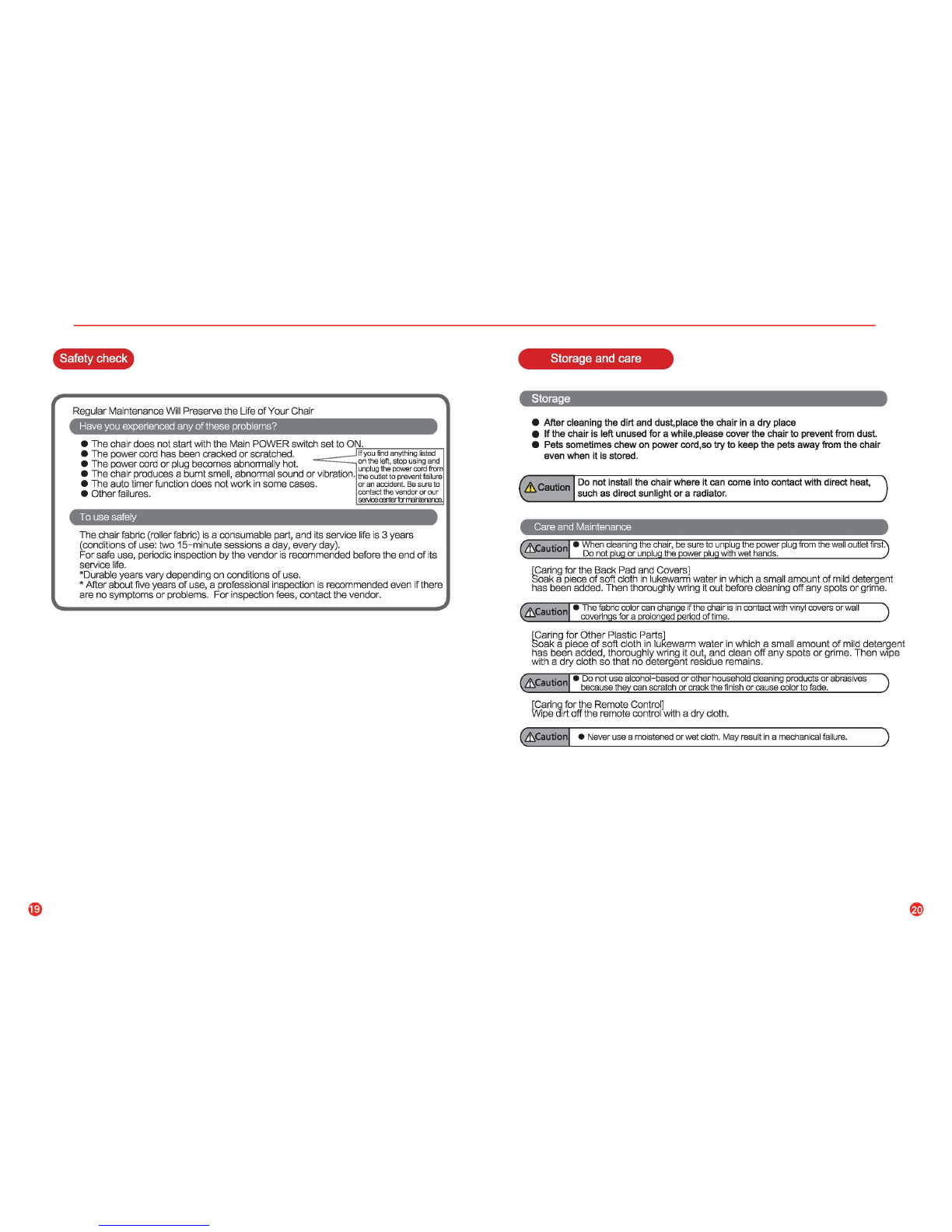

Safety check......................................
19
•
Storage and care...............................20
Product specification.......................... 21

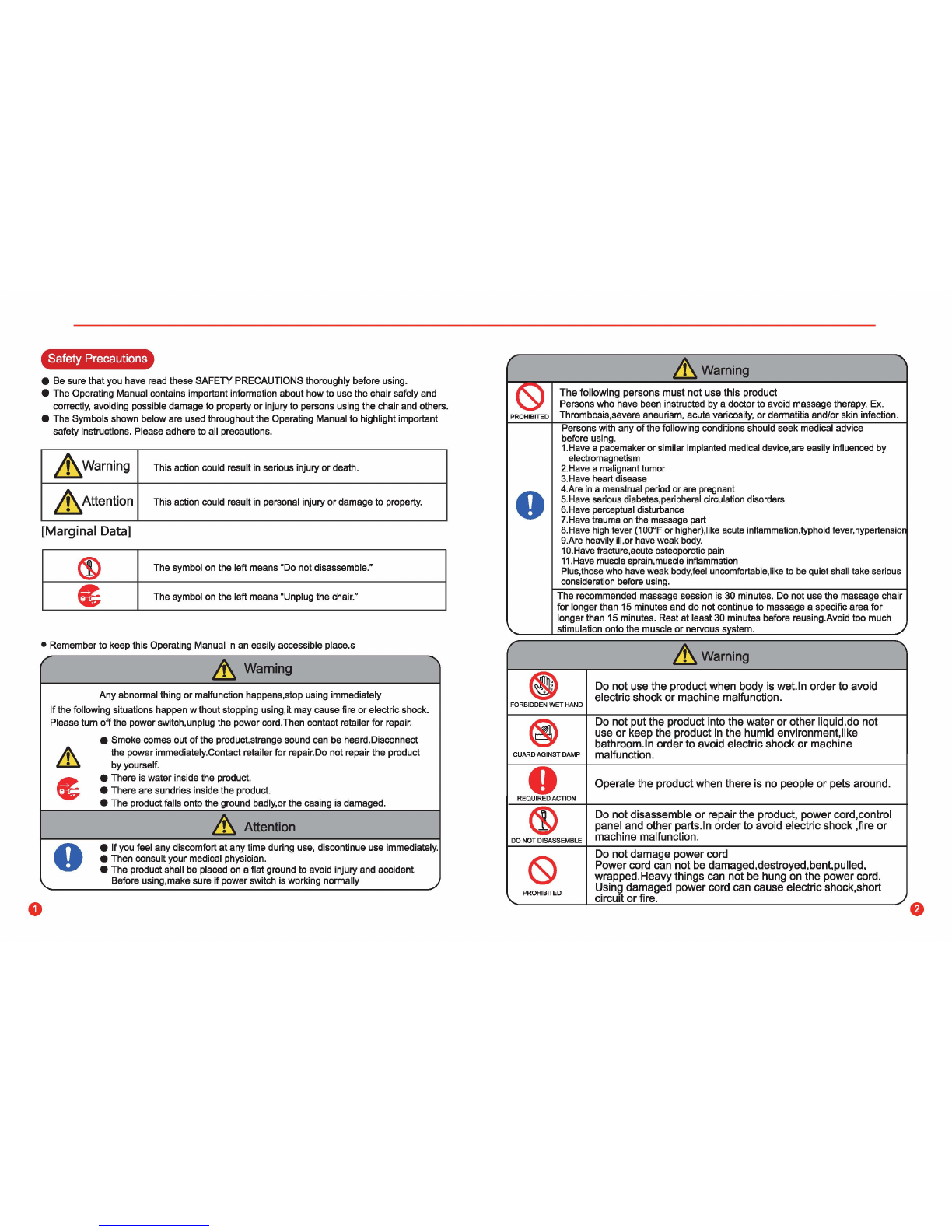

Safety Precautions
e Be sure thatyou have read these SAFETY PRECAUTIONS thoroughly before using.
e The Operating Manual contains important information about how to use the chairsafely and
correctly, avoiding possible damage to property or injury to persons using the chairand others.
e The Symbols shown below are used throughout the Operating Manual to highlight important
safety instructions. Please adhere
to all precautions.
&warning
This action could result in serious injury or death.
&Attention
This action could result in personal injury or damage to property.
[Marginal Data]
The symbol on the left means "Do not disassemble."
The symbol on the left means "Unplug the chair."
• Remember to keep this Operating Manual in an easily accessible place.s
~Warning
Any abnormal thing or malfunction happens,stop using immediately
If the following situations happen without stopping using,it may cause fire or electric shock.
Please turn off the power switch,unplug the power cord.Then contact retailer for repair.
e Smoke comes out of the product,strange sound can be heard.Disconnect
the powerimmediately.Contact retailer
for repair.Do notrepair the product
by yourself.
e There is water inside the product.
e There are sundries inside the product.
e The productfalls onto the ground badly,or the casing is damaged.
~ Attention
e If you feel any discomfort at any time during use, discontinue use immediately.
e Then consult your medical physician.
e The productshall be placed on a flat ground to avoid injury and accident.
, ____________ B_~_o_~ __ us_i_ng_,_m_a_k_e_s_u_~_i_f_p_ow __ er_s_w_i_~_h_is __ w_o_rk_in_g __ no_rm __ a_II_Y __________ __,~
0
/
~Warning
The following persons must not use this product
PROHIBITED
Persons who have been instructed bya doctorto avoid massage therapy. Ex.
Thrombosis,severe aneurism, acute varicosity,
or dermatitis and/orskin infection.
/
Persons with any of the following conditions should seek medical advice
before using.
1.Havea pacemaker or similar implanted medical device,are easily influenced by
electromagnetism
2.Have a malignant tumor
3.Have heart disease
4.Are in a menstrual period
or are pregnant
5.Have serious diabetes,peripheral circulation disorders
6.Have perceptual disturbance
?.Have trauma on the massage part
8.Have high fever
(1 00°F or higher),like acute inflammation,typhoid fever,hypertension
9.Are heavily ill,or have weak body.
10.Have fracture,acute osteoporotic pain
11.Have muscle sprain,muscle inflammation
Plus,those who have weak body,feel uncomfortable,like to be quiet shall take serious
consideration before using.
The recommended massage session is
30 minutes. Do not use the massage chair
for longerthan 15 minutes and do not continue to massage a specific area for
longerthan 15 minutes. Rest at least 30 minutes before reusing.Avoid too much
stimulation onto the muscle or nervous system. ../
~Warning
Do not use the productwhen body is wet. In order to avoid
electric shock or machine malfunction.
FORBIDDEN WET HAND
GUARDAGINSTDAMP
0
REQUIREDACTION
DO NOT DISASSEMBLE
Do not put the product into the water or other liquid,do not
use or keep the product in the humid environment,like
bathroom.ln orderto avoid electric shock
or machine
malfunction.
Operate the productwhen there is no people or pets around.
Do not disassemble
or repair the product, power cord,control
panel and other parts.
In orderto avoid electric shock ,fire or
machine malfunction.
Do not damage power cord
Power cord can not be damaged,destroyed,bent,pulled,
wrapped.Heavy things can not be hung on the powercord.
PROHIBITED Using damaged power cord can cause electric shock,short
'----------~-c~i~rc~u~it~o~r~fi~lr~e~·------------------------------------~~ Et

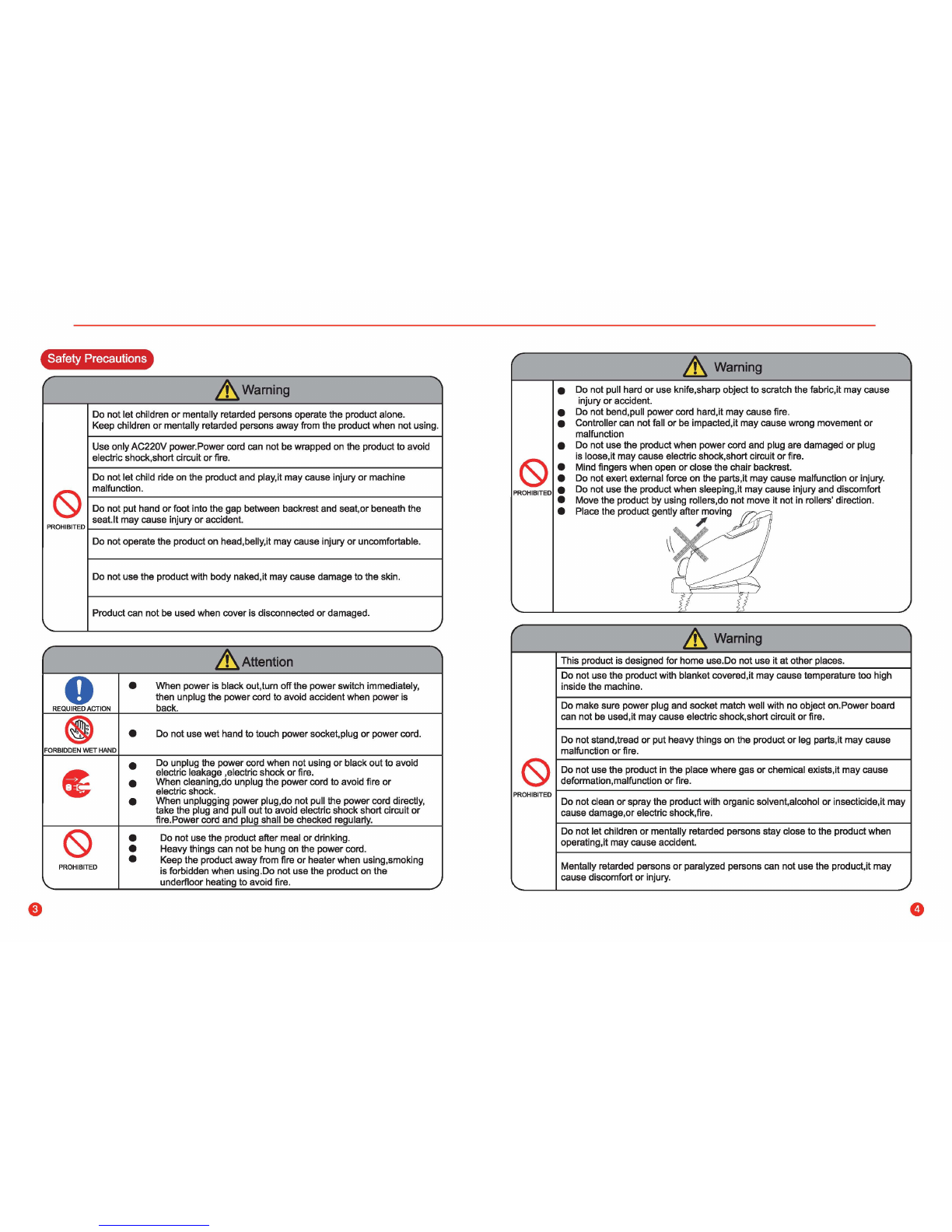

Safety Precautions
I'
~Warning
"'
Do not let children or mentally retarded persons operate the product alone.
Keep children or mentally retarded persons awayfrom the product when not using.
Use onlyAC220V power.Powercord can not be wrapped on the product
to avoid
electric shock,short circuit or fire.
Do not let child ride on the product and play,it may cause injury
or machine
(S)
malfunction.
Do not put hand or foot into the gap between backrest and seat, or beneath the
seat.lt may cause injury or accident.
PROHIBITED
Do notoperate the product on head,belly,it may cause injury or uncomfortable.
Do not use the product with body naked,it may cause damage to the skin.
Product can not be used when cover is disconnected
or damaged.
'
./
I'
~Attention
"'
0 • When poweris black out,tum
off the power switch immediately,
then unplug the powercord to avoid accident when poweris
REQUIRED ACTION
back.
® • Do not use
wet hand to touch powersocket,plug or power cord.
FORBIDDEN WET HAND
• Do unplug the powercord when not using
or black out to avoid
tt
electric leakage ,electric shock or fire.
• When cleaning,do unplug the powercord
to avoid fire or
electric shock.
• When unplugging power plug,do not pull the power cord directly,
take the plug and pull out to avoid electric shock short circuit or
fire.Power cord and plug shall be checked regularly.
(S)
• Do not use the product after meal
or drinking.
• Heavy things can not be hung on the powercord.
• Keep the product away from fire
or heaterwhen using,smoking
PROHIBITED
is forbidden when using.Do not use the product on the
\.. underfloorheating to avoid fire.
(S)
PROHIBITED
I'
(S)
PROHIBITED
'
•
•
•
•
•
•
•
•
•
~ Waming
Do not pull hard or use knife,sharp object to scratch the fabric,it may cause
injury
or accident.
Do not bend,pull power cord hard,it may cause fire.
Controller can notfall or be impacted,it may cause wrong movement or
malfunction
Do not use the productwhen powercord and plug are damaged or plug
is loose,it may cause electric shock,short circuit or fire.
Mind fingers when open
or close the chair backrest.
Do not exert external force on the parts,it maycause malfunction
or injury.
Do not use the productwhen sleeping,it may cause injury and discomfort
Move the product by using rollers,do not move it notin rollers' direction.
Place the product gently after moving
,~
~ Waming
This product is designed for home use.Do not use it at otherplaces.
Do not use the productwith blanket covered,it may cause temperature too high
inside the machine.
Do make sure power plug and socket match well with no object on.Power board
can not be used,it may cause electric shock,short circuit
or fire.
Do not stand,tread
or put heavy things on the product or leg parts,it may cause
malfunction or fire.
Do not use the product
in the place where gas or chemical exists,it may cause
deformation,malfunction
or fire.
"
Do not clean or spray the product with organic solvent,alcohol or insecticide,it may
cause damage,orelectric shock,fire.
Do not letchildren
or mentally retarded persons stay close to the product when
operating,it may cause accident.
Mentally retarded persons or paralyzed persons can notusethe product,it may
cause discomfort
or injury.

Main function
0 Shape detection:
Before massage,system detects shape of user
G\ L guide rail
~ Guide rail fits human's S type curve,and L type guide rail is superlong with 120cm
massage distance.
~ Zero gravity
'!} Imitate zero gravity of space capsule,relax person fully.
A Powerful motor
\i.1 MAGUNES special motoris designed by rich experience and performances,with strong
powerand excellent quietness.
A Flexible airbag
'!./ Airbag with strong function and wide moving range has realized stretching exercise of
people,helping userto keep slim body.
A Hot compress(Waist)
\!1 Advanced carbon fiber heating technique warms user's feet,legs safely and high efficiently.
~ Arm&hand massage
V Hand and front arm can be massaged to promote blood circulation.

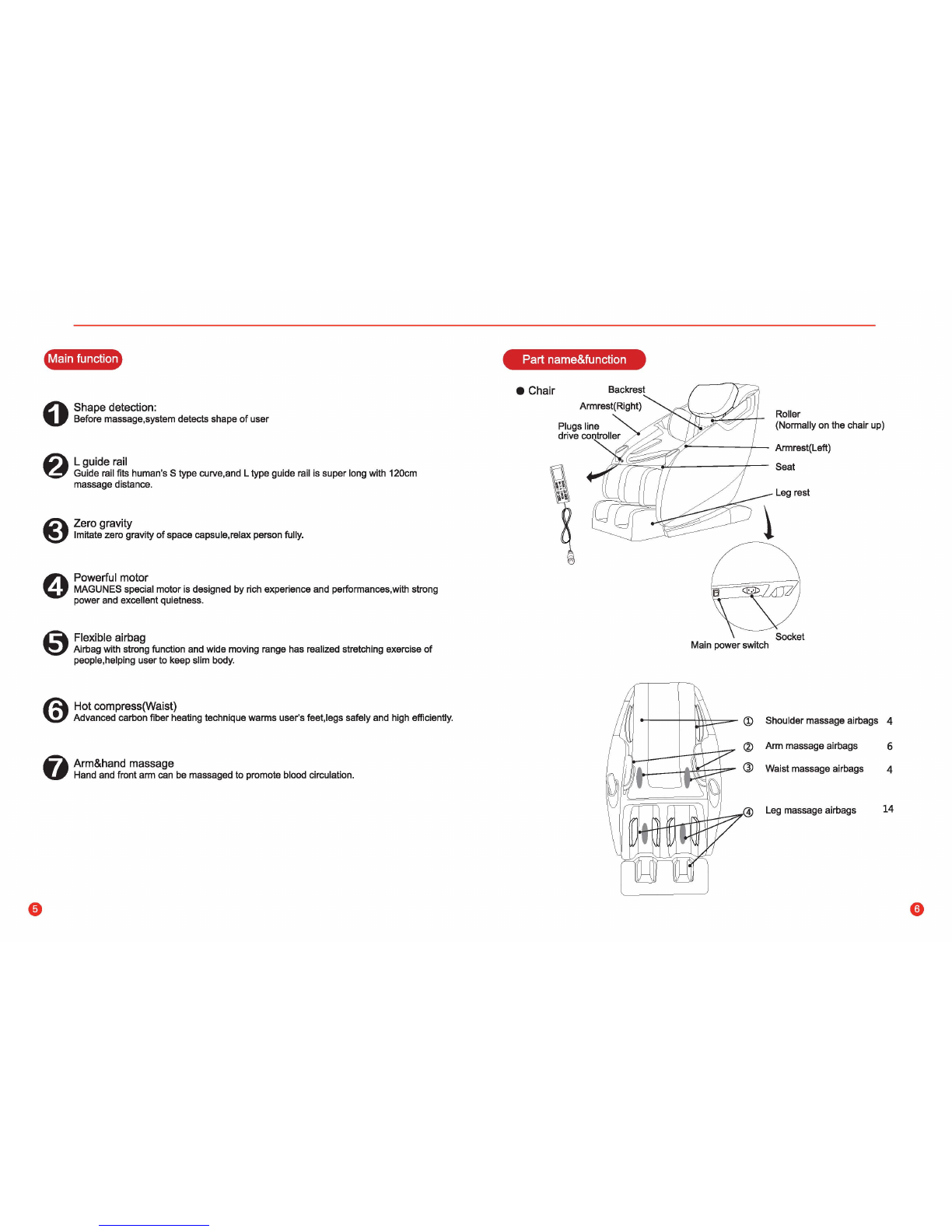

Part name&function
• Chair
Main powerswitch
Roller
(Normally on the chair up)
Armrest(Left)
Seat
Leg rest
® Arm massage airbags
® Waist massage airbags
6
4
Leg massage airbags 14

e Powercord and power socket
e Main powerswitch
e Controller
F ---
G ---
j ---
K ---
Attention1:Before inserting power cord,please ensure
main powerswitch is off.
Attention2:Do not disassemble
or replace the power
cord when it is damaged.Aretailer
or a qualified
professional shall be needed.
Tum on main powerswitch,the chair gets into standby
mode.
You can only adjust angle of chair and leg if not
pressing
any key on the controller.
After connecting power,press the button,the chair
begins to detect shape
of body,then itgets into the
A Power first automatic program "Man mode".lf pressing the
button again,the function shall be closed.Rated
working time
of the chairis 20 minutes.
-Press this button to
get into auto program menu,
according
to your body condition and massage
B Full auto time,you can choose man massage,elderly
massage,nlght sleep,stretchlng,neck&shoulder
massage,waist&back massage.(See LCD for
more details)
c Stop/start Ifpressing this button,the chair stops massage,
press again,it starts massage. -
D Airbag Press this button,you can choose part and
intensity
of airbags.
E Menu Press this button,you can choose auto program,
manual program,airbag,heating,roller massage.
(See LCD for more details)
F OK
Choose up,down,left,right,then press "OK'' to
confirm. -
G
Shoulder rising
When undermanual mode,press Up button to
adjustment
adjust the exact position
H
Shoulder declining
Press Down button to adjust the exact position
adjustment
I Heating Press this button to start heating,corresponding
icon shall be lighted,press again,heating shall be
-1- closed with icon not lighted
j Leg rising Press this button,leg shall rise automatically,press
again,rising stops
K Leg declining Press this button,leg shall decline automatically,
press again,declining stops
L Backrest rising Press this button,backrestshall rise automatically,
press again,rising stops
M Backrest Press this button,backrestshall decline
declining automatically,press again,declining stops -
Press this button to get Into zero gravlty,press
N Zero gravity again,closezero gravityfunction -
0 LCD LCD shows detailed operation condition
A\ WARNING e Please do not spraywater or other liquid on the chair.
LU • Do not operate the chairwith wet hand.
• Do not sit on the controller, do notdrop or step on the controller. Do not
~cAUTION pull overthe wire.
e Do not press the button with sharp object or itwill result in damage.
Before use
• Shoulder part is packed independently,ouraftersales person shall finish the lastassembly and
commissioning afterdelivery
• When the temperature is too low to run the machine, please increase the ambienttemperature
gradually, do not increase the temperature in sudden. Please move the chairto the warm place
and keep on waiting for 1 hour before starting.Or itwill result in moisture of parts and abnormal
operation.
---+ Or it will result in moisture of parts and abnormal operation.
Where to place the chair
Please make sure that the massage chair has about 30cm in front of it, leaving about
lOcm in
front of the chair to avoid touching the massage chair To walls or other
items.o
~
CAUTION
e Please do not use in a humid place such as sauna or bathroom.
e Place on a levels surface before use.
e Please do not use in the following situations: in a utility room or dusty place or
in high temperatures (over40'C).
e Do not place it in the sun or near heating appliances.
e Please keep cigarettes, ashtrays orflammable goods away from the massage chair.:,
e To prevent damage to the floor and reduce noise, please lay carpet under the massage
chair (do not use an electric blanket}.
e Please be careful placing this machines, as it is heavy.
e To avoid excessive noise, make sure the massage chair is a minimum of 1 meter away
from the TV, radio, and other AV machine.
e The weight of user should be below 100 kg.
II-. 'C. \ ,-· ,_ .. ..-,... ---:;_-:; .... ,_-
t' h " I '
i I ,
\\ - ~ • I I
\\ ' y I '
\\ ' \ }'
\\ \ \
\\ \ +I
\ \ \ ,
\\ ' I
' \ ... ,. ,.,'
OVER 30cm
t
I ,
,
.,
,
,
,
,
,
,
....... ...
OVER lOcm
---,
,, ....--------.<
,
,.
,
,
,
,

e Please ensure there is a chair and accessories inside the packing box
~----------------------------------------------------------~
, ~
' chair 1 Accessories
[
:~
I
Manual book
Warrantycard
1 Certificate
of approval
I
1 1 Accessories bag for installation
chair Controller Manual book Power cord 1
' ,
'-----------------------------------------------------------~
Moving method
When moving,please tum offmain powerswitch,then unplug the power plug.
Using casterto move
Please putthe back of the chair to the bottom and then hit the rear wheel, then move
• he chair cannot be moved if the passage is less than 75cm in width.
e Contactthe dealer in case you cannot move the chair normally.
• Due to the heavyweight
of the chair,make sure that it will notdamage
yourwaist
or other parts of your body during moving.
Controller is connected to the chair,make sure it does not fall during
11\. Attention •
~ moving.
• Do not move the chairwith person loaded.
e Please move the chair after unplugging.
--->Otherwise it may cause damages to the power plug,causing fire
disaster
or electric.
How to switch on the power
<D Insert powercord into outlet ® Turn on main power switch on the back
of the chair
*Ifthe rollers get stuck,turn of the switch and press the ON/OFF button,the roller will be
backto its initial position.
~Warning • Do not connect power cord to an external transformer
~ttention
'
• Ensure the main powerswitch is off before plugging the power socket or
controller.
e Please insert power plug and controller plug fully
• Read this manual book carefully before using,set the chair according to
the requires,ensure normal operation
Connecting the power
Checkthe power cord,power plug,socket on the chair,main powerswitch,
controller are unbroken for the first time use or use after long time storage.
Then plug power cord.
Power cord
Plug Controller Socket

Confirm the fabric
Make sure ifthe fabric is damaged according to the following procedures before use.
(!)Open zipperand back cushion
from one side ® Put your hand between cushion and
backrest to see ifthe fabric is damaged.
Fabric
Open from this side
Lt
Before using the chair, confirm that whetherthere is damage in the material
of the armchair or of other parts. In case of damage, even the smallest tear-
ing, in the chair, please stop using it immediately, trun off the power switch,
unplug the chair, and contact the customer service center. Never use the
armchair with dismantled cushion or damaged material, otherwise there will
be serious safetyhazard.
Caution
Adjustthe chair
Sitting in the chair
Under general circumstances,the rollers are laid folded at the upper waist
of the backrest,
besides,legrest declines to its lowest position.Piease ensure the position of the rollers and
legrest.lfthe rollers and legrest are laid other place,restartthe chair,keep on waiting for the
parts return to its initial position,then sit in the chair slowly.
After using,slowly step out of the chair.
Lh
Attention
• Do notsit in the chairwhen legrest is rising,or after legrest rises,it may
result in accident or reclining chair,causing personal injury.
• Raise the chair before using.Enjoy the massage from light massage course.
Adjustthe angel
of your reclining angel according to your bodyfigure.
• Do notstand on the legrest, it will break the legrest or even the whole chair.
Adjustment of chair angle
Press this,
legrest rises
Press this,
legrest declines
---- Press this,chair rises
,_ ___ Press this,chair lies
Attention:When main powerswitch that is at the back of the chair is on,angle adjusting
can still be done even not pressing On/Offbutton
of controller.However angle adjustment
is unavailable when in emergencystop condition.
When adjusting angle,please make sure there is no person(Especially
children)
or pet around.Besides,there must be at least 30 em space at
the front or back of the chair,and there is no foreign matter in the way
when rotating.
Adjustment of legrest
Legrest can be lengthened if feet can not extend well.lt can be lengthened by 160mm.
When lowering legrest,make sure there is no person(especially
&warning children) or pet around.Besides,hands or otherobject can not
get stuck underthe legrest.

elf massage intensity ofneck needs to be strengthened,please fold the pillow.
&Attention
When pillow is folded,massage intensity ofneck is
strengthened,please
keep massage time within 15 minutes.
There is heavyobject in the balancing bag of pillow,do not
play with it,otherwise itmay cause injury.Keep children
away from this place
Starts massage
1. Connecting the power,turn of main powerswitch II
-----=---.....:....--..;......__-.:......-- _ ____,
------~--- ~ ~ ·· ~ · ~
2. Press On/Offbutton,start auto program(Male mode) II
L...--- ____ _____;;,__.;:;......___,;_~
You can also selectthe appropriate massage procedure bypressing the
menu key or otherfunction keys.
3. Feather key and confirmation key II
a...,___ _ ____,;;,___ __ ______;;,__ __ ______.
Use feather key and confirmation key to go through menu,move cursor,and choose
different program.
4. Stop key II
~~~~~~~-------'
Press this key,the machine stops all the massage function,press again,massage
function is back.

Image display example
Notchosen item shows white or does notshow,once chosen,it shows colors.
Homepage Shape detection Heating function Roller function
Auto mode Manual mode Time setting Language setting
Airbag massage Airbag intensity Bluetooth setting

Music play
Active speaker is built inside the chair,usercan play music by using bluetooth connection.
Massage with musicaround can promote massage effect
~Attention • When playing music,tum down first,after adapting,slowly turn up.
After use
Rise the chair up and lower the footrest completely.
Press ON/OFF key to tum off the chair, wait until chairgets back to its initial status.
After airbags deflate completely,rollers get back
to its initial position,sole massage stops,
heating stops,then step out of the legrest.Do not stand in the legrest.Tum off main power
switch,unplug powerplug.
~Attention
Afteryou use the chair, turn off the main powerswitch, and unplug the
power plug from the socket.
-+Otherwise, accident
or injuries may be caused by children or pets.
Afteryou use the chair, be sure to raise back completely and lower
the footrest completely.
Afteryou use the chair, please clean it and place it in dry places.
When unplugging the power cord, please do notpull it directly;
instead, you should unplug it pinching the powerplug.
Please
be sure to putthe powercord away in prevention of tripping
over.
Troubleshooting
If there is still a problem aftertrying the solutions given in this troubleshooting guide,
stop using the chairimmediatelyto prevent accident
or injury, and unplug the power
plug from thewall outlet. Contactthe vendororyournearestservice centerforassistance.
Problem
The right and left
rollers are out
of Ill...
alignment. ,.
The roller moved to Ill...
the bottom and ,.
stopped
Noise during Ill...
chairoperation ,.
The rollers stop ..,.
during the II""
massage.
No power
or the
chair
can' t work ..,.
afterpressing the II""
button
bnormal heating
n powercord an ur- -
lug
Causes and troubleshooting
T he rollers are designed with an ._- ~ _s o m
alternating tapping mechanism, ~ ~
so in the stopped position they are 1. scm
0
sometimes out of li ne.This is part
of the design and is not a malfunction. o
The autotim er will cause the rollers to move up to the
bottom of thechairwhen the massagetime is fini sh-
ed, so as not to inte rf erewith your movements when
gett ing out of t he chair.
Noi
ses during tapping
So und of the ro ll ers rubbing against t he seat cover
during kneading
So und of raising and low er ing the rollers, sound of
roller operations
So und of the airm assage cushions
So und of the air pump
So und of air d i schar~e
Sound of raising and owering the Reclining Seat Back
Sometimes when there is too muc h pressure to
the rollers, th ey can sto~ mo ving tempor arilfu.
1--
Slig h t~ lift your body or ightly ra1se the Rec 1ning
Seat ack. (Be especial!~ careful when a gerson
who weighs 100 kg (220 ) or more uses t is chair)
Ch eck for the following:
~ Is thepowercord f u l ~plugged into thewall outlet?
Is the main
POWE sw1tch located at the fran
right
of the chair set to ON?
@ Are you pressing two buttons at the same time?
Stop using immediately.
( Contact the
ven d or or you r nearest
service center.
Anyone other than an authori zed serviceperson must
not repair or disassemble.
3--1
ro;!.
:::::t=;U>
C-·
::JU>
$4."0
-·ro
§;::+
·o
-+,
.-+
::::r
CD
0..
CD
U>
ciS"
::J
ro
::J
0..
(j)"
::J
0
.-+
ro
U>-
.-+-+,
or-+
"0~
~ca
s·cn·
(.QU>
r-+d::
::::r=
CDro
"Ol:J
a...,
0..0
ccr
a co
=:3
3§1
3CD
CD-,
0...-+
-·::::r
~CD
CD a
'<::::r
·co
(")
F

Safety check
Regular MaintenanceWill Preserve the Life of Your Chair
Have you experienced
any of these problems?
• The chair does not startwith the Main POWER switch set to ON. ~ . ----=---:-~-:---::--:--:---~
• The powercord has been cracked or scratched. Ifyou find anything listed
• The powercord or plug becomes abnormally hot. on the left, stop using and
. . . unplug the powercord
fium
• The cha1r produces a burntsmell, abnormal sound or v1brat1on. the outletto preventfailure
• The auto timerfunction does not work in some cases. or an accident. Be sure to
• Otherfailures. =~v;~~
To use safely
The chairfabric (rollerfabric) is a consumable part, and its service life is 3 years
(conditions
of use: two 15-minutesessions a day, every day).
Forsafe use, periodic inspection
by thevendor is recommended beforethe end of its
service life.
*Durable years vary depending on conditions
of use.
* After aboutfive years
of use, a professional inspection is recommended even ifthere
are no symptoms
or problems. For inspection fees, contactthevendor.
Storage and care
Storage
• After cleaning the dirt and dust, place the chair in a dry place
e If the chair is left unused for a while,please cover the chair to prevent from dust.
• Pets sometimes chew on power cord,so try to keep the pets away from the chair
even when it is stored.
lh Caution Do not install the chair where it can come into contact with direct heat,
such as direct sunlight or a radiator.
Care and Maintenance
rearing forthe Back Pad and Covers]
Soaka piece of soft cloth in lukewarm water in which a small amount of mi ld detergent
has been added. Then thoroughlywring it
out before cleaning off any spots or grime.
rearing
for Other Plastic Parts1
Soak a piece of soft cloth in lul<ewarm water in which a small amountof mild deter gent
has been added, thoroughly wring it out
1 and clean
off any spots or grime. Then w1pe
with a dry cloth so that no detergent res1due remains.
AI. Caution • Do not use alcohol-based or other household cleaning products or ab rasi ves
£..U because the can scratch or crackthe finish or cause color to fade.
rearing forthe Remote Control]
Wipe dirt off the remote controlwith a dry cloth.
~Caution • N ever use a mo istened or we t cloth. May result in a mechanical failure.

Product specification
Type
Power
Rated power
Rated time
Dimension
Weight
Outer material
Accessories
Garnet 610
AC 220-240V .... 50/60Hz
120W
10 20 30 minutes
Approx 74cm*136(164)*107(87) (W*L*H) The length and height figures in()
represent the dimensions when fully reclined.
About 70 KG
Synthetic leather,chemical fiber lining
Main powercord,audio connecting wire,blanket(Optional),manual book,warranty
card,certificate
of approval,accessories bag for installation
About
81cm
I
About
45cm
I
, ..,. ""' ~ <=- -::.. ~ . : ~ ,...-/ ~ - :;-; - .::~ ... -- -
~ ~ .. - - ... \ IL /
1\ ' ~ ' '
\\ ' ' I
1\ \
\1
1\ \ f
, , ' ... J
\ \_ ~ - /
'
'
'
About 164cm
About 136cm
About
87cm
About
107cm
